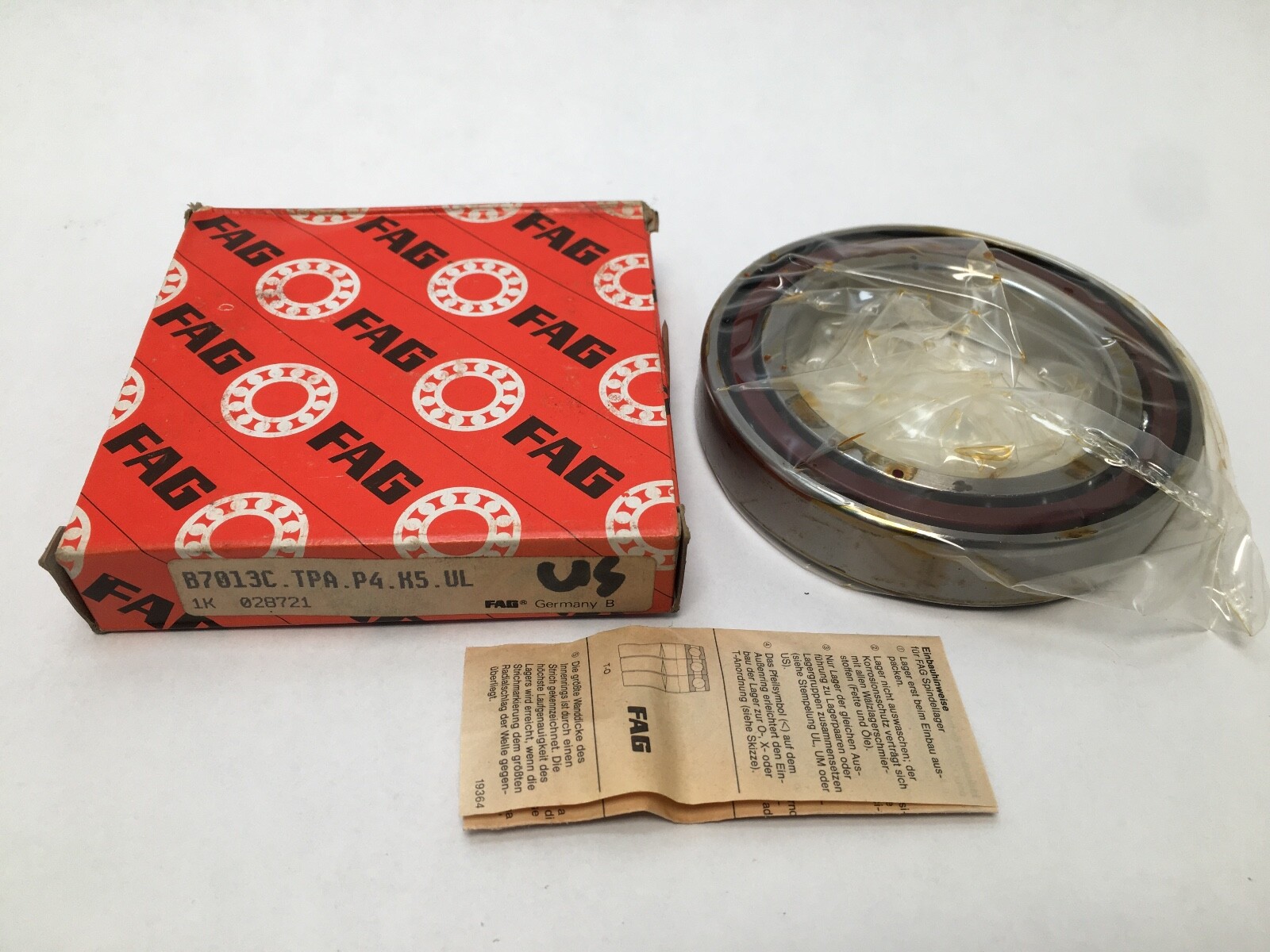

FAG B7013-C-T-P4S-UL angular contact ball bearing, shown unwrapped beside its red FAG box and paperwork

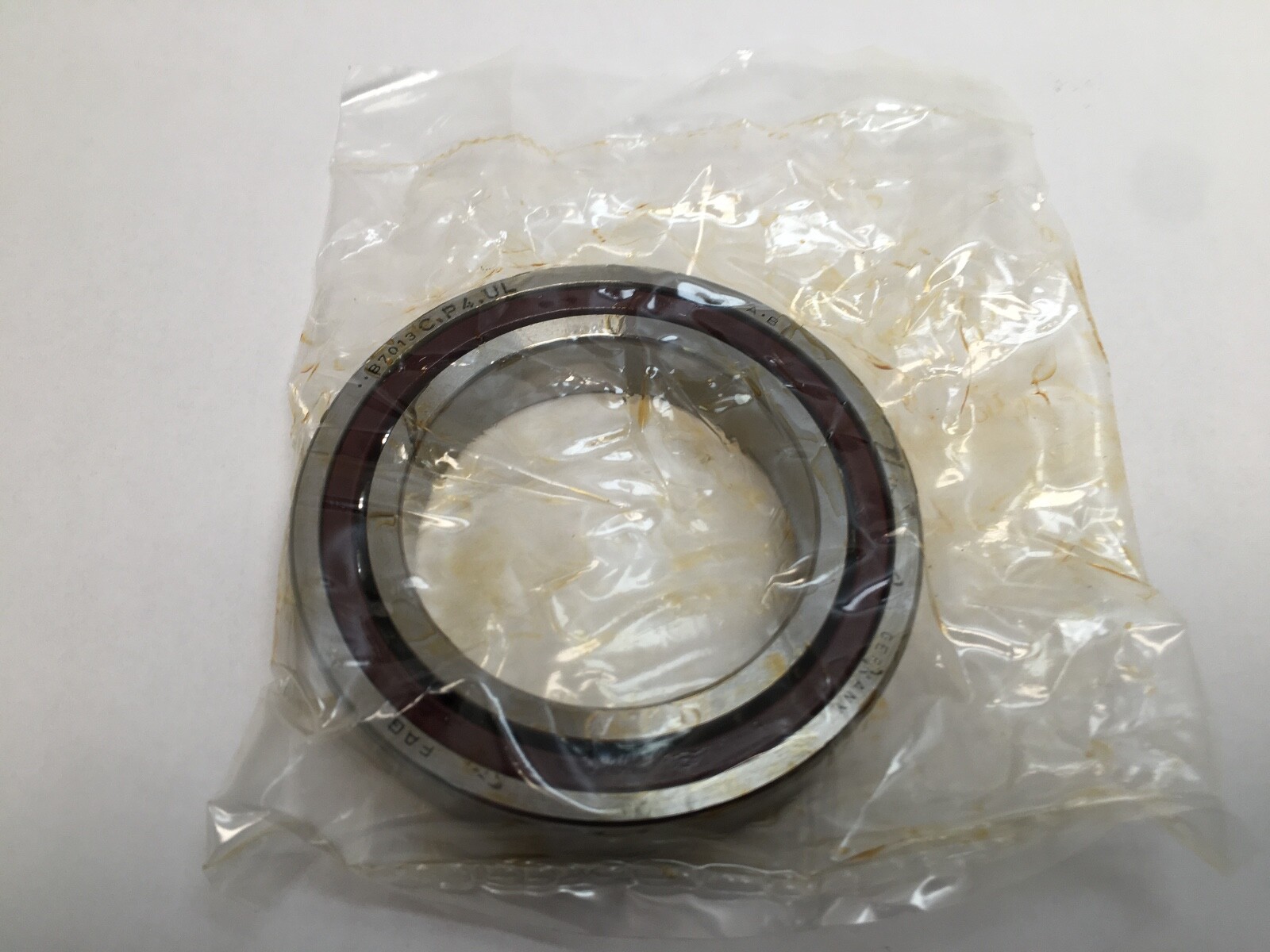

FAG B7013-C-T-P4S-UL angular contact ball bearing in plastic packaging

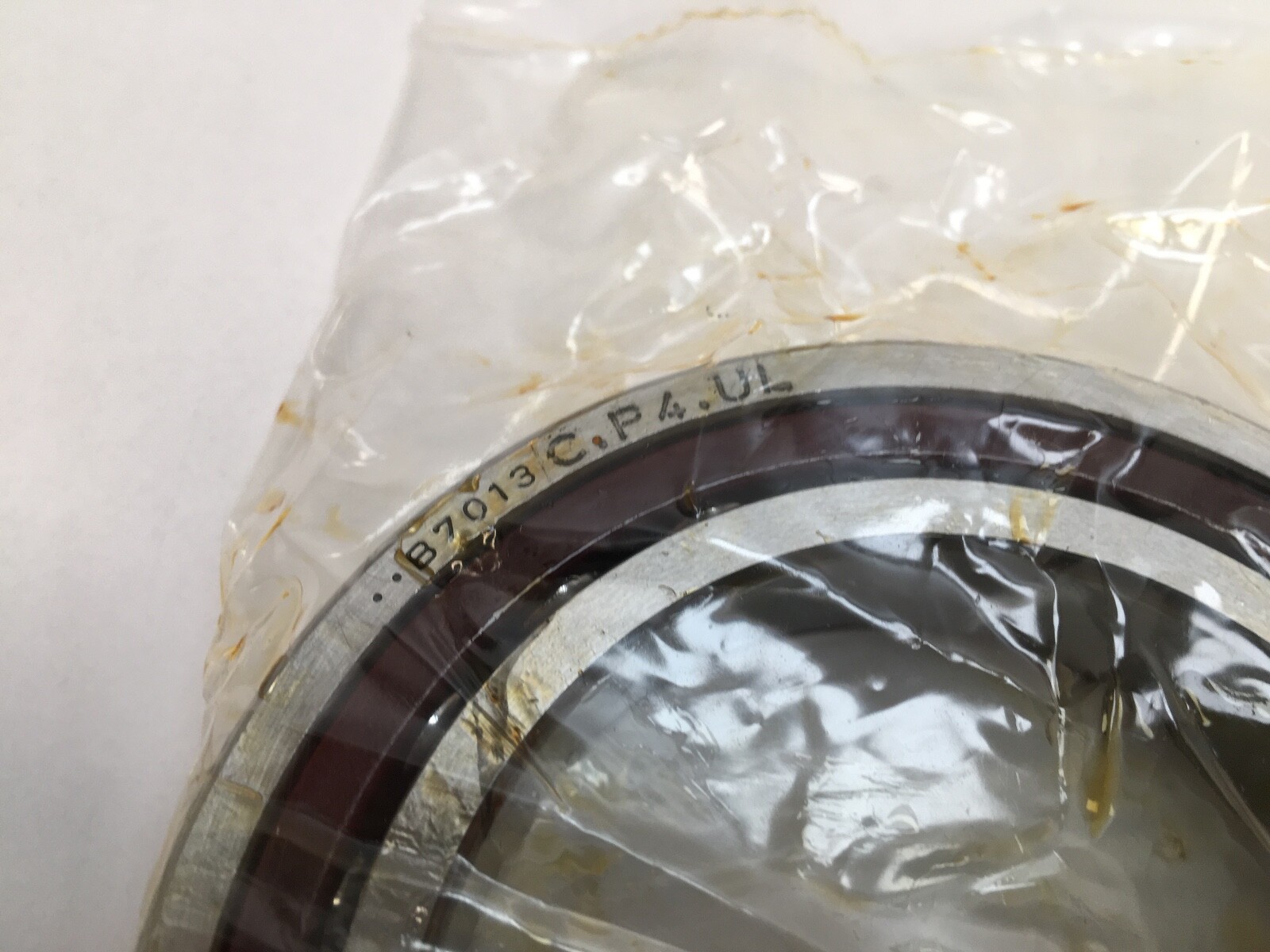

FAG B7013-C-P4-UL angular contact ball bearing wrapped in plastic, showing engraved part number

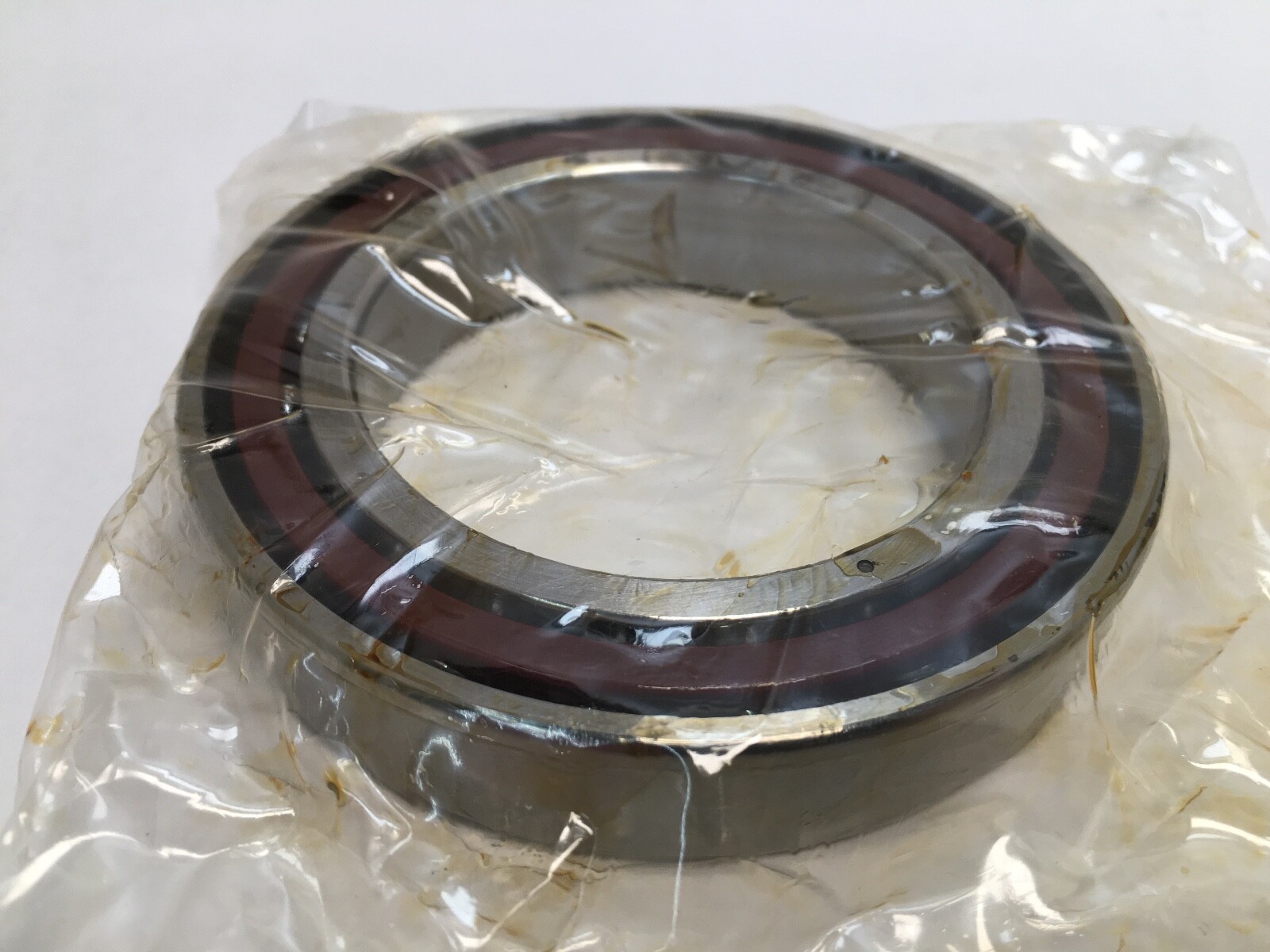

FAG B7013-C-T-P4S-UL angular contact ball bearing wrapped in plastic, showing inner and outer rings

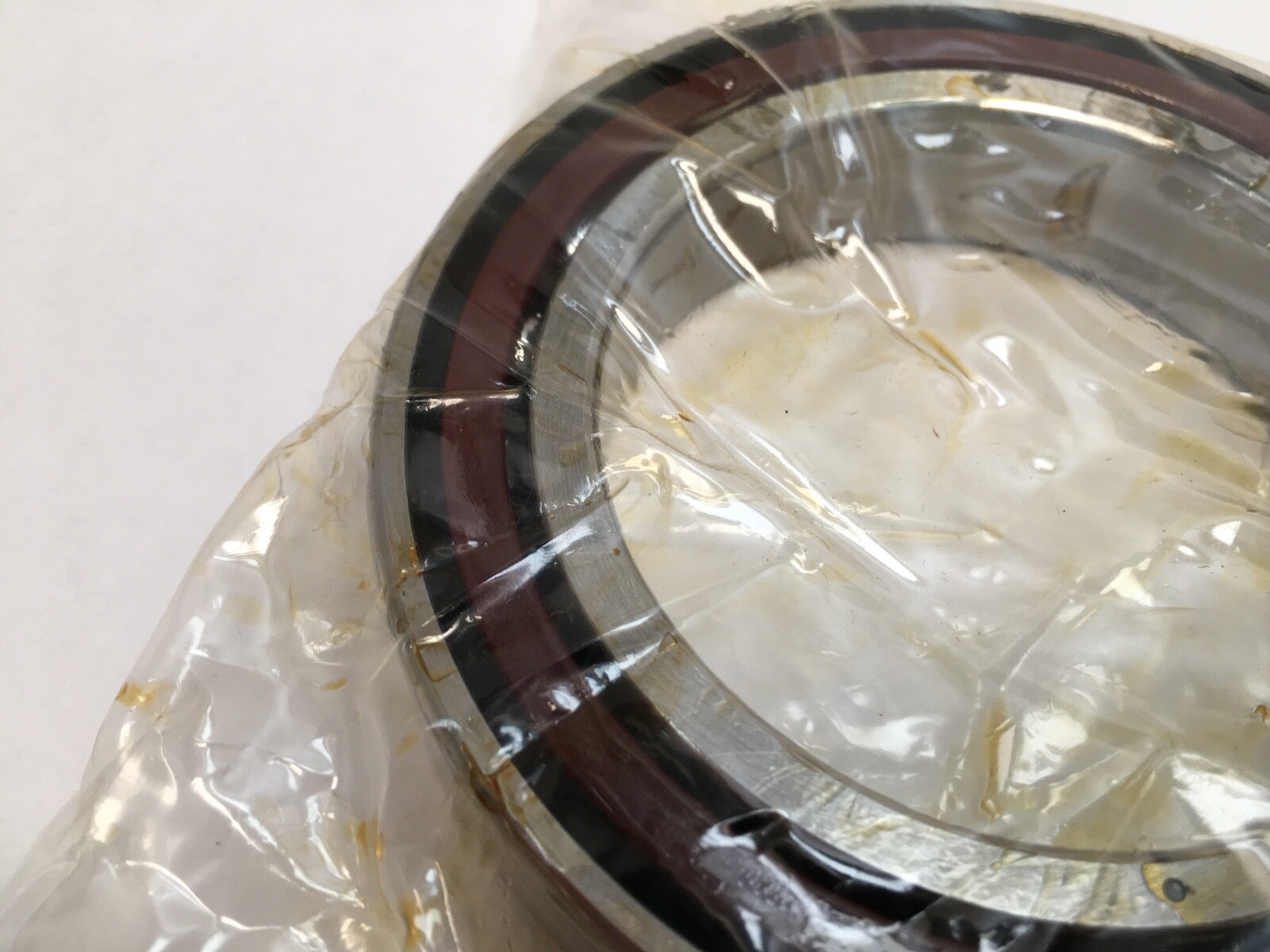

FAG B7013-C-T-P4S-UL angular contact ball bearing wrapped in plastic, coated with protective oil

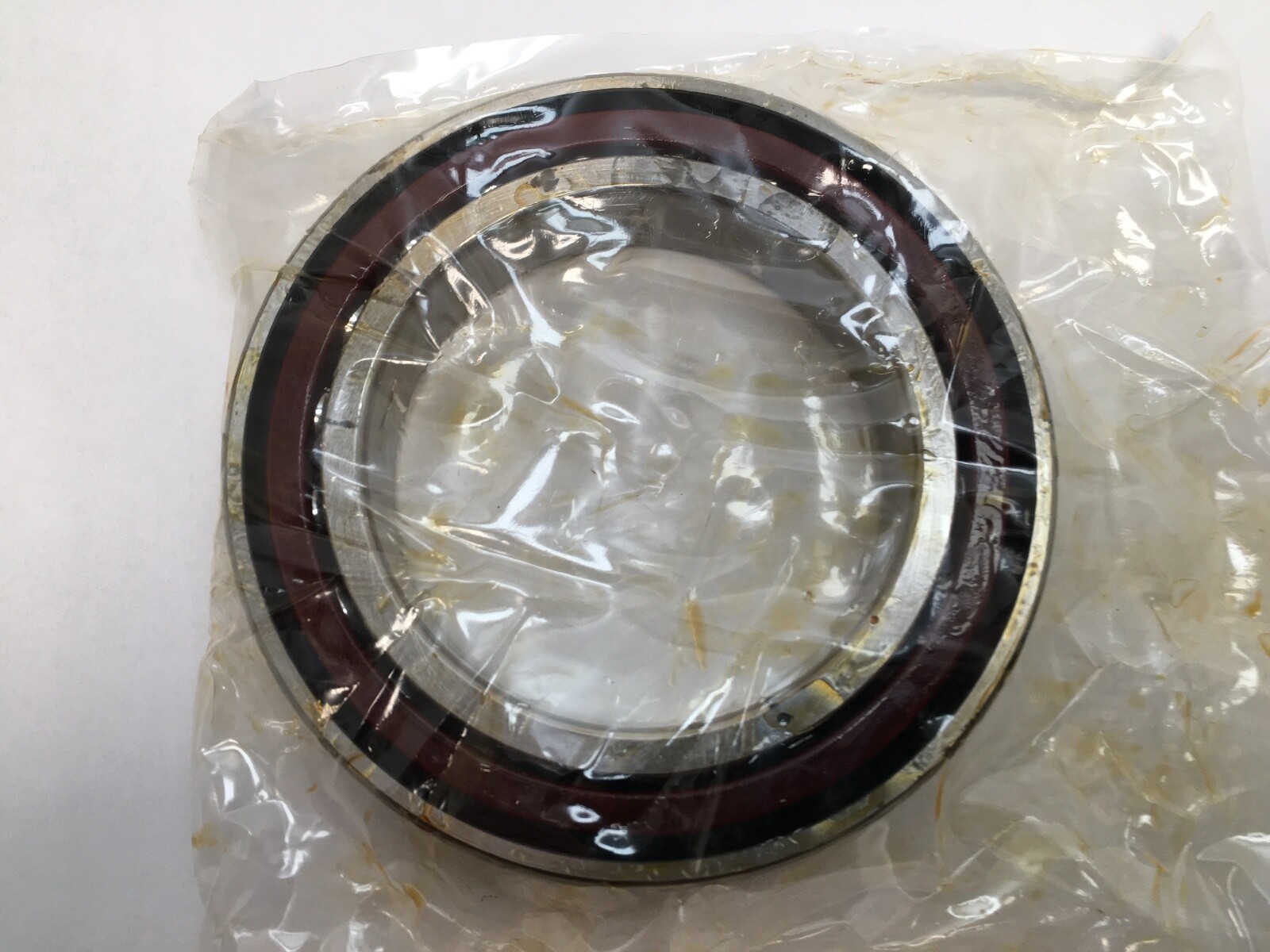

FAG B7013-C-T-P4S-UL angular contact ball bearing, shown in protective plastic packaging

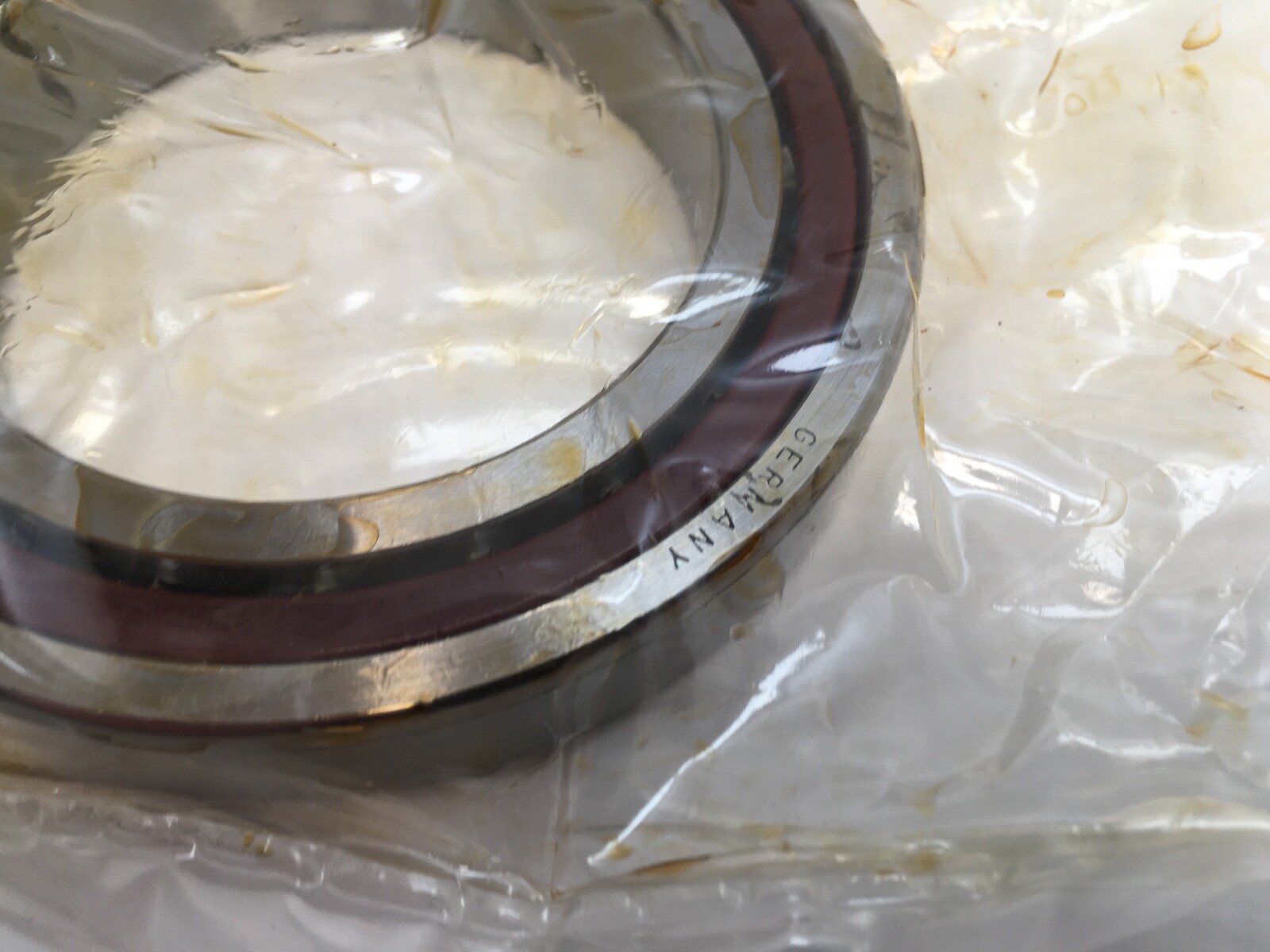

Close-up of FAG B7013-C-T-P4S-UL angular contact ball bearing wrapped in protective plastic

13k+ reviews

See our eBay reviews

FAGB7013-C-T-P4S-ULAngular Contact Ball Bearing – 65 mm ID, 100 mm OD, 18 mm Width, 15° Contact Angle, P4S, Light Preload

Name: FAG B7013-C-T-P4S-UL Angular Contact Ball Bearing – 65 mm ID, 100 mm OD, 18 mm Width, 15° Contact Angle, P4S, Light Preload
Brand: FAG
SKU: B-AE4B5#DOSTYF
Price: 156.07 USD
Availability: InStock

Condition: New

Availability:

1 in stock

Categories: Bearings, Angular Contact Ball Bearing

FAG B7013-C-T-P4S-UL super precision spindle bearing, 65 x 100 x 18 mm, 15° contact angle, P4S, universal light preload. Phenolic cage, open.

List Price

$156.07

1 in stock

Prefer eBay? Visit our store (opens in a new tab)

Need Help?
Click Here To Contact Support

Specifications

Key Specifications

MFR / Brand	FAG
MPN	B7013-C-T-P4S-UL
Model	B7013-C-T-P4S-UL
Bearing Type	Angular Contact Ball Bearing, Open
ID	65 mm
OD	100 mm
Width	18 mm

Technical Specifications

Material	Bearing Steel
Series	B70
Preload	Light
Min Temp	-30 °C
Dynamic Load Rating	41,500 N
Static Load Rating	25,500 N
Rolling Elements	Ball
Max Temp	100 °C
Item Weight	0.42 kg (0.93 lb)
Cage Material	Phenolic
Number Of Rows	1
Bore Type	Straight
Snap Ring Included	No
Harmonization Code	8482.10.50
Contact Angle	15°
Mounting Arrangement	Universal
Limiting Speed	14,000 rpm grease; 22,000 rpm oil
Base Number	B7013
Overall Width	18 mm
Mpn Variants	B7013C.TPA.P4S.UL, B7013C.TPA.P4.UL, B-7013-C-TPA-P4-K5-UL, B7013CTPAP4K5UL, 7013C
Compatible With Replaces	B7013C.TPA.P4.UL, B7013C.T.P4S.UL
Precision Class	P4S
Additional Attributes	Preload force Light 214 N; Axial rigidity Light 67 N/µm; Effective load centre a 20.1 mm

Cross-References

Cross Reference 1	SKF 7013 CD/P4A
Cross Reference 2	Fafnir 2MM9113WI
Cross Reference 3	NSK 7013CTYNSULP4
Cross Reference 4	SNFA VEX65 CE1

Seller Part Number: B-AE4B5#DOSTYF

Product Description

What this part is

FAG B7013-C-T-P4S-UL super precision angular contact spindle bearing. Bore Diameter: 65 mm. Outside Diameter: 100 mm. Overall Width: 18 mm. Contact Angle: 15°. Precision Class: P4S. Preload: Light. Cage Material: Phenolic. Closure Type: Open. Rolling Elements: Ball.

Decoding the designation

B70 — FAG spindle bearing, ISO dimension series 10.

13 — bore code, 13 x 5 = 65 mm.

C — 15° contact angle.

T / TPA — fabric-base laminated phenolic cage.

P4S — Schaeffler precision class with P4 dimensional accuracy and tighter running accuracy.

UL — universal design, Light preload when mounted in any O, X or tandem arrangement.

What these specs mean in practice

Dynamic Load Rating: 41,500 N. Static Load Rating: 25,500 N. Limiting Speed: 14,000 rpm grease; 22,000 rpm oil. Item Weight: 0.42 kg (0.93 lb). Operating temperature: -30 °C to 100 °C. The 15° angle favours speed and radial stiffness; universal grinding allows any pair or set arrangement.

Preload force, Light: 214 N. Axial rigidity, Light: 67 N/µm.

Mounting data

Fillet radius r min: 1.1 mm. Abutment da: 72 mm. Abutment Da: 93 mm. Effective load centre a: 20.1 mm.

Quantity and configuration

Unit Quantity: 1 Pc. Single universal bearing.

Interchange guidance

Compatible With / Replaces: B7013C.TPA.P4.UL, B7013C.T.P4S.UL. Cross-Reference: SKF 7013 CD/P4A, Fafnir 2MM9113WI, NSK 7013CTYNSULP4, SNFA VEX65 CE1. Same 65 x 100 x 18 mm envelope at 15°.
