Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock

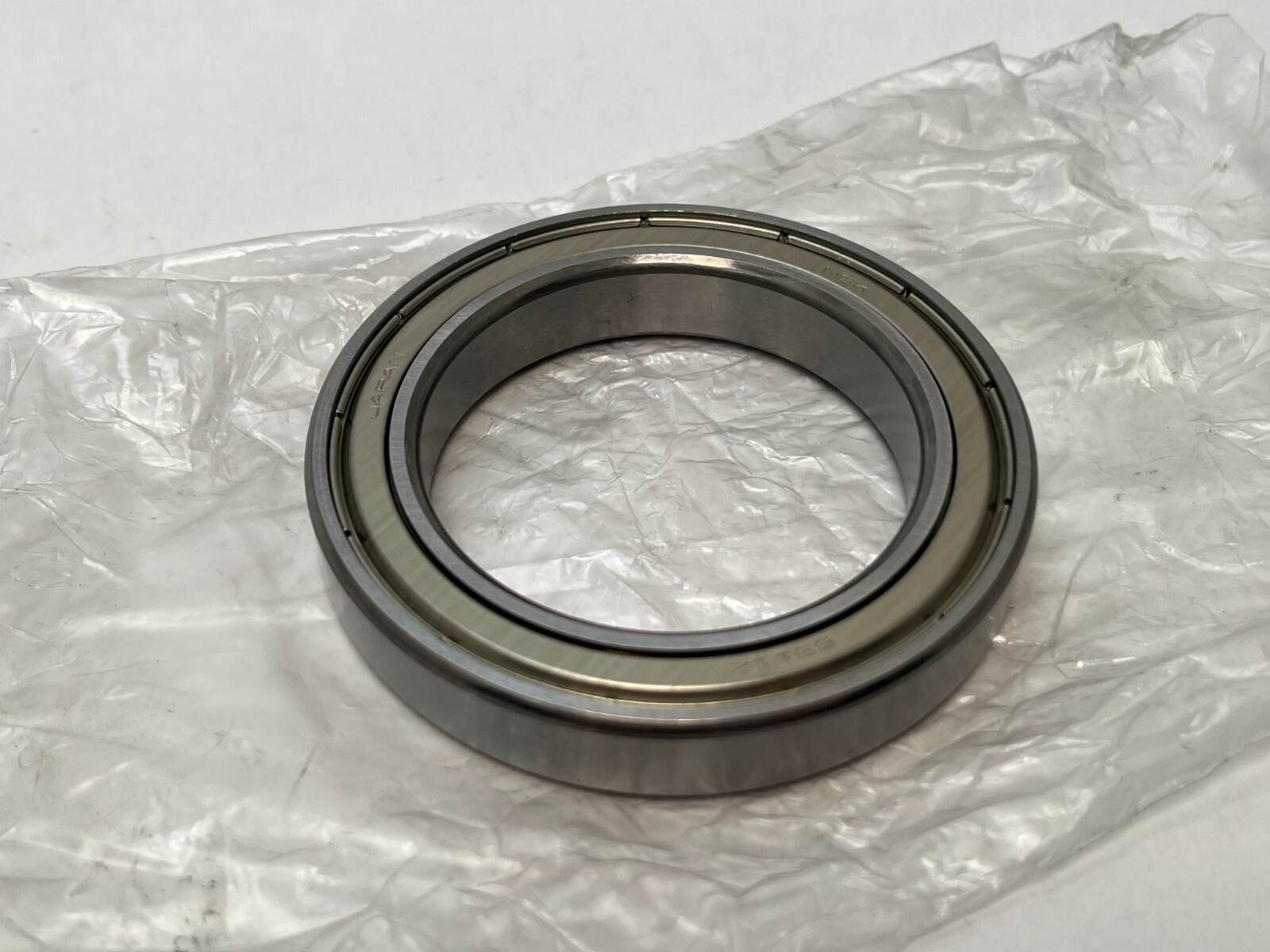

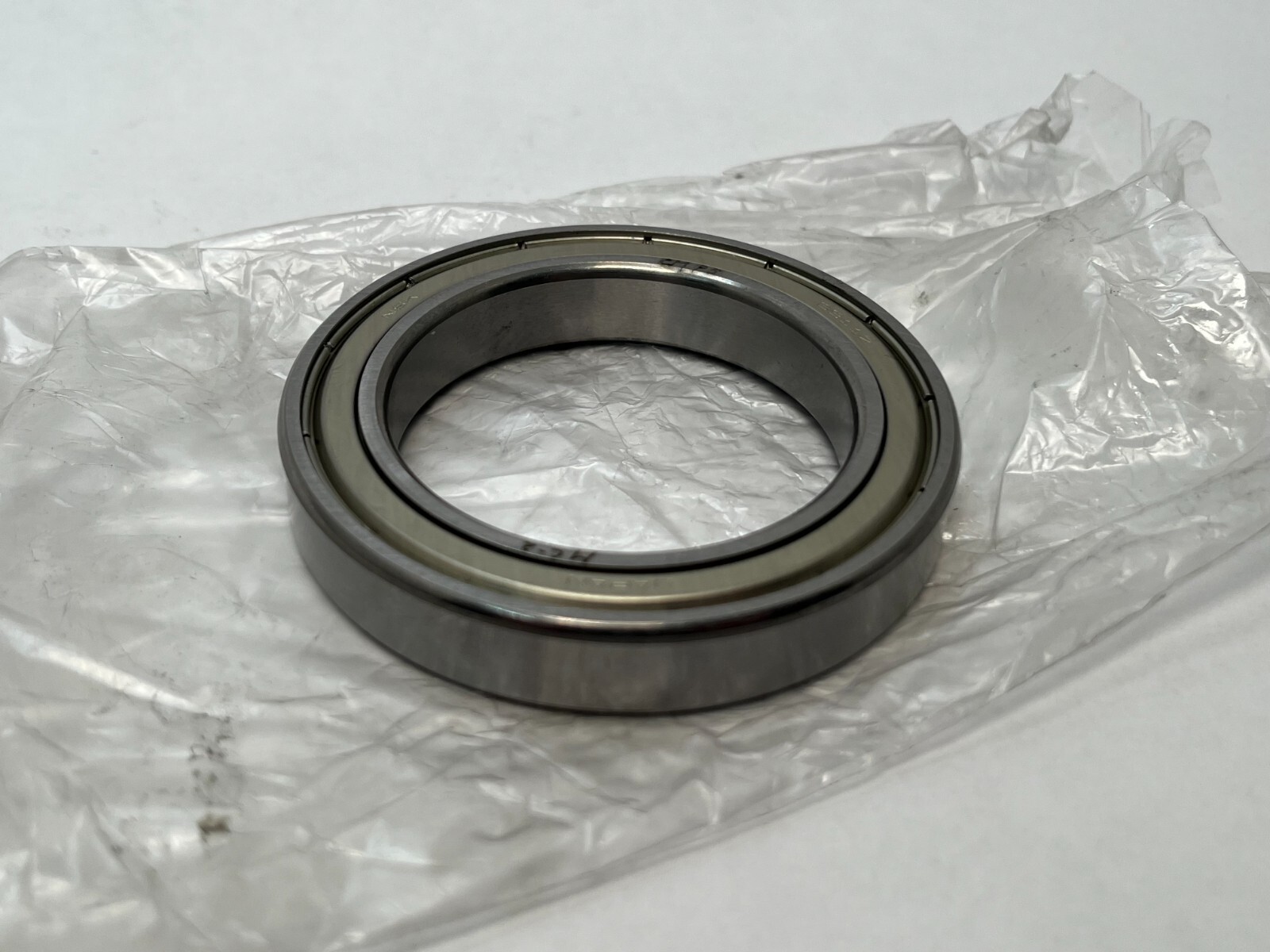

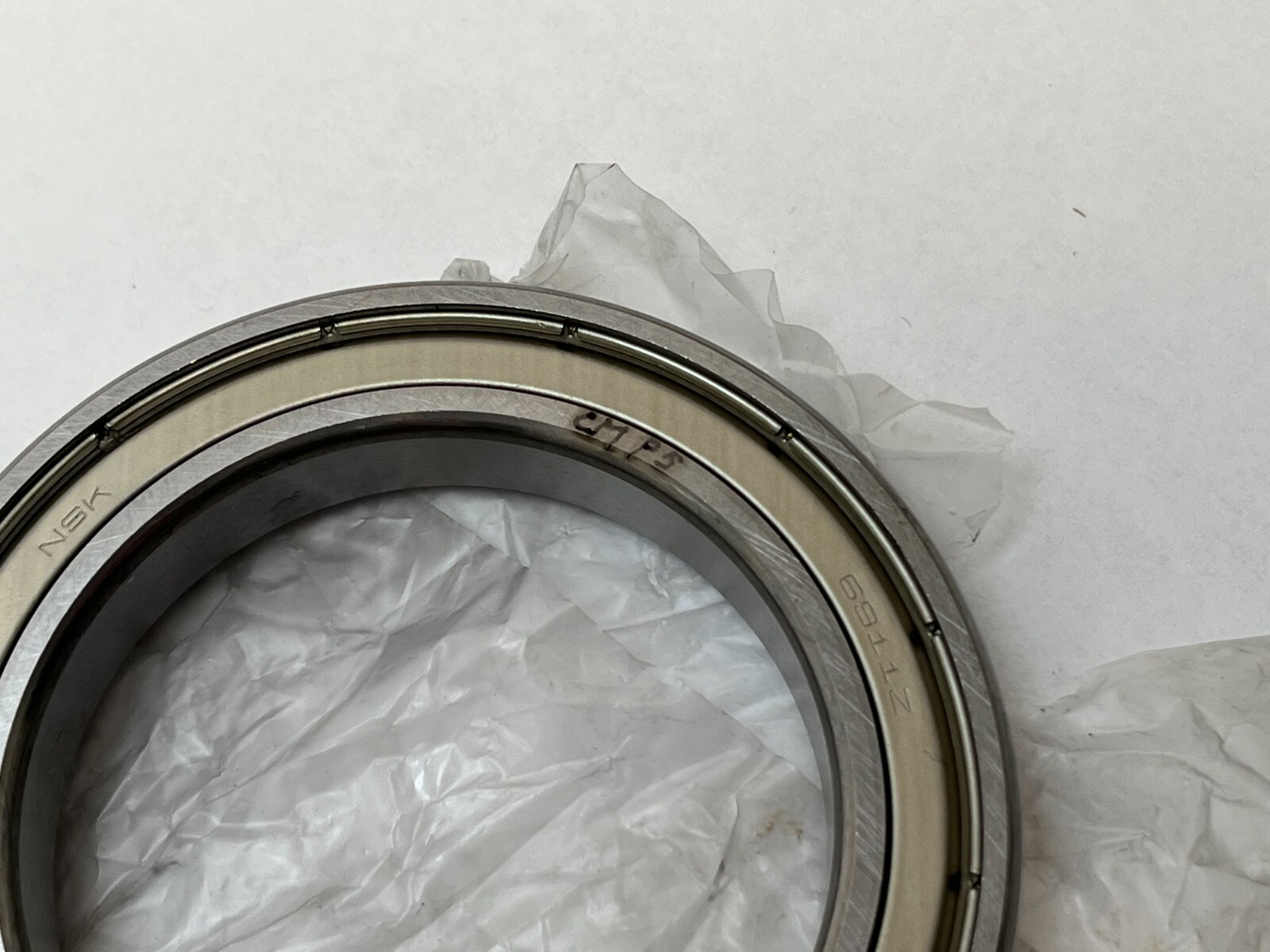

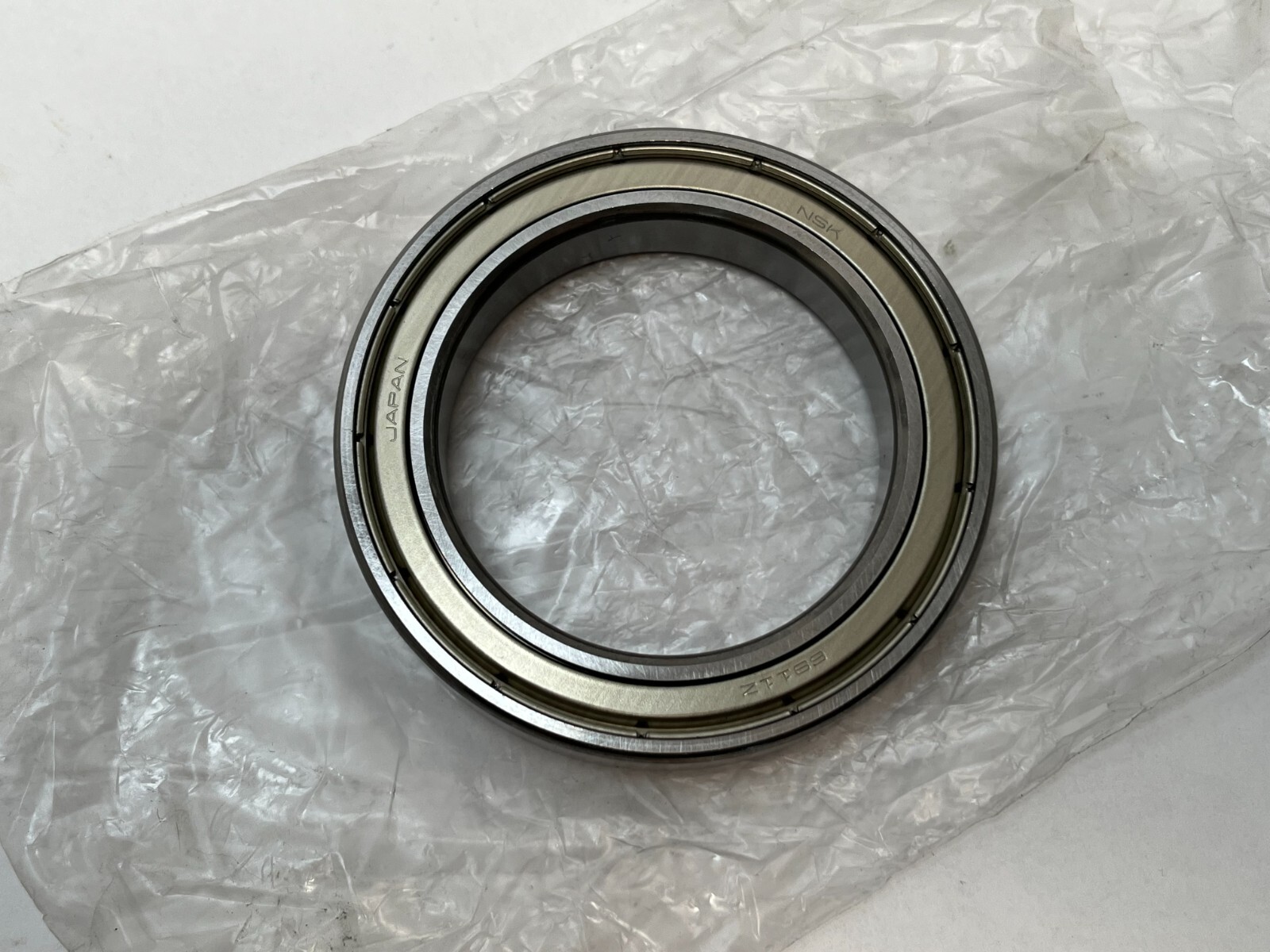

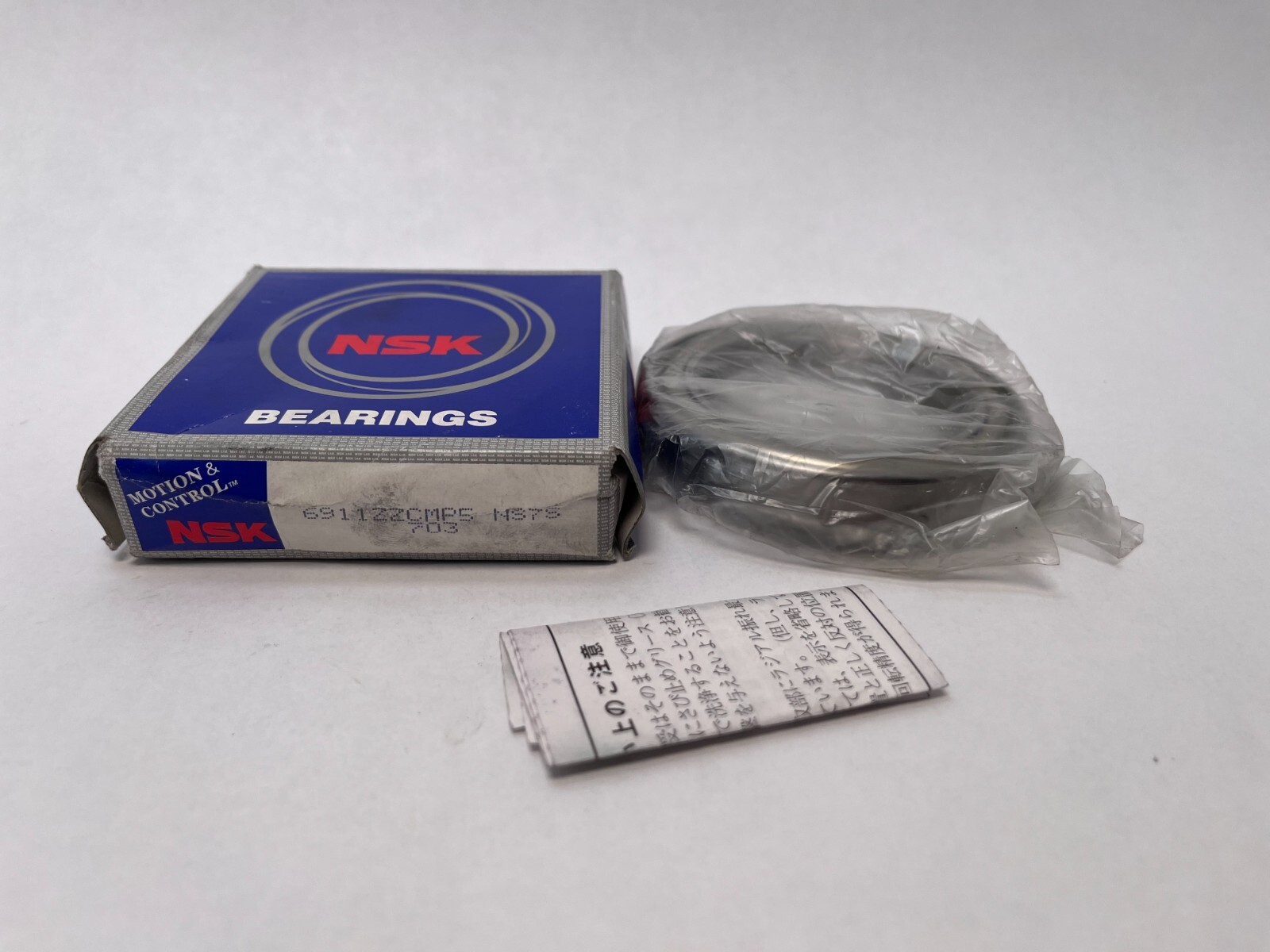

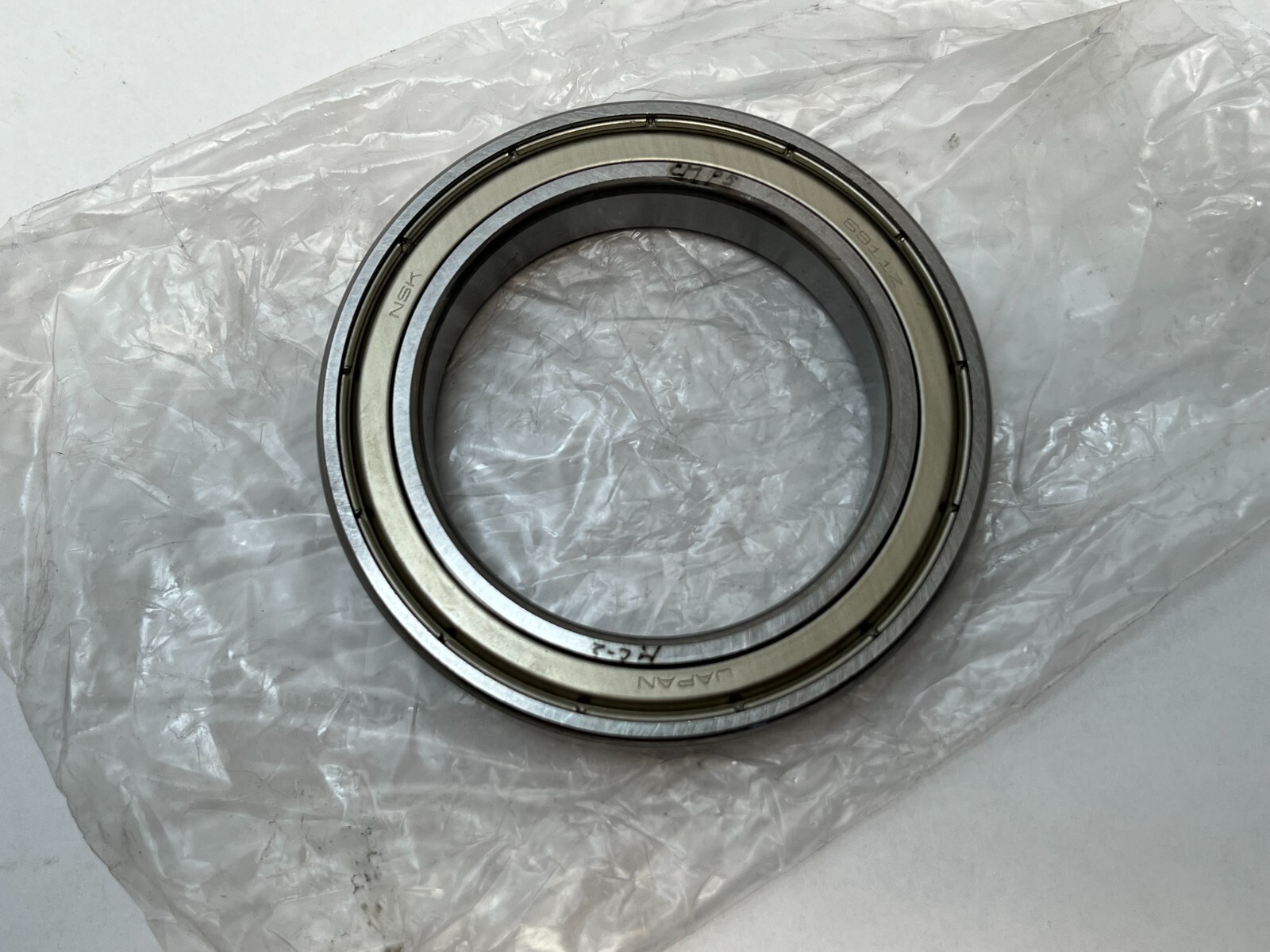

Thin-section deep groove ball bearing, 55 x 80 x 13 mm, steel shields both sides, P5 precision, CM clearance. Dynamic load rating 17,600 N, 8,000 rpm grease.
List Price
$53.52
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| Model | 6911 Z ZZ CM P5 ABEC5 |
| Bearing Type | Deep Groove Ball Bearing, Shields both sides |
| ID | 55 mm |
| OD | 80 mm |
| Width | 13 mm |
| Series | 69 |
|---|---|
| Lubricant | Grease |
| Material | Bearing Steel |
| Dynamic Load Rating | 17,600 N |
| Static Load Rating | 13,300 N |
| Rolling Elements | Ball |
| Item Weight | 0.189 kg (0.42 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 8,000 rpm grease |
| Harmonization Code | 8482.10.50 |
| Internal Clearance | CM |
| Mpn Variants | 6911ZZCMP5, 6911ZZ, 61911, 6911-ZZ-CM-P5, 6911-ZZ-XM-P5, 6911Z |
| Precision Class | ABEC 5 / P5 |
| Cross Reference 1 | SKF 61911-2Z |
|---|---|
| Cross Reference 2 | FAG 61911-2Z |
| Cross Reference 3 | NTN 6911ZZ |
| Cross Reference 4 | Koyo 6911ZZ |
NSK 6911ZZCMP5 thin-section single-row deep groove ball bearing, 69 series (ISO 61911), with steel shields on both sides, CM electric-motor clearance and P5 precision. Bore Diameter: 55 mm. Outside Diameter: 80 mm. Overall Width: 13 mm.
6911 — NSK 69-series thin-section deep groove ball bearing, 55 mm bore; ISO designation 61911.
ZZ — steel shields on both sides, grease-filled.
CM — NSK radial internal clearance for electric motors.
P5 — ISO class 5 tolerance, equivalent to ABEC 5.
Dynamic Load Rating: 17,600 N. Static Load Rating: 13,300 N. Limiting Speed: 8,000 rpm grease. Item Weight: 0.189 kg (0.42 lb). Precision Class: ABEC 5 / P5. Internal Clearance: CM. Closure Type: Shields both sides. Cage Material: Pressed steel. Rolling Elements: Ball. Number Of Balls: 16. Ball Diameter: 7.144 mm. Bore Type: Straight. Snap Ring Groove: No.
Chamfer r min: 1 mm. Shaft Abutment Diameter da: 60 to 61.5 mm. Housing Abutment Diameter Da max: 75 mm. Fillet Radius ra max: 1 mm.
Same envelope and shield arrangement as SKF 61911-2Z, FAG 61911-2Z, NTN 6911ZZ and Koyo 6911ZZ; P5 class is tighter than the standard-class equivalents. MPN Variants: 6911ZZCMP5, 6911ZZ, 61911, 6911-ZZ-CM-P5, 6911Z.
What is the ISO equivalent of the NSK 6911ZZ?
61911-2Z, 55 x 80 x 13 mm.
What precision class is it?
P5, equivalent to ABEC 5.
Is it shielded or sealed?
Steel shields on both sides (ZZ).
