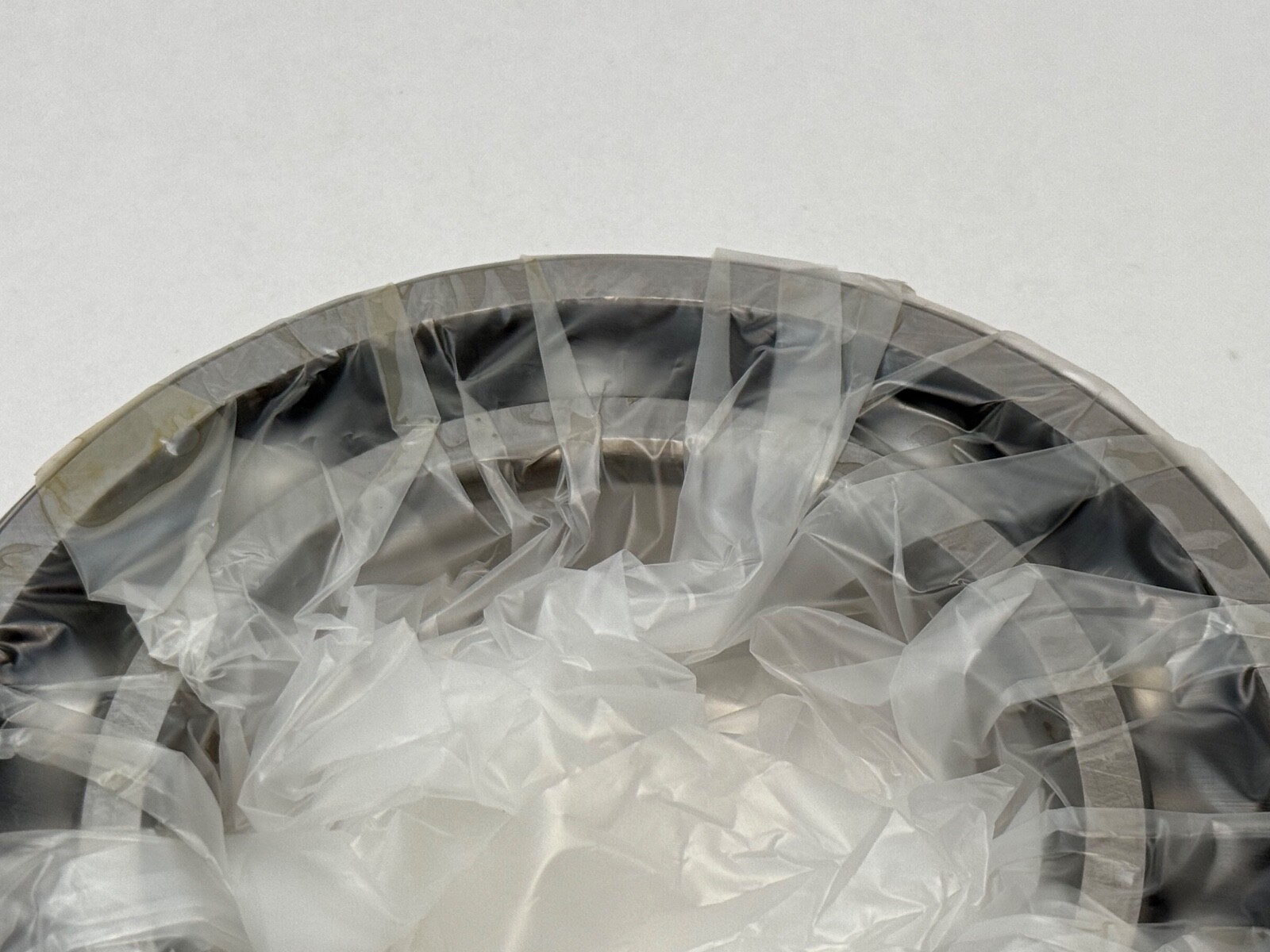

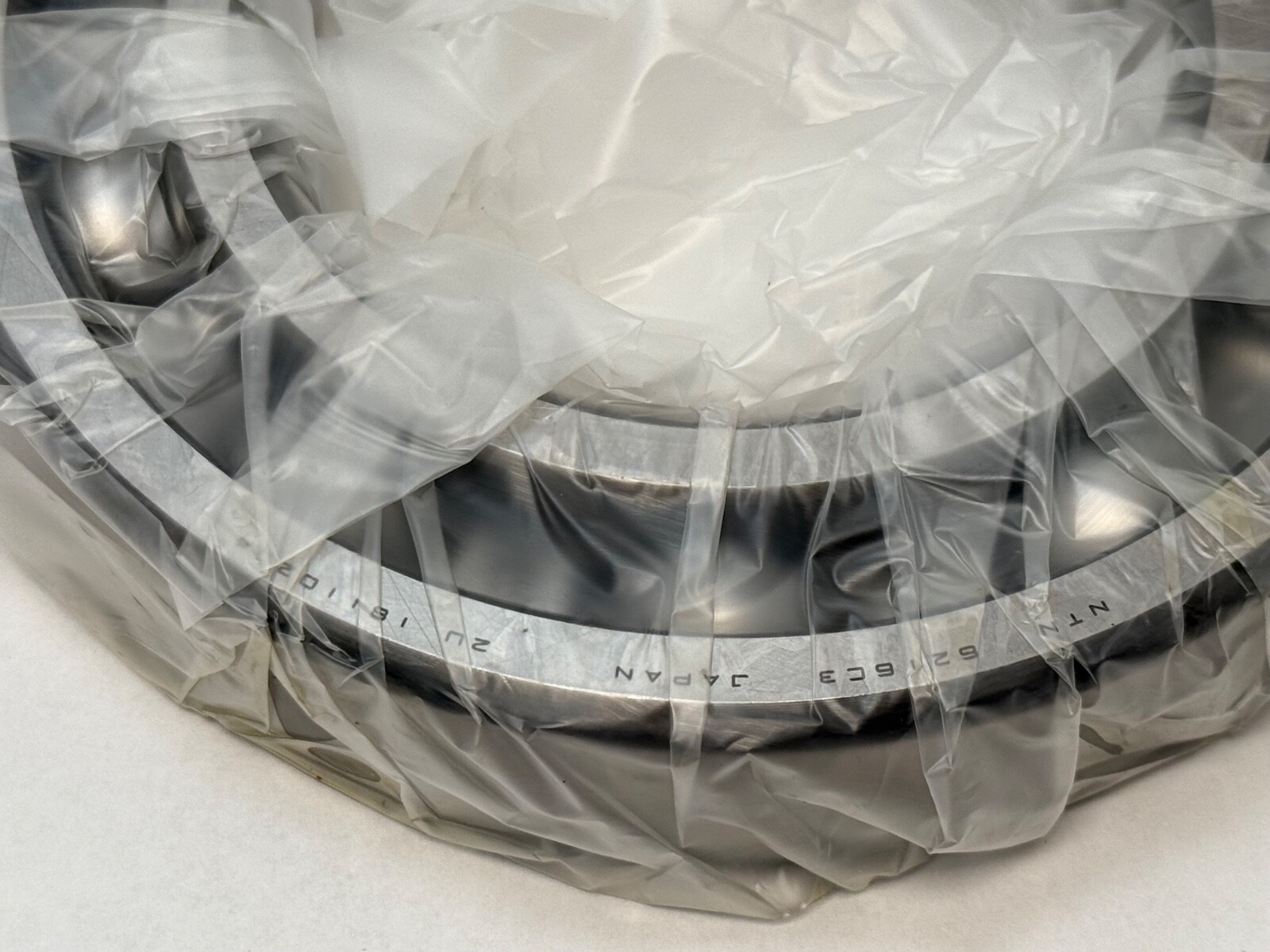

Deep groove ball bearing, 80 x 140 x 26 mm, one steel shield, C3 clearance, 80,500 N dynamic rating. NTN 6216ZC3, pressed steel cage, 1.38 kg.
List Price
$41.98
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 6216ZC3 |
| Model | 6216 Z C3 |
| Bearing Type | Ball Bearing, Shield one side |
| ID | 80 mm |
| OD | 140 mm |
| Width | 26 mm |
| Material | Chrome Steel |
|---|---|
| Series | 6200 |
| Lubricant | Grease |
| Precision Class | ABEC 1 / P0 |
| Additional Attributes | da 89-95.5 mm; Da max 131 mm; r min 2.0 mm; ras max 2.0 mm |
| Closure Type | Shield one side |
| Min Temp | -40 °C |
| Cage Type | Pressed |
| Dynamic Load Rating | 80,500 N |
| Static Load Rating | 53,000 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Item Weight | 1.38 kg (3.04 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 4,500 rpm grease; 5,300 rpm oil |
| Internal Clearance | C3 |
| Harmonization Code | 8482.10.50.68 |
| Bearing Material | High carbon chrome steel |
| Industry Terms | deep groove ball bearing; single shielded ball bearing; radial ball bearing |
| Common Misspellings | 6216 ZC3; 6216Z C3; NTN 6216-ZC3; 6216CZ3 |
| Application Types | Electric motors; pumps; gearboxes; general industrial machinery |
| Mpn Variants | 6216ZC3; 6216-Z-C3; 6216 Z C3; 6216Z/C3; 6216ZC3 |
| Cross Reference 1 | SKF 6216-Z/C3 |
|---|---|
| Cross Reference 2 | FAG 6216-Z-C3 |
| Cross Reference 3 | NSK 6216ZC3 |
| Cross Reference 4 | Koyo 6216ZC3 |

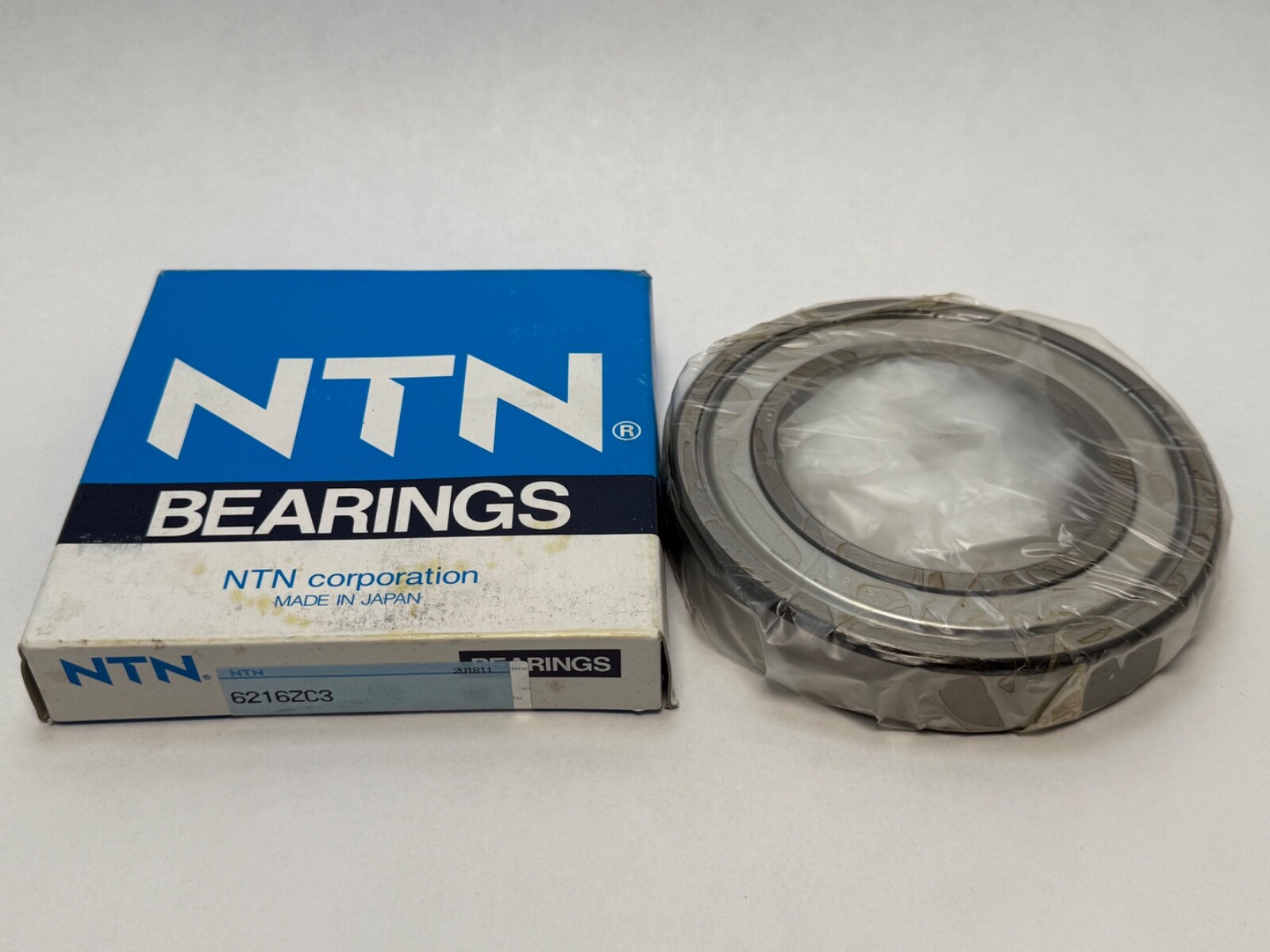

NTN 6216ZC3, a single-row deep groove ball bearing with one steel shield and C3 internal clearance, 80 x 140 x 26 mm. Unit Quantity: 1 Pc.
6216 — ISO 62-series deep groove ball bearing, 80 mm bore, 80 x 140 x 26 mm.
Z — one steel shield. The opposite face is open.
C3 — radial internal clearance greater than normal.
Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 26 mm. Bore Type: Straight. Closure Type: Shield one side. Internal Clearance: C3. Rolling Elements: Ball. Dynamic Load Rating: 80,500 N. Static Load Rating: 53,000 N. Limiting Speed: 4,500 rpm grease; 5,300 rpm oil. Precision Class: ABEC 1 / P0. Cage Material: Pressed steel. Bearing Material: High carbon chrome steel. Operating temperature range: -40 to 120 °C. Item Weight: 1.38 kg (3.04 lb). Unit Quantity: 1 Pc.
Chamfer r min: 2.0 mm. Shaft abutment da: 89 mm min, 95.5 mm max. Housing abutment Da max: 131 mm. Fillet radius ras max: 2.0 mm.
Same 80 x 140 x 26 mm envelope with one shield and C3 clearance: SKF 6216-Z/C3, FAG 6216-Z-C3, NSK 6216ZC3, Koyo 6216ZC3.

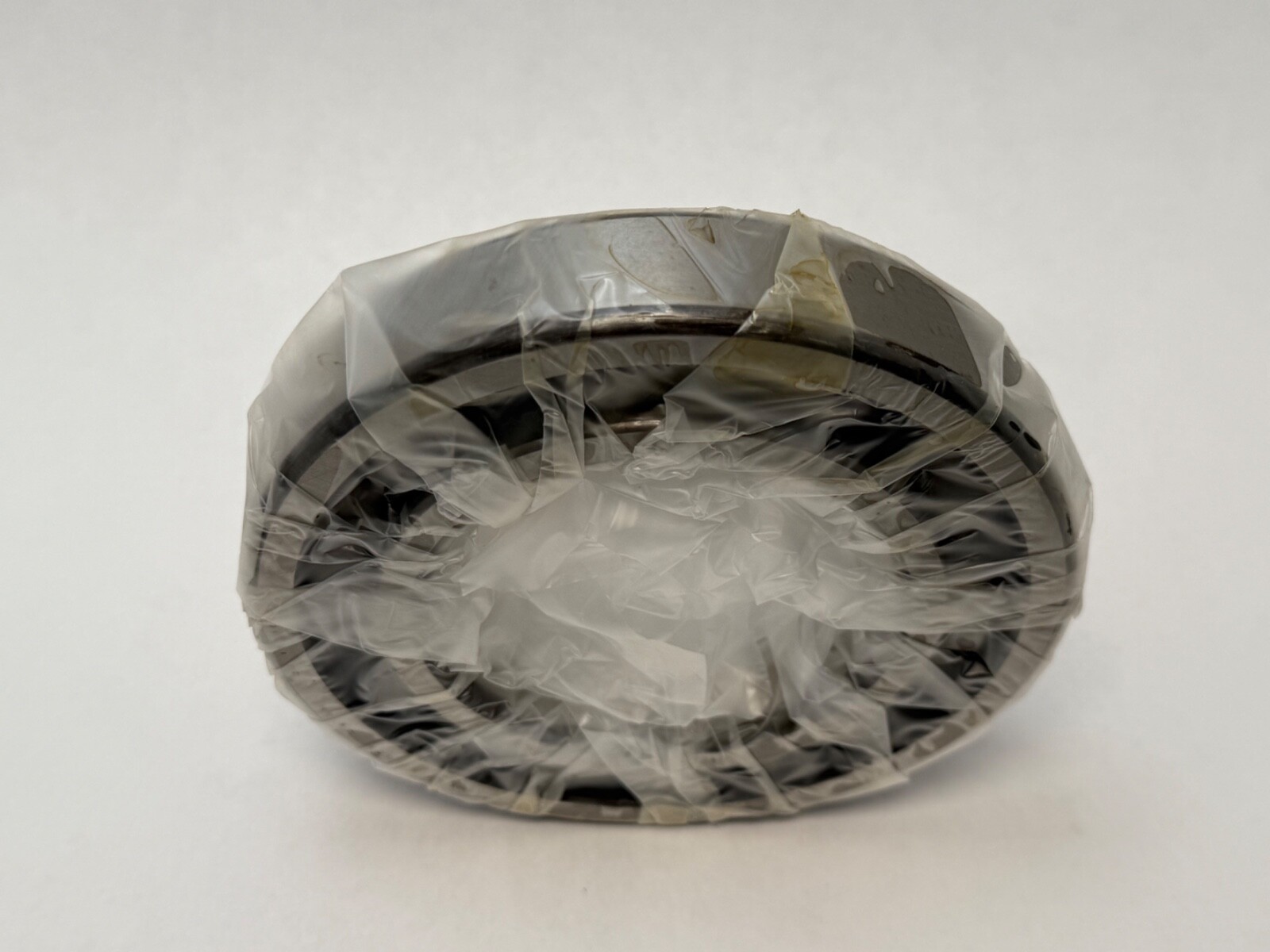

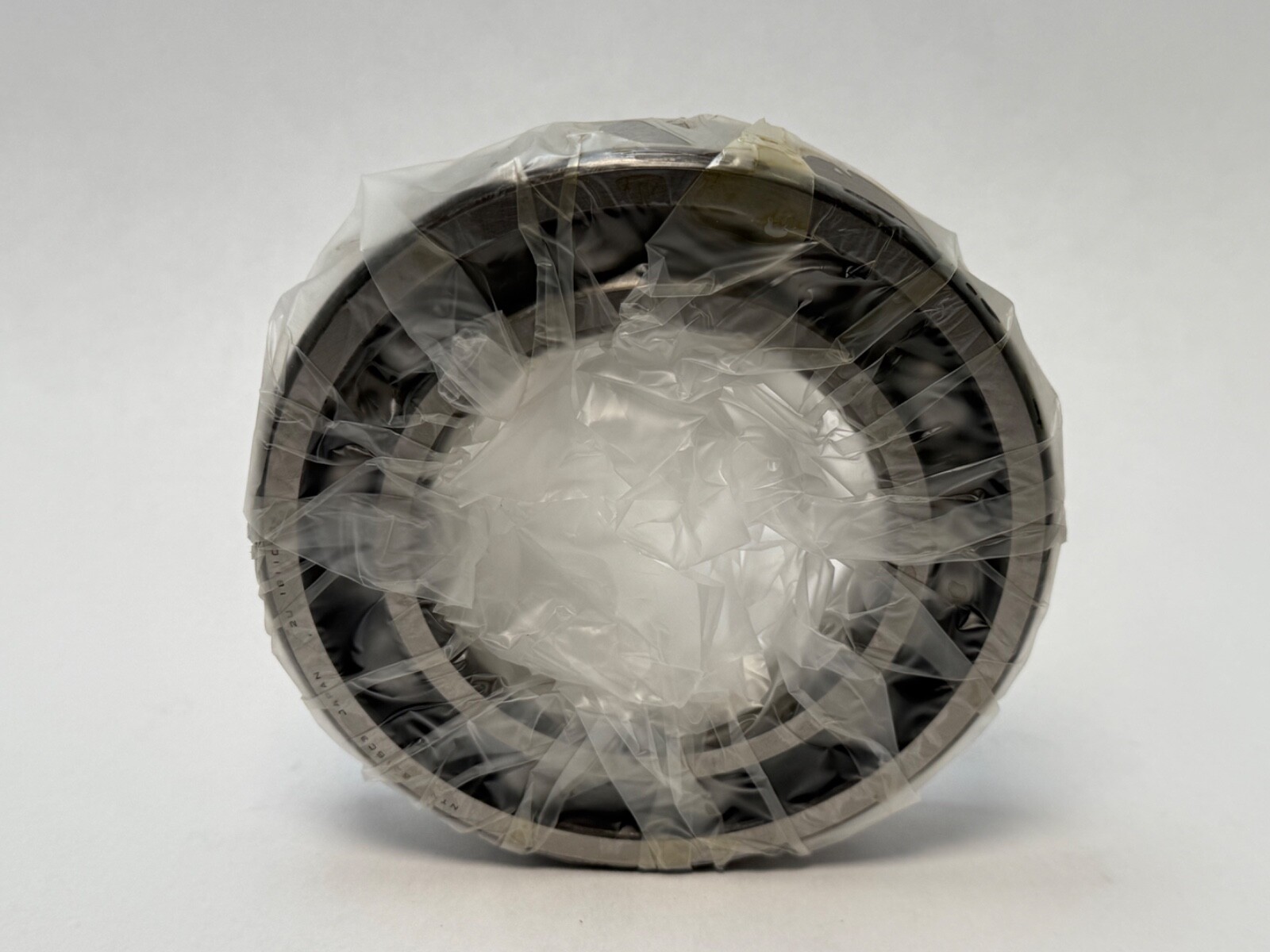

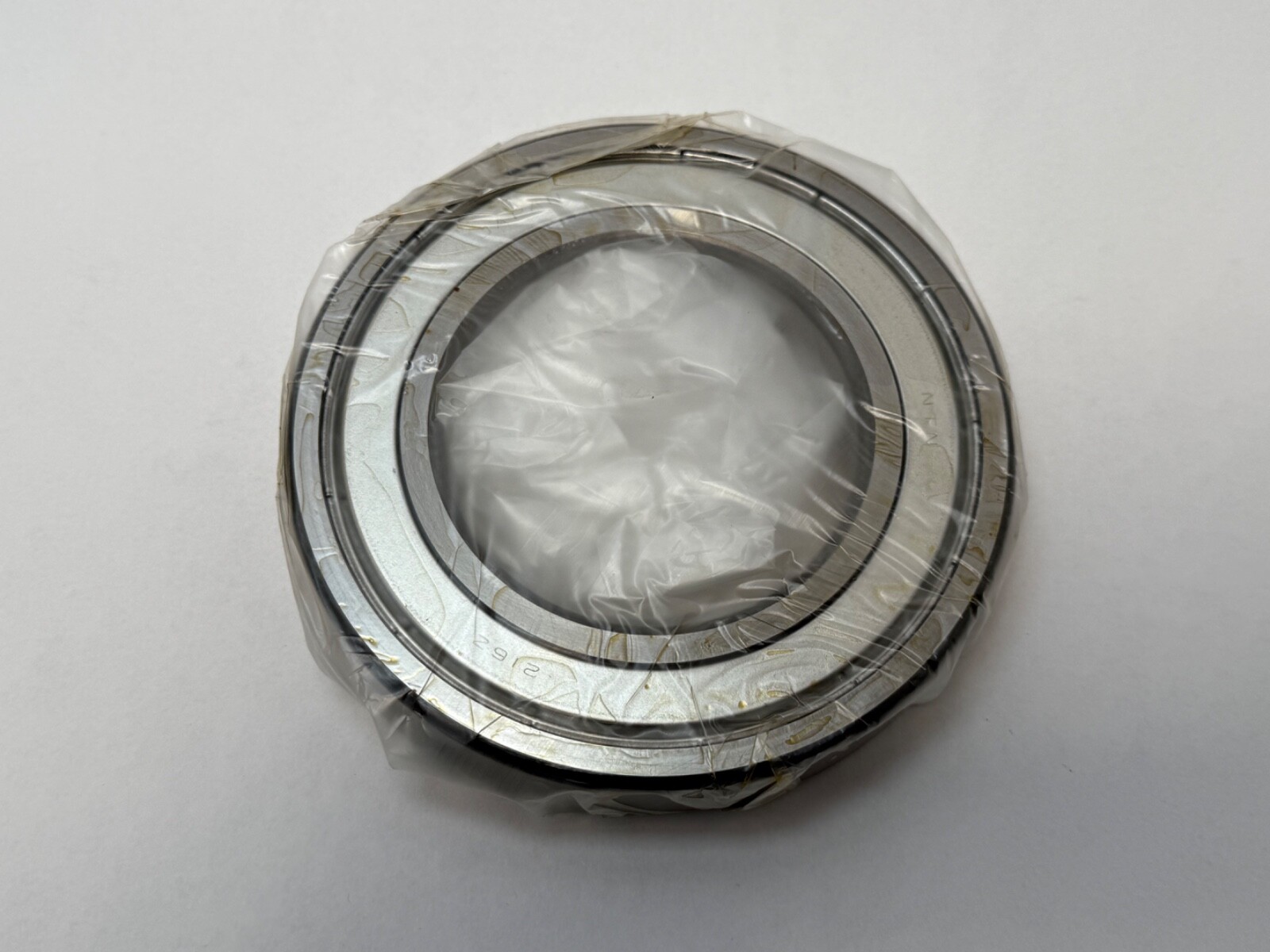

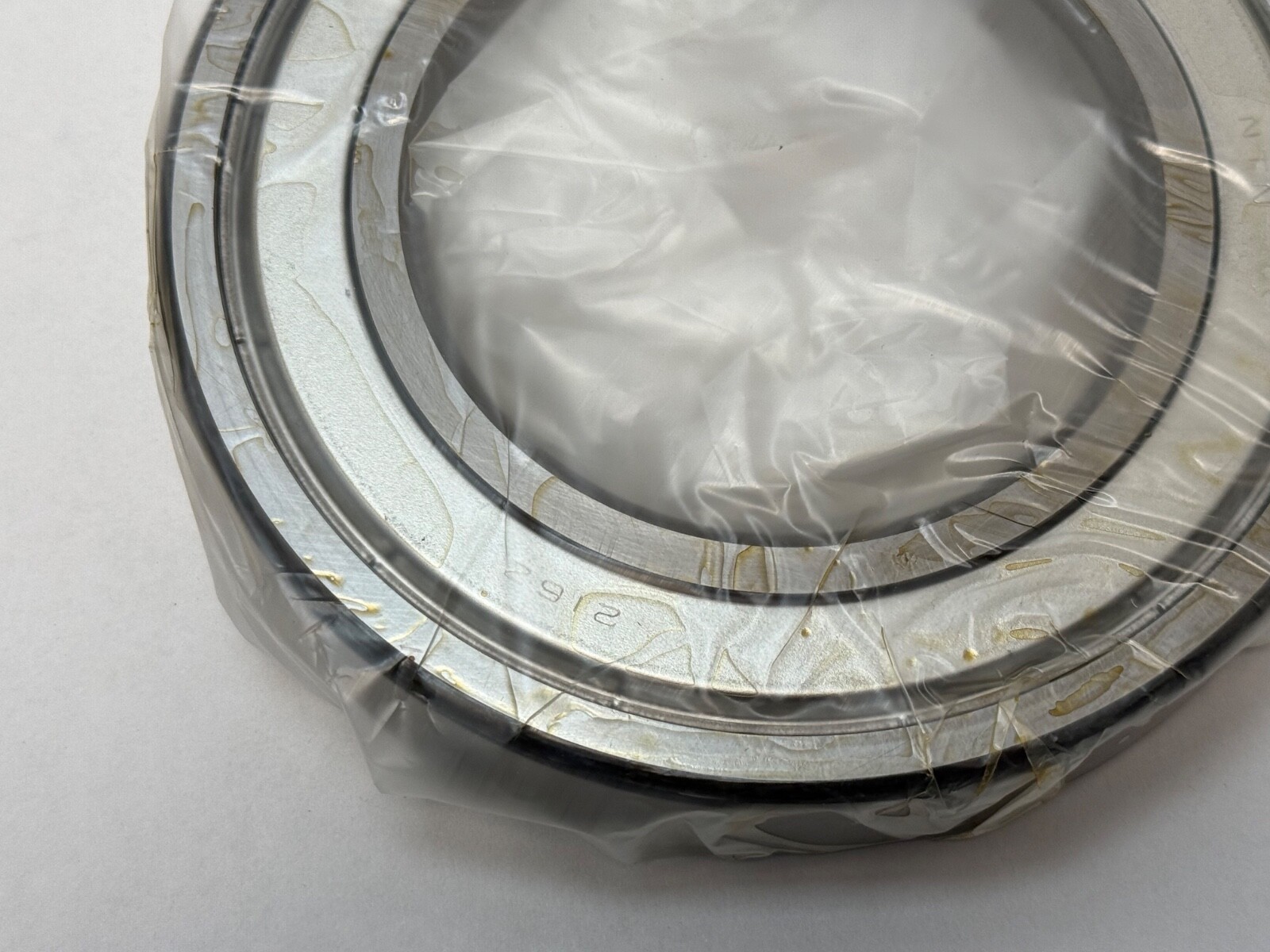

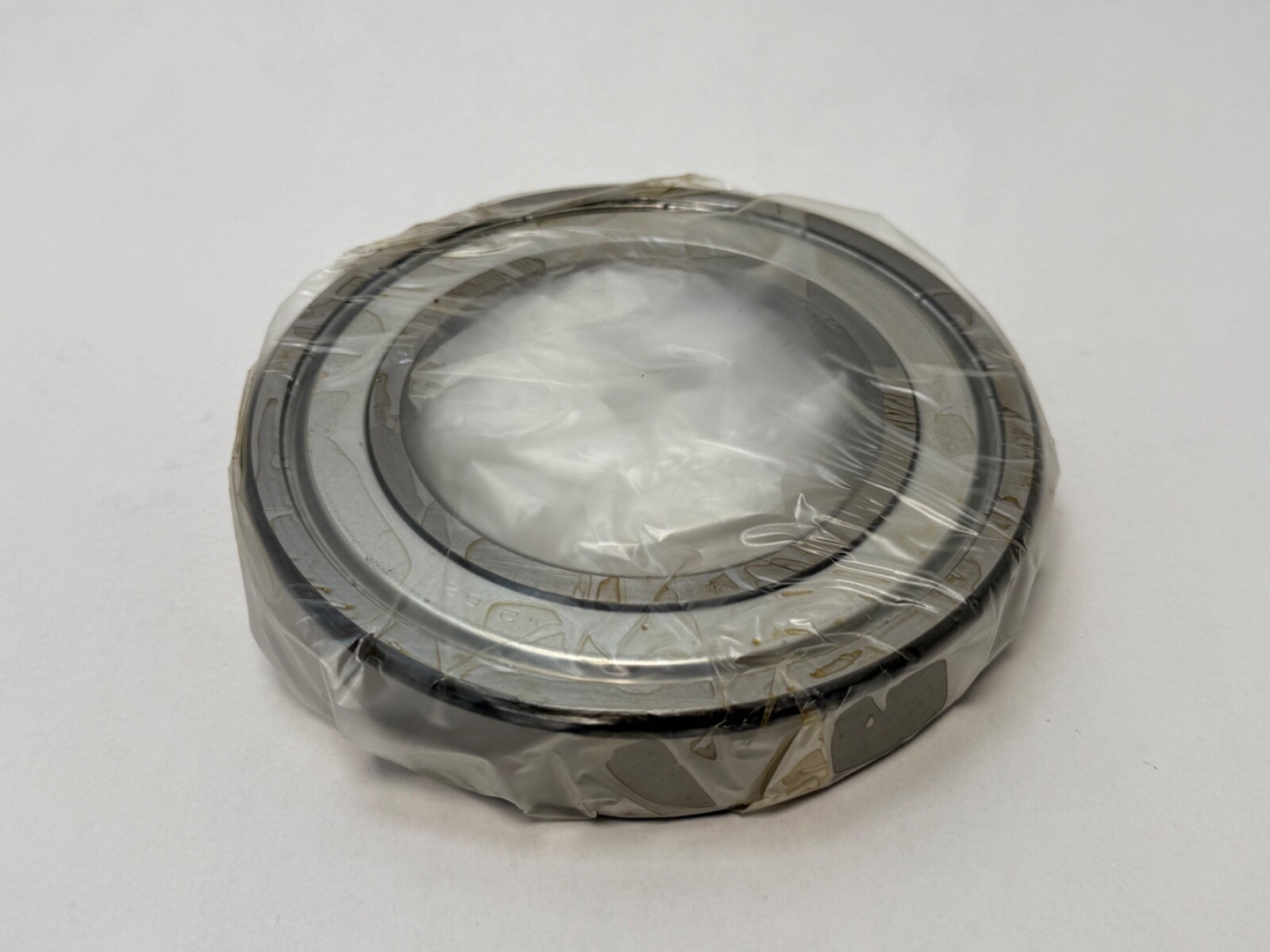

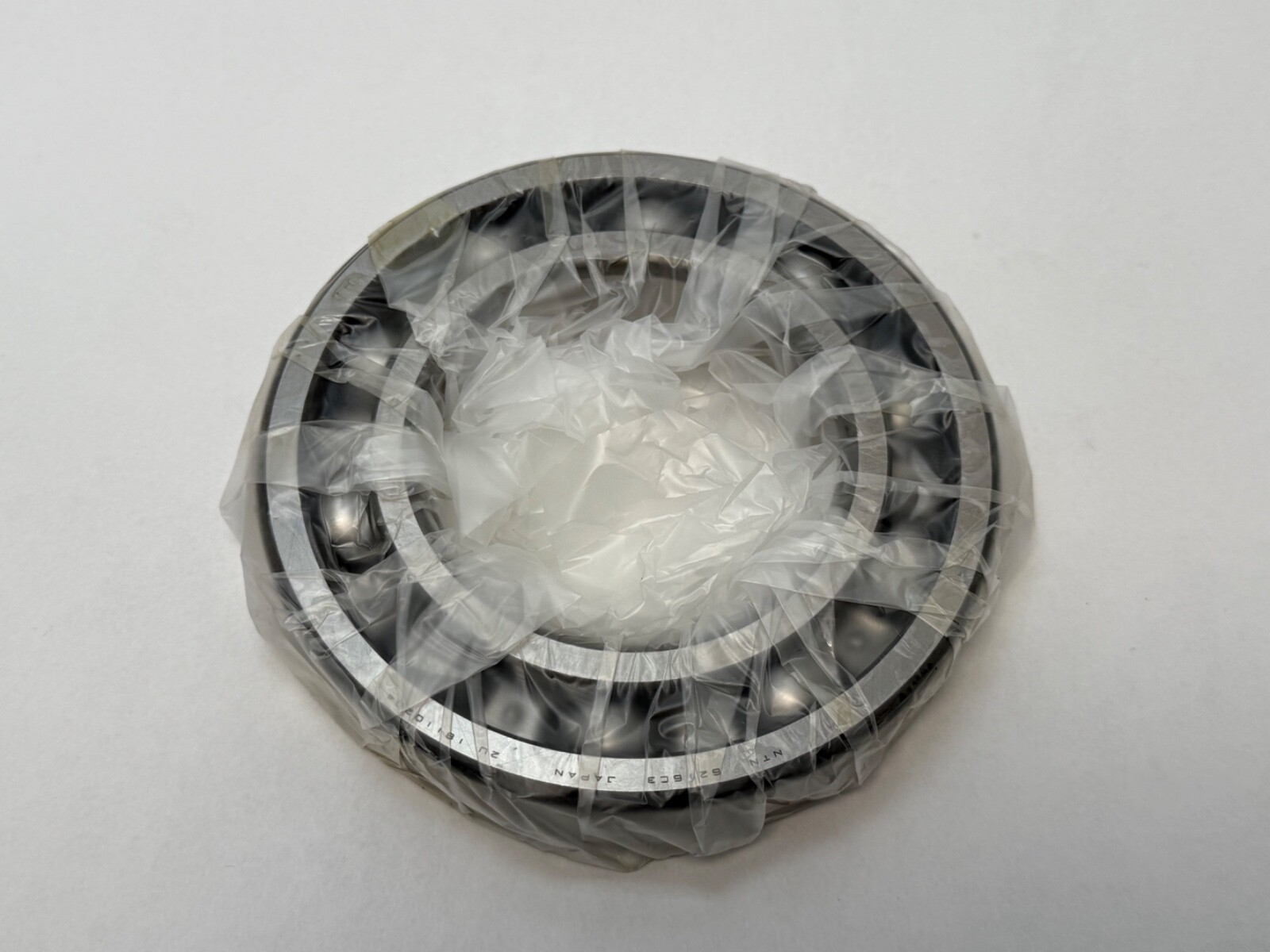

One steel shield, with the opposite face open.
Dynamic Load Rating 80,500 N and Static Load Rating 53,000 N.
C3, radial clearance greater than normal.
