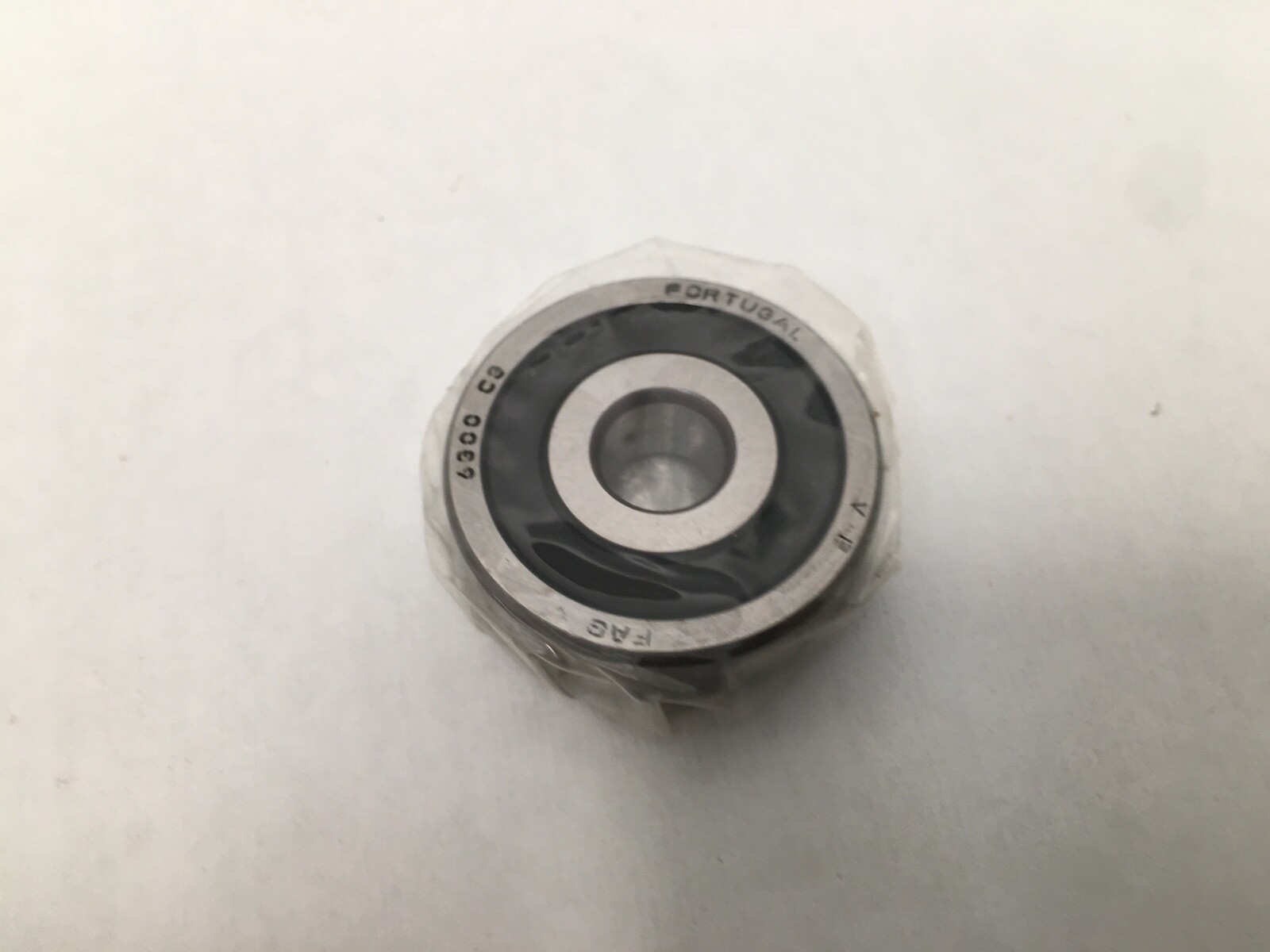

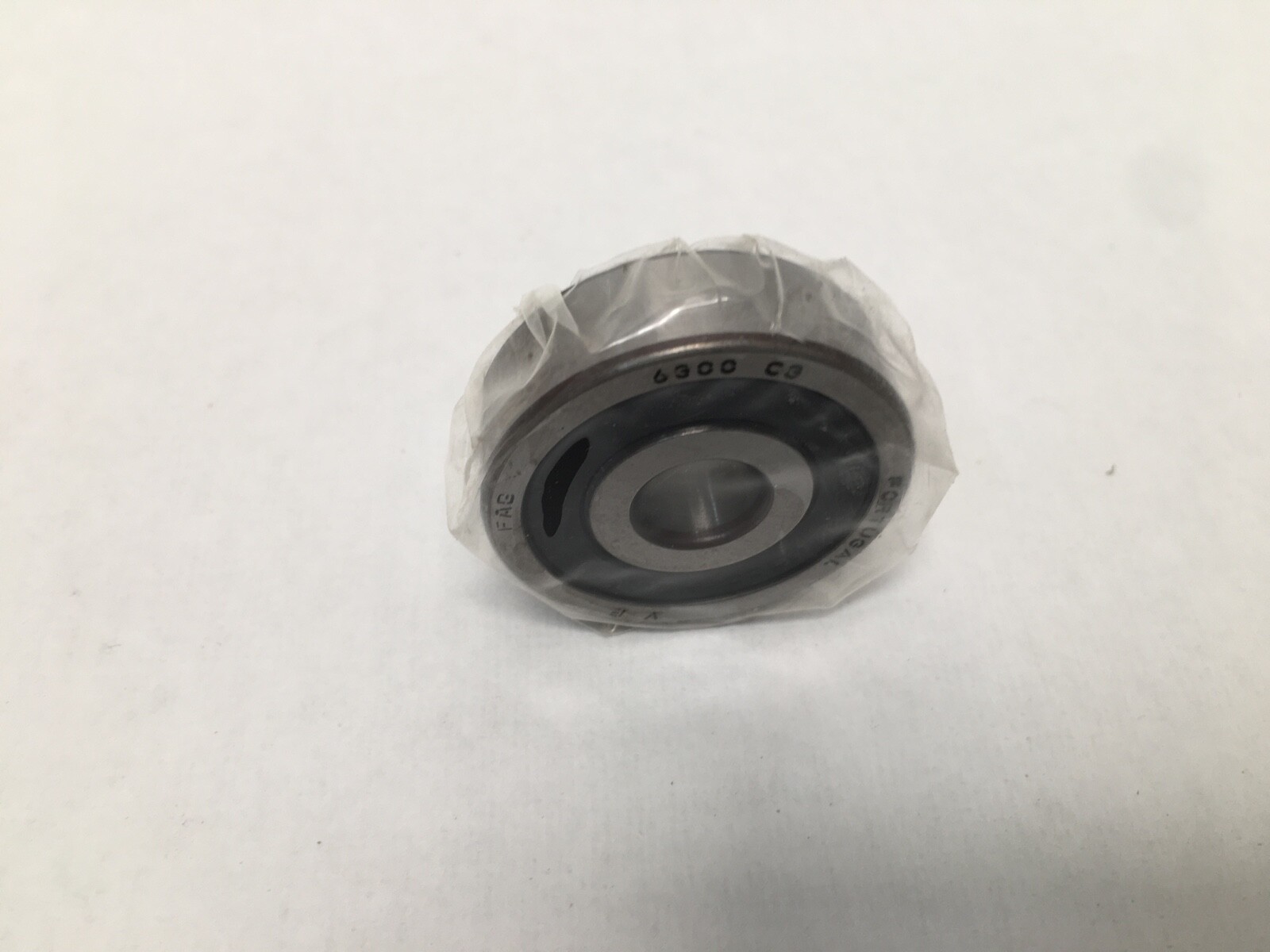

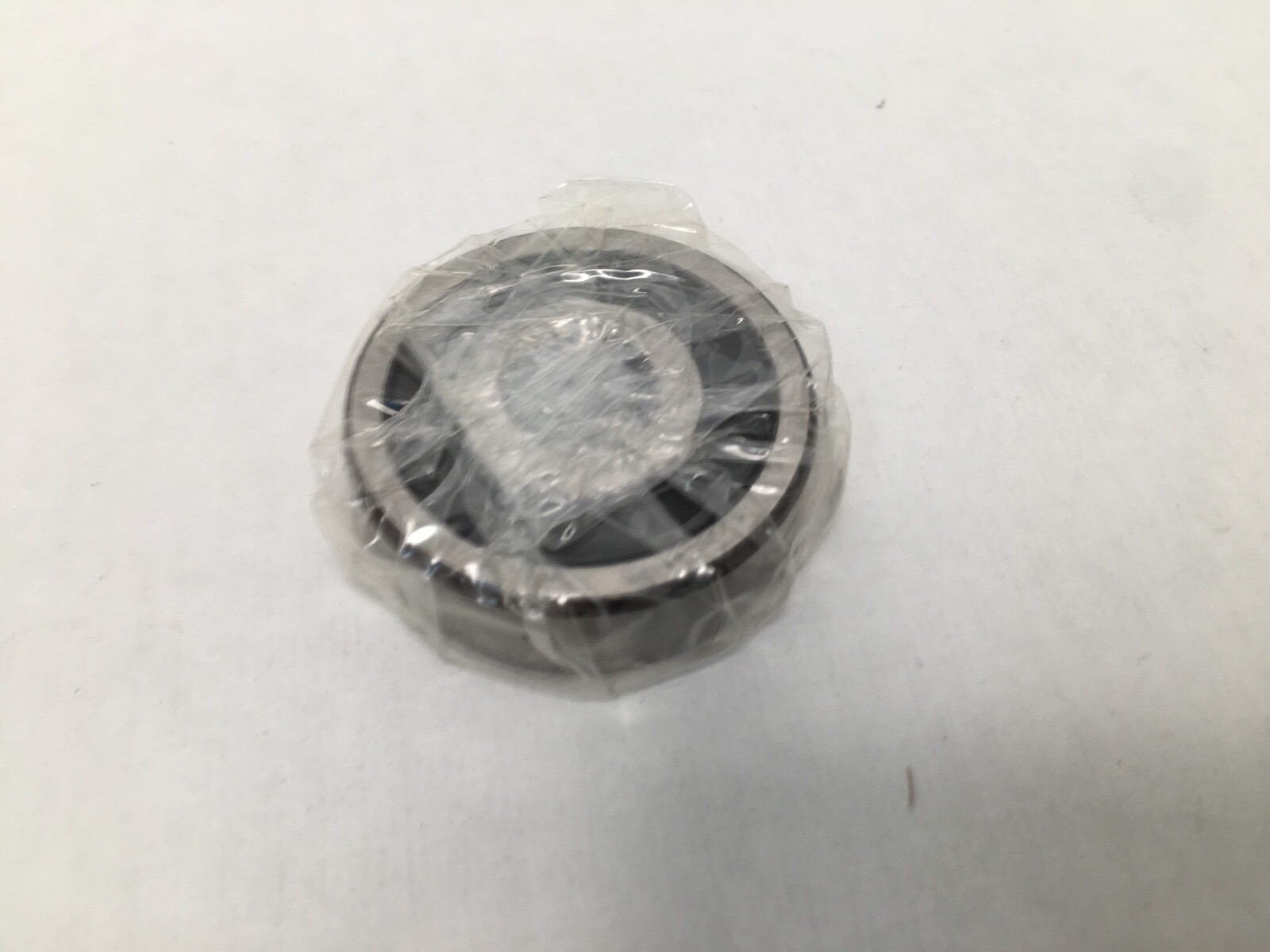

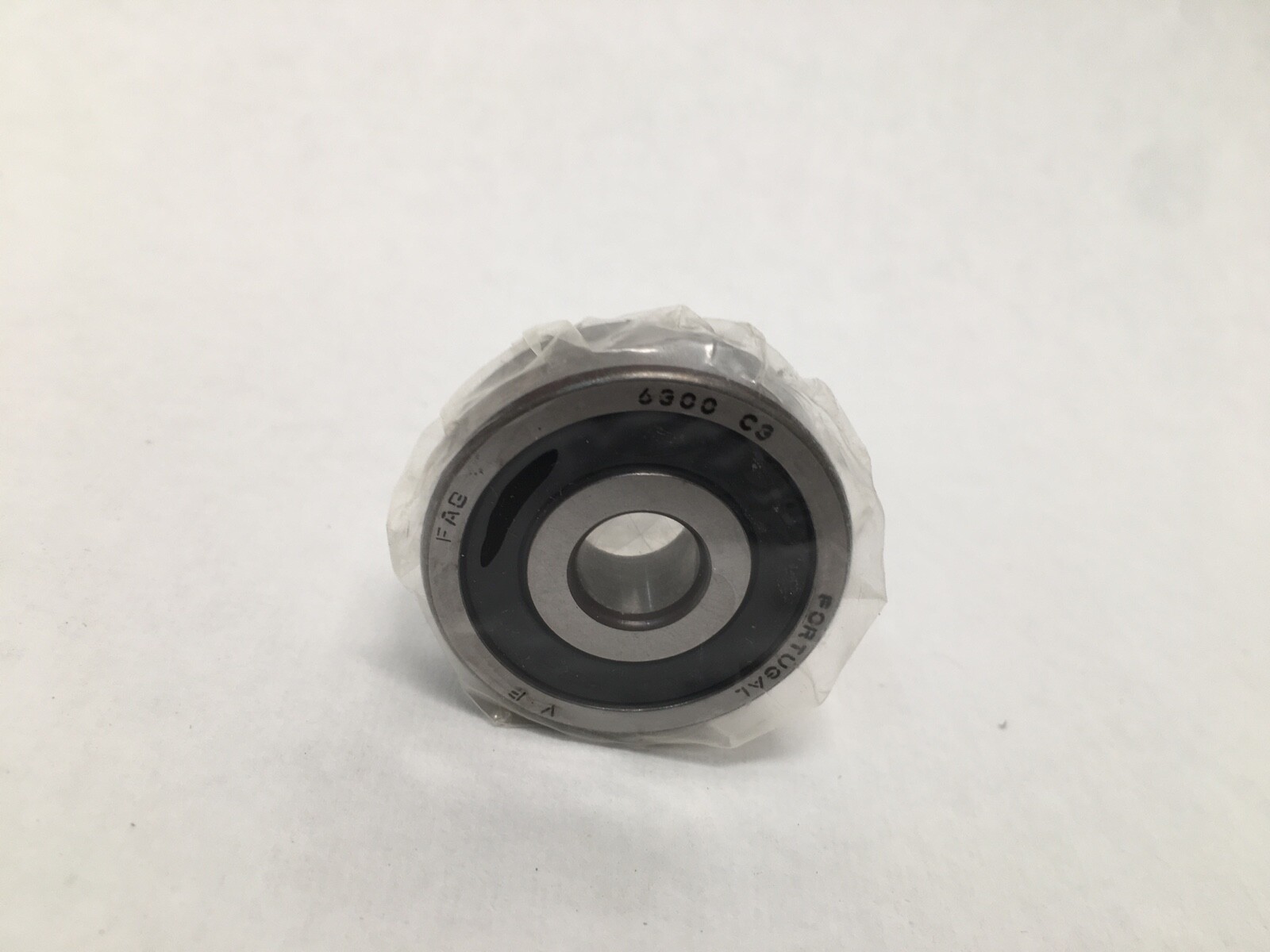

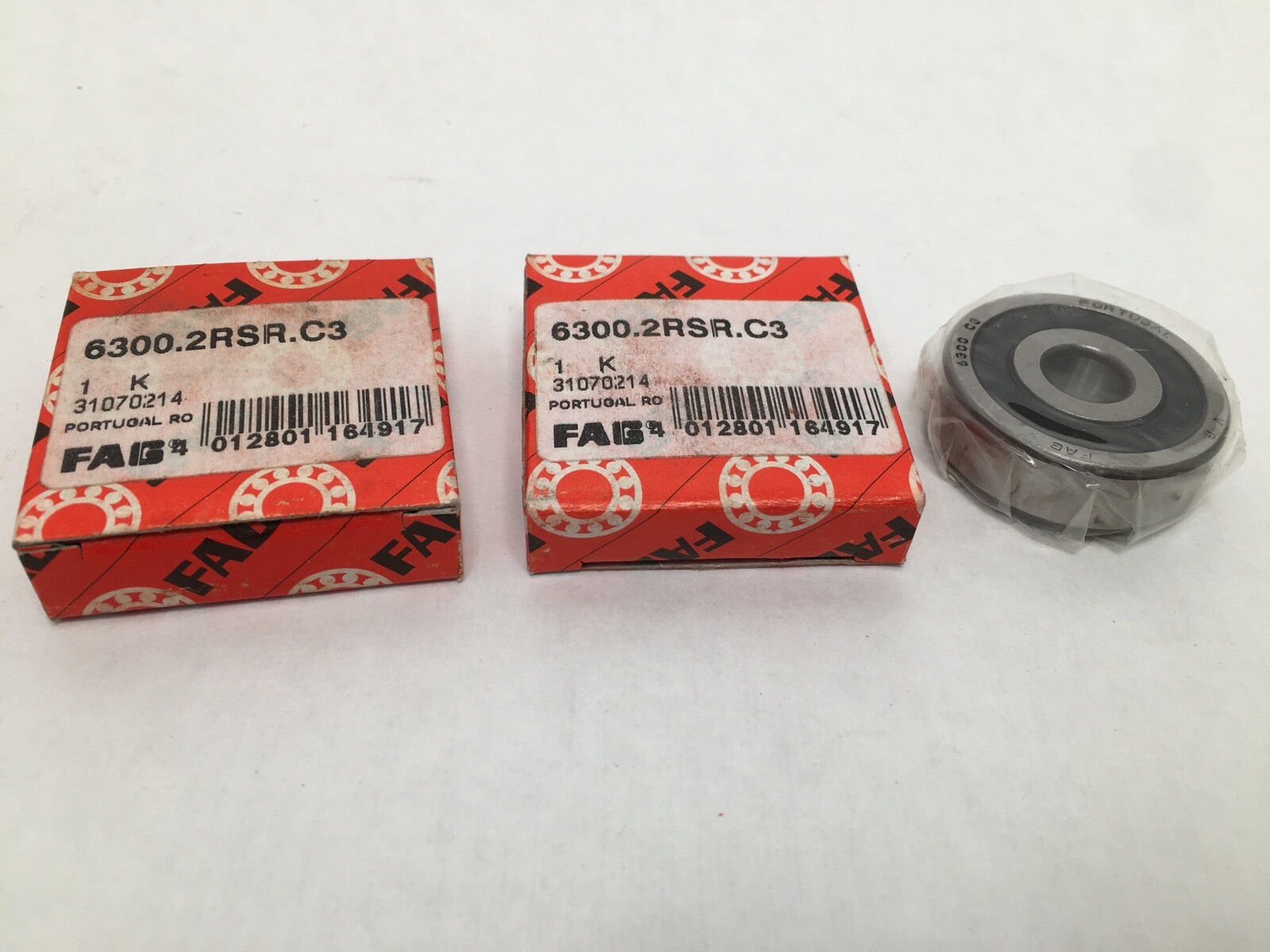

FAG 6300.2RSR.C3 deep groove ball bearing, 10 x 35 x 11 mm, rubber contact seals both sides, C3 clearance, greased. Sold as 2 pieces.
List Price
$8.70
21 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 6300.2RSR.C3 |
| Model | 63002RS C3 |
| Bearing Type | Ball Bearing, 2RSR rubber contact seals both sides |
| ID | 10 mm |
| OD | 35 mm |
| Width | 11 mm |
| Series | 6300 |
|---|---|
| Condition | New |
| Lubricant | Grease |
| Closure Type | Double Rubber Seal |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50.68 |
| Internal Clearance | C3 |
| Base Number | 6300 |
| Overall Width | 11 mm |
| Mpn Variants | 6300.2RSR.C3, 6300-2RSR-C3, 63002RSRC3, 6300-2RS-C3, 6300RS, 63002RS C3 |
| Compatible With Replaces | Current Schaeffler execution: 6300-H-2RSR-C3 |
| Cross Reference 1 | SKF 6300-2RS1/C3 |
|---|---|
| Cross Reference 2 | NSK 6300DDUC3 |
| Cross Reference 3 | NTN 6300LLUC3 |
| Cross Reference 4 | Koyo 63002RSC3 |
FAG 6300.2RSR.C3 is a single-row deep groove ball bearing with contact rubber seals on both sides, greased for life, with C3 internal clearance. Bore Diameter: 10 mm. Outside Diameter: 35 mm. Overall Width: 11 mm.
63 — deep groove ball bearing, ISO dimension series 03 (medium section).
00 — bore code for a 10 mm bore.
2RSR — FAG contact lip seals on both sides.
C3 — radial internal clearance larger than normal, for heat or tight fits.
Bearing Type: Deep Groove Ball Bearing. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight (cylindrical). Closure Type: Contact seals both sides. Seal type: 2RSR rubber contact seals. Internal Clearance: C3. Lubricant: Grease, sealed in.
Unit Quantity: 2 Pcs.
Same 10 x 35 x 11 mm sealed C3 envelope as SKF 6300-2RS1/C3, NSK 6300DDUC3, NTN 6300LLUC3 and Koyo 63002RSC3. Current Schaeffler 6300 sealed C3 execution: 6300-H-2RSR-C3.
