Availability:
1 in stock
Super-precision angular contact ball bearing, 80 x 125 x 22 mm, 15 degree contact angle, universal duplex, heavy preload, phenolic cage, ABEC 7. 1 Pc.
List Price
$202.26
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7016CTDUHP4-1/2PR |
| Model | 7016C T DUH P4 / 2MM9116WI CR DUH / B7016X2TADUHEP7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 125 mm |
| Width | 22 mm |
| Material | Bearing Steel |
|---|---|
| Series | 7000 |
| Base Number | 7016 |
| Industry Terms | Super precision spindle bearing; 15 degree angular contact; phenolic cage spindle bearing; ABEC 7 bearing; universal duplex bearing; machine tool spindle bearing |
| Common Misspellings | 7016 CTDUHP4; 7016CTDUH P4; 7016CDUHP4; RHP 7016 C T DUH P4; angular contct bearing |
| Bore Shaft Size | 80 mm (3.1496 in) |
| Mpn Variants | 7016CTDUHP4-1/2PR; 7016CTDUHP4; 7016-C-T-DUH-P4; 7016C T DUH P4; 7016CTDUH; 7016C |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | 7016CTDUHP4-1/2PR |
| Cross Reference 6 | 7016 (ISO base number) |
|---|---|
| Cross Reference 7 | RHP 7016CTDUMP4 - medium preload, not heavy |

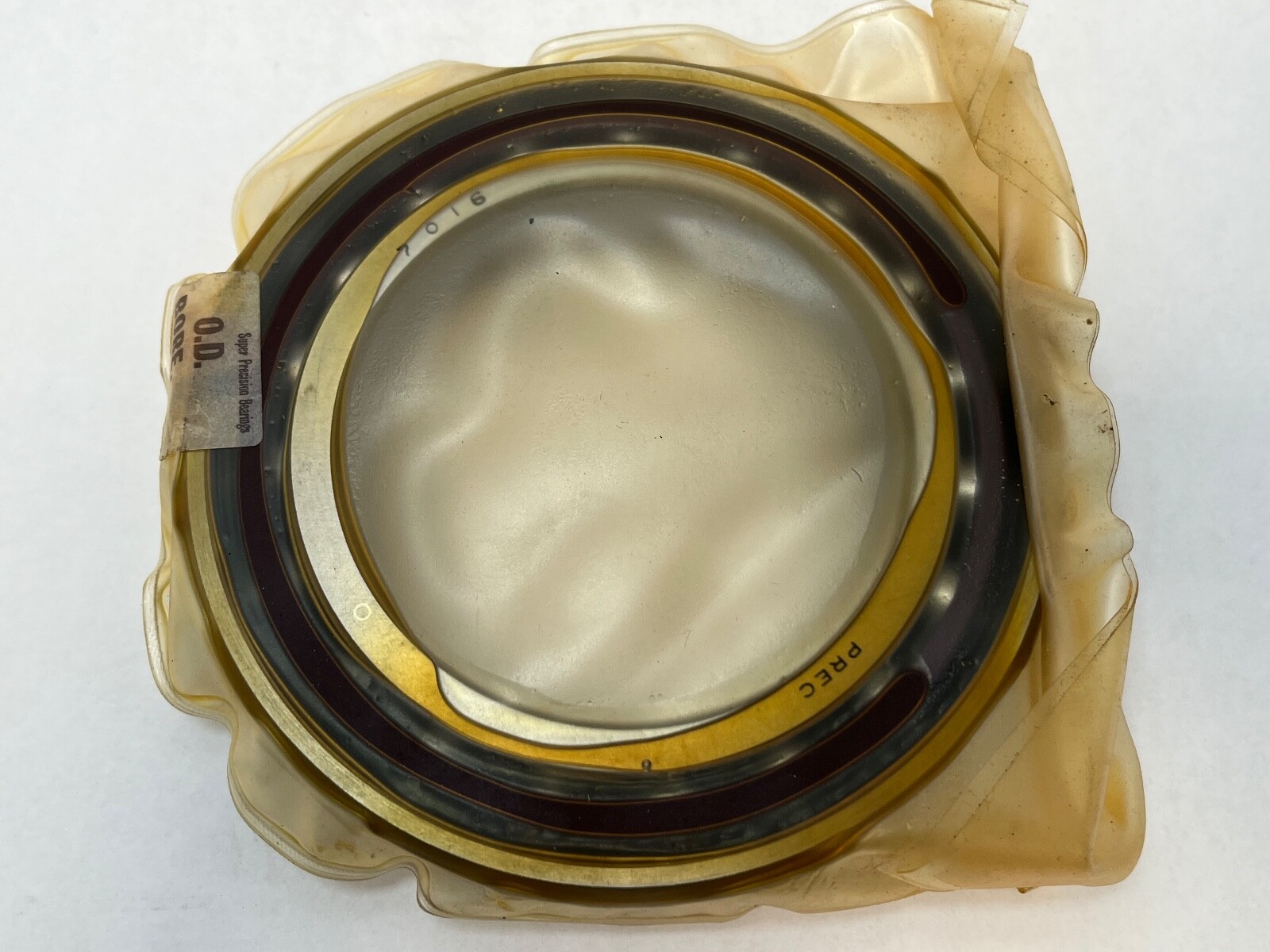

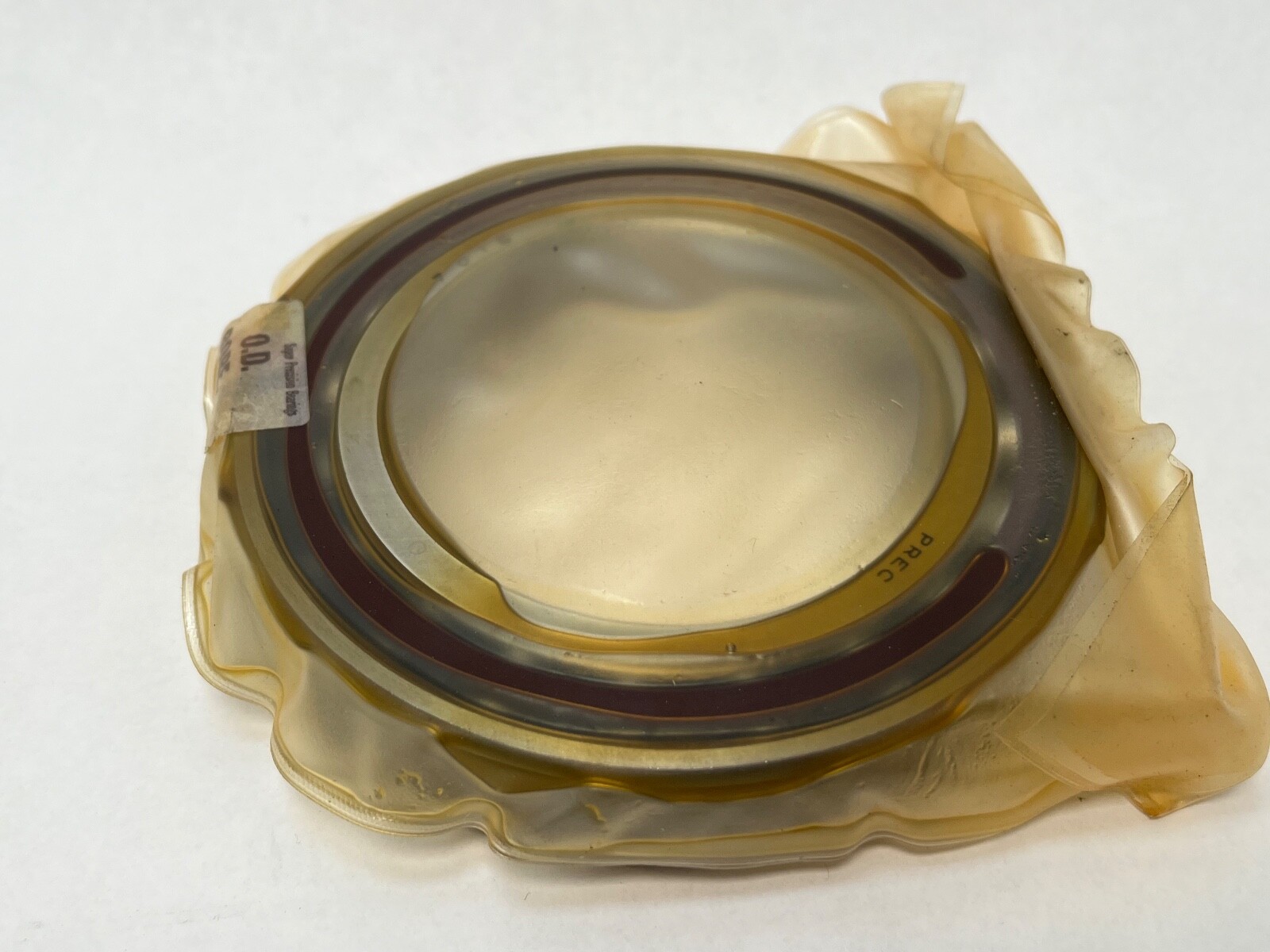

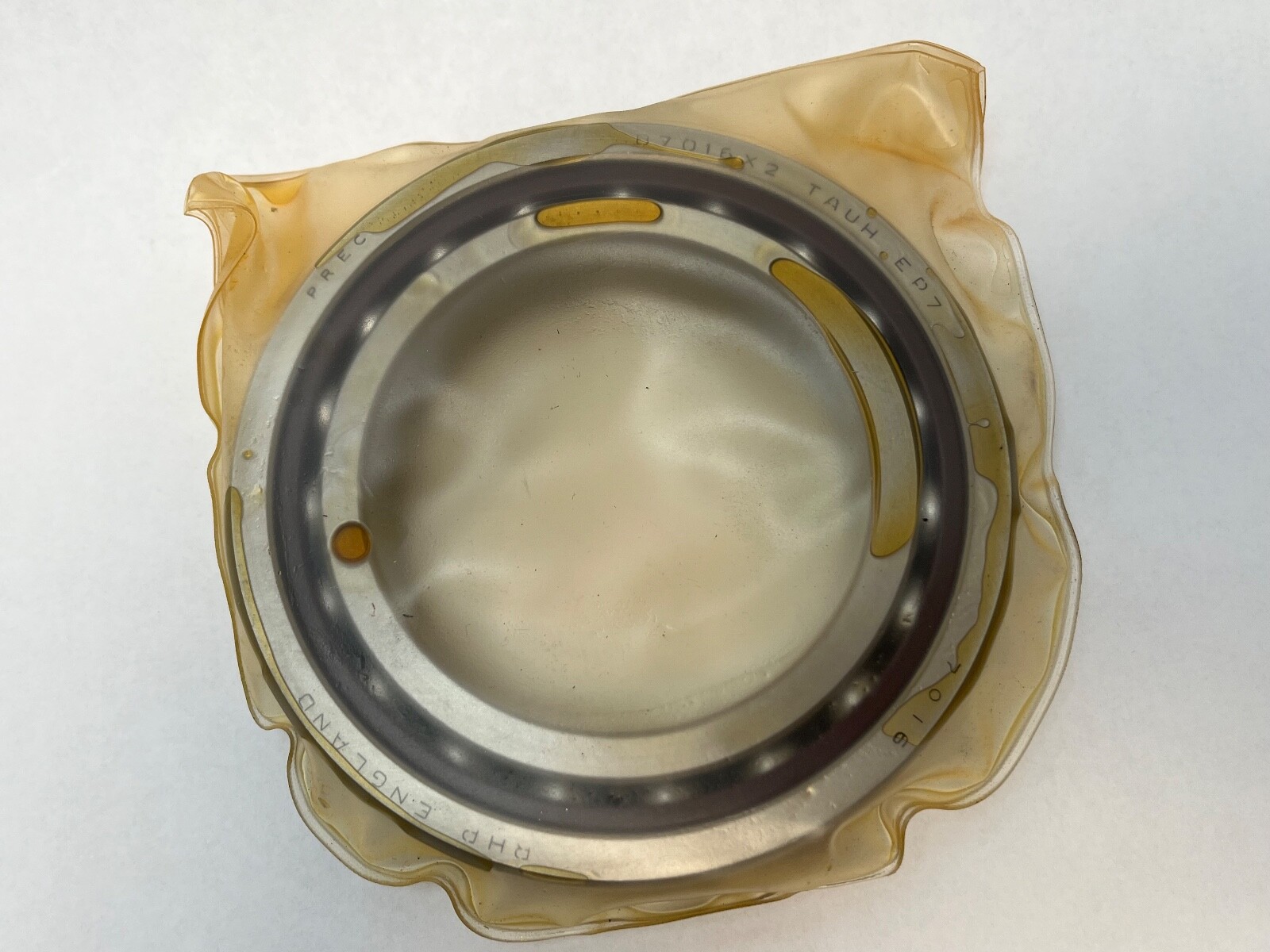

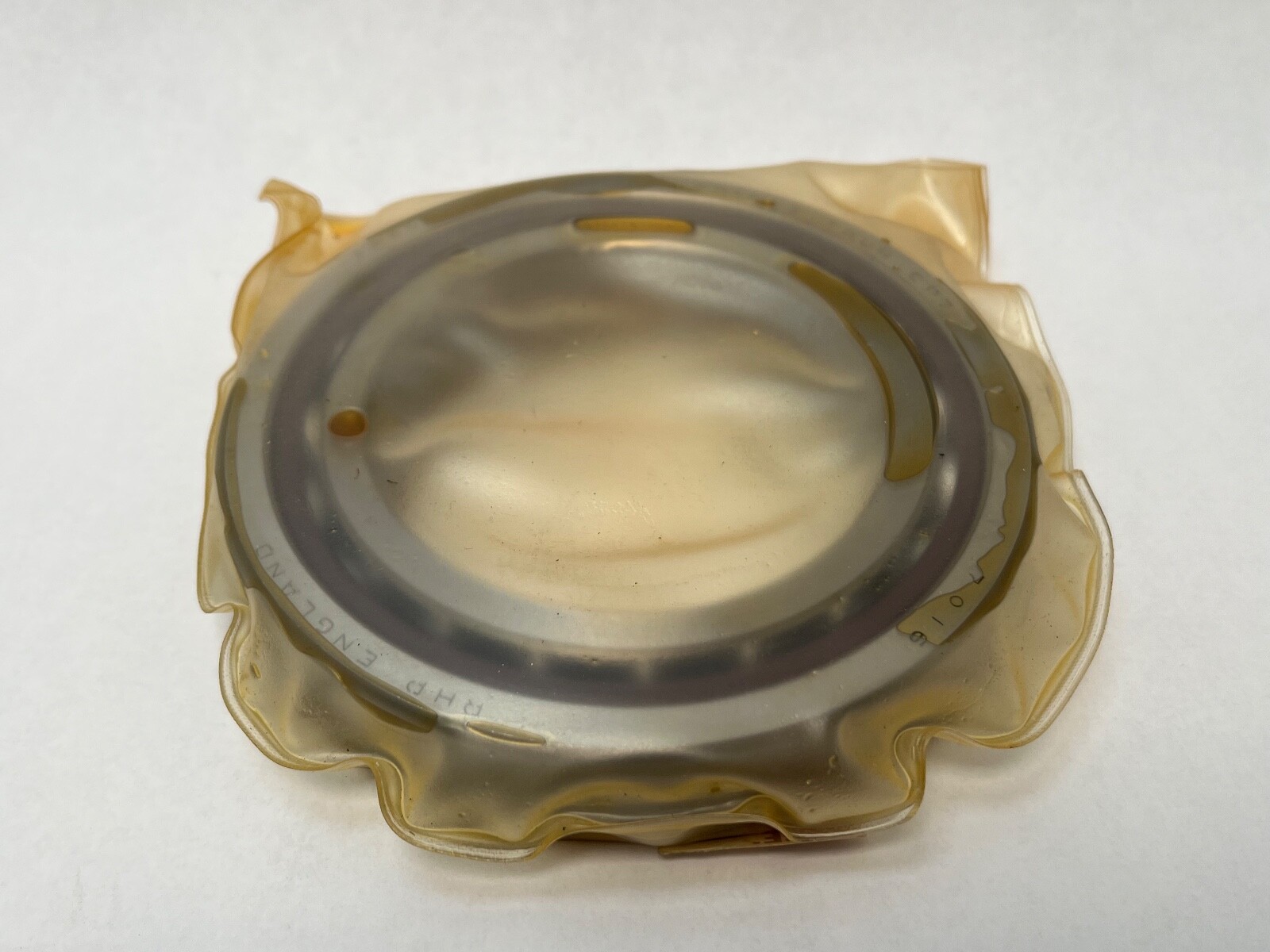

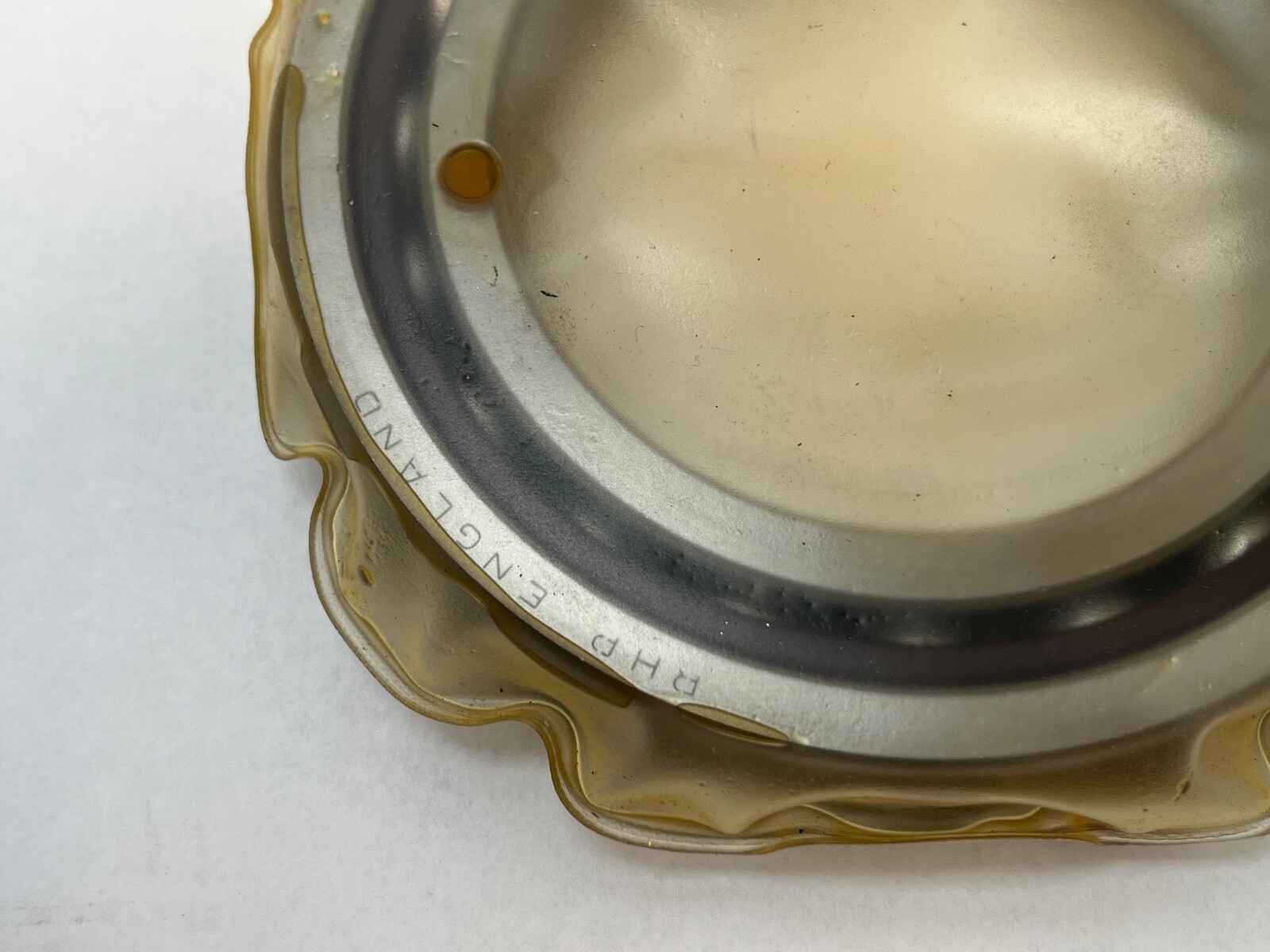

RHP 7016CTDUHP4 super-precision angular contact ball bearing. Bore 80 mm, outside diameter 125 mm, width 22 mm. Straight bore, open on both faces, single row of balls, machined phenolic cage. Unit Quantity: 1 Pc. The -1/2PR designation identifies a single bearing out of a pair.
70 — ISO light angular contact dimension series.
16 — bore code, giving an 80 mm bore.
C — 15° contact angle in the RHP scheme.
T — fabric-base laminate phenolic cage.
DU — universally ground duplex unit, any two units of the same designation stack as a back-to-back, face-to-face or tandem set.
H — heavy preload.
P4 — ISO Class 4, equivalent to ABEC 7.

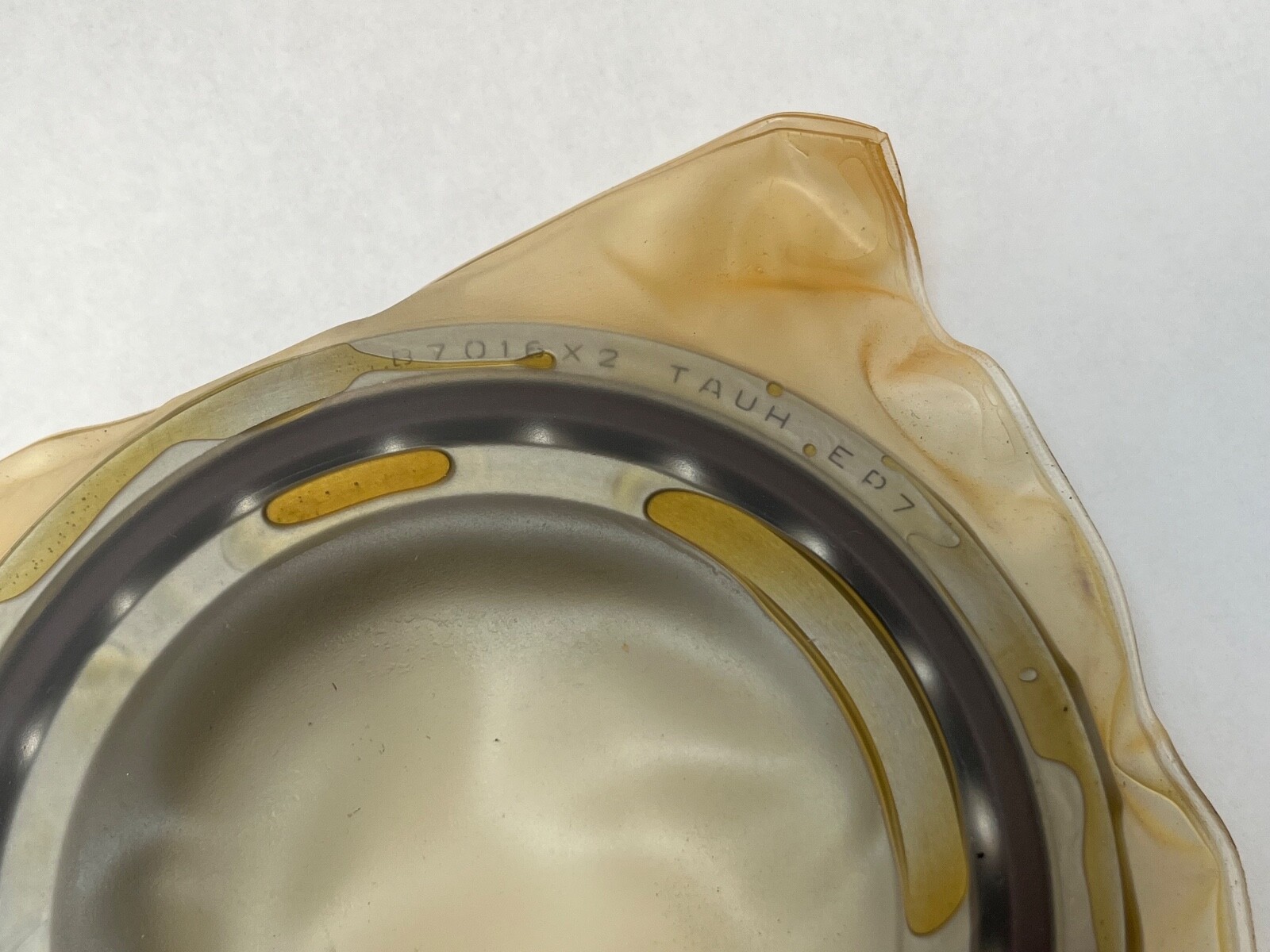

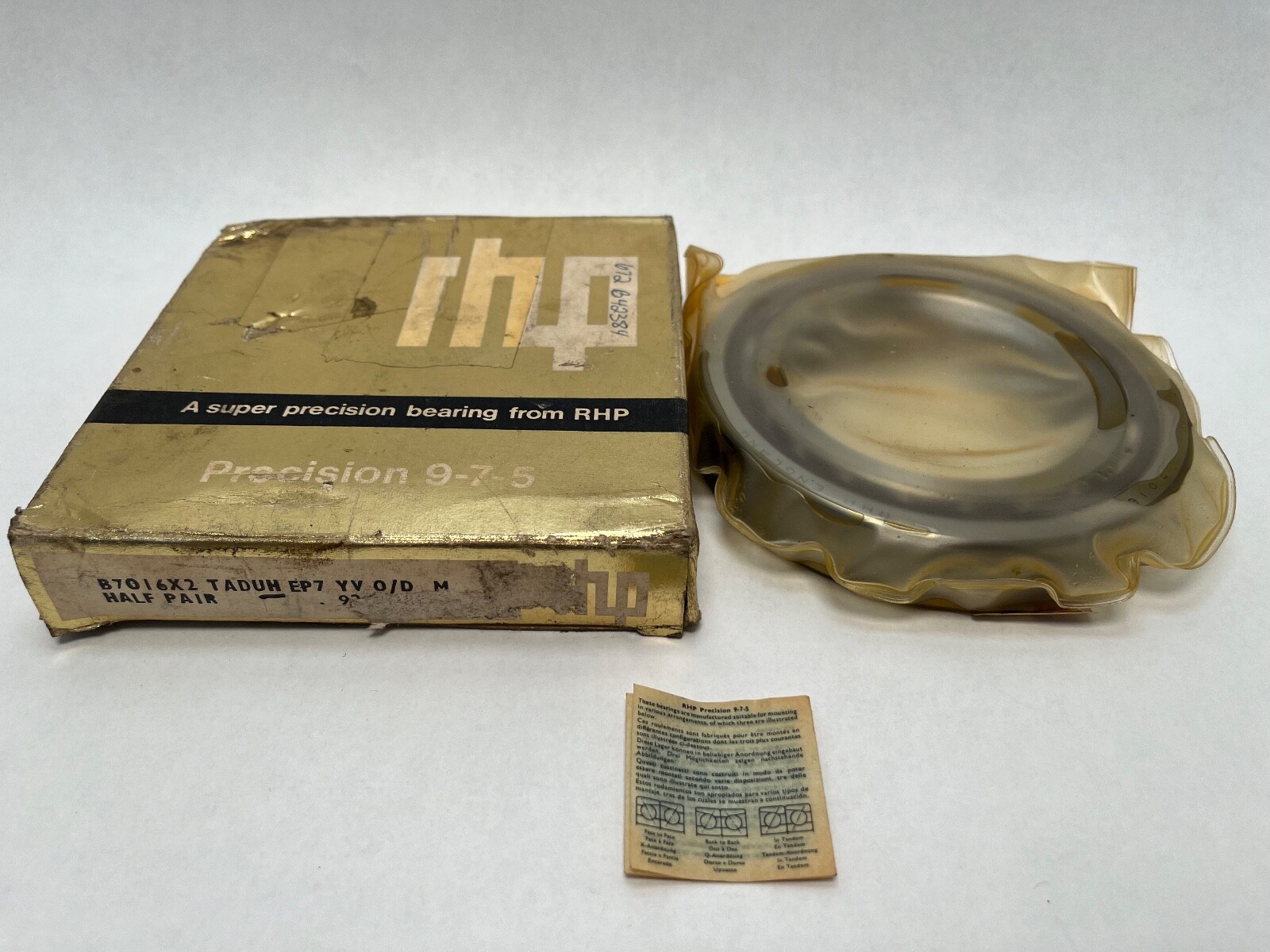

2MM9116WI CR DUH and B7016X2TADUHEP7 — further designations carried on the carton; the 2MM and X2 codes confirm the 15° angle and EP7 confirms the ABEC 7 class.
Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Heavy. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Cage Material: Phenolic Resin. Mounting Arrangement: Universally ground duplex. Series: 7000 (ISO 70 light series).
Bore Diameter: 80 mm (3.1496 in). Outside Diameter: 125 mm. Width: 22 mm. Ring faces are ground flat and square, with the preload built into the ground faces.
Comparable 15° designations: SKF 7016 CD/P4A, FAG B7016-C-T-P4S, NSK 7016CTYNDUHP4. Cage material differs across those numbers. RHP 7016CTDUMP4 carries medium preload. MPN variants: 7016CTDUHP4-1/2PR, 7016CTDUHP4, 7016-C-T-DUH-P4, 7016C T DUH P4, 7016CTDUH, 7016C.
Bore Diameter: 80 mm. Outside Diameter: 125 mm. Width: 22 mm.
Contact Angle: 15°. Preload: Heavy (H in the designation).
Unit Quantity: 1 Pc. The -1/2PR designation identifies a single bearing out of a pair.
