Fafnir2MM9116WI DUHAngular Contact Ball Bearing – 80 mm ID, 125 mm OD, 22 mm Width, Open, 15° Contact Angle, Phenolic Cage, Heavy Preload, ABEC 7/9 P4S

Product Description

What this part is:

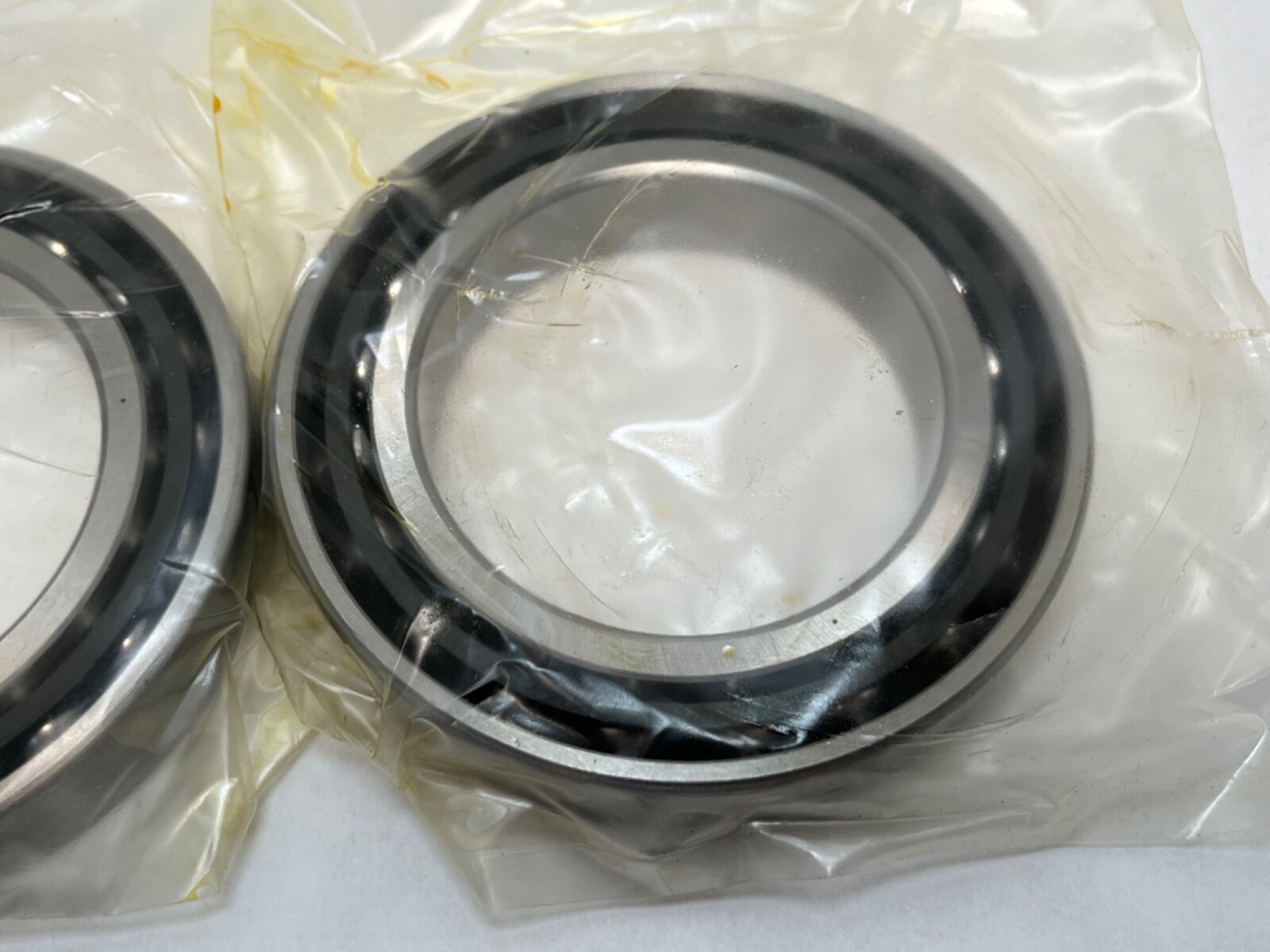

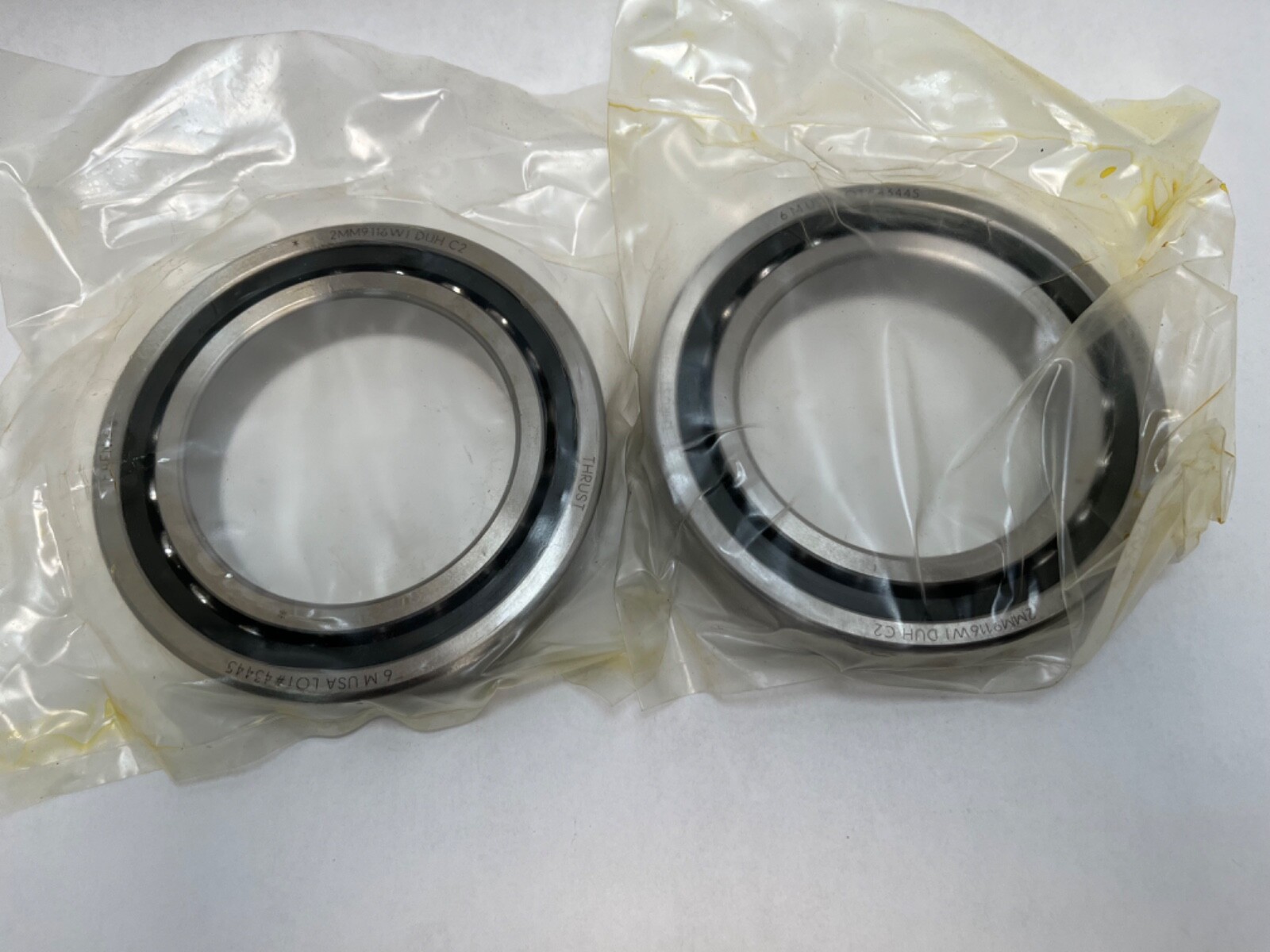

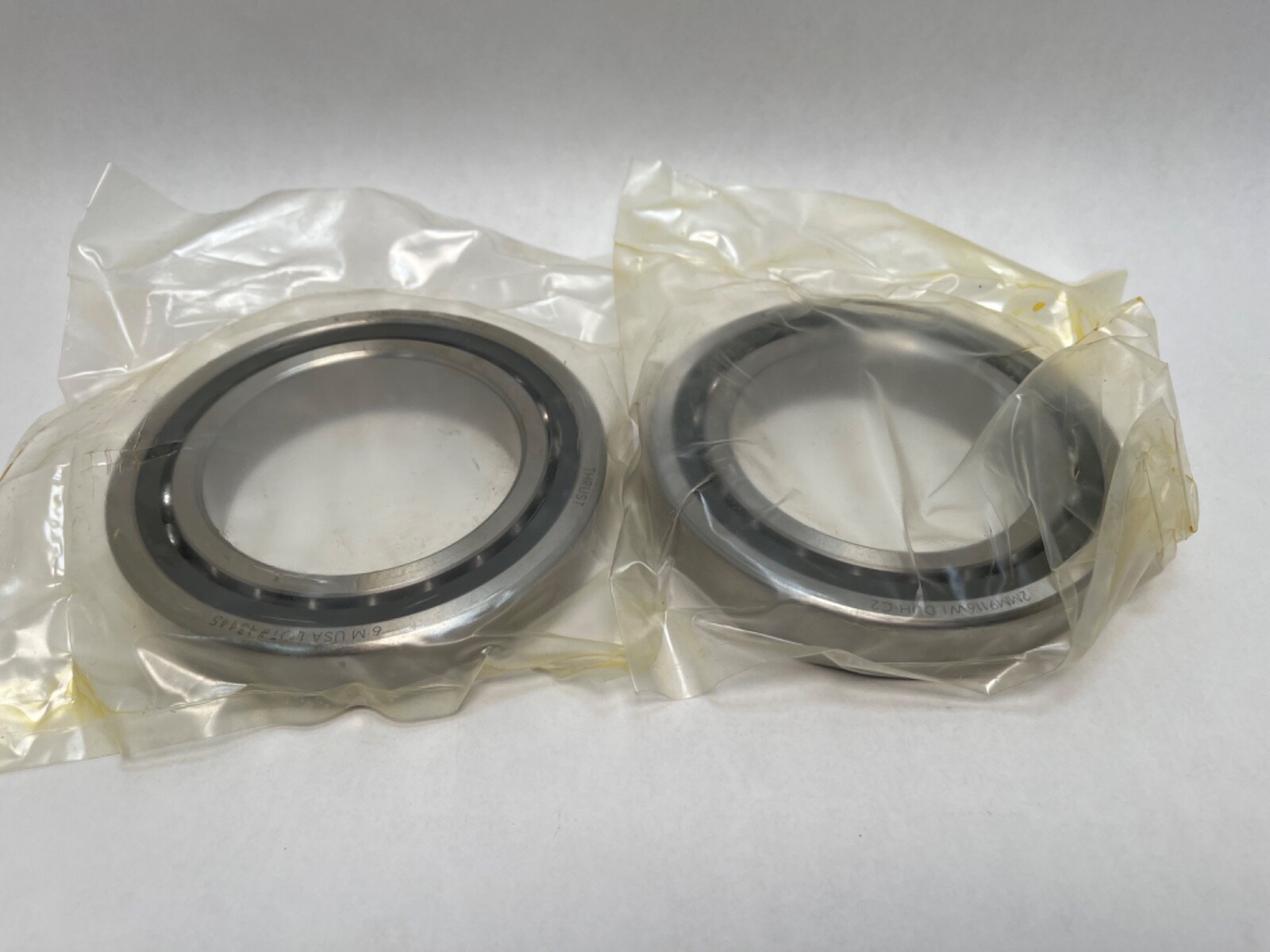

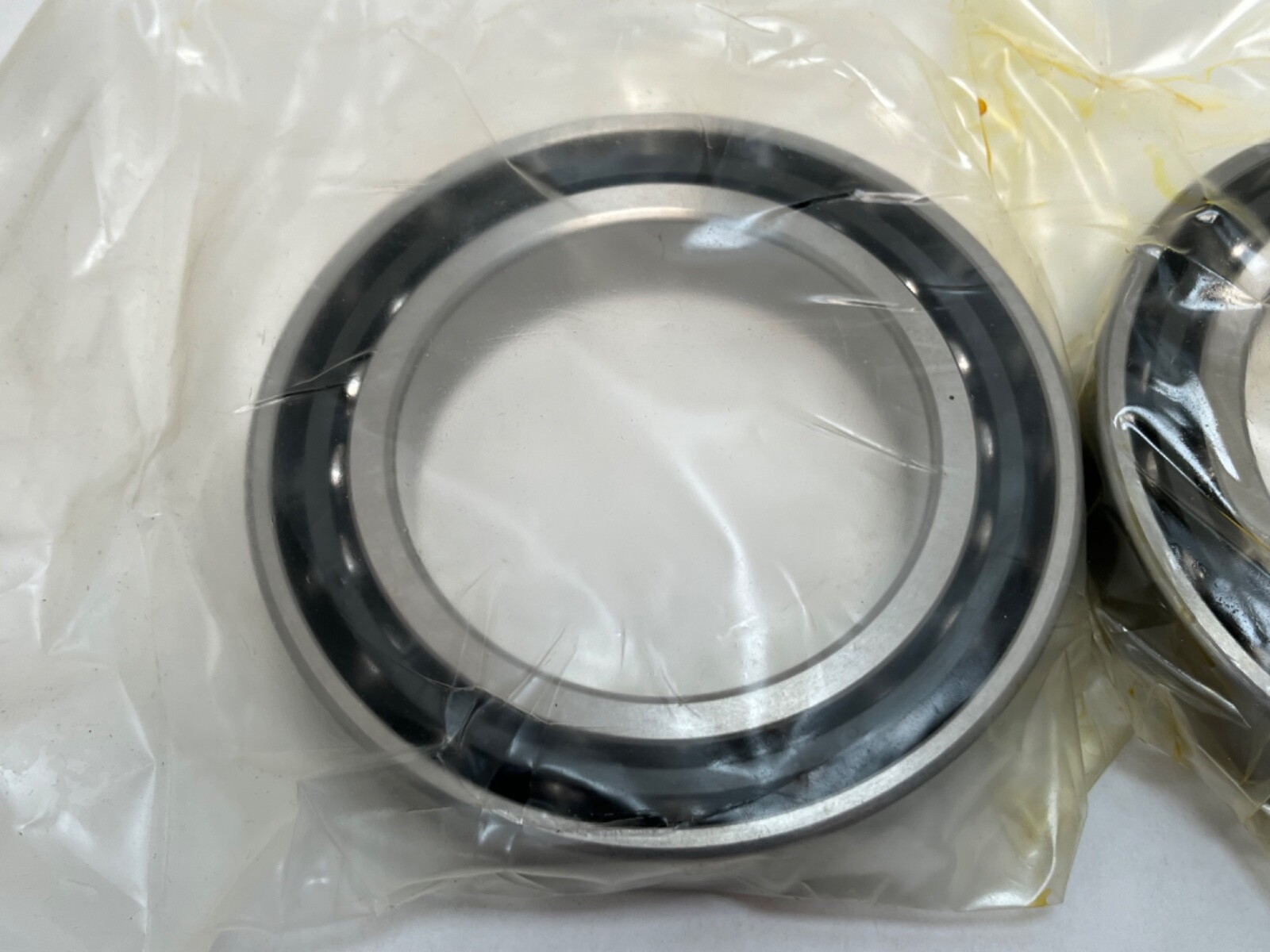

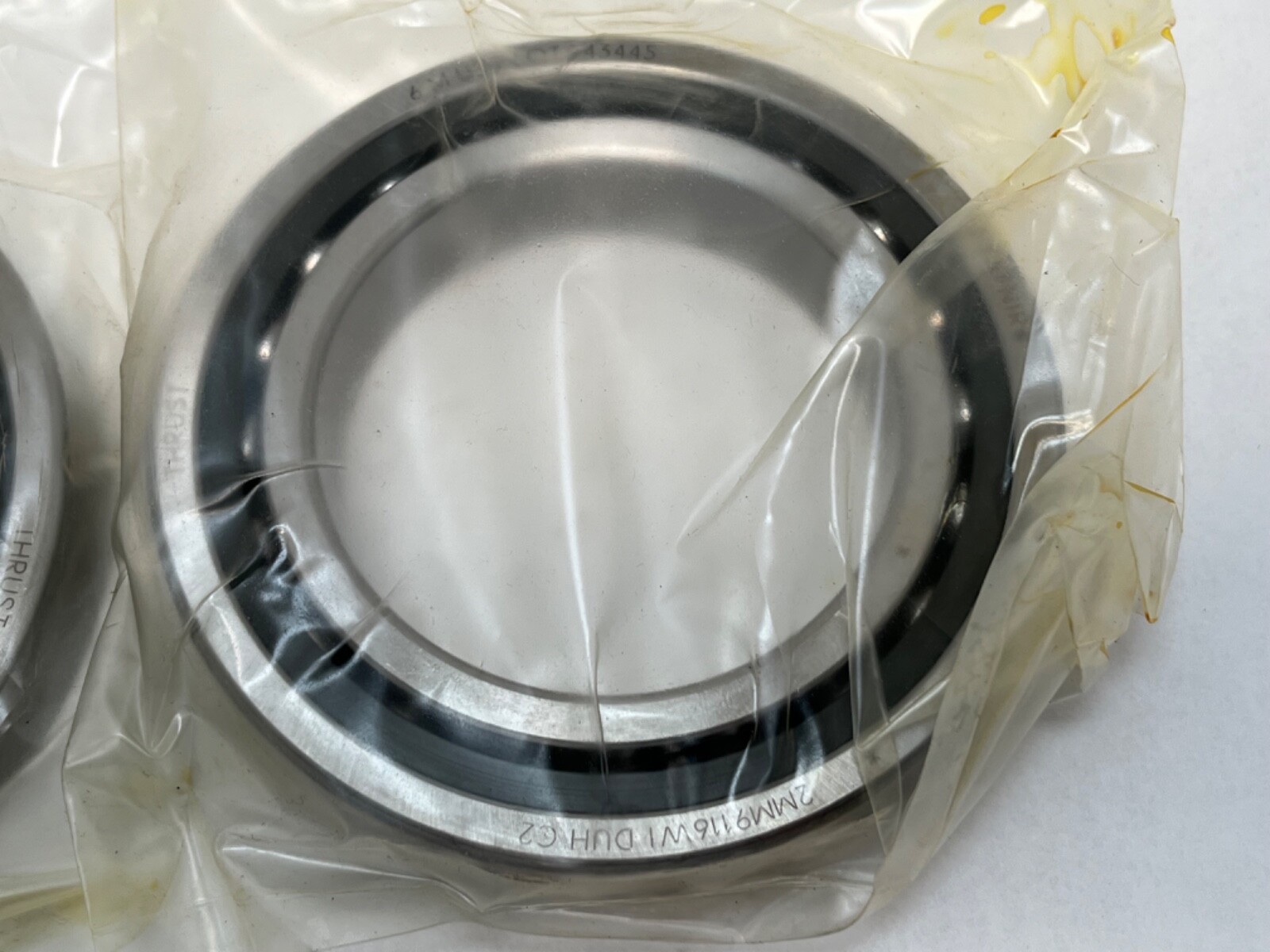

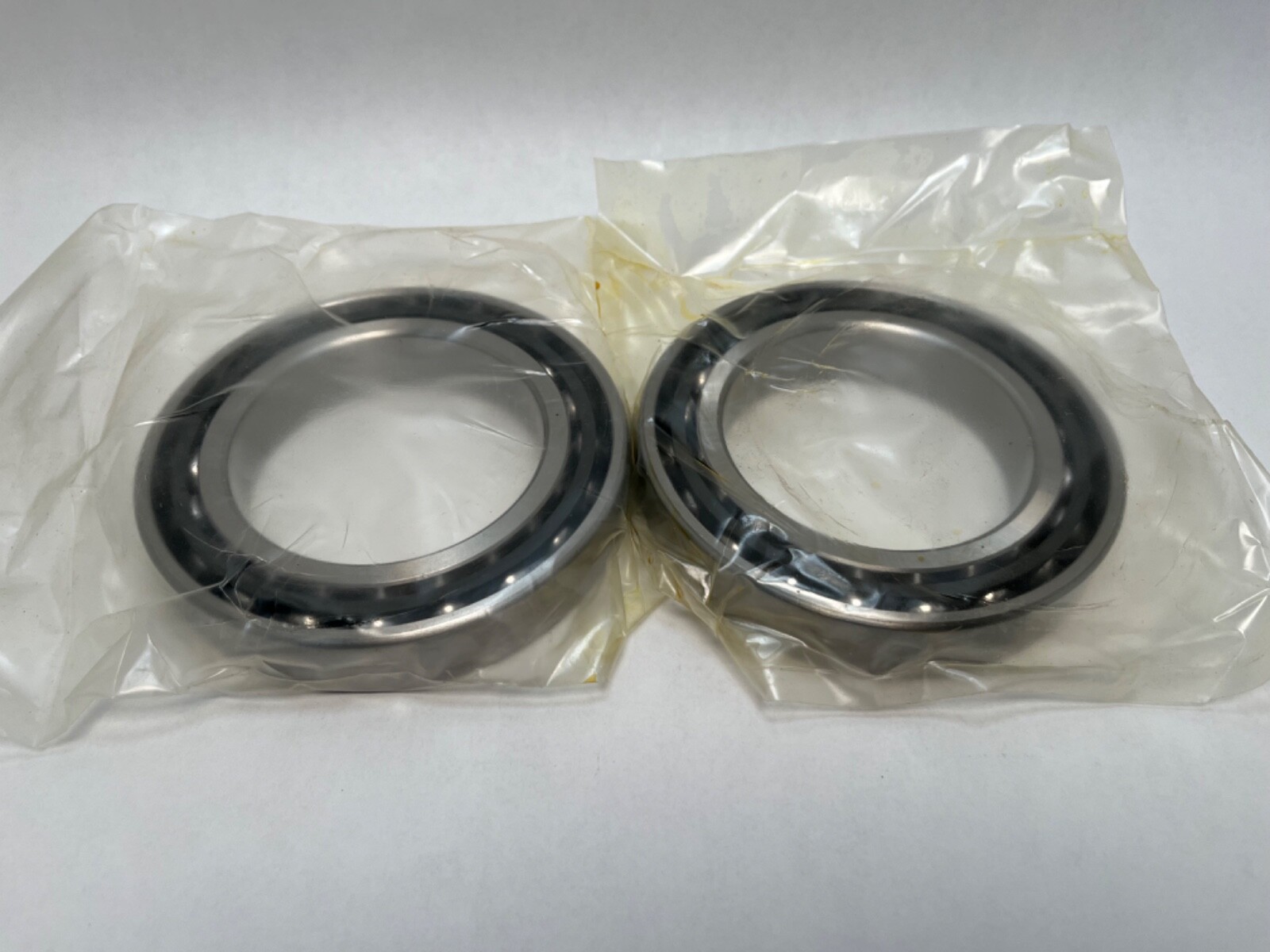

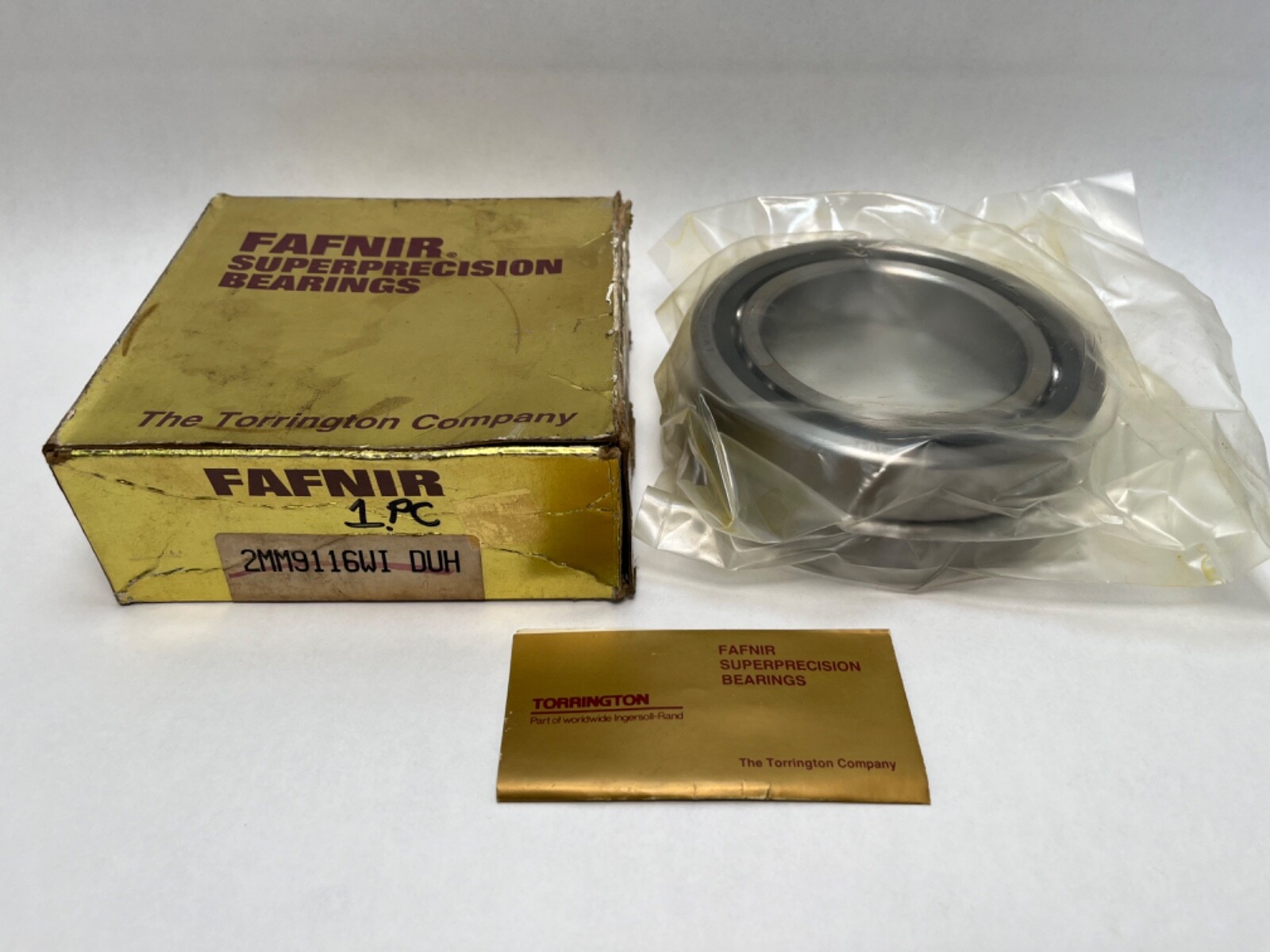

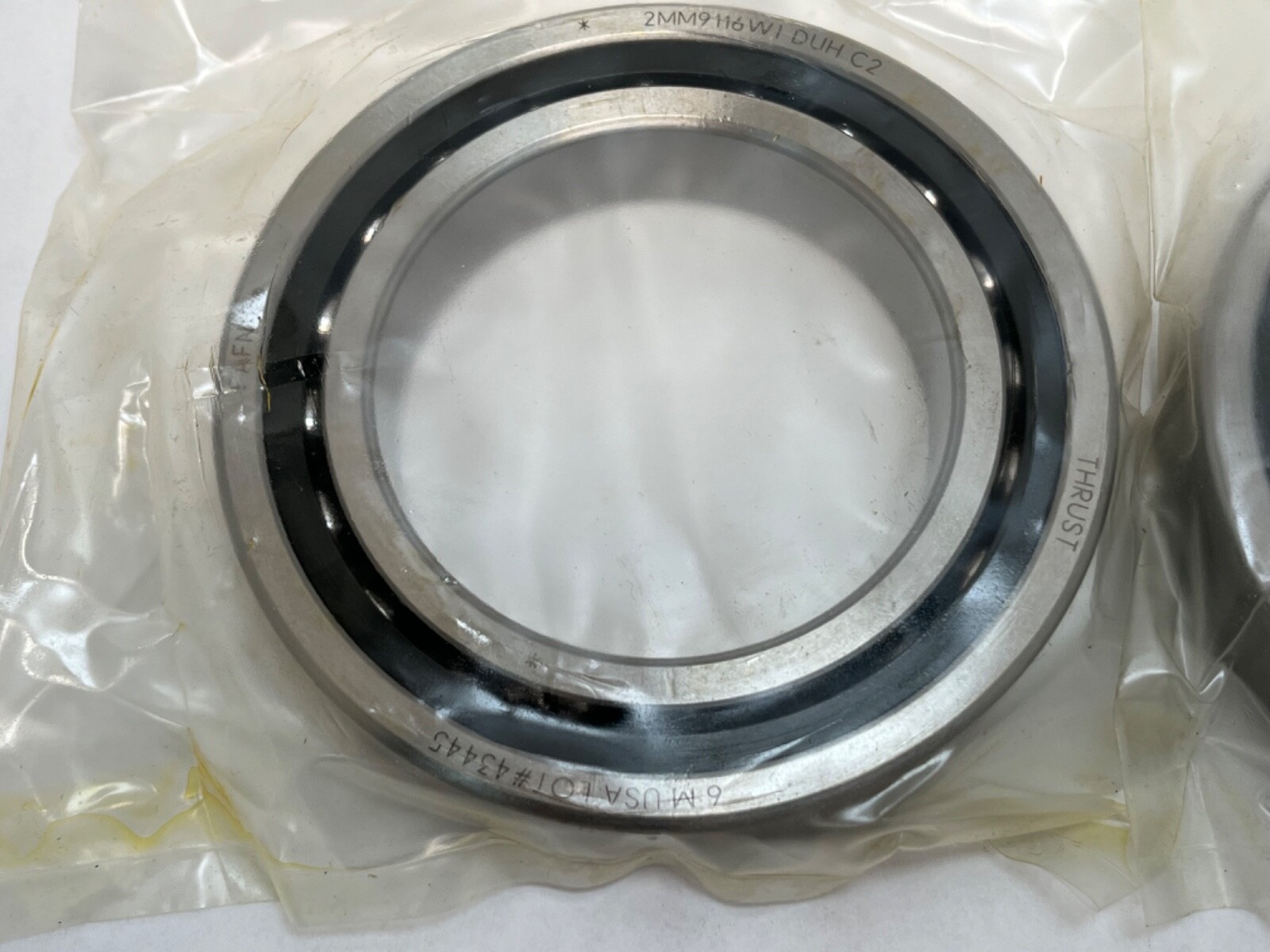

Fafnir 2MM9116WICRDUH is a super-precision angular contact ball bearing supplied as a matched duplex pair (DUH), single row per bearing, open, 80 mm bore x 125 mm outside diameter x 22 mm width, 15° contact angle, heavy preload, ISO P4S (ABEC 7/9). Unit Quantity: 2 Pcs. Timken’s world part number is 7016C-T-P4S-DUH.

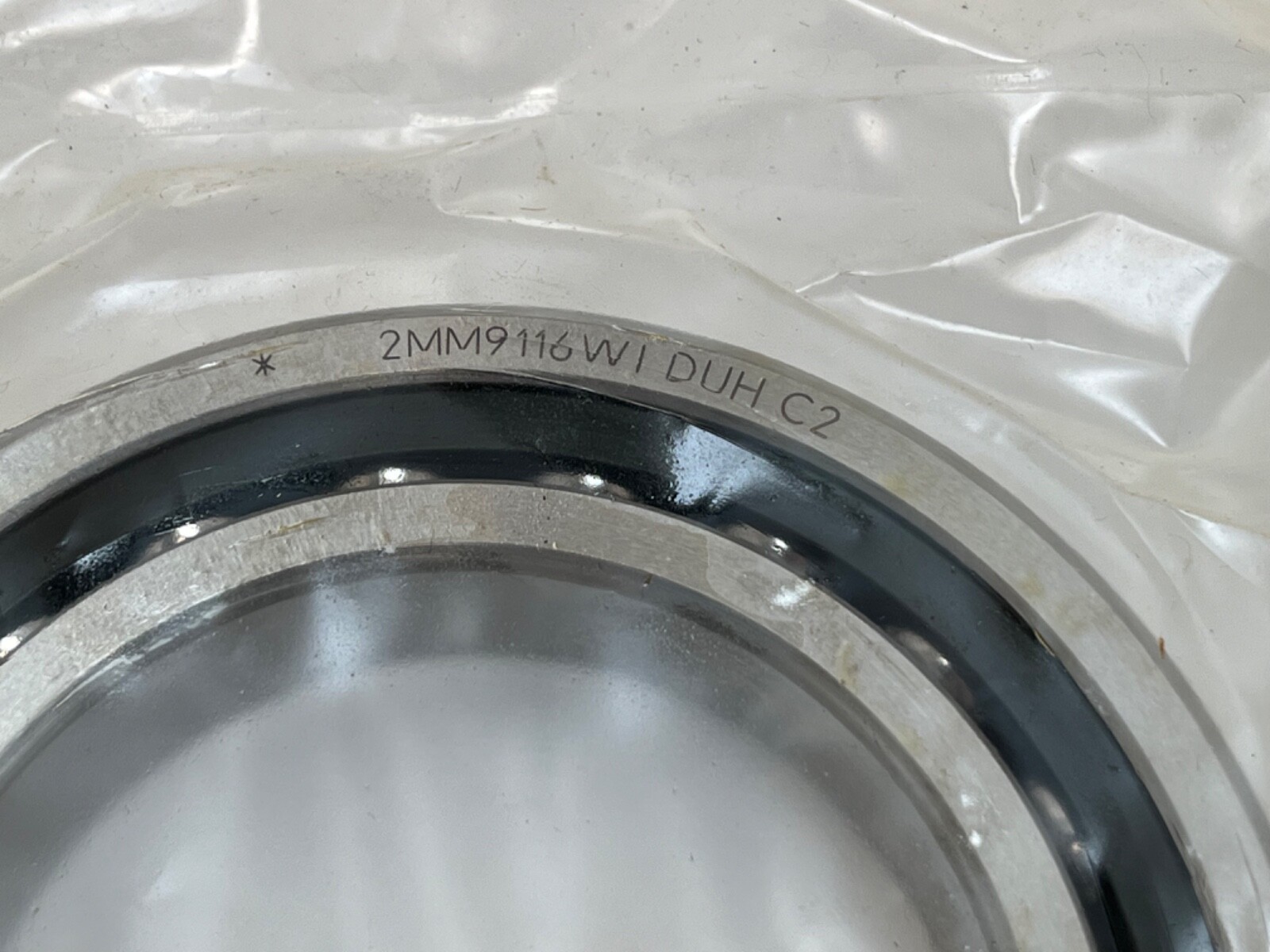

Decoding the designation:

2MM — Timken Fafnir super-precision at a 15° contact angle. MM is the P4S precision grade.

9116 — the 9100WI dimension series at bore code 16, ISO 70-series size 7016, 80 x 125 x 22 mm.

WI — Timken’s standard angular contact construction: full shoulders on both sides of the inner ring and a low shoulder on the outer ring.

CR — phenolic composition cage, the T in the world part number 7016C-T-P4S-DUH.

DUH — duplex universal, heavy preload. Two bearings ground as a matched set with flush faces; the pair mounts back to back, face to face or in tandem.

Specifications:

Bore Diameter: 80 mm. Outside Diameter: 125 mm. Overall Width: 22 mm. Contact Angle: 15°. Preload: Heavy. Precision Class: ISO P4S (ABEC 7/9). Cage Material: Phenolic. Bearing Material: Bearing steel. Closure Type: Open. Rolling Elements: Ball. Bore Type: Straight. Number Of Rows: 1 per bearing. Dynamic Load Rating: 64,900 N per bearing. Static Load Rating: 55,200 N per bearing. Limiting Speed: 10,300 rpm grease; 20,600 rpm oil. Lubricant: grease or oil. Item Weight: 1.718 kg (3.78 lb) for the matched pair, 0.859 kg per bearing. Mounting Arrangement: Duplex universal (DU). Series: 2MM9100WI. GTIN: 087796072855. Harmonization Code: 8482.10.50.28.

Dimensions and mounting:

Shaft Backing Shoulder Diameter: 88.5 mm (3.490 in). Housing Backing Shoulder Diameter: 116.5 mm (4.590 in). Maximum housing fillet radius that the bearing corners will clear: 1 mm (0.039 in).

Compatibility and replacement:

Cross-references: SKF 7016 CD/P4A, FAG B7016-C-T-P4S-UL, NSK 7016CTRDUHP4, NTN 7016CP4, RHP 7016CTDUHP4, Koyo 7016C-P4, NACHI 7016C/P4, SNFA VEX 80 /S 7CE1, GMN S 6016 C. MPN Variants: 2MM9116WICRDUH, 2MM9116WI-DUH, 2MM-9116-WI-DUH, 2MM 9116 WI CR DUH, 7016C-T-P4S-DUH, 7016C T DUH P4.

Frequently asked questions:

What are the dimensions of the Fafnir 2MM9116WI-DUH?

80 mm bore, 125 mm outside diameter and 22 mm width.

What do 2MM and DUH mean in 2MM9116WI-DUH?

2MM is the Timken Fafnir super-precision series at a 15° contact angle; DUH is a duplex universal matched pair with heavy preload.

How many bearings are included and what is the GTIN?

Two bearings as a matched DUH pair. GTIN: 087796072855.
