SNR7016CVDUJ94Angular Contact Ball Bearing – 80 mm ID, 125 mm OD, 22 mm Width, Open, 15° Contact Angle, Heavy Preload.

Product Description

What this part is

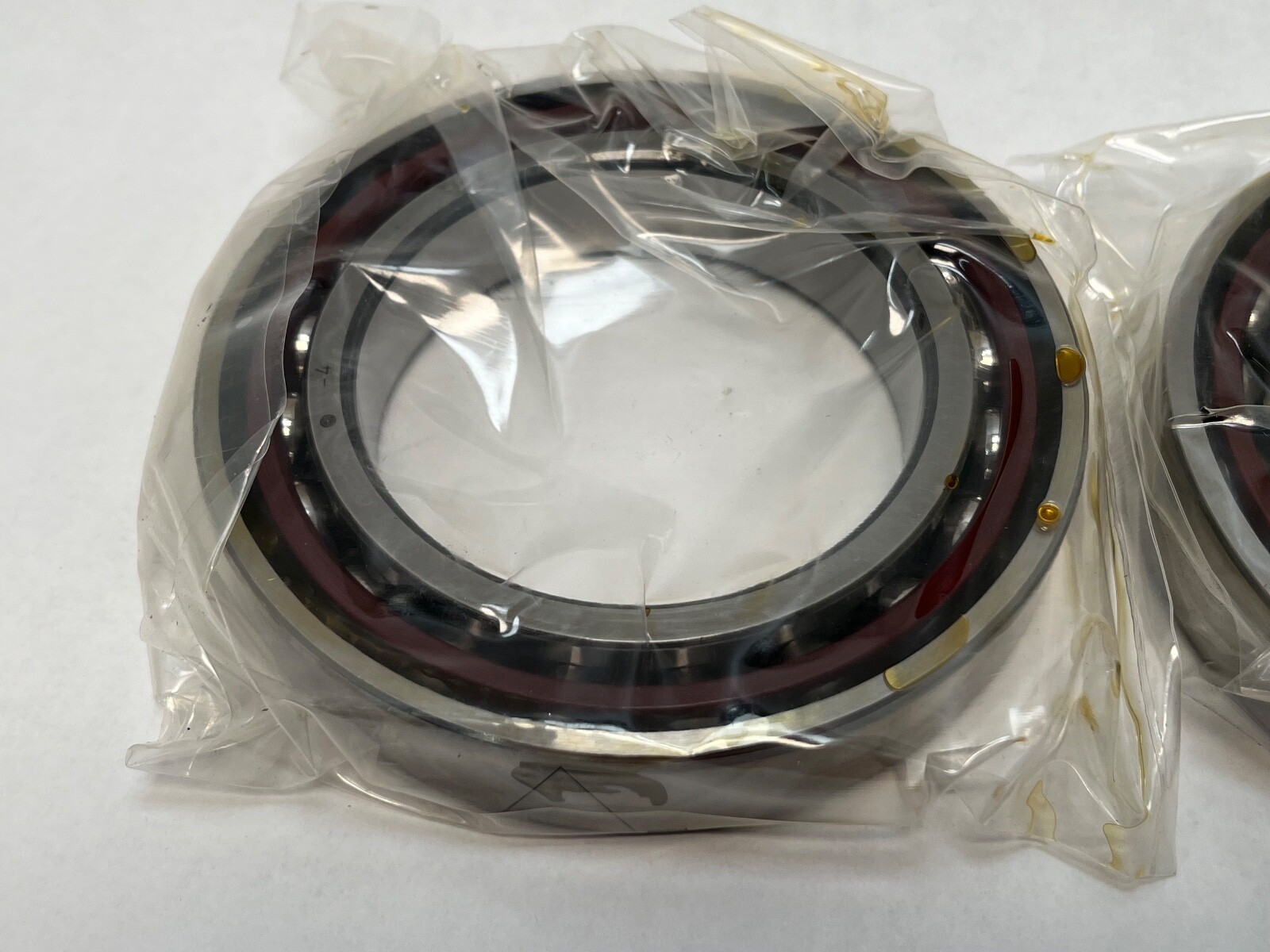

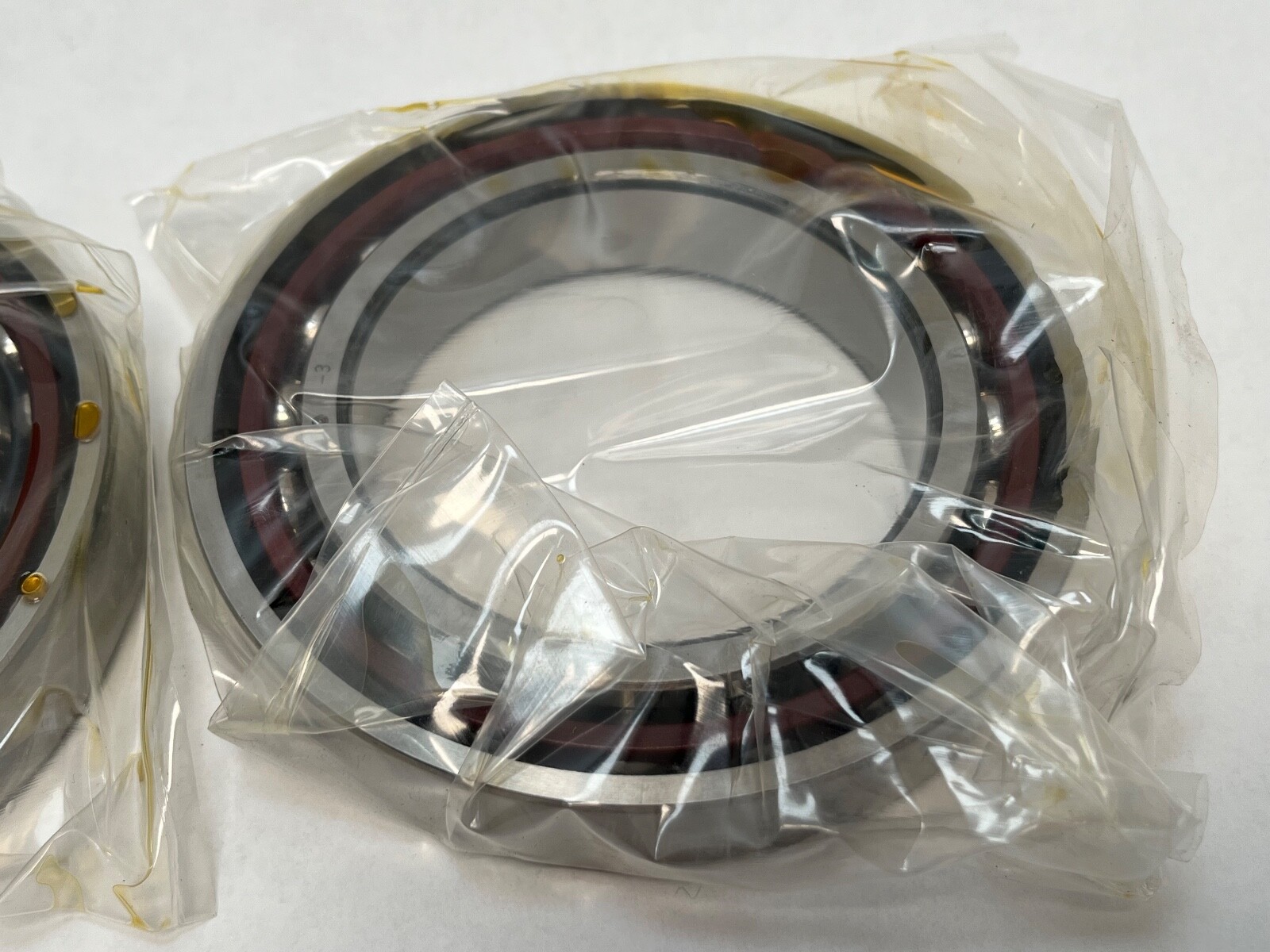

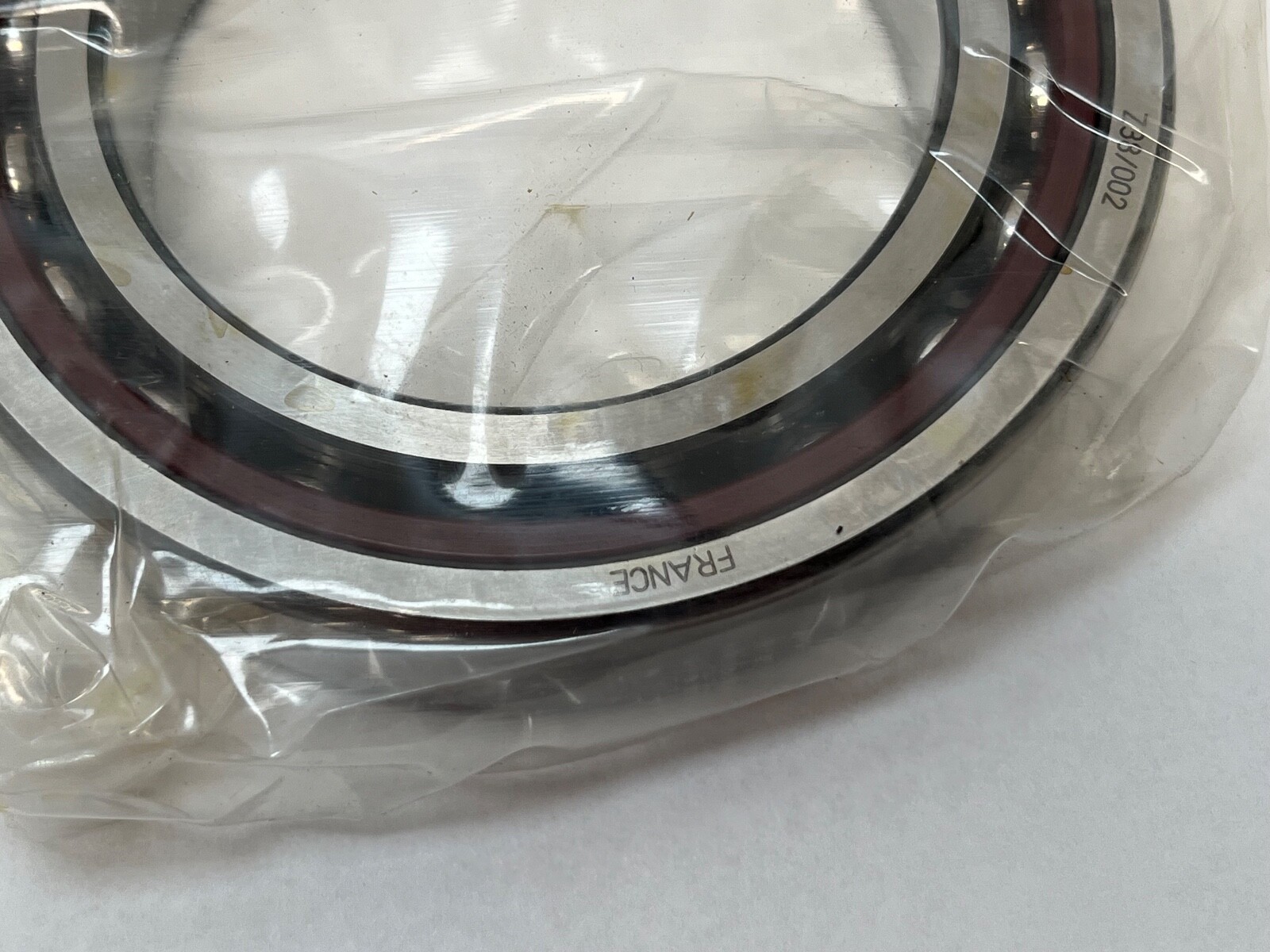

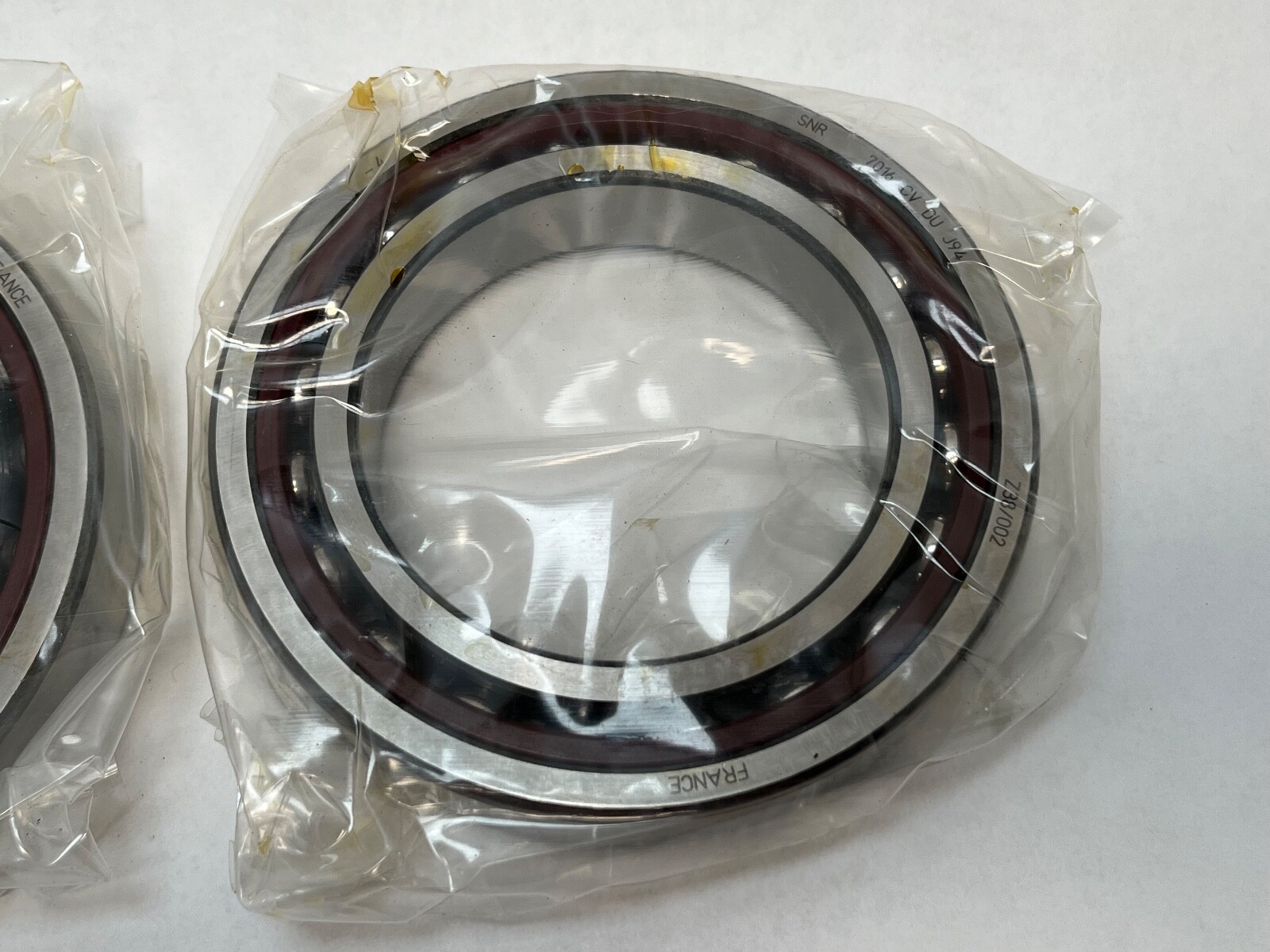

SNR 7016CVDUJ94 single-row angular contact ball bearing, supplied as a matched duplex pair. Brand: SNR. Manufacturer Part Number: 7016CVDUJ94. Bore: 80 mm. Outside Diameter: 125 mm. Width: 22 mm per bearing. Series: 7000. Number of Rows: 1 per bearing. Rolling Elements: Ball. Bearing Material: bearing steel. Closure Type: open on both faces. Bore Type: straight. Item Weight: 1.80 lbs.

Decoding the designation

Contact Angle: 15°. Precision Class: ABEC 7, equivalent to P4. Cage Material: phenolic. Cage Type: outer-ring land-riding. Mounting Arrangement: universally ground. Lubricant: oil. Minimum Temperature: -30°C. Maximum Temperature: 120°C.

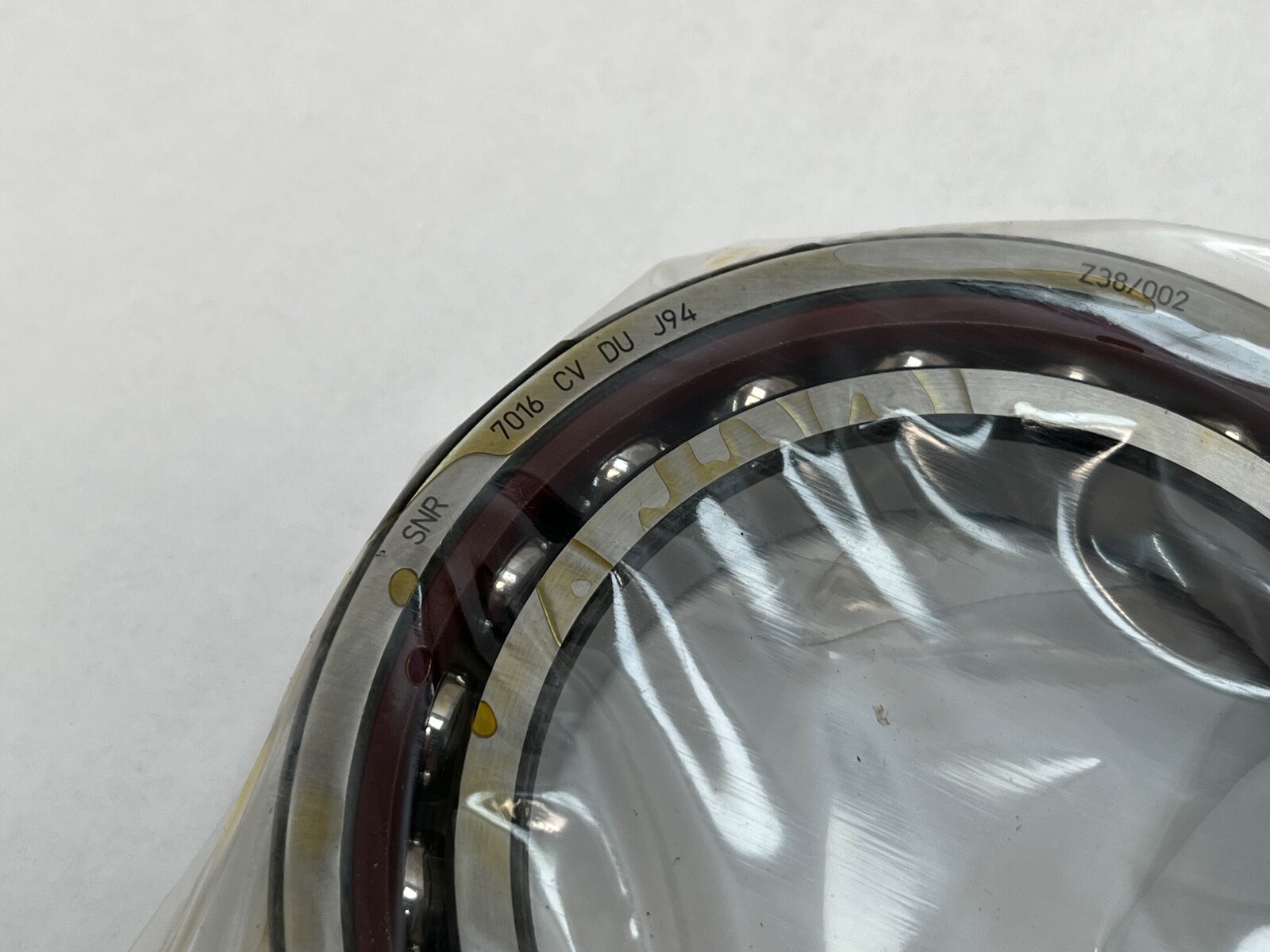

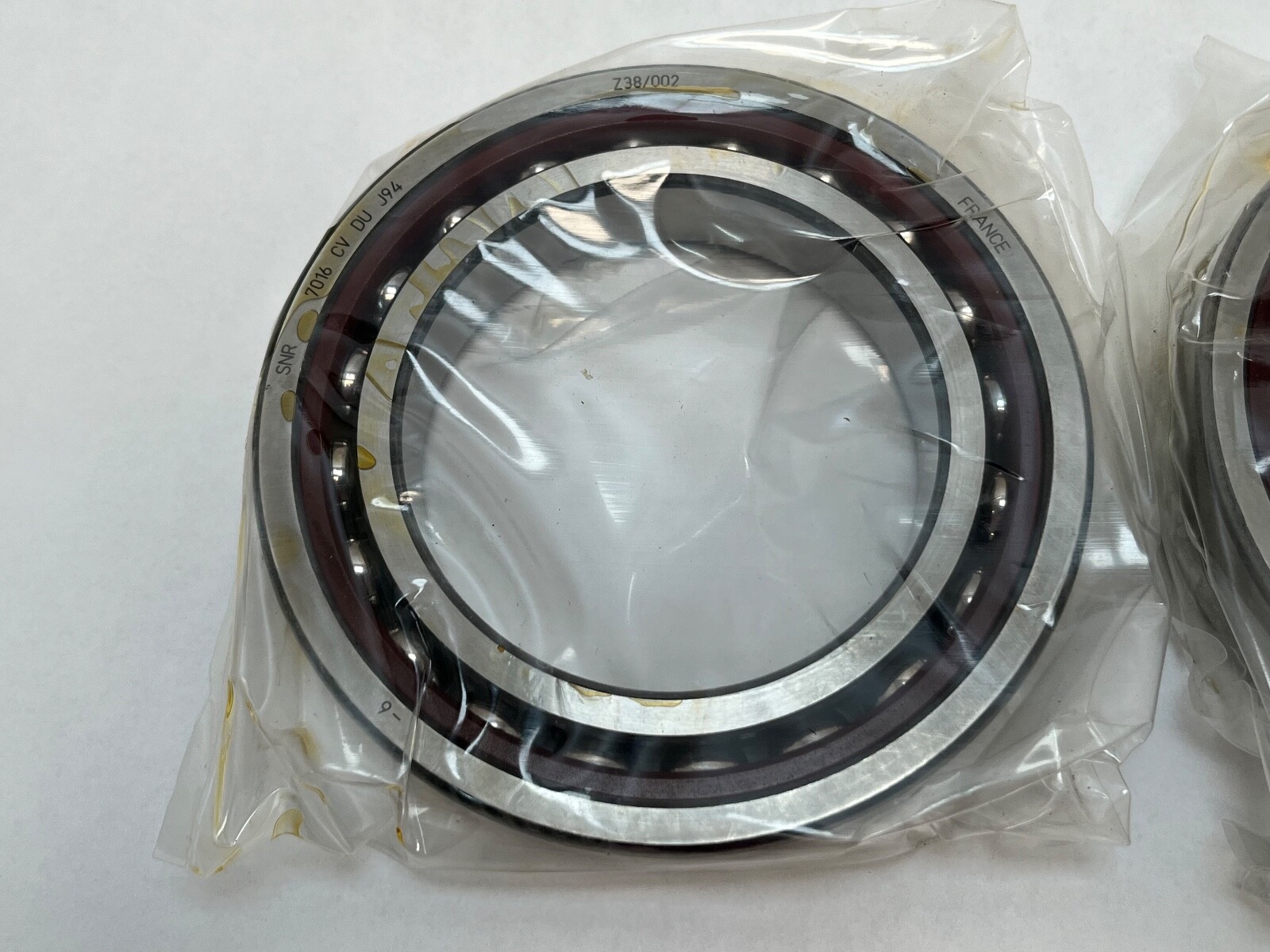

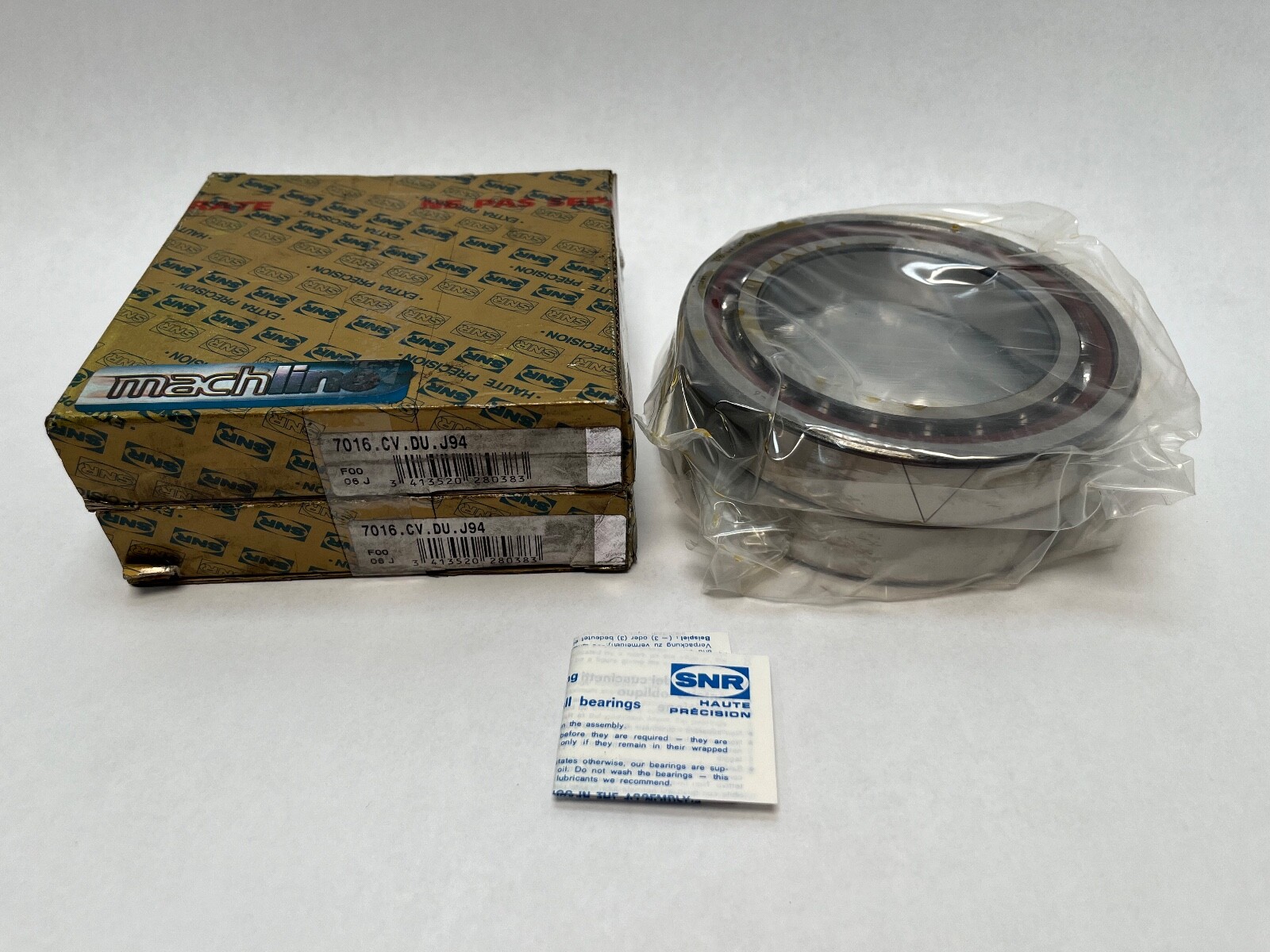

The carton carries this bearing in five schemes: SNR 7016 C V DU J94, FAG 7016-C-T-DUH-P4, Fafnir 2MM9116WI CR DUH, SKF 7016 CD/P4ADGC and NSK 7016CTYNDUHP4. Searchable variants of the number include 7016CVDUJ94, 7016 C V DU J94 and 7016-C-V-DU-J94.

What these specs mean in practice

A 15° contact angle keeps the load path close to the radial plane, favouring speed and radial stiffness over thrust capacity. That is the trade a large high-speed spindle position normally wants.

The phenolic cage is light and absorbs oil, so it runs cooler and quieter than brass or steel at high shaft speed, and the 120°C ceiling reflects the phenolic. Riding on the outer-ring land centres the cage on the stationary ring, steadying cage motion through acceleration and deceleration. ABEC 7 precision holds low radial and axial runout and gives close, repeatable shaft location.

Universal grinding is what makes the pair work. The two bearings are ground so they can be clamped together in any face orientation and still seat correctly, which is why the same part number serves back-to-back, face-to-face and tandem builds.

Quantity and configuration

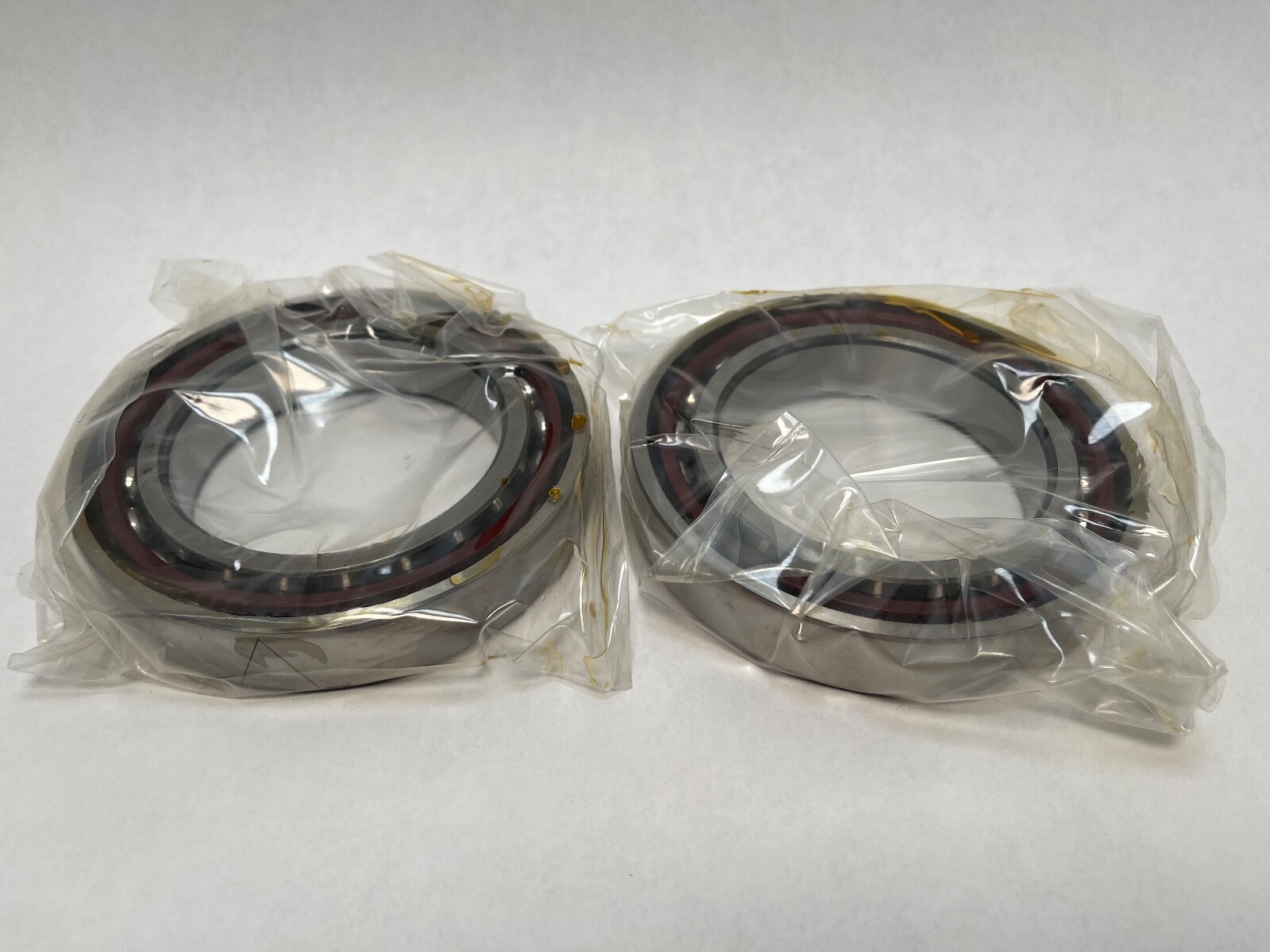

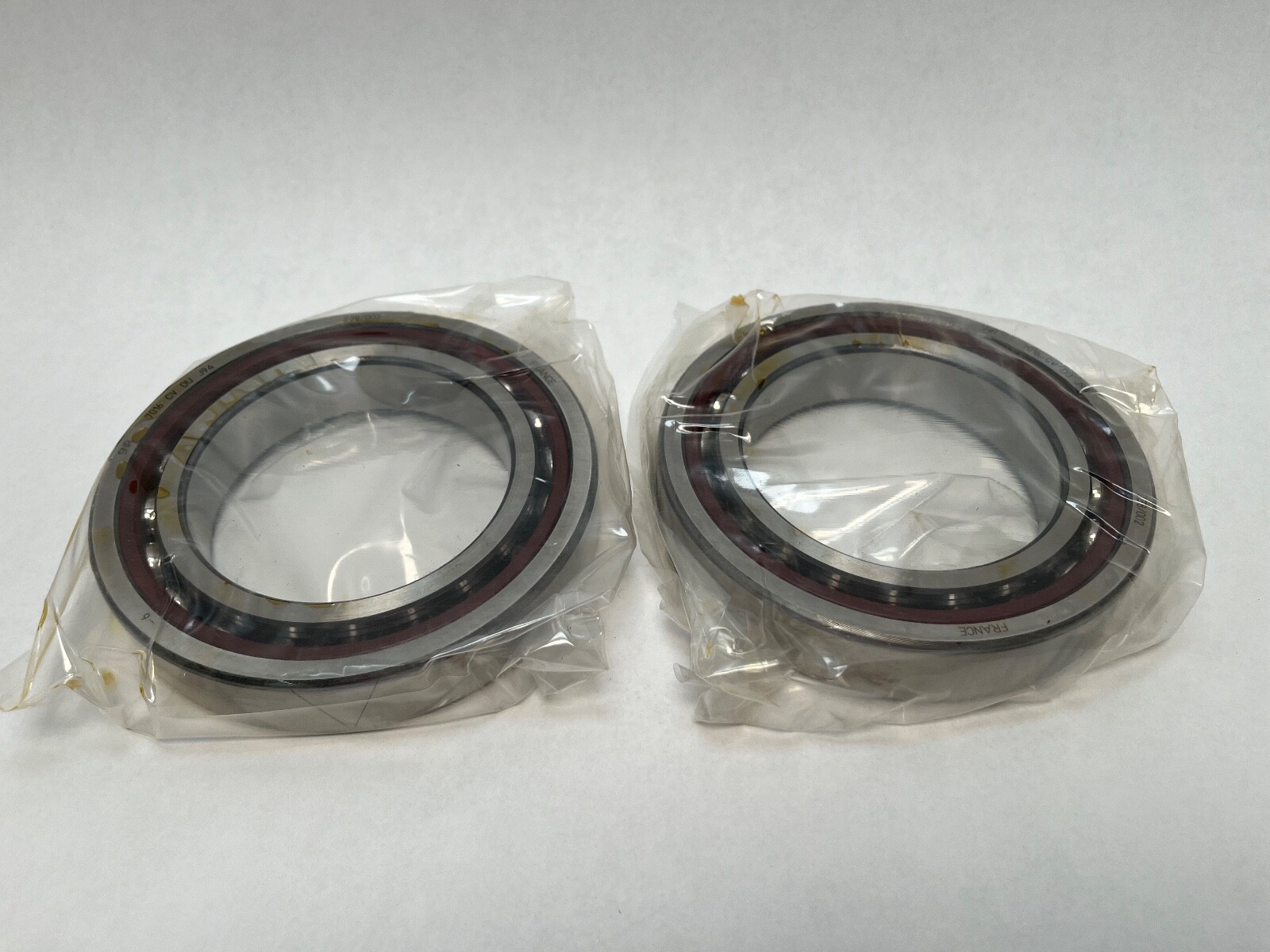

Unit Quantity: 2 Pcs. This listing supplies the matched duplex pair.

Interchange guidance

Cross-Reference: SKF 7016 CD/P4ADGC. Cross-Reference: NSK 7016CTYNDUHP4. Cross-Reference: FAG 7016-C-T-DUH-P4. Cross-Reference: Fafnir 2MM9116WI CR DUH. Harmonization Code: 8482.10.50.28. A same-envelope 7016 built at 25° is a related size rather than a substitution, because the steeper angle changes both the thrust capacity and the speed behaviour. A single universally ground 7016 is likewise a different product, since this one is supplied as a matched pair.
