Matched duplex pair of RHP 7016CTDULP4 super-precision angular contact bearings, 80x125x22 mm each, 15° contact angle, light preload, ABEC 7. 2 Pcs.
List Price
$404.51
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7016CTDULP4 |
| Model | 7016C T DUL P4 / 2MM9116WI CR DUL / B7016X2TADULEP7 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 80 mm |
| OD | 125 mm |
| Width | 22 mm |
| Material | Chrome Steel |
|---|---|
| Series | 7000 |
| Preload | Light |
| Base Number | 7016 |
| Industry Terms | super precision spindle bearing set, matched pair angular contact, machine tool bearing, ABEC 7 duplex |
| Common Misspellings | 7016 CTDULP4, RHP 7016CTDUL P4, Ransome Hoffmann Pollard, 7016CTDULP-4 |
| Application Types | Machine tool spindles, grinding spindles, precision gearboxes, rotary tables |
| Bore Shaft Size | 80 mm (3.150 in) |
| Mpn Variants | 7016CTDULP4, 7016-C-T-DUL-P4, 7016 C T DUL P4, 7016C, 7016CTDUL, 7016CTSULP4 |
| Precision Class | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Number Of Rows | 1 per bearing |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50.28 |
| Contact Angle | 15° |
| Part Number | 7016CTDULP4 |
| Cross Reference 1 | Fafnir 2MM9116WI DUL |
|---|---|
| Cross Reference 2 | FAG B7016C.T.P4S.UL |
| Cross Reference 3 | SKF 7016 CD/P4ADGA |
| Cross Reference 4 | NSK 7016CTRDULP4 |
| Cross Reference 5 | SNFA EX80-9CE1DUL |

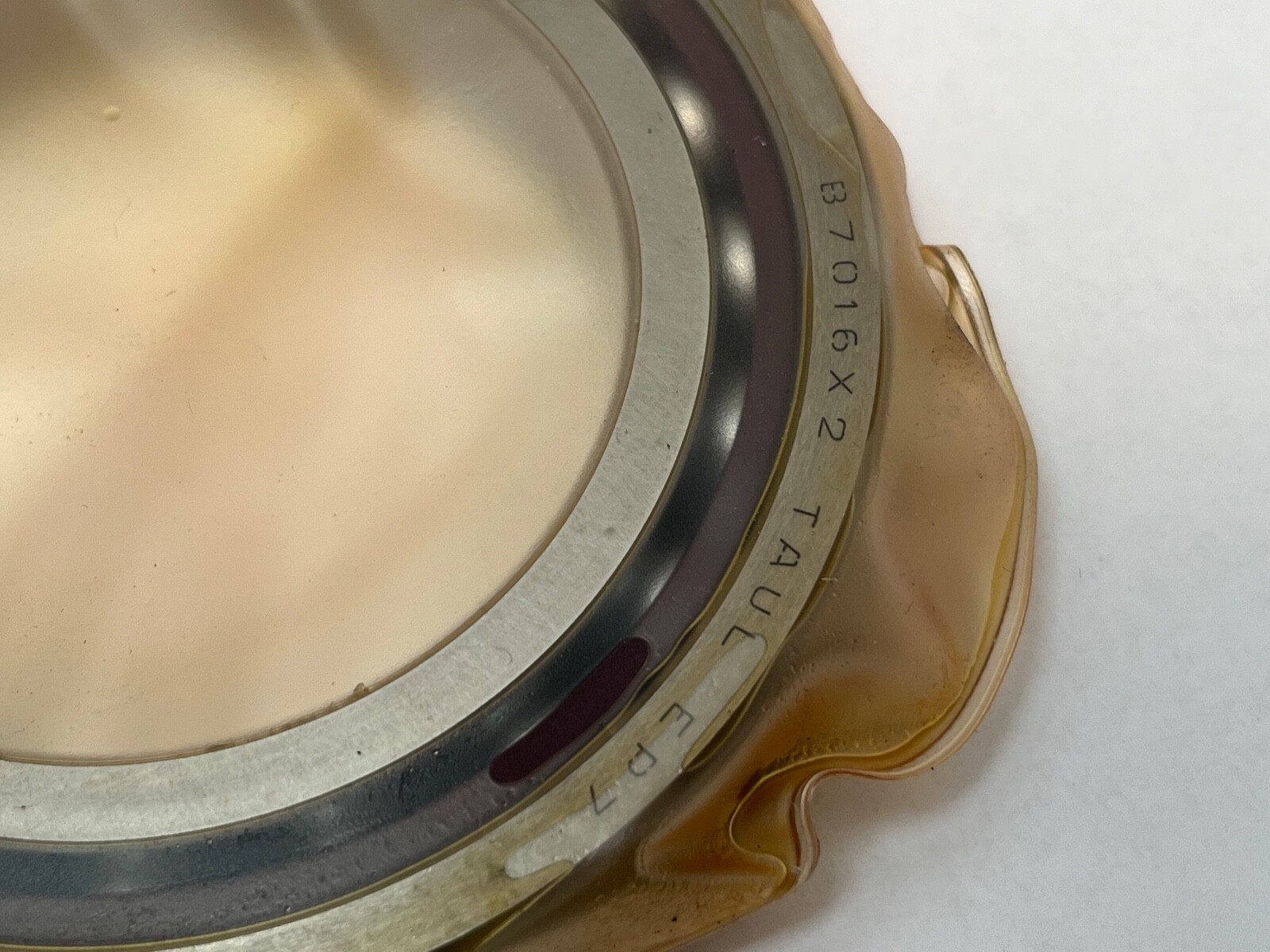

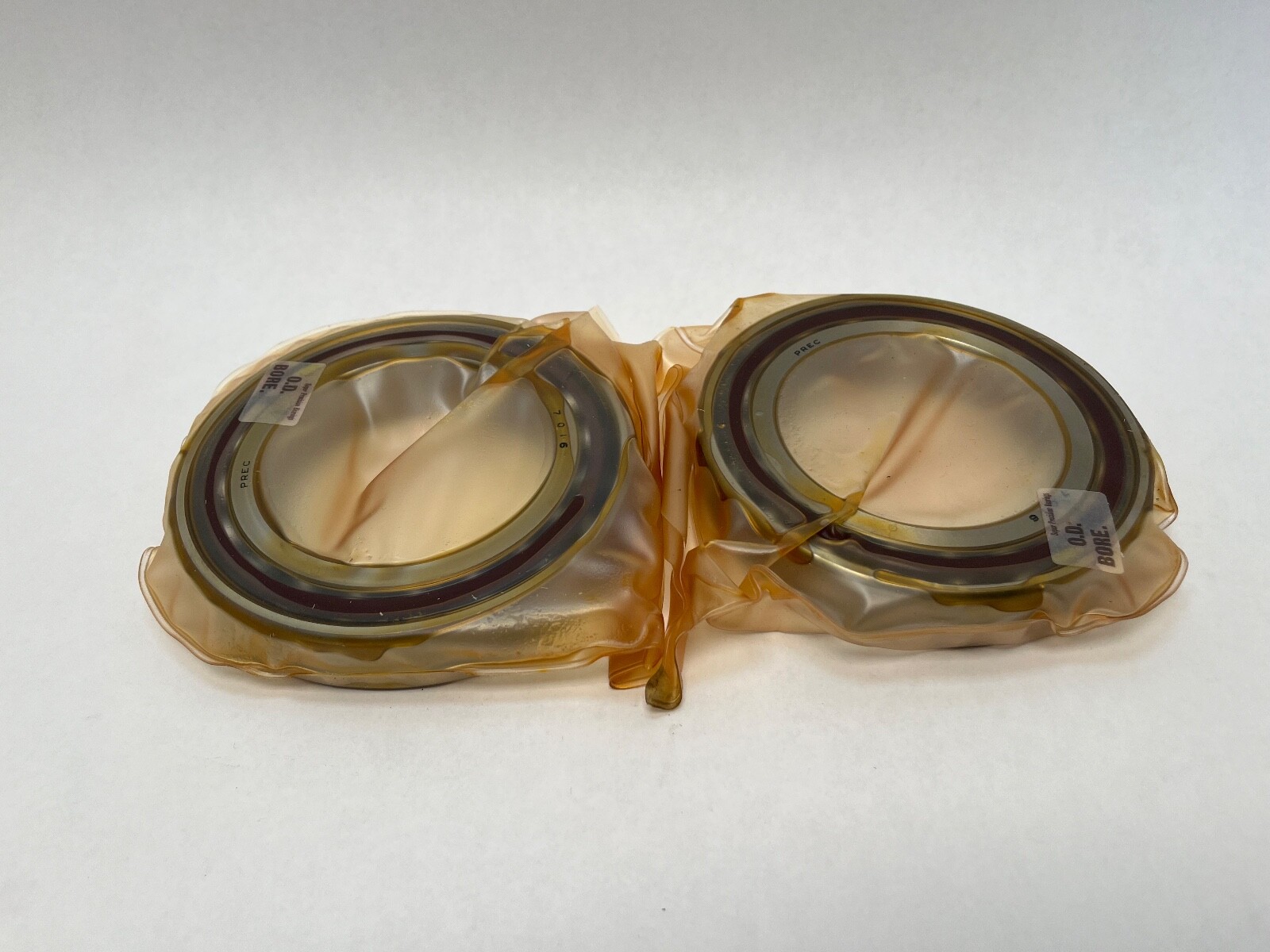

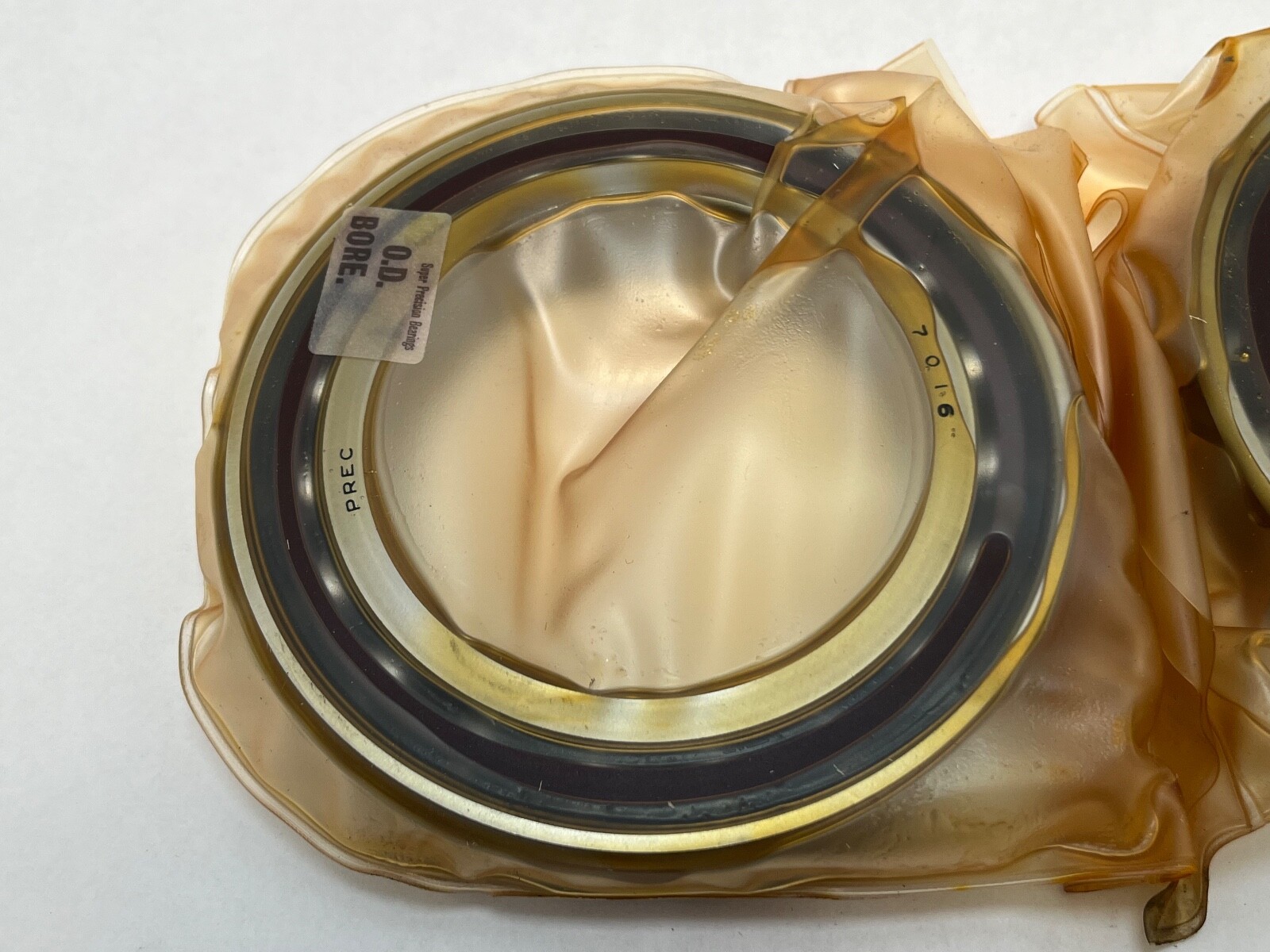

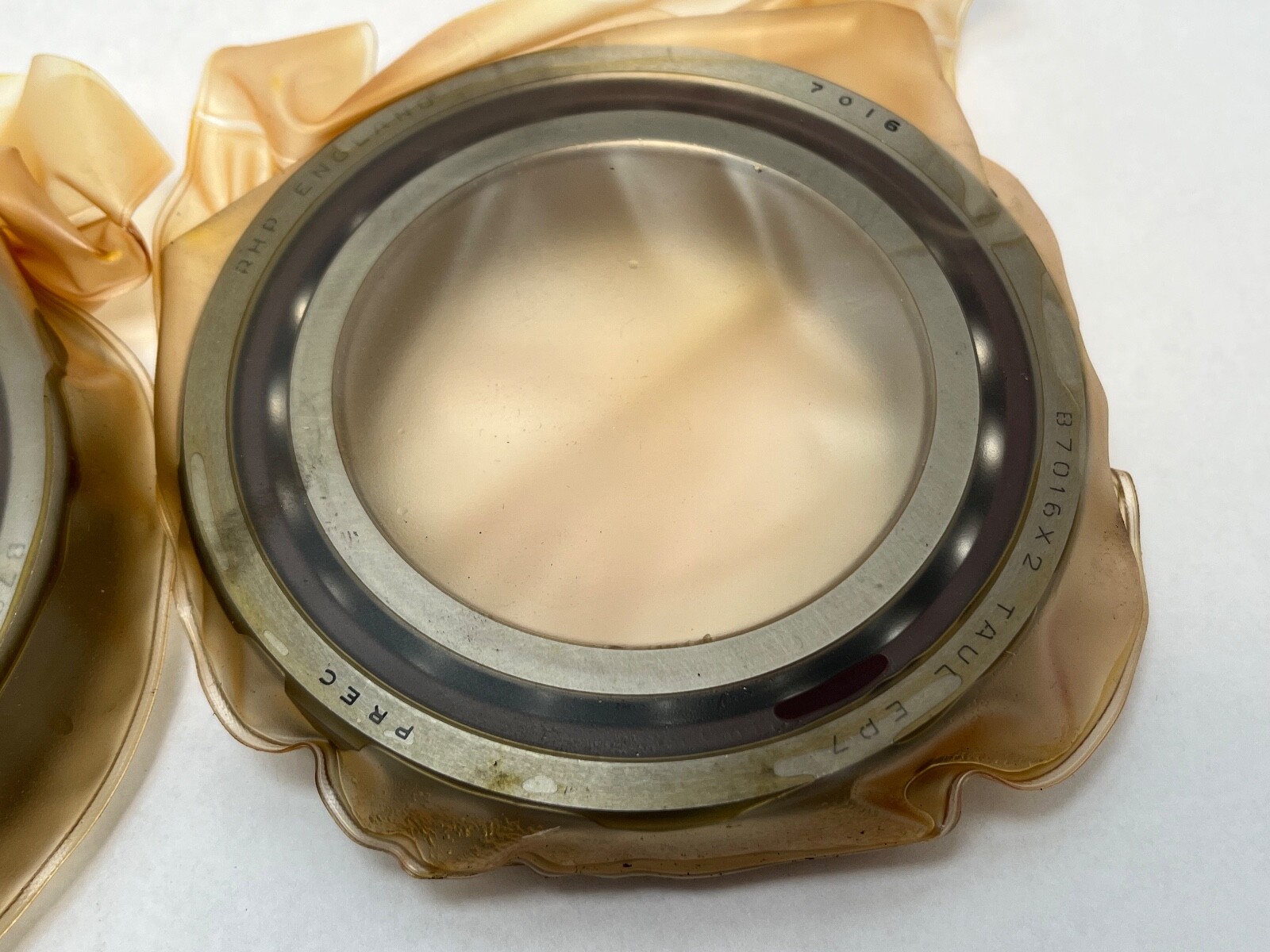

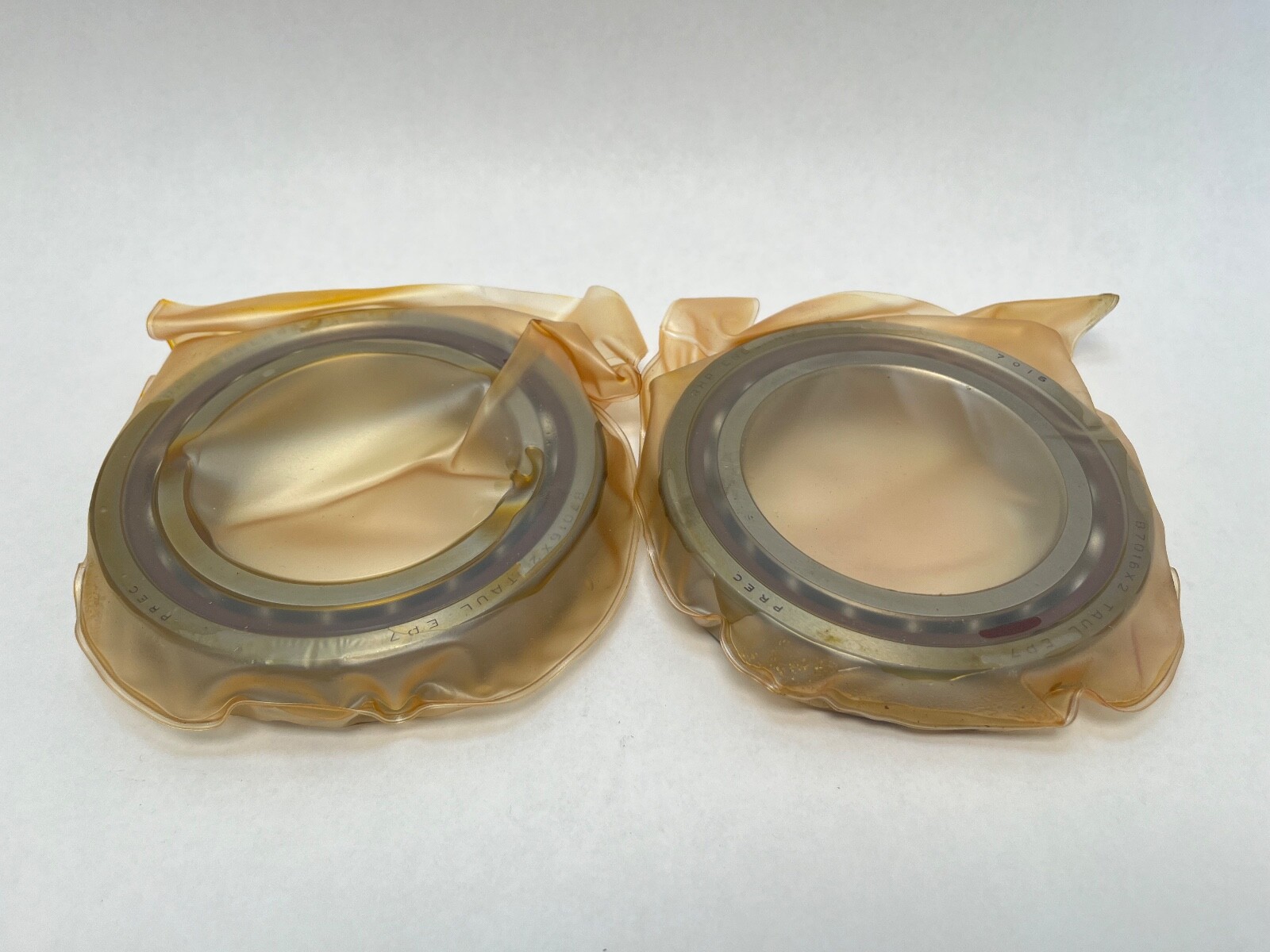

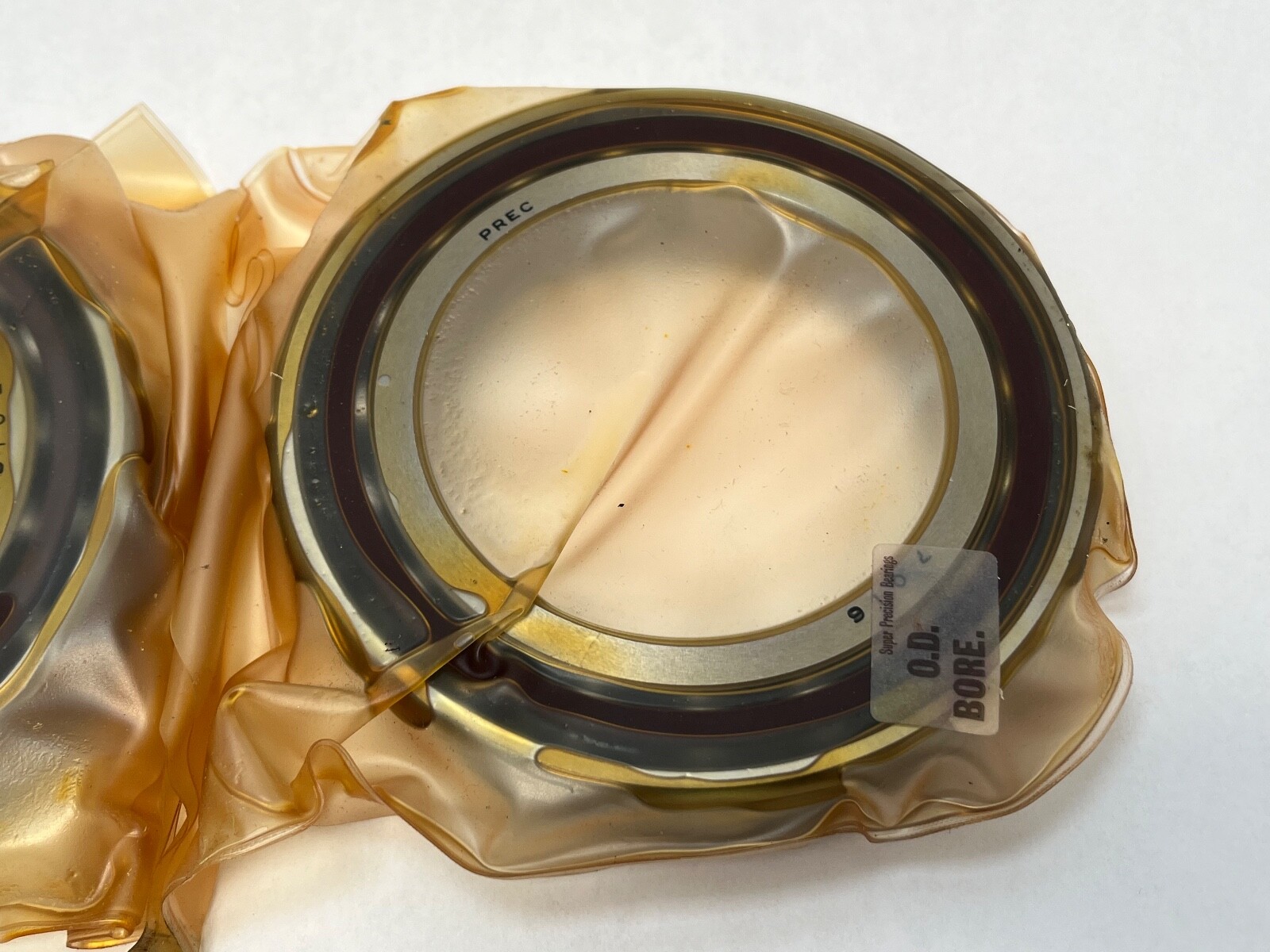

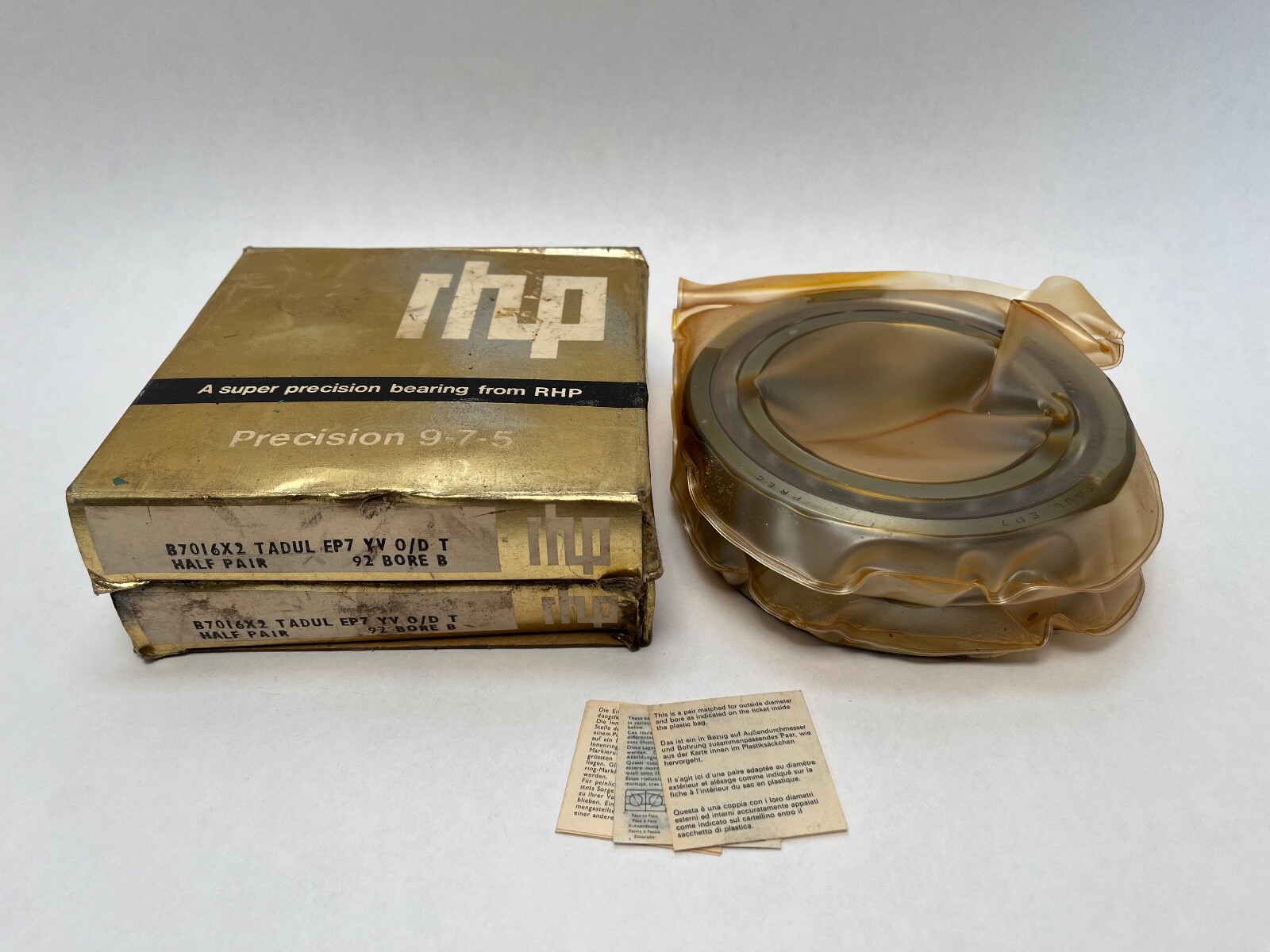

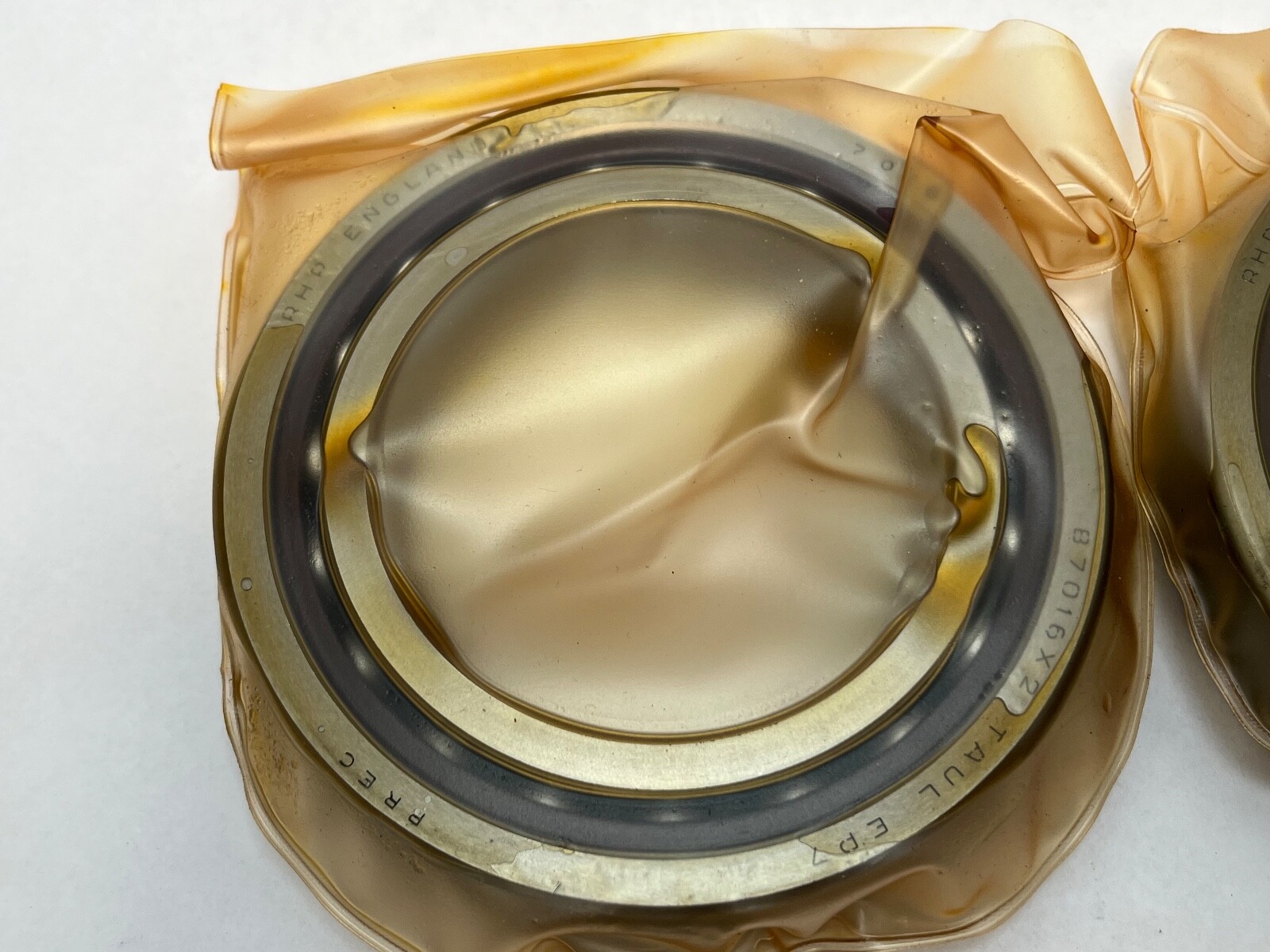

RHP 7016CTDULP4 matched duplex pair of super-precision single-row angular contact ball bearings. 80 mm bore, 125 mm outside diameter, 22 mm width each, 44 mm stacked. Open on both faces. Unit Quantity: 2 Pcs.
7016 — single-row angular contact, 80 mm bore, 7000 series.
C — 15° contact angle in the RHP scheme.
DU — duplex, ground as a matched set.
L — light preload.
P4 — ABEC 7 precision.
Bore Diameter: 80 mm (3.150 in). Outside Diameter: 125 mm. Width: 22 mm per bearing, 44 mm stacked. Contact Angle: 15°. Precision Class: ABEC 7 / P4. Preload: Light. Number Of Rows: 1 per bearing. Closure Type: Open. Rolling Elements: Ball. Unit Quantity: 2 Pcs.
Each bearing carries thrust in one direction; the pair is ground as a matched set with the ground faces kept together.
Cross-references (15°, matched duplex, light preload): Fafnir 2MM9116WI DUL; FAG B7016C.T.P4S.UL; SKF 7016 CD/P4ADGA; NSK 7016CTRDULP4; SNFA EX80-9CE1DUL. MPN variants: 7016-C-T-DUL-P4, 7016 C T DUL P4, 7016CTDUL.
15°, from the C in the designation.
80 mm bore, 125 mm outside diameter and 22 mm width per bearing.
DU is a duplex matched set, L is light preload and P4 is ABEC 7 precision.
