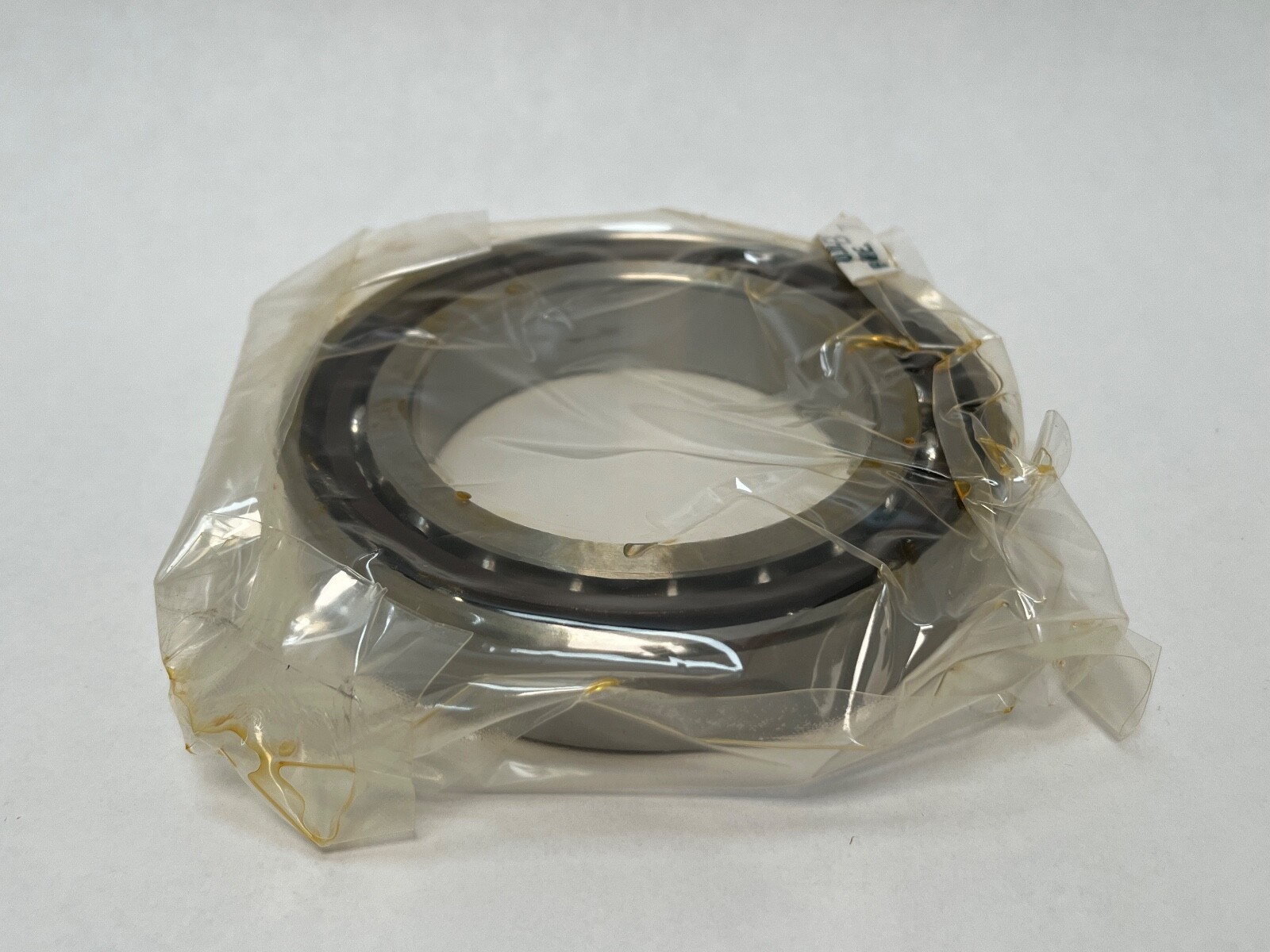

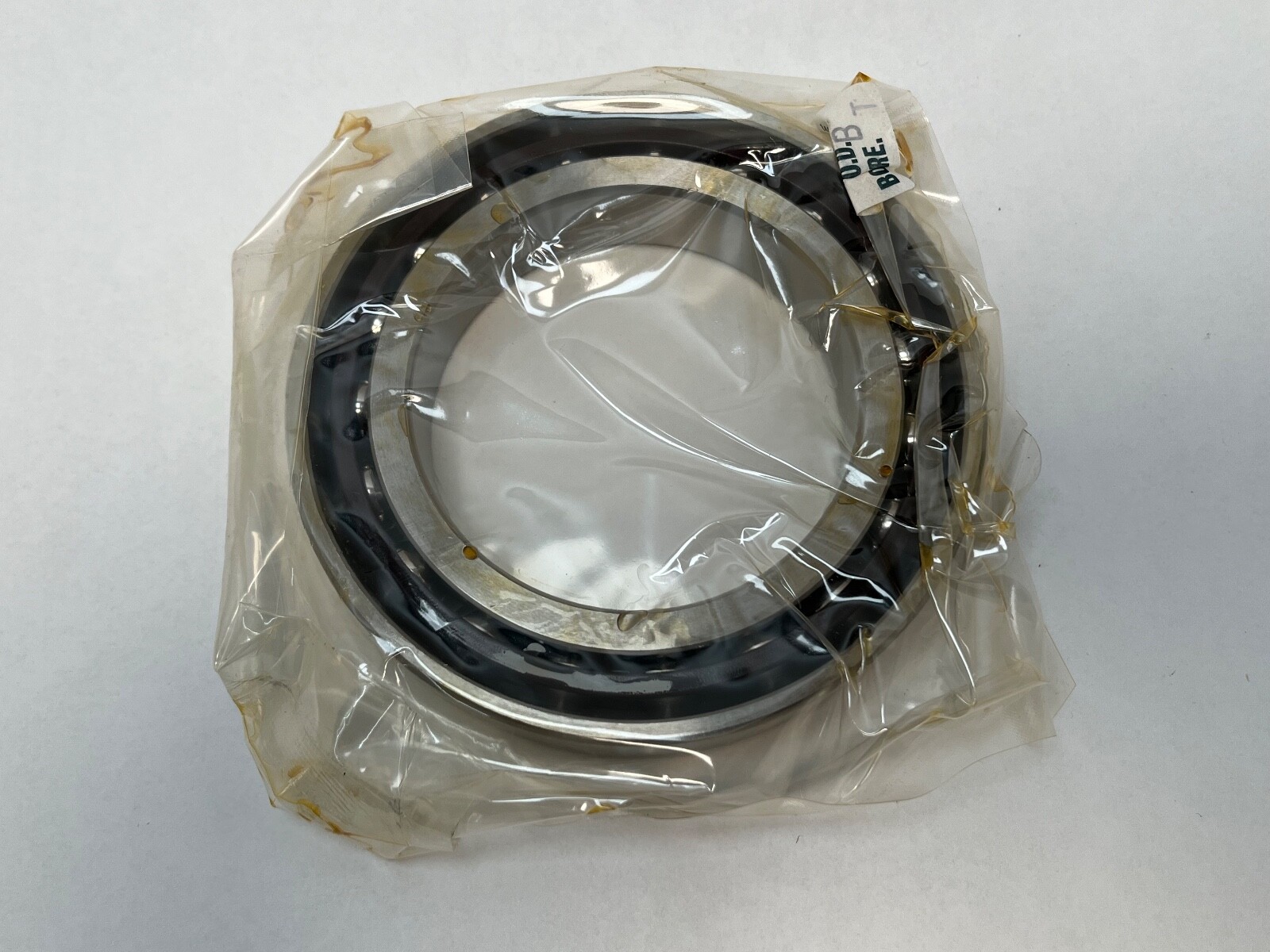

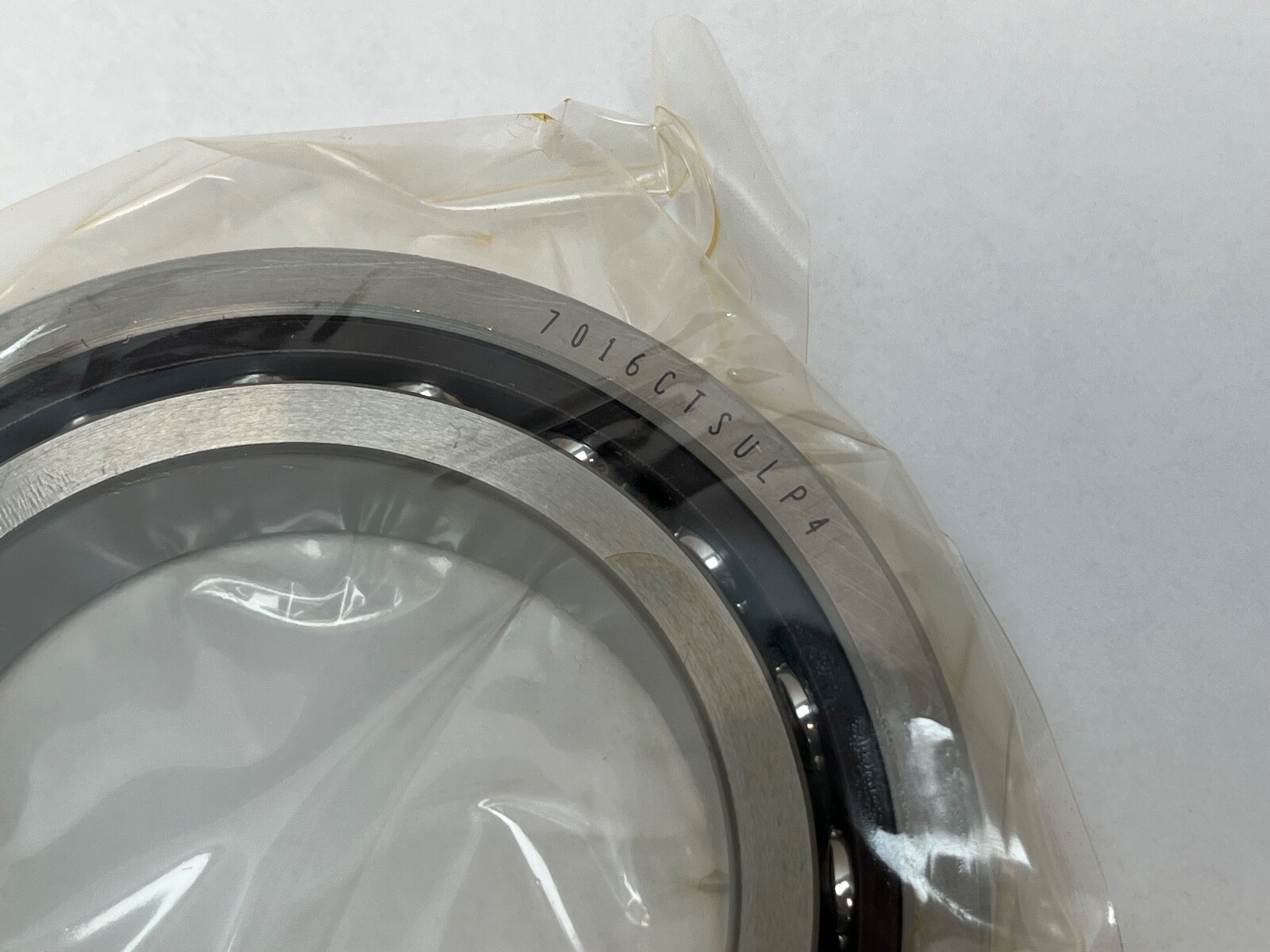

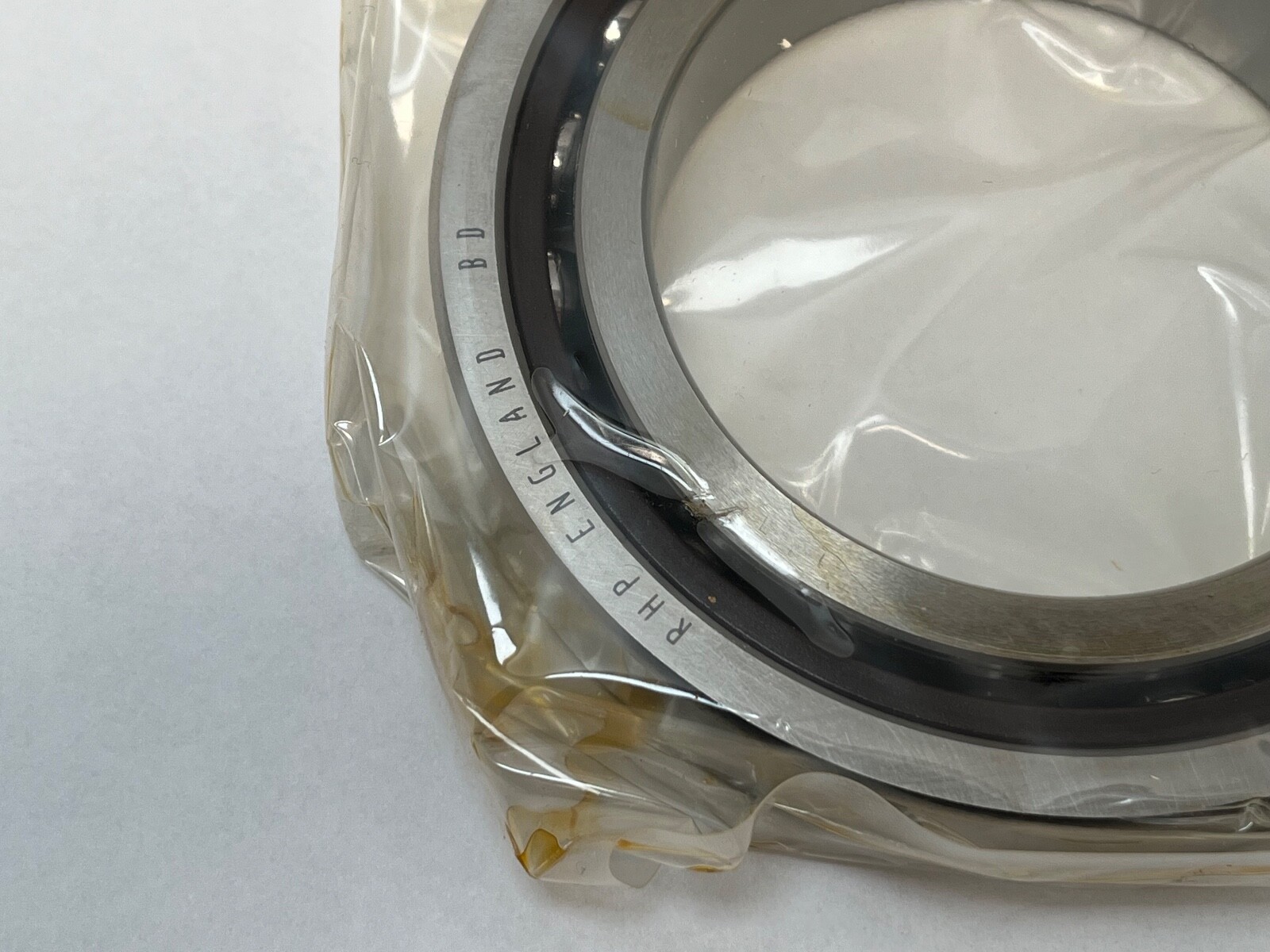

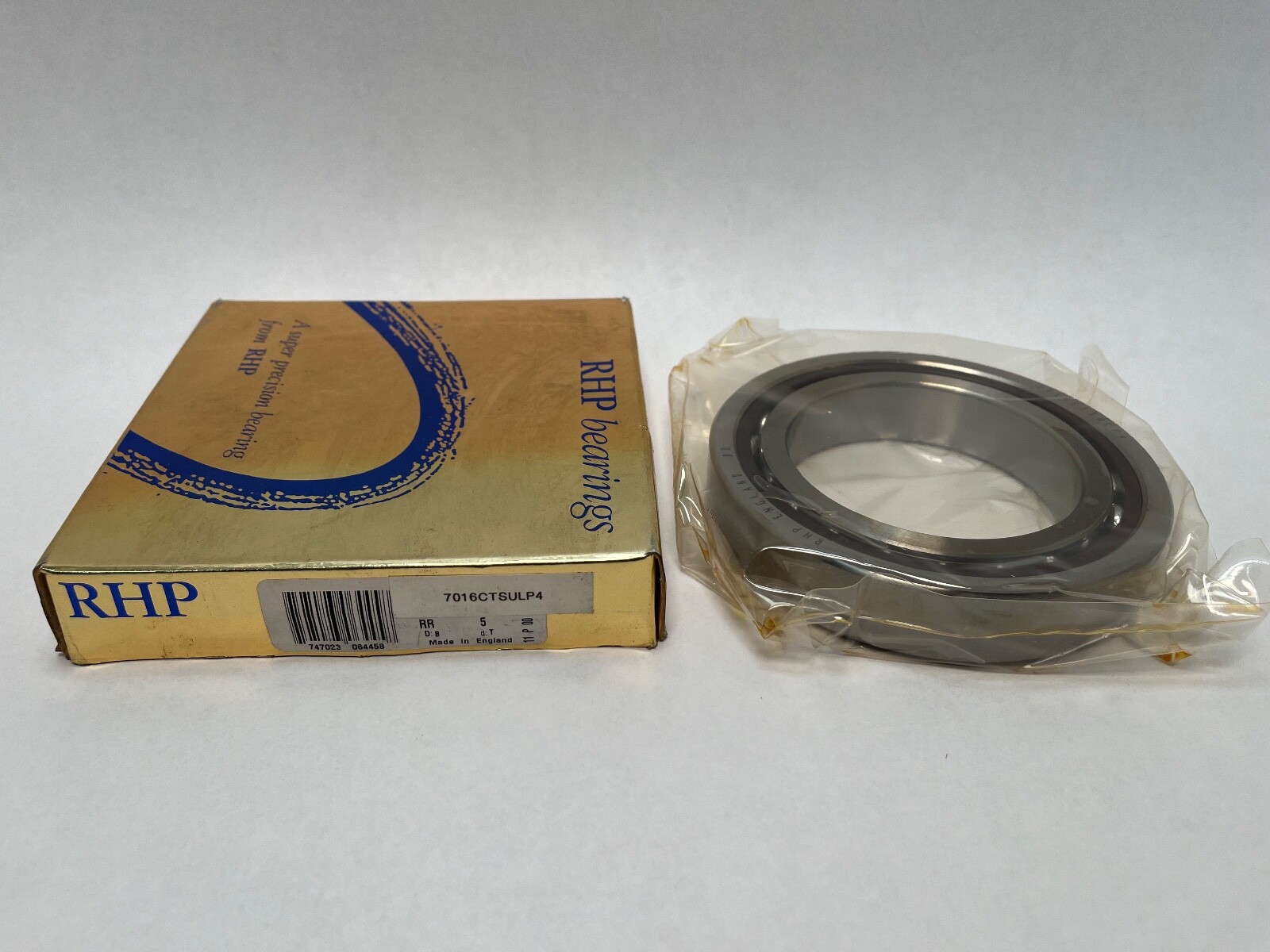

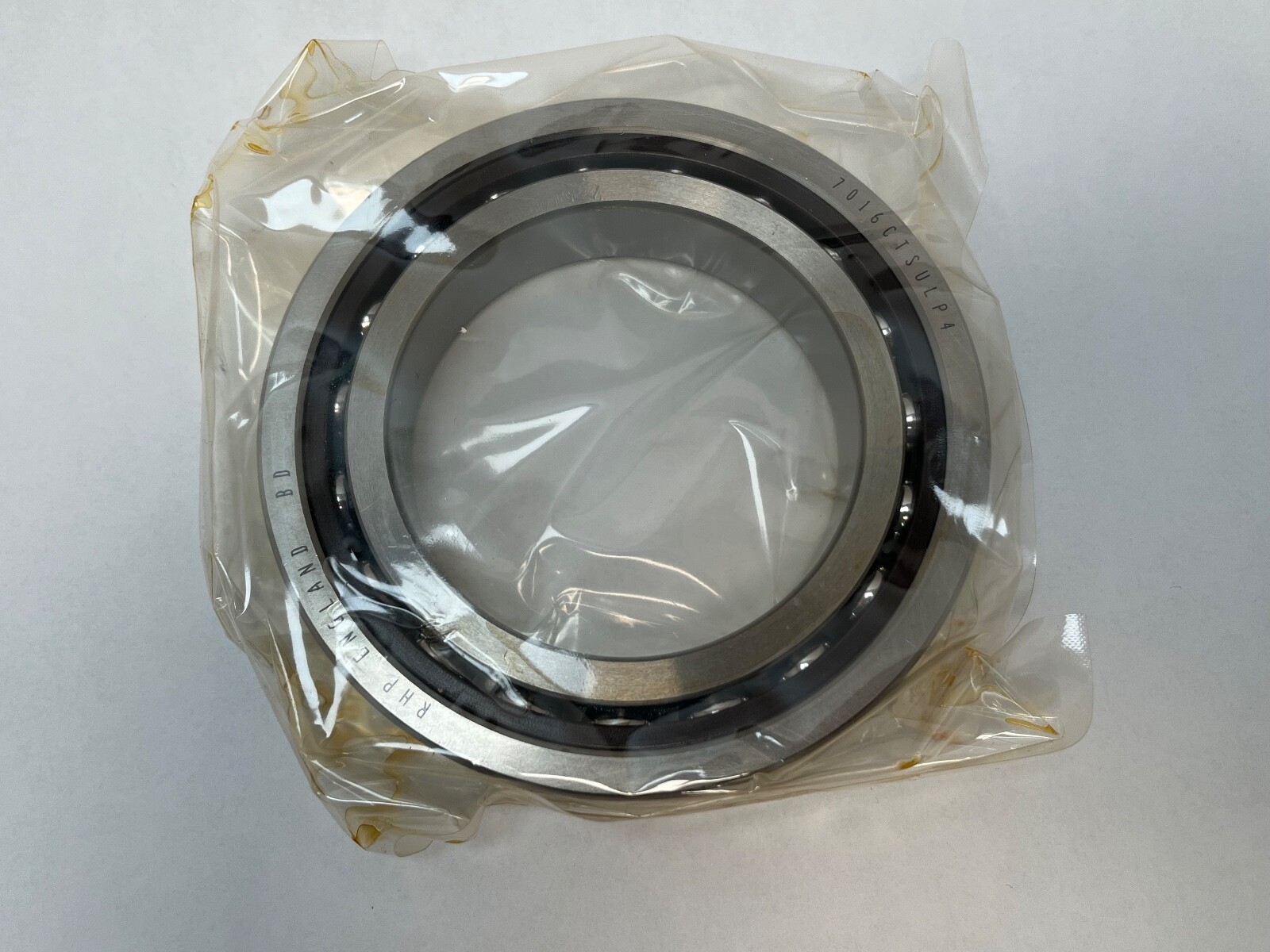

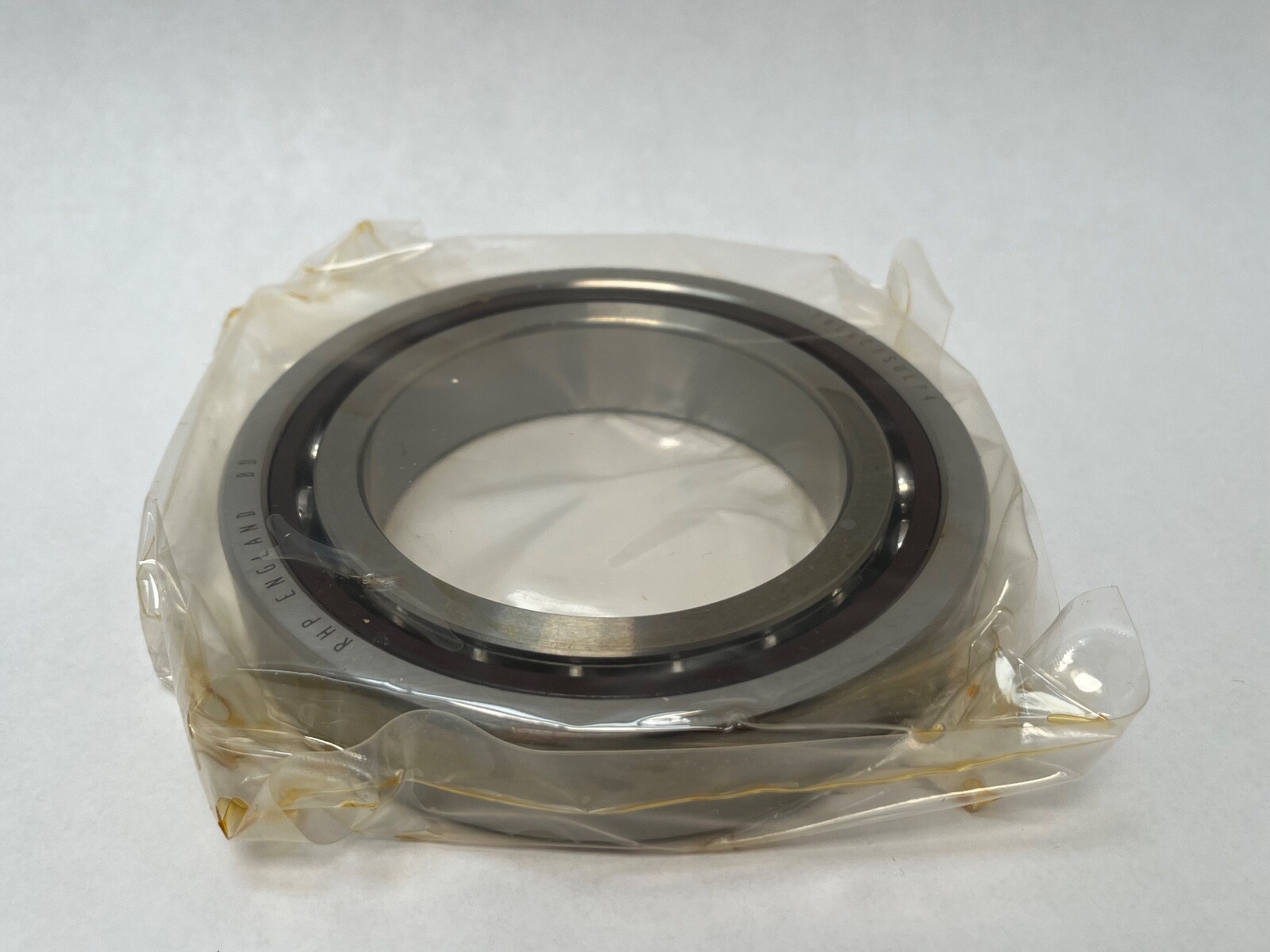

RHP/NSK 7016CTSULP4 super precision angular contact ball bearing, 80x125x22 mm, 15° contact angle, ABEC 7, light preload, phenolic cage, single.
List Price
$211.94
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | RHP |
|---|---|
| MPN | 7016CTSULP4 |
| Model | 7016CTSULP4 |
| Bearing Type | Angular Contact Ball Bearing |
| Width | 20 mm |
| Condition | New |
|---|---|
| Preload | Light (L) |
| Base Number | 7016C |
| Common Misspellings | 7016 CTSULP4, 7016CTSUL P4, 7016CSULP4, 7016CTSLUP4, RHP 7016 C T SUL P4, RHP bearing 7016 |
| Application Types | Machine tool spindles, grinding spindles, milling and turning centres, high-speed rotary and indexing tables, precision gearboxes, test rigs |
| Bore Shaft Size | 80 mm |
| Mpn Variants | 7016CTSULP4, 7016C-T-SUL-P4, 7016-C-T-SUL-P4, 7016 C T SUL P4, 7016CTSUL, 7016CSULP4, 7016C, 7016 |
| Manufacturer Status | RHP brand discontinued; line continued by NSK |
| Compatible With Replaces | Replaces RHP/NSK 7016C super precision spindle bearings of matching 15° contact angle, P4 class and light preload. |
| Arrangement Configuration | Single, universally ground (SU) - usable alone or combined with an identical designation for DB, DF or DT mounting at light preload with no shimming |
| Precision Class | P4 (ISO class 4, ABEC 7) |
| Additional Attributes | ISO series 10 (70xx) light section, 80x125x22 mm. Contact angle 15°. Cr 58.5 kN, Cor 55.5 kN. Limiting speed 16,500 rpm oil/air and 10,200 rpm grease. Light preload, axial preload 390 N paired, axial stiffness 103 N per micrometre paired. Effective load centre 24.7 mm. Internal volume 36.4 cm3. Lubrication jet pitch circle diameter 96.5 mm. Weight 0.851 kg. Universal face control allows shim-free DB, DF or DT assembly at the ground preload. Source: RHP Super Precision Angular Contact Ball Bearings catalogue C859/B/E/I/03.02. |
| Dynamic Load Rating | 58.5 kN (Cr 58,500 N) per bearing |
| Static Load Rating | 55.5 kN (Cor 55,500 N) per bearing |
| Cage Material | Laminated phenolic resin |
| Number Of Rows | 1 |
| Contact Angle | 15° |
| Design Units | Metric |
| Part Number | 7016CTSULP4 |
| Cross Reference 1 | NSK 7016CTRSULP4 |
|---|---|
| Cross Reference 2 | NSK 7016CTYNSULP4 |
| Cross Reference 3 | Not specified |
| Cross Reference 4 | SKF 7016CD/P4A (same envelope, verify preload) |
| Cross Reference 6 | NTN 7016C universally ground light-preload form (verify suffix) |
| Cross Reference 7 | ISO base number 7016C |
| Cross Reference 8 | RHP (legacy brand name for NSK super precision) |
RHP (NSK) 7016CTSULP4 is a single-row super precision angular contact ball bearing from the ISO series 10 (70xx) light section. Brand: RHP (now NSK). Part Number: 7016CTSULP4. Base Number: 7016C. Series: 70. Number Of Rows: 1. Rolling Elements: Balls. Closure Type: Open. Unit Quantity: 1 bearing. Design Units: Metric.
Bore: 80 mm. Outside Diameter: 125 mm. Overall Width: 22 mm. Chamfer r min: 1.5 mm. Chamfer r1 min: 0.6 mm. Weight: 0.851 kg (1.88 lb).
Basic Dynamic Load Rating Cr: 58.5 kN (58,500 N) per bearing. Basic Static Load Rating Cor: 55.5 kN (55,500 N) per bearing. Source: RHP Super Precision Angular Contact Ball Bearings catalogue, ref C859/B/E/I/03.02, Table 9, ISO series 10, row 7016CTRSU.
Limiting Speed, oil/air lubrication: 16,500 rpm. Limiting Speed, grease lubrication: 10,200 rpm. Both figures are catalogue single-bearing values under spring preload. Applying the catalogue back-to-back pair factor of 0.80 for light preload gives 13,200 rpm oil/air and 8,160 rpm grease for a DB pair.
Preload: Light (L). Contact Angle: 15°. Axial Preload, light grade, paired: 390 N. Axial Stiffness, light grade, paired: 103 N per micrometre. Effective Load Centre a: 24.7 mm.
Cage Type: Machined one-piece, outer-ring guided. Cage Material: Laminated phenolic resin. Maximum recommended operating temperature for laminated phenolic resin caged bearings: 120°C. Precision Class: P4 (ISO class 4, equivalent to ABEC 7). Ring and ball material: through-hardened carbon chrome bearing steel to BS970:534A99 / 535A99, equivalent to SAE 52100.
Abutment diameter d1 min: 87 mm. Abutment diameter D1 max: 118 mm. Abutment diameter D2 max: 120 mm. Internal Volume: 36.4 cm3. Pitch circle diameter of lubrication jets: 96.5 mm. Arrangement: SU, single universally ground — runs alone or combines with an identical designation for DB, DF or DT mounting at the specified light preload without shimming. The high point of radial runout is marked by a burnished spot on the inner ring face and a V line on the outer ring diameter, and the V line indicates the direction of the contact angle.
Designation breakdown per the RHP system: 7 single-row angular contact ball bearing; 0 dimension series 10; 16 bore code, 80 mm bore; C 15° contact angle; T outer-ring-guided phenolic cage; SU single universal; L light preload; P4 ISO class 4, ABEC 7. Same-envelope interchange at 15° and P4: NSK 7016CTRSULP4, NSK 7016CTYNSULP4, SKF 7016CD/P4A, FAG B7016C.T.P4S, NTN 7016C in universally ground light-preload form. Application Types: machine tool spindles, grinding spindles, milling and turning centres, high-speed rotary and indexing tables, precision gearboxes and test rigs.
