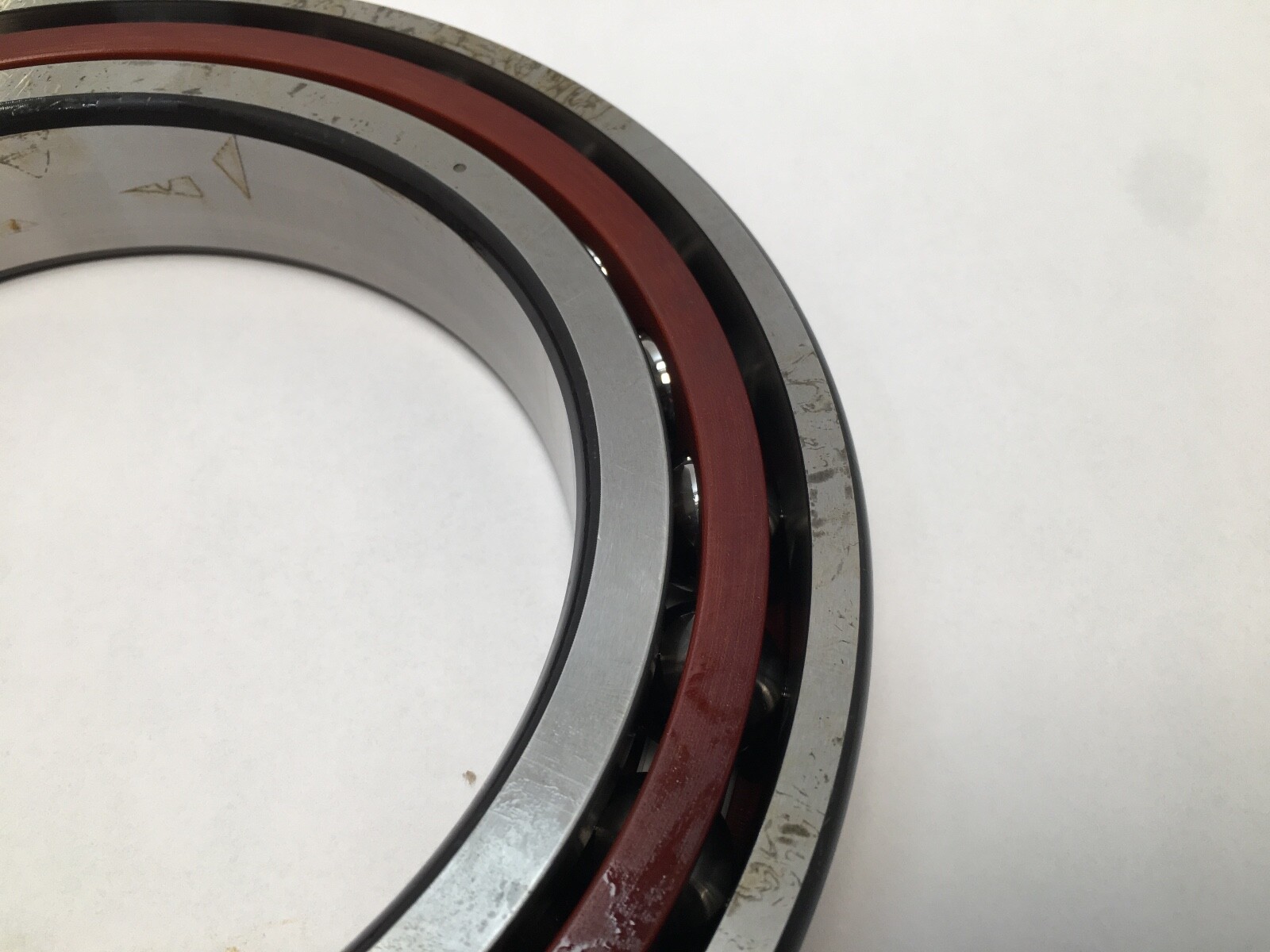

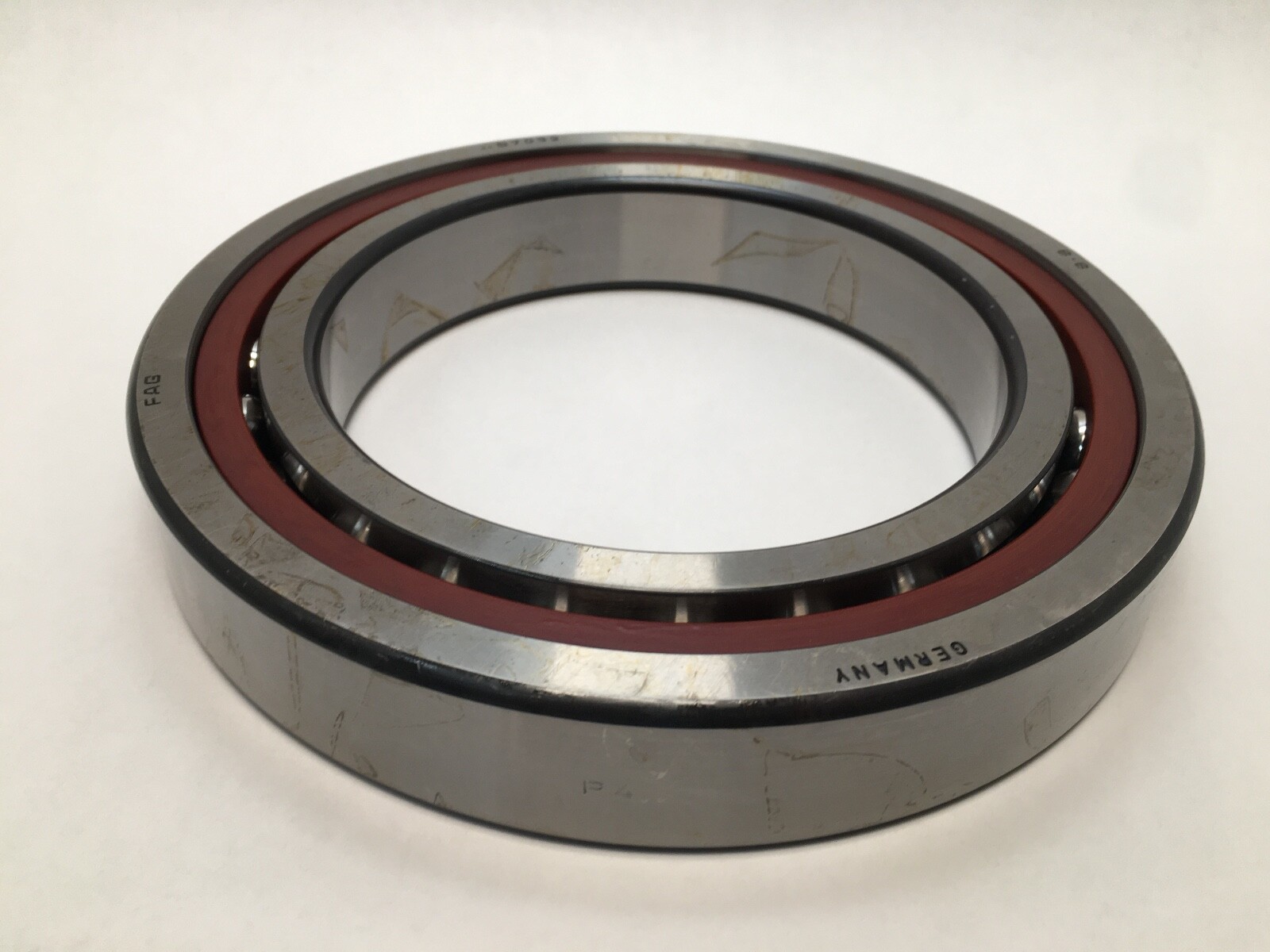

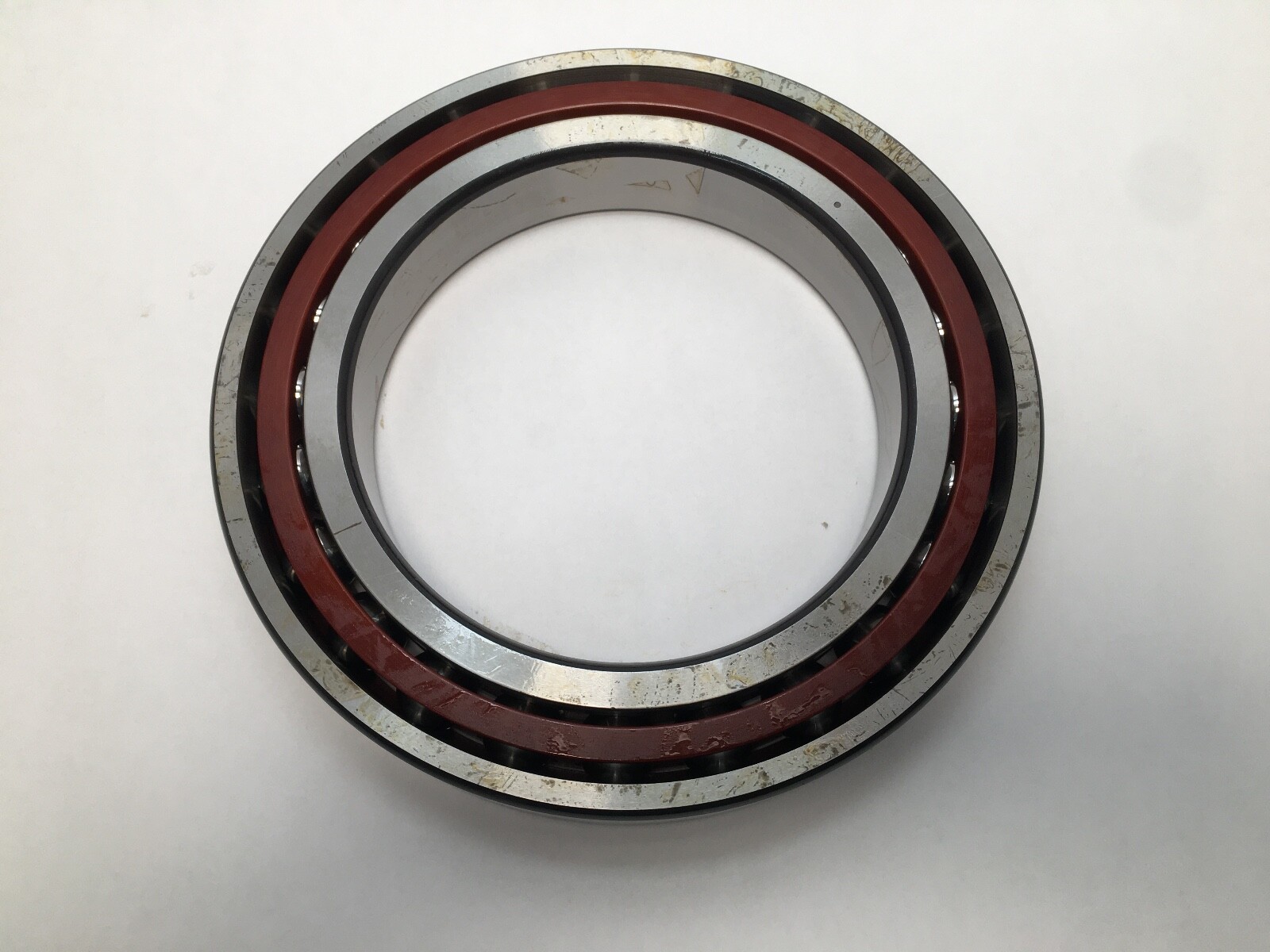

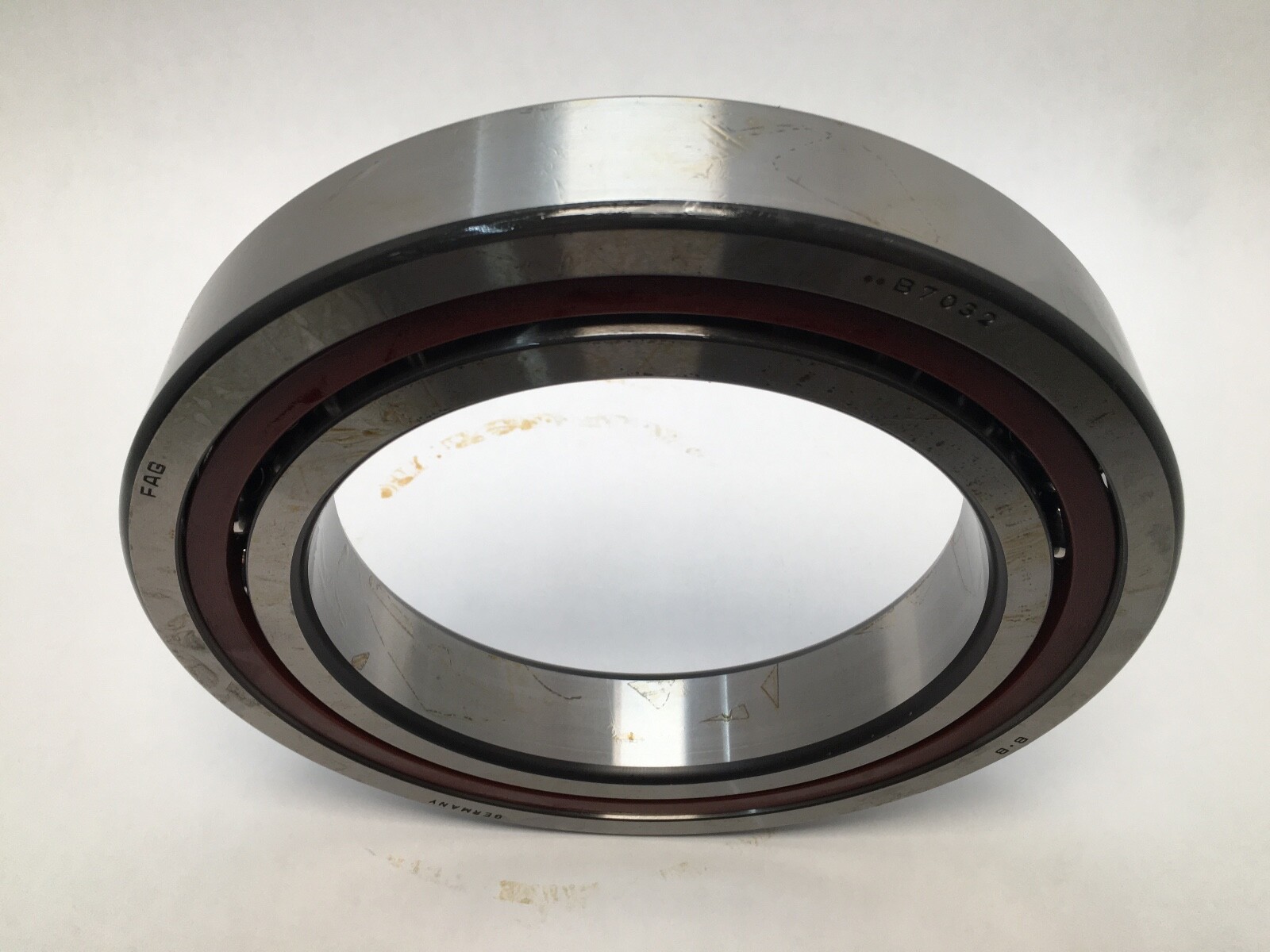

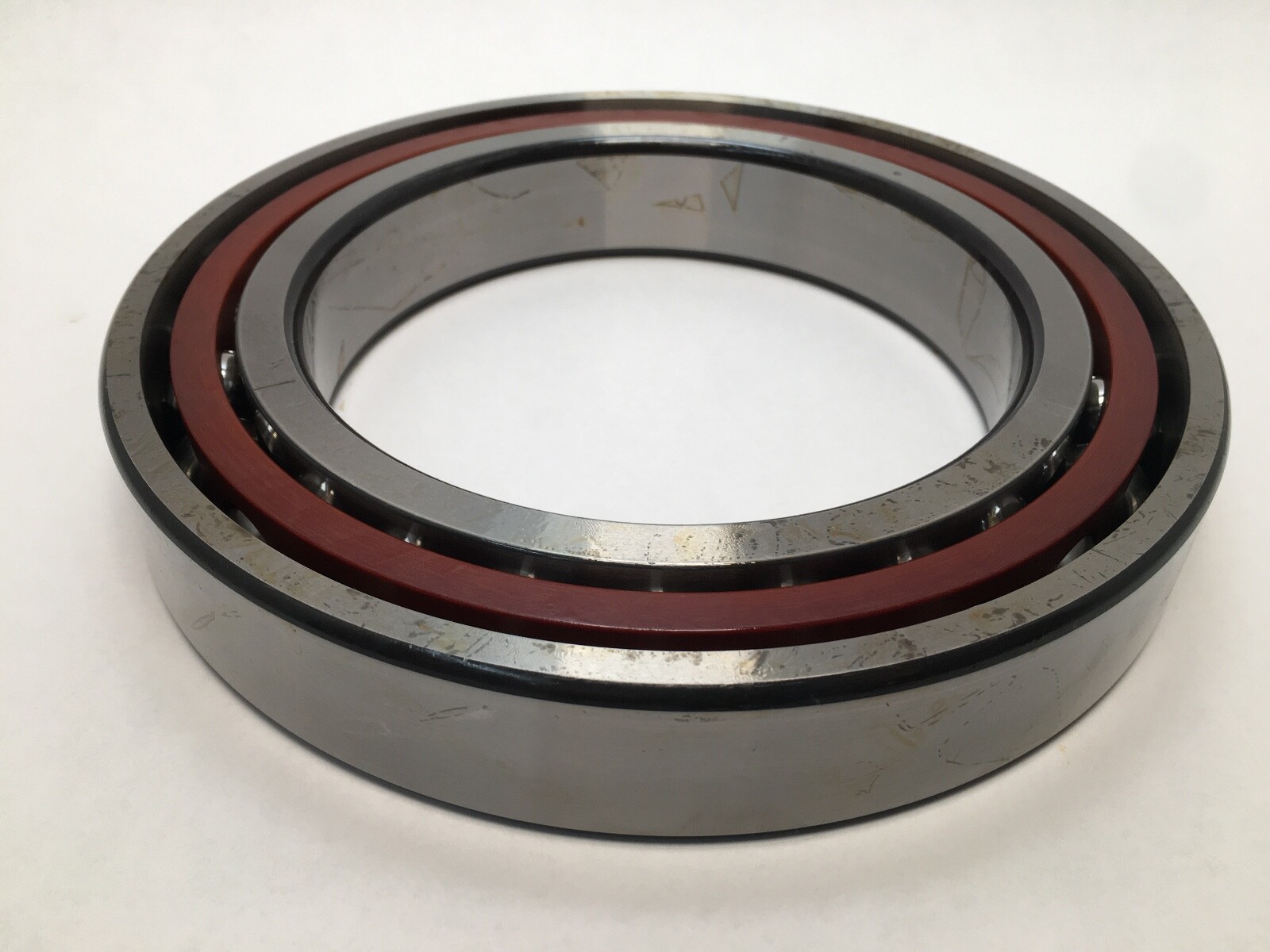

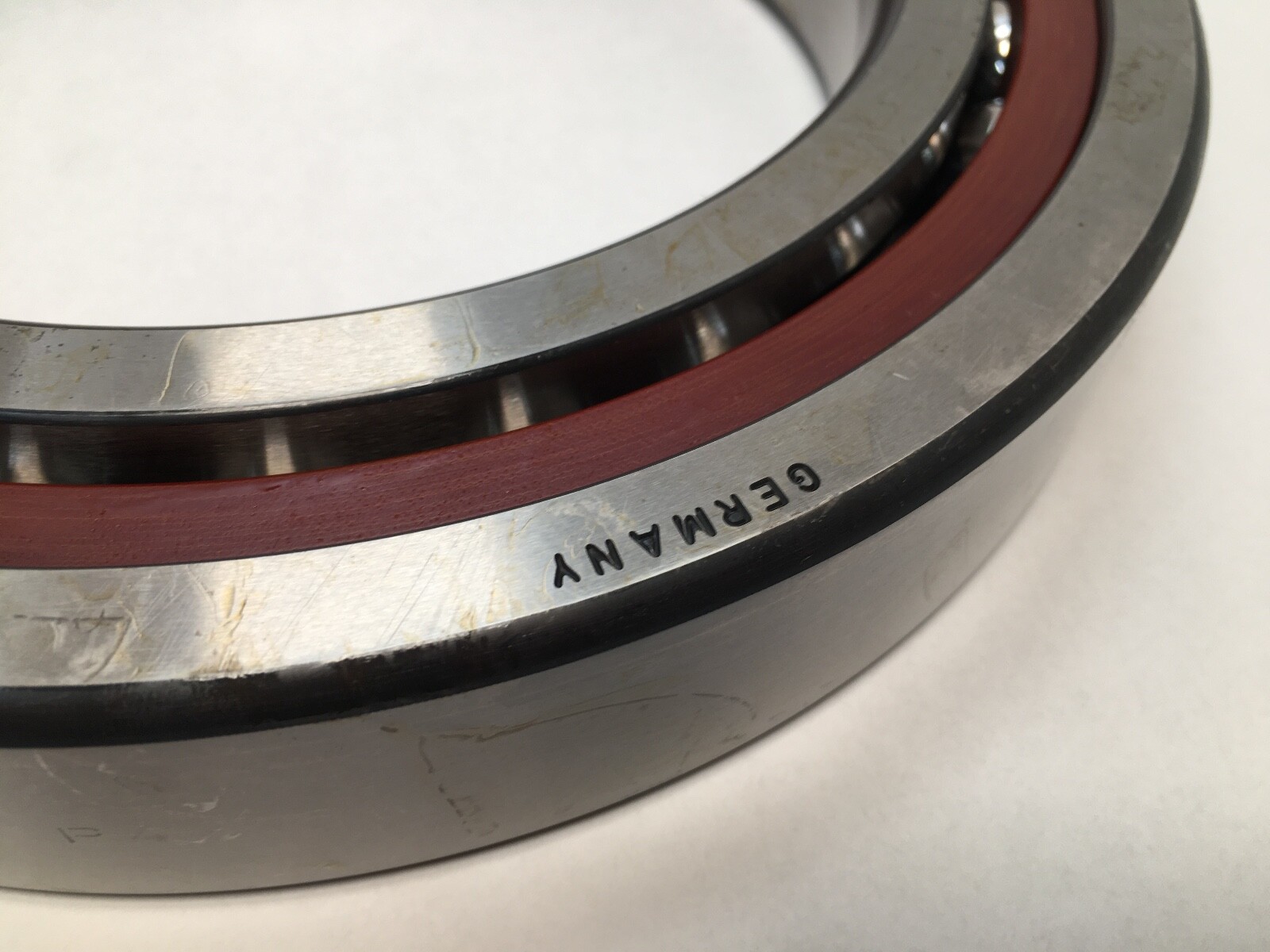

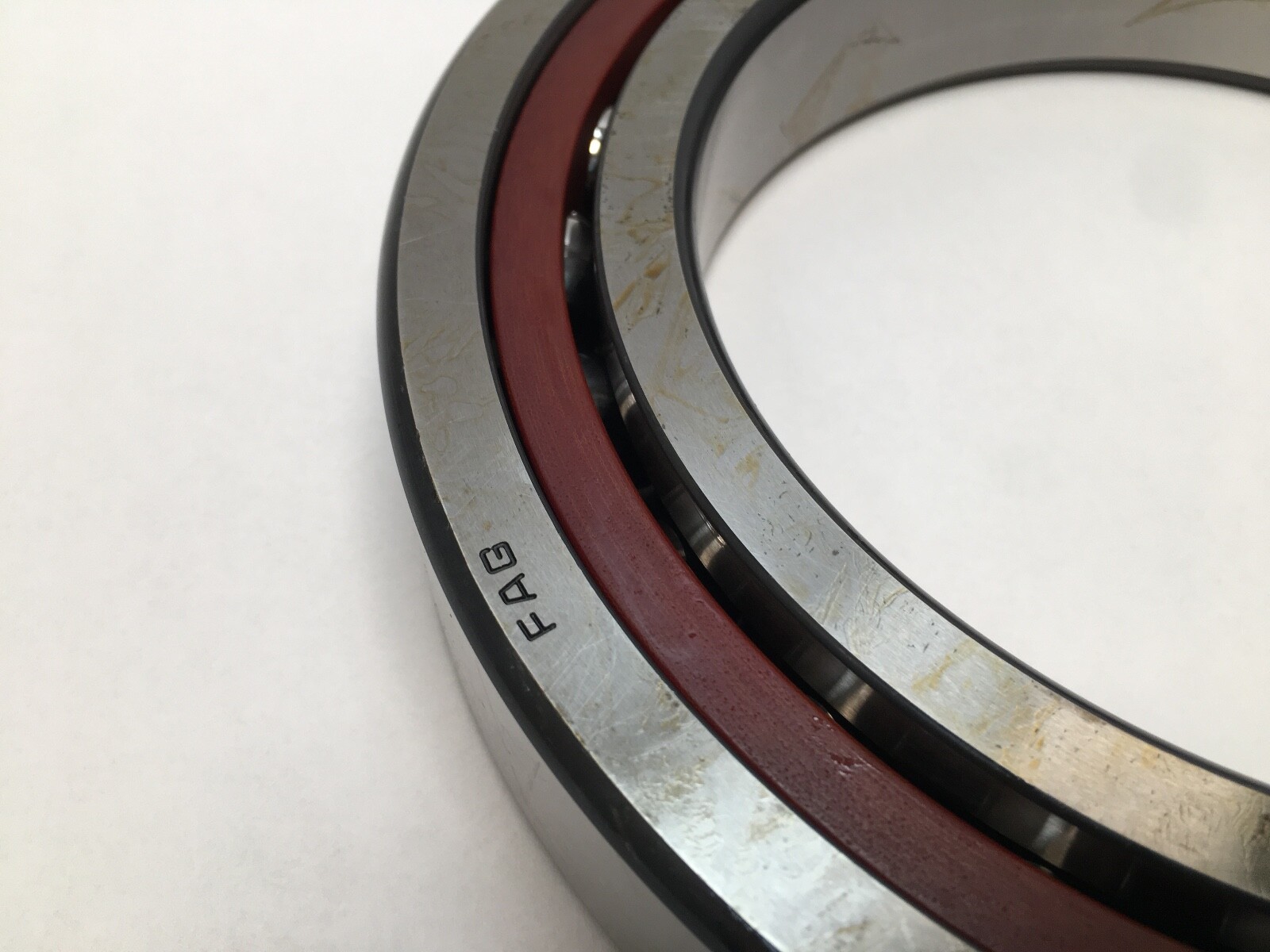

Super-precision angular contact ball bearing, 160 x 240 x 38 mm, 15° contact angle, light preload, phenolic cage, ABEC 7 / P4. Consolidated 7032TGP4.
List Price
$1,124.52
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 7032TGP4 |
| Model | B 7032 C P4 UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 160 mm |
| OD | 240 mm |
| Width | 38 mm |
| Material | High Carbon Chrome Steel |
|---|---|
| Series | B70 |
| Condition | New |
| Mpn Variants | 7032TGP4; 7032-TG-P4; B7032C-P4-UL; B7032-C-T-P4S-UL; B 7032 C P4 UL; Consolidated 7032TGP4 |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Machined |
| Rolling Elements | Ball |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Preload | Light (1,145 N) |
| Cross Reference 1 | SKF 7032 CD/P4ADGA |
|---|---|
| Cross Reference 2 | NSK 7032CTRSULP4 |
| Cross Reference 3 | NTN 7032UCG/GLP4 |
| Cross Reference 4 | Timken Fafnir 2MM9132WI SUL |
| Cross Reference 5 | Koyo 7032C P4 |

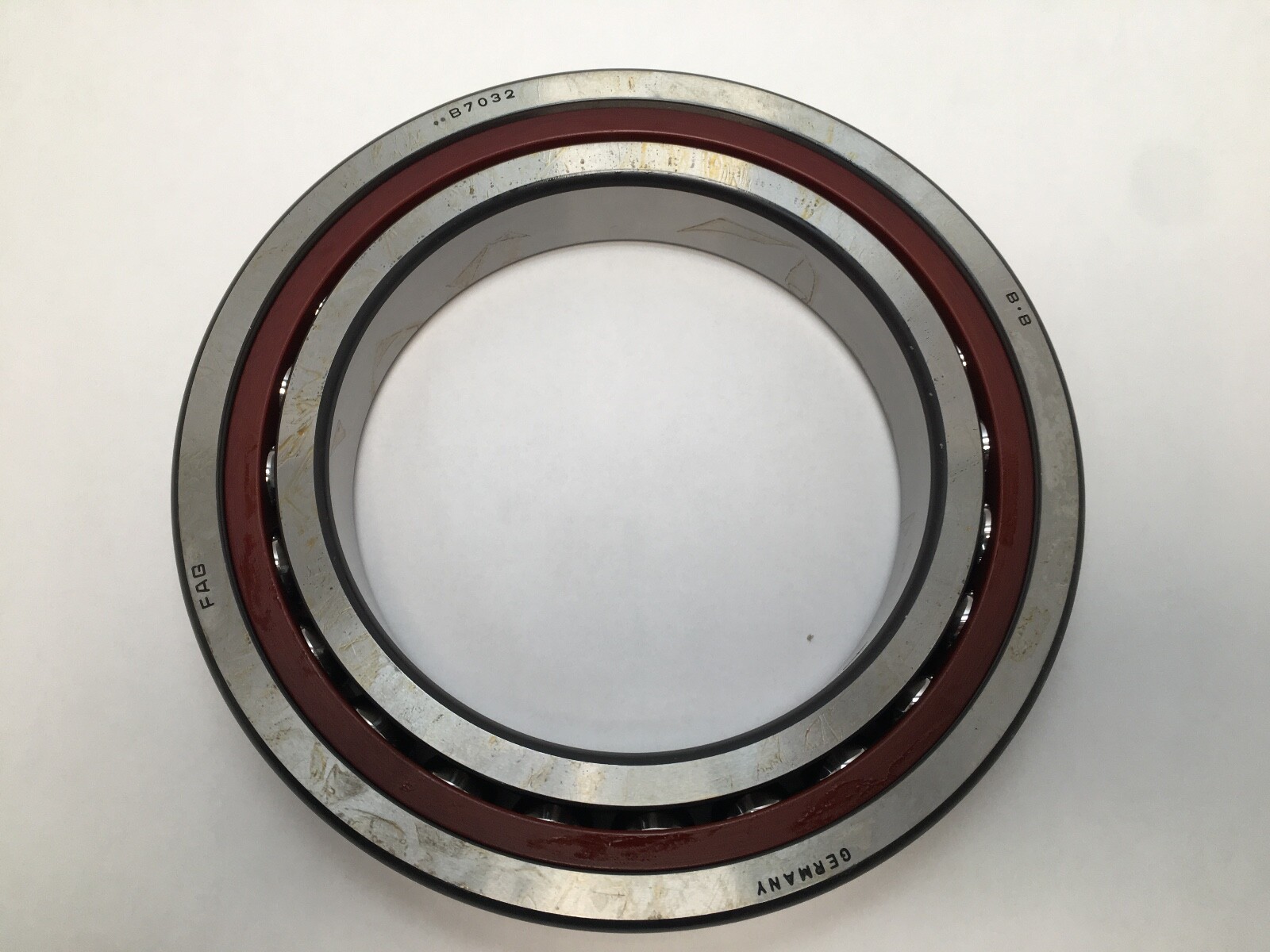

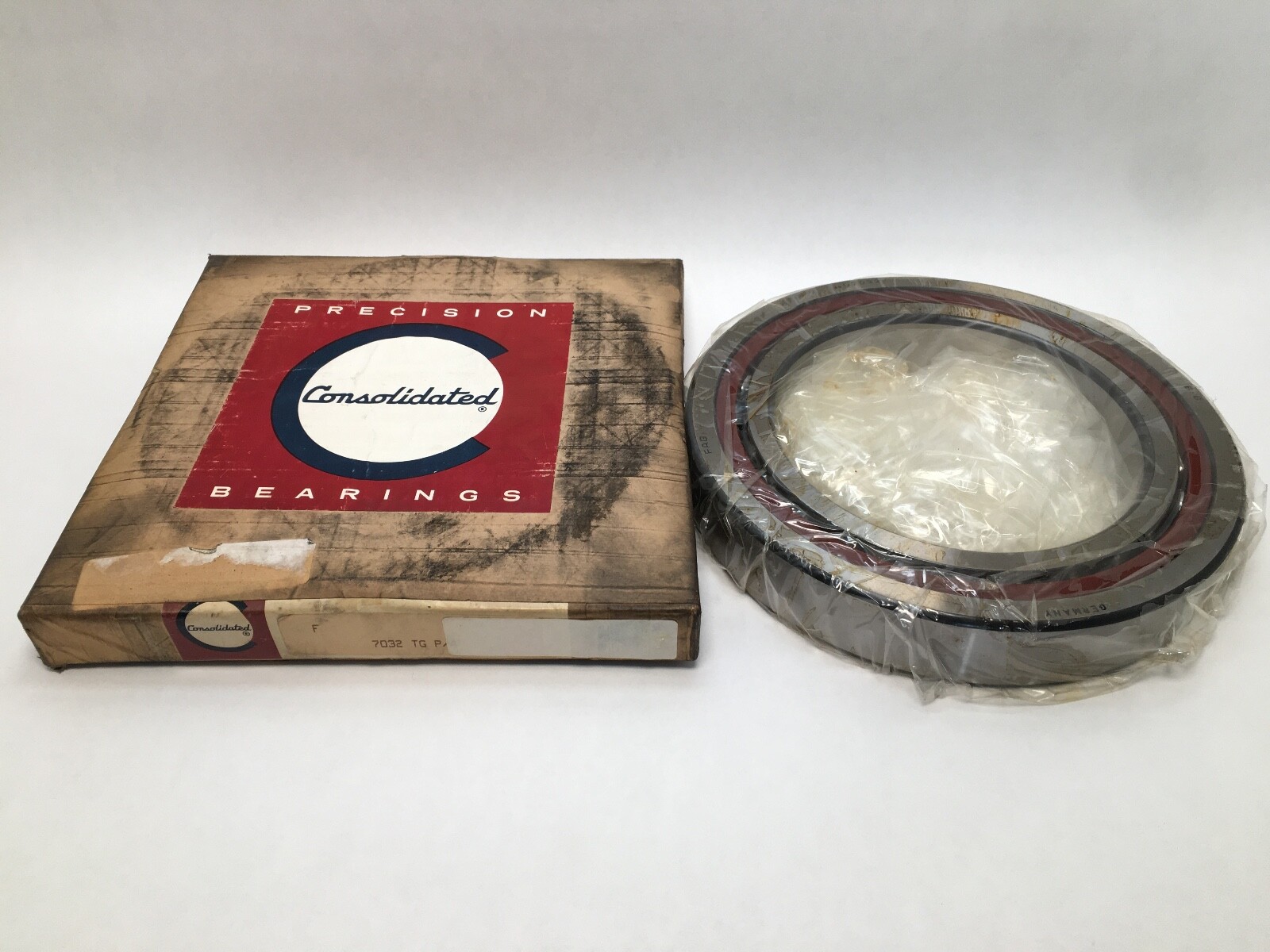

Consolidated (FAG designation) 7032TGP4 single-row super-precision angular contact ball bearing, carton form B7032C-P4-UL. Current FAG form: B7032-C-T-P4S-UL. Bore Diameter: 160 mm. Outside Diameter: 240 mm. Overall Width: 38 mm. Contact Angle: 15°. Cage Material: Phenolic. Cage Type: Machined. Precision Class: ABEC 7 / P4. Preload: Light (1,145 N). Closure Type: Open. Bore Type: Straight. Series: B70.

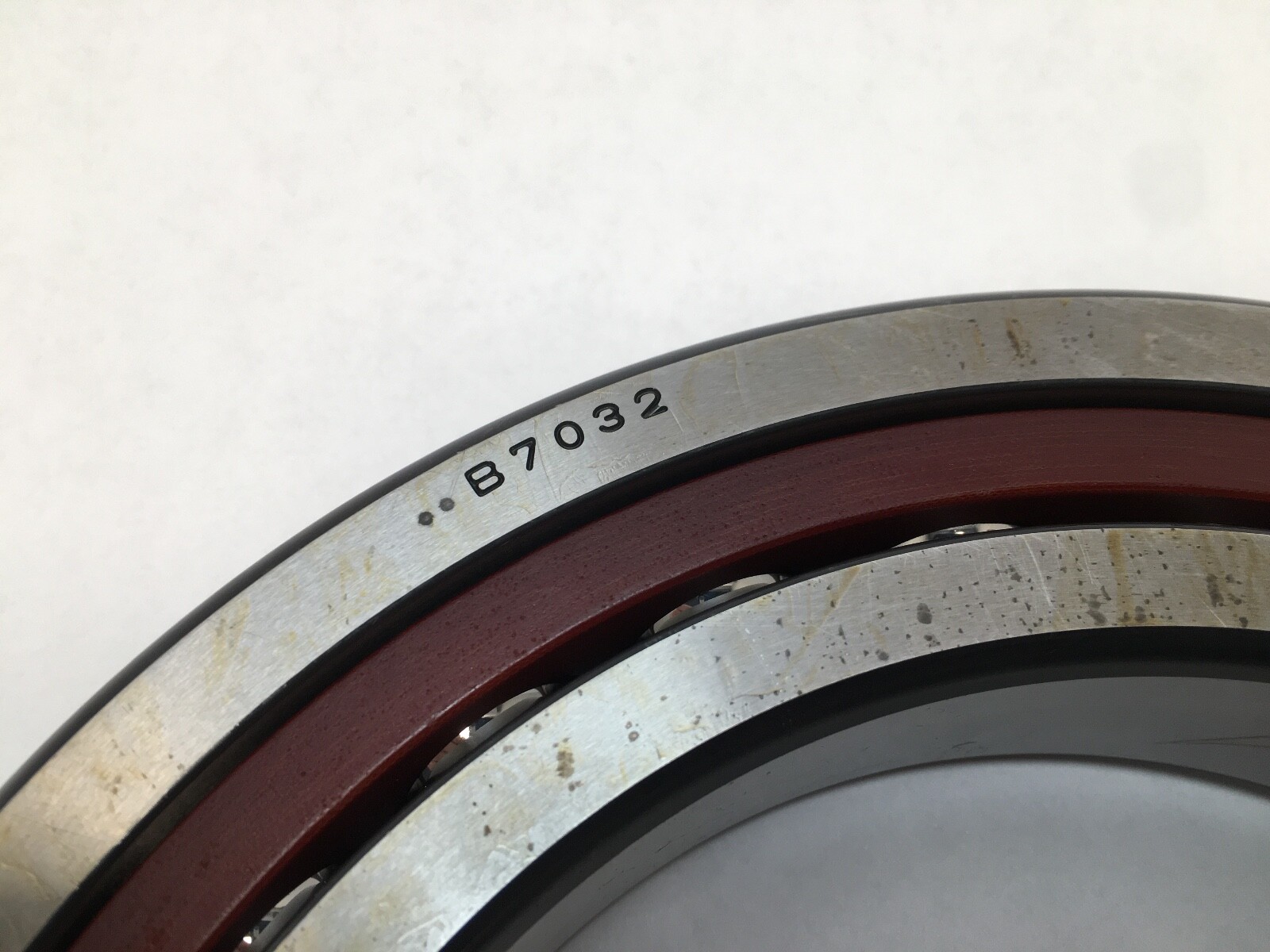

7032 — ISO dimension series 10 angular contact (B70 range), bore code 32, 160 x 240 x 38 mm.
C — 15° contact angle.
TG — machined phenolic cage, outer-ring guided.
P4 — ISO tolerance class P4, equivalent to ABEC 7.
UL — universal design, light preload when mounted in any paired arrangement. Preload force: 1,145 N.
A 15° contact angle gives high radial stiffness and high speed capability with moderate axial capacity, the standard geometry for machine tool spindles. Universal flush-ground faces let the bearing pair back-to-back, face-to-face or in tandem with a defined light preload. The machined phenolic cage is light and runs with low friction at speed.
Minimum Chamfer Dimension (r min): 2.1 mm. Maximum Fillet Radius (ra max): 2.1 mm. Shaft Shoulder Diameter (da): 174 mm. Housing Shoulder Diameter (Da): 228 mm. Pressure Centre Distance (a): 45.8 mm.
Unit Quantity: 1 Pc. Single universal bearing, open, straight bore.
Same-envelope 15° ABEC 7 light-preload equivalents: SKF 7032 CD/P4ADGA, NSK 7032CTRSULP4, NTN 7032UCG/GLP4, Timken Fafnir 2MM9132WI SUL, Koyo 7032C P4. Searchable forms: 7032TGP4, 7032-TG-P4, B7032C-P4-UL, B7032-C-T-P4S-UL, B 7032 C P4 UL, Consolidated 7032TGP4.
