Availability:
1 in stock

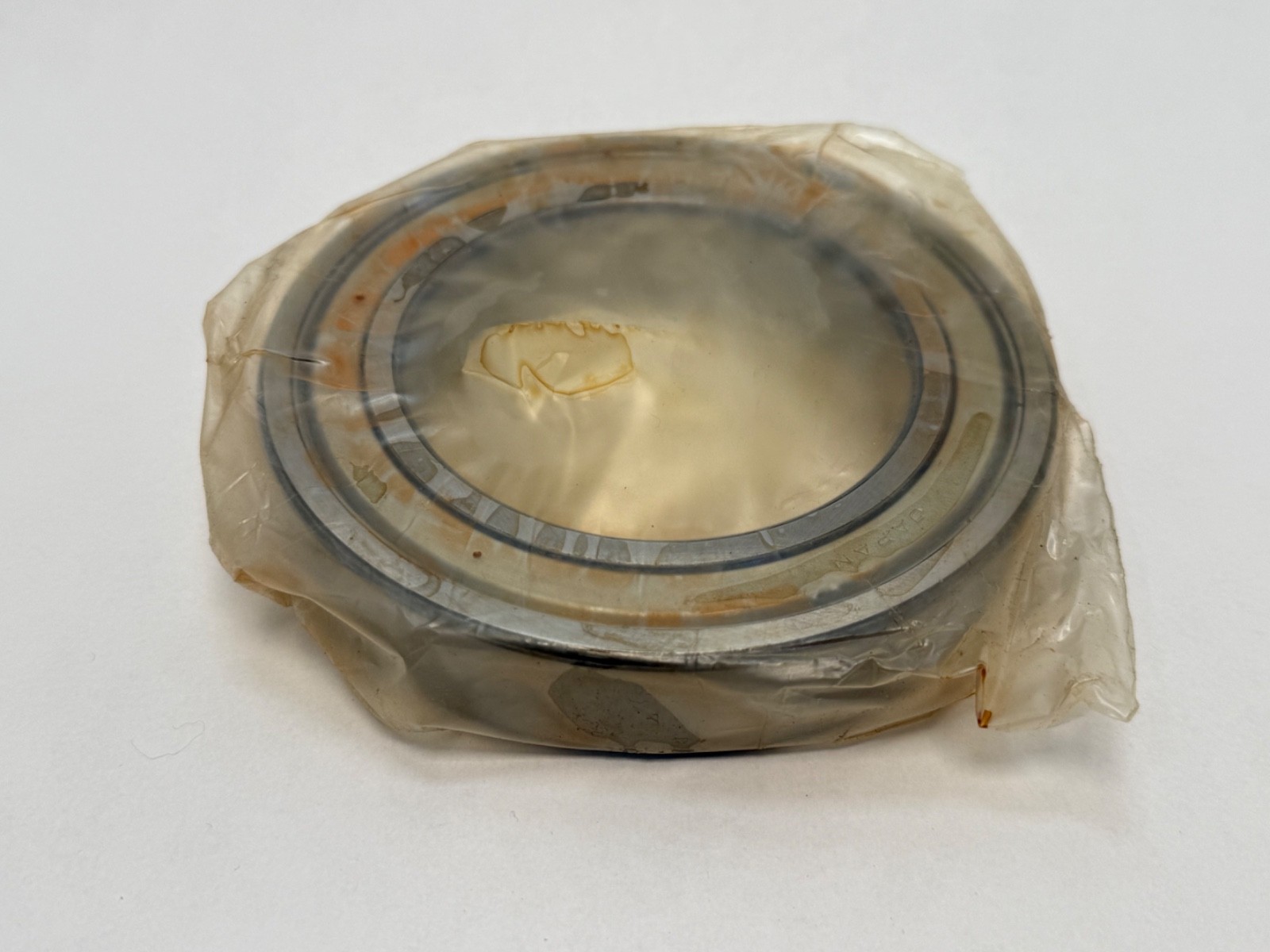

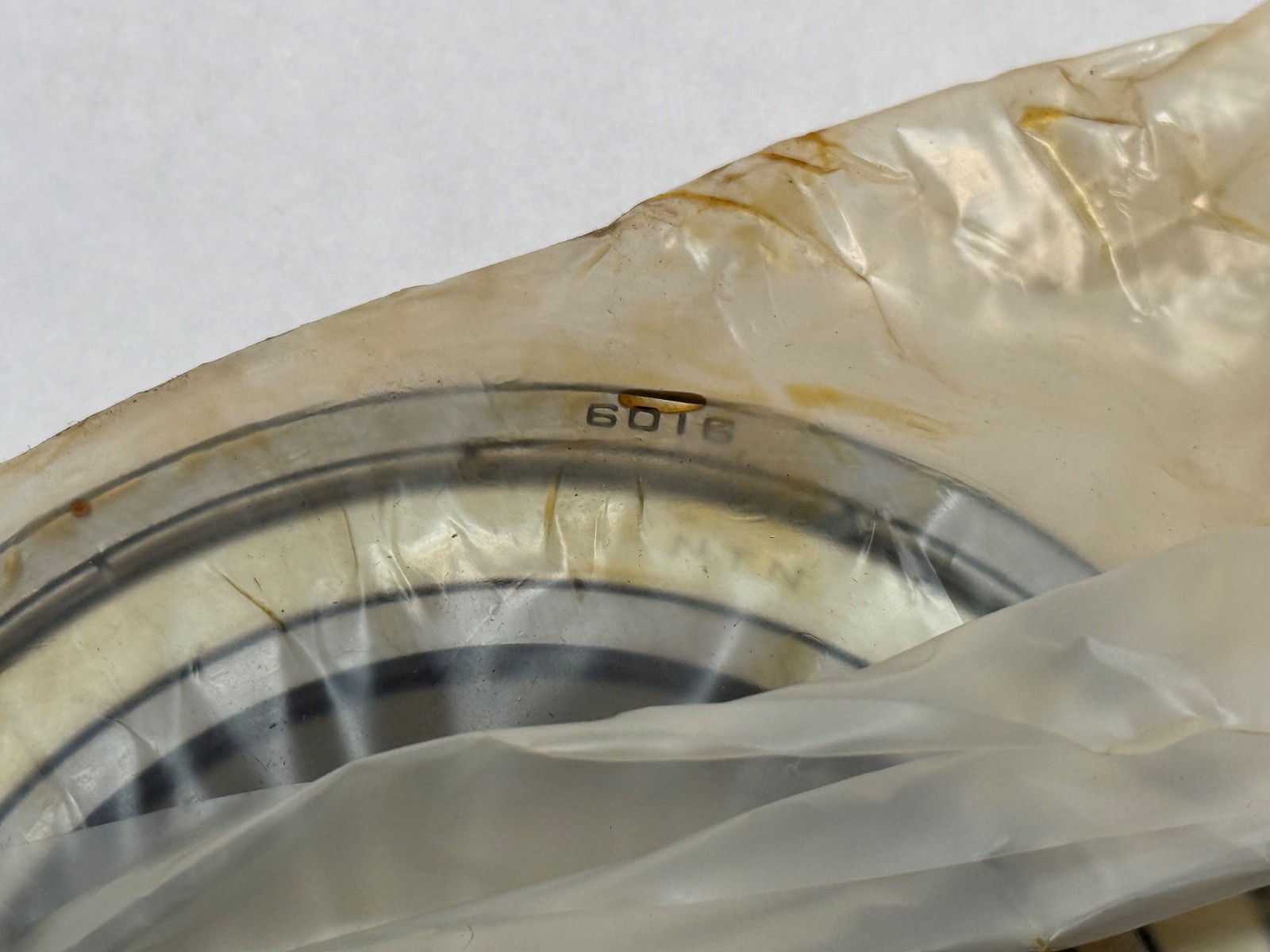

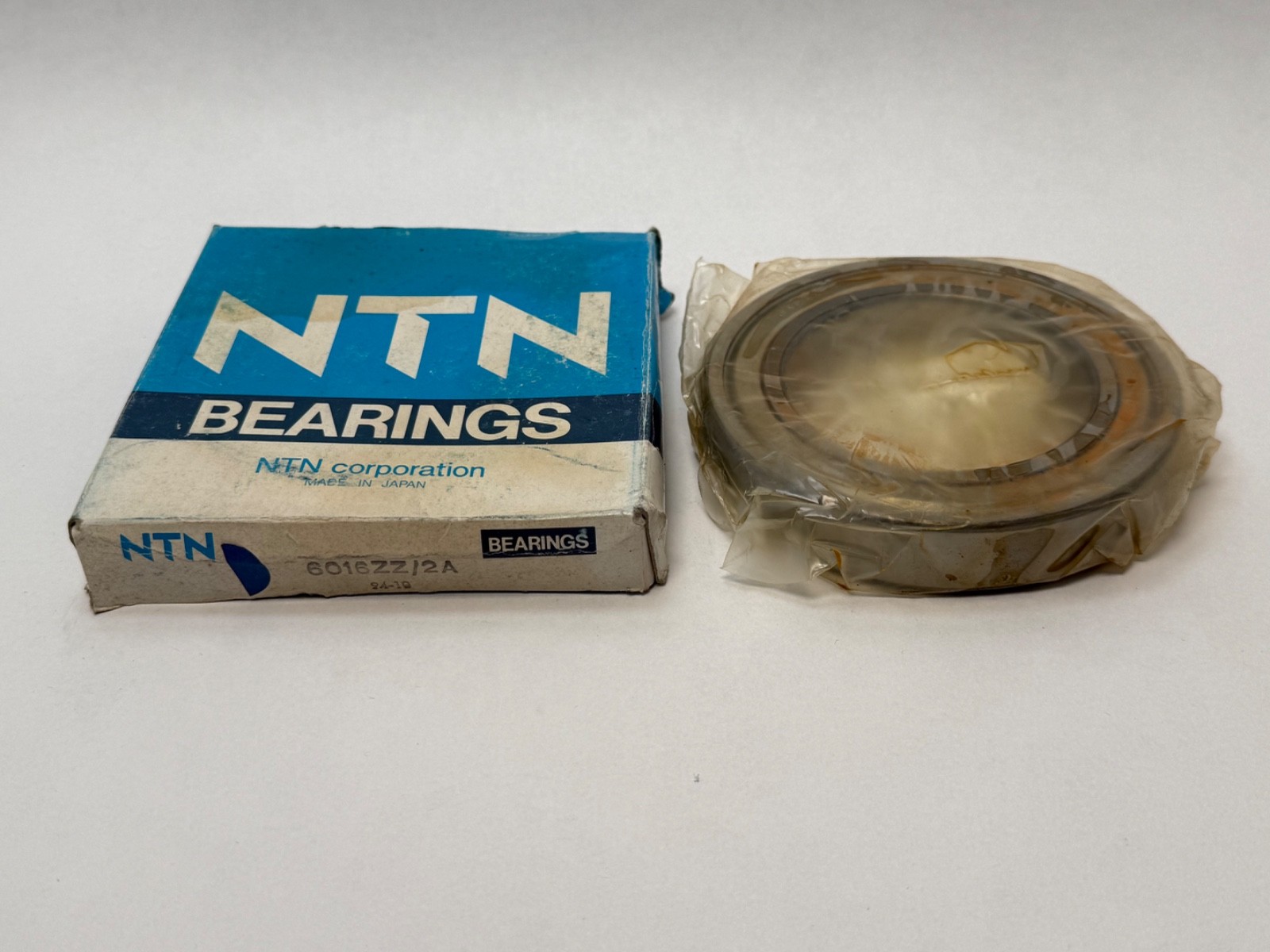

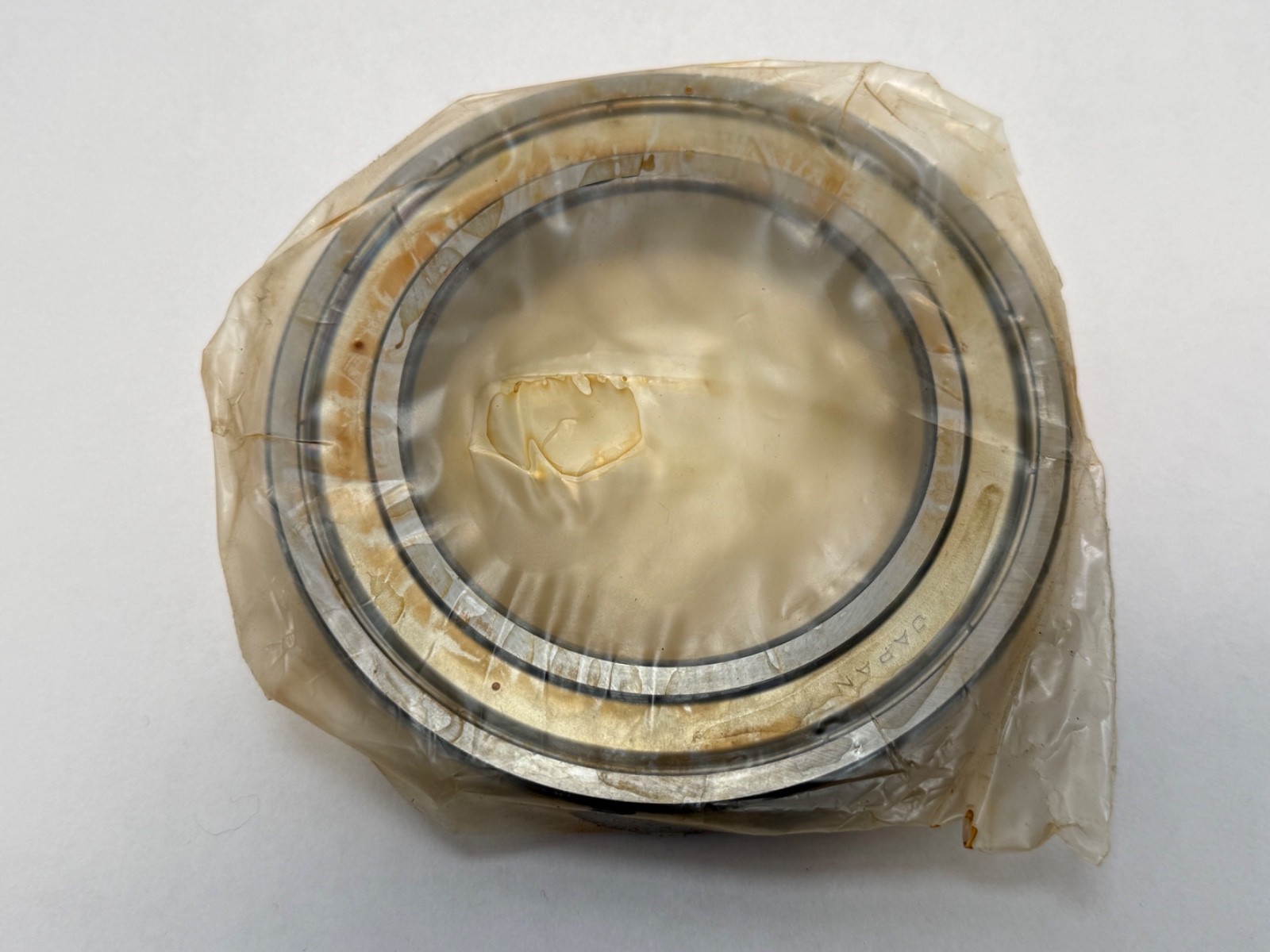

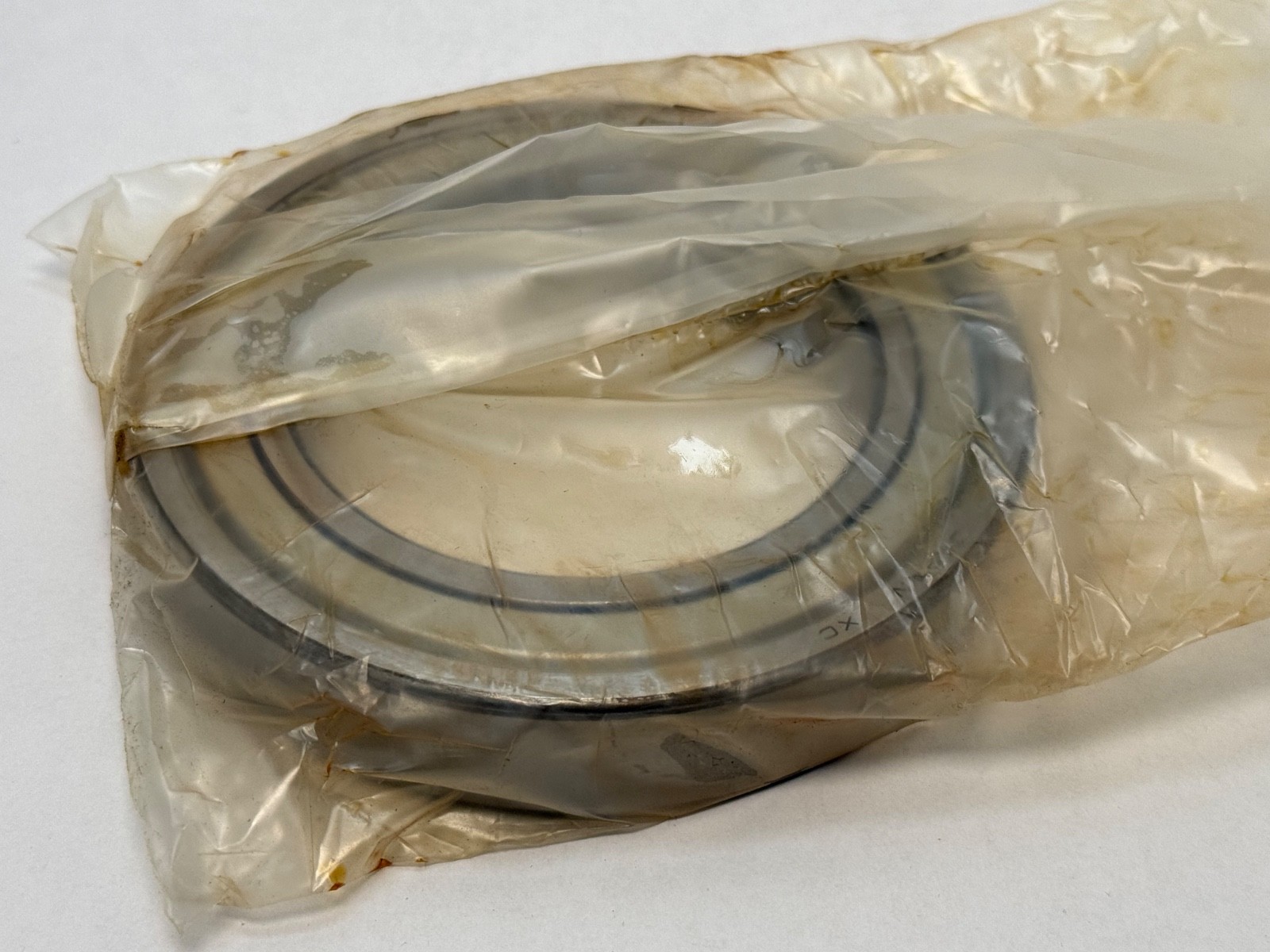

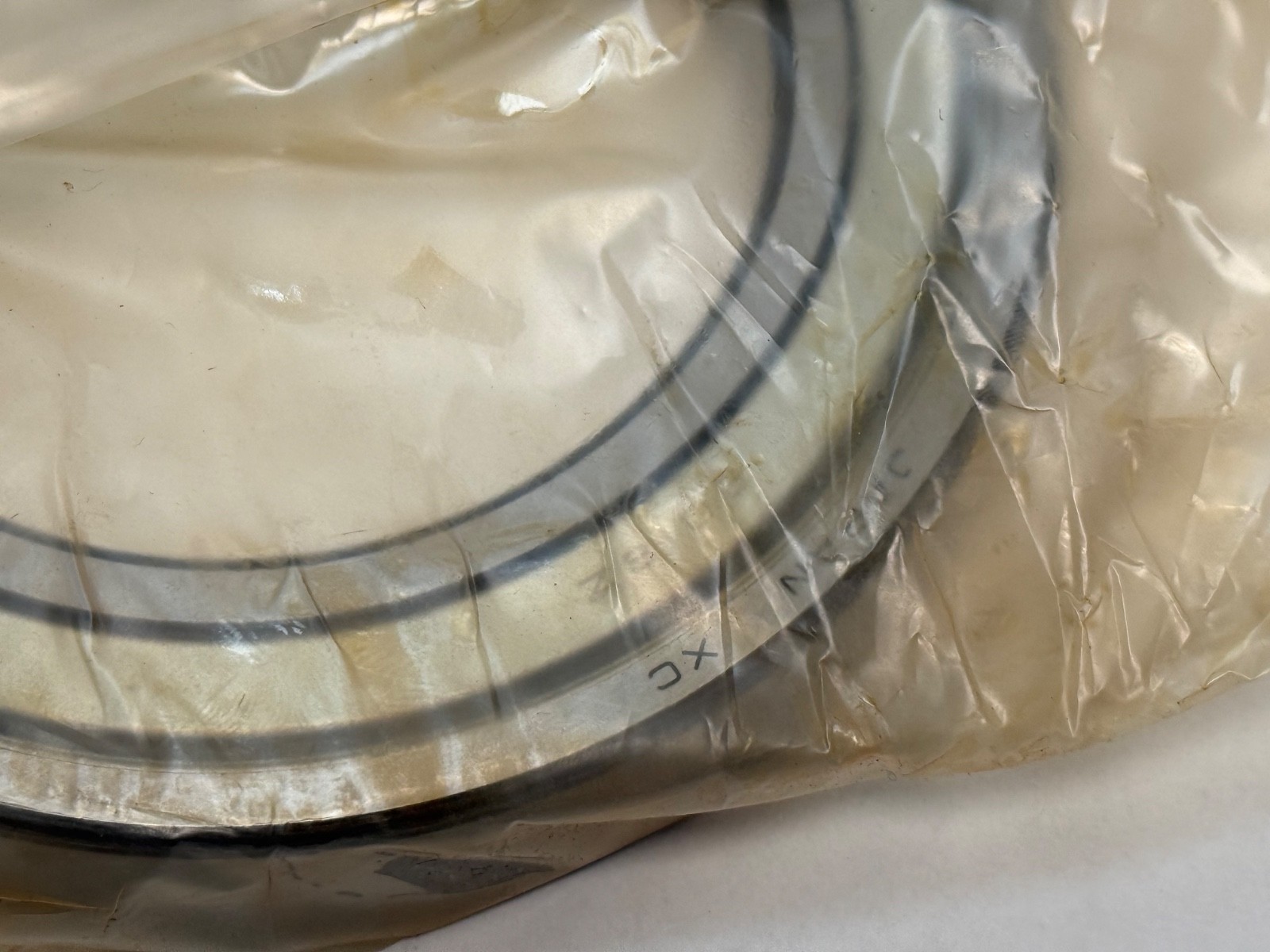

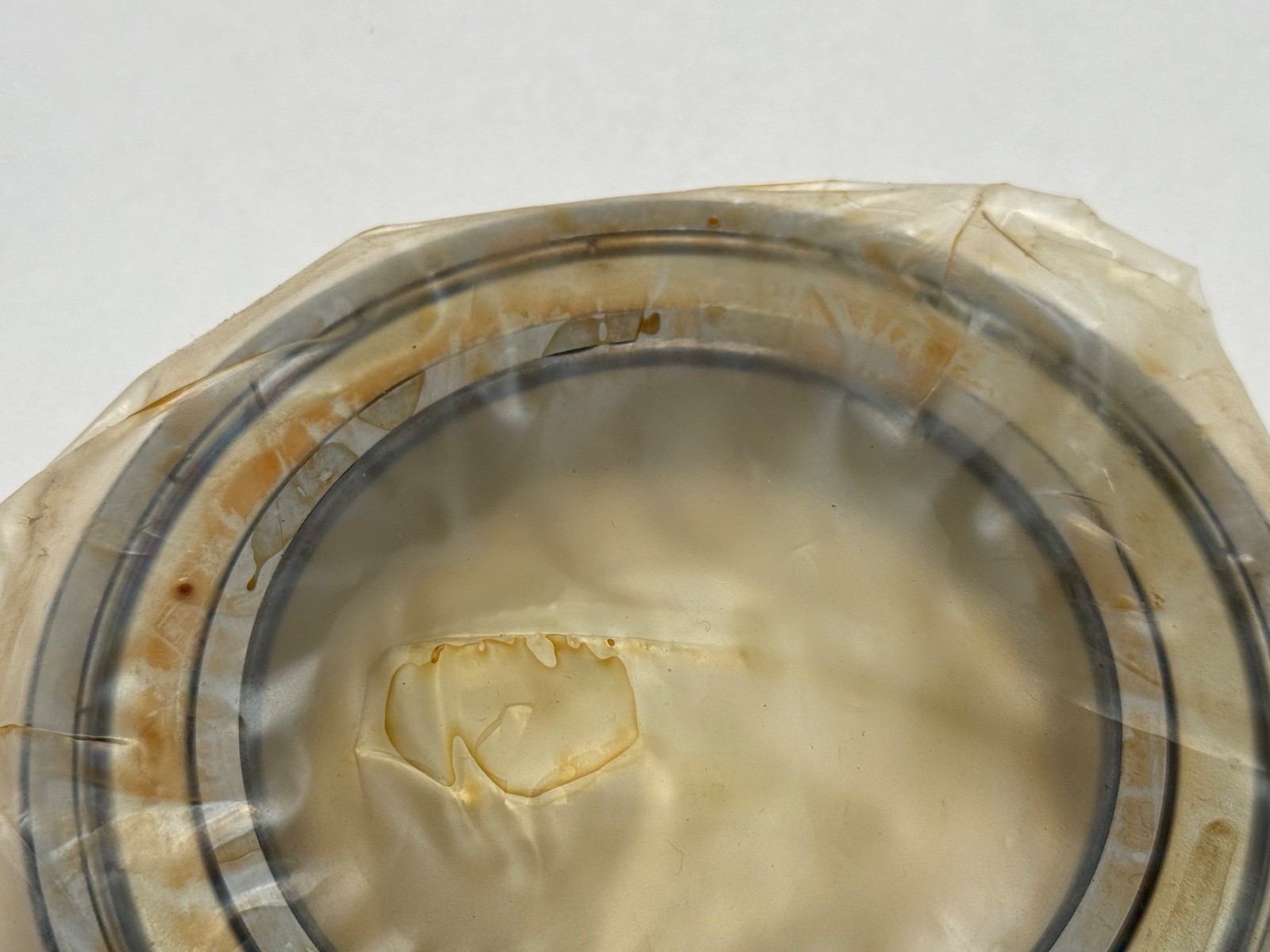

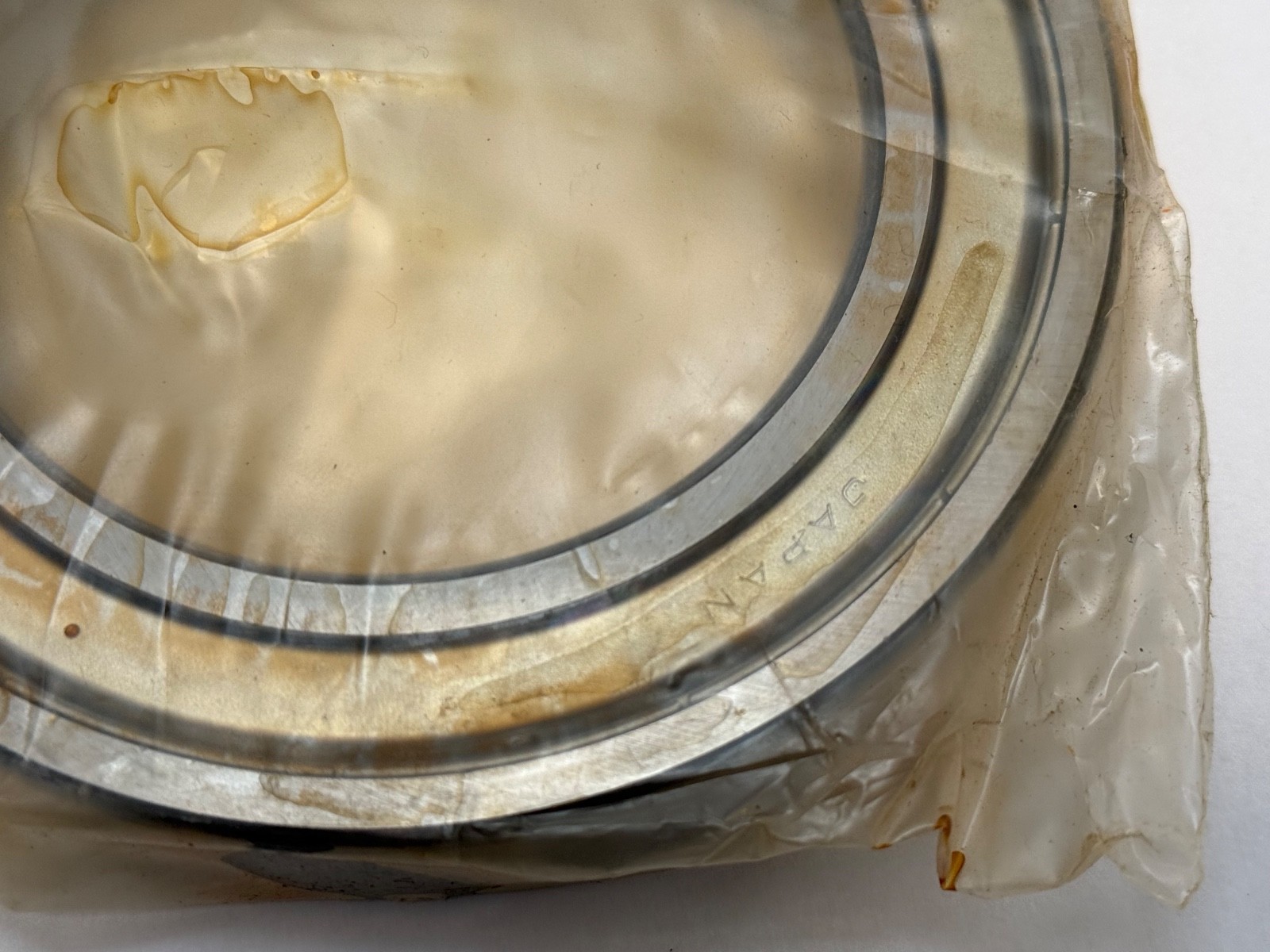

Deep groove ball bearing, 80 mm bore x 125 mm OD x 22 mm wide, steel shields both sides, 53.0 kN dynamic rating, 5,300 rpm grease, pressed steel cage.
List Price
$37.50
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 6016ZZ |
| Model | 6016-ZZ 6016-2Z 6016Z |
| Bearing Type | Deep Groove Ball Bearing, Shields both sides |
| ID | 80 mm |
| OD | 125 mm |
| Width | 22 mm |
| Material | Steel |
|---|---|
| Overall Width | 22 mm |
| Mpn Variants | 6016ZZ, 6016-ZZ, 6016Z, 6016-2Z |
| Precision Class | ABEC 1 / P0 |
| Dynamic Load Rating | 53,000 N |
| Static Load Rating | 40,000 N |
| Rolling Elements | Ball |
| Item Weight | 0.860 kg (1.90 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 5,300 rpm grease |
| Internal Clearance | CN |
| Cross Reference 1 | SKF 6016-2Z |
|---|---|
| Cross Reference 2 | FAG 6016-2ZR |
| Cross Reference 3 | NSK 6016ZZ |
| Cross Reference 4 | Koyo 6016ZZ |

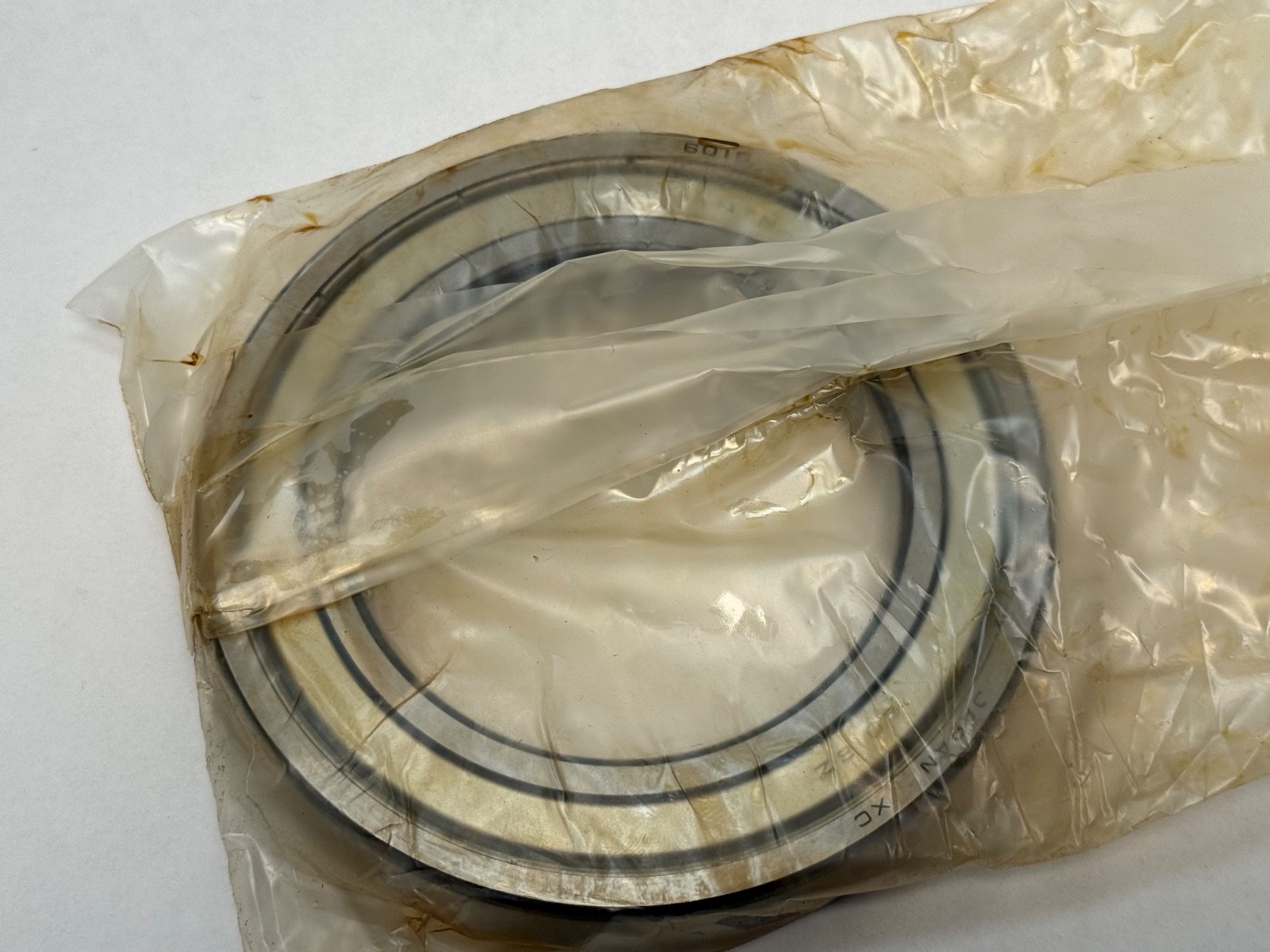

NTN 6016ZZ is a single row deep groove ball bearing with steel shields on both sides. Bore Diameter: 80 mm. Outside Diameter: 125 mm. Width: 22 mm. Seal Type: Shields both sides.
6016 — 60 extra-light series deep groove ball bearing, bore code 16 = 80 mm.
ZZ — steel shields on both faces.
Dynamic Load Rating: 53,000 N. Static Load Rating: 40,000 N. Limiting Speed: 5,300 rpm grease. Cage Material: Pressed steel. Internal Clearance: CN. Precision Class: ABEC 1 / P0. Item Weight: 0.860 kg (1.90 lb).
Fillet Radius r min: 1.1 mm. Shaft Abutment Diameter da min: 86.5 mm. Housing Abutment Diameter Da max: 118.5 mm. Abutment Fillet ras max: 1.0 mm.
Unit Quantity: 1 Pc.
Same 80 x 125 x 22 mm double-shield envelope: SKF 6016-2Z, FAG 6016-2ZR, NSK 6016ZZ, Koyo 6016ZZ.
