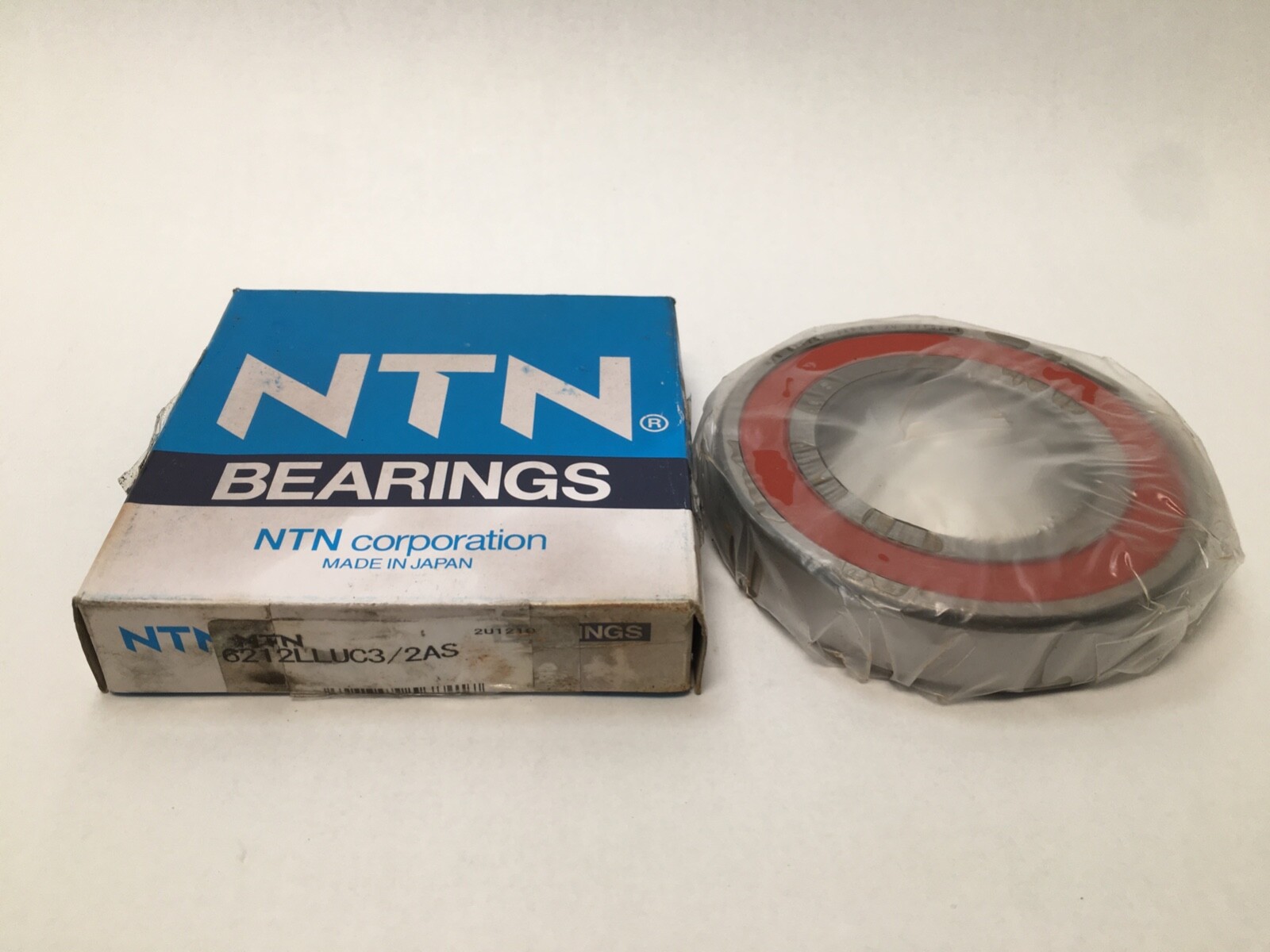

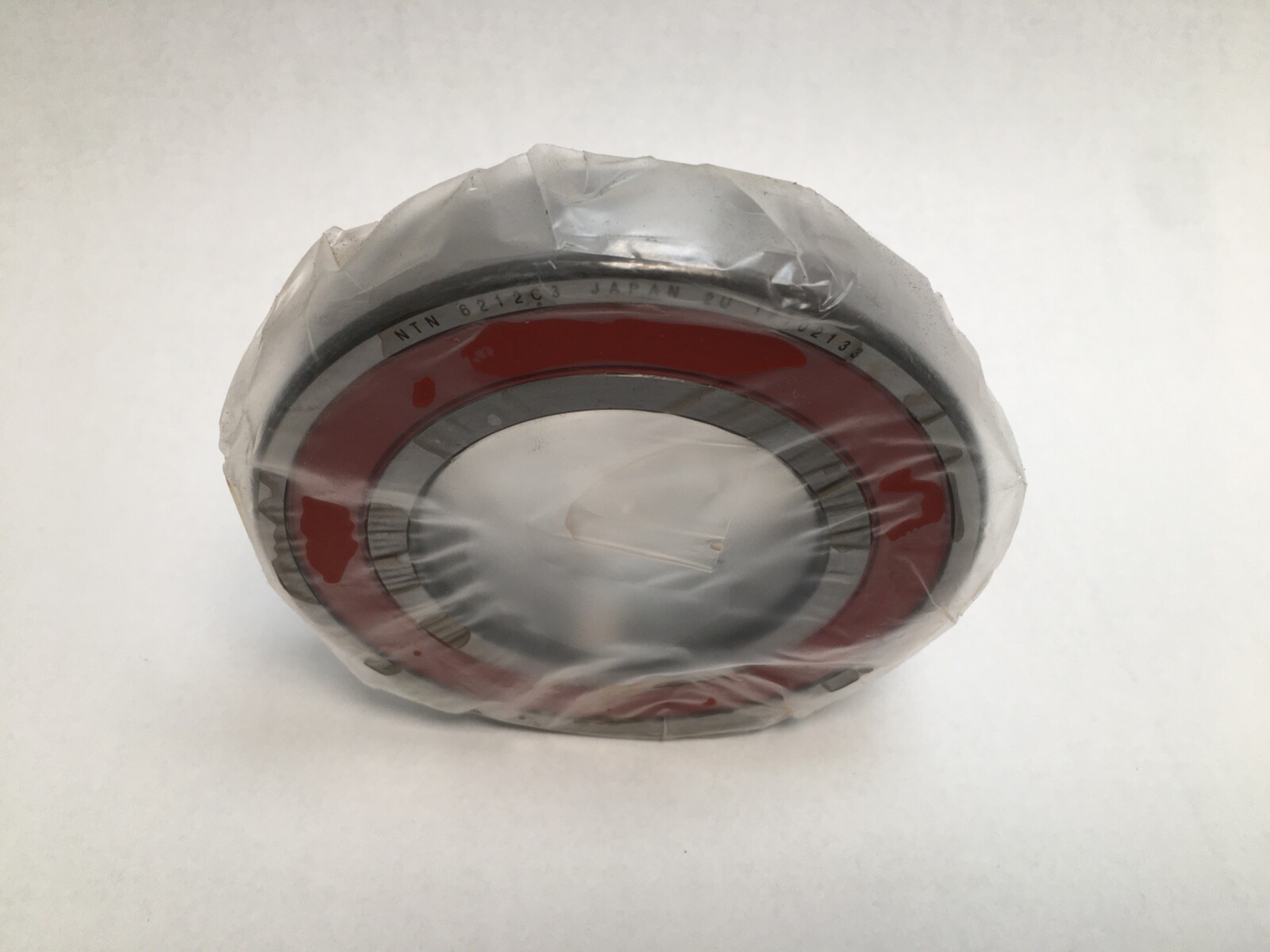

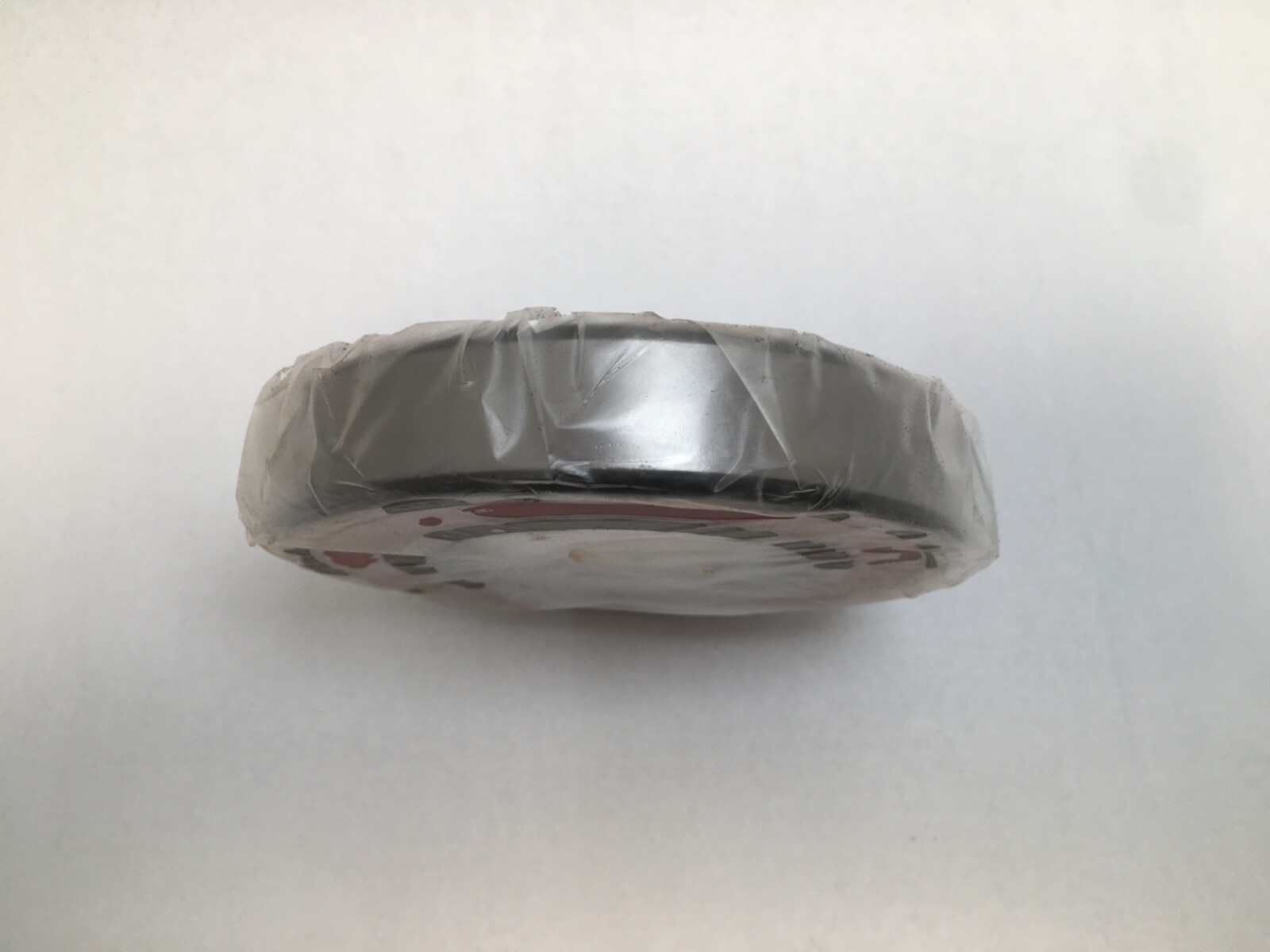

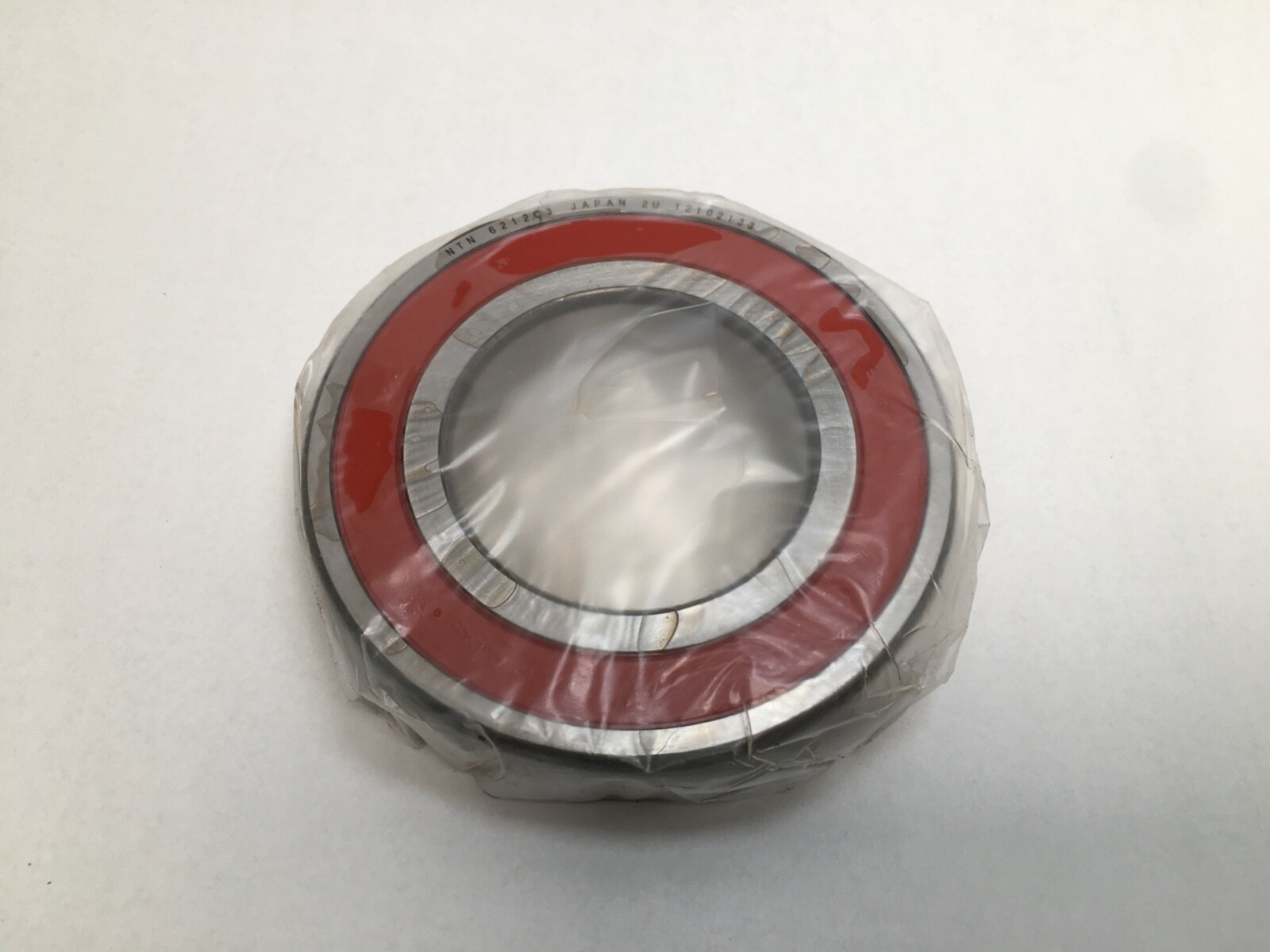

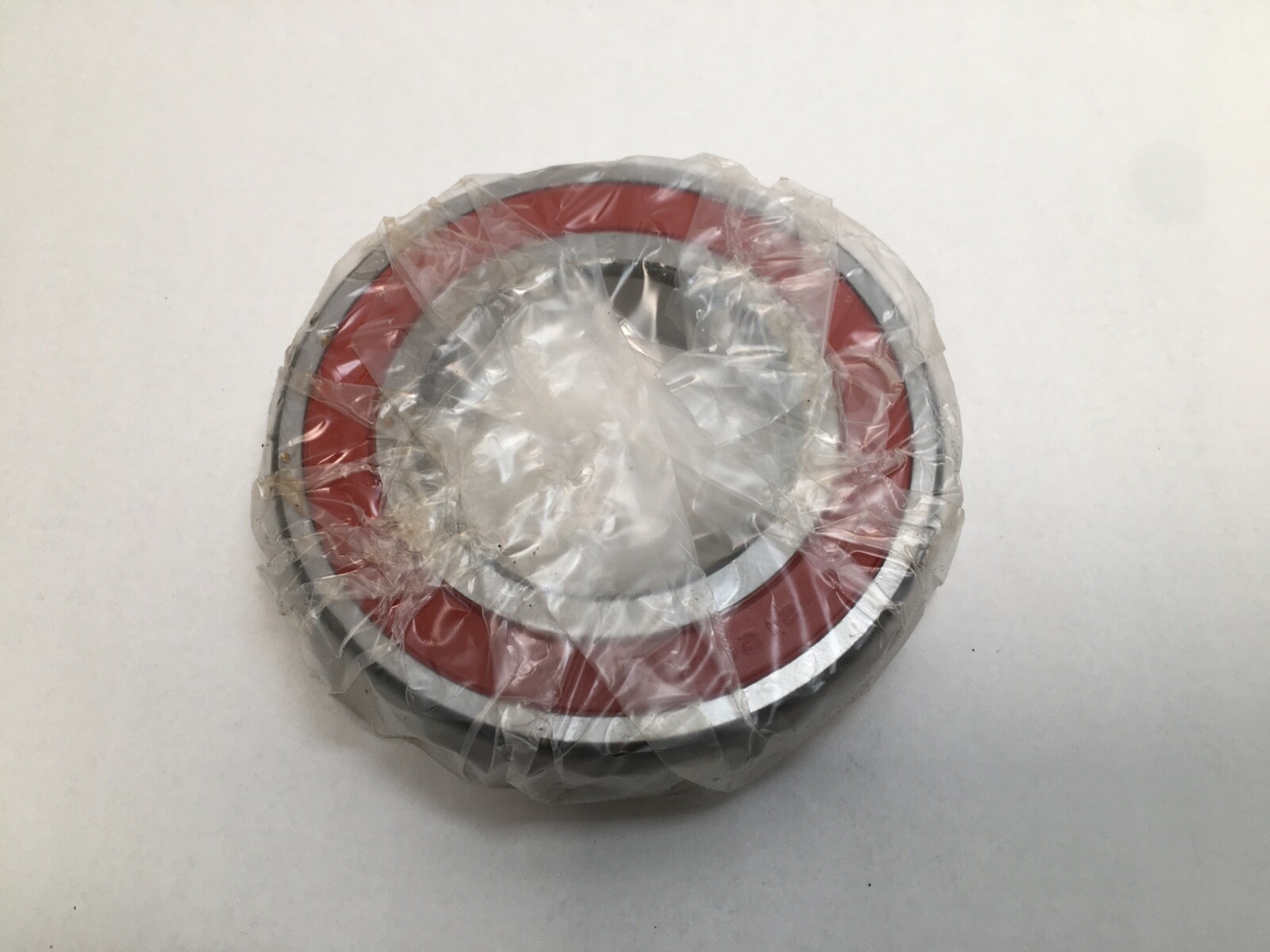

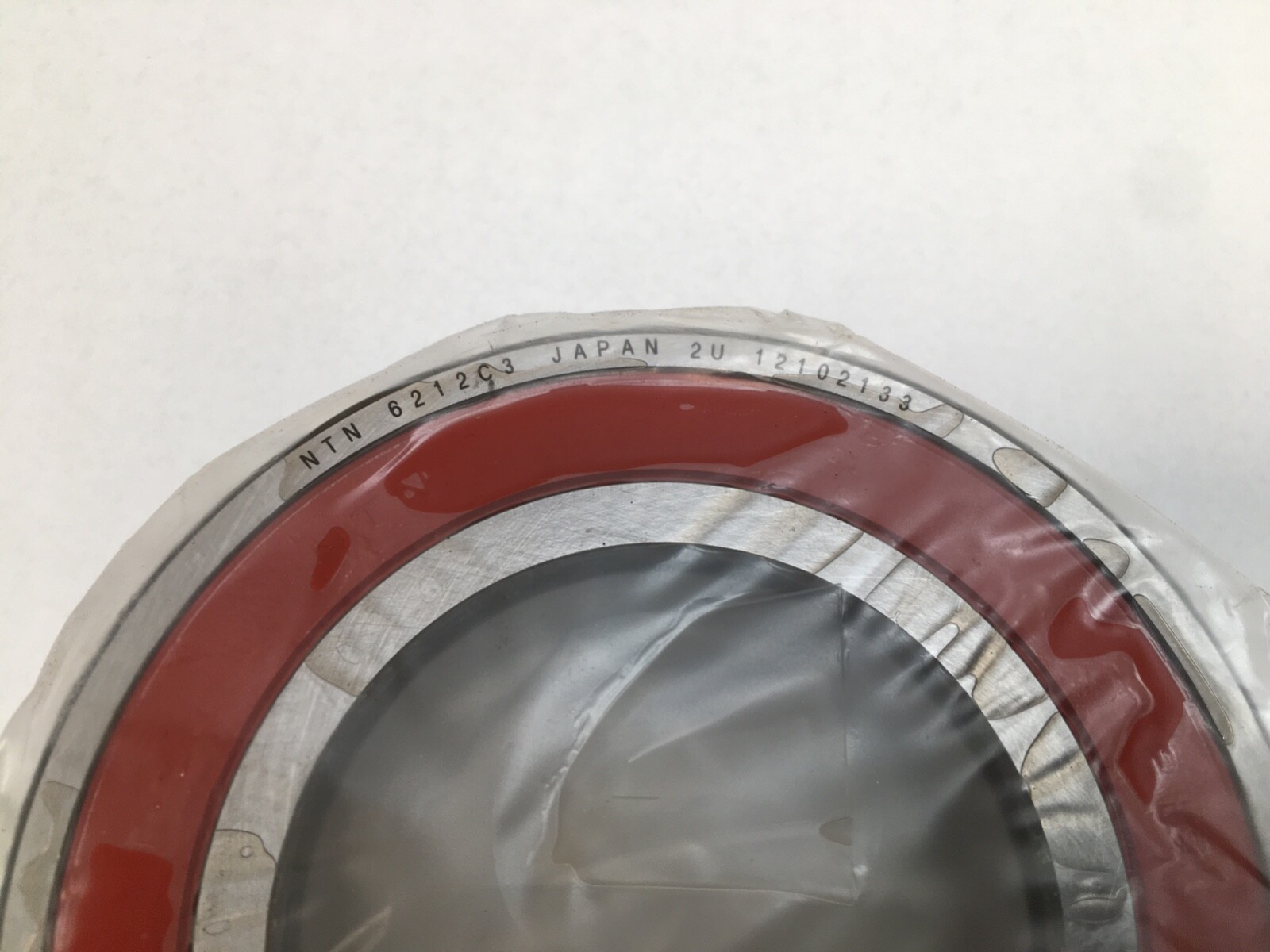

NTN6212LLUC3Deep Groove Ball Bearing — 60 mm ID, 110 mm OD, 22 mm Width, Contact Seals Both Sides, C3 Clearance

Condition: New

Availability:

3 in stock

Sealed deep groove ball bearing, 60 x 110 x 22 mm, contact rubber seals both sides, C3 clearance, 58,000 N dynamic rating. NTN 6212LLUC3, 3,800 rpm.

Same day shipment

List Price

$38.23

3 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

3 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandNTN
MPN6212LLUC3
Model6212LLUC3 / 2AS
Bearing TypeDeep Groove Ball Bearing, Contact seals both sides
ID60 mm
OD110 mm
Width22 mm

Technical Specifications

MaterialHigh Carbon Chrome Steel
Series6200
Mpn Variants6212LLUC3; 6212LLUC3/2AS; 6212LLU C3; 6212LU
Precision ClassABEC 1 / P0
Min Temp-40 °C
Cage TypePressed
Dynamic Load Rating58,000 N
Static Load Rating36,000 N
Rolling ElementsBall
Max Temp120 °C
Item Weight0.78 kg (1.72 lb)
Cage MaterialPressed steel
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedNo
Limiting Speed3,800 rpm grease
Internal ClearanceC3
LubricantShell Alvania No. 2 grease
Harmonization Code8482.10.50.68
Bearing MaterialHigh carbon chrome steel
Closure TypeContact seals both sides
Industry TermsSealed deep groove ball bearing; 6212 rubber sealed bearing; 60x110x22 bearing; 6212-2RS equivalent size
Common Misspellings6212LLU C3; 6212 LLUC3; 6212LUUC3; 6212LLCU3
Application TypesElectric motors; pumps; gearboxes; general industrial machinery

Cross-References

Cross Reference 1SKF 6212-2RS1/C3 (related, contact seals both sides)
Cross Reference 2FAG 6212-2RSR-C3 (related, contact seals both sides)
Cross Reference 3NSK 6212DDUC3 (related, contact seals both sides)
Cross Reference 4Koyo 6212-2RSC3 (related, contact seals both sides)
Seller Part Number: B-AR6B4#HESP2A

Product Description

What this part is:

NTN 6212LLUC3 is a single-row deep groove ball bearing in the ISO 6212 size, sealed both sides with contact rubber seals. Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm. Seal Type: Contact seals both sides. Seal Material: Nitrile rubber. Internal Clearance: C3. Precision Class: ABEC 1 / P0. Rolling Elements: Ball. Number Of Rows: 1.

Decoding the designation:

62 — NTN 02 dimension series, the light-series deep groove section.

12 — bore code: 12 x 5 = 60 mm bore.

LLU — contact rubber seals on both sides.

C3 — radial internal clearance greater than normal.

2AS — NTN grease code for Shell Alvania No. 2, carried on the carton.

Specifications:

Bearing Type: Deep Groove Ball Bearing. Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm. Dynamic Load Rating: 58,000 N. Static Load Rating: 36,000 N. Limiting Speed: 3,800 rpm grease. Lubricant: Shell Alvania No. 2 grease. Cage Material: Pressed steel. Cage Type: Pressed. Bearing Material: High carbon chrome steel. Item Weight: 0.78 kg (1.72 lb). Operating Temperature: -40 to 120 °C. Series: 6200. Snap Ring Included: No. Harmonization Code: 8482.10.50.68. Unit Quantity: 1 Pc.

Dimensions and mounting:

Fillet Radius r min: 1.5 mm. Shaft Abutment da max: 75 mm. Housing Abutment Da max: 102 mm. Max Fillet ras: 1.5 mm.

Compatibility and replacement:

Cross-references with a 60 x 110 x 22 mm size, contact seals both sides and C3 clearance: SKF 6212-2RS1/C3, NSK 6212DDUC3, FAG 6212-2RSR-C3, Koyo 6212-2RSC3. Designation variants: 6212LLUC3, 6212LLUC3/2AS, 6212LLU C3, 6212LU.

Frequently asked questions:

What are the dimensions of the NTN 6212LLUC3?

Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm.

What seals does it have?

Seal Type: Contact seals both sides. Seal Material: Nitrile rubber.

What are its load ratings and limiting speed?

Dynamic Load Rating: 58,000 N. Static Load Rating: 36,000 N. Limiting Speed: 3,800 rpm grease.
