Availability:
10 in stock
Deep groove ball bearing, 170 x 310 x 52 mm, machined brass cage, P5 tolerance with C3 clearance, rings heat-stabilised to 200°C. 225 kN dynamic.
List Price
$1,154.57
10 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 6234MAS.P53.S1 |
| Model | 6234MAS P53 S1 |
| Bearing Type | Deep Groove Ball Bearing, Open |
| ID | 170 mm |
| OD | 310 mm |
| Width | 52 mm |
| Series | 62 |
|---|---|
| Base Number | 6234 |
| Industry Terms | deep groove ball bearing, machined brass cage ball bearing, P5 precision ball bearing, C3 clearance, heat stabilised bearing, high temperature ball bearing |
| Common Misspellings | 6234MASP53S1, 6234 MAS P53 S1, 6234MAS-P53-S1, 6234MA S P53 S1 |
| Bore Shaft Size | 170 mm |
| Mpn Variants | 6234MAS.P53.S1, 6234-MAS-P53-S1, 6234MASP53S1, 6234MAS P53 S1, 6234MAS, 6234M, 6234 |
| Compatible With Replaces | FAG 6234-M-C3 (Normal tolerance class instead of P5) |
| Precision Class | P5 |
| Closure Type | Open |
| Min Temp | -30 °C |
| Cage Type | Machined |
| Dynamic Load Rating | 225,000 N |
| Static Load Rating | 224,000 N |
| Rolling Elements | Balls |
| Max Temp | 200 °C |
| Item Weight | 18.096 kg (39.90 lb) |
| Cage Material | Machined solid brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 3,800 rpm |
| Internal Clearance | C3 |
| Harmonization Code | 8482.10.50.00 |
| Part Number | 6234MAS.P53.S1 |
| Cross Reference 1 | FAG 6234-M-C3 - PN tolerance, not P5 |
|---|

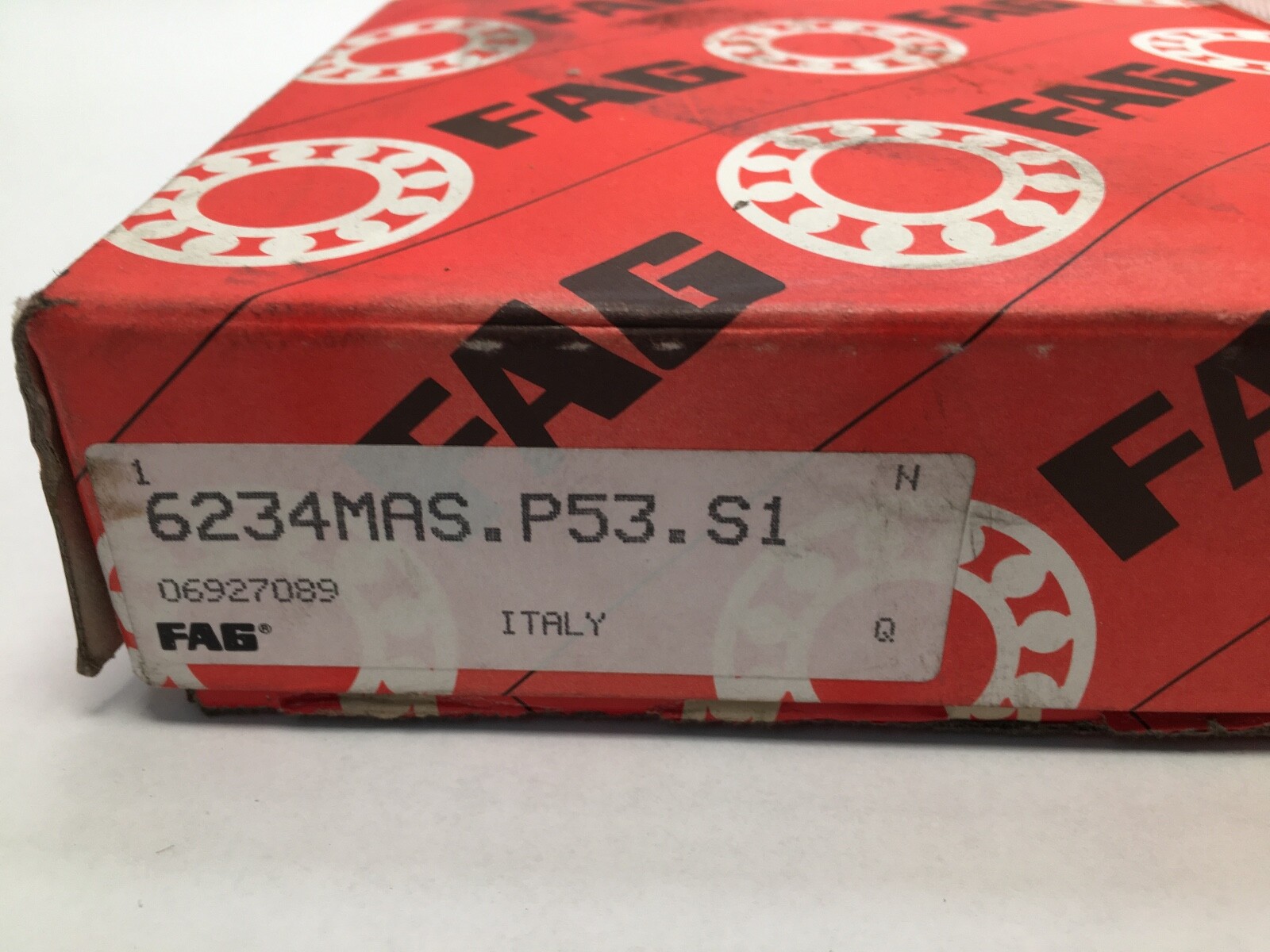

FAG 6234MAS.P53.S1 single-row deep groove ball bearing, open on both faces, straight bore, machined brass cage. Bore Diameter: 170 mm. Outside Diameter: 310 mm. Width: 52 mm. Series: 62. Unit Quantity: 1 Pc.
62 — light dimension series; bore code 34 gives a 170 mm bore.
MAS — machined solid brass cage.
P53 — FAG combined code: P5 tolerance with C3 radial internal clearance.
S1 — dimensional and heat stabilisation, rings stabilised for service up to 200 °C.
Dynamic Load Rating: 225 kN (50,582 lbf). Static Load Rating: 224 kN (50,357 lbf). Fatigue Load Limit: 9.6 kN. Limiting Speed: 3,800 rpm. Reference Speed: 2,950 rpm. Calculation Factor f0: 15.3. Internal Clearance: C3. Precision Class: P5. Cage Material: Machined solid brass. Closure Type: Open. Bore Type: Straight. Item Weight: 18.096 kg (39.90 lb). Operating Temperature: -30 °C to 200 °C.
Bore Diameter: 170 mm. Outside Diameter: 310 mm. Width: 52 mm. Minimum shaft shoulder diameter: 187 mm. Maximum housing shoulder diameter: 293 mm. Maximum fillet radius: 3 mm. Minimum chamfer dimension: 4 mm. Inner ring shoulder diameter: 219.04 mm. Outer ring shoulder diameter: 260.85 mm.
Schaeffler current designation on this envelope: 6234-M-C3, same 170 x 310 x 52 mm boundary dimensions, solid brass cage and C3 clearance, Normal tolerance class (PN) instead of P5. Searchable forms: 6234MAS.P53.S1, 6234-MAS-P53-S1, 6234MASP53S1, 6234MAS P53 S1.
Bore 170 mm, outside diameter 310 mm, width 52 mm.
P53 is P5 tolerance with C3 radial internal clearance; S1 means the rings are dimensionally stabilised for service up to 200 °C.
Dynamic Load Rating 225 kN, Static Load Rating 224 kN, Limiting Speed 3,800 rpm, Reference Speed 2,950 rpm.
