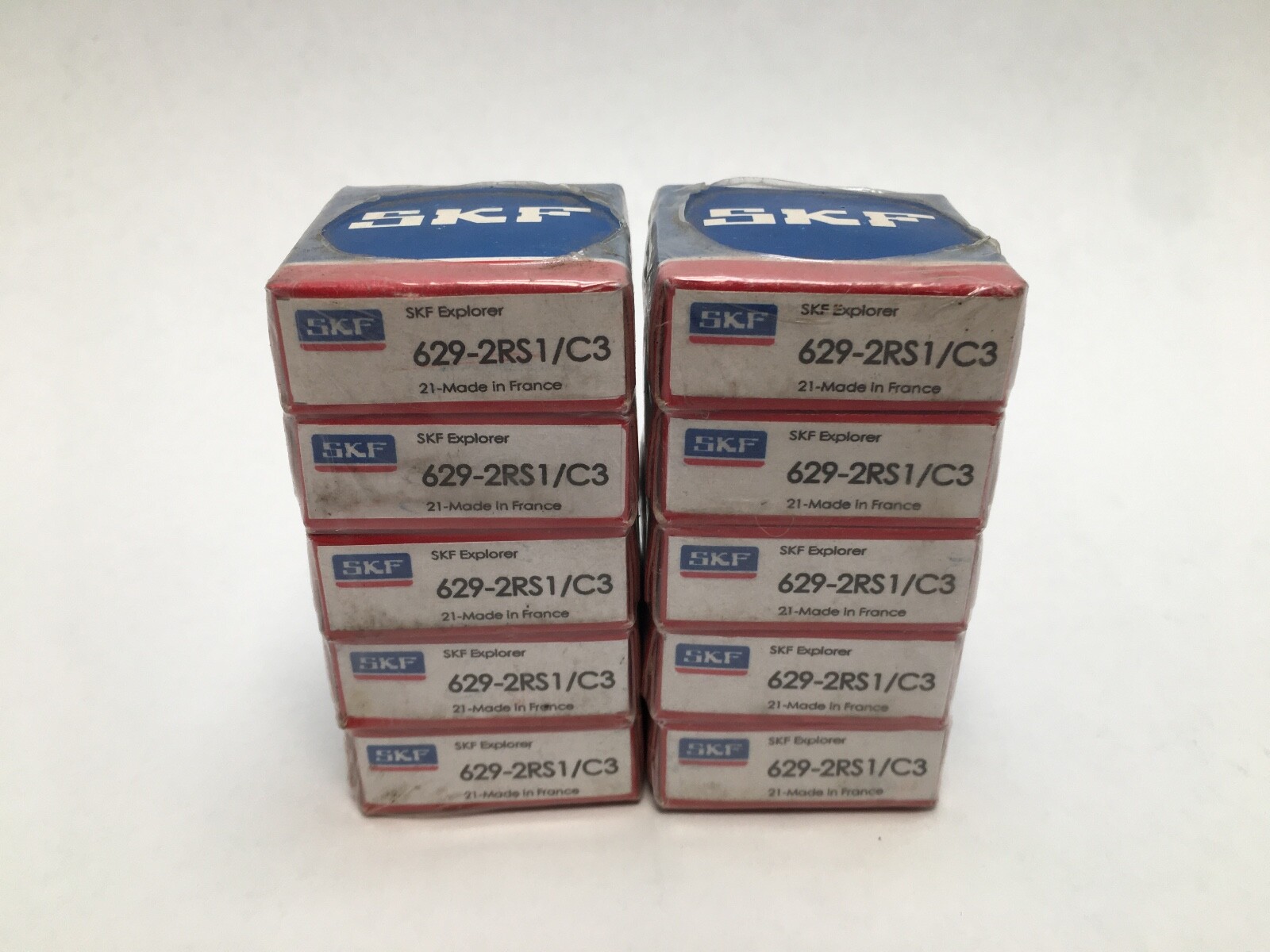

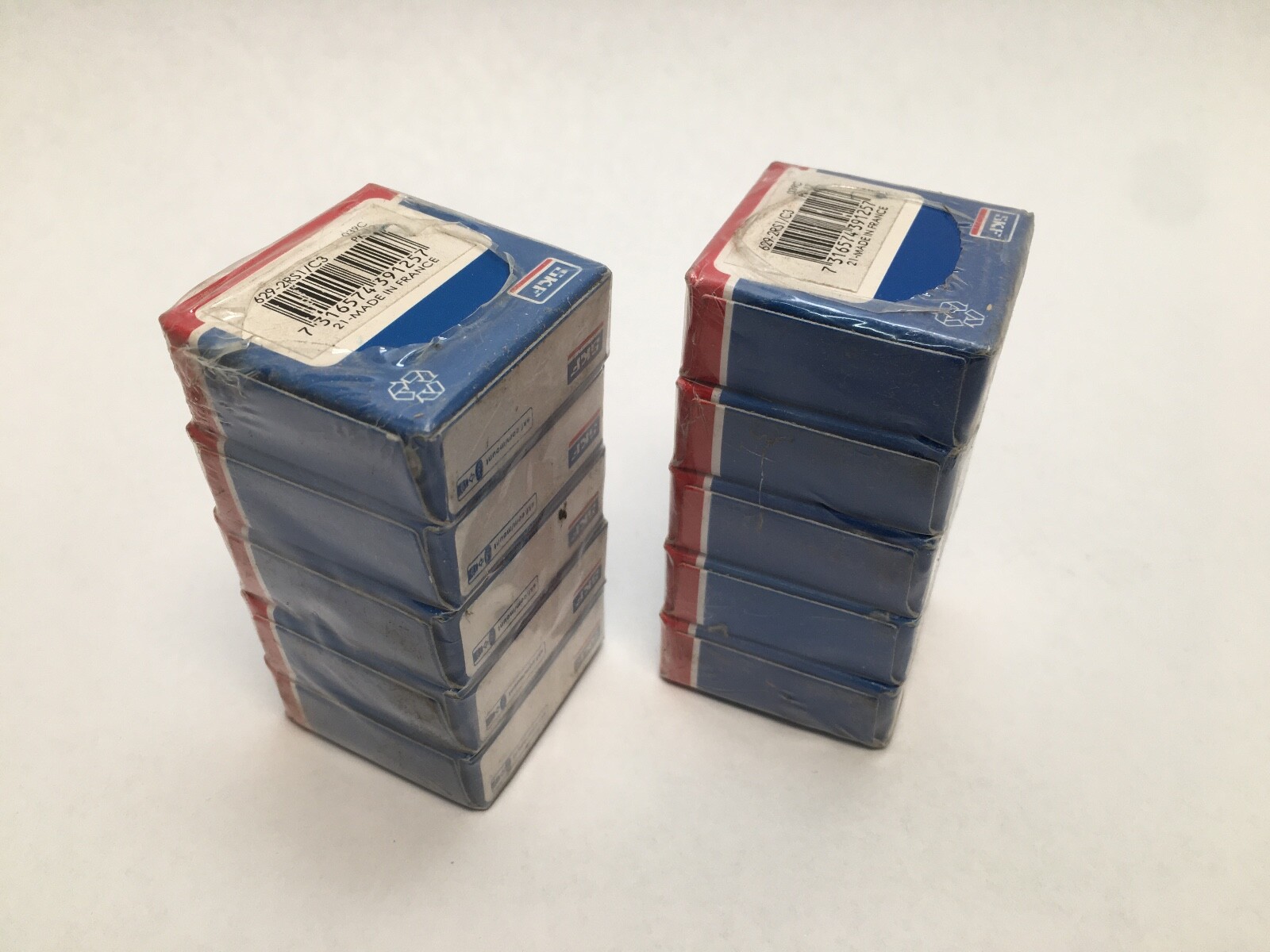

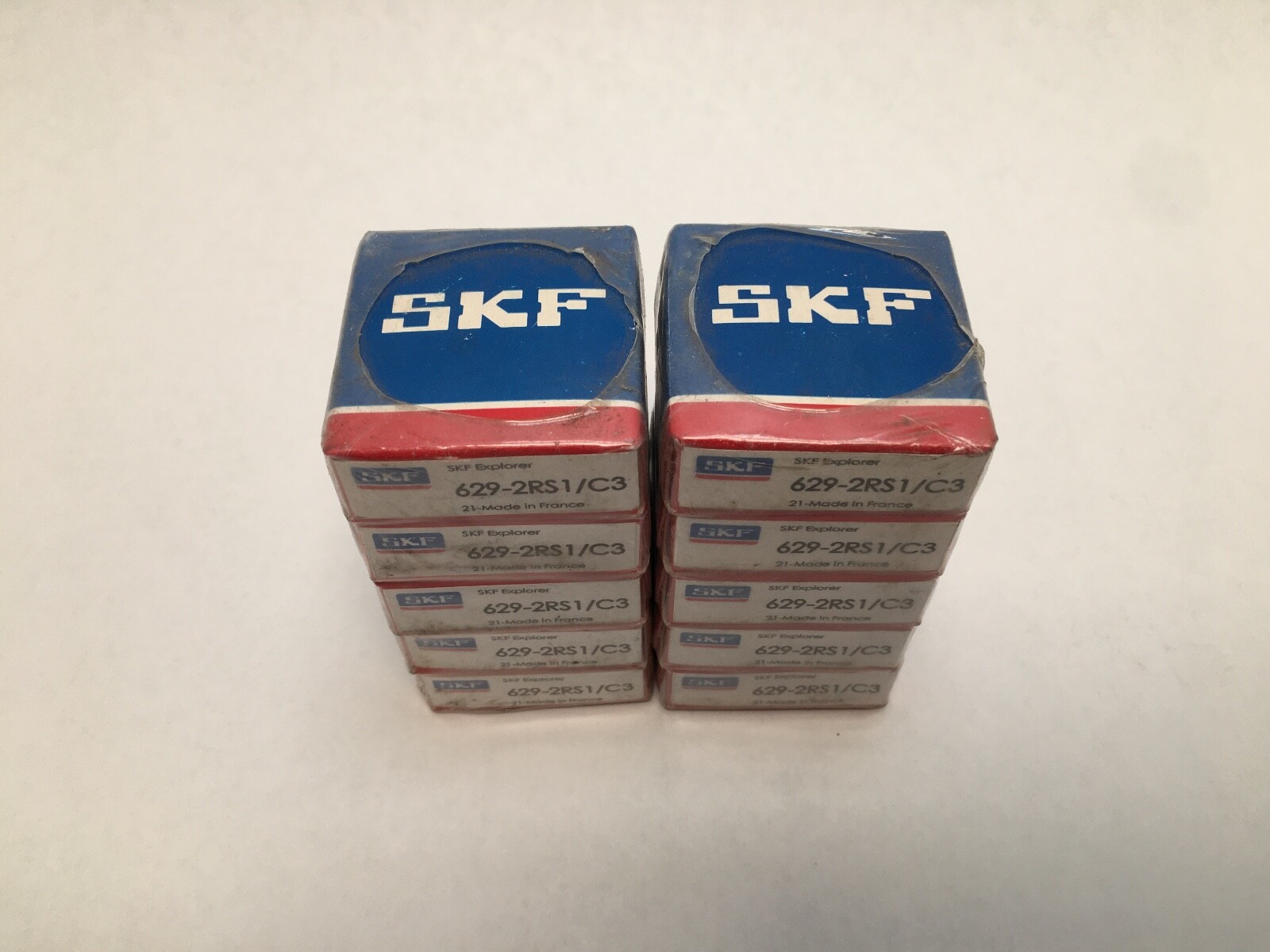

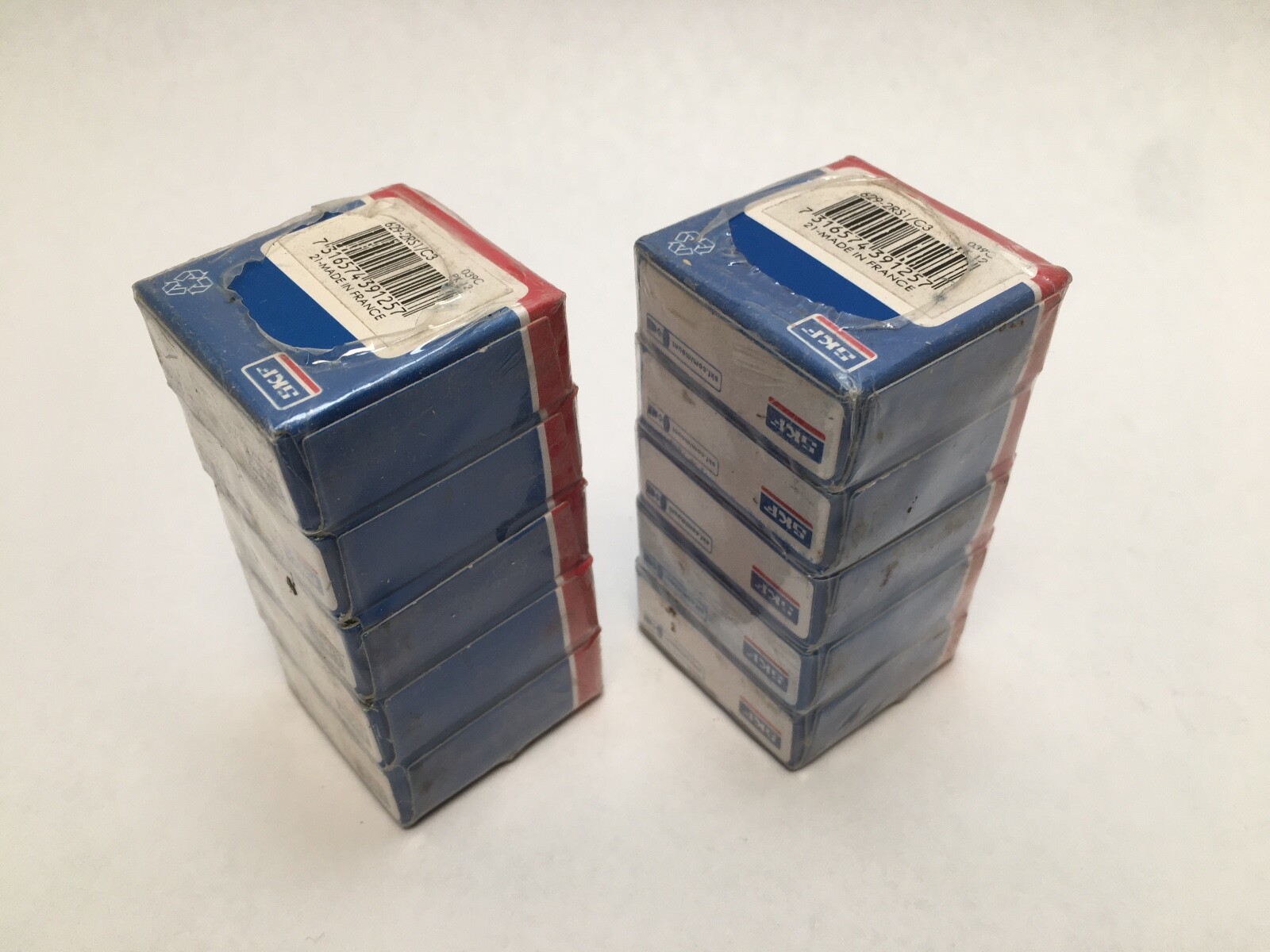

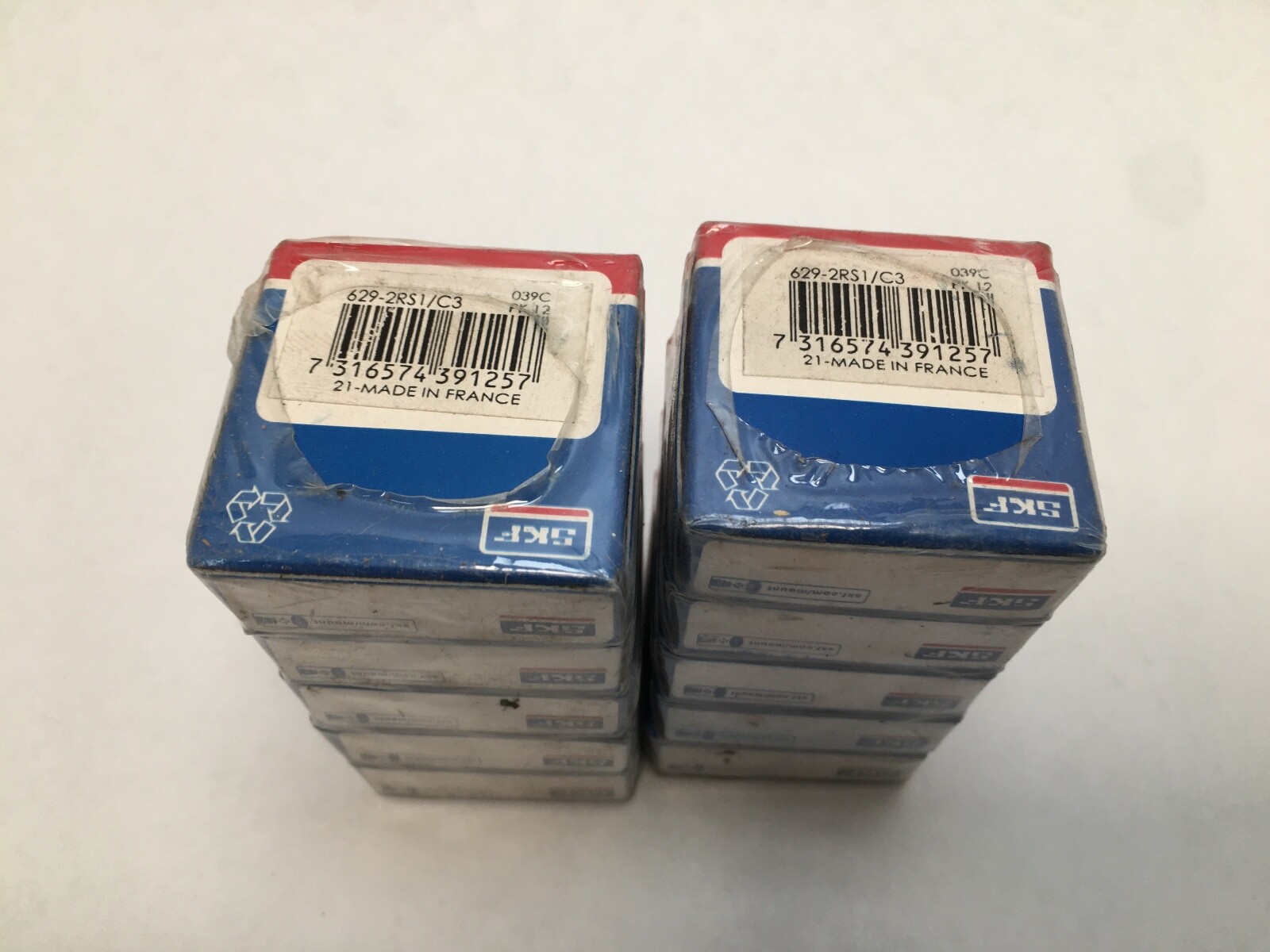

SKF 629-2RS1/C3 deep groove ball bearing, 9 x 26 x 8 mm, contact seals both sides, C3 clearance. Dynamic load rating 4,750 N. Pack of 10 bearings.
List Price
$37.70
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 629-2RS1/C3 |
| Model | 629-2RS1/C3 |
| Bearing Type | Deep Groove Ball Bearing, Contact seals both sides (2RS1, NBR) |
| ID | 9 mm |
| OD | 26 mm |
| Width | 8 mm |
| Series | 62 |
|---|---|
| Dynamic Load Rating | 4,750 N |
| Static Load Rating | 1,960 N |
| Rolling Elements | Ball |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Internal Clearance | C3 |
| Base Number | 629 |
| Common Misspellings | 629RS, 629 2RS, 6292RS, 629-2RS1-C3 |
| Mpn Variants | 629-2RS1/C3, 6292RS1C3, 629 2RS1 C3, 629-2RS1C3, 6292RSC3, 629-2RS/C3 |
| Cross Reference 1 | FAG 629-2RSR-C3 |
|---|---|
| Cross Reference 2 | NTN 629LLUC3 |
| Cross Reference 3 | Koyo 629-2RSC3 |
| Cross Reference 4 | NSK 629DDUC3 - non-contact seals |
| Cross Reference 5 | Nachi 629-2NSE C3 - non-contact seals |
SKF 629-2RS1/C3 is a single-row deep groove ball bearing, 9 mm bore, 26 mm outside diameter, 8 mm width. Contact seals on both sides, supplied greased, with C3 internal clearance. Unit Quantity: 10 Pcs, ten individual bearings.
629 — SKF deep groove ball bearing in the 62 dimension series, 9 x 26 x 8 mm.
2RS1 — sheet-steel reinforced NBR rubber contact seal on both sides.
C3 — radial internal clearance greater than normal.
Bearing Type: Deep Groove Ball Bearing, single row. Bore Diameter: 9 mm. Outside Diameter: 26 mm. Overall Width: 8 mm. Dynamic Load Rating: 4,750 N. Static Load Rating: 1,960 N. Rolling Elements: Ball. Cage Material: Pressed steel. Closure Type: Contact seals both sides. Seal Type: 2RS1, NBR. Internal Clearance: C3. Bore Type: Straight. Number Of Rows: 1. Series: 62. Snap Ring Included: No. Harmonization Code: 8482.10.50. Unit Quantity: 10 Pcs.
Bore Diameter: 9 mm. Outside Diameter: 26 mm. Overall Width: 8 mm. The contact seals retain grease and exclude contamination in miniature motor, fan and instrument shafts.
Sealed C3 equivalents in the 9 x 26 x 8 mm envelope: FAG 629-2RSR-C3, NTN 629LLUC3, Koyo 629-2RSC3 (contact seals); NSK 629DDUC3, Nachi 629-2NSE C3 (non-contact seals). Designation variants: 629-2RS1/C3, 6292RS1C3, 629 2RS1 C3, 629-2RS1C3, 6292RSC3, 629-2RS/C3.
Bore Diameter: 9 mm. Outside Diameter: 26 mm. Overall Width: 8 mm.
Closure Type: contact seals both sides (2RS1, NBR). Internal Clearance: C3.
Unit Quantity: 10 Pcs, ten individual bearings.
