FAG6009-ZRDeep Groove Ball Bearing – 45 mm ID, 75 mm OD, 16 mm Width, Shield One Side, CN Clearance

Condition: New

Availability:

10 in stock

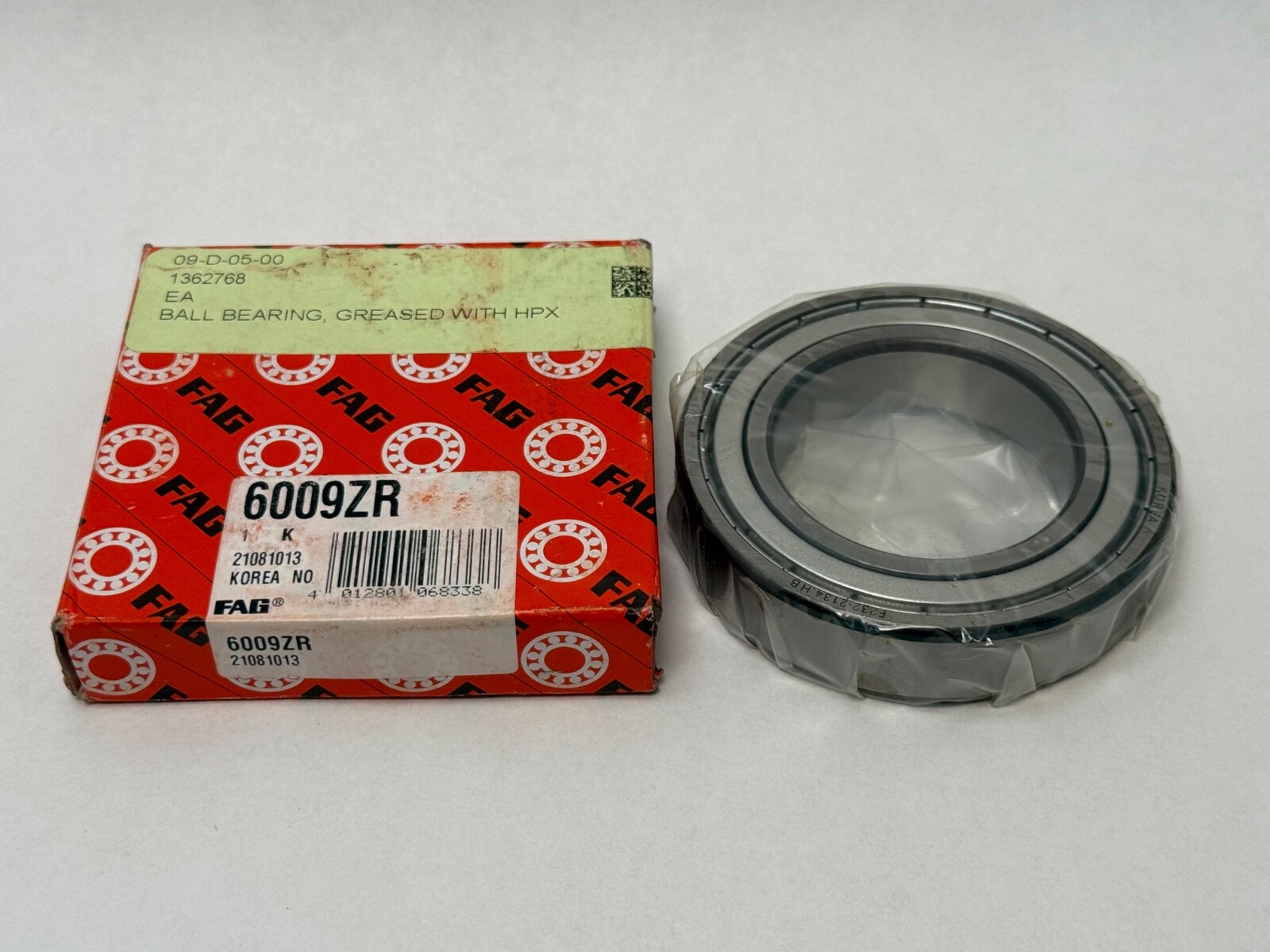

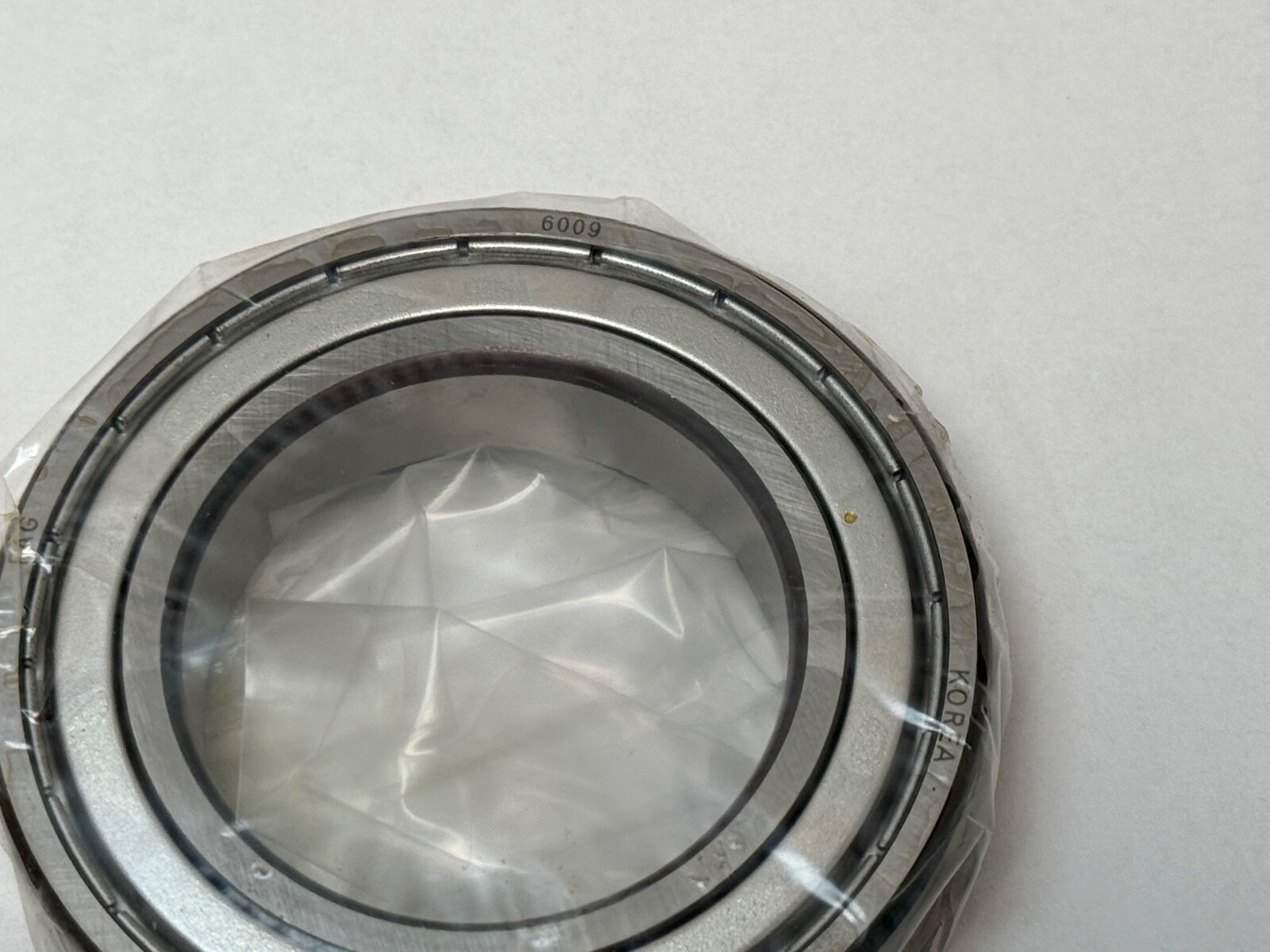

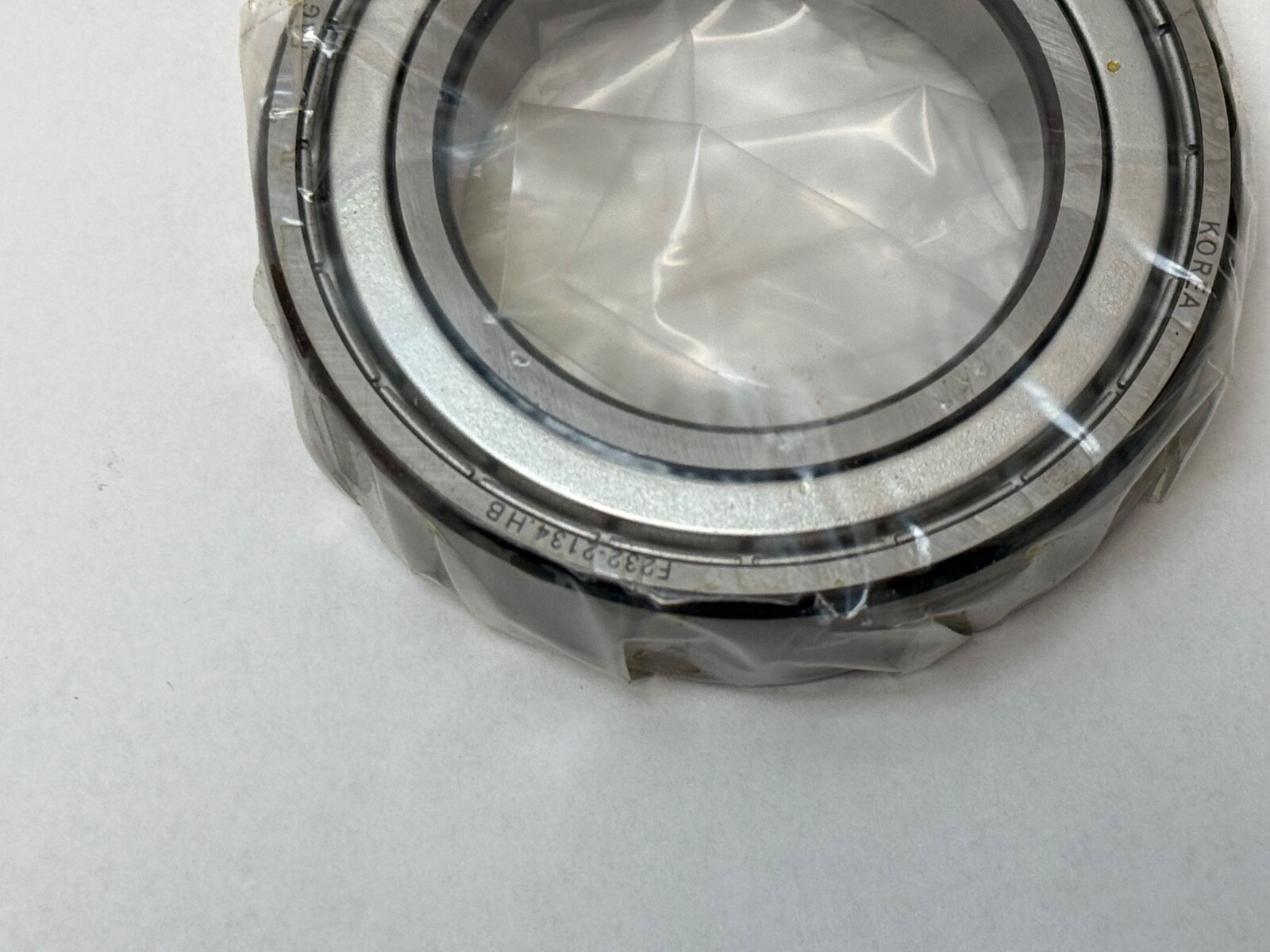

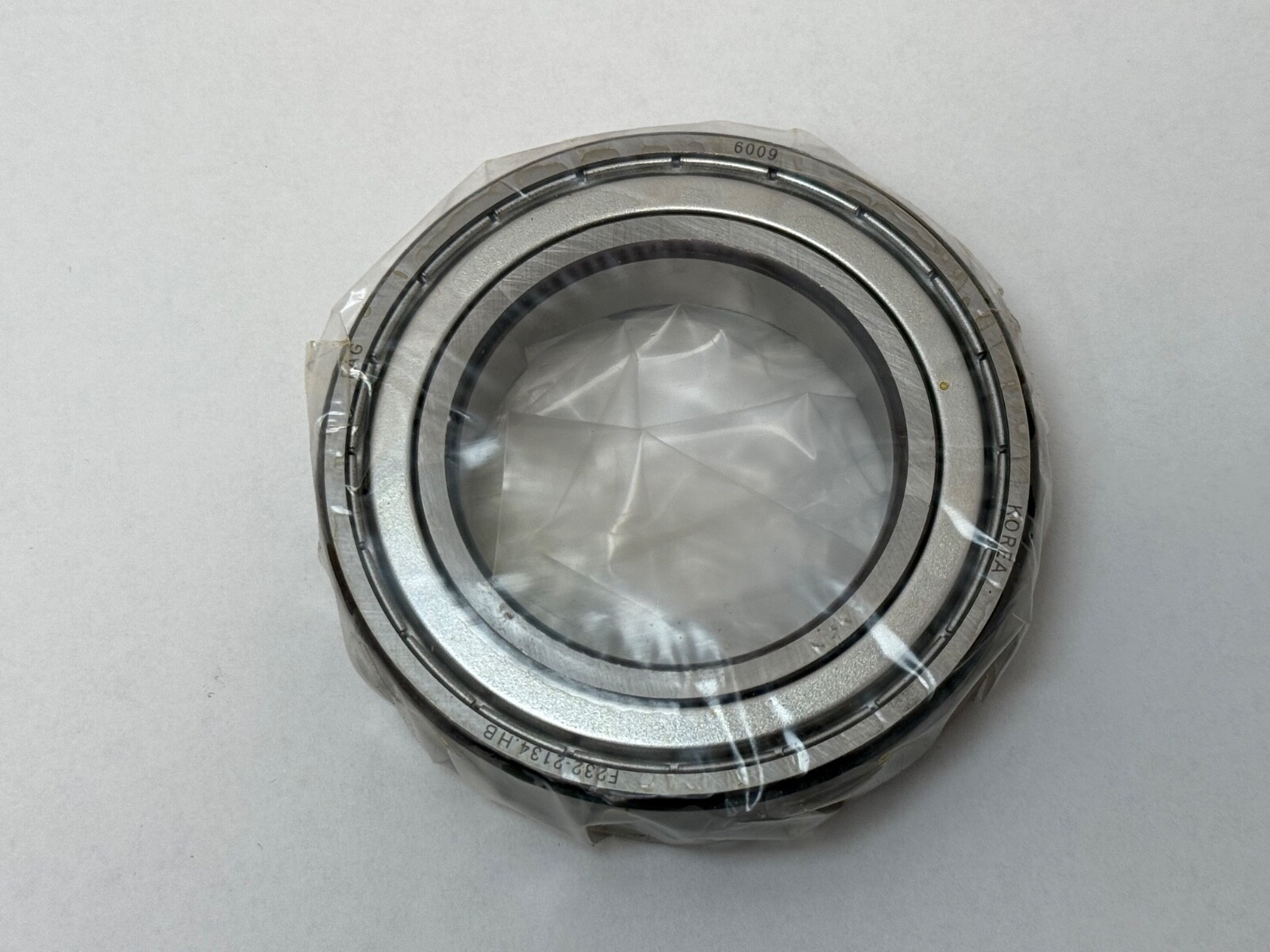

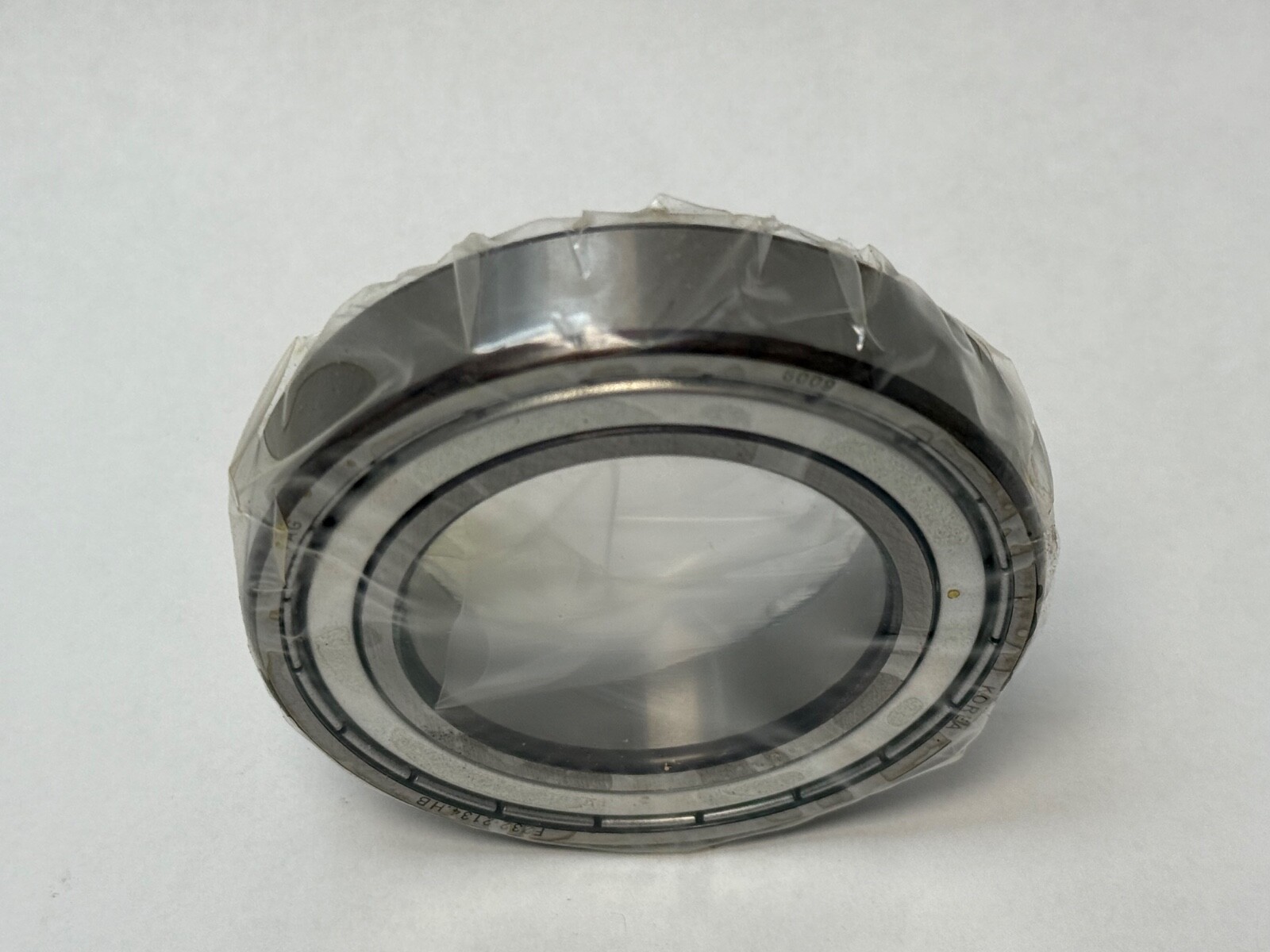

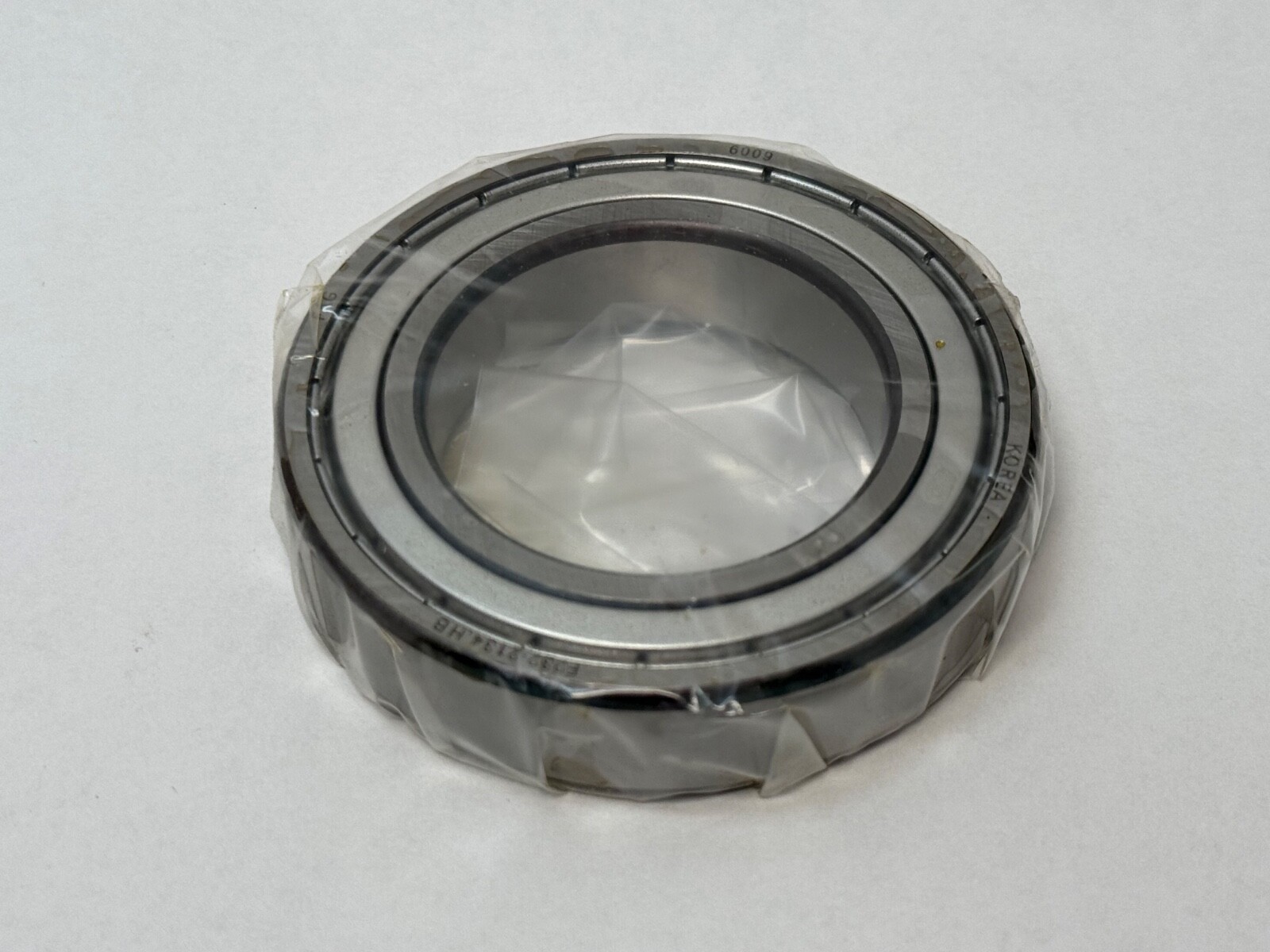

FAG 6009-Z (6009-ZR) deep groove ball bearing, 45x75x16 mm, one steel shield, pressed steel cage, CN clearance, 21,200 N dynamic load rating.

Same day shipment

List Price

$15.16

10 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

10 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPN6009-ZR
GTIN4012801068338
Model6009-ZR
Bearing TypeDeep Groove Ball Bearing, Shield one side
ID45 mm
OD75 mm
Width16 mm

Technical Specifications

Series60
Dynamic Load Rating21,200 N
Static Load Rating14,400 N
LubricantOil/Grease
Max Temp120 °C
Min Temp-30 °C
Rolling ElementsBall
Closure TypeShield one side
Item Weight0.235 kg (0.52 lb)
Cage MaterialPressed steel
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedNo
Harmonization Code8482.10.50
Internal ClearanceCN
Base Number6009
Mpn Variants6009-ZR, 6009ZR, 6009Z, 6009 Z
Compatible With ReplacesFAG 6009-ZR (earlier designation of 6009-Z)
Limiting Speed13,100 rpm

Cross-References

Cross Reference 1SKF 6009-Z
Cross Reference 2NSK 6009Z
Cross Reference 3NTN 6009Z
Cross Reference 4Koyo 6009Z
Seller Part Number: B-CD1#SHANVS

Product Description

What this part is:

FAG 6009-Z, earlier designated 6009-ZR: single-row deep groove ball bearing with one non-contact steel shield, opposite side open, and a pressed steel cage. Bore Diameter: 45 mm. Outside Diameter: 75 mm. Overall Width: 16 mm. Closure Type: Shield one side. Internal Clearance: CN. Unit Quantity: 1 Pc. GTIN: 4012801068338.

Decoding the designation:

60 — deep groove ball bearing, 60 (extra light) dimension series.

09 — bore code, 9 x 5 = 45 mm bore.

Z / ZR — one non-contact steel shield, opposite side open. ZR is the earlier FAG form of the Z suffix.

Specifications:

Brand: FAG. Part Number: 6009-ZR. Base Number: 6009. Series: 60. Dynamic Load Rating: 21,200 N. Static Load Rating: 14,400 N. Fatigue Load Limit: 750 N. Limiting Speed: 13,100 rpm. Thermal Speed Rating: 9,700 rpm. Cage Material: Pressed steel. Maximum Temperature: 120 °C. Minimum Temperature: -30 °C. Item Weight: 0.235 kg (0.52 lb).

Dimensions and mounting:

Bore Diameter: 45 mm. Outside Diameter: 75 mm. Overall Width: 16 mm. Minimum chamfer: 1 mm. Maximum fillet radius: 1 mm. Minimum shaft shoulder diameter: 49.6 mm. Maximum housing shoulder diameter: 70.4 mm. Inner ring shoulder diameter: 54.2 mm. Outer ring shoulder diameter: 65.6 mm.

Compatibility and replacement:

45 x 75 x 16 mm with one shield: SKF 6009-Z; NSK 6009Z; NTN 6009Z; Koyo 6009Z. Other numbers for this part: 6009ZR, 6009Z, 6009 Z.

Frequently asked questions:

What are the dimensions of the FAG 6009-ZR?

Bore Diameter: 45 mm. Outside Diameter: 75 mm. Overall Width: 16 mm.

What is the difference between 6009-ZR and 6009-Z?

ZR is the earlier FAG suffix for the same one-shield execution now designated 6009-Z.

What are the load ratings of the FAG 6009-ZR?

Dynamic Load Rating: 21,200 N. Static Load Rating: 14,400 N. Limiting Speed: 13,100 rpm.
