Availability:
1 in stock

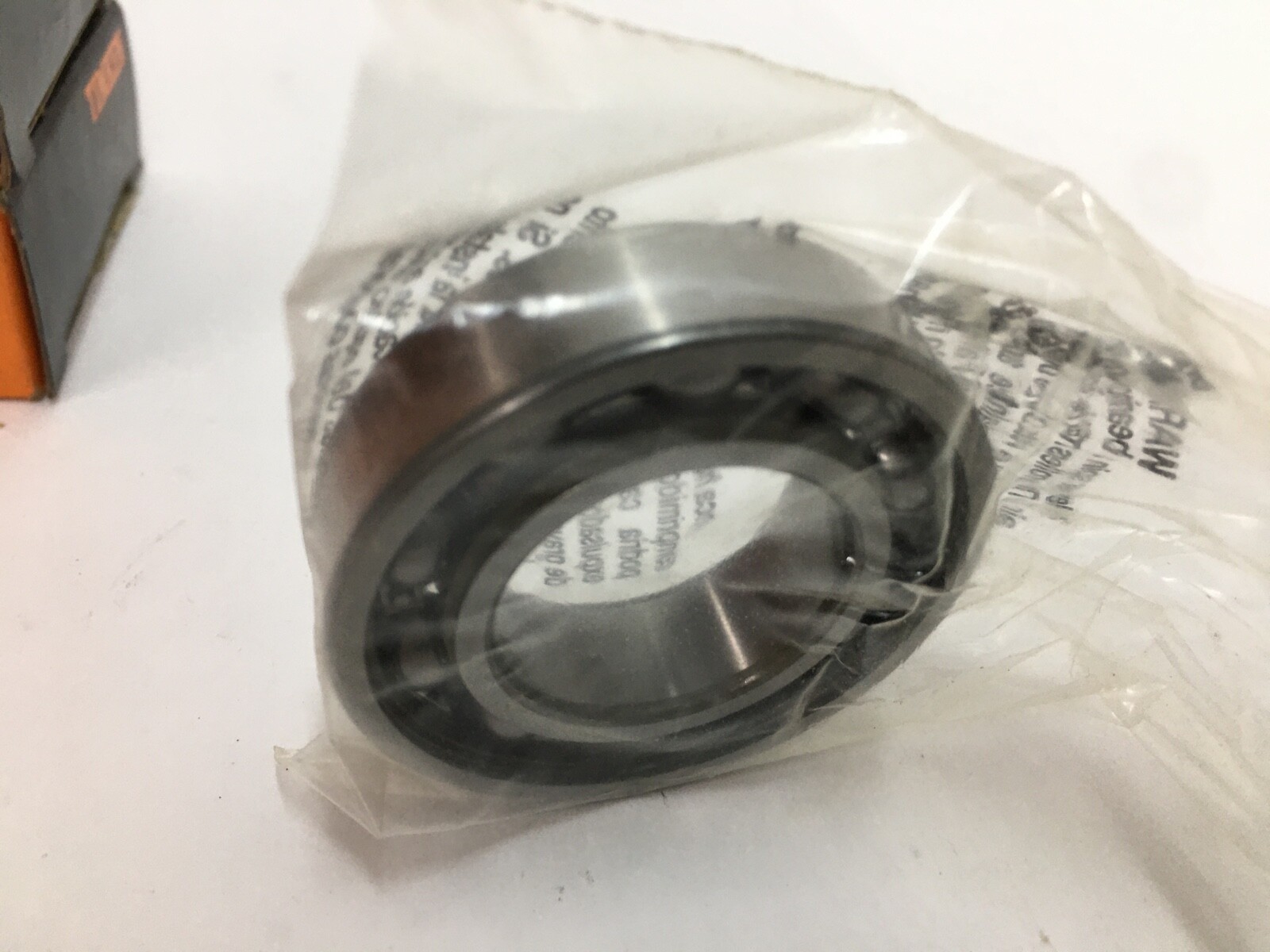

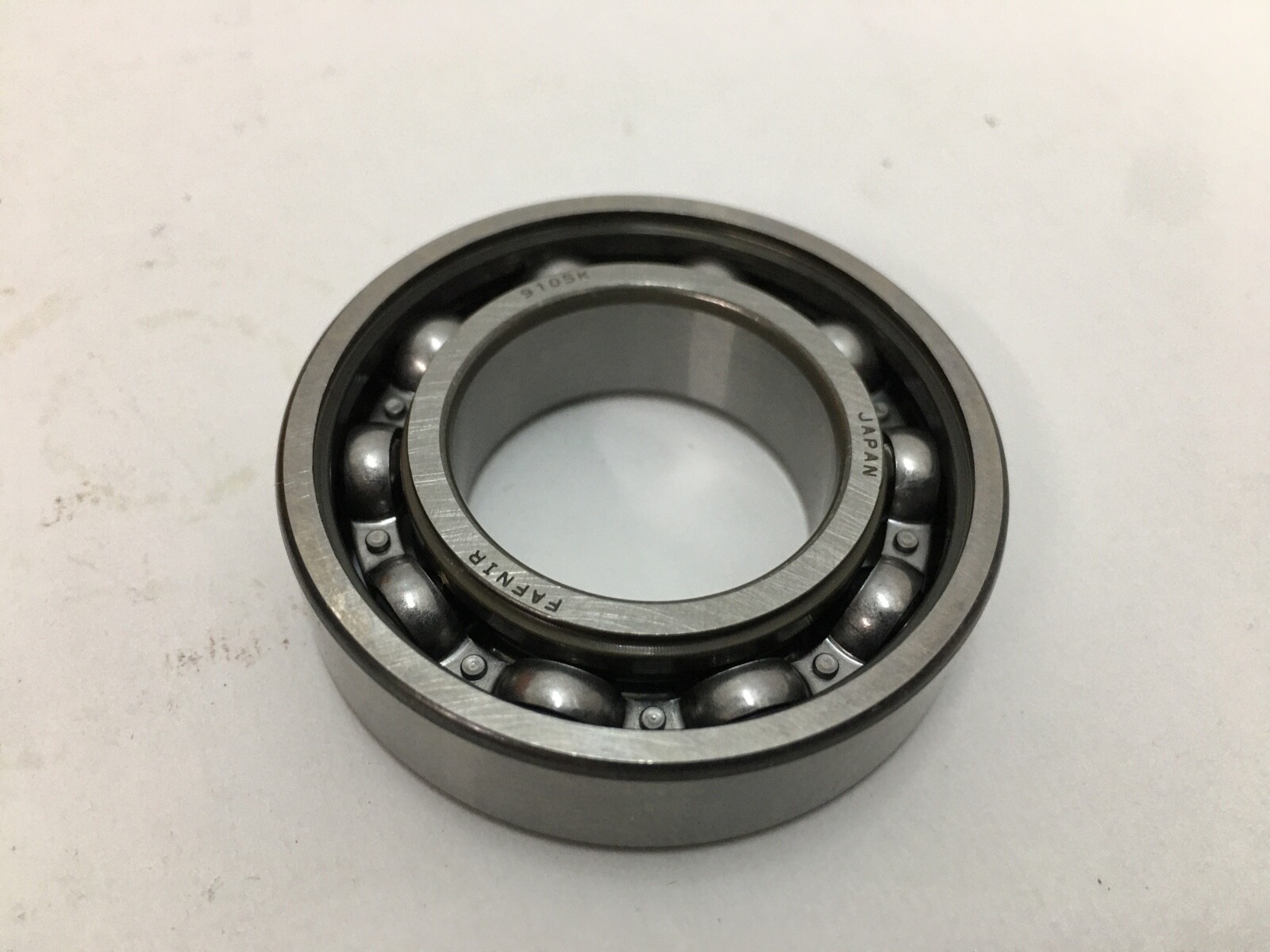

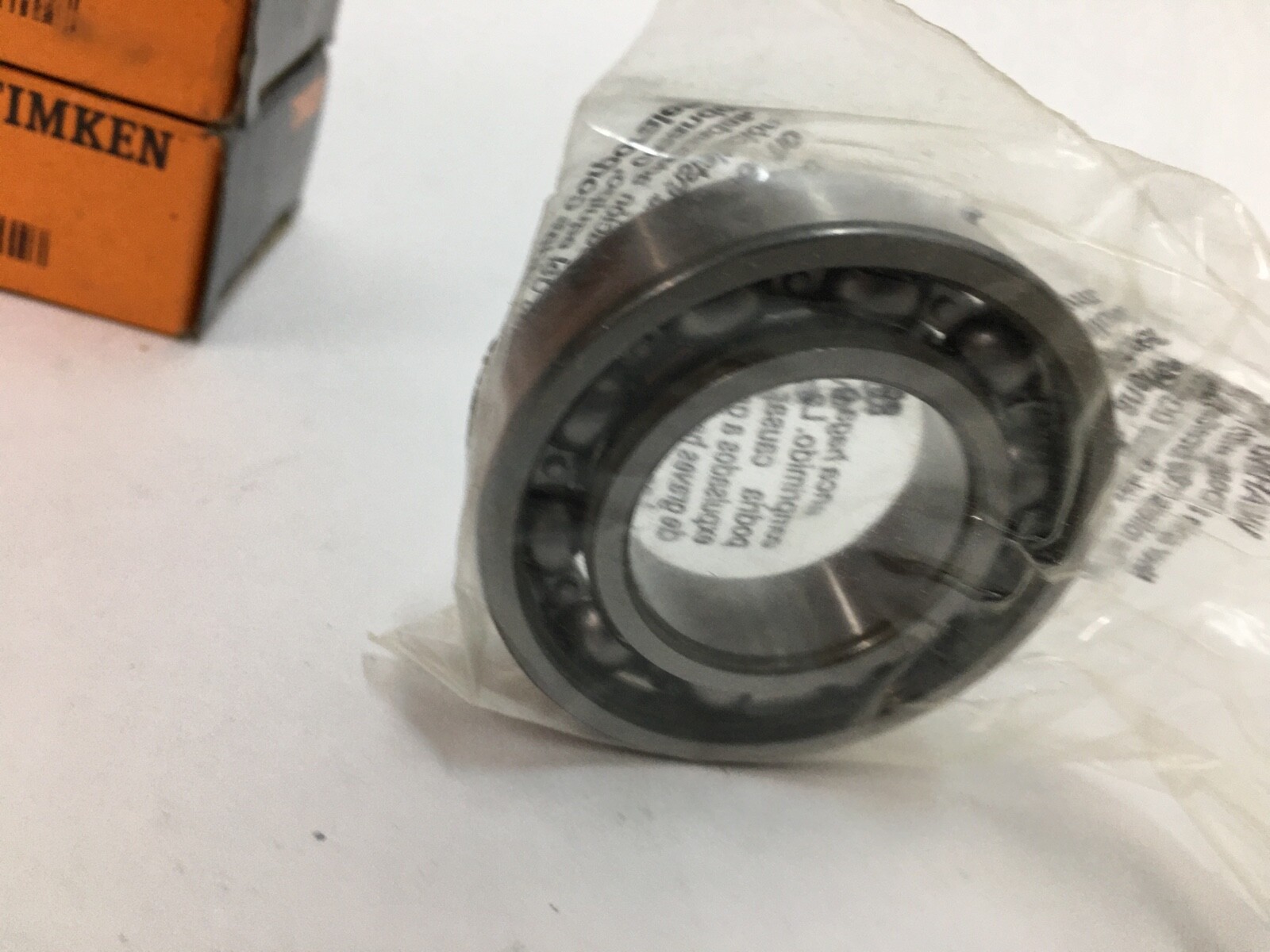

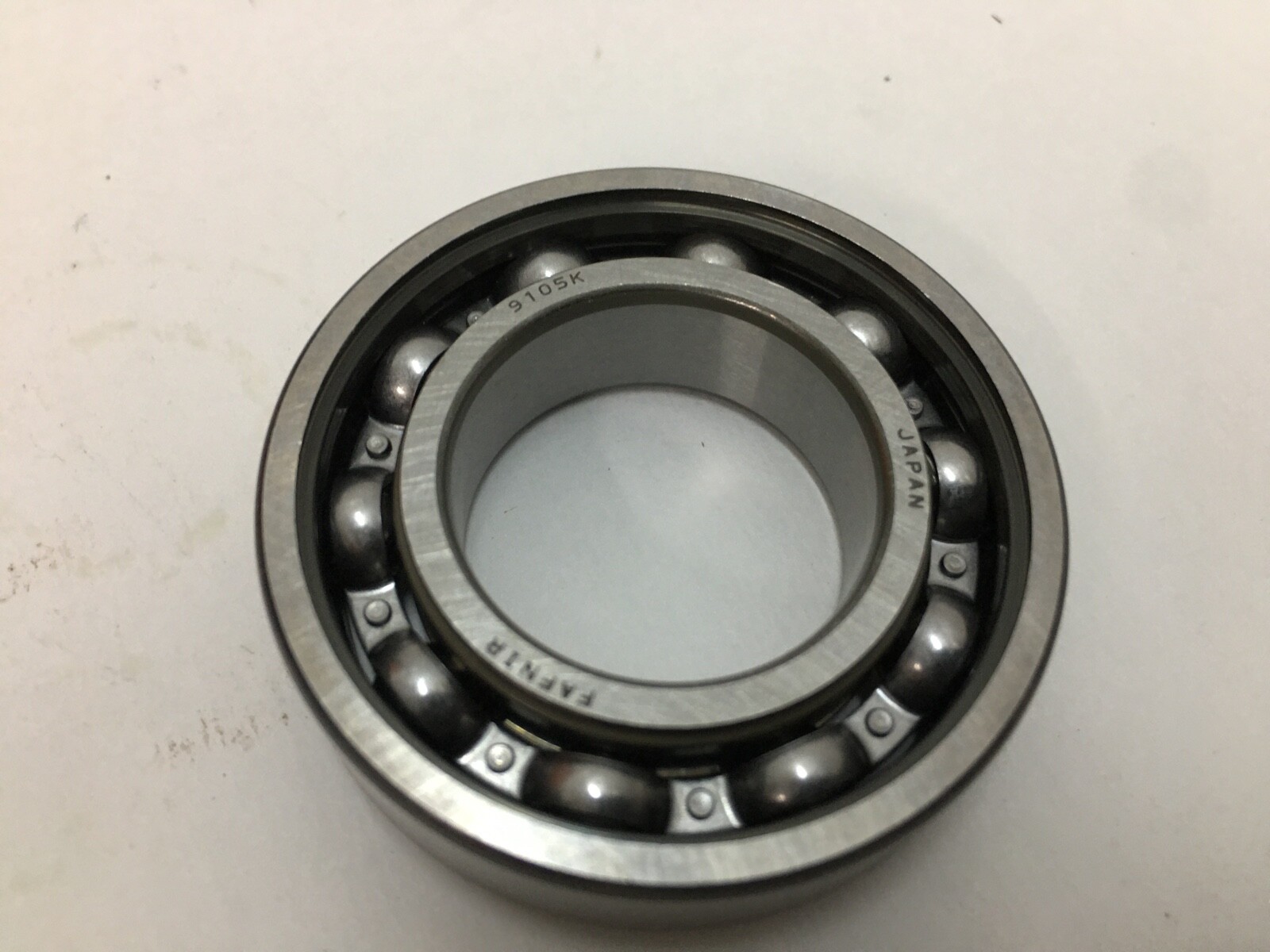

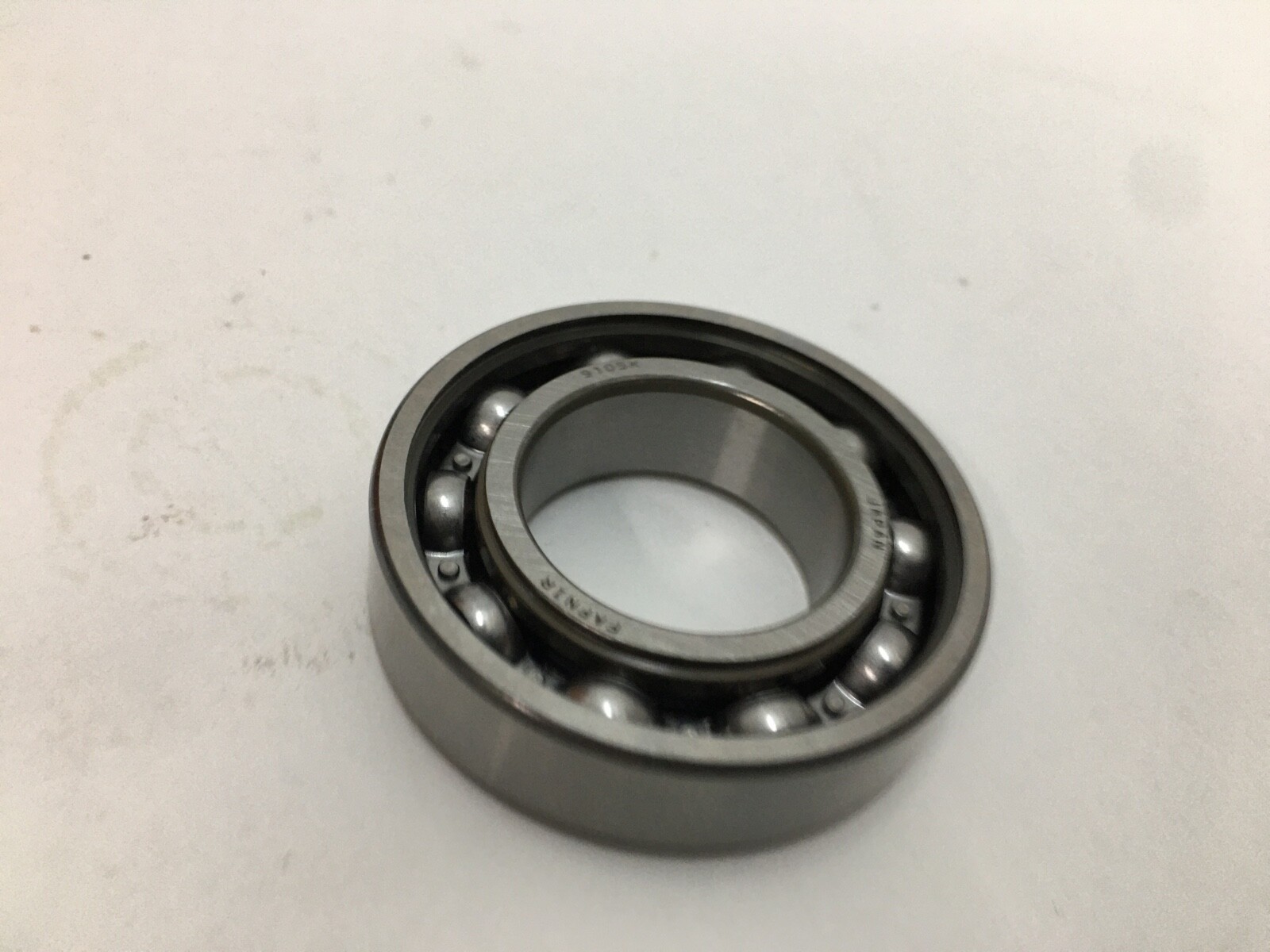

Timken 9105K deep groove ball bearing, 25 x 47 x 12 mm, open, C0 clearance, 11,165 N dynamic load rating, 8,330 rpm grease. Pack of 10 pieces.
List Price
$53.55
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 9105K |
| GTIN | 087796046719 |
| Model | 6005 |
| Bearing Type | Ball Bearing |
| ID | 25 mm |
| OD | 47 mm |
| Base Number | 9105K |
|---|---|
| Overall Width | 12 mm |
| Mpn Variants | 9105K; 9105-K; 9105 K; 9105KG; 9105 |
| Compatible With Replaces | ISO 6005 open deep groove ball bearing, 25 x 47 x 12 mm |
| Dynamic Load Rating | 11,165 N |
| Static Load Rating | 5,872 N |
| Series | 9100K |
| Rolling Elements | Ball |
| Item Weight | 0.08 kg (0.17 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 8,330 rpm grease; 9,720 rpm oil |
| Internal Clearance | C0 |
| Harmonization Code | 8482.10 |
| Design Units | Metric |
| Bearing Material | 52100 Chrome Steel |
| Industry Terms | deep groove ball bearing; Conrad bearing; radial ball bearing; Fafnir 9100K bearing; 6005 open ball bearing; 25x47x12 bearing |
| Common Misspellings | Timkin 9105K; Timkan 9105K; Fafnir 9105 K; Timken 9105 KG; Timken 91O5K |
| Application Types | Electric motors; Pumps; Gearboxes; Conveyors; Fans and blowers; General industrial machinery |
| Cross Reference 1 | SKF 6005 |
|---|---|
| Cross Reference 2 | FAG 6005 |
| Cross Reference 3 | NSK 6005 |
| Cross Reference 4 | NTN 6005 |
| Cross Reference 5 | Koyo 6005 |
| Cross Reference 6 | NACHI 6005 |

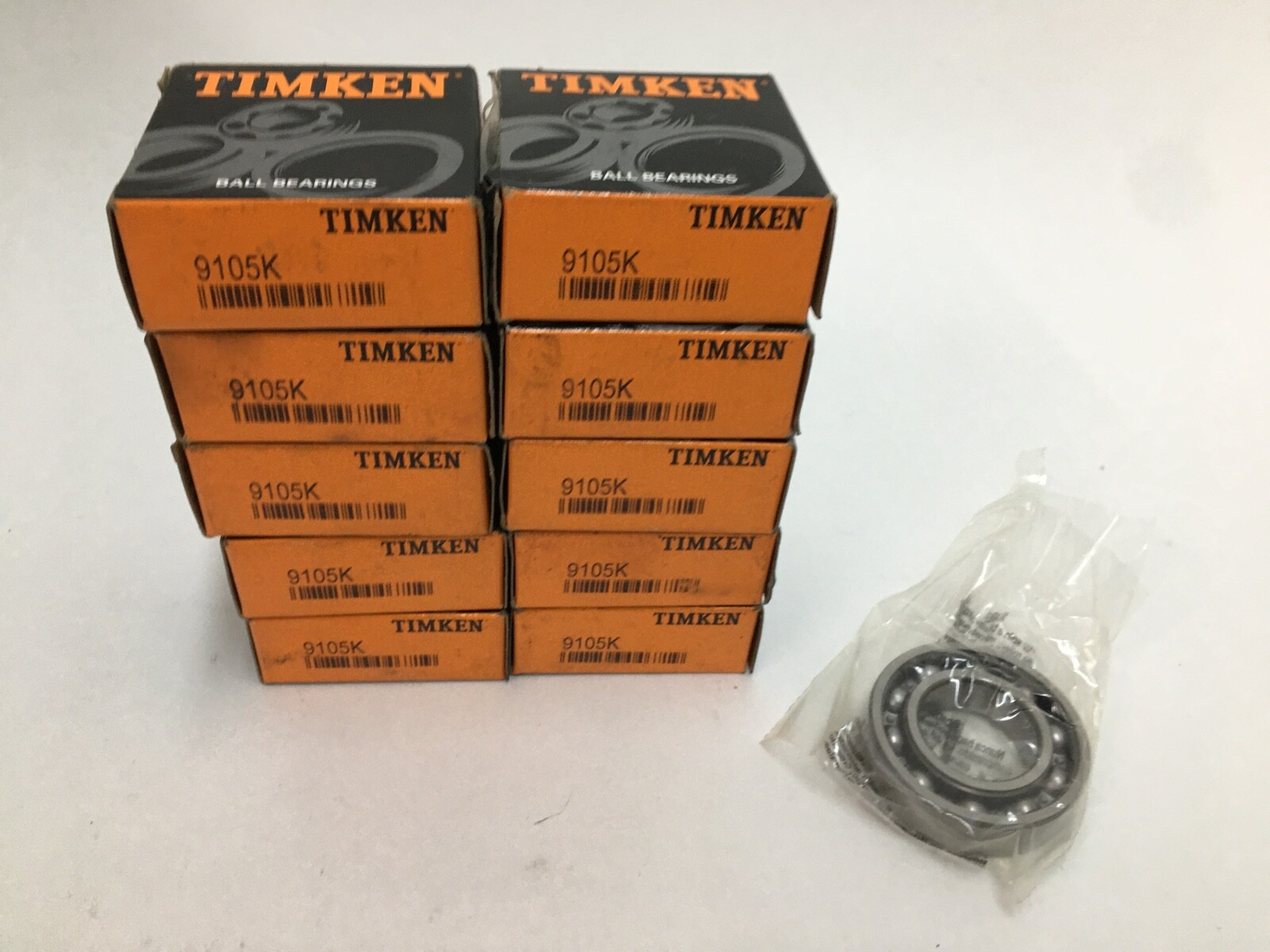

Timken Fafnir 9105K single-row deep groove ball bearing, open. Unit Quantity: 10 Pcs, ten bearings of the same designation. GTIN: 0087796046719.
9100K — the Fafnir inch-series deep groove ball bearing family, a Conrad-type radial ball bearing with a deep-groove raceway in both rings.
05 — the 25 mm bore size within that family, giving the 25 x 47 x 12 mm envelope.
K — the Fafnir series marking carried through the 9100K, 200K and 300K deep groove families.
Bearing Type: Deep groove ball bearing. Number Of Rows: 1. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Bearing Material: 52100 chrome steel. Internal Clearance: C0 (Normal). Dynamic Load Rating: 11,165 N (2,510 lbf). Static Load Rating: 5,872 N (1,320 lbf). Limiting Speed: 8,330 rpm grease; 9,720 rpm oil. Item weight: 0.08 kg (0.17 lb). Series: 9100K.
Bore Diameter: 25 mm. Outside Diameter: 47 mm (1.850 in). Overall Width: 12 mm (0.472 in). Max Shaft Fillet Radius: 0.6 mm (0.024 in).
The 25 x 47 x 12 mm envelope is the ISO 6005 boundary size: SKF 6005, FAG 6005, NSK 6005, NTN 6005, Koyo 6005, NACHI 6005 (open). MPN Variants: 9105K, 9105-K, 9105 K, 9105KG, 9105.
25 mm bore, 47 mm outside diameter, 12 mm width.
Dynamic 11,165 N (2,510 lbf) and static 5,872 N (1,320 lbf).
6005, the 25 x 47 x 12 mm open deep groove ball bearing.
