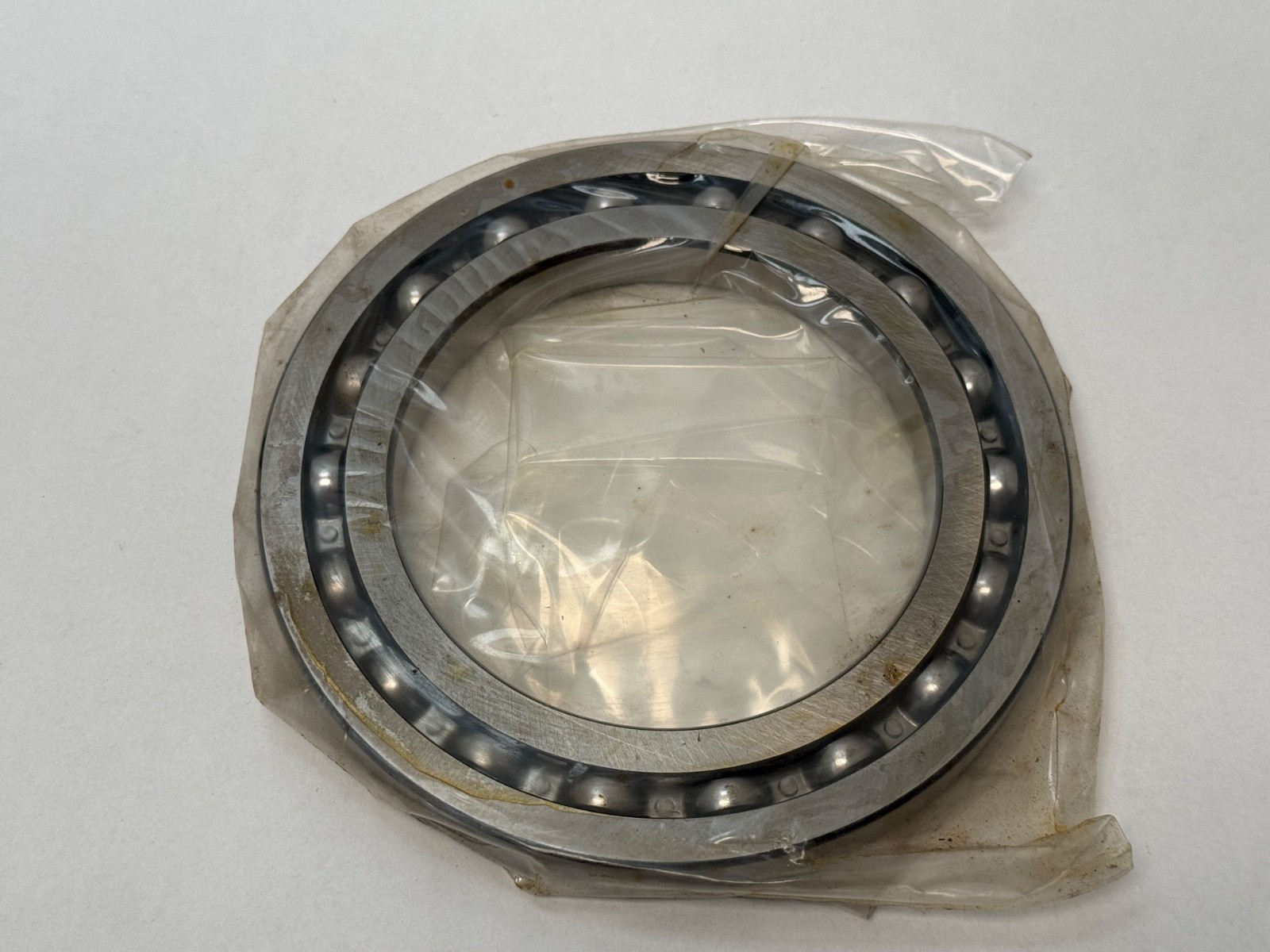

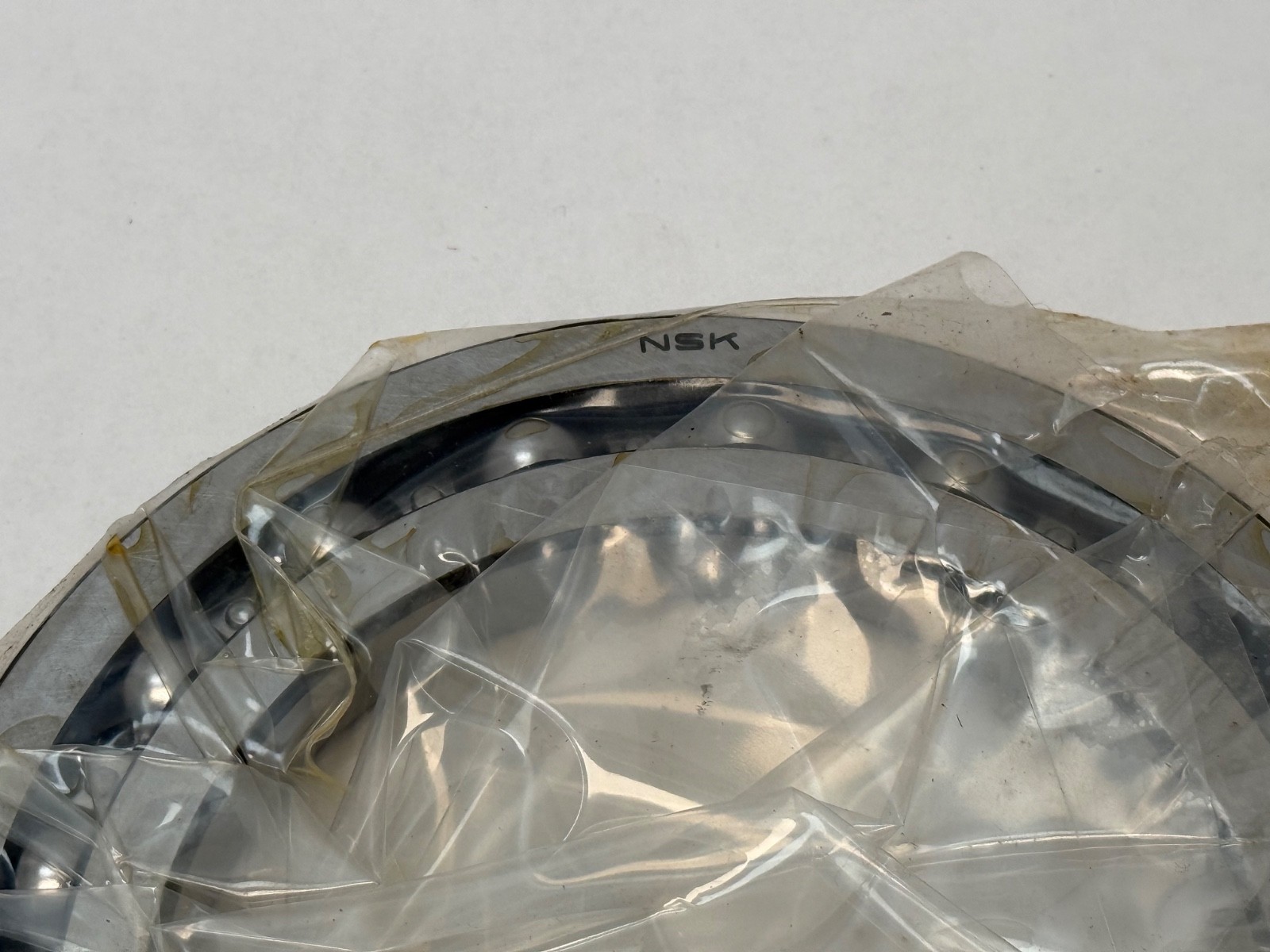

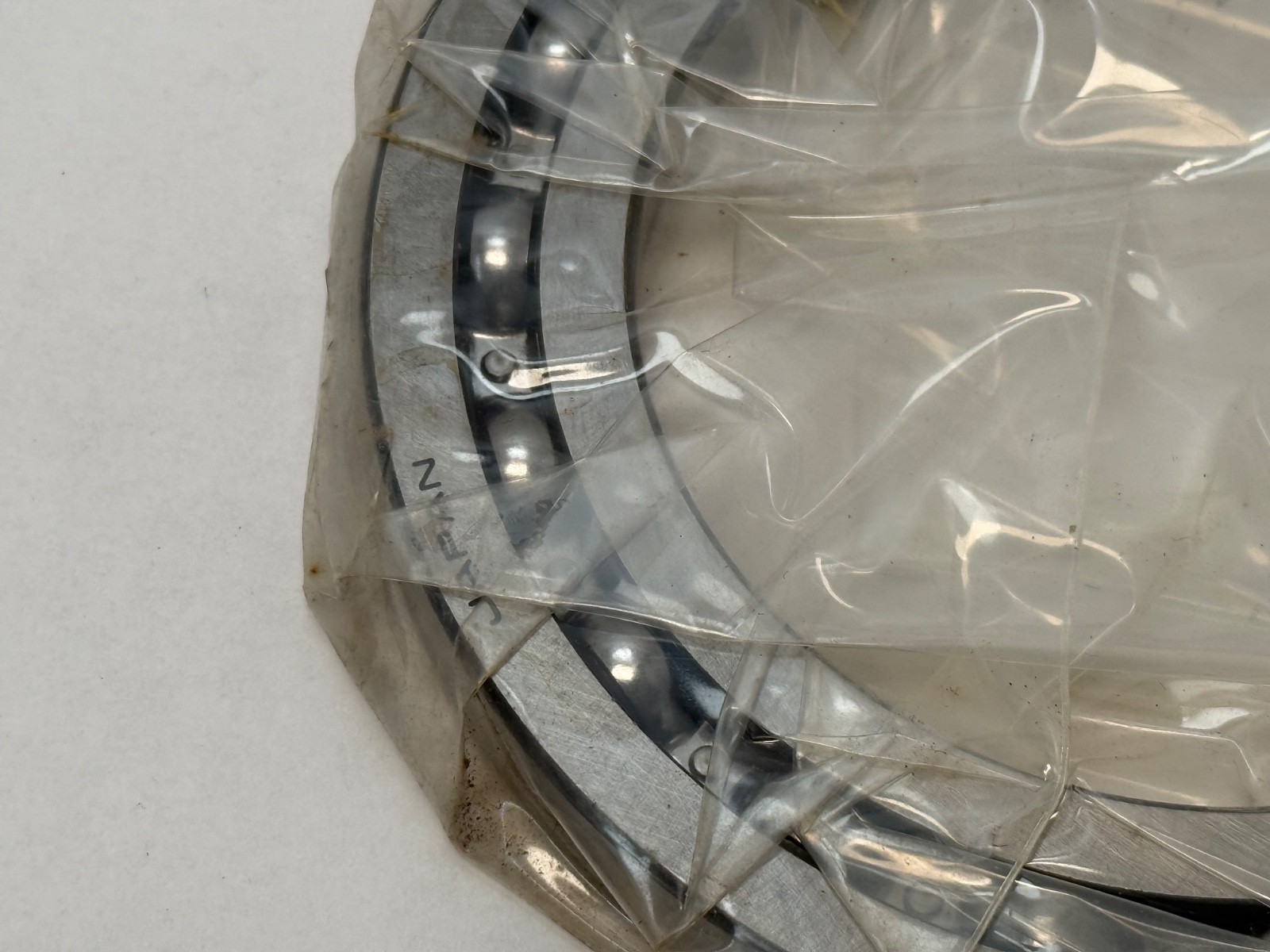

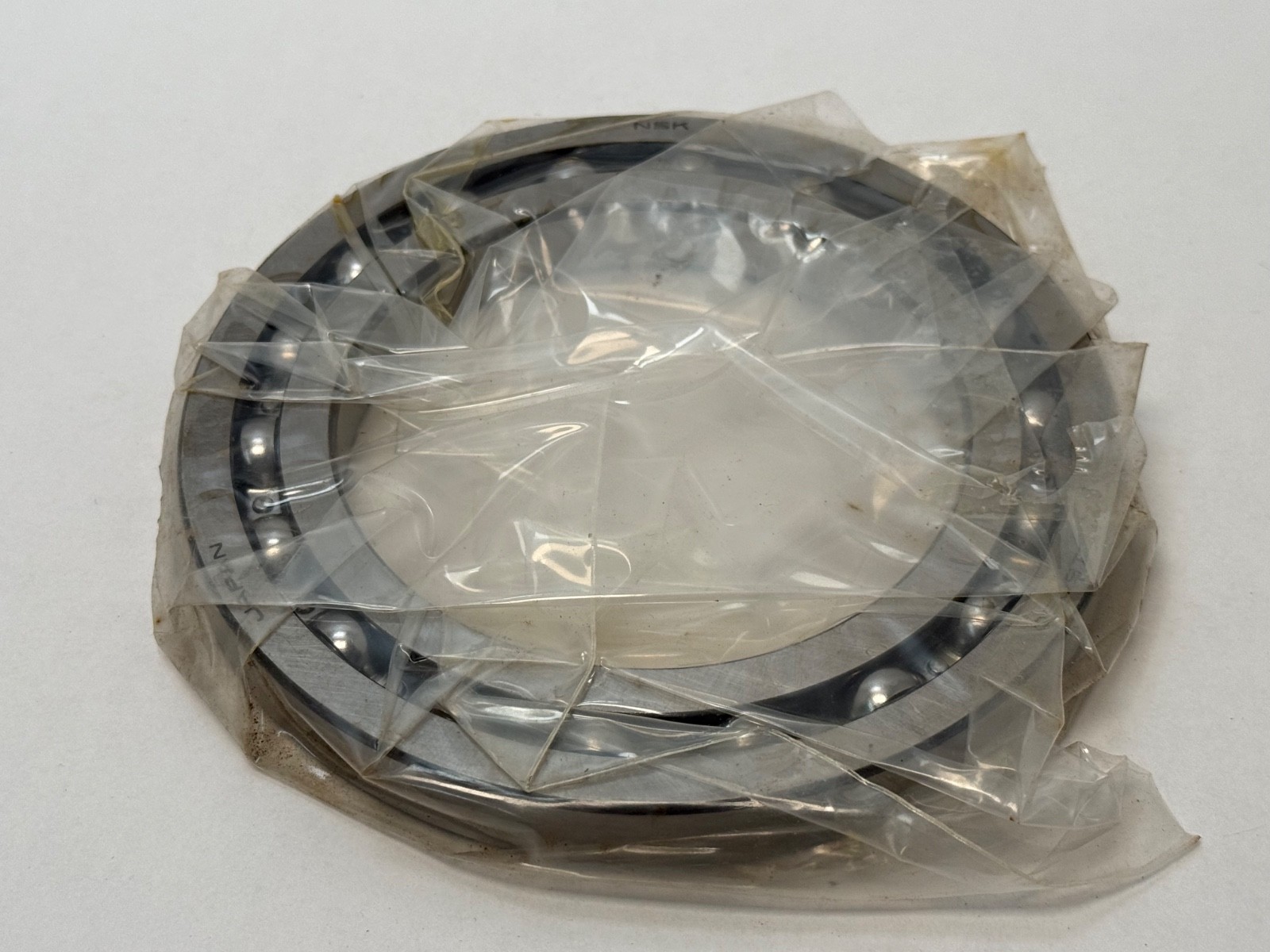

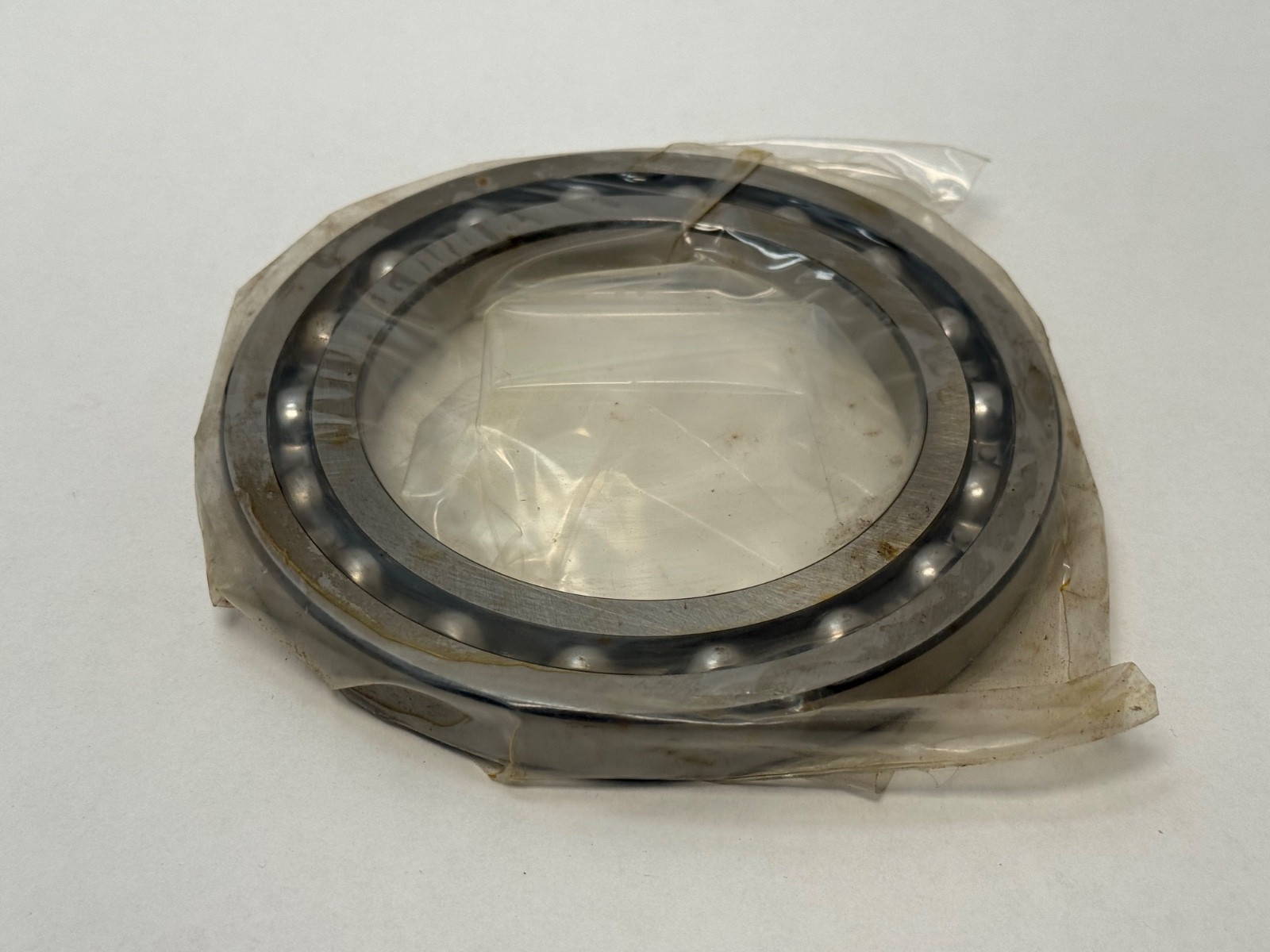

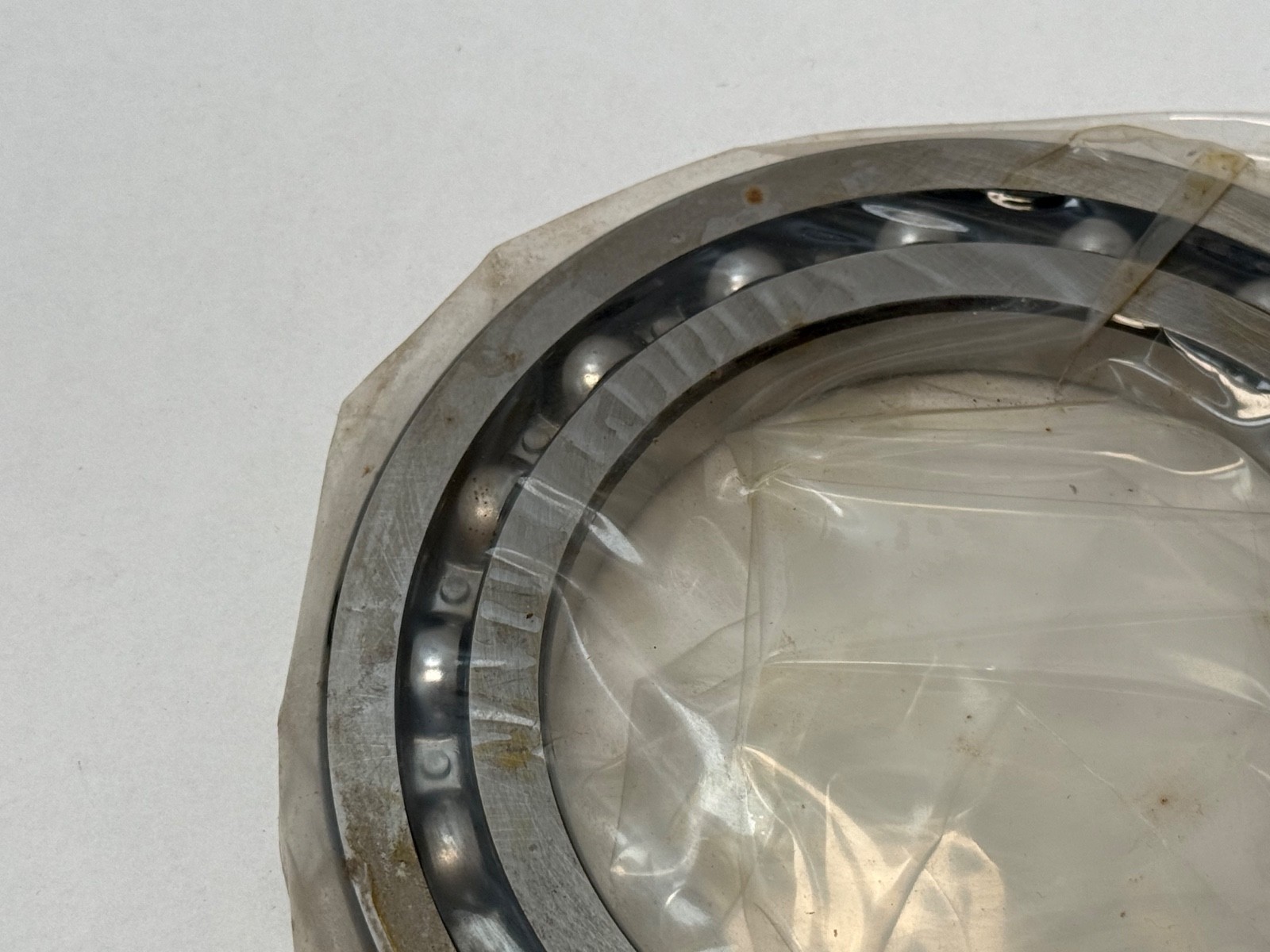

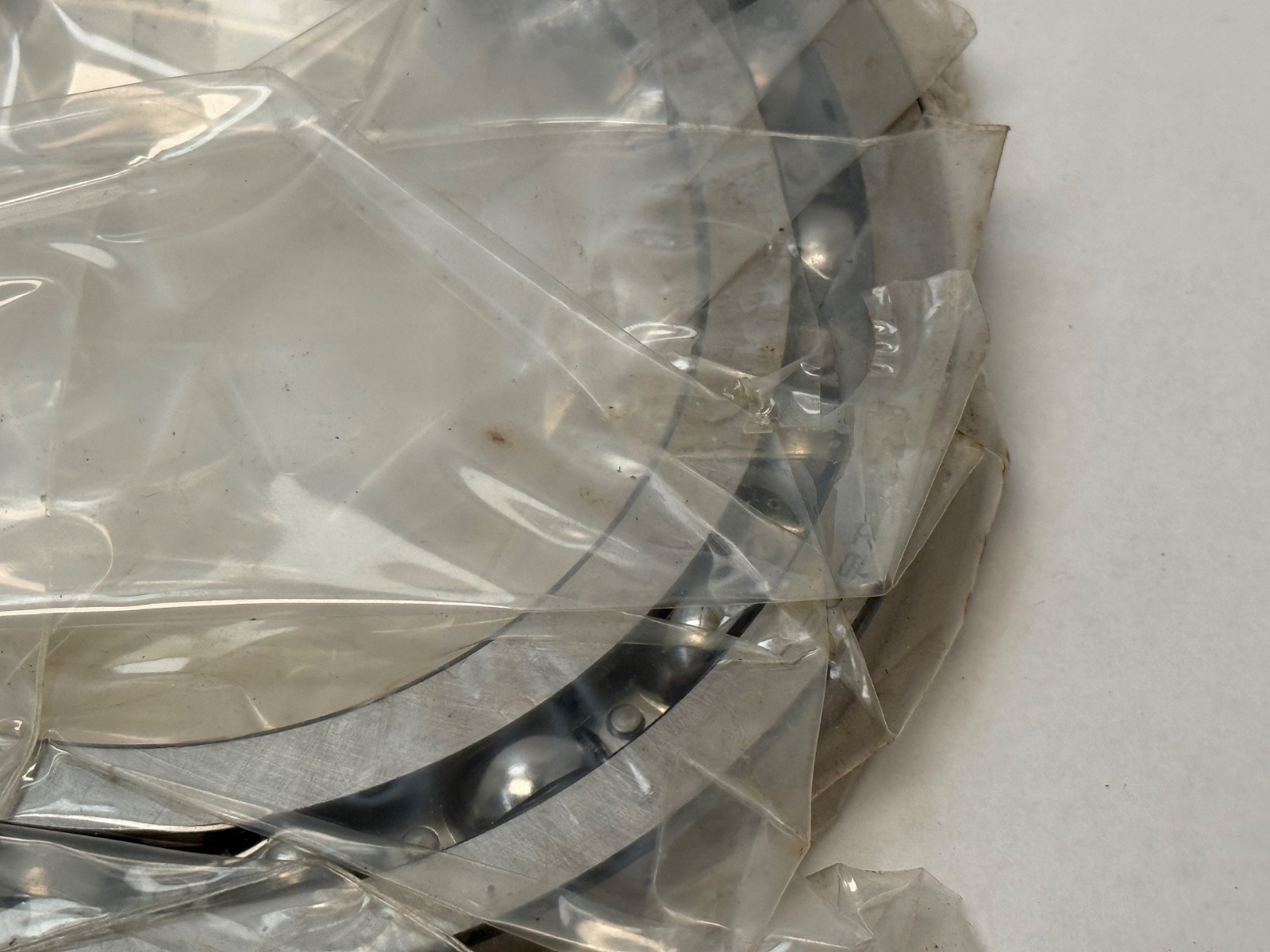

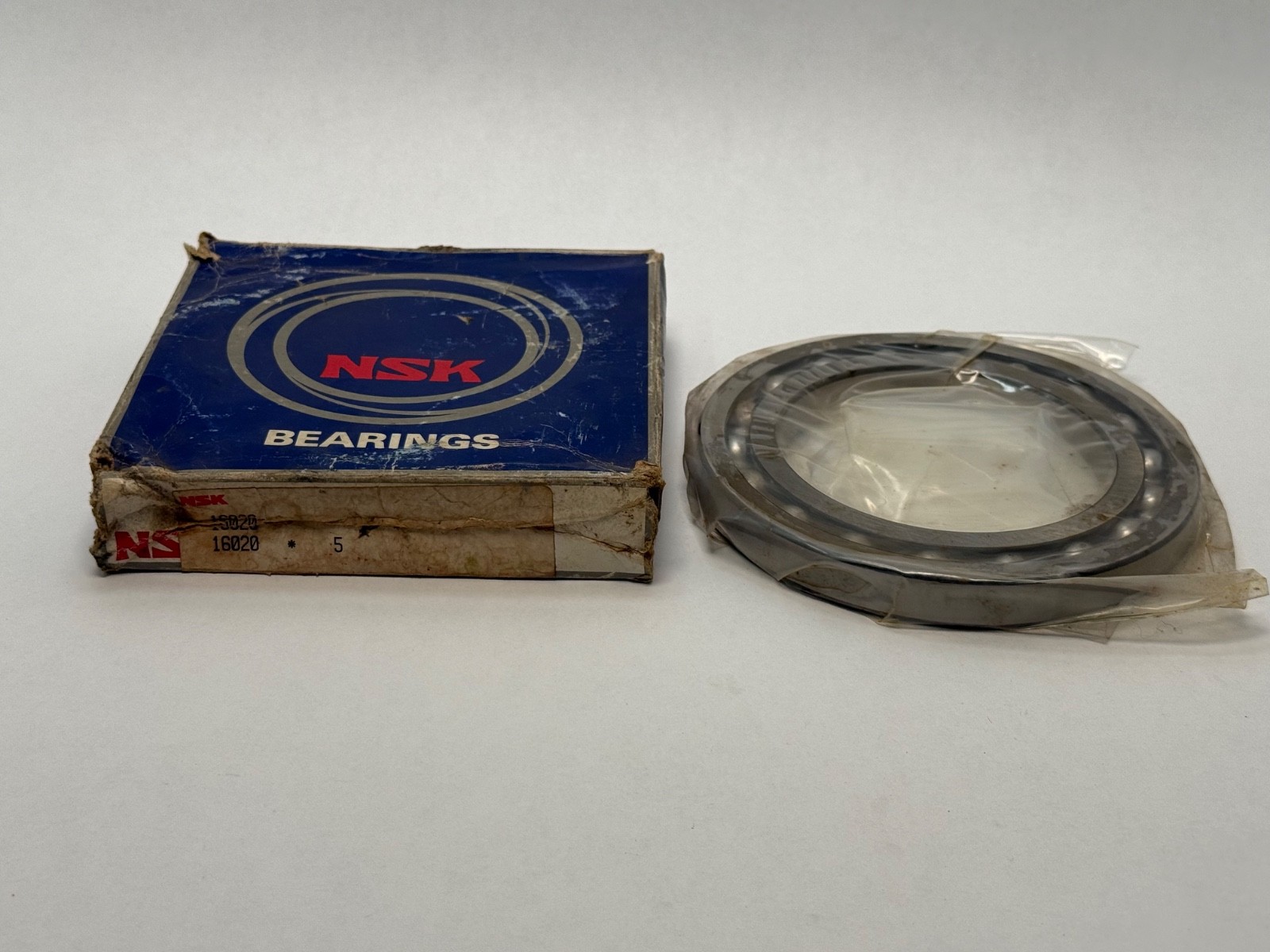

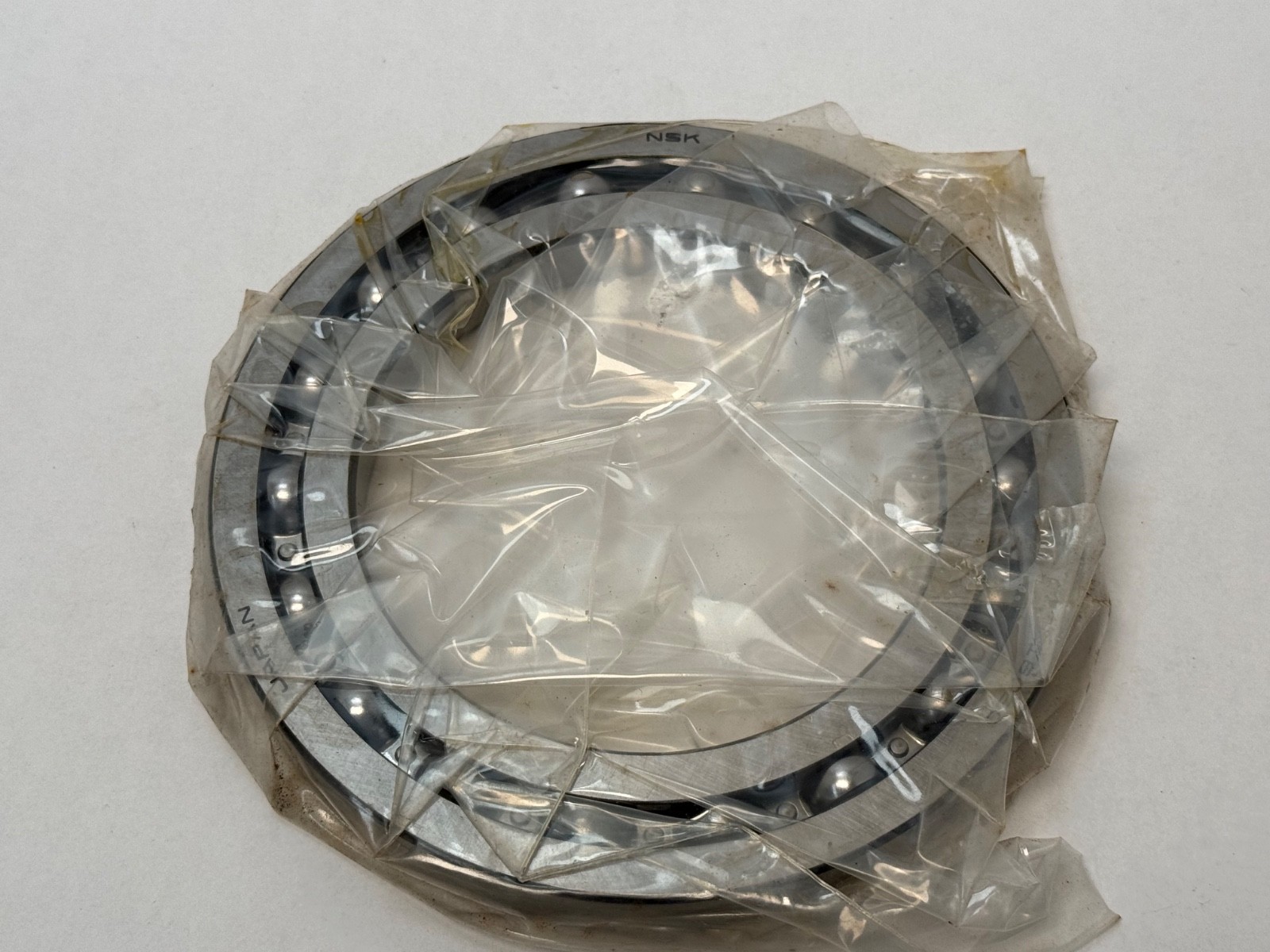

NSK 16020 deep groove ball bearing, single row, 100 x 150 x 16 mm, extra-light section, open, CN clearance. Cr 46,500 N. Eighteen 11.906 mm balls.
List Price
$67.95
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| MPN | 16020 |
| GTIN | 029176059537 |
| Model | 16020 CN |
| Bearing Type | Deep Groove Ball Bearing, Open |
| ID | 100 mm |
| OD | 150 mm |
| Width | 16 mm |
| Material | Bearing Steel |
|---|---|
| Base Number | 16020 |
| Industry Terms | deep groove ball bearing; thin section ball bearing |
| Common Misspellings | NKS 16020, 1602O, 16O20, 16020 bearing NSK, 160 20, l6020 |
| Application Types | Rotary tables; large hollow spindles; machine covers |
| Mpn Variants | 16020, 160-20, 16020 CN, 16020C3, 16020 open |
| Precision Class | ISO Normal |
| Dynamic Load Rating | 46,500 N |
| Static Load Rating | 42,000 N |
| Precision Rating | ISO Normal |
| Series | 16000 |
| Rolling Elements | Ball |
| Item Weight | 0.945 kg (2.083 lb) |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 4,300 rpm grease; 5,300 rpm oil |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50 |
| Design Units | Metric |
| Bearing Material | Bearing steel |
| Cross Reference 1 | SKF 16020 - ratings differ |
|---|---|
| Cross Reference 2 | FAG 16020 - ratings differ |
| Cross Reference 3 | Koyo 16020 - ratings differ |
| Cross Reference 4 | NTN 16020 - ratings differ |
| Cross Reference 5 | NSK 6020 (related: 100x150x24 mm light series) |
| Cross Reference 6 | NSK 61820 (related: same bore, thinner section) |
NSK 16020 single row deep groove ball bearing, open on both faces, extra-light 00 dimension series. Unit Quantity: 1 Pc.
160 — deep groove ball bearing in the extra-light 00 dimension series, the thinnest standard radial section.
20 — bore code, 20 x 5 = 100 mm.
No suffix — open on both faces, CN internal clearance, standard tolerance.
Bearing Type: Deep Groove Ball Bearing, Single Row. Number Of Rows: 1. Rolling Elements: Ball. Cage Material: Pressed steel. Internal Clearance: CN. Precision Class: ISO Normal. Closure Type: Open. Dynamic Load Rating: 46,500 N (10,454 lbf). Static Load Rating: 42,000 N (9,442 lbf). Limiting Speed: 4,300 rpm grease; 5,300 rpm oil. Item Weight: 0.945 kg (2.083 lb). Ball complement: 18 balls at 11.906 mm diameter.
Bore Diameter: 100 mm (3.9370 in). Outside Diameter: 150 mm (5.9055 in). Overall Width: 16 mm (0.6299 in). Bore Type: Straight. Shaft abutment diameter da min: 105 mm. Housing abutment diameter Da max: 145 mm. Fillet radius ra max: 1 mm. Chamfer r min: 1 mm.
Cross-references on the same 100 x 150 x 16 mm envelope: SKF 16020, FAG 16020, Koyo 16020, NTN 16020. The 16020 designation is an ISO number carried by every maker; internal design, cage and published ratings differ.
Related on the same bore: NSK 6020 is the light 10 series at 100 x 150 x 24 mm, wider and higher rated; NSK 61820 is thinner-sectioned still.
Bore Diameter: 100 mm (3.9370 in). Outside Diameter: 150 mm (5.9055 in). Overall Width: 16 mm (0.6299 in).
Dynamic Load Rating: 46,500 N. Static Load Rating: 42,000 N.
No. It is open on both faces, with CN internal clearance.
