Deep Groove Ball Bearings: The Industry Default and When to Reach for Something Else
If you pulled a bearing off general industrial equipment at random, there’s a good chance
Availability:
1 in stock
Deep groove ball bearing, 60 x 130 x 31 mm, open, C4 extra-large radial clearance, P6 (ABEC 3) tolerance. NTN 7MP-6312M2C4P6, 6312 size, single row.
List Price
$43.70
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NTN |
|---|---|
| MPN | 7MP-6312M2C4P6 |
| Model | 7MP 6312 M2 C4 P6 |
| Bearing Type | Ball Bearing, Open |
| ID | 60 mm |
| OD | 130 mm |
| Width | 31 mm |
| Series | 6300 |
|---|---|
| Material | Chrome Steel |
| Mpn Variants | 7MP-6312M2C4P6, 7MP6312M2C4P6, 7MP 6312 M2 C4 P6, 6312C4 |
| Precision Class | ABEC 3 / P6 |
| Precision Rating | ABEC 3 / P6 |
| Rolling Elements | Ball |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C4 |
| Industry Terms | deep groove ball bearing, open ball bearing, C4 clearance ball bearing, P6 ball bearing, 6312 bearing |
| Common Misspellings | NTN 7MP6312M2C4P6, NTN 7MP-6312-M2C4P6, NTN 7MP 6312M2C4P6, NTN 7MP-6312M2 C4P6 |
| Application Types | Electric motors; pumps; gearboxes; general industrial machinery |
| Cross Reference 1 | SKF 6312/C4 P6 |
|---|---|
| Cross Reference 2 | FAG 6312-P6-C4 |
| Cross Reference 3 | NSK 6312 C4 P6 |

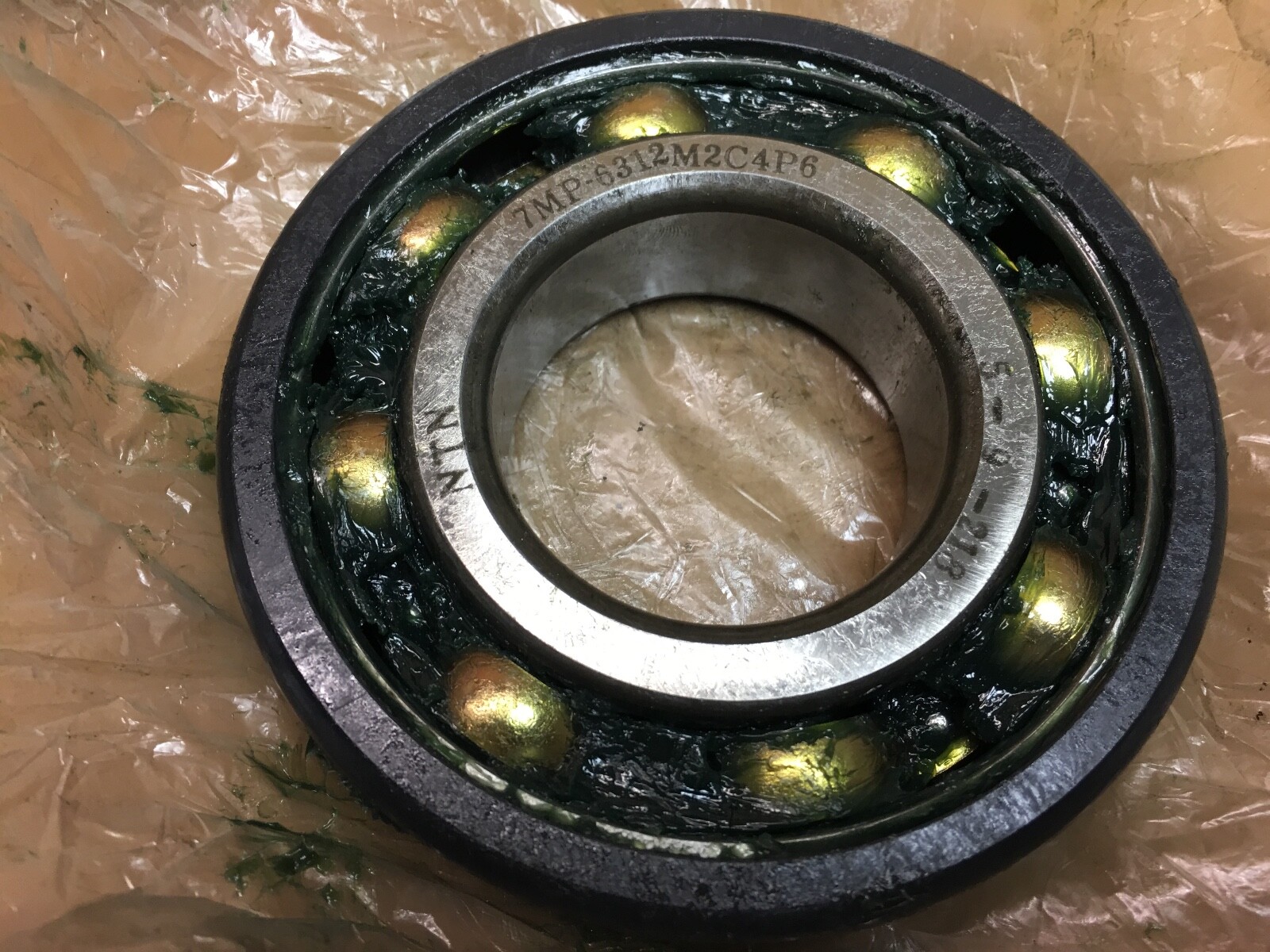

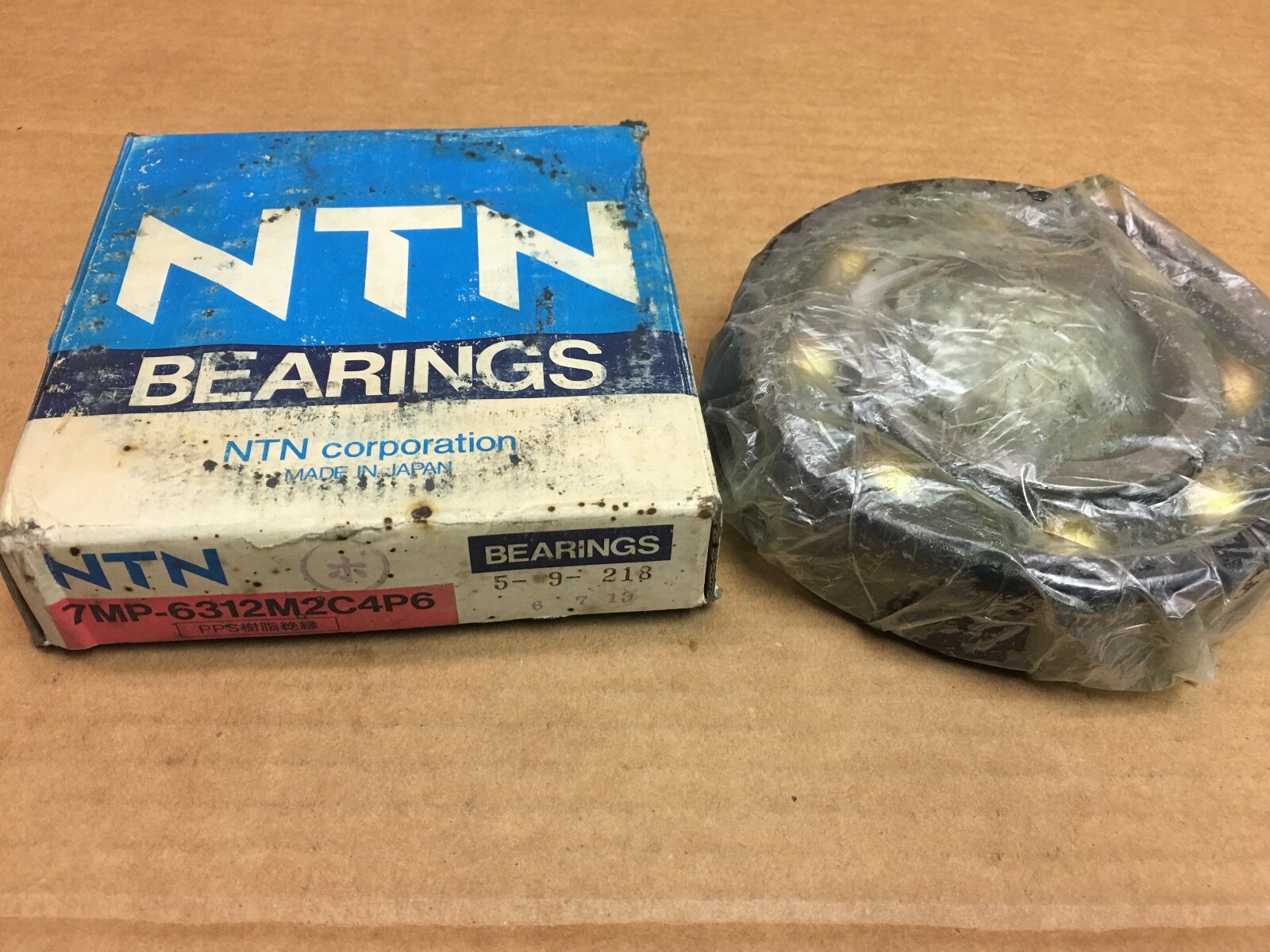

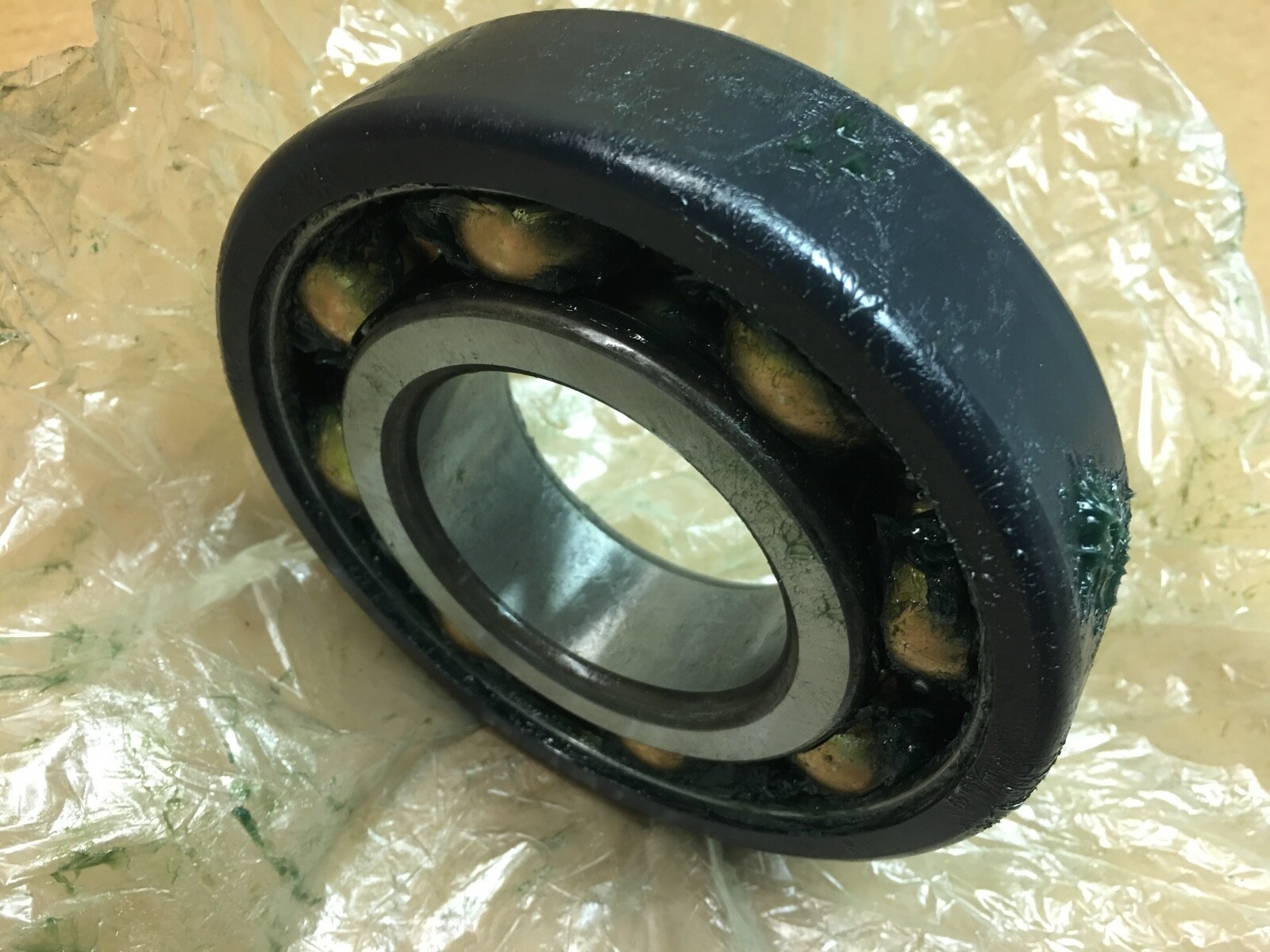

NTN 7MP-6312M2C4P6 is a single-row deep groove ball bearing, open type, in the 6312 size, with C4 internal clearance and P6 tolerance. Unit Quantity: 1 Pc.
63 — single-row deep groove ball bearing, medium 03 dimension series.
12 — bore code, 12 x 5 = 60 mm bore.
C4 — radial internal clearance larger than C3.
P6 — ISO class 6 tolerance, equivalent to ABEC 3.
Bore Diameter: 60 mm. Outside Diameter: 130 mm. Overall Width: 31 mm. Closure Type: Open. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Internal Clearance: C4. Precision Class: ABEC 3 / P6. Series: 6300.
The envelope is the 6312 envelope: Bore Diameter: 60 mm. Outside Diameter: 130 mm. Overall Width: 31 mm.
Cross-references on the same 60 x 130 x 31 mm envelope, C4 clearance, class 6: SKF 6312/C4 P6, FAG 6312-P6-C4, NSK 6312 C4 P6. Also written as 7MP6312M2C4P6, 7MP 6312 M2 C4 P6 and 6312C4.
Bore Diameter: 60 mm. Outside Diameter: 130 mm. Overall Width: 31 mm.
Internal Clearance: C4. Precision Class: ABEC 3 / P6.
Closure Type: Open.
