Availability:
2 in stock

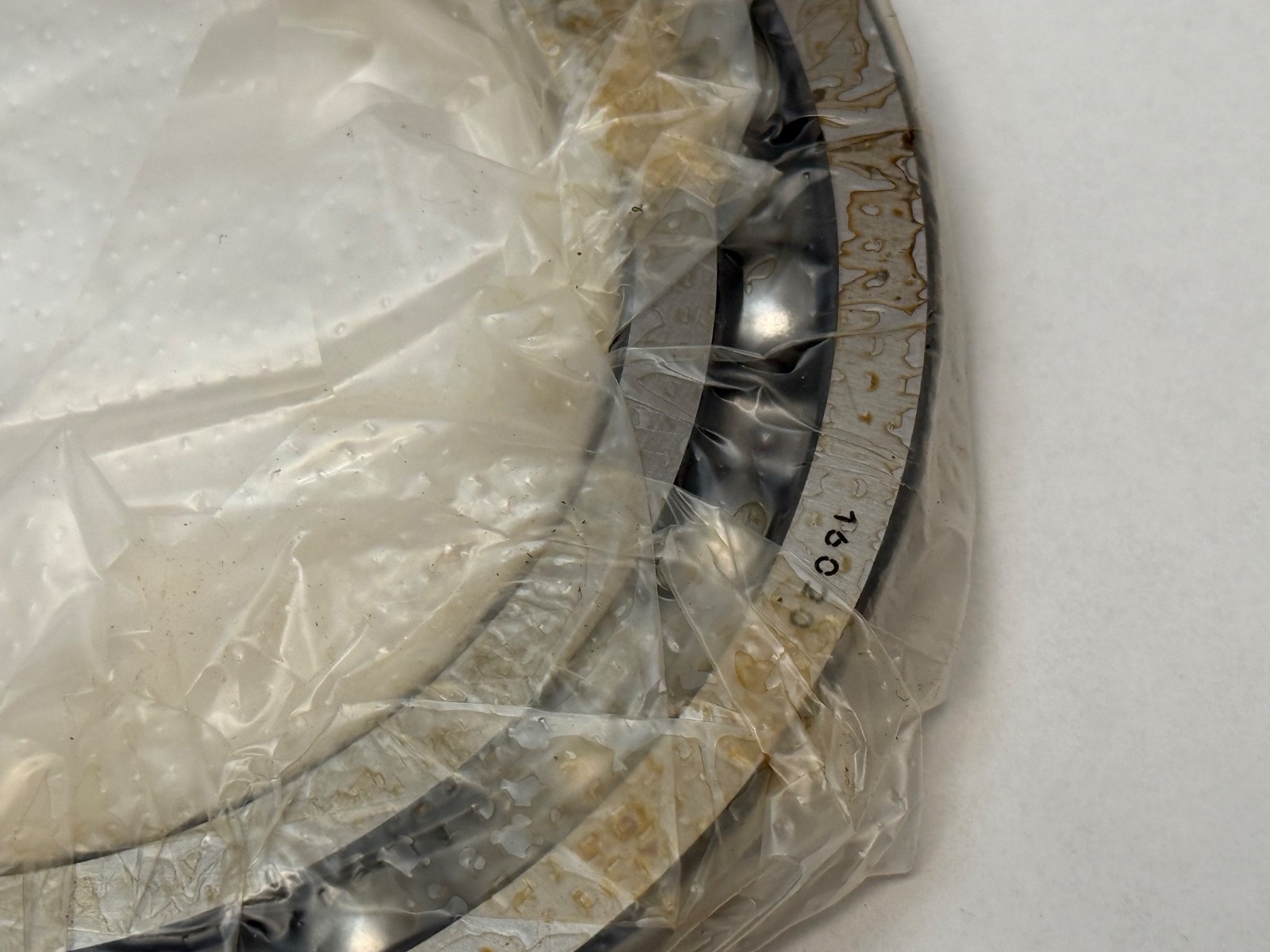

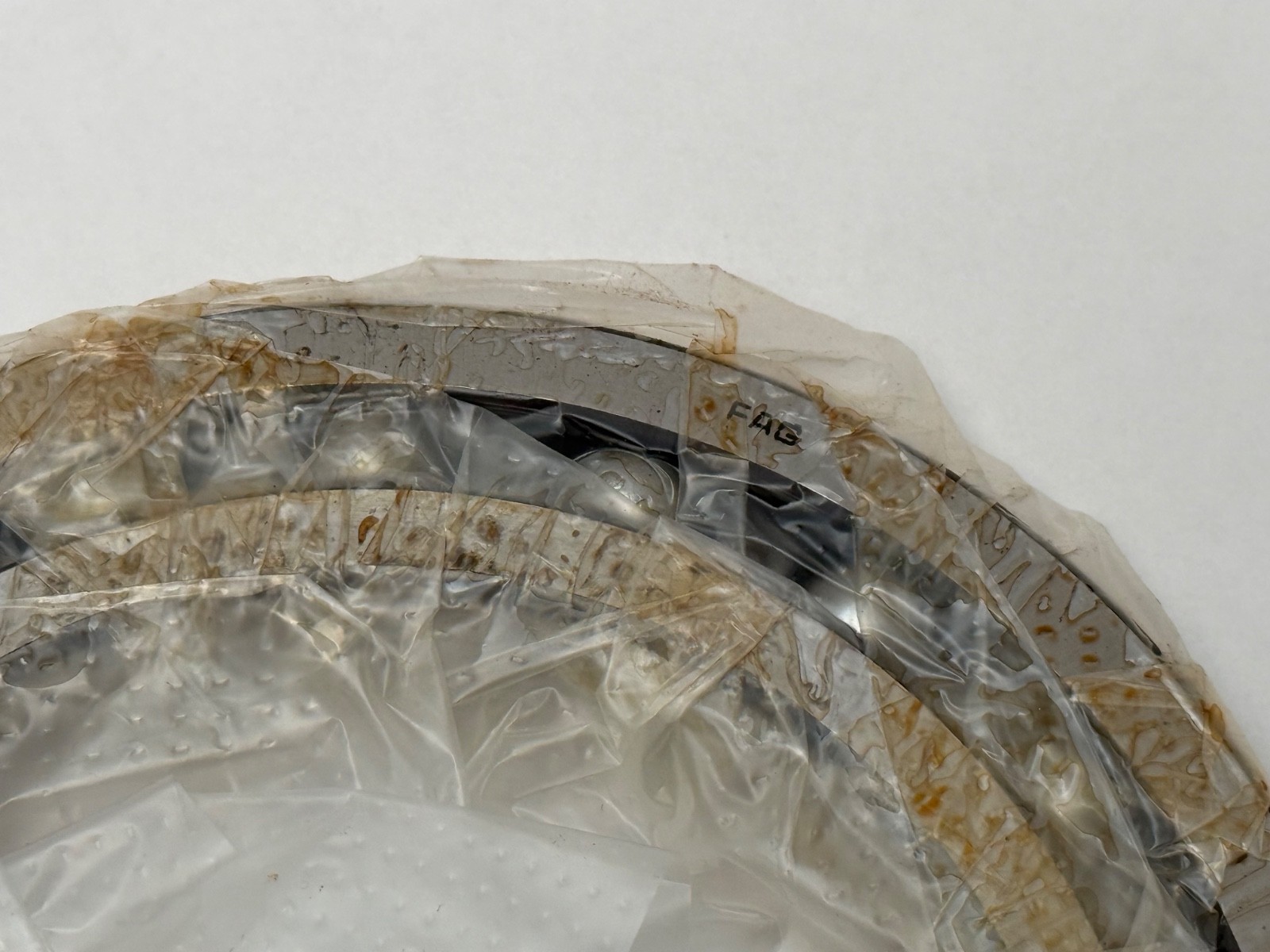

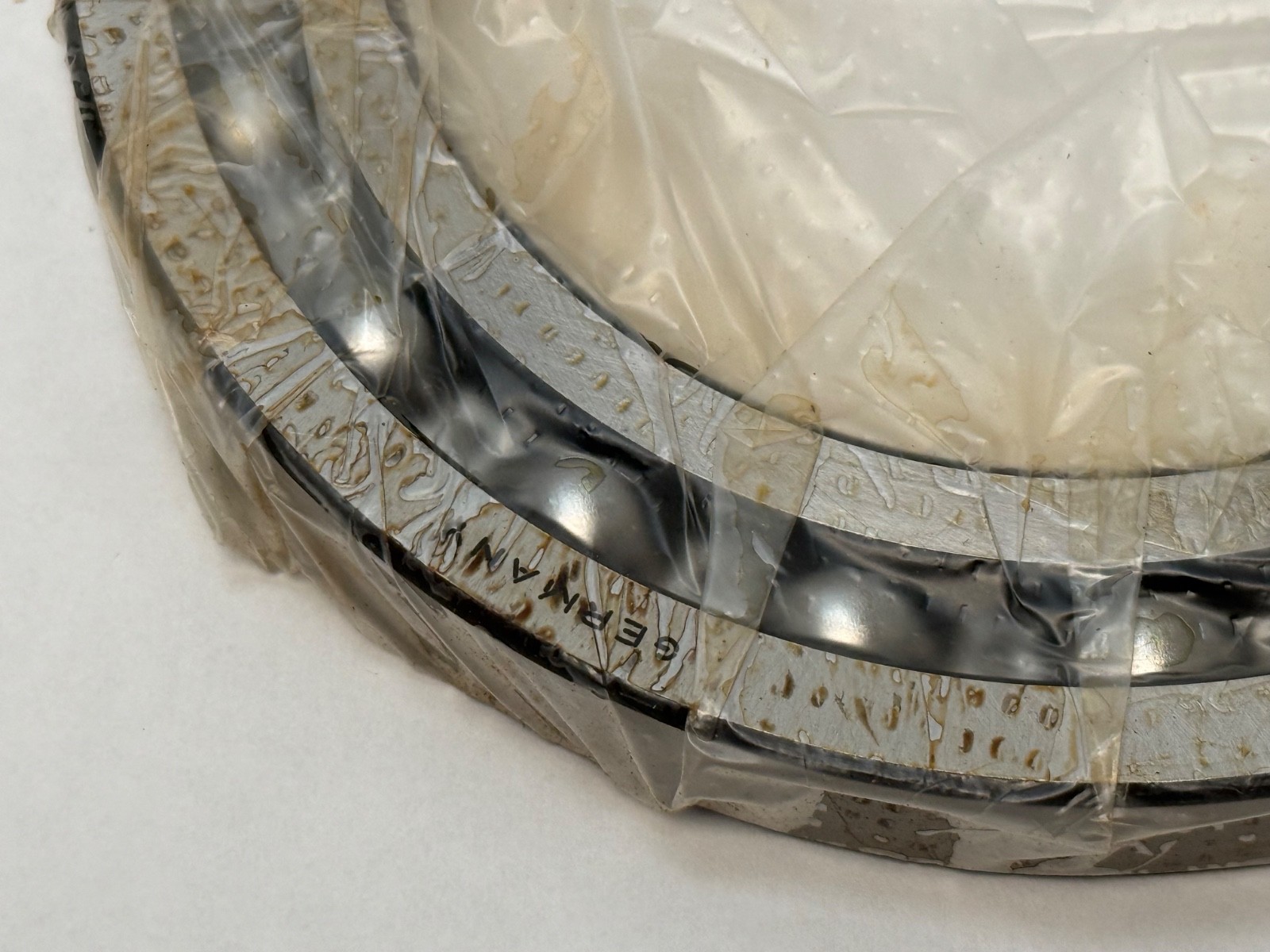

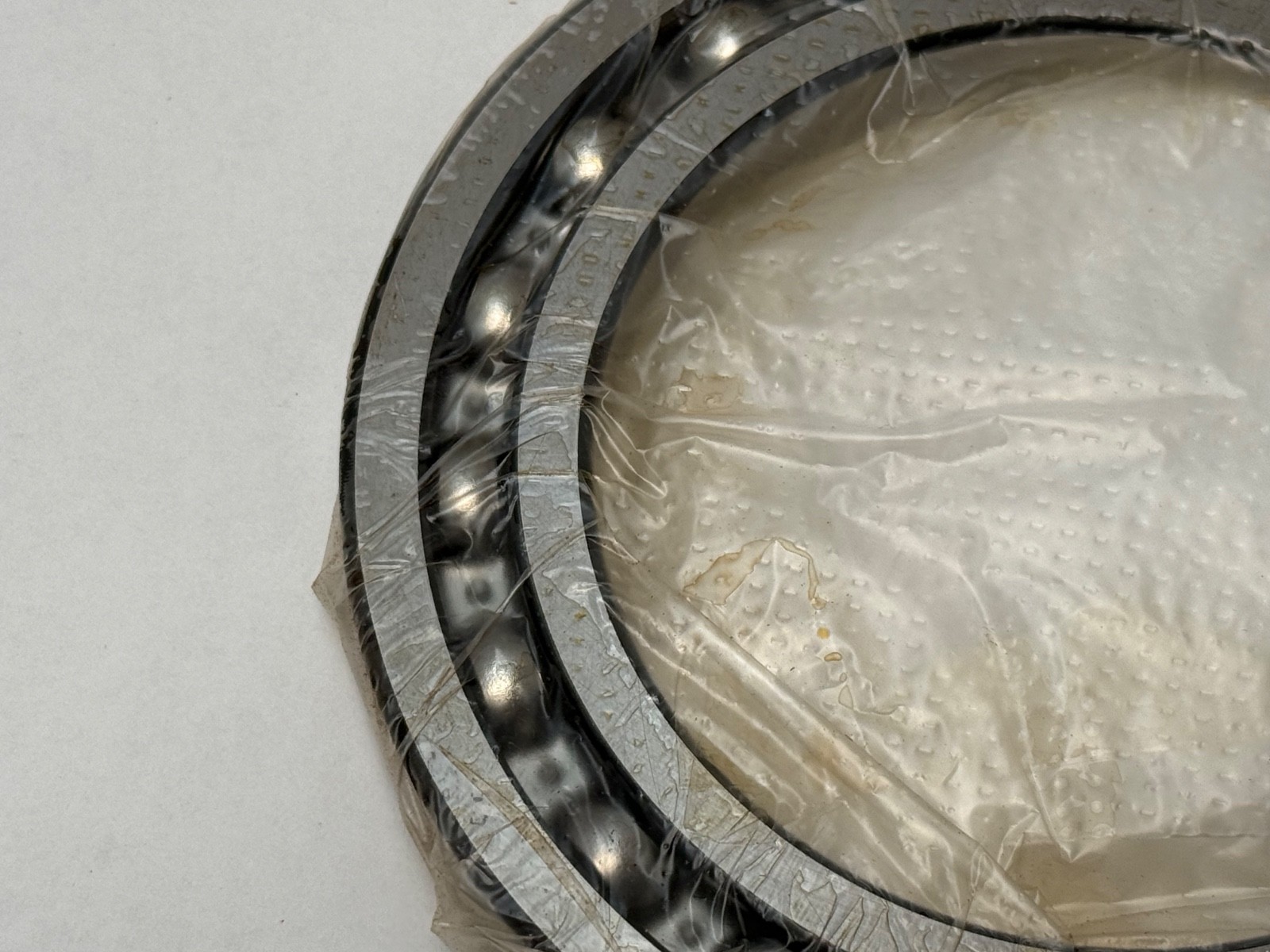

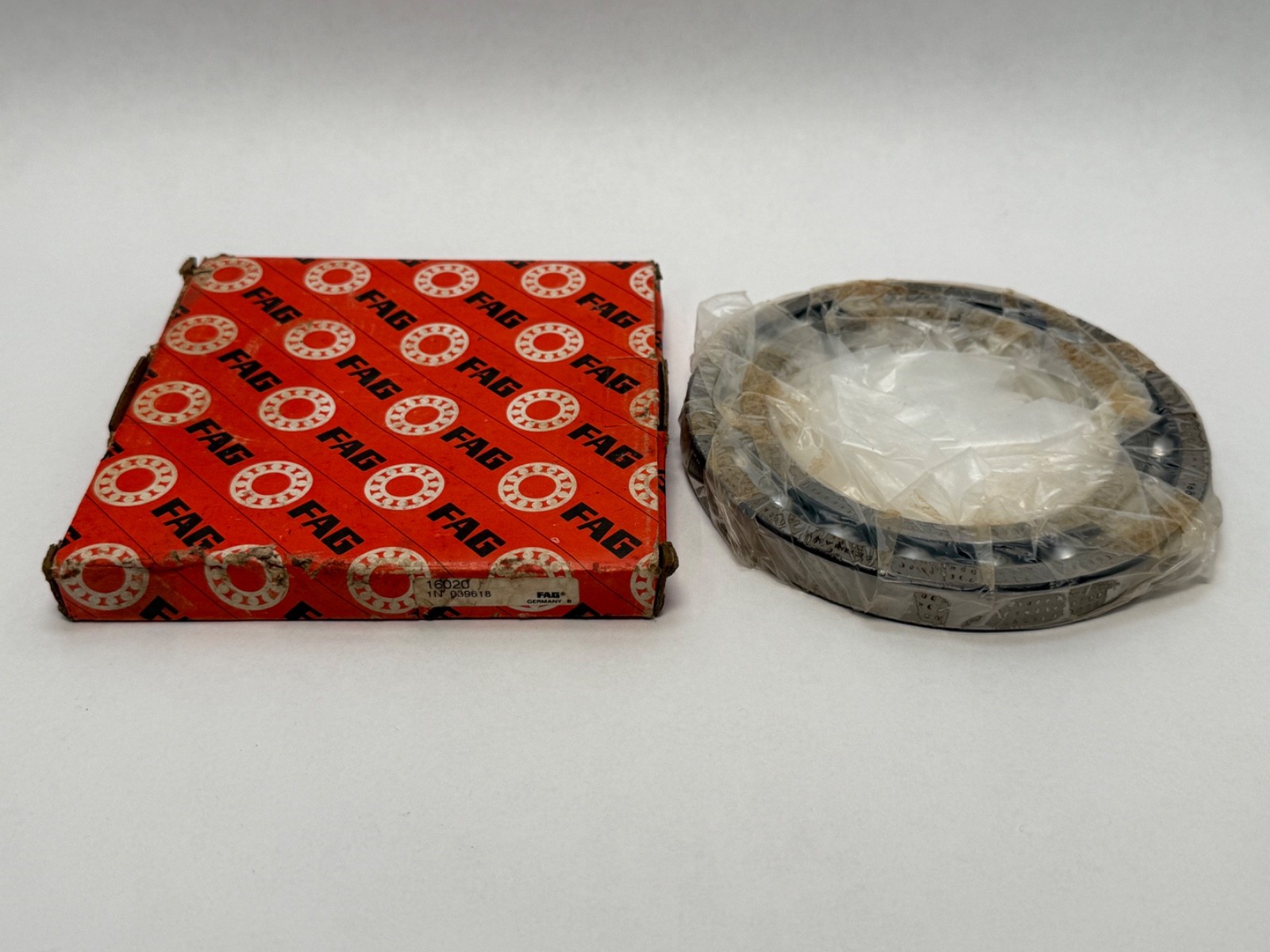

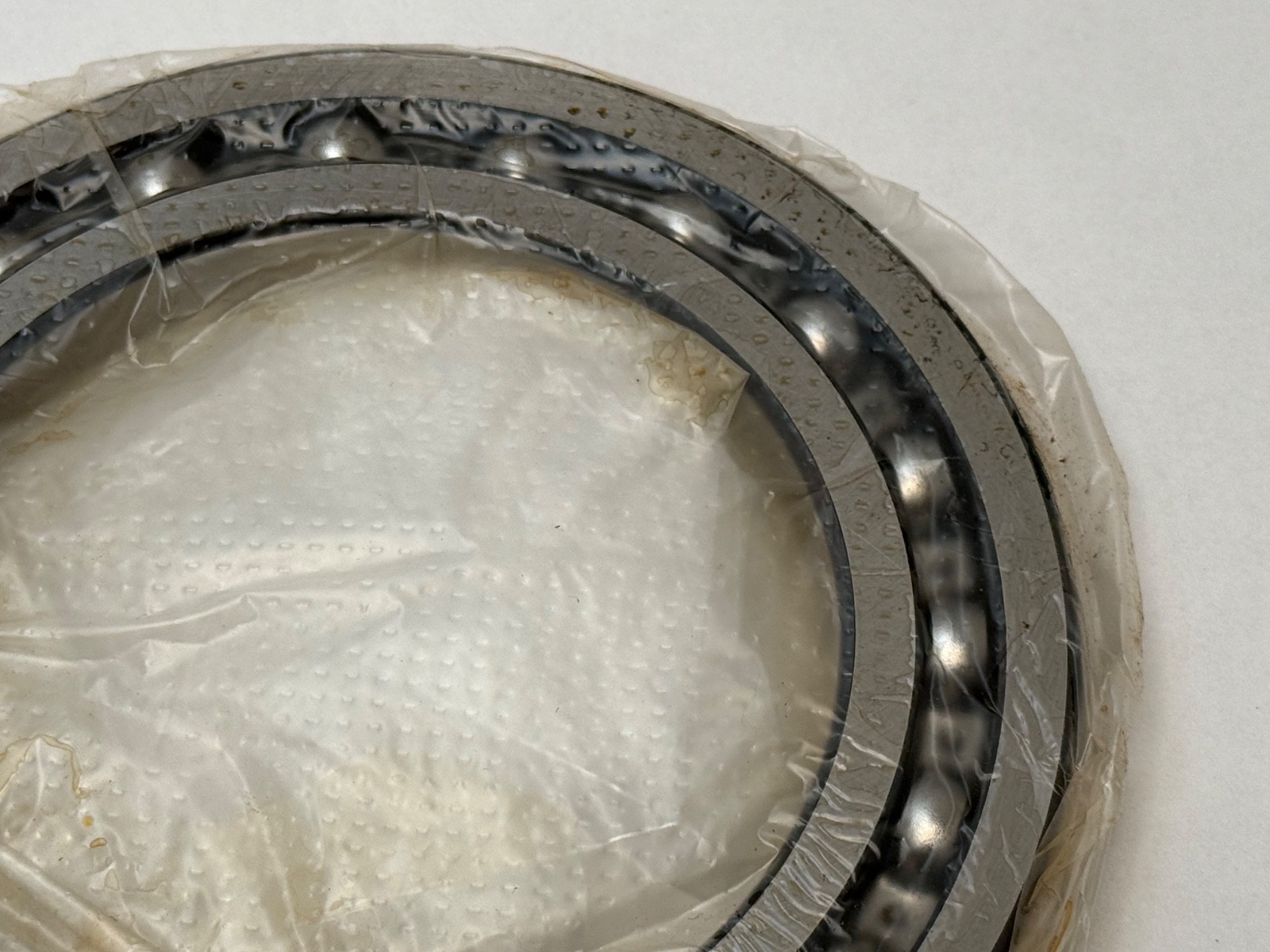

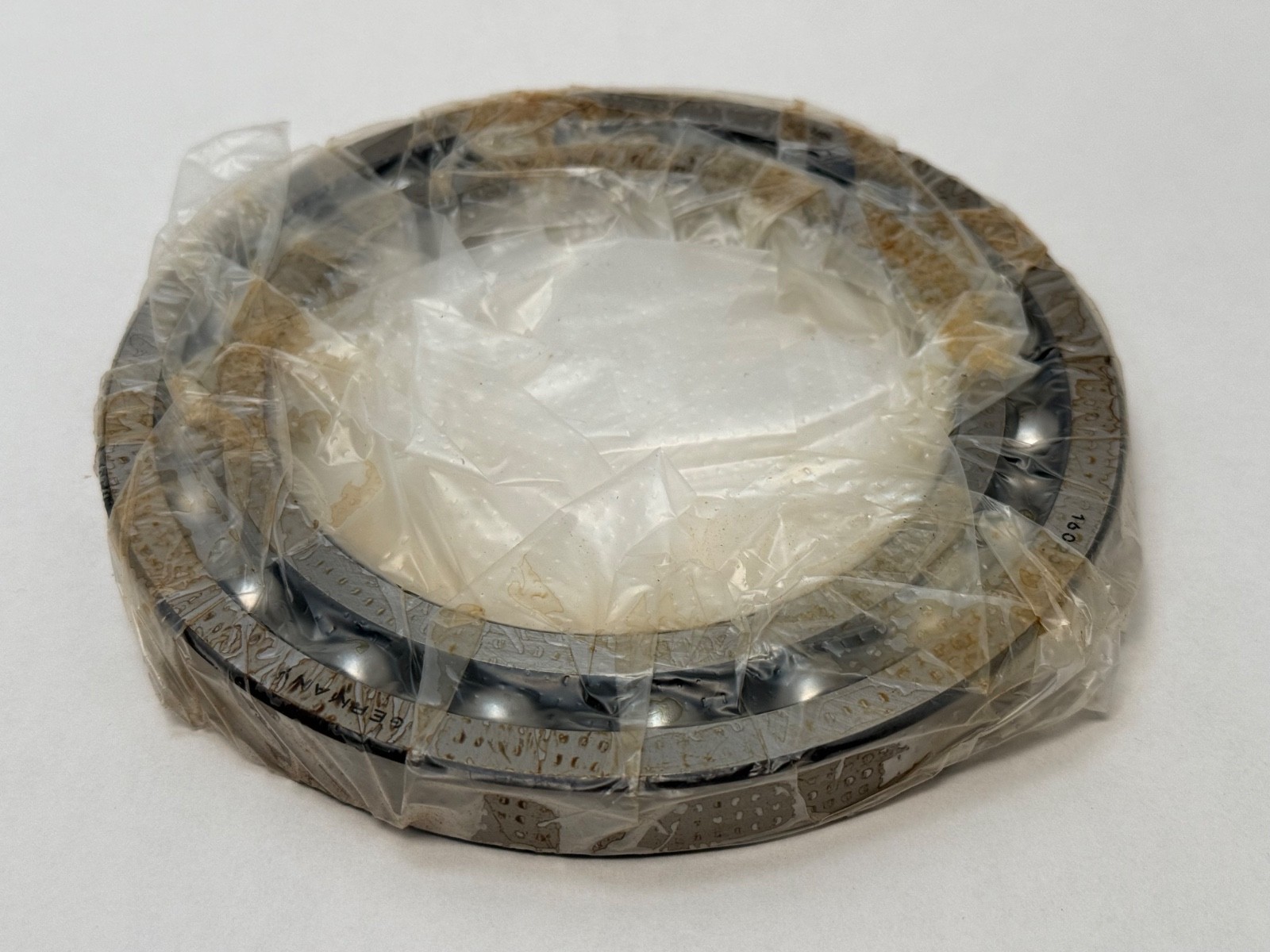

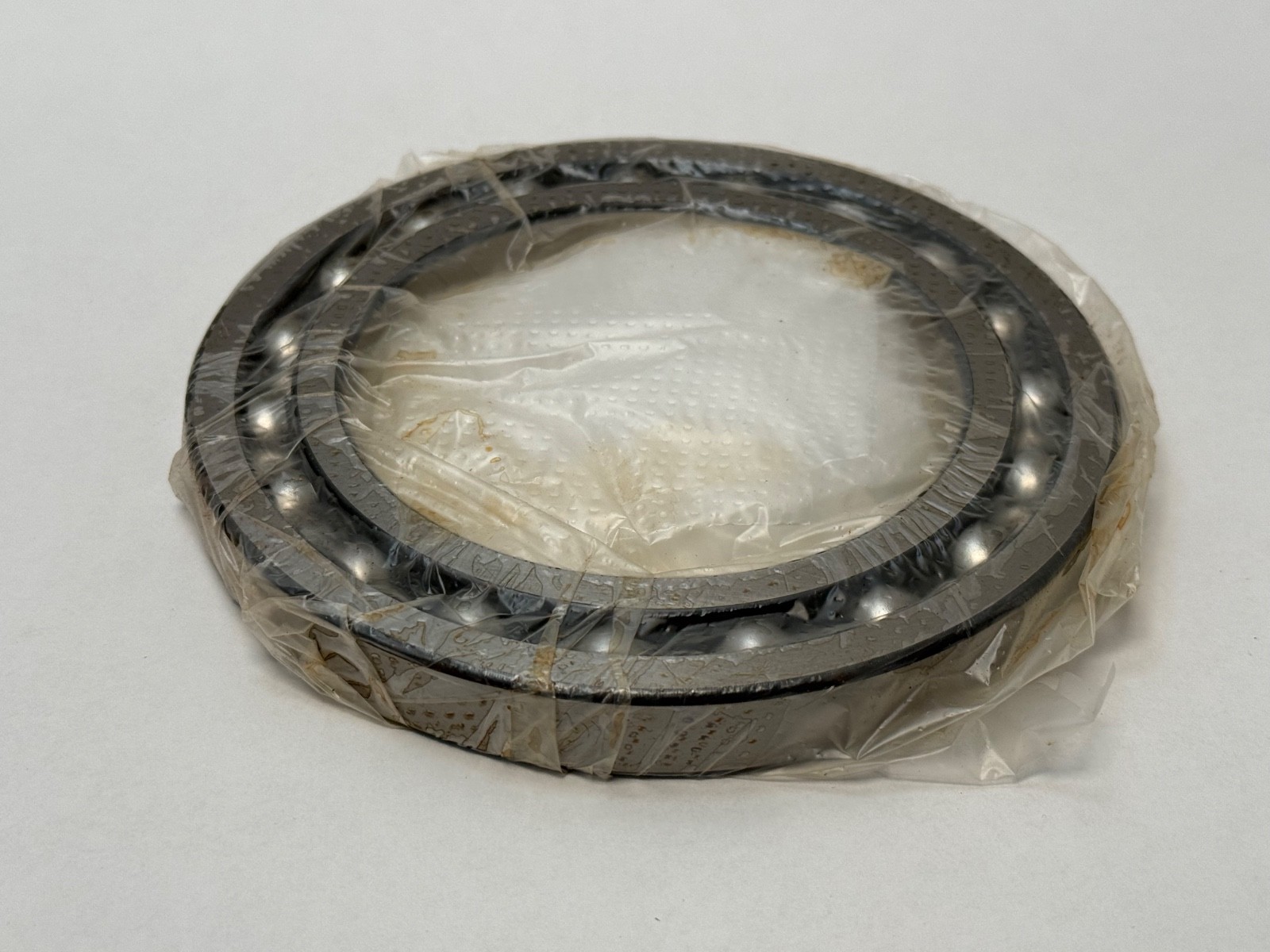

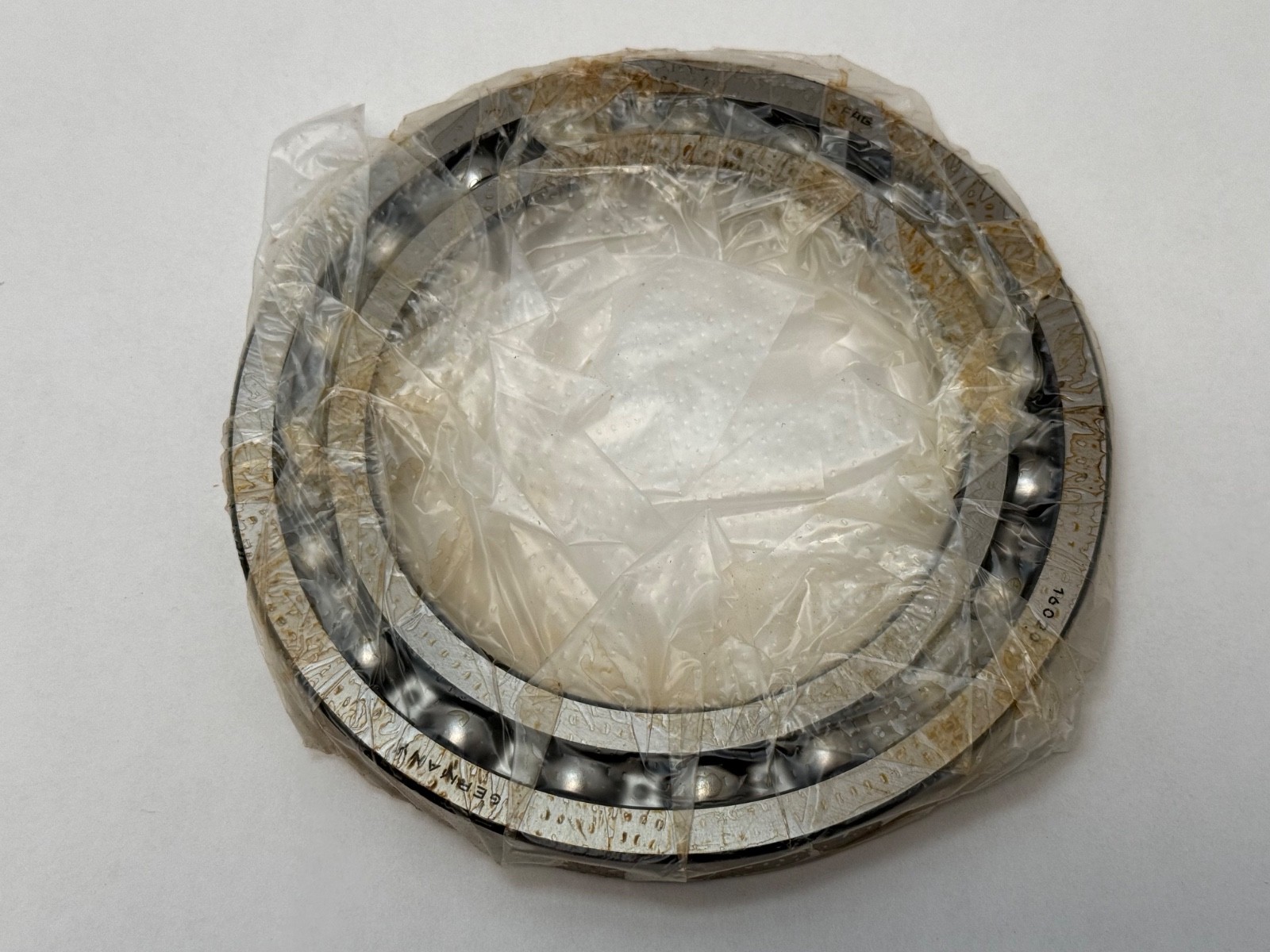

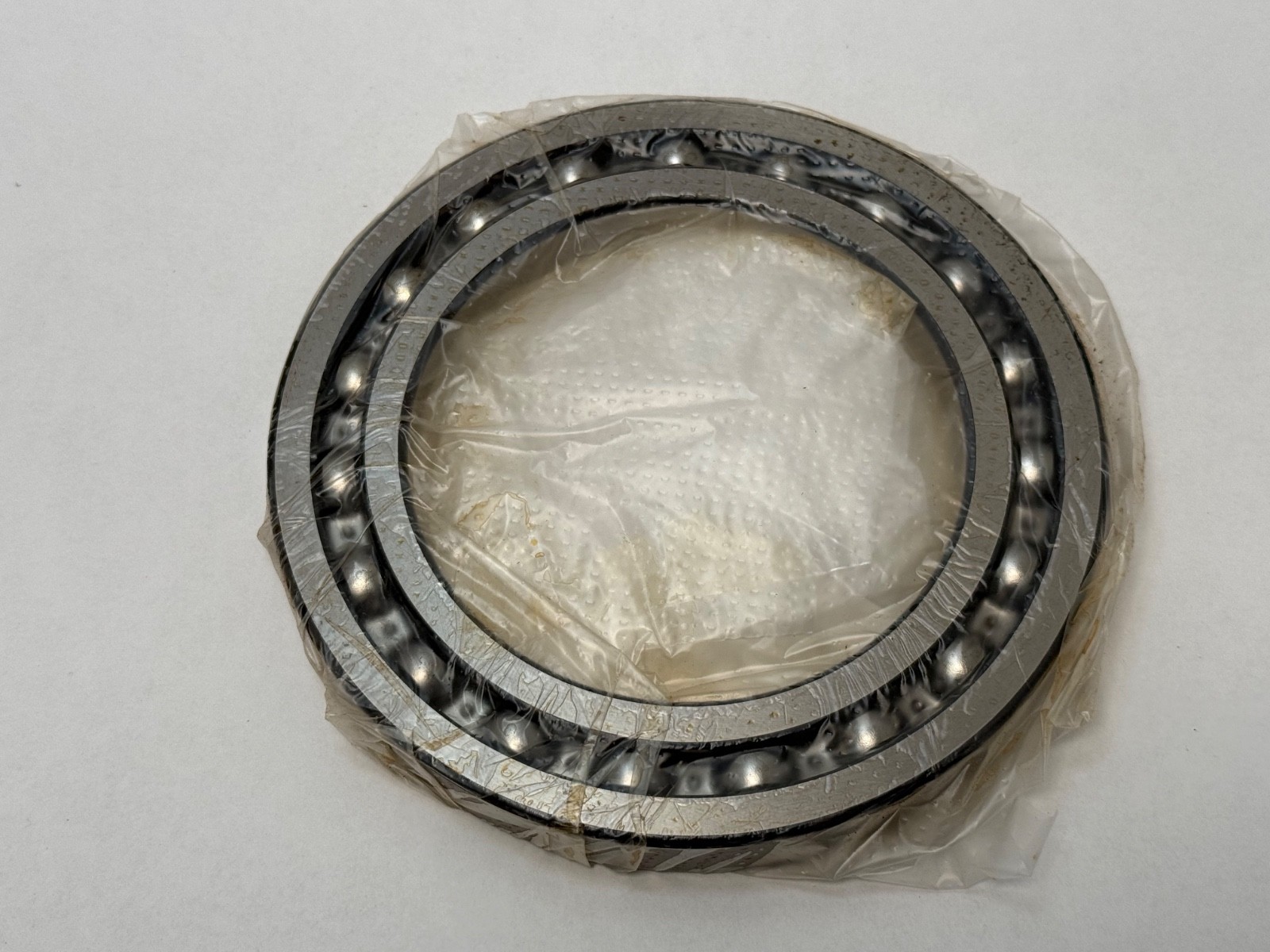

Single-row deep groove ball bearing, 100 x 150 x 16 mm extra-thin 160 section. Open, pressed steel cage, CN clearance, 46.5 kN dynamic rating.
List Price
$65.31
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| GTIN | 029176059537 |
| Model | 16020 |
| Bearing Type | Deep Groove Ball Bearing |
| ID | 100 mm |
| OD | 150 mm |
| Width | 16 mm |
| Material | Steel |
|---|---|
| Base Number | 16020 |
| Total Width | 16 mm |
| Bore Shaft Size | 100 mm |
| Mpn Variants | 16020, 16020 FAG, 16020-C0 |
| Precision Class | P0 (ABEC 1) |
| Cage Type | Pressed, ball-riding |
| Dynamic Load Rating | 46.5 kN |
| Static Load Rating | 44.5 kN |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Steel balls |
| Cage Material | Pressed steel |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Limiting Speed | 6300 rpm |
| Internal Clearance | CN |
| Lubricant | Grease or oil |
| Design Units | Metric |
| Bearing Material | Chrome steel |
| Series | 160 |
| Part Number | 16020 |
| Cross Reference 1 | SKF 16020 |
|---|---|
| Cross Reference 2 | NSK 16020 |
| Cross Reference 3 | NTN 16020 |
| Cross Reference 4 | Koyo 16020 |
| Cross Reference 5 | 6020 (related, 100 x 150 x 24 mm, 24 mm wide) |
What this part is
FAG 16020 single-row deep groove ball bearing. Bore Diameter: 100 mm. Outside Diameter: 150 mm. Width: 16 mm. Series: 160. Base Number: 16020. Bore Type: Straight. Number Of Rows: 1. Rolling Elements: Steel balls. Closure Type: Open. Cage Material: Pressed steel. Internal Clearance: CN. Precision Class: P0 (ABEC 1). Design Units: Metric. Unit Quantity: 1 Pc.
Decoding the designation
160 — FAG extra-thin dimension series, narrower and lighter in section than the 60 or 62 series at the same bore.
20 — bore code, 20 x 5 mm, giving a 100 mm bore.
No closure suffix — open on both faces.
No clearance suffix — CN, the normal radial internal clearance group.
Specifications
Dynamic Load Rating: 46.5 kN. Static Load Rating: 44.5 kN. Limiting Speed: 6,300 rpm. Cage Material: Pressed steel. Cage Type: Pressed, ball-riding. Internal Clearance: CN. Precision Class: P0 (ABEC 1). Lubricant: grease or oil.
Dimensions and mounting
Bore Diameter: 100 mm. Outside Diameter: 150 mm. Width: 16 mm. Straight bore and straight outside diameter. The 160 series gives a 25 mm radial section on the 150 mm outside diameter.
Compatibility and replacement
16020 is an ISO boundary size, so a 16020 from any maker shares the 100 x 150 x 16 mm envelope. Cross-references: SKF 16020; NSK 16020; NTN 16020; Koyo 16020. A 6020 shares the 100 mm bore and 150 mm outside diameter at a 24 mm width and is a related size. Searchable variants: 16020, 16020 FAG, 16020-C0.
Frequently asked questions
What are the dimensions of the FAG 16020?
Bore Diameter: 100 mm. Outside Diameter: 150 mm. Width: 16 mm.
What are the load ratings and speed limit?
Dynamic Load Rating: 46.5 kN. Static Load Rating: 44.5 kN. Limiting Speed: 6,300 rpm.
What internal clearance does it have?
Internal Clearance: CN, the normal radial internal clearance group. Closure Type: Open.
