NSKDouble Row Spherical Roller Bearing 90x160x40 mm C3 Clearance Lubrication Groove and Holes

Product Description

What this part is

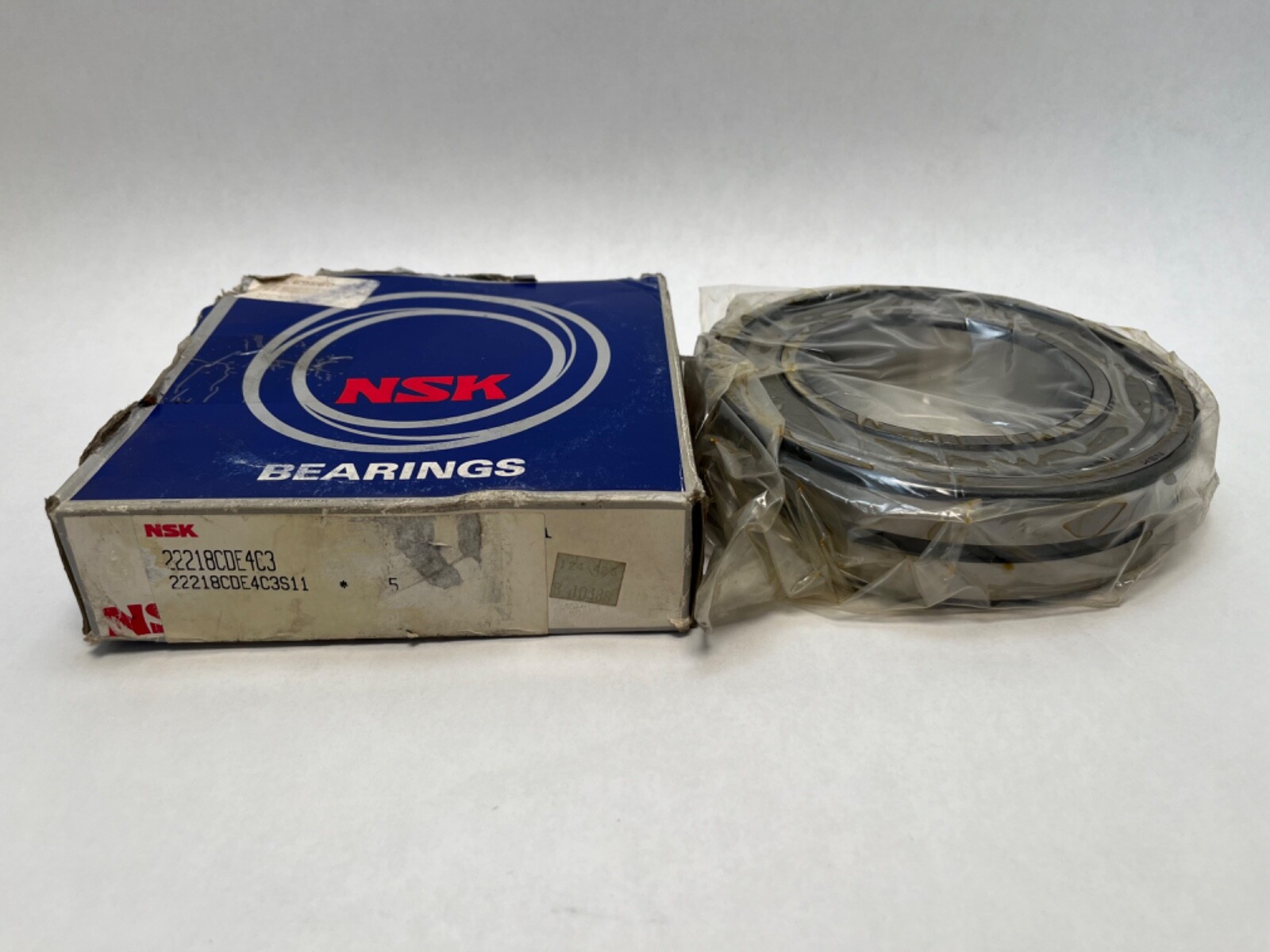

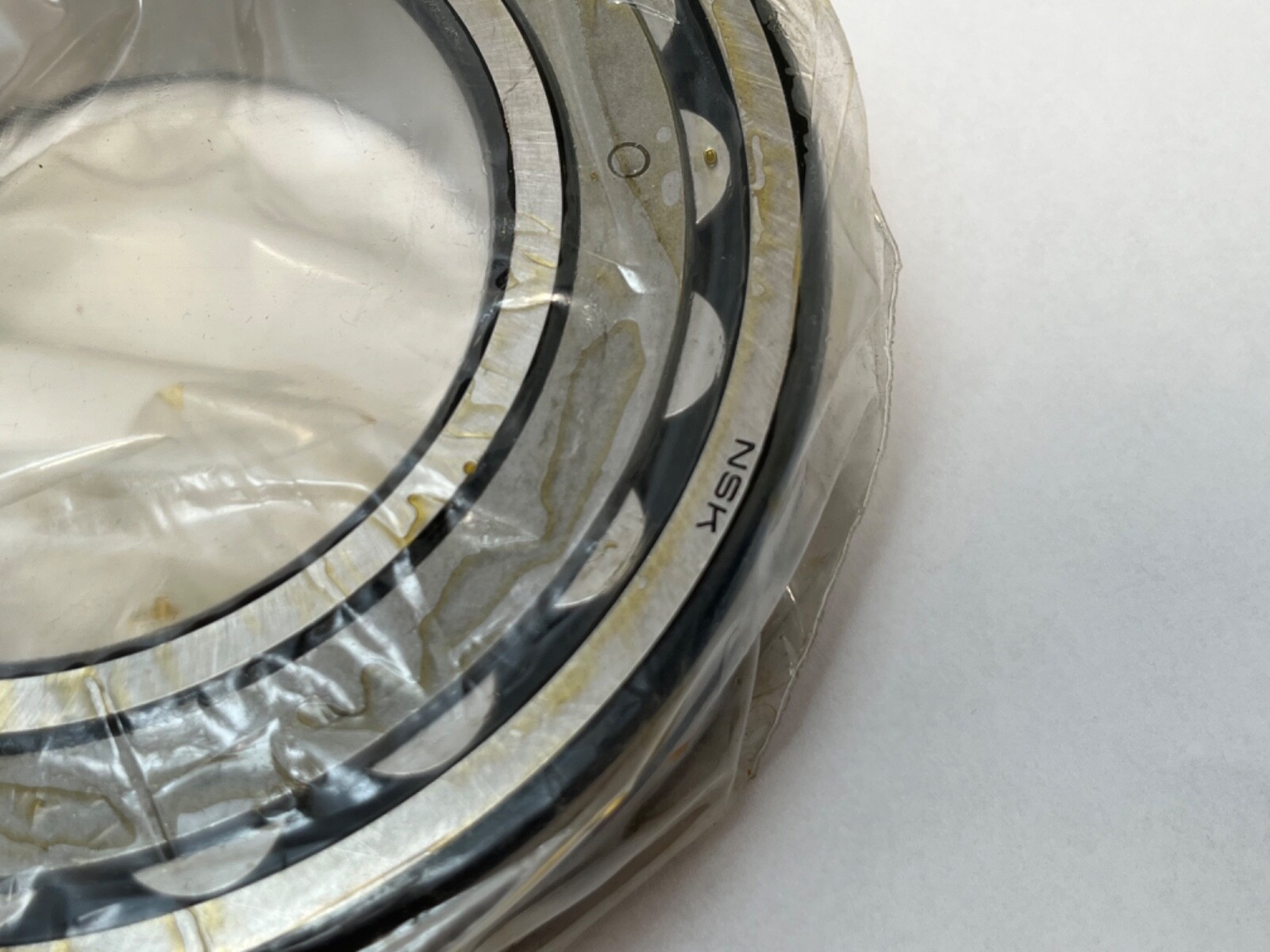

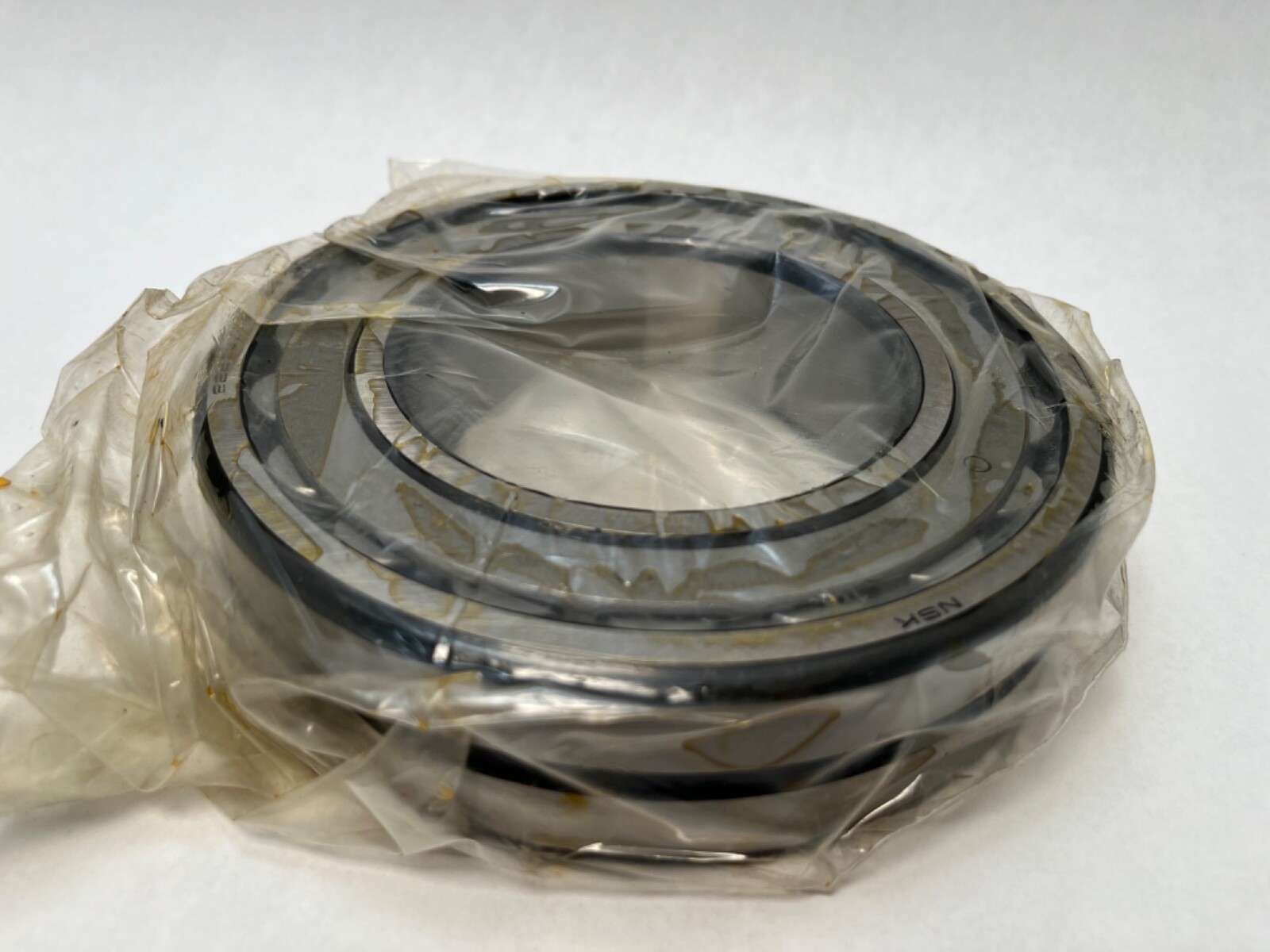

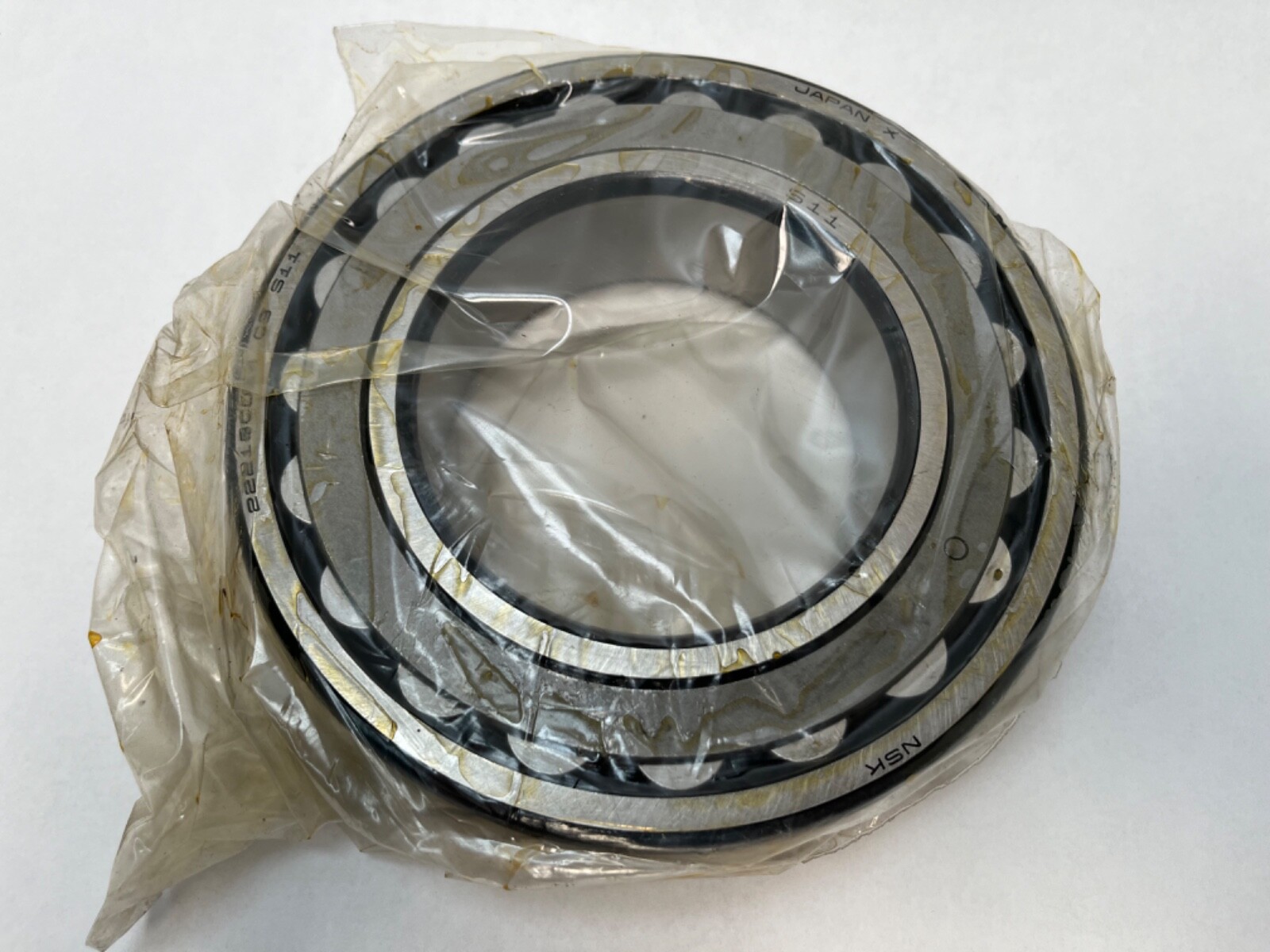

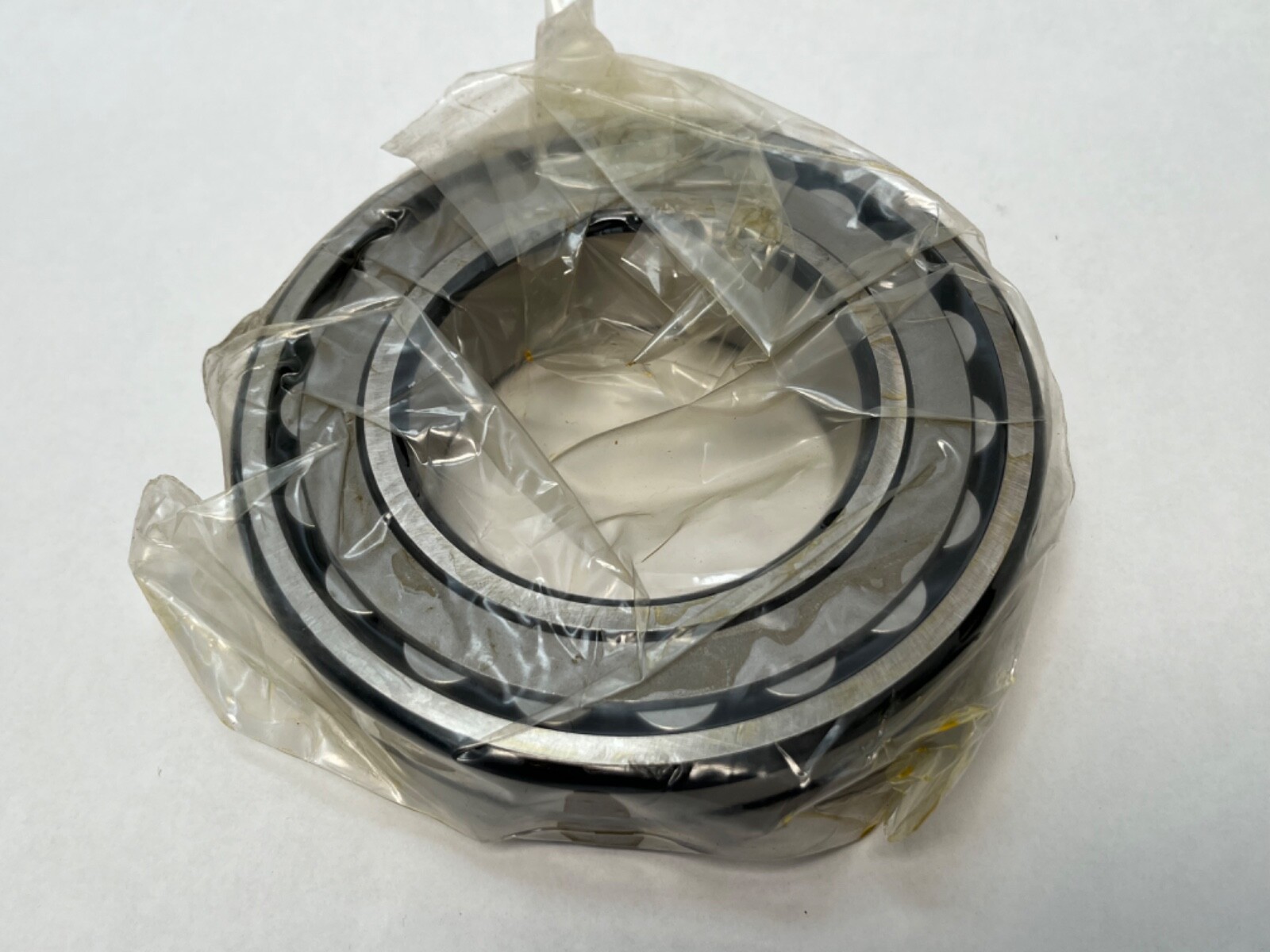

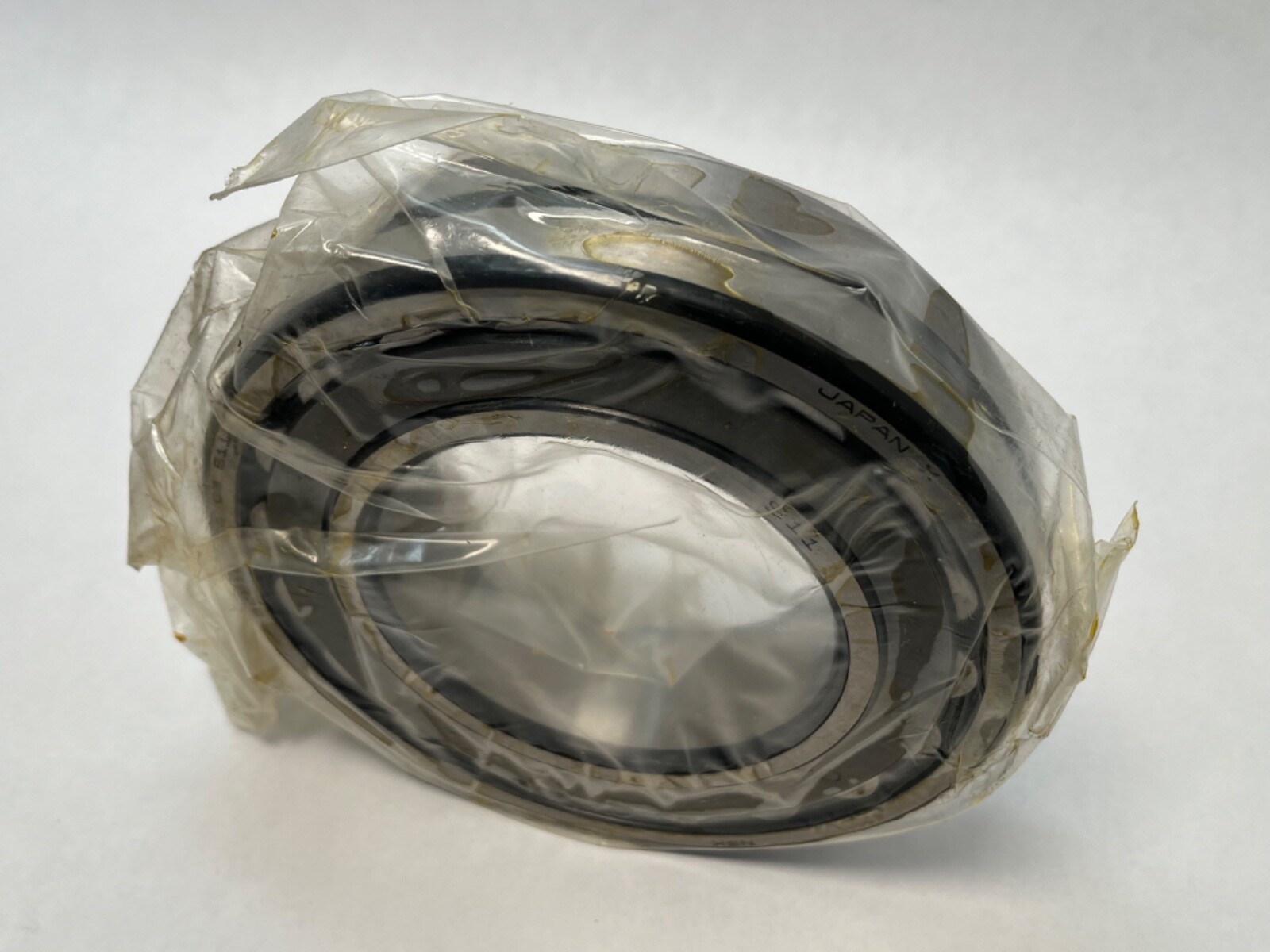

An NSK 22218CD-E4-C3-S11-W33 double-row spherical roller bearing with a 90 mm straight bore, a 160 mm outside diameter and a 40 mm width. It has a lubrication groove and three feed holes in the outer ring, C3 internal clearance and heat-stabilised rings.

Decoding the designation

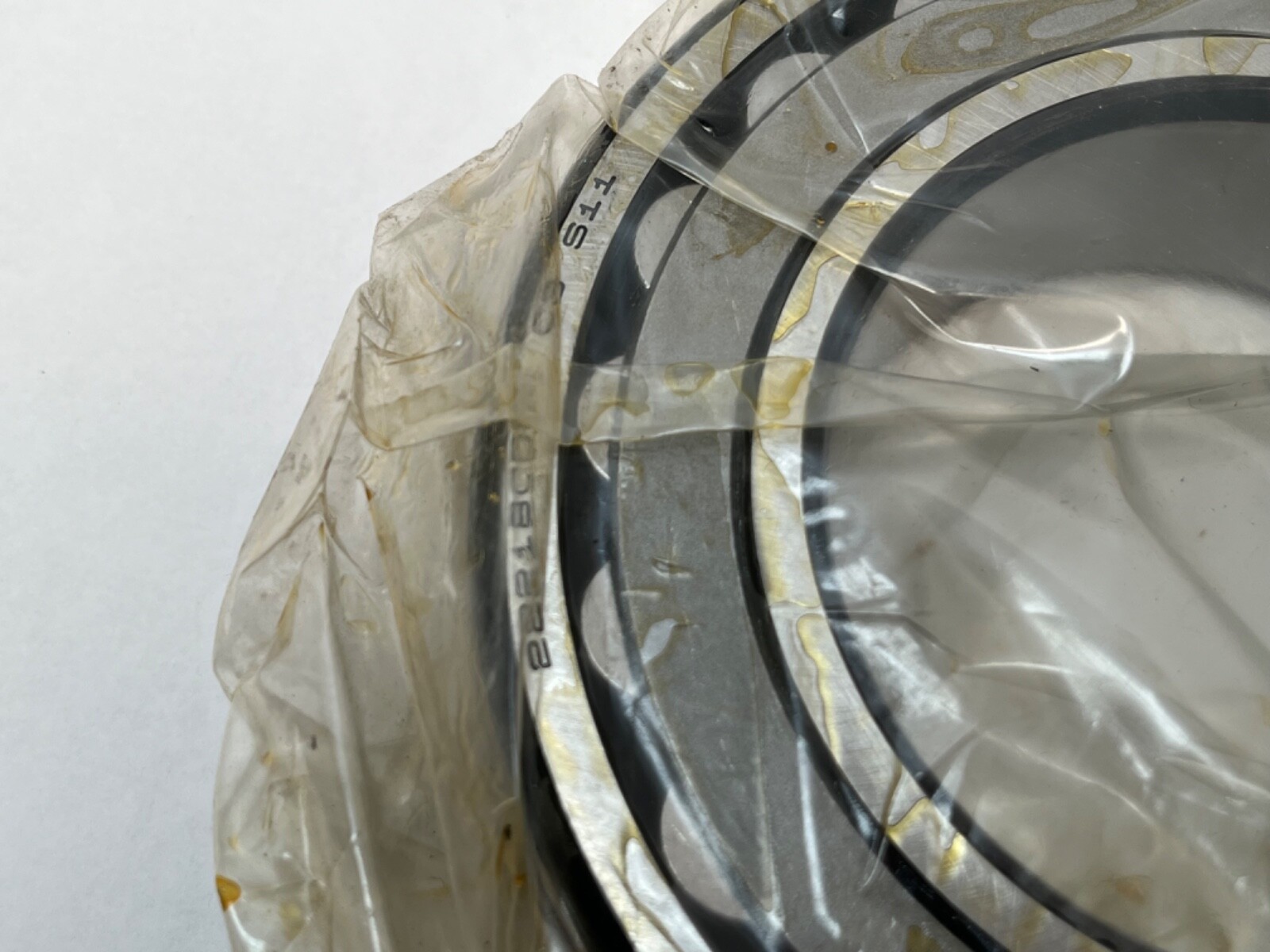

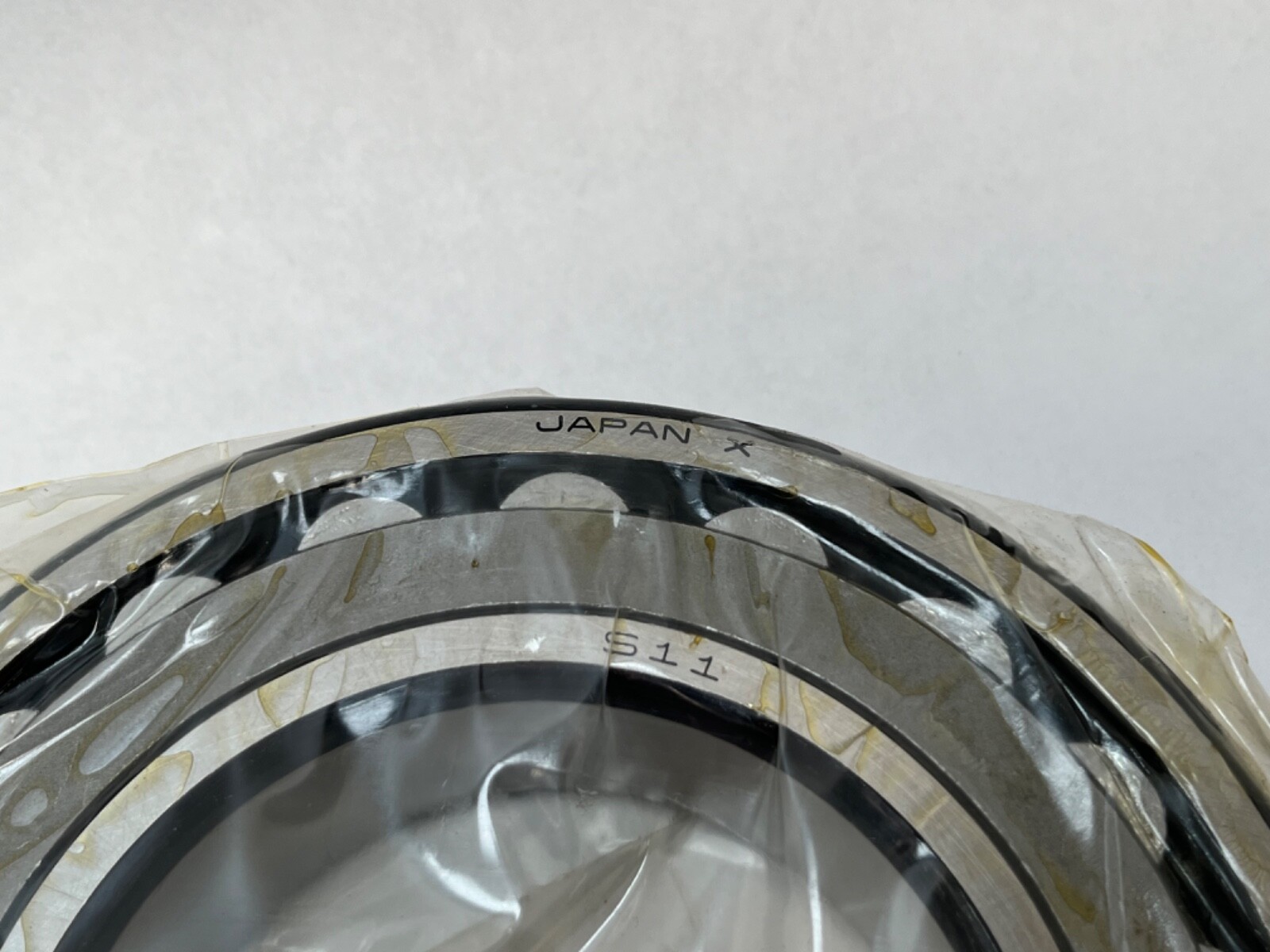

222: double-row spherical roller series, 22200 dimension series. 18: bore code 18, 90 mm bore, 160 mm OD, 40 mm width. CD: pressed steel cage with a floating guide ring between the two roller rows. E4: lubrication groove and three radial holes in the outer ring, the NSK equivalent of the W33 suffix. C3: greater than normal radial internal clearance. S11: rings heat stabilised for service to 200 °C. No K suffix: straight cylindrical bore.

What these specs mean in practice

Two rows of barrel-shaped rollers run on a common spherical outer raceway, so the inner ring and rollers swivel as an assembly. That gives very high radial capacity, tolerance of shaft misalignment and housing deflection, and — because there are two rows sitting at opposing angles — thrust capacity in both directions. The groove and three holes in the outer ring let grease or oil be fed straight into the centre of the bearing, between the roller rows, which is how a heavily loaded bearing gets relubricated in service without pulling the housing apart. C3 clearance leaves room for thermal growth and for clearance lost to an interference fit, so a hot or tightly fitted bearing does not run pinched. Stabilisation to 200 °C means the rings hold their dimensions in hot service instead of growing and losing clearance permanently.

Published specifications

Bore: 90 mm (3.5433 in), straight cylindrical. Outside diameter: 160 mm (6.2992 in). Width: 40 mm (1.5748 in). Number of rows: 2. Rolling elements: spherical rollers. Cage type: pressed steel with floating guide ring. Internal clearance: C3. Relubrication: outer ring groove and three holes. Temperature stabilisation: 200 °C. Self-aligning: yes. Axial load: carried in both directions. Closure: open.

What ships in the box

One bearing. No adapter sleeve, lock nut, seals or housing are included, and none are required with the straight bore.

Quantity and configuration

Supplied as 1 Pc.

Interchange guidance

Genuine equivalents are straight-bore double-row spherical roller bearings in the same 90x160x40 mm envelope with C3 clearance and the W33 lubrication feature: SKF 22218 EK equivalents in straight bore such as 22218 E/C3W33, FAG 22218-E1-XL-C3, Nachi 22218EW33C3 and Koyo 22218RC3W33. The tapered-bore 22218 K is a related size rather than an interchange, because it requires an adapter sleeve or a tapered journal. A single-row barrel roller of the 20218 type shares the shaft size but carries no thrust, so it is a different part.
