Availability:
34 in stock
Tapered roller bearing cup, 6.75 in outside diameter, 0.9948 in width. Class 3 precision, case-carburized steel, e factor 0.47, Y factor 1.27.
List Price
$50.46
34 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Timken |
|---|---|
| MPN | 67675-3 |
| GTIN | 053893367651 |
| Model | 67675 3 |
| Bearing Type | Tapered Roller Bearing Cup |
| OD | 6.7500 in (171.450 mm) |
| Series | 67000 |
|---|---|
| Harmonization Code | 8482.20.00 |
| Cup Part Number | 67675 |
| Design Units | Imperial |
| Bearing Material | Case-Carburized Steel |
| Cup Width | 0.9948 in (25.268 mm) |
| Cup Backface To Clear Radius | 0.13 in |
| Base Number | 67675 |
| Industry Terms | Taper bearing cup; tapered roller bearing race; outer race; TS cup; Class 3 precision cup |
| Common Misspellings | Timkin 67675-3; 67765-3; tappered roller bearing cup; taper roler race |
| Total Width | 0.9948 in (25.268 mm) |
| Overall Width | 0.9948 in (25.268 mm) |
| Mpn Variants | 67675-3; 67675*3; 67675#3; 67675 3; 67675 |
| Compatible With Replaces | Timken 67425 cone; Timken 67434 cone |
| Precision Class | Class 3 |
| E Factor | 0.47 |
| Precision Rating | Class 3 |
| Rolling Elements | Tapered Roller |
| Item Weight | 2.40 kg (5.30 lb) |
| Number Of Rows | 1 |
| Part Number | 67675-3 |
| Cone Part Number | 67425, 67434 |
| Closure Type | Open |
| Cross Reference 1 | SKF 67675 - standard precision |
|---|---|
| Cross Reference 2 | FAG 67675 - standard precision |
| Cross Reference 3 | NSK 67675 - standard precision |
| Cross Reference 4 | NTN 4T-67675 - standard precision |
| Cross Reference 5 | Koyo 67675 - standard precision |
| Cross Reference 6 | Fersa 67675 - standard precision |
| Cross Reference 7 | BCA/Bower 67675 - standard precision |
| Cross Reference 8 | PEER 67675 - standard precision |

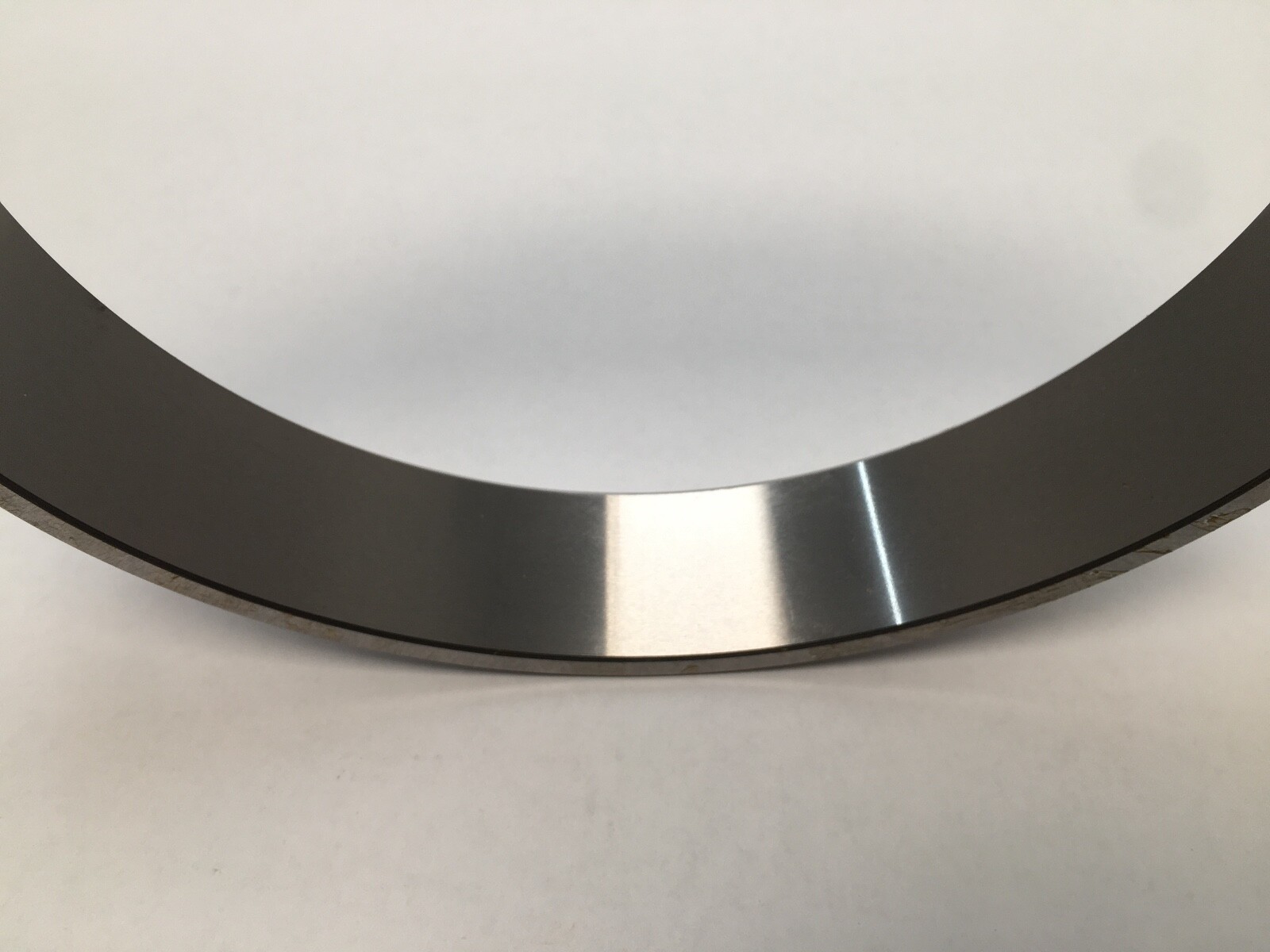

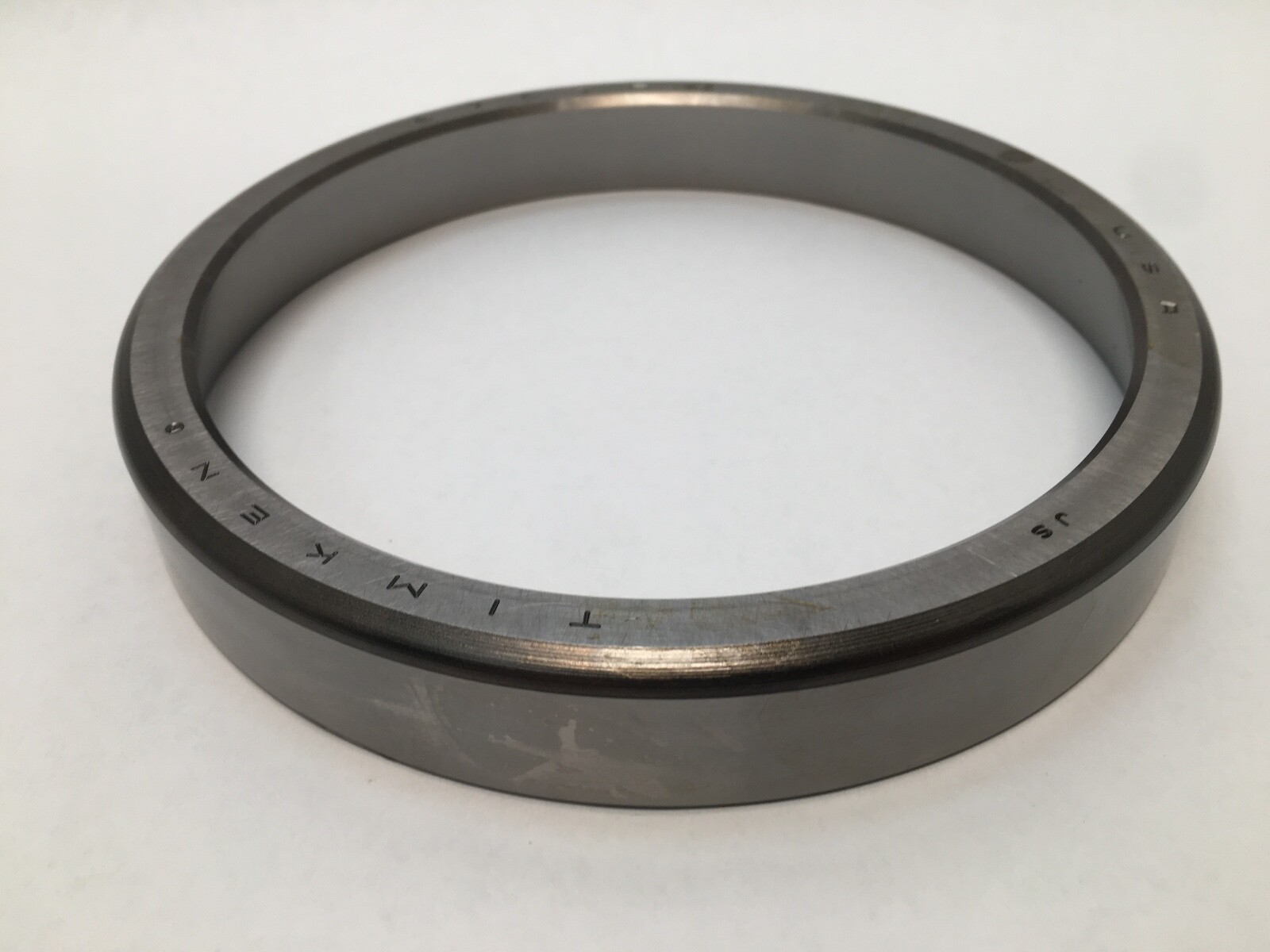

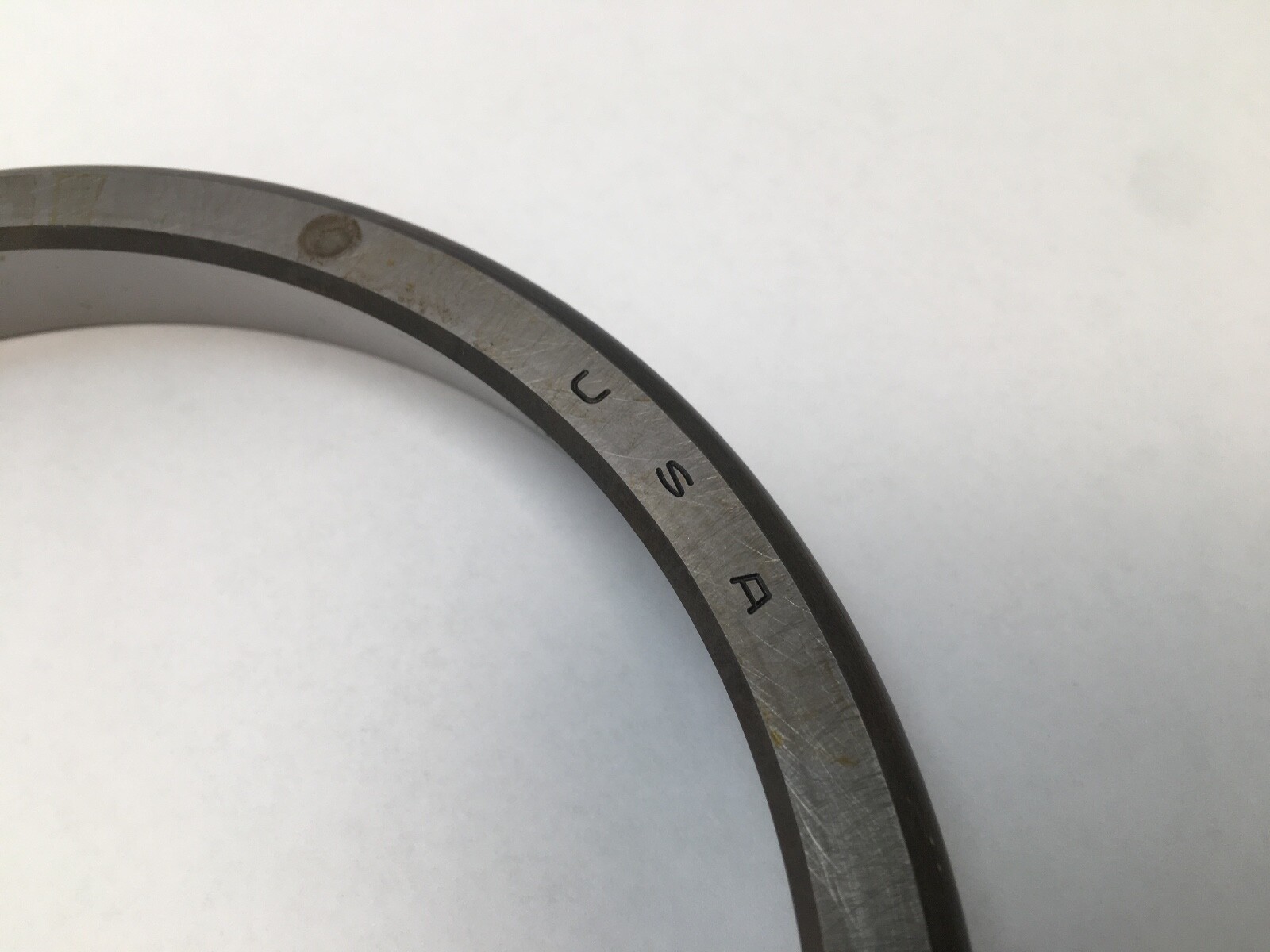

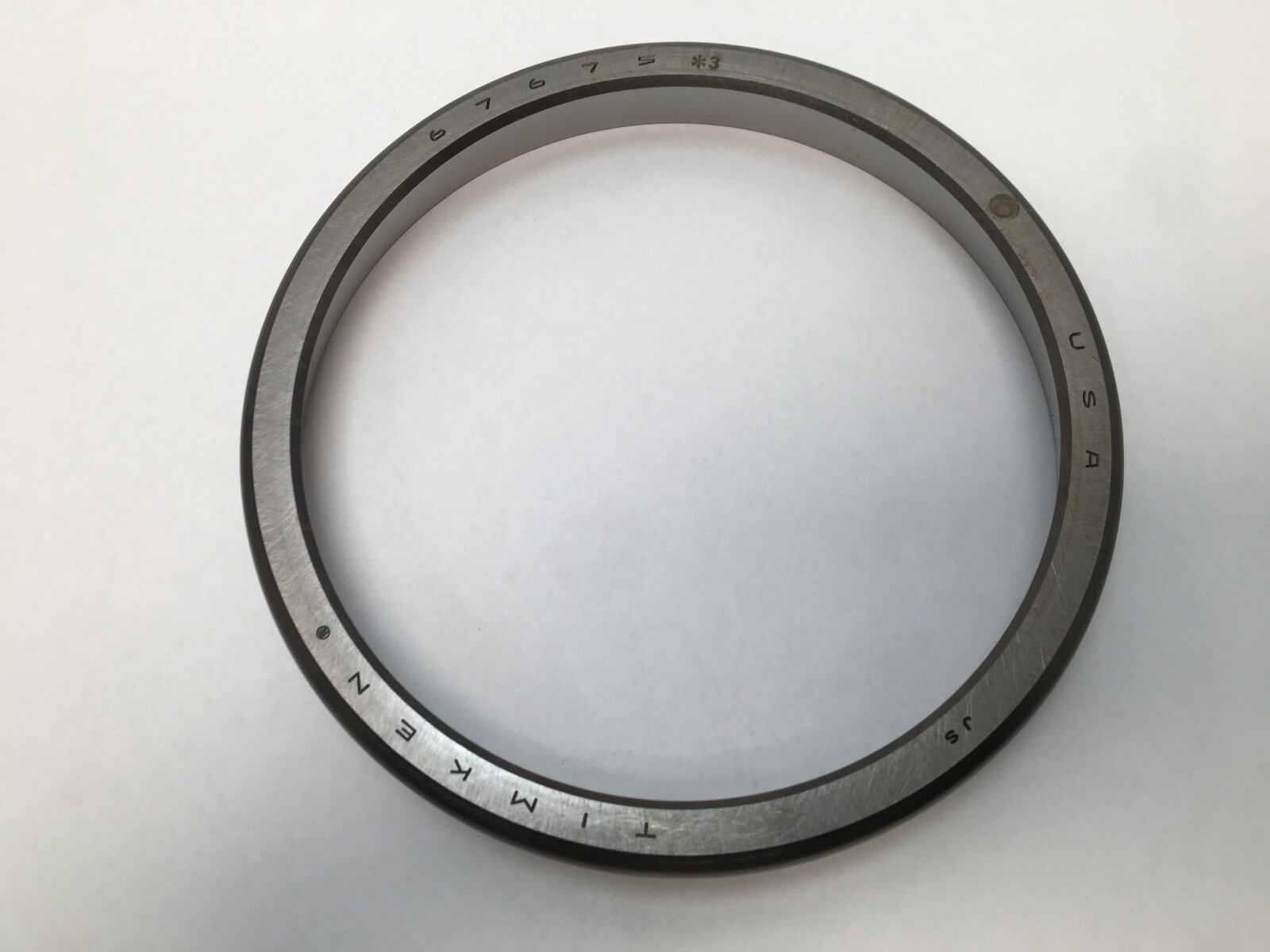

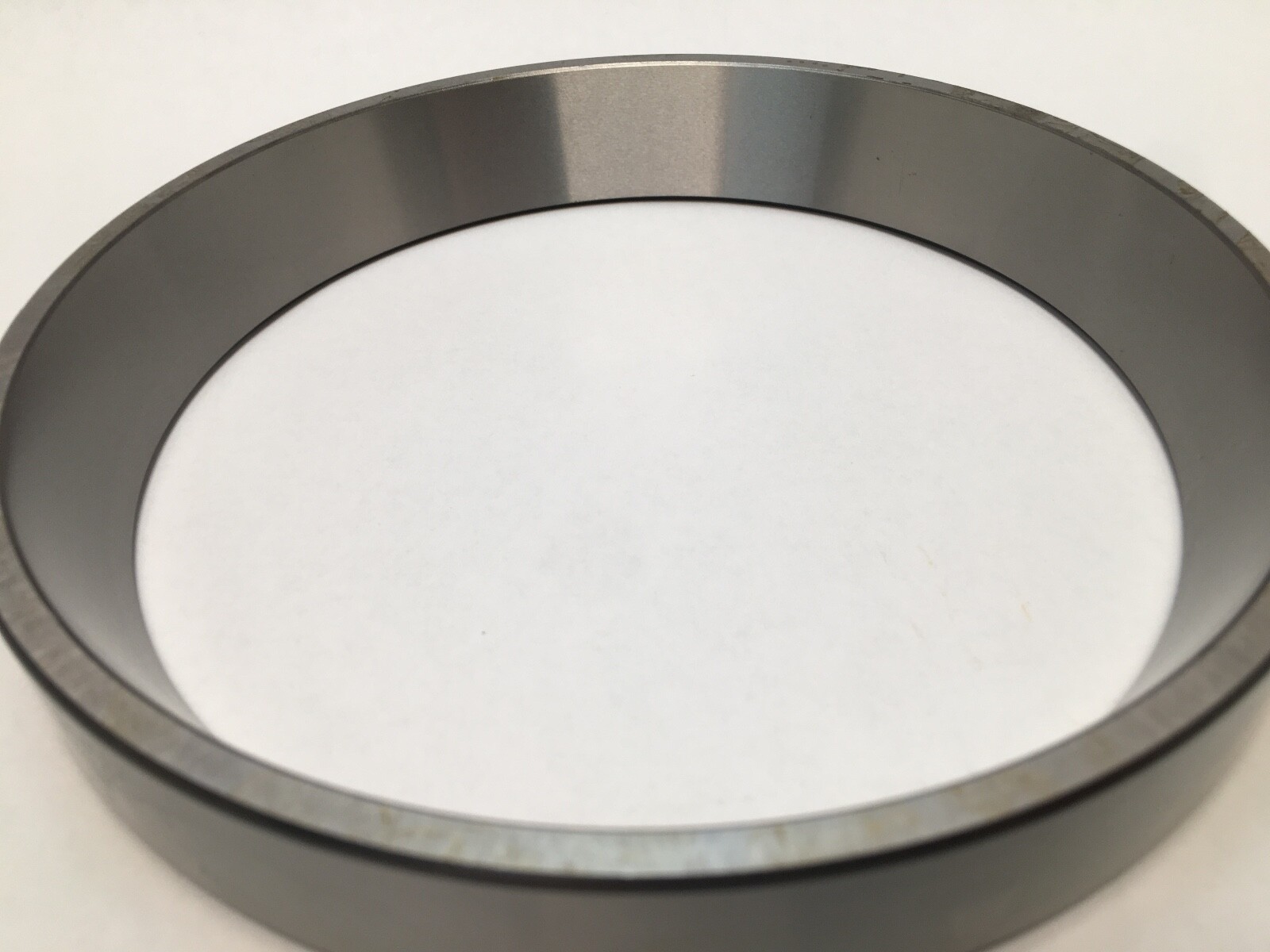

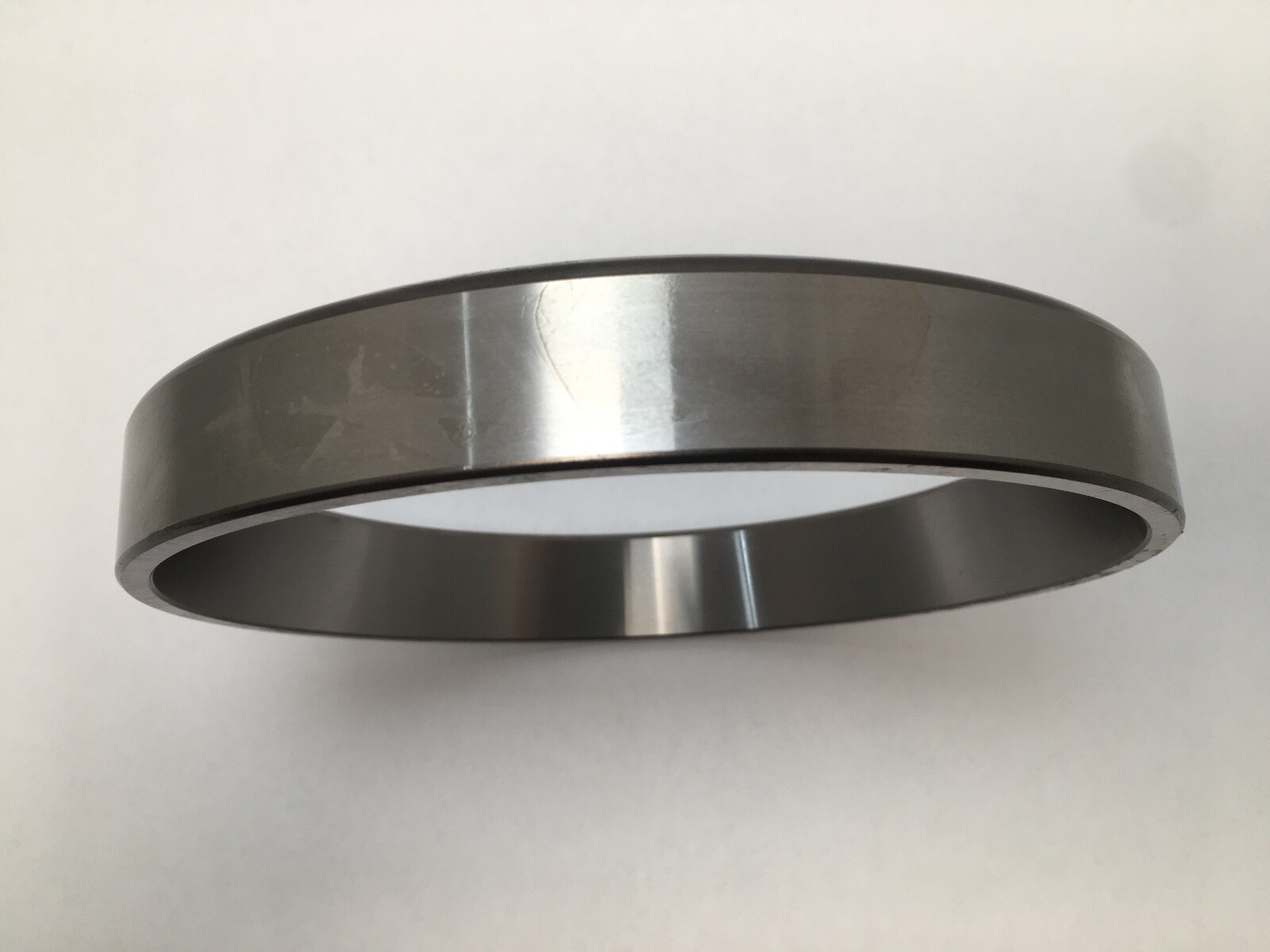

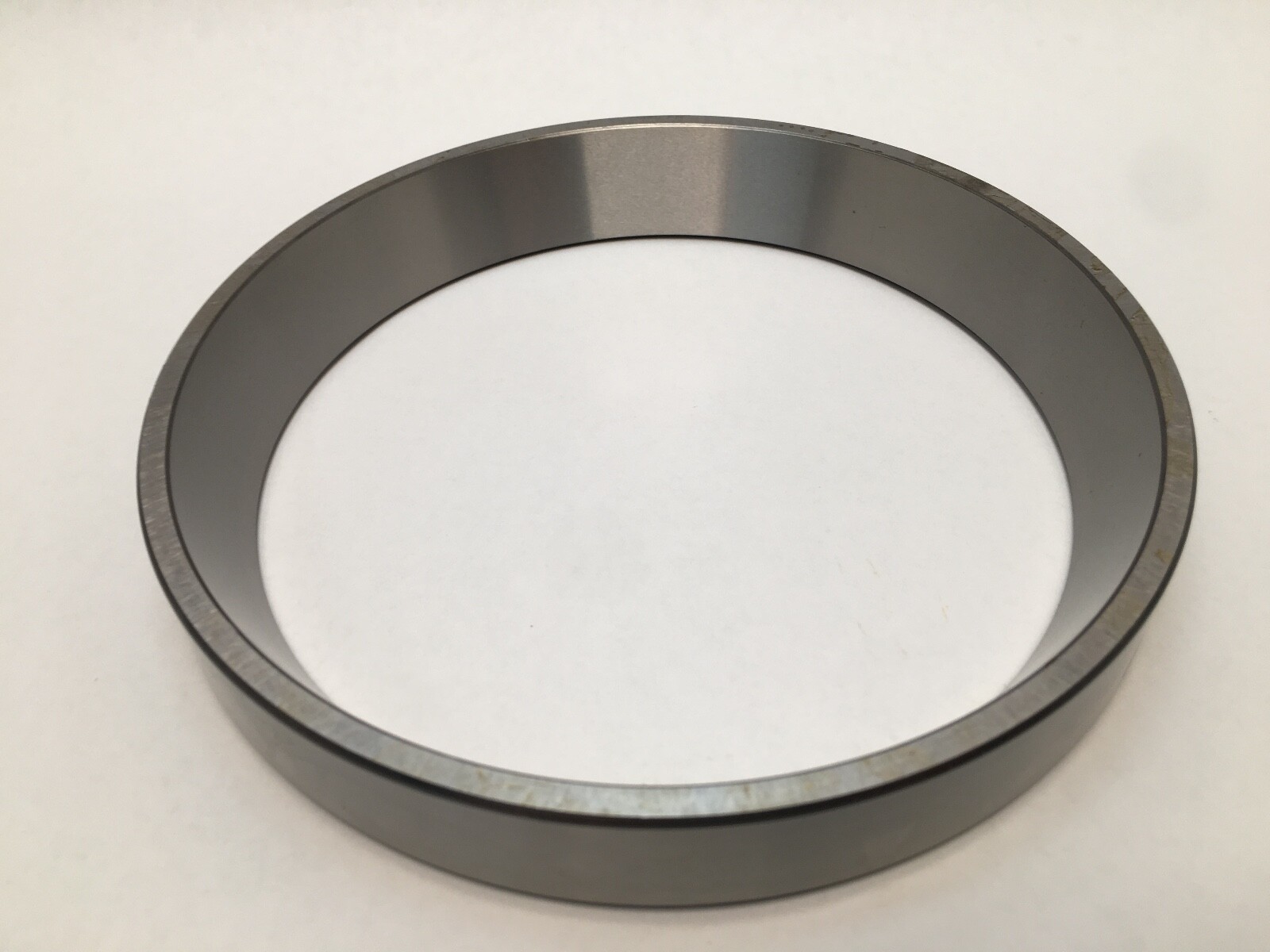

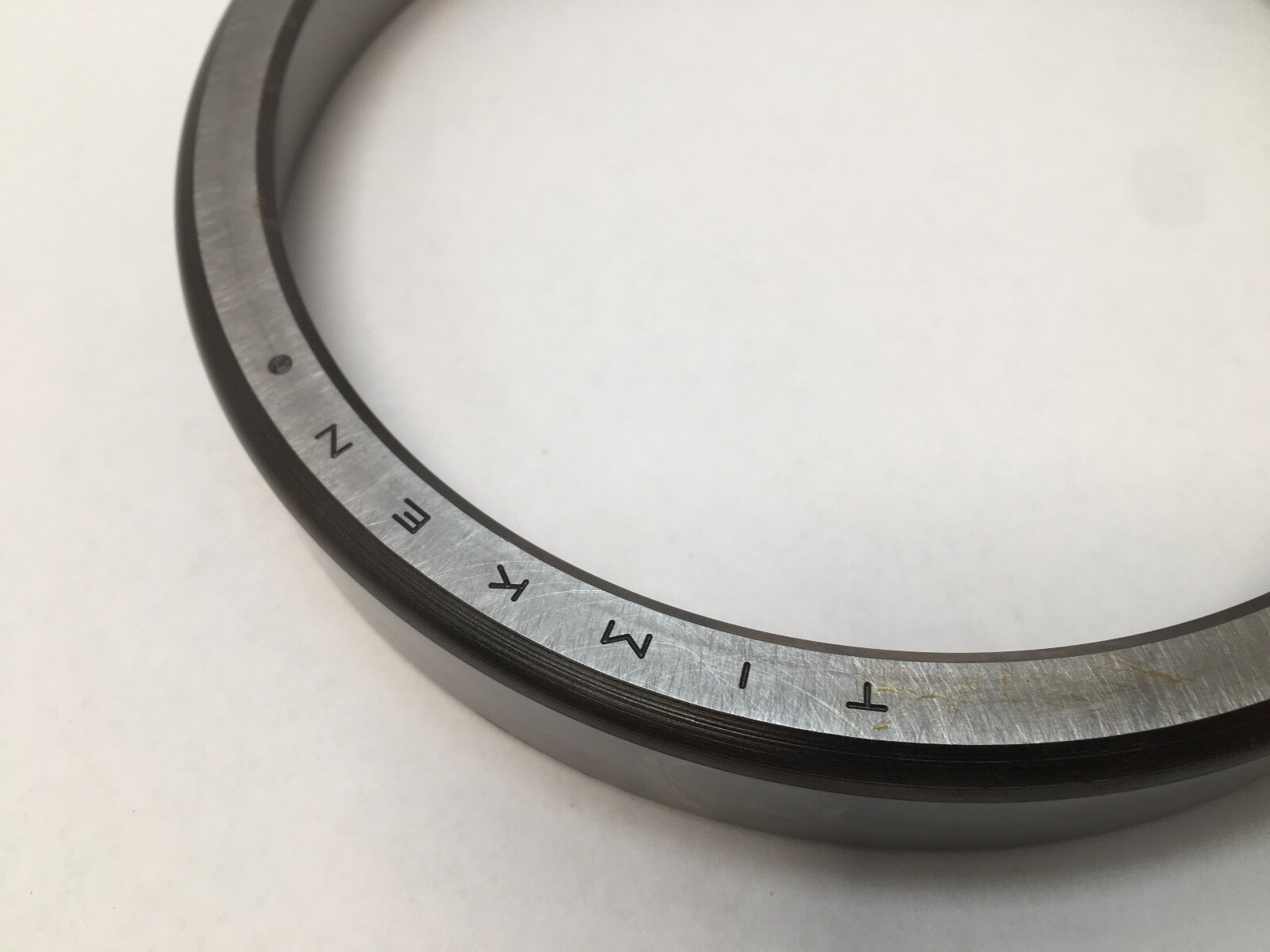

Timken 67675-3 tapered roller bearing cup, the outer race of a single-row TS tapered roller bearing, 1 Pc. Outside Diameter: 6.7500 in (171.450 mm). Overall Width: 0.9948 in (25.268 mm). Precision Class: Class 3. Series: 67000. Cup only; matching cones Timken 67425 and 67434. Country of Origin: United States.
67675 — cup number in the Timken 67000 inch tapered roller bearing series.
-3 — Timken precision Class 3, written on cartons as -3, *3 or #3.
Part Number: 67675-3. Base Number: 67675. Outside Diameter: 6.7500 in (171.450 mm). Overall Width: 0.9948 in (25.268 mm). Precision Class: Class 3. Number Of Rows: 1. Rolling Elements: Tapered Roller. Bearing Material: Case-carburized steel. e Factor: 0.47. Y Factor: 1.27. Geometry Factor (Cg): 0.0987. Item Weight: 2.40 kg (5.30 lb). Harmonization Code: 8482.20.00. Unit Quantity: 1 Pc.
Maximum Housing Fillet Radius: 0.130 in (3.30 mm). Housing Backing Shoulder Diameter, Frontface (Da): 6.48 in (164.10 mm). Housing Backing Shoulder Diameter, Backface (Db): 6.14 in (155.96 mm). Cup Backface To-Clear Radius: 0.13 in.
Matching cones: Timken 67425, Timken 67434. Cross-references to the base cup number 67675: SKF 67675; FAG 67675; NSK 67675; NTN 4T-67675; Koyo 67675; Fersa 67675; BCA/Bower 67675; PEER 67675. MPN Variants: 67675-3, 67675*3, 67675#3, 67675 3, 67675.

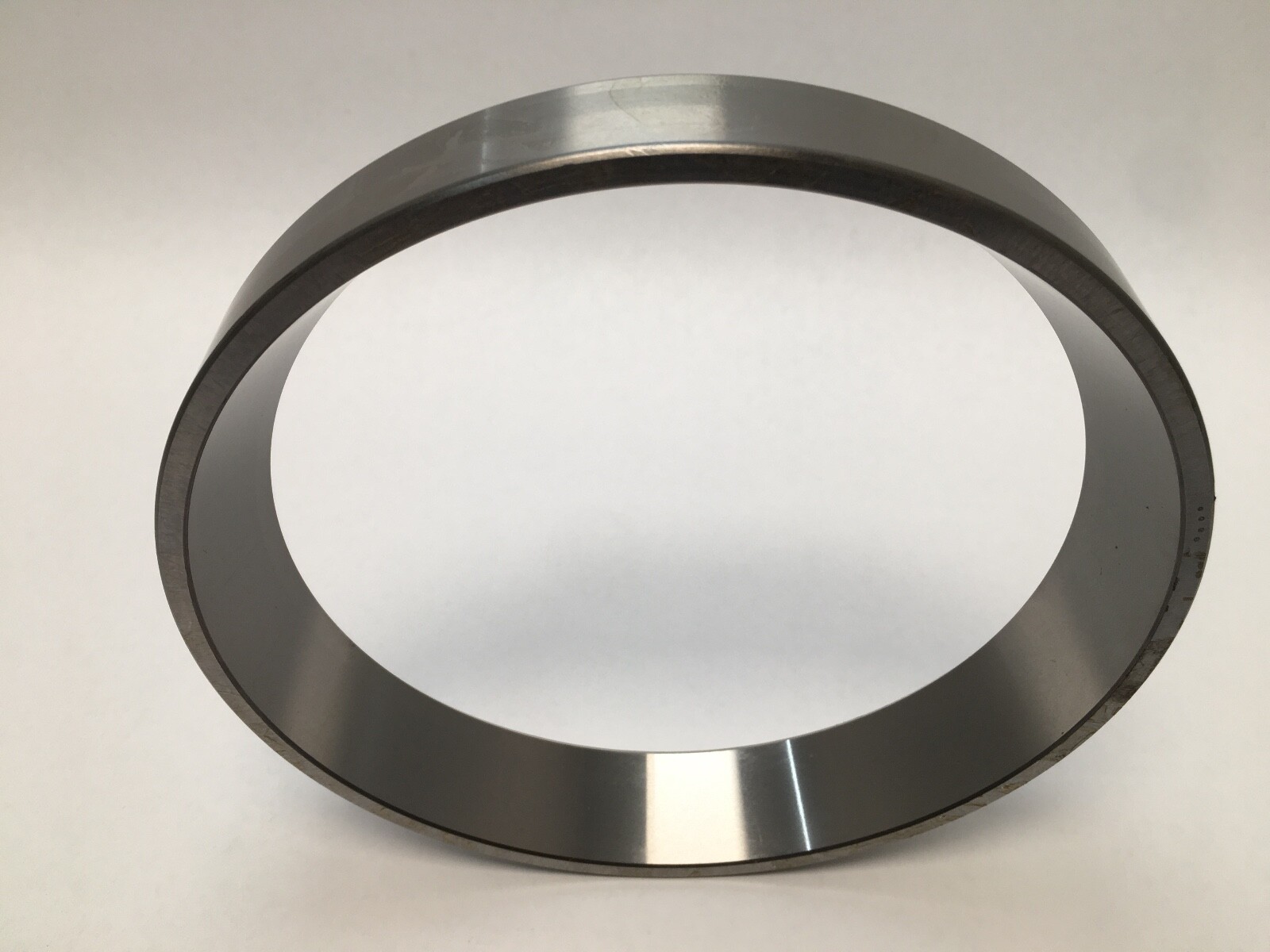

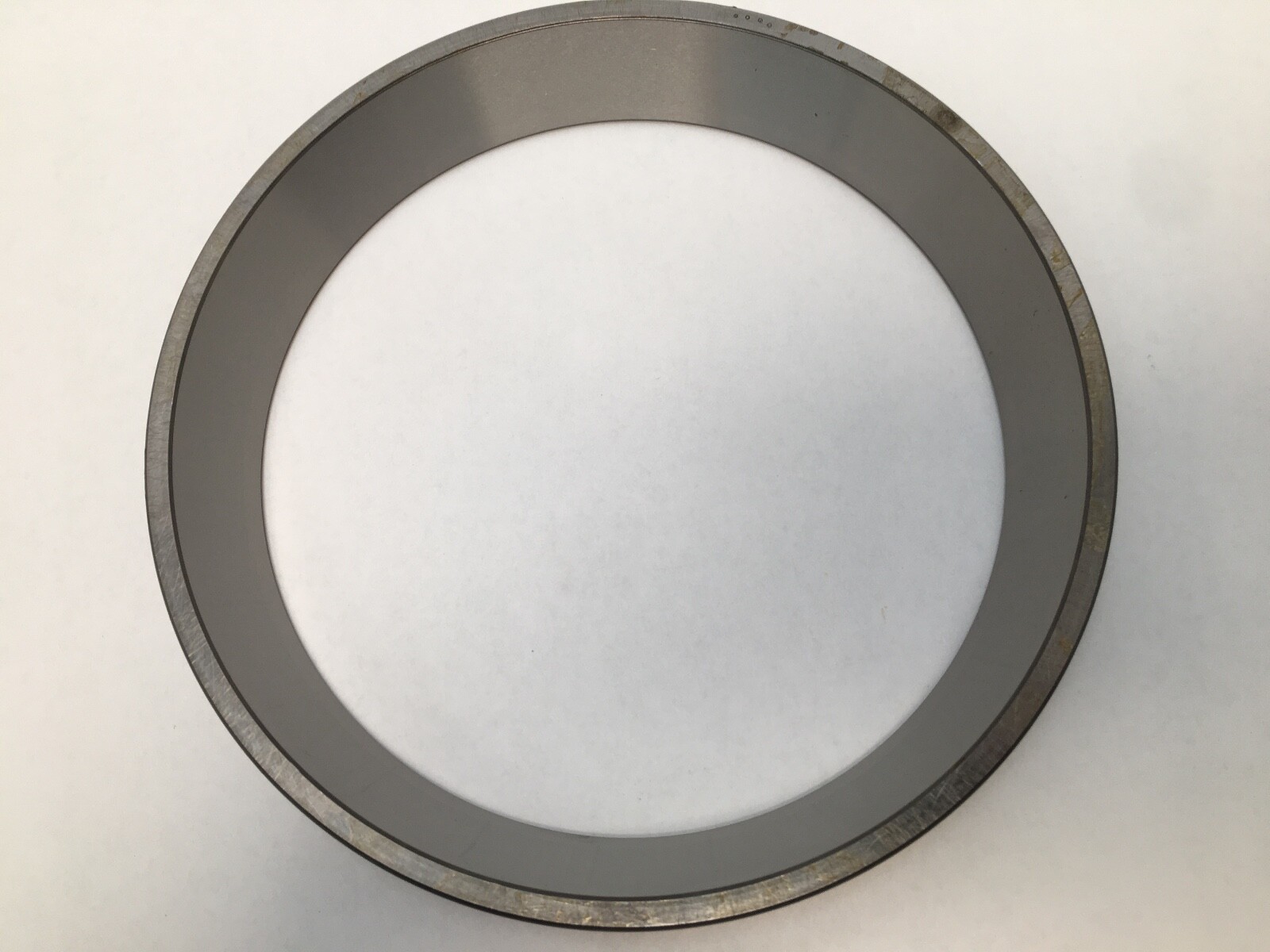

Outside diameter 6.7500 in (171.450 mm) and width 0.9948 in (25.268 mm).
Timken cones 67425 and 67434.

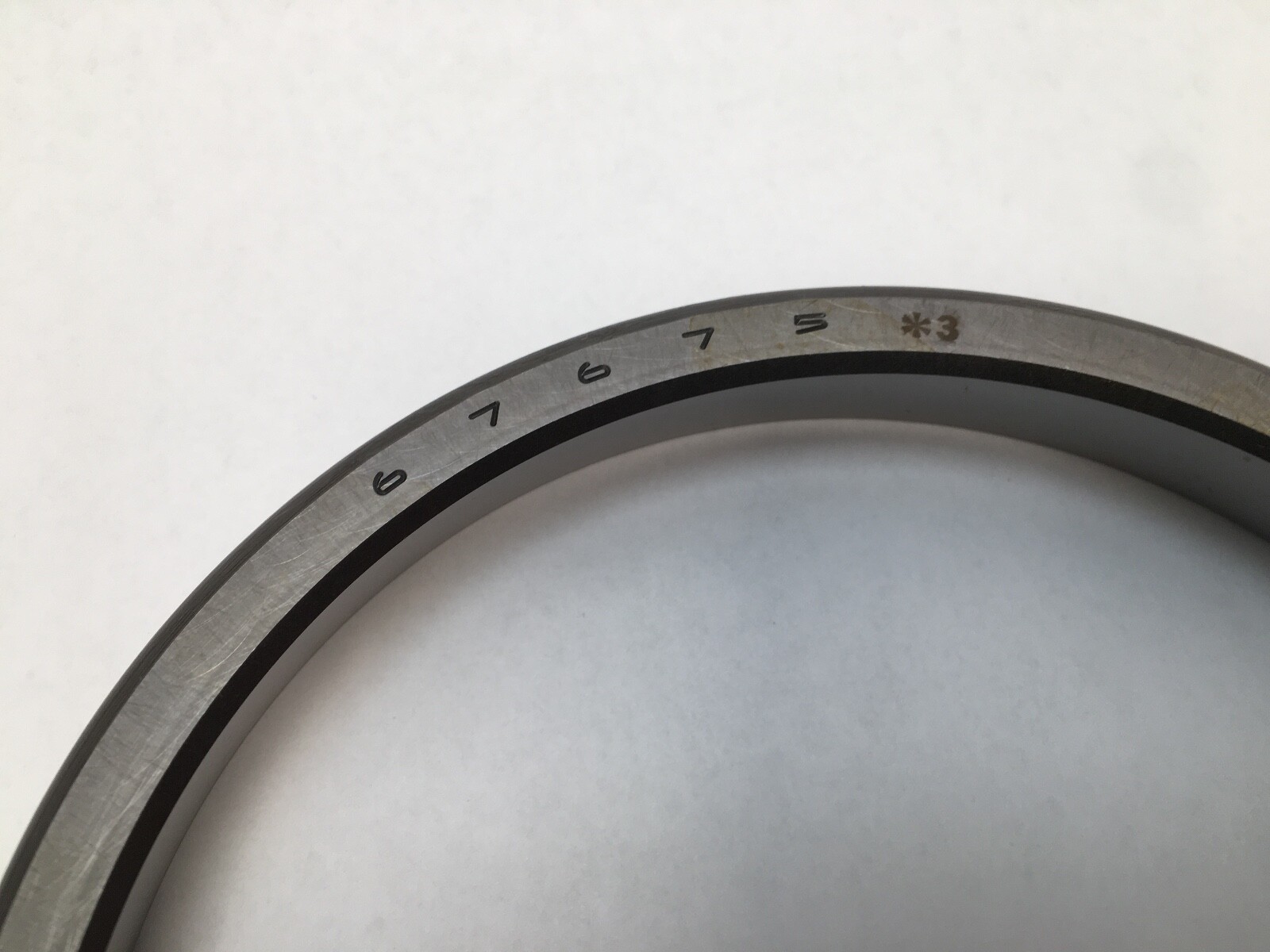

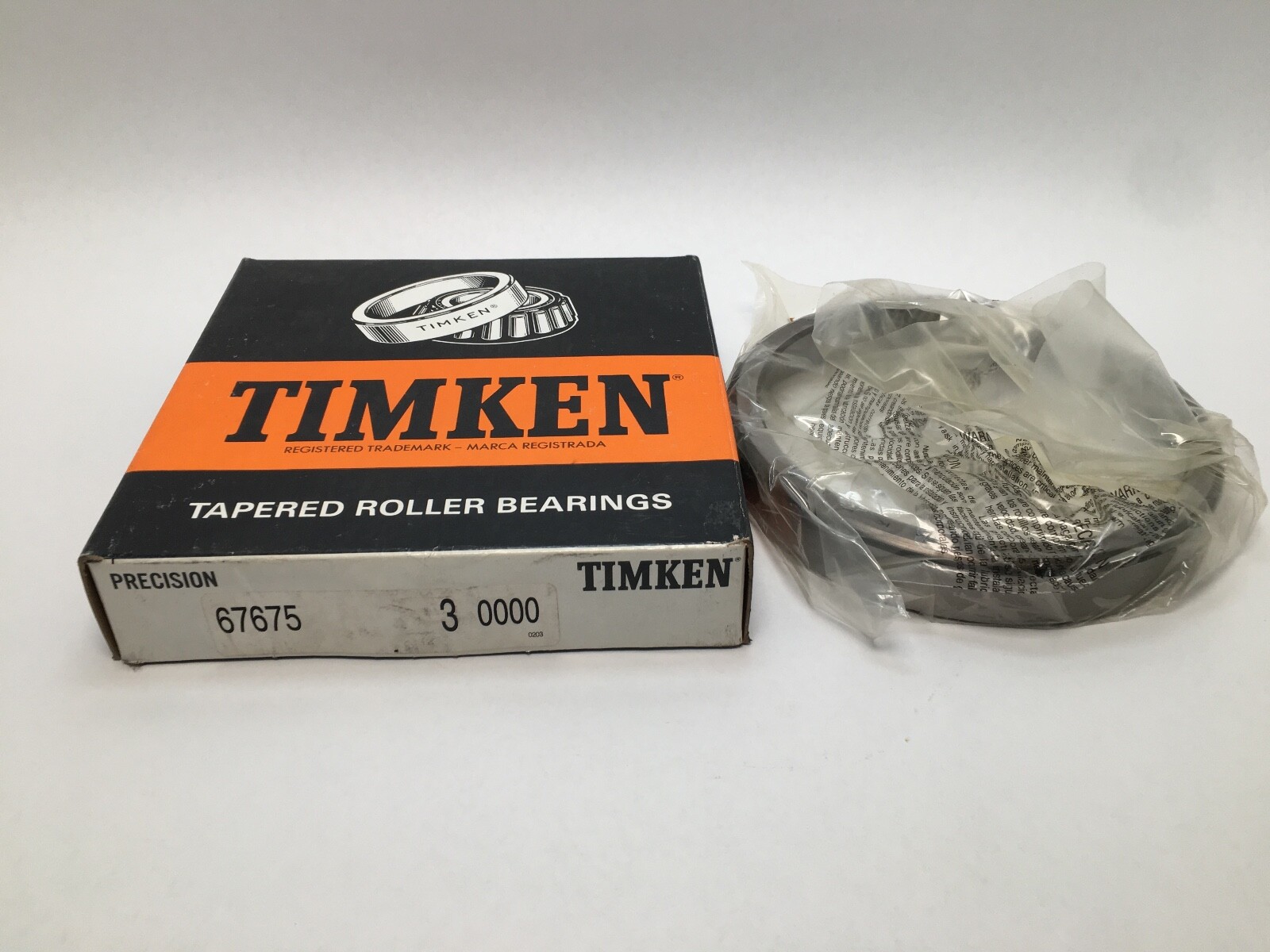

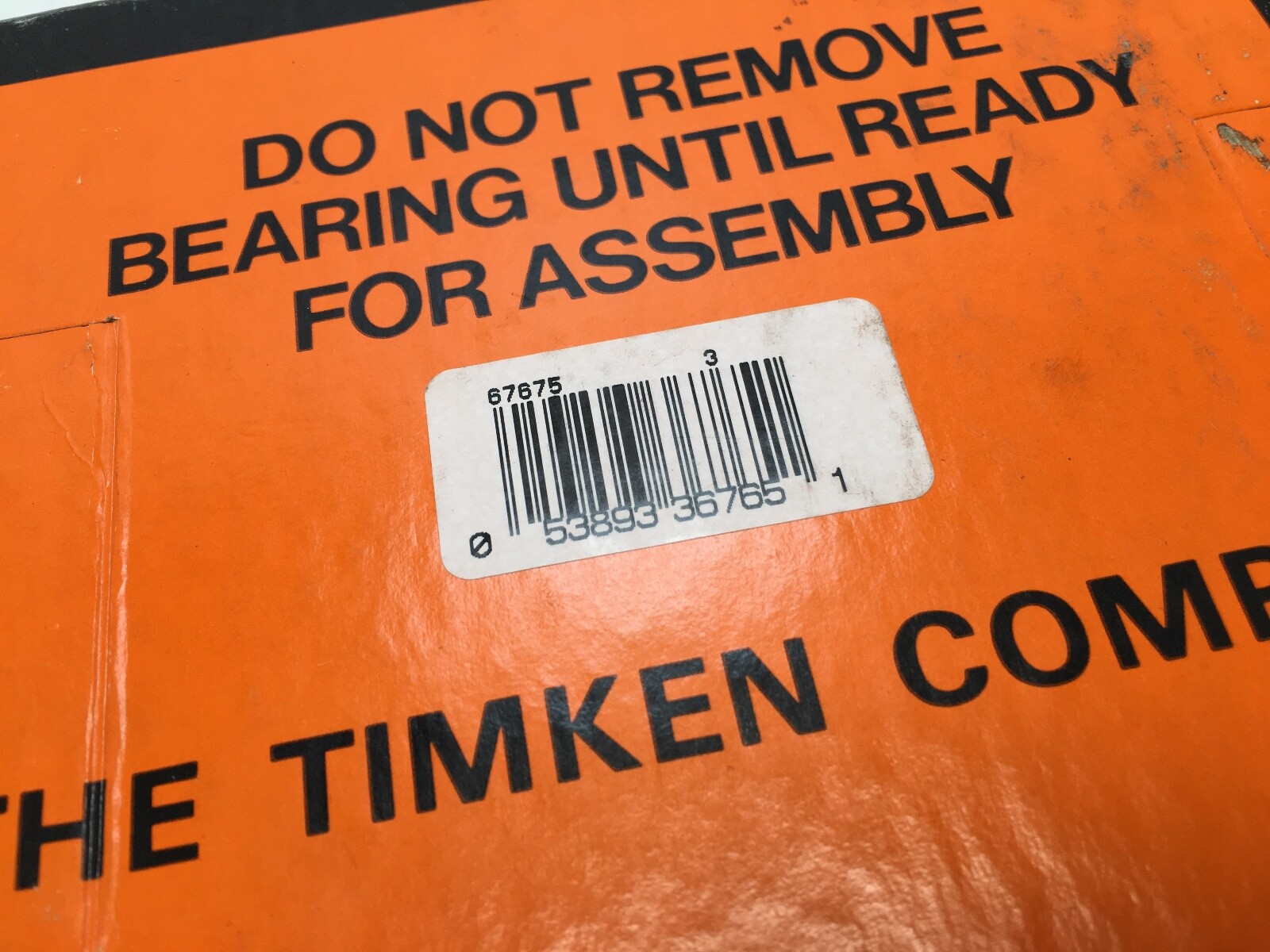

-3 is Timken precision Class 3; cartons may also read 67675*3 or 67675#3.
