Availability:
1 in stock

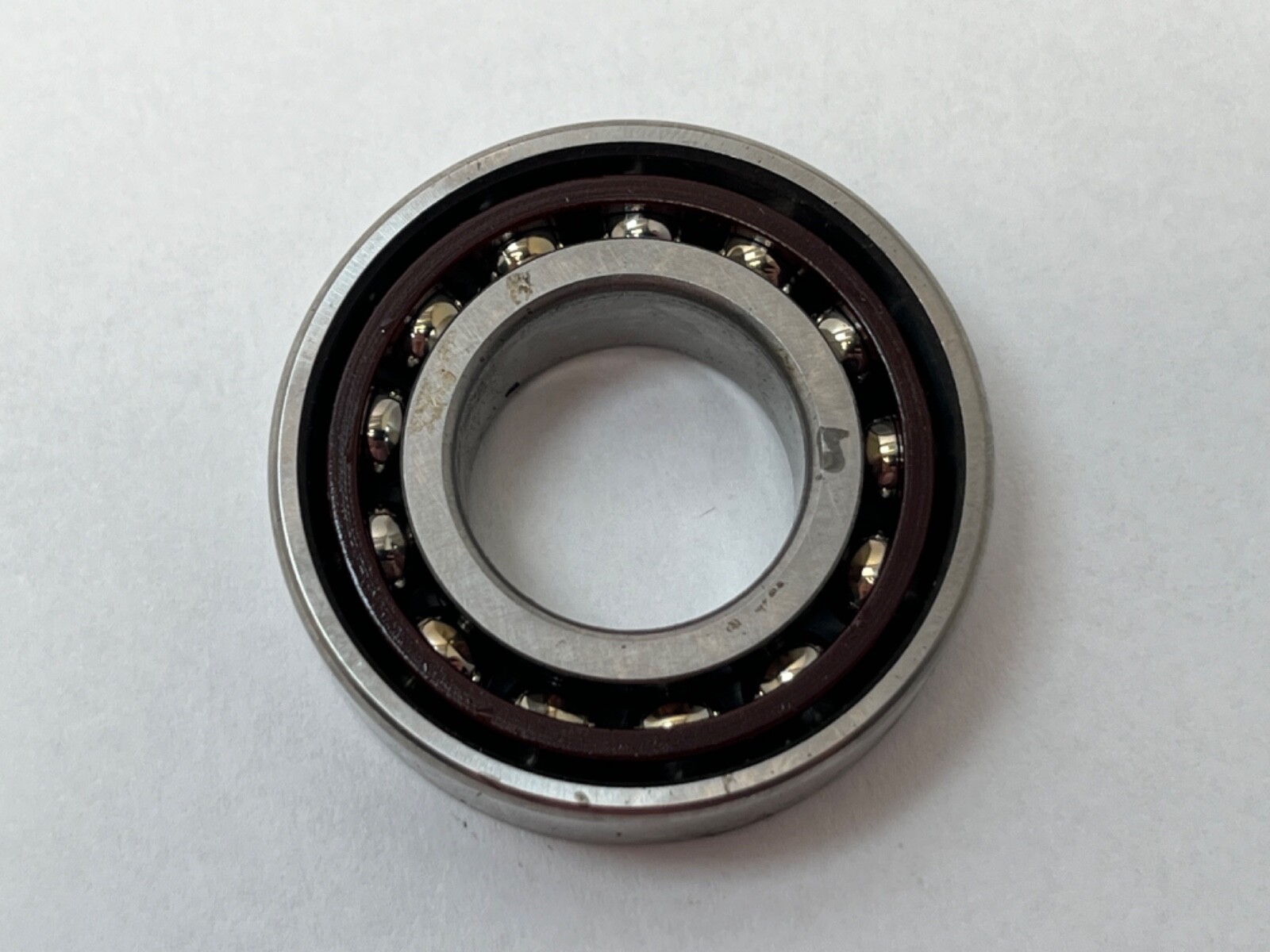

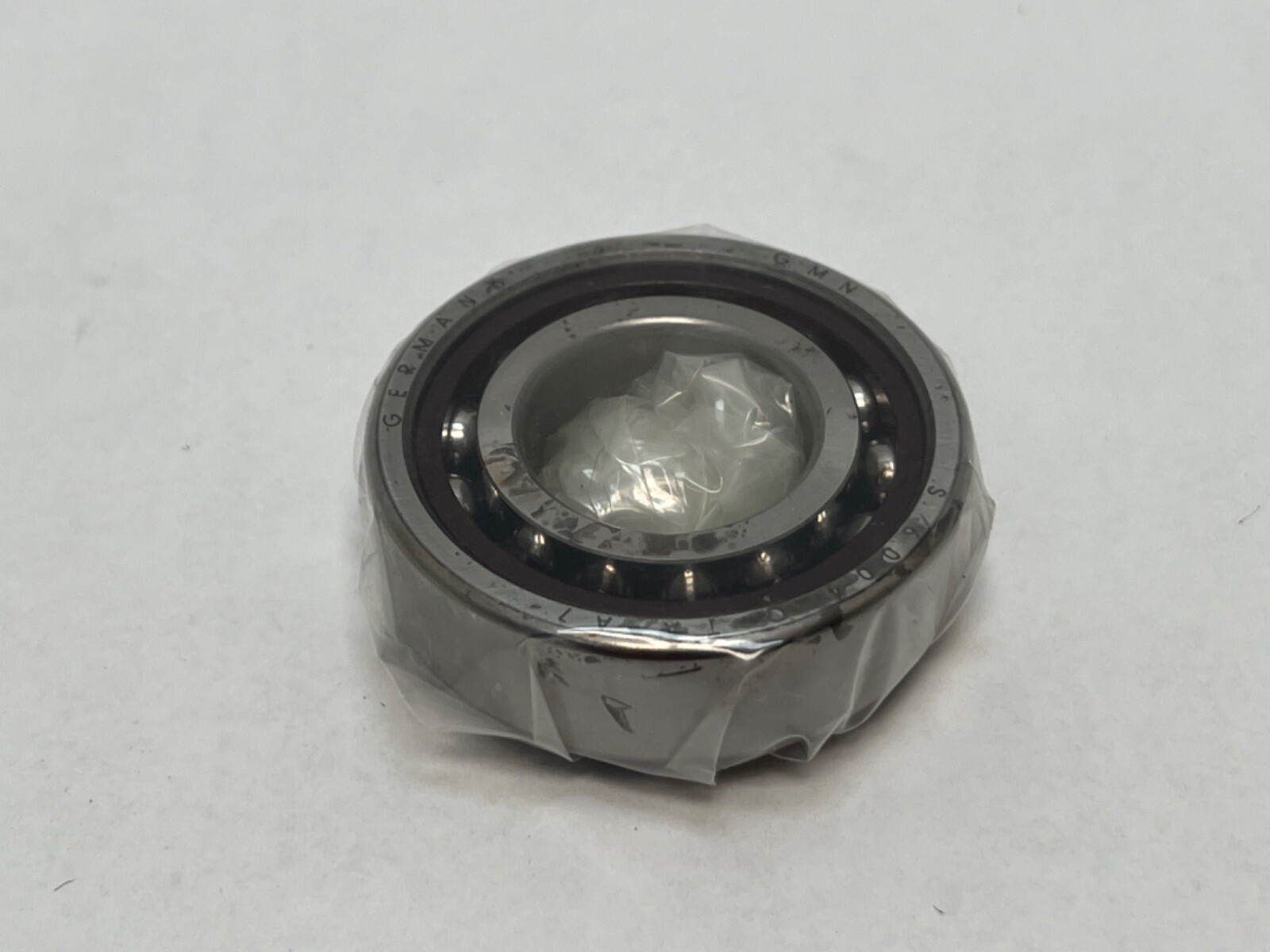

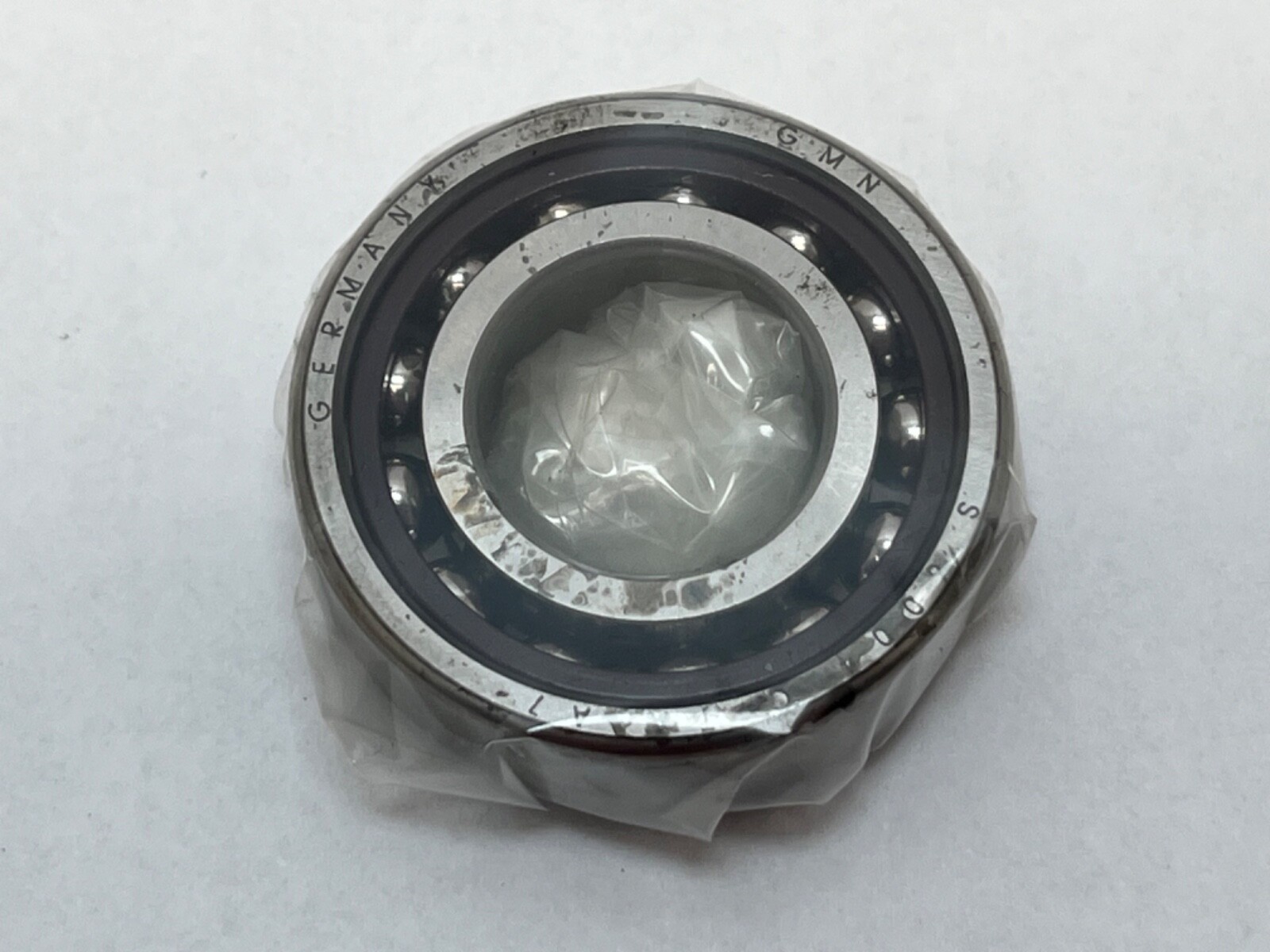

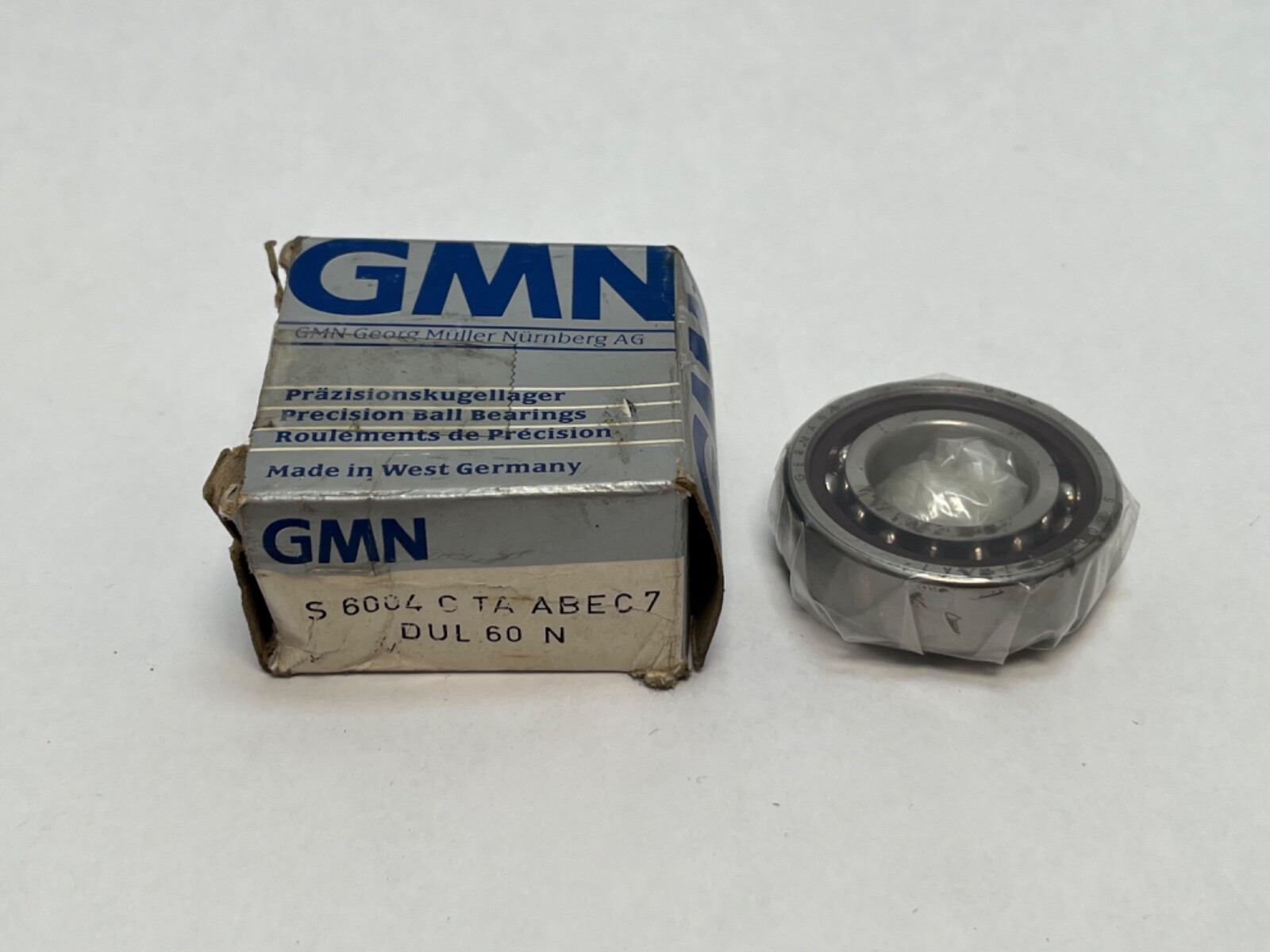

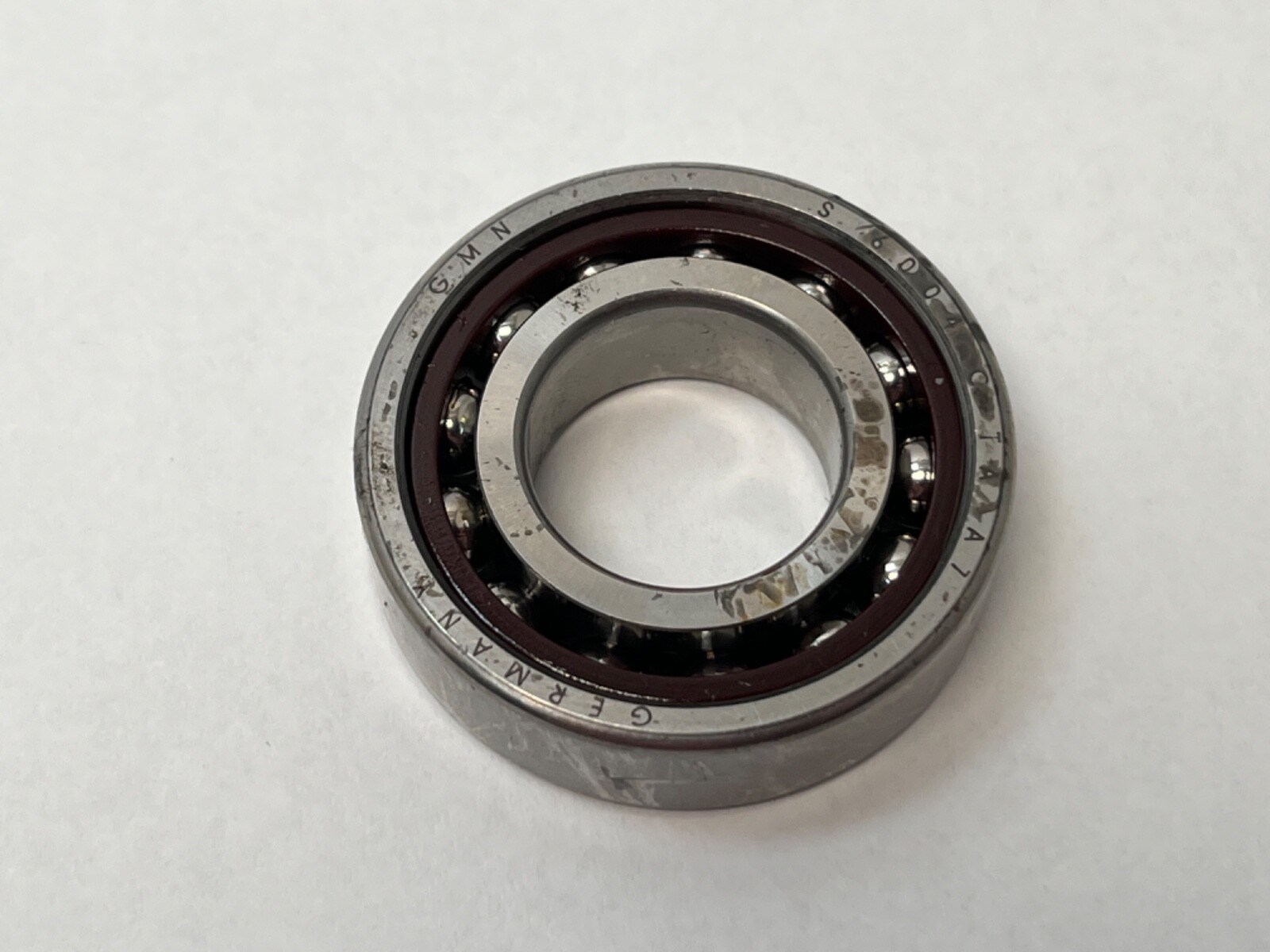

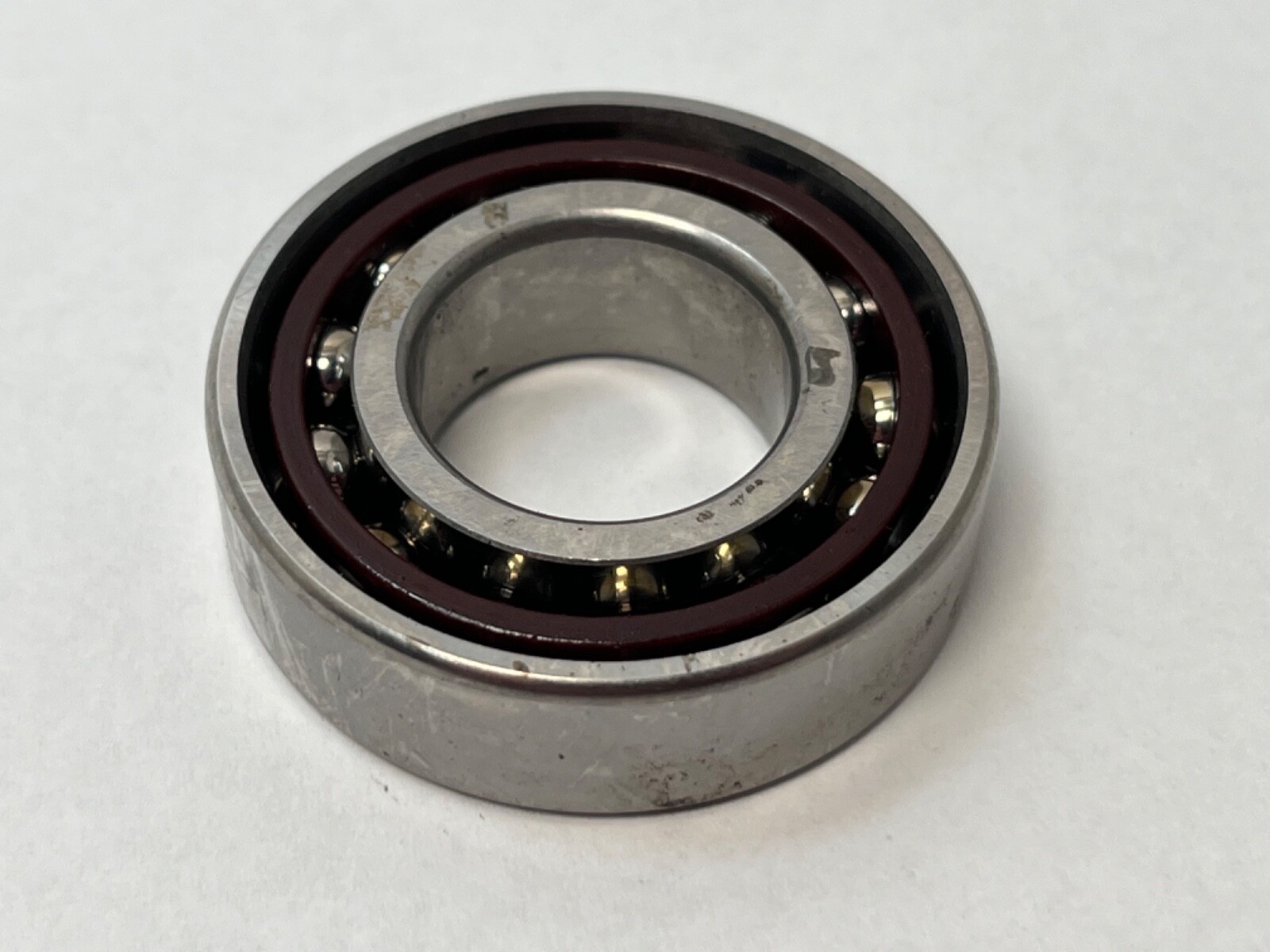

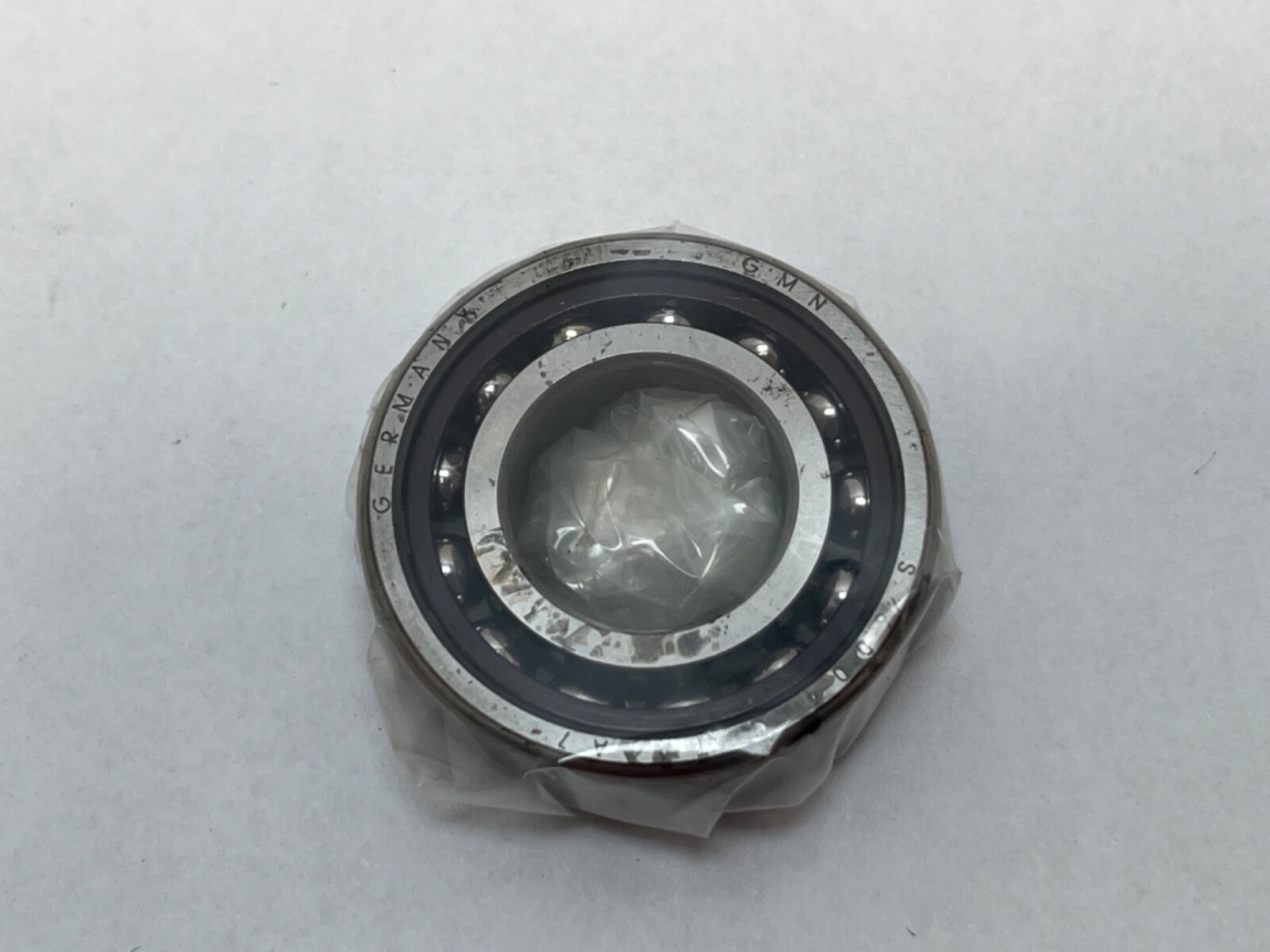

GMN S6004CTAA7UL angular contact spindle bearing, 20 x 42 x 12 mm, 15° contact angle, ABEC 7, universal matching with light preload (60 N), phenolic cage.
List Price
$45.23
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | GMN |
|---|---|
| MPN | S6004CTAA7UL |
| Model | S6004CTAA7UL |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 20 mm |
| OD | 42 mm |
| Width | 12 mm |
| Material | 100Cr6 (SAE 52100) steel |
|---|---|
| Series | GMN S 60 |
| Lubricant | Grease or oil |
| Preload | L (light), 60 N |
| Closure Type | Open |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 12,200 N |
| Static Load Rating | 7,600 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Item Weight | 0.063 kg (0.14 lb) |
| Cage Material | Phenolic |
| Limiting Speed | 41,000 rpm grease; 55,000 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mpn Variants | S6004CTAA7UL, S 6004 C TA A7 UL, S-6004-C-TA-A7-DUL, S6004CTA, 7004C |
| Arrangement Configuration | Universal matching (UL) |
| Precision Class | ABEC 7 / P4 |
| Additional Attributes | Number of balls: 13; Ball diameter: 6.35 mm; Pitch circle diameter: 31 mm; Abutment da min: 25 mm; Abutment Da max: 37 mm; GMN preload values: L 60 N, M 180 N, S 360 N; Axial rigidity (pair, light preload): 33 N/µm; TA cage operating temperature: 120 °C |
| Bearing Material | 100Cr6 (SAE 52100) steel |
| Cross Reference 1 | SKF 7004 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B7004-C-T-P4S |
| Cross Reference 3 | NSK 7004CTYP4 |
| Cross Reference 4 | Fafnir 2MM9104WI |
GMN S6004CTAA7UL is a single-row angular contact spindle bearing from GMN’s S series on the 7004 envelope, universally matched with light preload. Bore Diameter: 20 mm. Outside Diameter: 42 mm. Overall Width: 12 mm. Contact Angle: 15°. Precision Class: ABEC 7 / P4.
S — GMN standard spindle bearing series, non-separable.
6004 — 60 dimension series, 20 mm bore: the 7004 size, 20 x 42 x 12 mm.
C — 15° nominal contact angle.
TA — laminated phenolic resin cage guided on the outer ring.
A7 — ABEC 7 per ABMA, corresponding to P4.
UL — universal matching with light preload. GMN light preload for this size: 60 N.
Dynamic Load Rating: 12,200 N. Static Load Rating: 7,600 N. Limiting Speed: 41,000 rpm grease; 55,000 rpm oil. Preload: L (light), 60 N; axial rigidity of a pair at light preload 33 N/µm. Cage Material: Phenolic, rated by GMN to 120 °C.
Item Weight: 0.063 kg. Number of balls: 13. Ball diameter: 6.35 mm. Pitch circle diameter: 31 mm. Abutment diameter inner ring da min: 25 mm. Abutment diameter outer ring Da max: 37 mm. Chamfer rs: 0.6 mm, open side 0.3 mm. GMN preload values for this size: L 60 N, M 180 N, S 360 N.
Unit Quantity: 1 Pc. Universally matched for back-to-back, face-to-face or tandem mounting. Closure Type: Open.
Same 20 x 42 x 12 mm envelope, 15° angle and P4-class tolerance: SKF 7004 CD/P4A, FAG B7004-C-T-P4S, NSK 7004CTYP4, Fafnir 2MM9104WI. Preload levels and cage materials vary by maker.
