Availability:
1 in stock

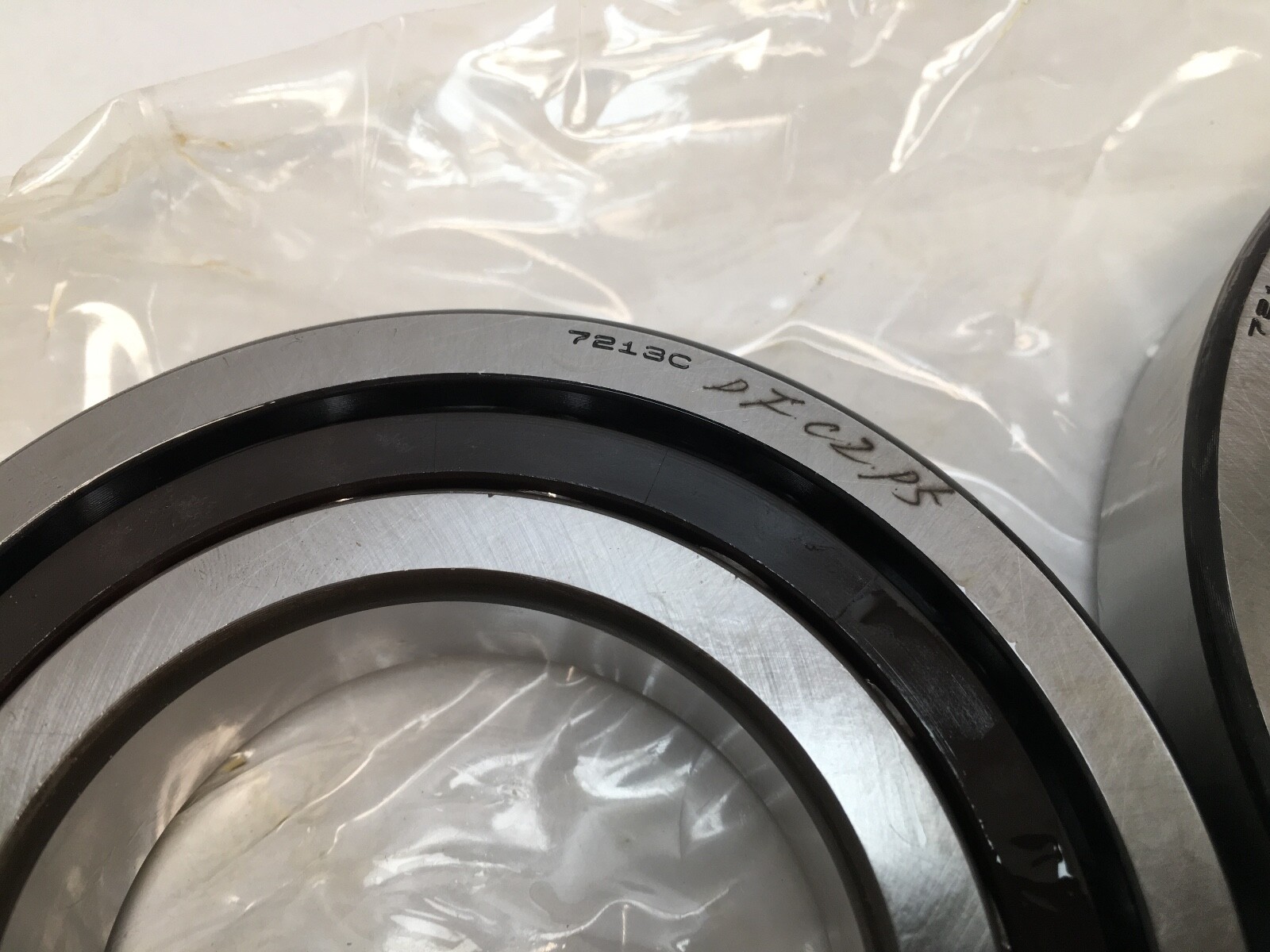

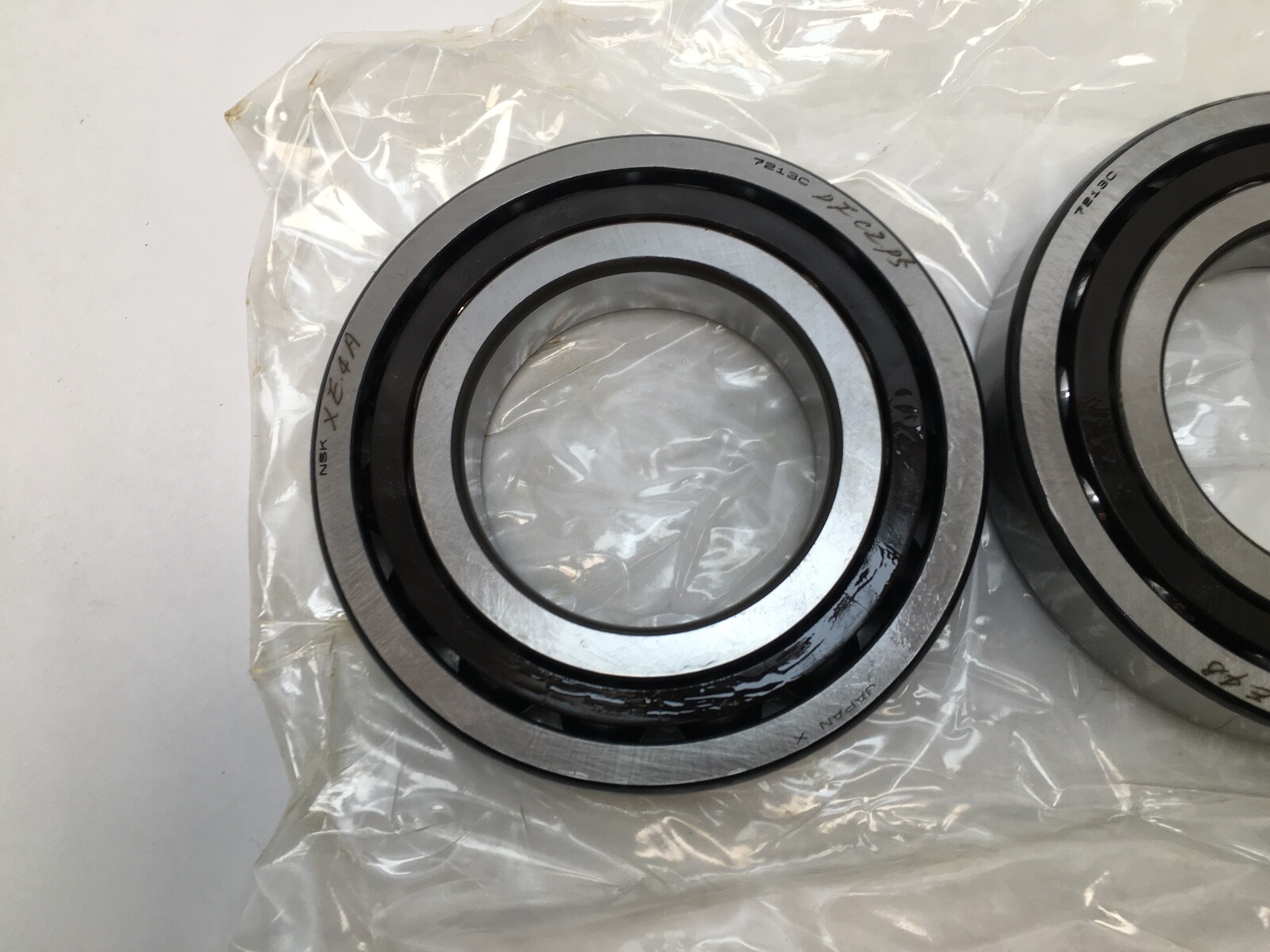

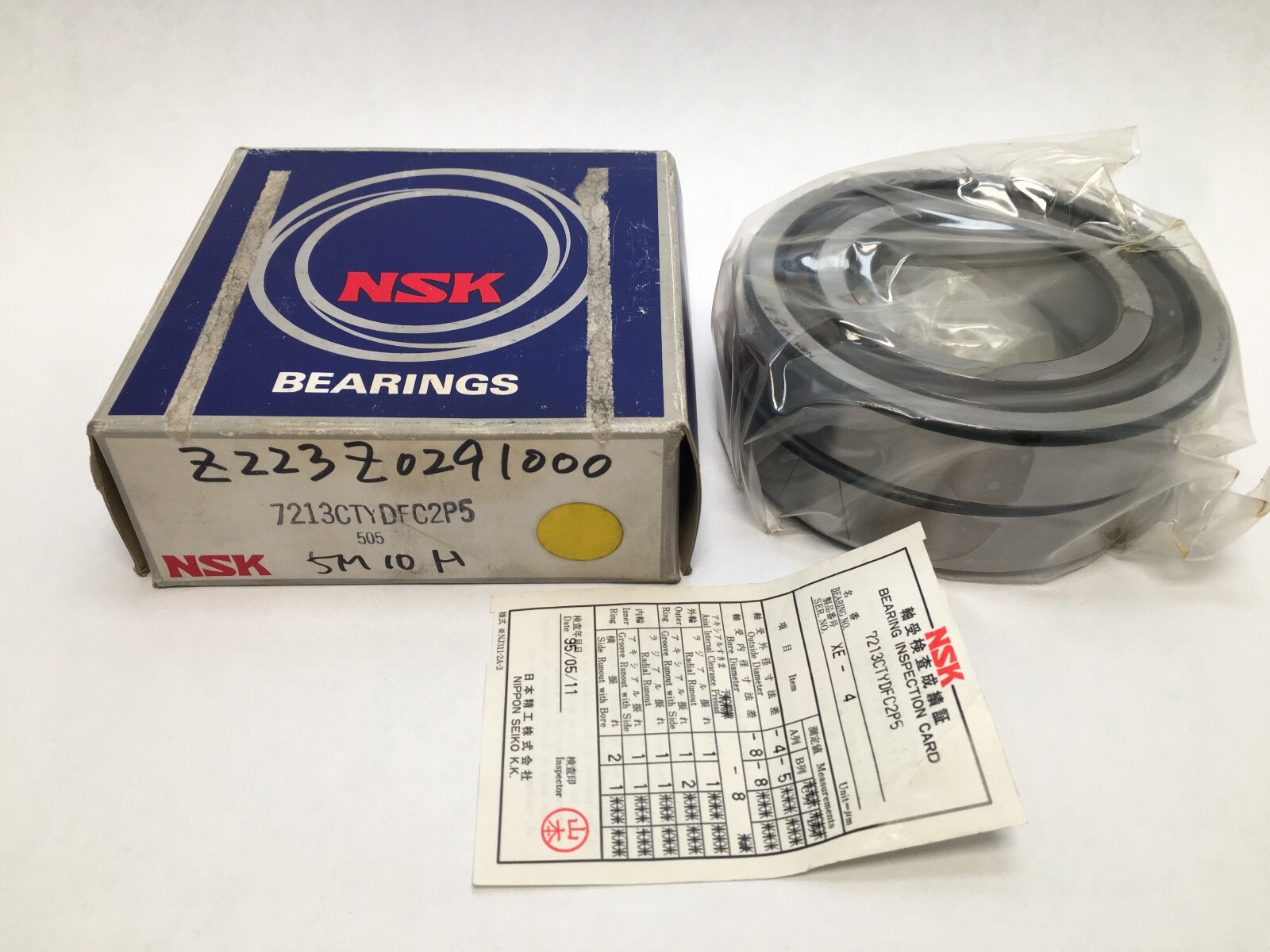

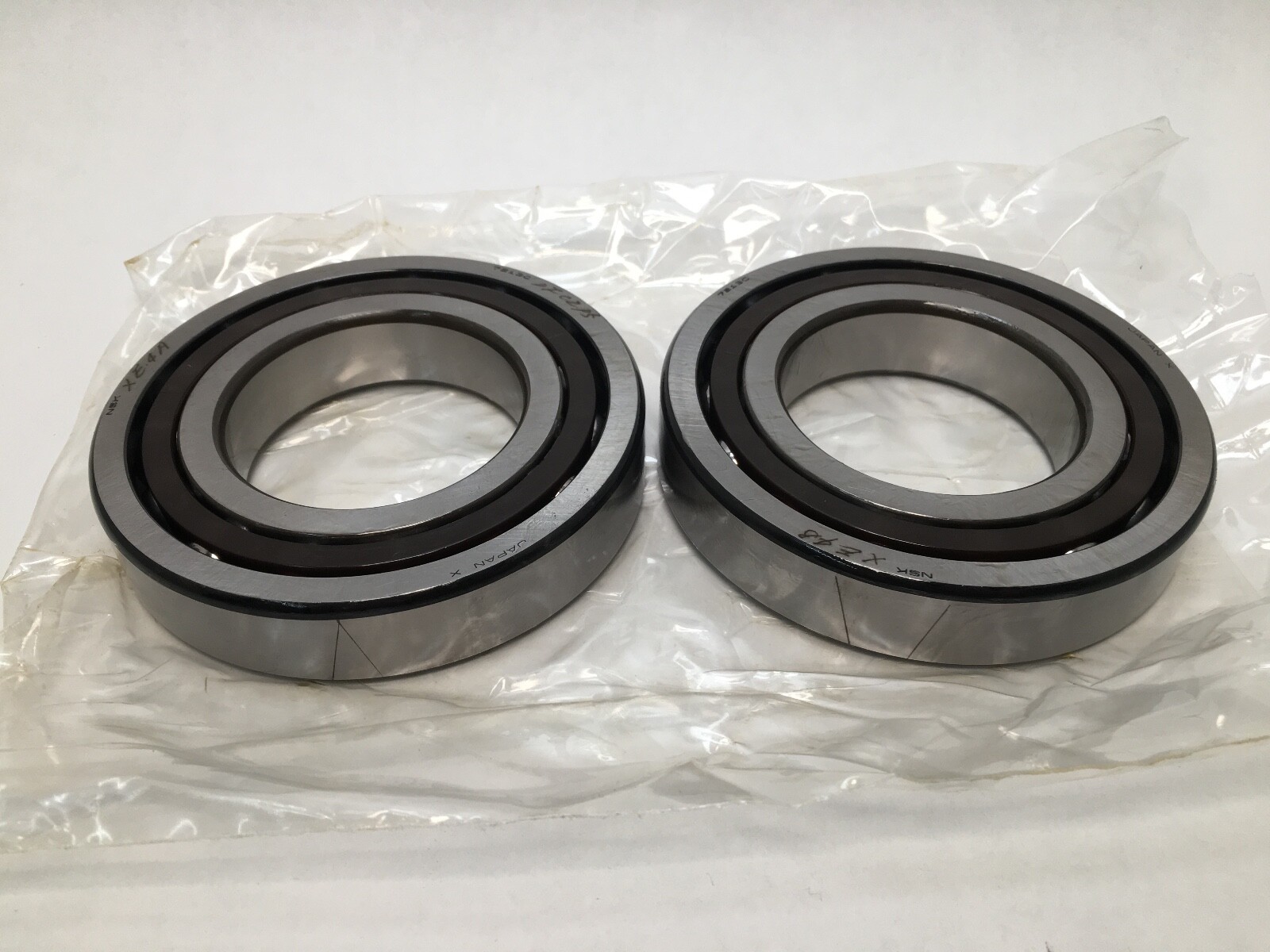

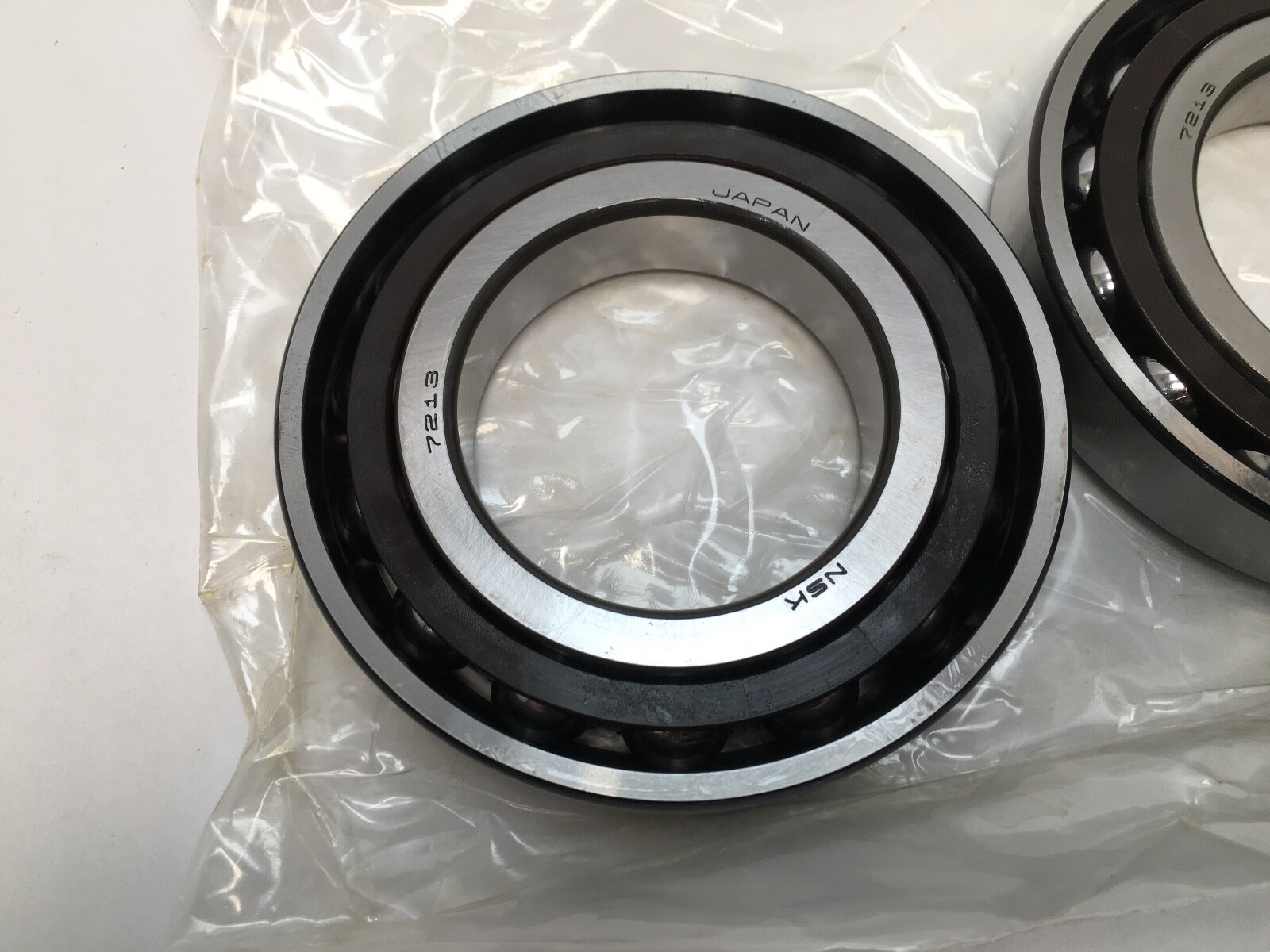

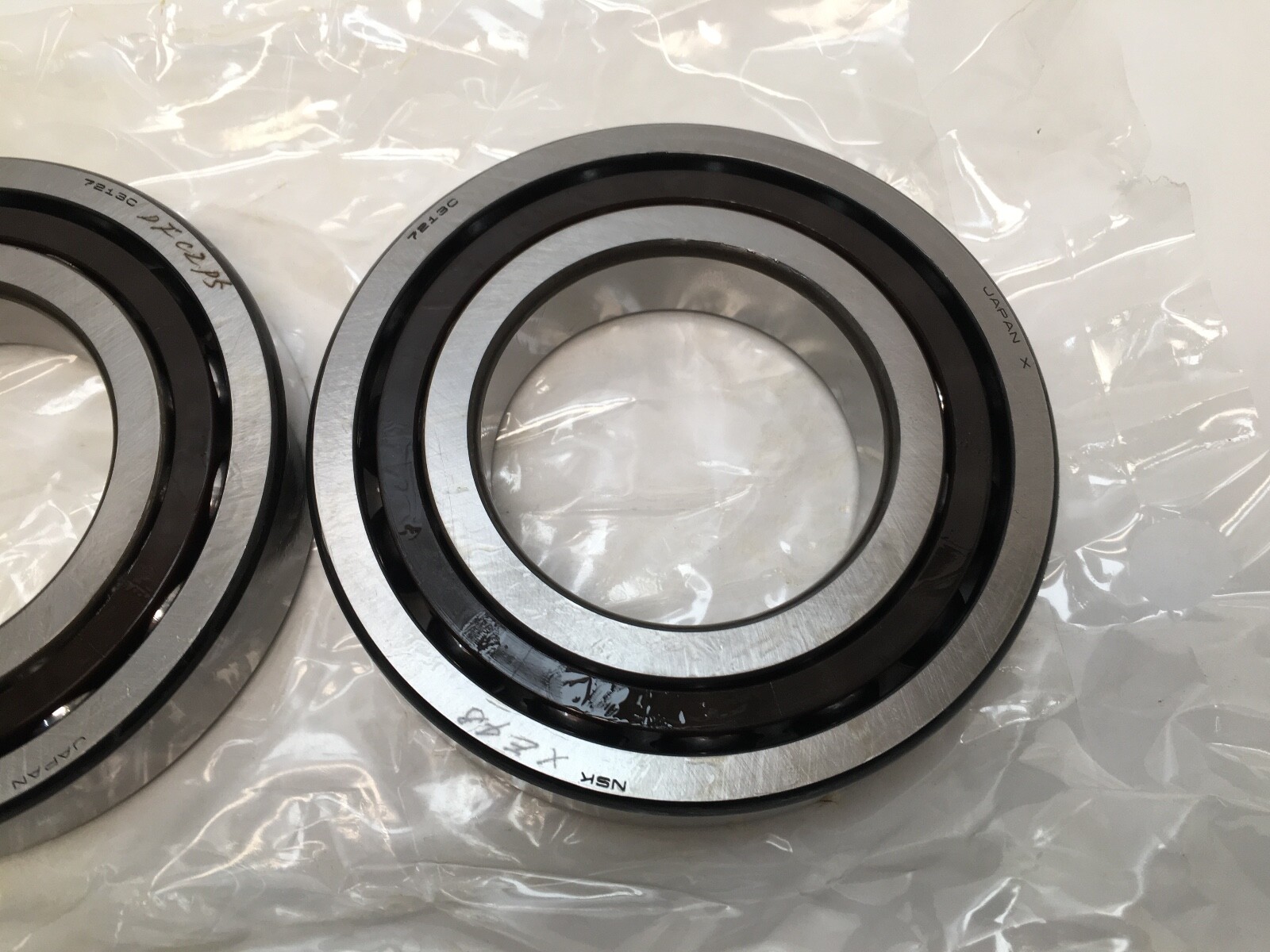

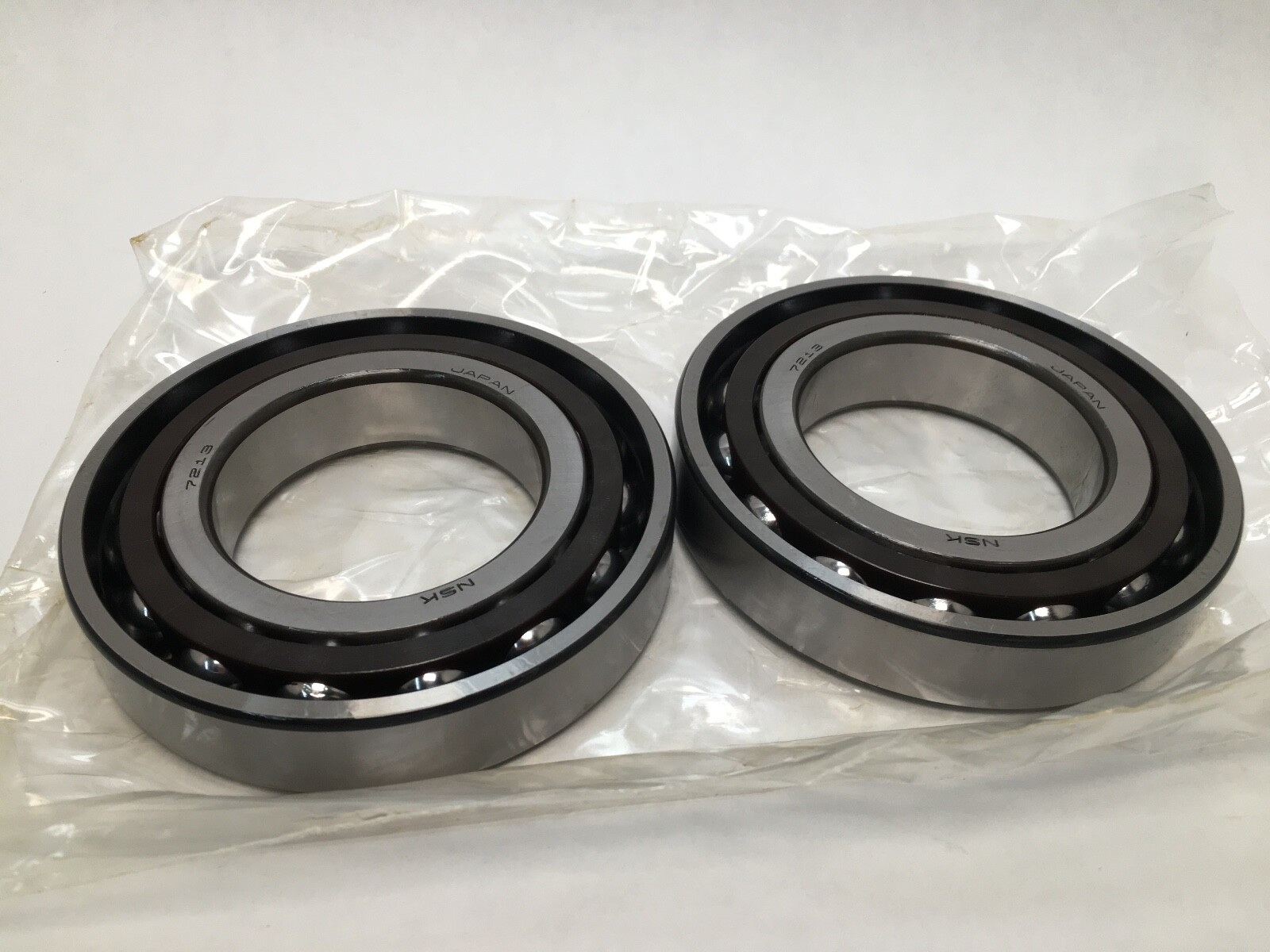

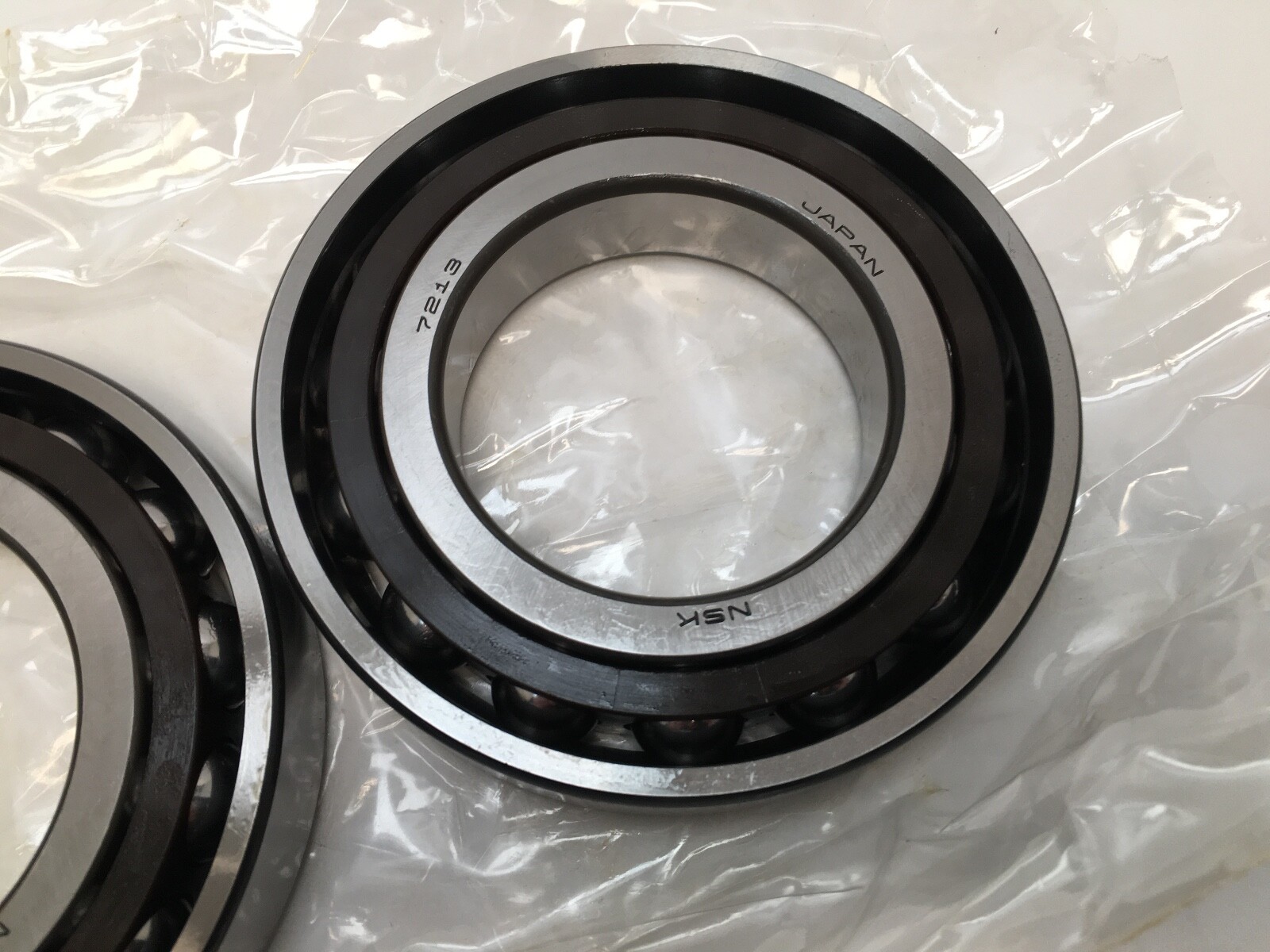

Super precision angular contact ball bearing, 65x120x23 mm, 15 degree contact angle, ball-guided cage, ABEC 5 face-to-face pair, 92,000 N dynamic rating.
List Price
$344.04
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | NSK |
|---|---|
| Model | 7213C-TY-DF-C2-P5 |
| Bearing Type | Angular Contact Ball Bearing |
| ID | 65 mm |
| OD | 120 mm |
| Base Number | 7213C |
|---|---|
| Industry Terms | Super precision spindle bearing; face-to-face duplex set; DF matched pair; precision angular contact bearing; ABEC 5 bearing |
| Common Misspellings | 7213CTVDFC2P5; 7213 CTY DFC2P5; 7213CTYDFCZP5; 7213CTYDFC2PS; NSK 7213CTYDF2CP5 |
| Application Types | Machine tool spindles; grinding spindles; boring and milling spindles; precision gearboxes; rotary tables |
| Overall Width | 23 mm |
| Mpn Variants | 7213CTYDFC2P5; 7213C TY DF C2 P5; 7213-C-TY-DF-C2-P5; 7213-CTY-DF-C2-P5; 7213CTYDF C2 P5 |
| Precision Class | ABEC 5 / P5 |
| Additional Attributes | da min 74 mm; Da max 111 mm; Db max 114 mm; ra max 1.5 mm; rb max 0.8 mm; r min 1.5 mm; r1 min 1 mm; effective load centre a 23.9 mm; permissible axial load Pa 40.0 kN; recommended grease quantity 5.3 g per bearing |
| Cage Type | Ball-guided |
| Dynamic Load Rating | 92,000 N |
| Static Load Rating | 58,500 N |
| Series | 7200 Super Precision |
| Rolling Elements | Ball |
| Item Weight | 1.01 kg (2.227 lb) per bearing |
| Number Of Rows | Single Row |
| Bore Type | Straight |
| Limiting Speed | 12,500 rpm grease; 19,000 rpm oil |
| Lubricant | Grease or oil-air |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Preload | C2 |
| Mounting Arrangement | Face-to-face (DF) |
| Bearing Material | Bearing Steel |
| Cross Reference 1 | NSK 7213CTRDFC2P5 (outer-ring guided cage, not ball-guided) |
|---|---|
| Cross Reference 2 | SKF 7213 CD/P5 DFA (extra light preload) |
| Cross Reference 3 | FAG B7213-C-T-P4S-DF (P4S class, preload not stated) |
| Cross Reference 4 | Timken (Fafnir) 2MM213WI DF (P4S class, preload not stated) |
| Cross Reference 5 | RHP 7213CTDFC2 (precision class not stated) |
| Cross Reference 6 | Koyo 7213C-5G DF (preload not verified) |
| Cross Reference 7 | NTN 7213CDF/GNP5 (preload not verified) |
| Cross Reference 8 | GMN S 6213 C DF (preload not verified) |
| Cross Reference 9 | NSK 7213CTYDBC2P5 (back-to-back, not face-to-face) |
NSK 7213C TY DF C2 P5 is a super precision single-row angular contact ball bearing supplied as a face-to-face matched pair. Bore Diameter: 65 mm (2.5591 in). Outside Diameter: 120 mm (4.7244 in). Overall Width: 23 mm (0.9055 in). Contact Angle: 15°. Rolling Elements: Ball. Bore Type: Straight. Closure Type: Open. Number Of Rows: Single Row. Bearing Material: Bearing Steel.
7213 — 72 series super precision angular contact ball bearing in the 13 bore size, giving a 65 mm bore.
C — 15° contact angle.
TY — ball-guided cage.
DF — face-to-face duplex arrangement, the two bearings ground and matched as a set.
C2 — NSK preload class for the duplex set.
P5 — ISO class 5 precision tolerance, ABEC 5.
Dynamic Load Rating: 92,000 N per bearing. Static Load Rating: 58,500 N per bearing. Dynamic Load Rating (lbf): 20,683 lbf per bearing. Static Load Rating (lbf): 13,151 lbf per bearing. Limiting Speed: 12,500 rpm grease; 19,000 rpm oil. Item Weight: 1.01 kg (2.227 lb) per bearing. Precision Class: ABEC 5 / P5. Cage Type: Ball-guided. Preload: C2. Lubricant: Grease or oil-air. Permissible axial load Pa: 40.0 kN per bearing. Recommended grease quantity: 5.3 g per bearing.
Shaft abutment diameter da min: 74 mm. Housing abutment diameter Da max: 111 mm. Housing abutment diameter Db max: 114 mm. Shaft fillet radius ra max: 1.5 mm. Housing fillet radius rb max: 0.8 mm. Chamfer r min: 1.5 mm. Chamfer r1 min: 1 mm. Effective load centre a: 23.9 mm.
Unit Quantity: 2 Pcs. Mounting Arrangement: Face-to-face (DF). Series: 7200 Super Precision. Base Number: 7213C. Load ratings and mass stated above are per bearing.
15° super precision executions on the 65 x 120 x 23 mm size: SKF 7213 CD/P5 DFA (extra light preload) · FAG B7213-C-T-P4S-DF · Timken 2MM213WI DF · RHP 7213CTDFC2 · Koyo 7213C-5G DF · NTN 7213CDF/GNP5 · GMN S 6213 C DF. Preload and precision class differ between makers and are not verified for every part.
NSK sibling execution 7213CTRDFC2P5 carries a phenolic outer-ring guided cage in place of the ball-guided cage. NSK 7213CTYDBC2P5 is the same pair arranged back-to-back, not face-to-face.
