Availability:
1 in stock

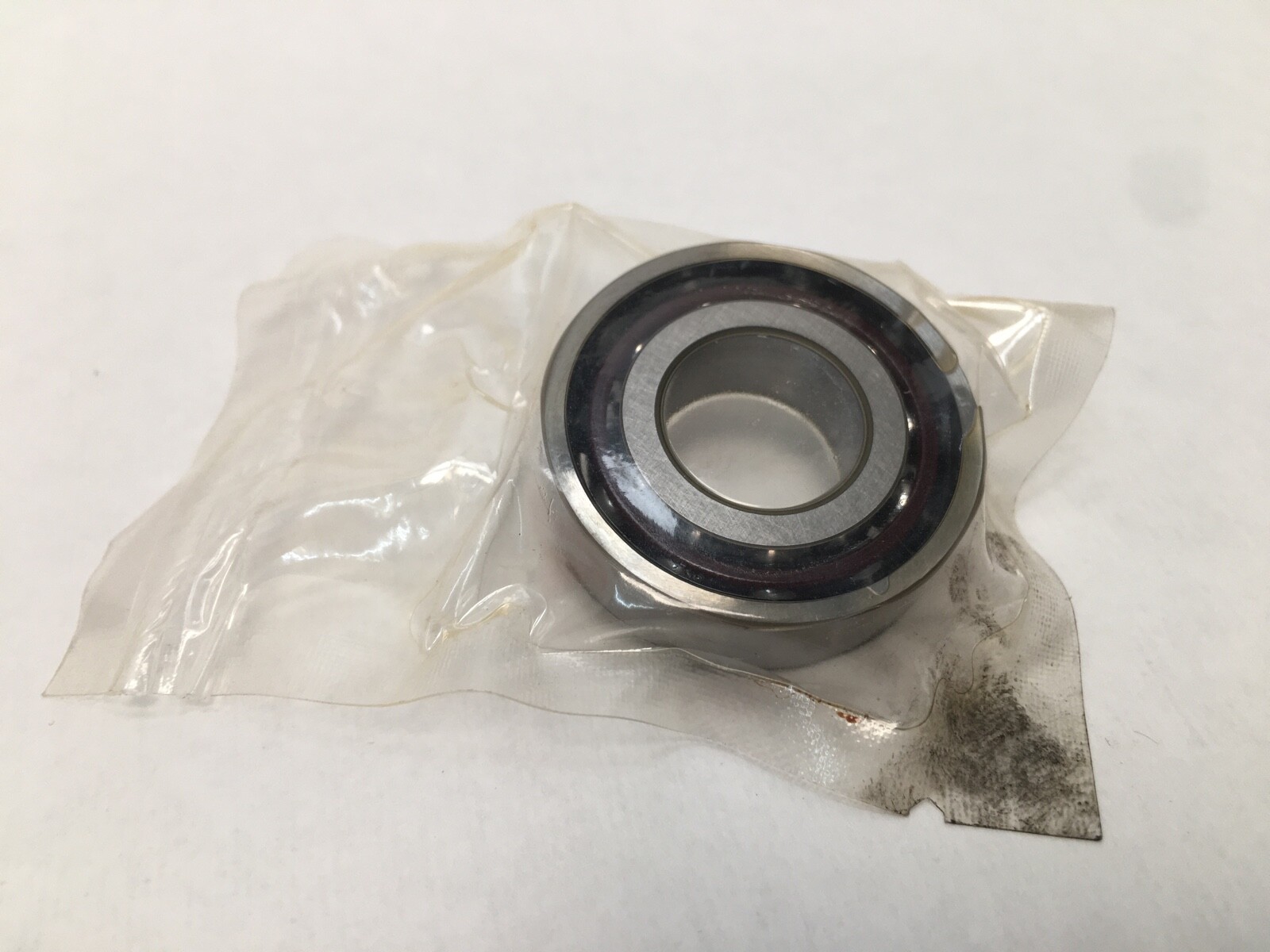

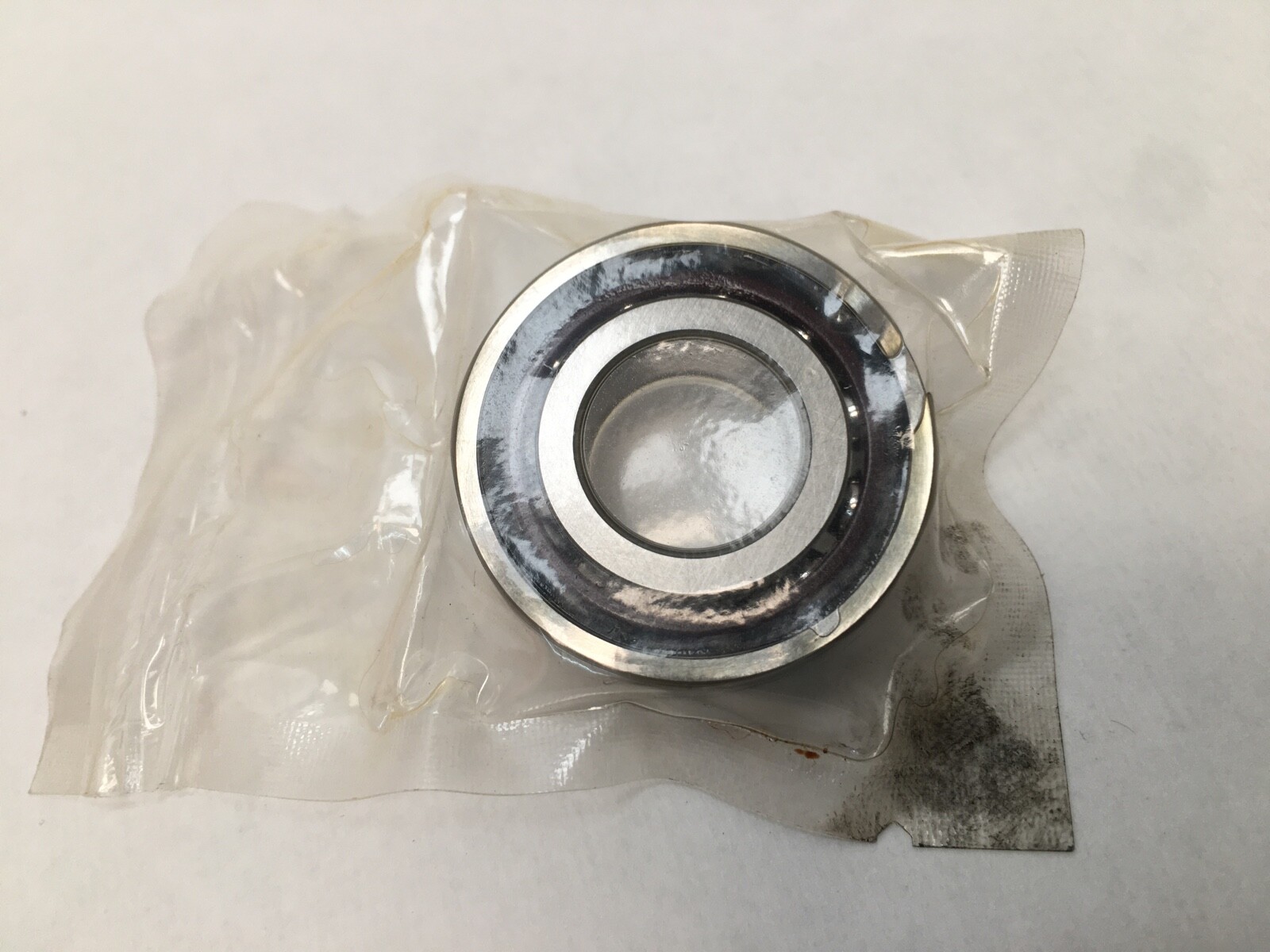

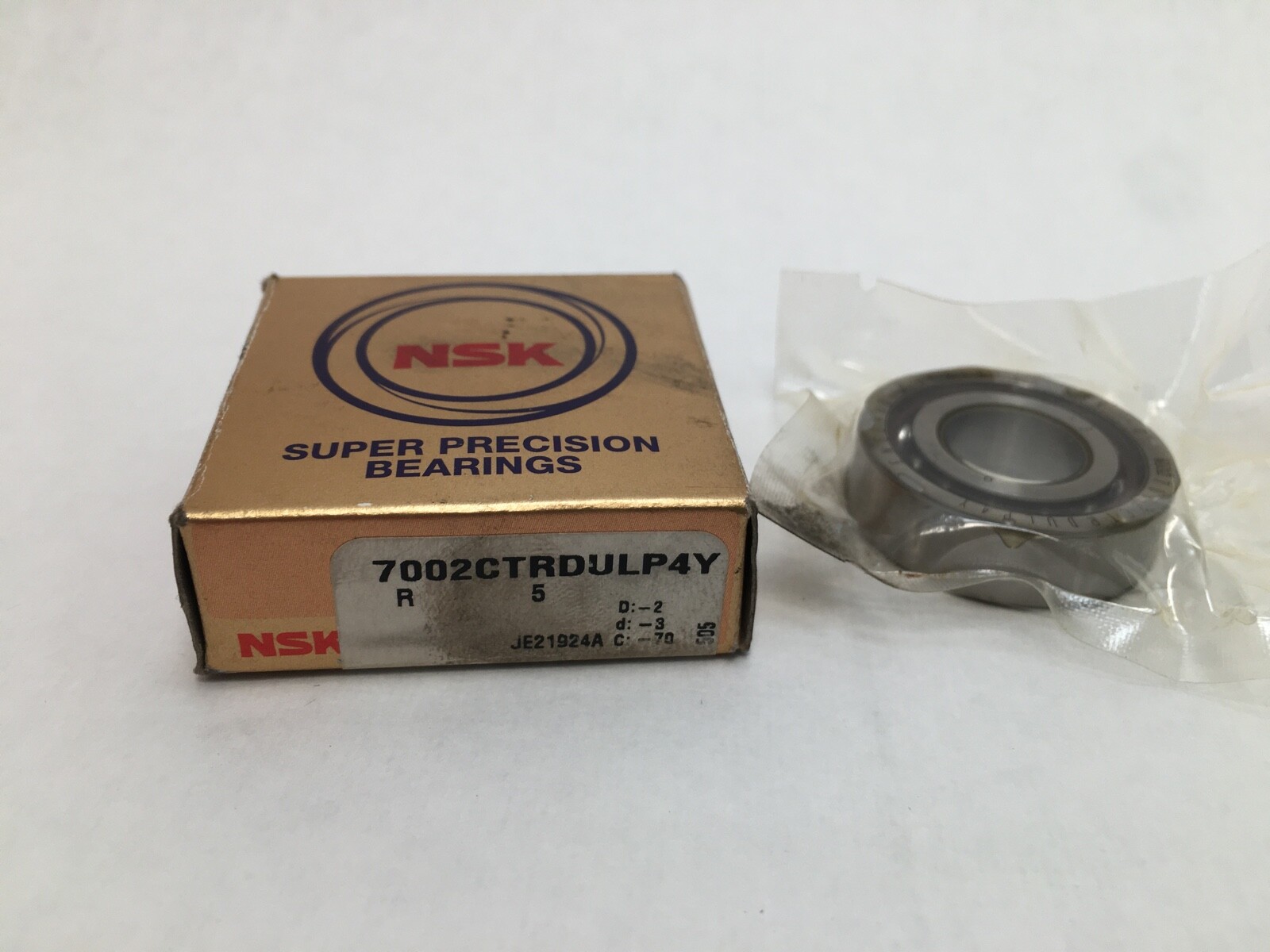

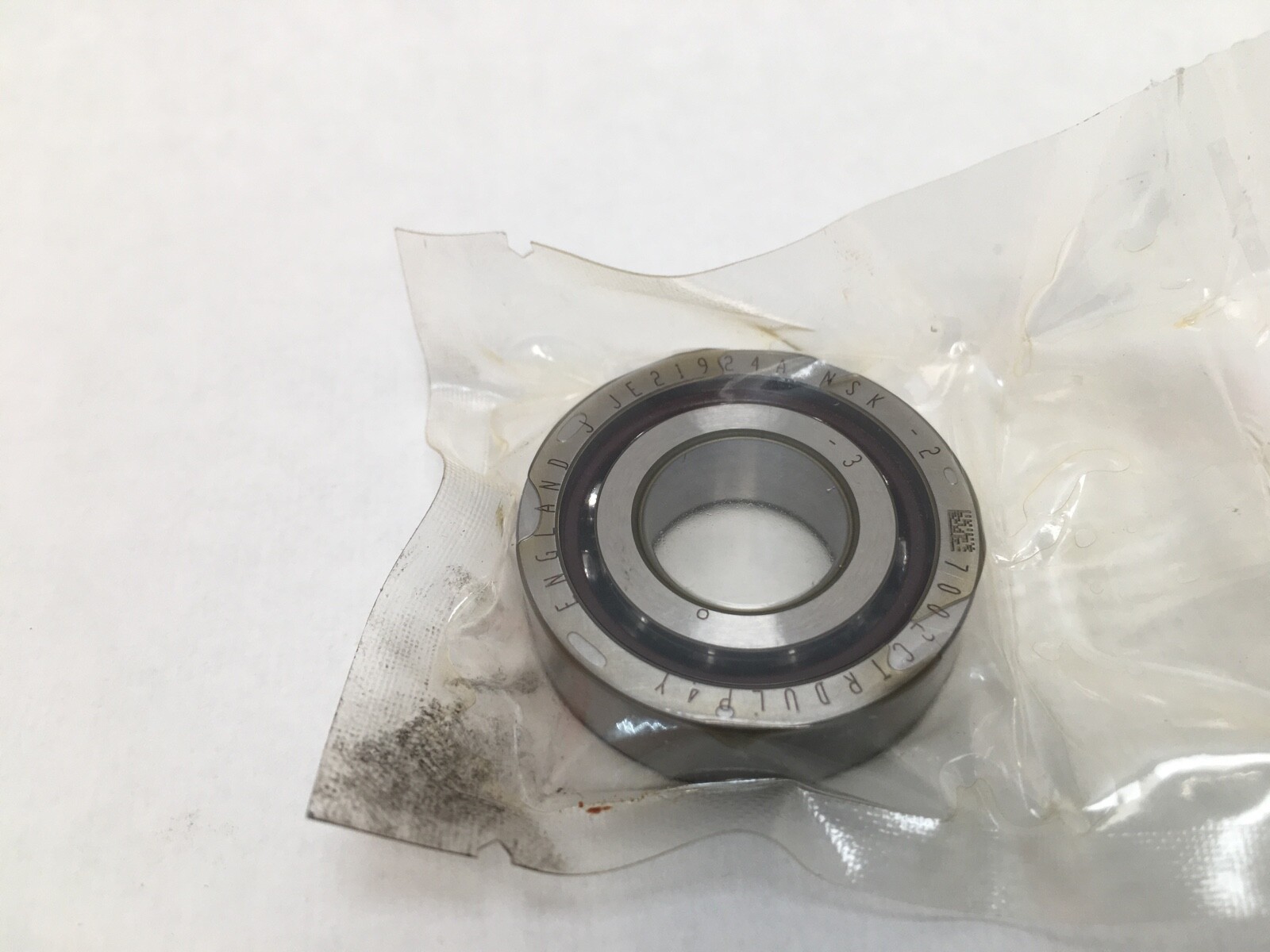

Super-precision angular contact ball bearing pair, 15 x 32 x 9 mm, 15° contact angle, light preload. Open, outer-ring-guided phenolic cage.
List Price
$65.00
1 in stock
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | NSK |
|---|---|
| MPN | 7002CTRDULP4Y |
| GTIN | 029176586767 |
| Model | 7002CTRDUL P4 Y |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 15 mm |
| OD | 32 mm |
| Width | 9 mm |
| Series | 7000 |
|---|---|
| Condition | New |
| Preload | Light |
| Material | Bearing Steel |
| Lubricant | Grease or oil |
| Base Number | 7002 |
| Mpn Variants | 7002 CTR DUL P4Y / 7002CTRDUL P4 Y / 7002C / 7002 |
| Precision Class | ABEC 7 / P4, P4Y execution |
| Additional Attributes | Recommended grease quantity 0.17 g per bearing |
| Min Temp | -30 °C |
| Cage Type | Machined, outer-ring-guided |
| Dynamic Load Rating | 7.85 kN / 1765 lbf |
| Static Load Rating | 3.40 kN / 765 lbf |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Balls |
| Max Temp | 120 °C |
| Item Weight | 0.07 lbs |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Not specified |
| Internal Clearance | N/A |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Duplex Universal |
| Bearing Material | Bearing Steel |
| Part Number | 7002CTRDULP4Y |
| Cross Reference 1 | SKF 7002 CD/P4ADGA |
|---|---|
| Cross Reference 2 | Fafnir 2MM9102WI-DUL |
| Cross Reference 3 | GMN S6002CTA |
NSK 7002CTRDULP4Y super-precision angular contact ball bearing set. Brand: NSK. Manufacturer Part Number: 7002CTRDULP4Y. GTIN: 029176586767. Bearing Type: Angular contact ball bearing, single row. Series: 7000. Bore: 15 mm. Outside Diameter: 32 mm. Overall Width: 9 mm. Bore Type: Straight. Closure Type: Open. Number Of Rows: 1. Rolling Elements: Balls. Country of Origin: United Kingdom.
Contact Angle: 15°. Cage Material: Phenolic. Cage Type: Machined, outer-ring-guided. Mounting Arrangement: Duplex universal (DUL). Preload: Light. Precision Class: ABEC 7 / P4, P4Y execution. Internal Clearance: N/A. Searchable designation variants: 7002CTRDULP4Y, 7002 CTR DUL P4Y, 7002C, 7002.
Dynamic Load Rating: 7.85 kN (1,765 lbf). Static Load Rating: 3.40 kN (765 lbf). Limiting Speed, grease lubrication: 49,000 rpm. Limiting Speed, oil and oil-air lubrication: 74,500 rpm. Item Weight: 0.07 lb (0.030 kg) per bearing. Recommended Grease Quantity: 0.17 g per bearing. A 15° contact angle is the shallowest of the standard angular contact angles: it favours speed and radial stiffness over thrust capacity, which is why it dominates high-speed spindle work. An outer-ring-guided phenolic cage is rated to 120 °C, runs light and holds its guidance from the outer ring land at speed.
Unit Quantity: 2 Pcs. Matched duplex pair, universally ground: the faces are ground so the two bearings set their own light preload when clamped together, in back-to-back, face-to-face or tandem order. Internal Clearance: N/A, since a preloaded set is defined by preload rather than by clearance.
Cross-Reference 1: SKF 7002 CD/P4ADGA. Cross-Reference 2: Fafnir 2MM9102WI-DUL. Cross-Reference 3: GMN S6002CTA. All are 15° super-precision executions on the 15 x 32 x 9 mm envelope. A 7002 carrying a 25° or 30° angle code shares the envelope at a different thrust capacity and speed, and is a related size rather than a substitution.
