Availability:
1 in stock

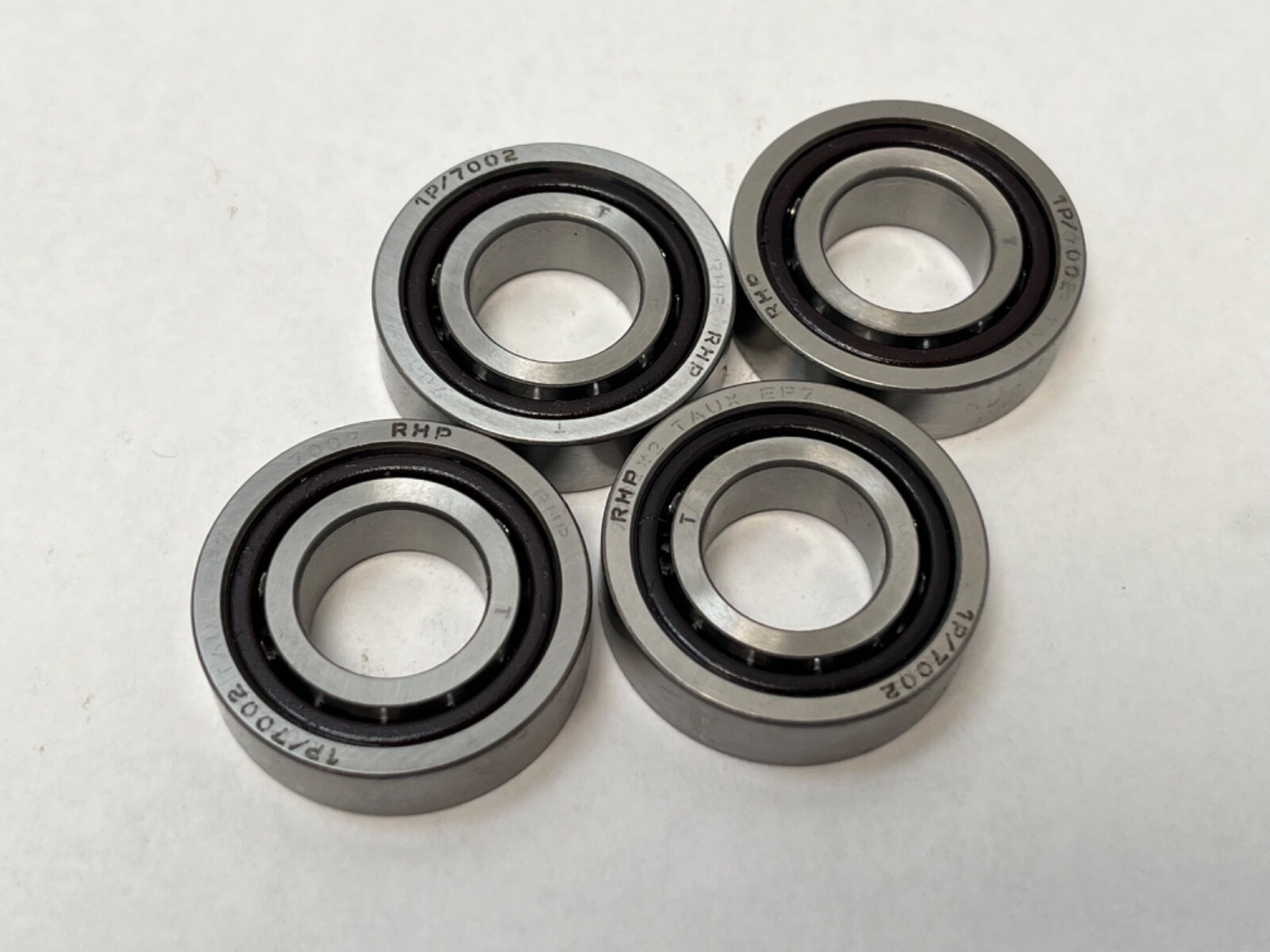

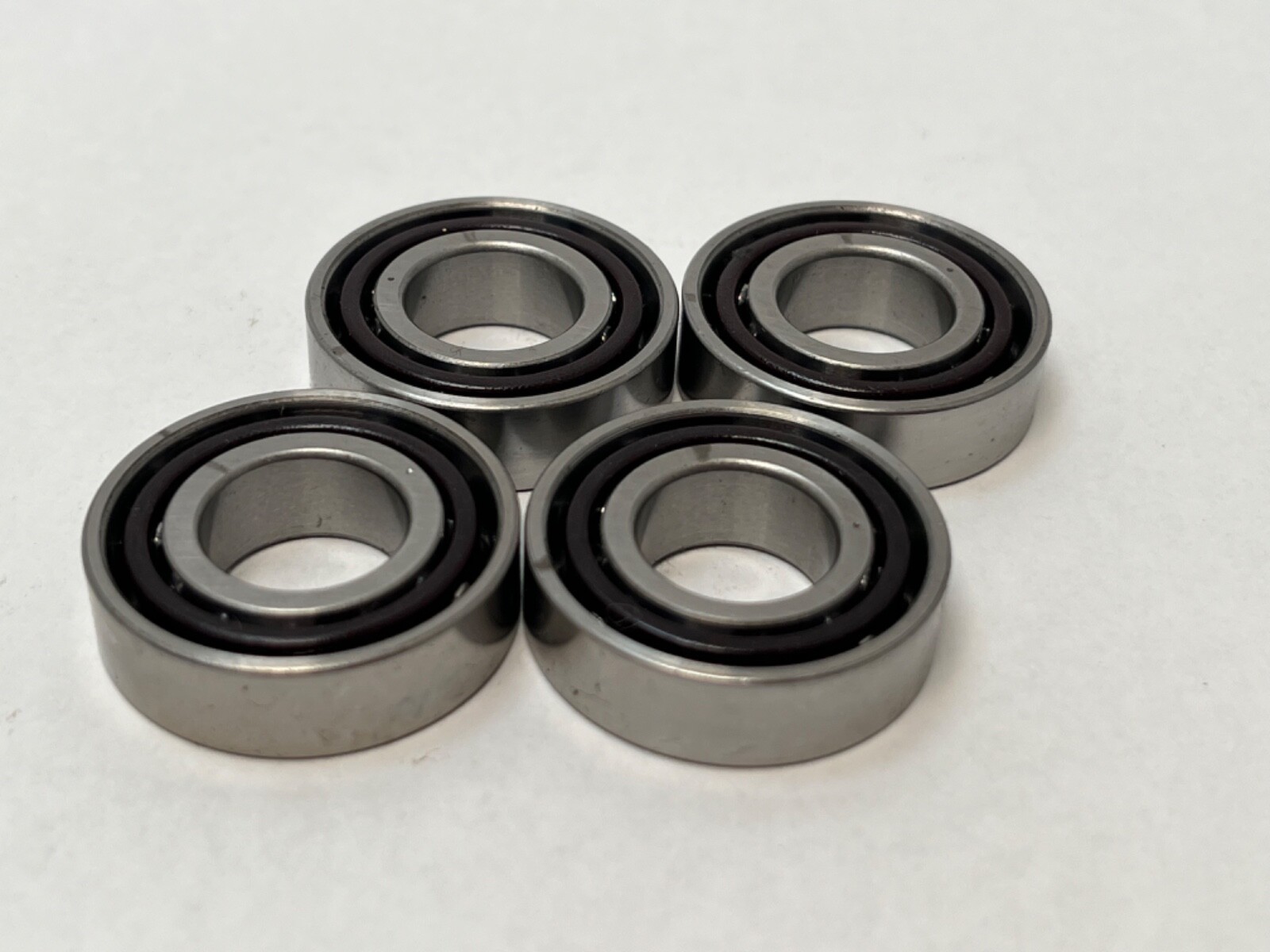

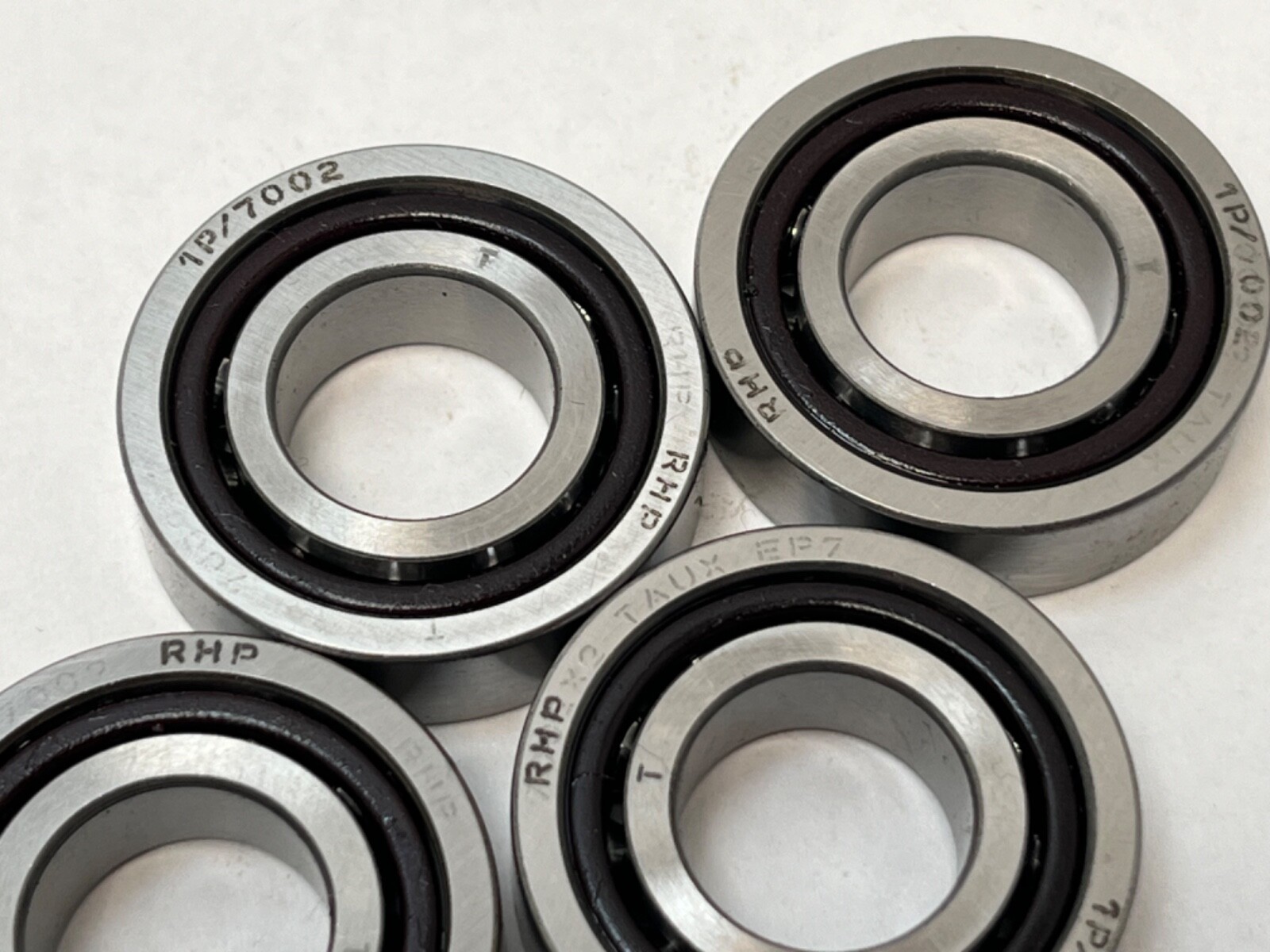

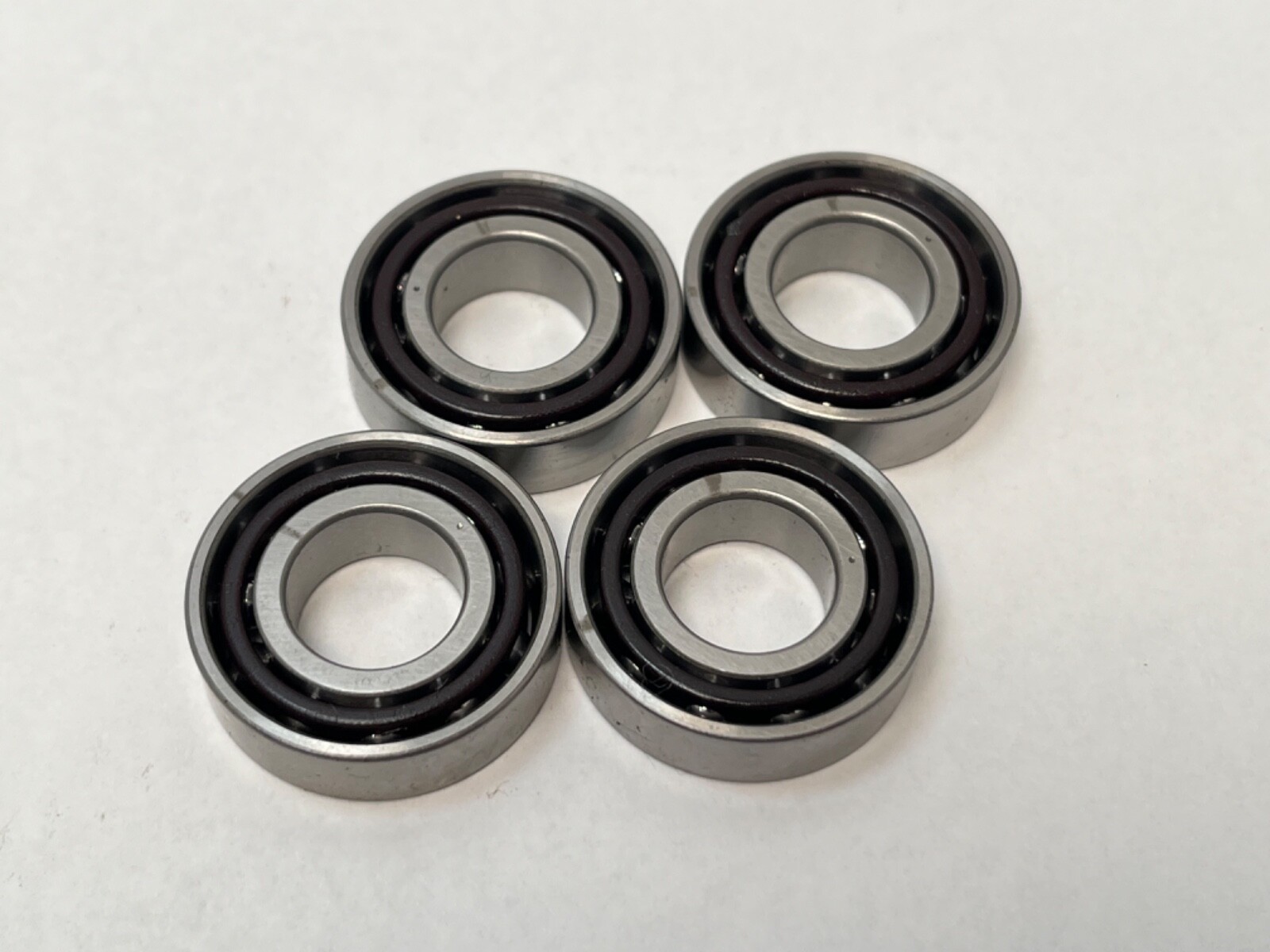

Super-precision angular contact ball bearing, 15 x 32 x 9 mm, 15 degree contact angle at ABEC 7 / P4. Phenolic cage, open. Four universally ground pieces.
List Price
$53.43
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RHP |
|---|---|
| MPN | 7002CTSUXP4 |
| Model | B7002 C T P4S 7002 CD/P4ADG 2MM9102WI DUX / 1P/7002 |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 15 mm |
| OD | 32 mm |
| Width | 9 mm |
| Series | 7000 |
|---|---|
| Lubricant | grease or oil |
| Material | Bearing Steel |
| Base Number | 7002 |
| Industry Terms | Super-precision spindle bearing; machine tool spindle bearing; precision angular contact bearing |
| Common Misspellings | 7002 CTSUX P4; 7002CTSUX-P4; 7002 C T SUX P4 |
| Application Types | Machine tool spindles; high-speed grinding spindles; precision gearboxes; instrument drives |
| Mpn Variants | 7002CTSUXP4; 7002-C-T-SUX-P4; B7002 C T P4S; 7002X2TSUXEP7 |
| Precision Class | ABEC 7 / P4 |
| Cage Type | Machined, outer-ring guided |
| Dynamic Load Rating | 6,250 N |
| Static Load Rating | 3,400 N |
| Precision Rating | ABEC 7 / P4 |
| Rolling Elements | Ball |
| Item Weight | 0.031 kg (0.07 lb) |
| Cage Material | Phenolic |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 44,200 rpm grease; 71,400 rpm oil |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Mounting Arrangement | Universal single |
| Bearing Material | Bearing steel |
| Cross Reference 1 | SKF 7002 CD/P4A |
|---|---|
| Cross Reference 2 | FAG B7002-C-T-P4S - P4S class |
| Cross Reference 3 | NSK 7002CTRSUP4 |
| Cross Reference 4 | NTN 7002CG/GNP4 - medium preload |
| Cross Reference 5 | Timken Fafnir 2MM9102WI - suffix not stated |
| Cross Reference 6 | Koyo 7002C - precision class not stated |
| Cross Reference 7 | IBC 7002-C-T-P4S - P4S class |

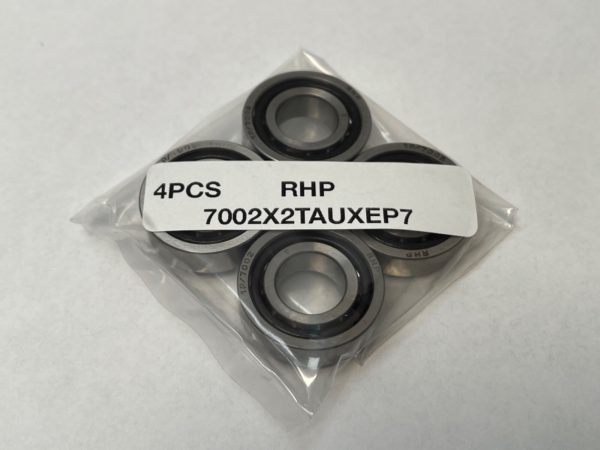

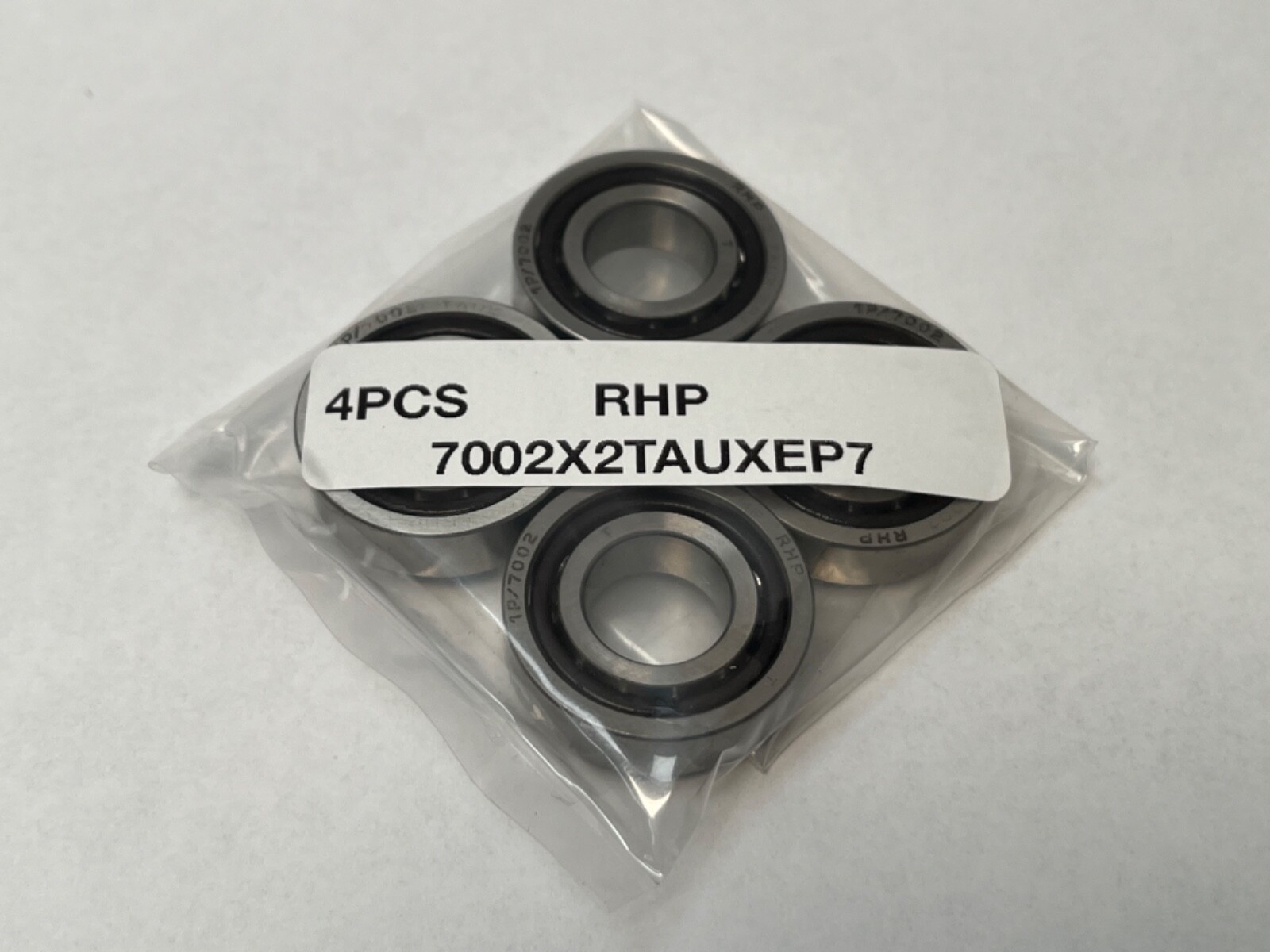

RHP 7002CTSUXP4 super-precision single-row angular contact ball bearing, ISO dimension series 10. Four universally faced single bearings, matched on bore and outside diameter. Unit Quantity: 4 Pcs.
7 — single-row angular contact ball bearing.
0 — RHP dimension series 0, ISO series 10.
02 — bore code 02, 15 mm bore.
C — 15° contact angle.
T — laminated phenolic resin cage, outer-ring guided.
SU — single universal. Both face pairs are ground at manufacture, so any two bearings mount back-to-back, face-to-face or in tandem.
P4 — ISO Class 4, ABEC 7, British Standard EP7.
Bearing Type: Angular contact ball bearing. Contact Angle: 15°. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Cage Material: Phenolic. Cage Type: Machined, outer-ring guided. Bearing Material: Carbon chrome bearing steel, through hardened. Precision Class: ABEC 7 / P4. Mounting Arrangement: Universal single. Lubricant: grease or oil. Dynamic Load Rating: 6,250 N. Static Load Rating: 3,400 N. Limiting Speed: 44,200 rpm grease; 71,400 rpm oil. Maximum operating temperature for the laminated phenolic cage: 120 °C. Item Weight: 0.031 kg (0.07 lb) per bearing. Series: 7000.
Bore Diameter: 15 mm. Outside Diameter: 32 mm. Overall Width: 9 mm. Inner ring abutment diameter d1 min: 17.5 mm. Outer ring abutment diameter D1 max: 29.5 mm. Outer ring seating diameter D2 max: 30.8 mm. Chamfer dimension r min: 0.3 mm. Chamfer dimension r1 min: 0.15 mm. Effective load centre a: 7.6 mm. Internal free volume: 1.4 cm³. PCD of lubrication jets: 21.3 mm.
Super-precision 7002 bearings at 15°: SKF 7002 CD/P4A, FAG B7002-C-T-P4S (P4S class), NSK 7002CTRSUP4, NTN 7002CG/GNP4 (medium preload), Timken Fafnir 2MM9102WI, Koyo 7002C, IBC 7002-C-T-P4S (P4S class). MPN Variants: 7002CTSUXP4, 7002-C-T-SUX-P4, B7002 C T P4S, 7002X2TSUXEP7.
15°, set by the C in the designation.
Four universally faced single bearings.
44,200 rpm on grease and 71,400 rpm on oil.
