Super-precision angular contact ball bearing, 15 mm bore x 32 mm OD x 9 mm, 15° contact angle, P4A accuracy, open, single bearing. SKF 7002 CD/P4A.
List Price
$64.22
17 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7002 CD/P4A |
| Model | 7002CDP4A |
| Bearing Type | Angular Contact Ball Bearing, Open |
| ID | 15 mm |
| OD | 32 mm |
| Width | 9 mm |
| Material | Bearing Steel |
|---|---|
| Series | 70 (ISO dimension series 10) |
| Base Number | 7002 |
| Industry Terms | spindle bearing; super precision bearing; 15 degree angular contact; machine tool bearing |
| Common Misspellings | SFK 7002CD/P4A; 7002 CDP4A; 7002 CD P4-A |
| Application Types | Machine tool spindles; grinding spindles; high-speed rotating assemblies |
| Bore Shaft Size | 15 mm (0.5906 in) |
| Mpn Variants | 7002-CD/P4A; 7002CD/P4A; 7002 CD P4A; 7002CDP4A; 7002-CD-P4A |
| Precision Class | P4A |
| Rolling Elements | Balls |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.10.5028 |
| Contact Angle | 15° |
| Part Number | 7002 CD/P4A |
| Closure Type | Open |
| Cross Reference 1 | FAG B7002-C-T-P4S - P4S class |
|---|---|
| Cross Reference 2 | NSK 7002CTRP4 |
| Cross Reference 3 | Fafnir 2MM9102WI |

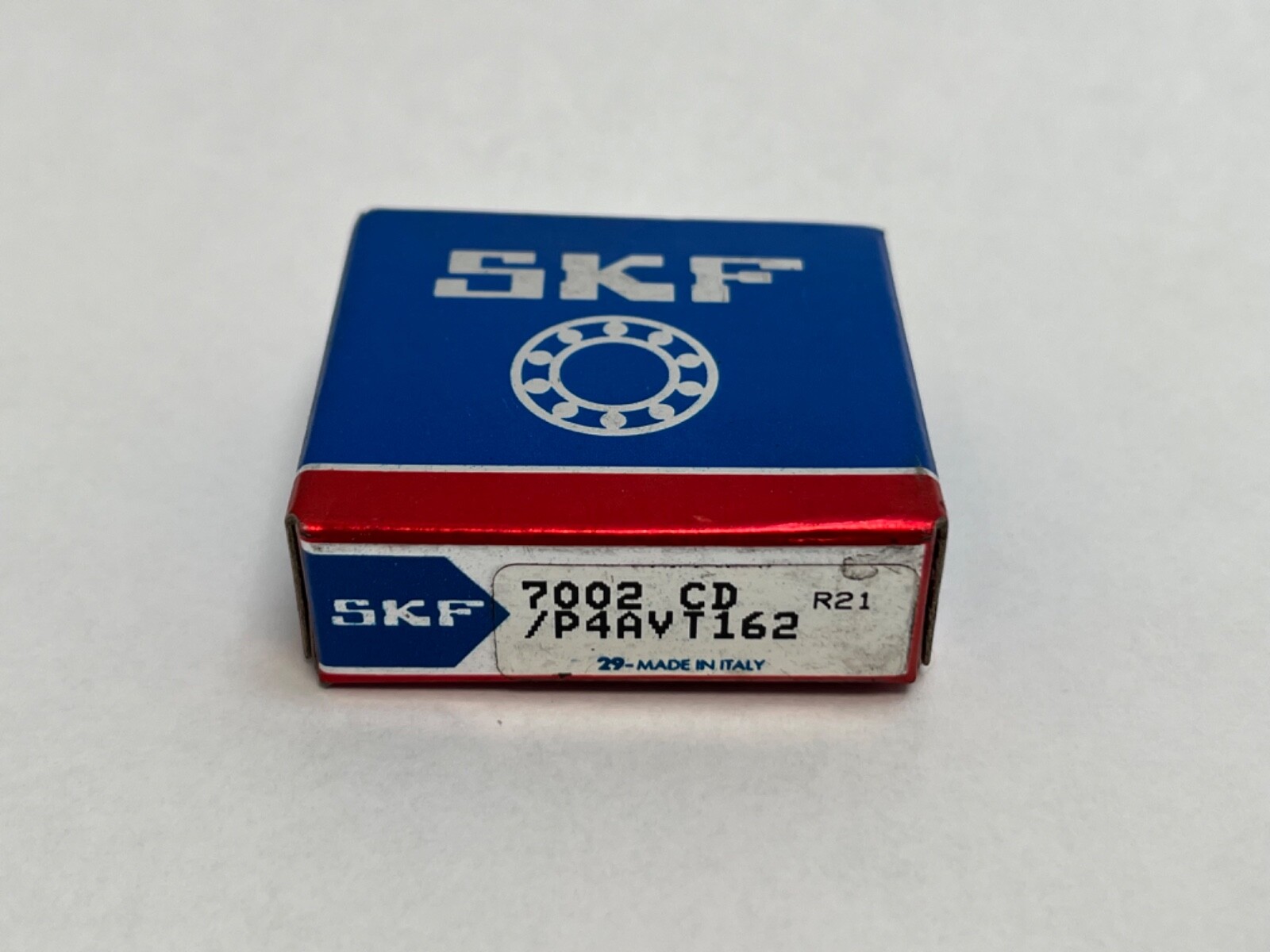

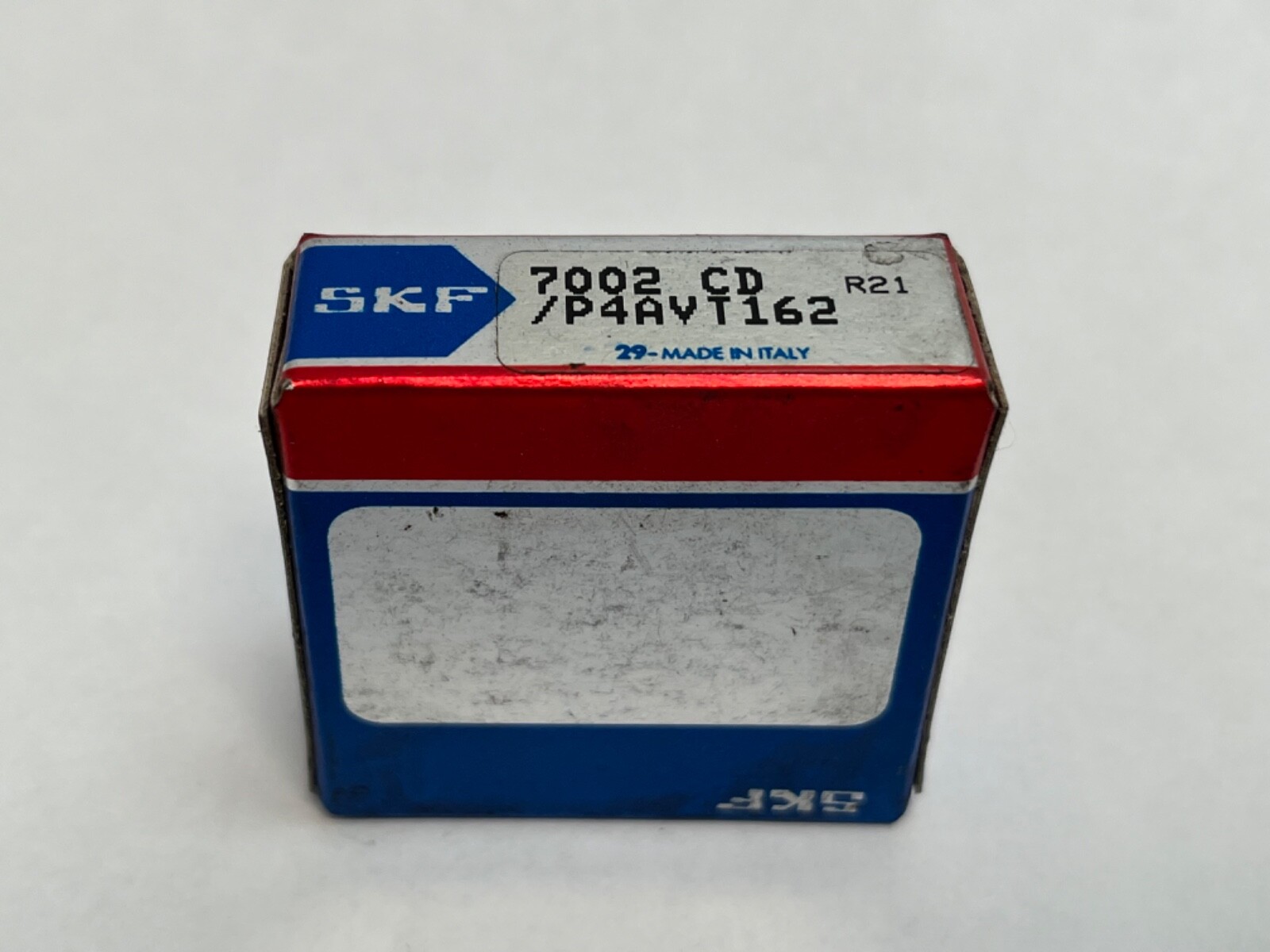

SKF 7002 CD/P4A is a super-precision angular contact ball bearing, a single standalone bearing, open on both faces. Unit Quantity: 1 Pc. Bore Diameter: 15 mm. Outside Diameter: 32 mm. Overall Width: 9 mm. Contact Angle: 15°. Country of Origin: Italy.
7002 — ISO dimension series 10, bore code 02: 15 mm bore, 32 mm OD, 9 mm width.
CD — 15° contact angle, high-capacity design.
P4A — dimensional accuracy to ISO tolerance class 4, running accuracy better than ISO tolerance class 4.
No suffix after P4A — single standalone bearing.
Bearing Type: Angular contact ball bearing, super-precision. Series: 70 (ISO dimension series 10). Contact Angle: 15°. Precision Class: P4A. Rolling Elements: Steel balls. Number Of Rows: 1. Closure Type: Open. Bore Type: Straight. Snap Ring Included: No. Harmonization Code: 8482.10.5028.
Bore Diameter: 15 mm (0.5906 in). Outside Diameter: 32 mm. Overall Width: 9 mm.
Cross-references: FAG B7002-C-T-P4S (P4S class), NSK 7002CTRP4, Fafnir 2MM9102WI. MPN variants: 7002-CD/P4A, 7002CD/P4A, 7002 CD P4A, 7002CDP4A, 7002-CD-P4A.
15 mm bore, 32 mm outside diameter and 9 mm width.
CD is a 15° contact angle in SKF’s high-capacity design.
P4A is dimensional accuracy to ISO tolerance class 4 with running accuracy better than ISO tolerance class 4.
