Availability:
2 in stock

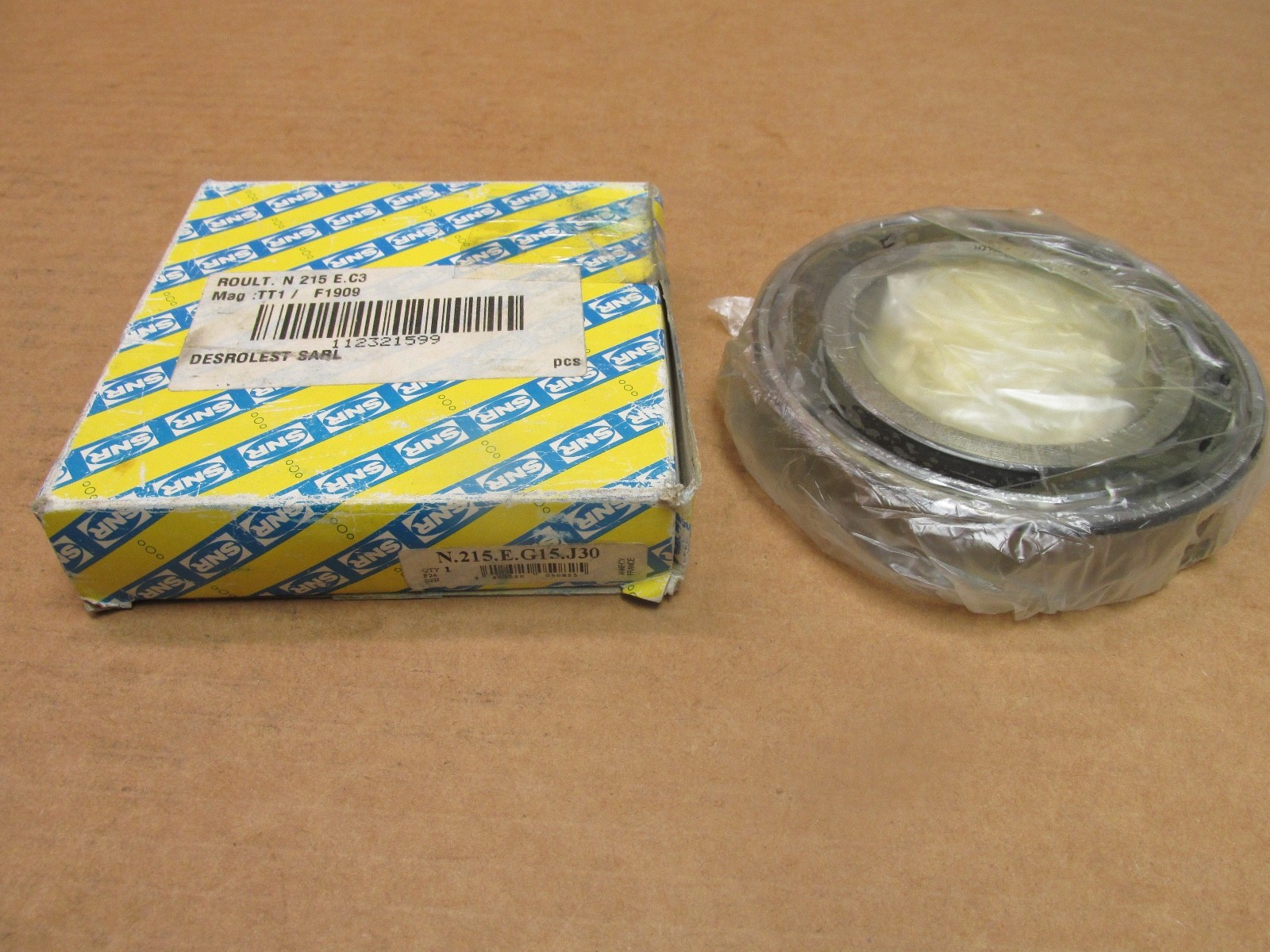

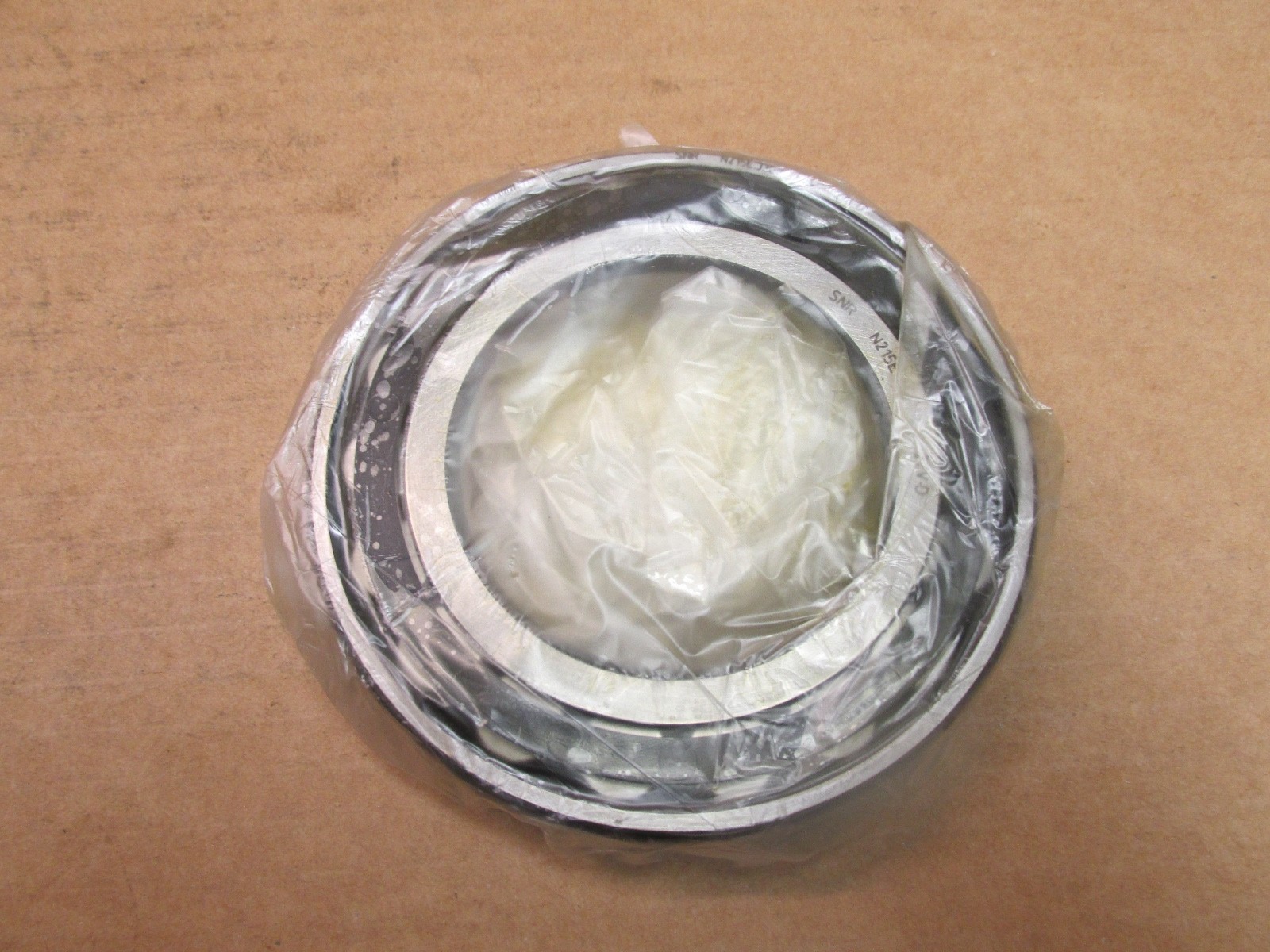

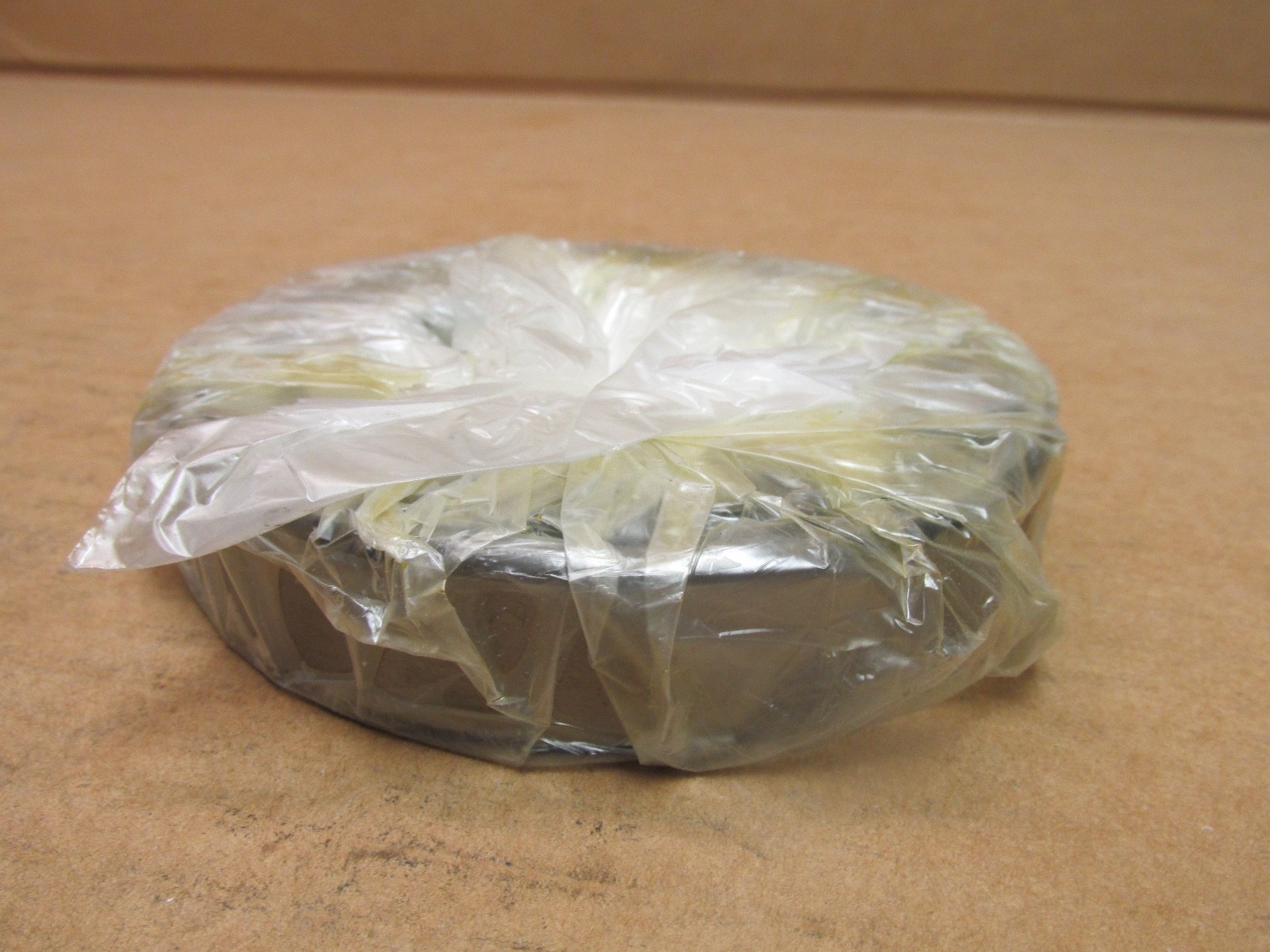

N-type single-row cylindrical roller bearing, 75 mm bore x 130 mm OD x 25 mm wide, glass-fibre polyamide cage, C3 clearance. Floating, separable design.
List Price
$55.87
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SNR |
|---|---|
| GTIN | 3413520050825 |
| Model | N215E G15-J30-C3 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 75 mm |
| OD | 130 mm |
| Width | 25 mm |
| Material | Chrome Steel |
|---|---|
| Series | N200 |
| Lubricant | Grease or oil |
| Base Number | N215 |
| Industry Terms | cylindrical roller bearing, N-type, floating bearing, non-locating bearing, separable bearing, C3 clearance |
| Common Misspellings | N215EG15J3, N215EGJ30, N215E615J30, N215EG15-J3O |
| Overall Width | 25 mm |
| Mpn Variants | N215EG15J30, N215E G15 J30, N 215 E G15 J30, N215-E-G15-J30, N.215.E.G15.J30, N215EG15 C3, N215E C3 |
| Rolling Elements | Cylindrical Roller |
| Cage Material | Glass-fibre reinforced polyamide |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | C3 |
| Harmonization Code | 8482.50.00.00 |
| Cross Reference 1 | SKF N 215 ECP/C3 |
|---|---|
| Cross Reference 2 | FAG N215-E-TVP2-C3 |
| Cross Reference 3 | NSK N215ETC3 |
| Cross Reference 4 | NTN N215EG1C3 |
The SNR N215EG15J30 is a single-row cylindrical roller bearing of the N design from NTN-SNR. Bore 75 mm, outside diameter 130 mm, width 25 mm. The outer ring carries two integral ribs that guide the rollers; the inner ring has no ribs, so the shaft moves axially relative to the housing. Floating and separable: the outer ring, rollers and cage form one assembly and the inner ring mounts separately.
N — single-row cylindrical roller bearing with two ribs on the outer ring and a rib-free inner ring.
215 — ISO dimension series 02, bore code 15: 75 x 130 x 25 mm.
E — SNR increased-capacity internal design.
G15 — glass-fibre reinforced polyamide cage.
J30 — SNR radial internal clearance category 3, equivalent to C3.
Bore Diameter: 75 mm. Outside Diameter: 130 mm. Overall Width: 25 mm. Rolling Elements: Cylindrical Roller. Number Of Rows: 1. Bore Type: Straight. Cage Material: Glass-fibre reinforced polyamide. Internal Clearance: C3. Seal Type: Open. Lubricant: Grease or oil. Series: N200. Unit Quantity: 1 Pc. GTIN: 3413520050825.
Separable construction: the inner ring and the outer ring assembly are mounted independently. Snap Ring Included: No. The non-locating N design accommodates axial shaft expansion within the bearing. C3 clearance is larger than normal.
N design, 75 x 130 x 25 mm, polyamide cage and C3 clearance: SKF N 215 ECP/C3, FAG N215-E-TVP2-C3, NSK N215ETC3, NTN N215EG1C3. An NU, NJ or NUP 215 shares the envelope but locates the shaft differently.
What does J30 mean in N215EG15J30?SNR radial internal clearance category 3, equivalent to C3.
Is the N215E separable?Yes. The inner ring mounts separately from the outer ring, roller and cage assembly.
What are the dimensions?75 mm bore, 130 mm outside diameter, 25 mm width.
