RHPN306ETNP6C3Cylindrical Roller Bearing – Straight Bore, 30 mm ID, 72 mm OD, 19 mm Width, 1 Row, C3 Internal clearance.

Product Description

What this part is:

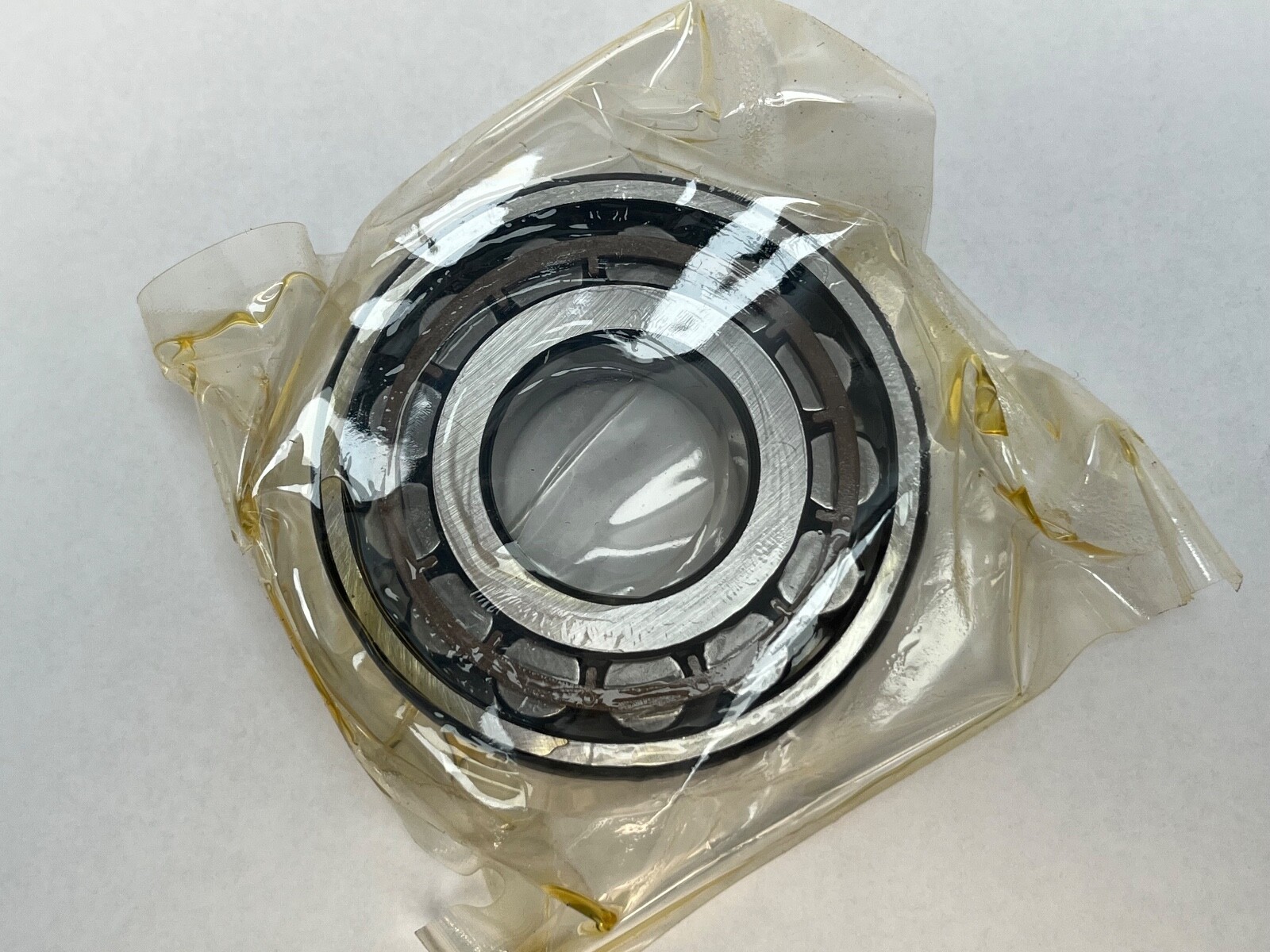

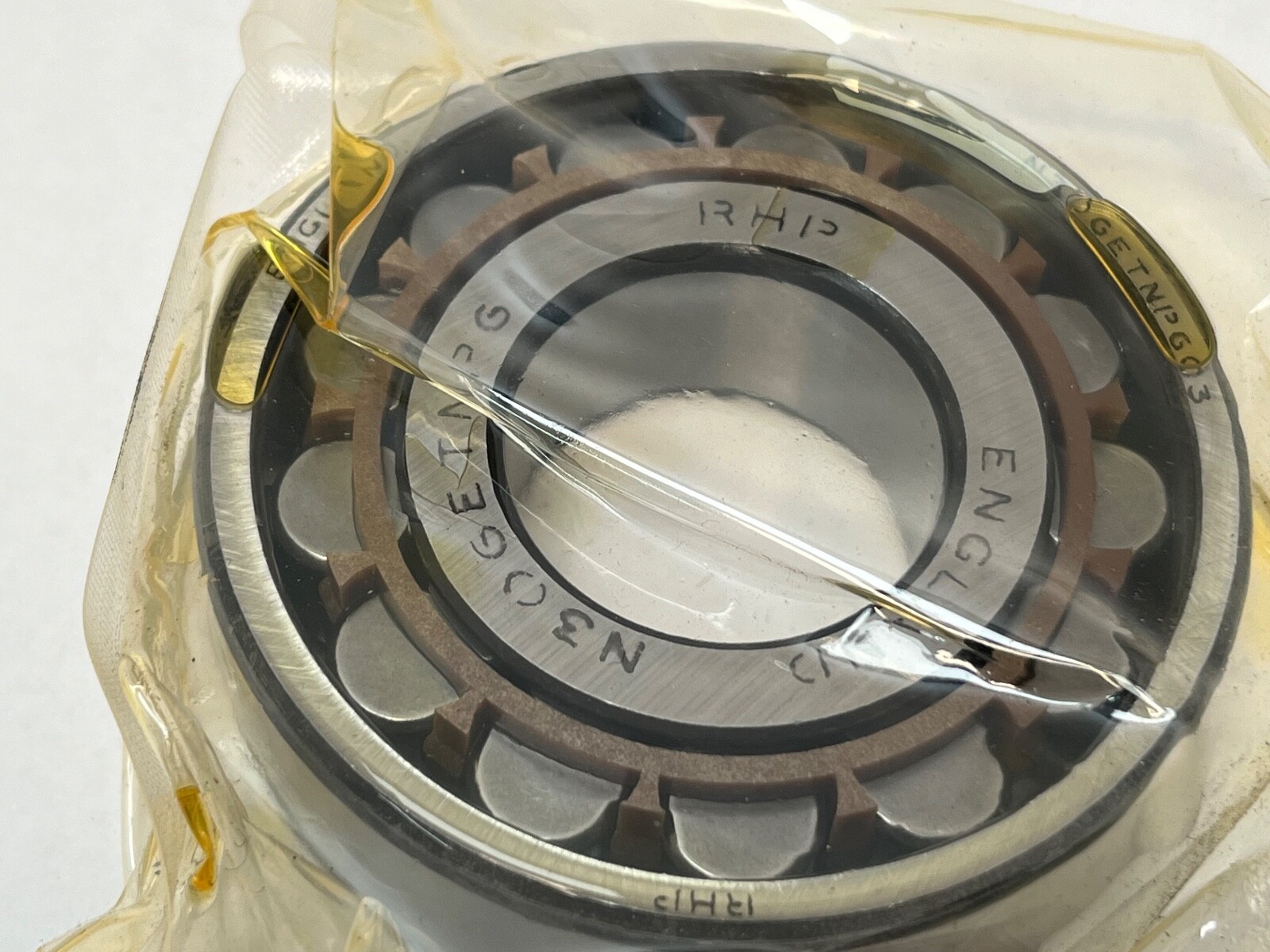

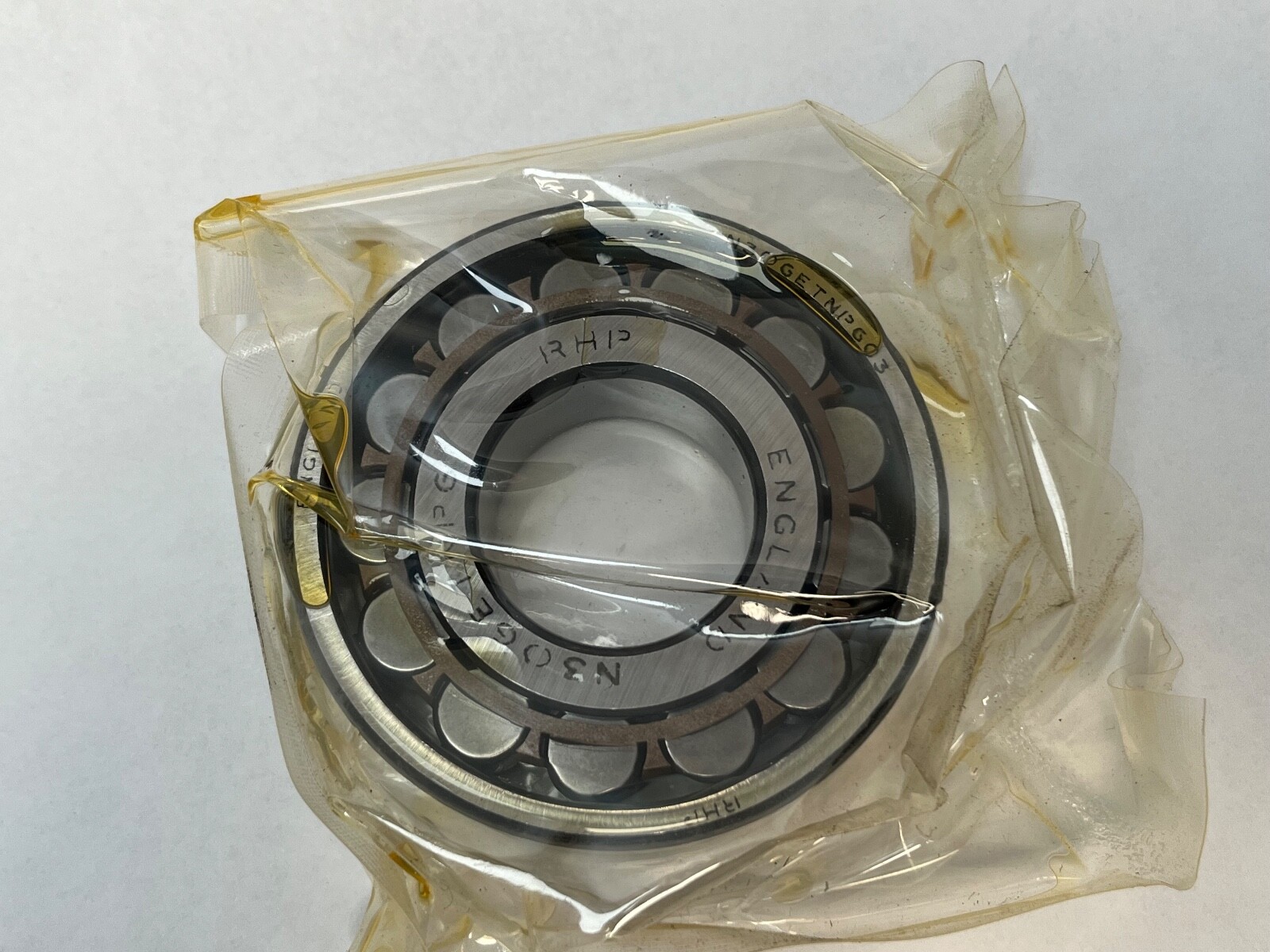

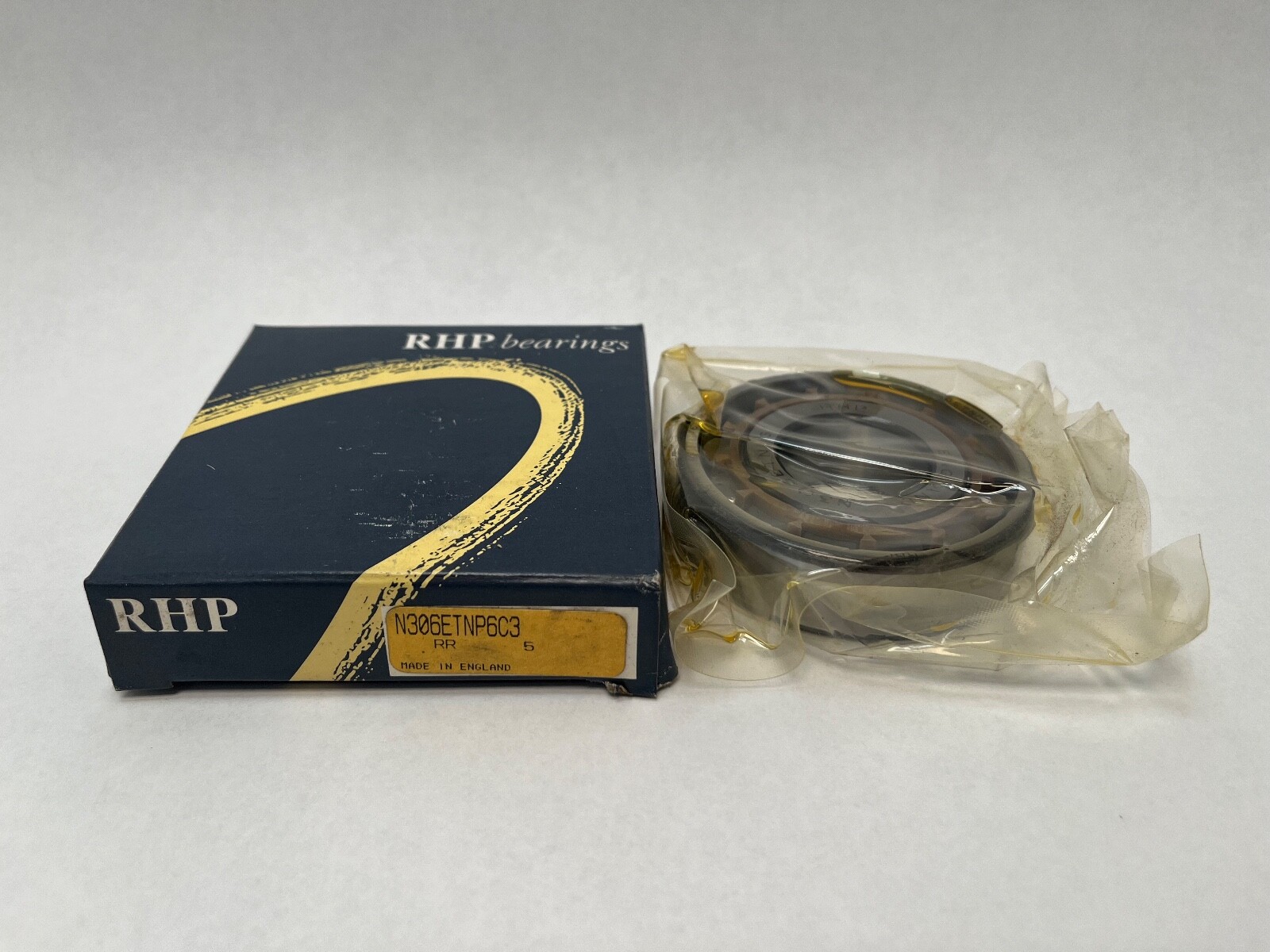

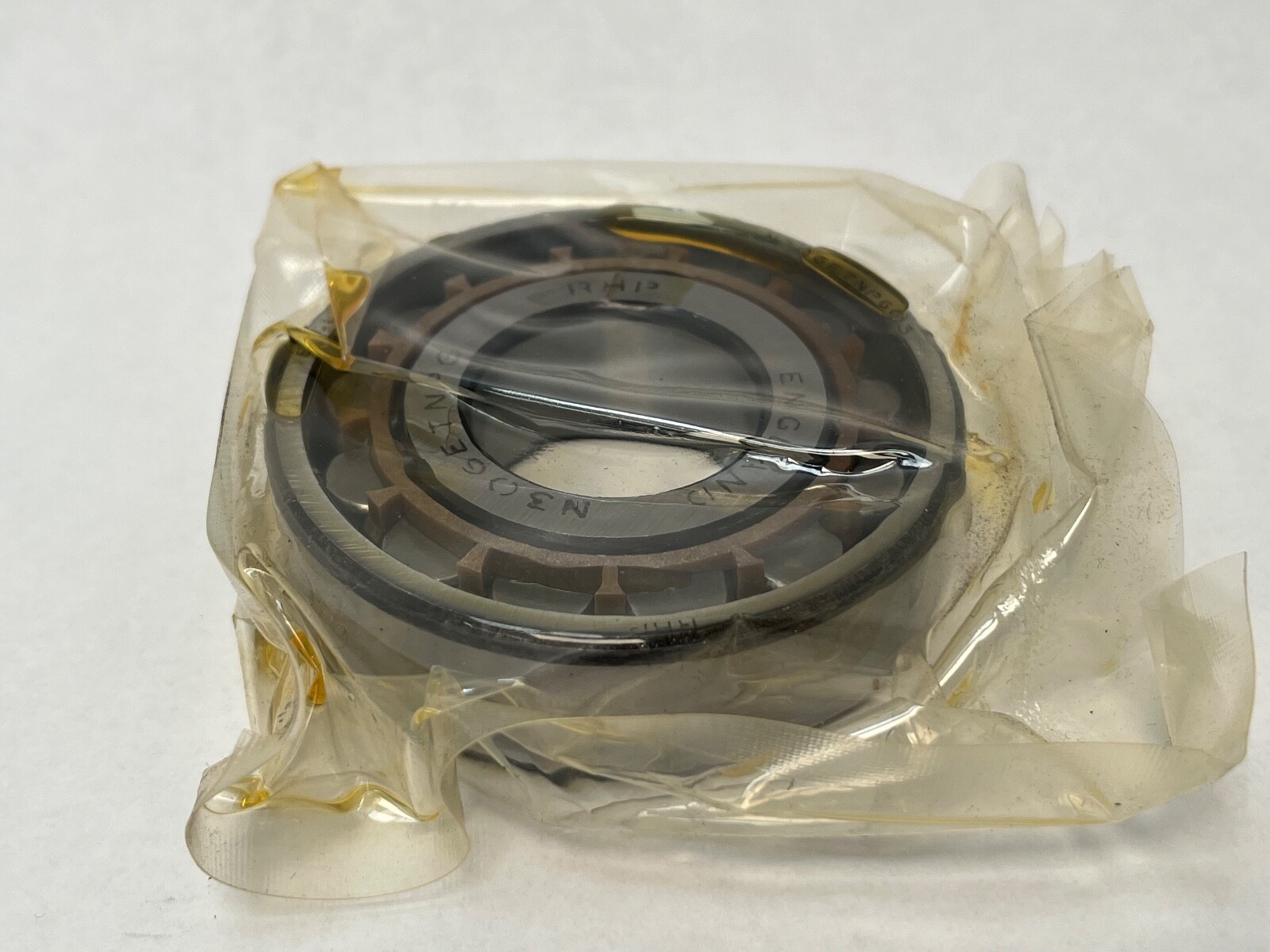

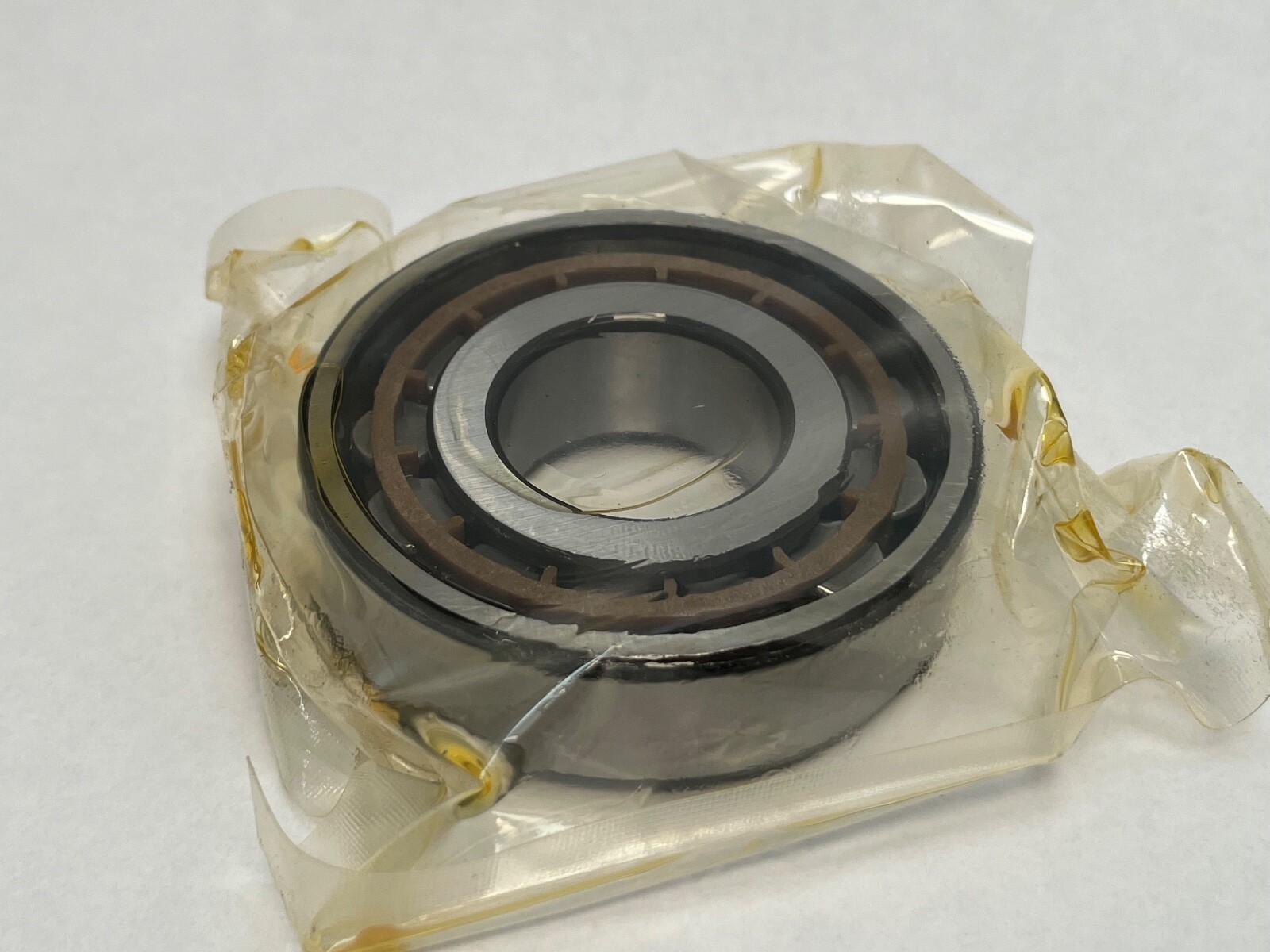

RHP N306ETNP6C3 is a single-row, non-locating N-design cylindrical roller bearing, 30 x 72 x 19 mm, with a polyamide cage, P6 precision and C3 clearance. Condition: New. Unit Quantity: 1 Pc. Country of Origin: United Kingdom.

Decoding the designation:

N306 — ISO N-design non-locating cylindrical roller envelope, 30 x 72 x 19 mm.

E — higher radial load rating design.

TN — moulded polyamide cage.

P6 — RHP precision class, corresponds to ABEC 3.

C3 — radial internal clearance greater than normal.

Specifications:

Bore Diameter: 30 mm. Outside Diameter: 72 mm. Overall Width: 19 mm. Rolling Elements: Cylindrical roller. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Cage Material: Polyamide. Precision Class: ABEC 3 / P6. Internal Clearance: C3. Series: N300 Series. Material: Bearing Steel.

Compatibility and replacement:

Cross-Reference 1: SKF N306ECP – normal clearance, standard tolerance. Cross-Reference 2: NSK N306ET – normal clearance, standard tolerance. Both share the 30 x 72 x 19 mm N-design envelope; this RHP bearing is P6 with C3 clearance.

Frequently asked questions:

What size is the RHP N306ETNP6C3?

Bore 30 mm, outside diameter 72 mm, width 19 mm.

What do P6 and C3 mean in this designation?

P6 is the RHP precision class, corresponding to ABEC 3. C3 is a radial internal clearance greater than normal.

What cage does it have?

TN in the designation is a moulded polyamide cage.
