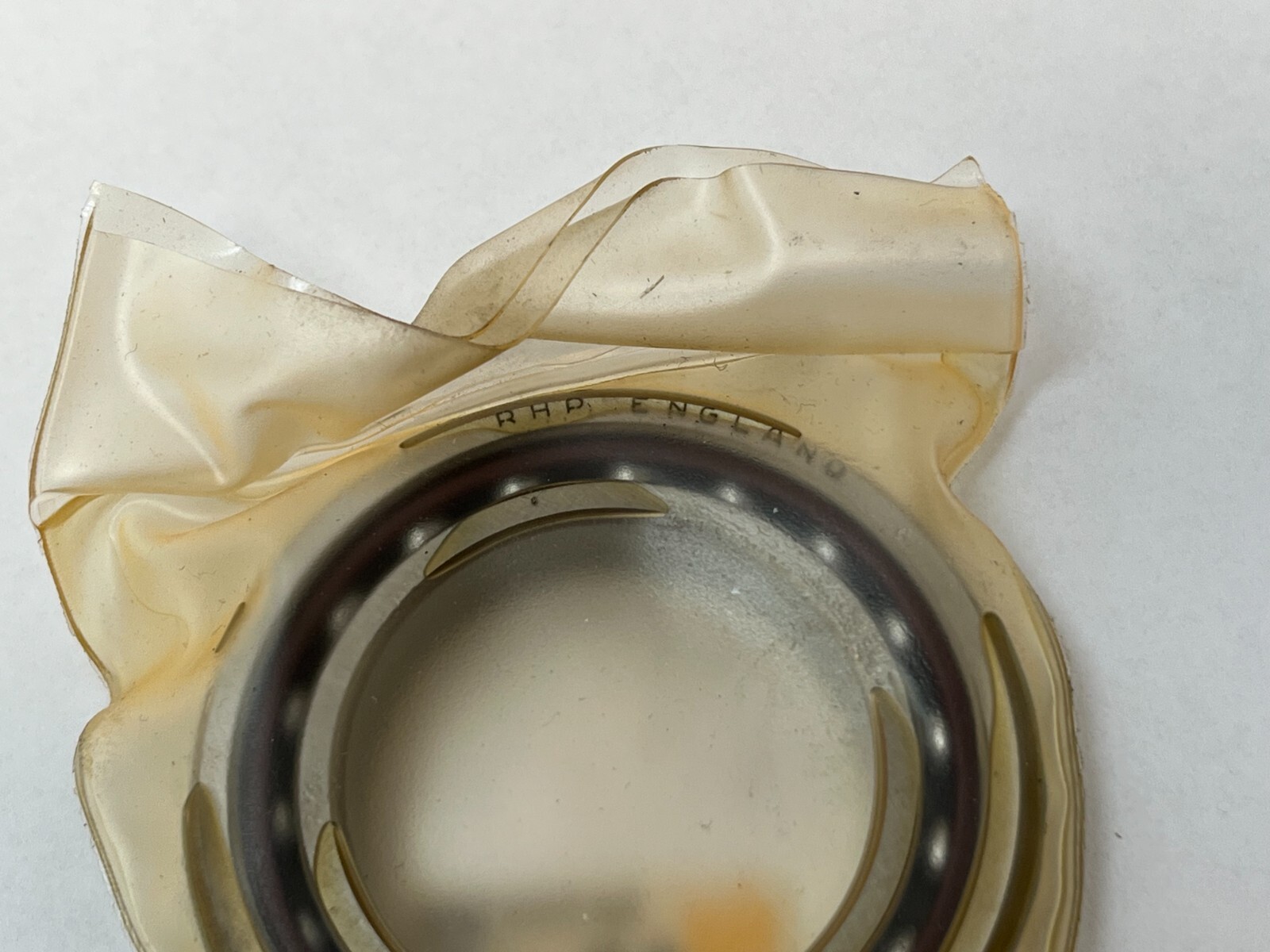

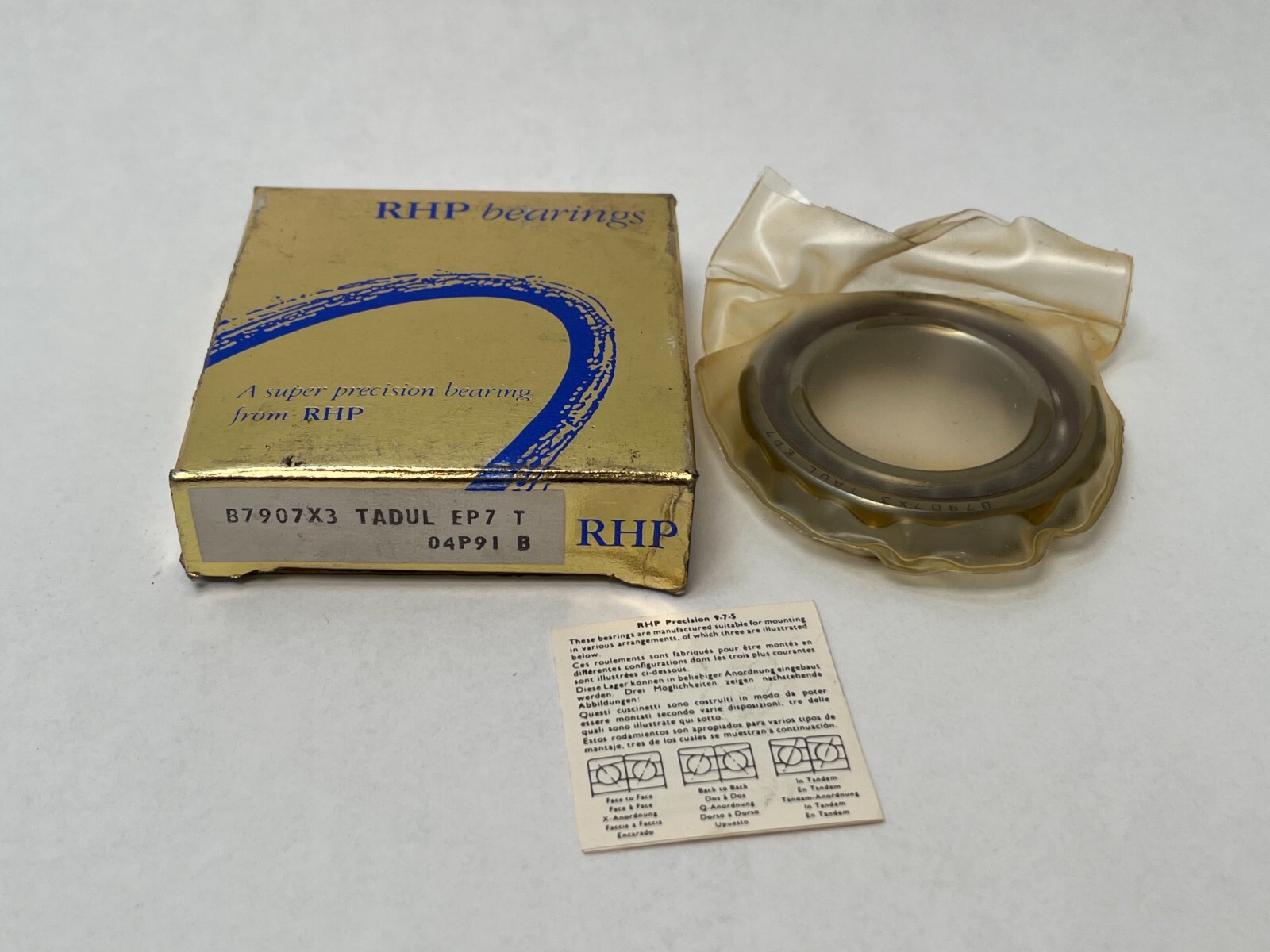

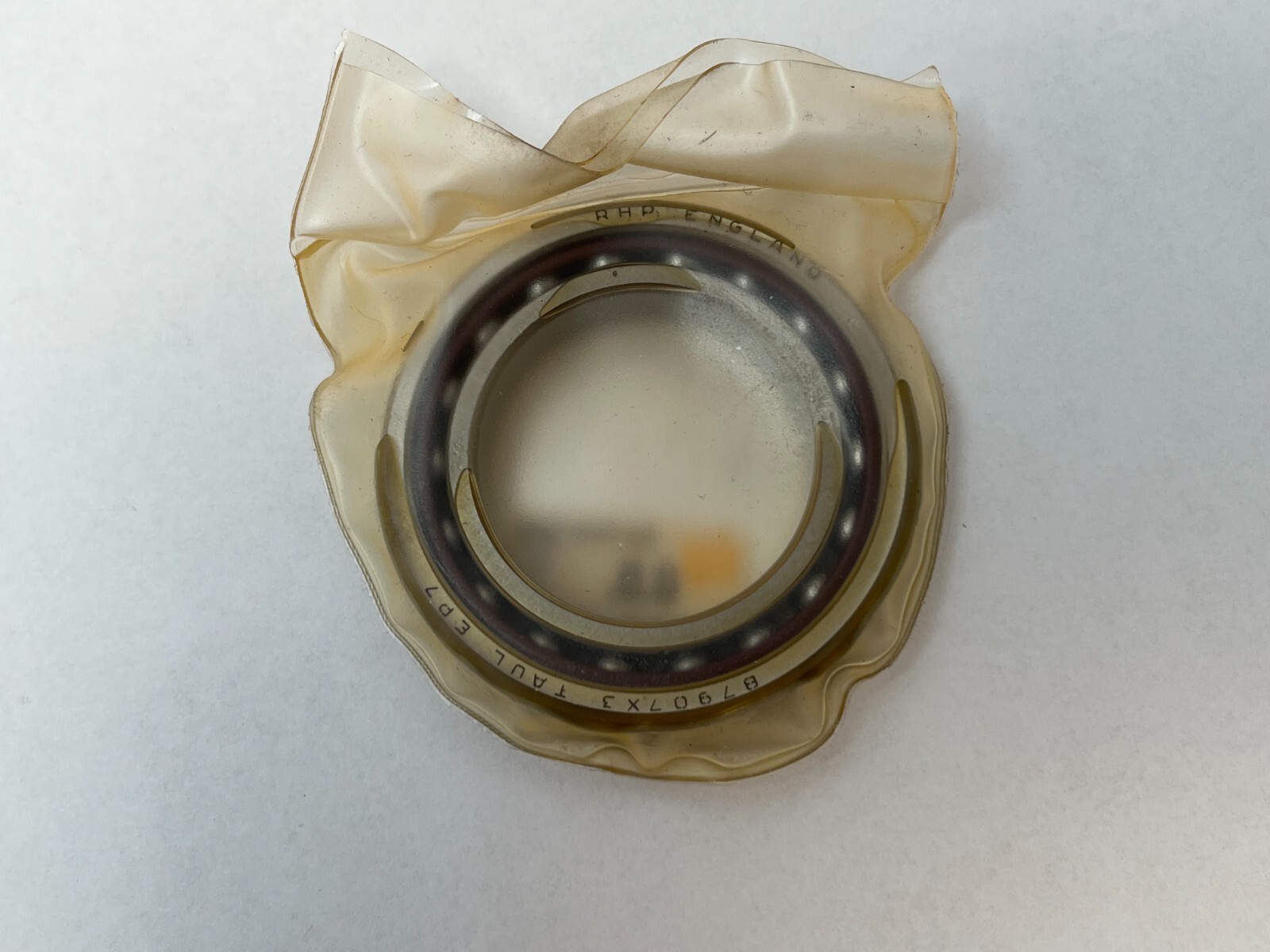

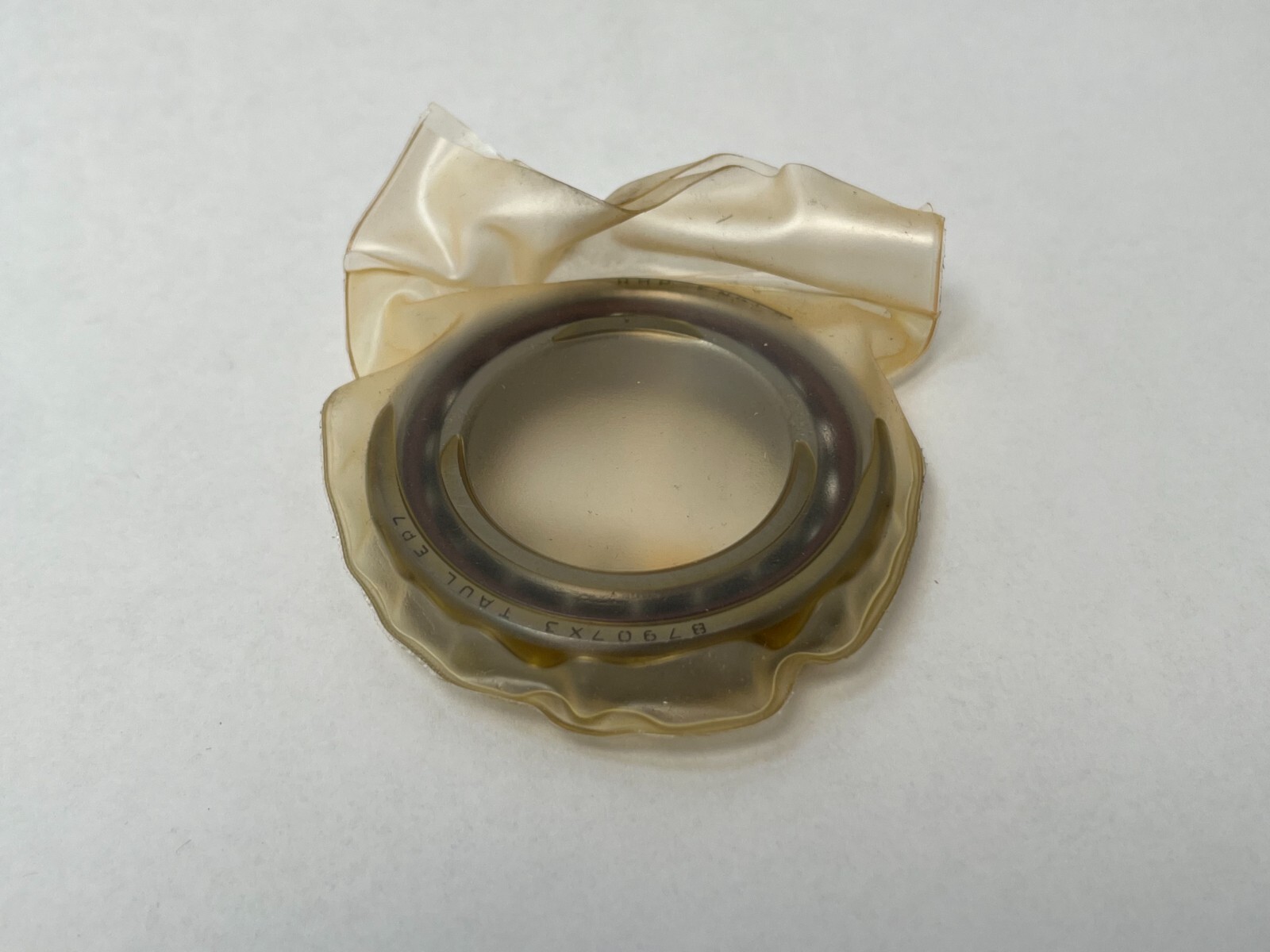

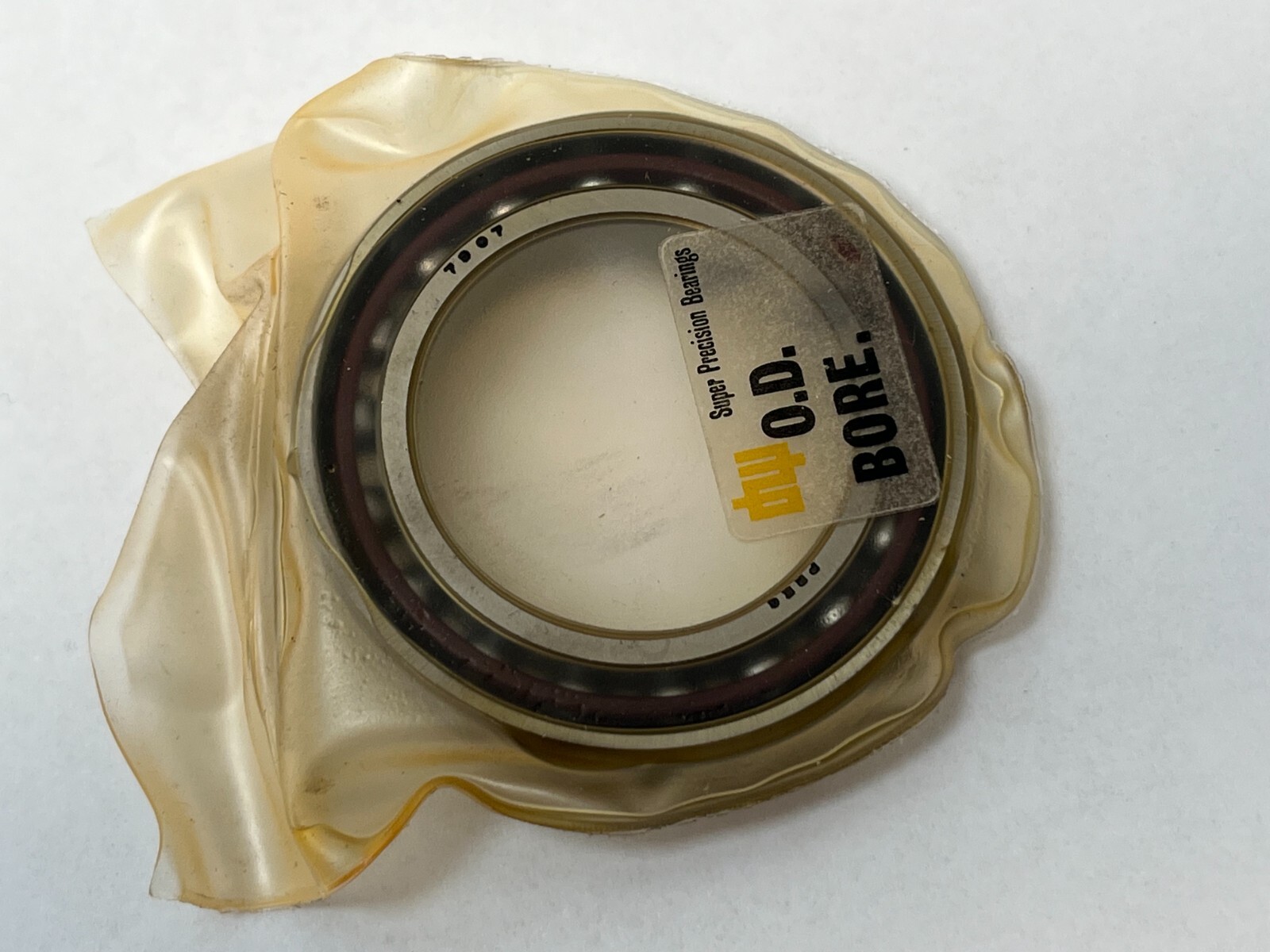

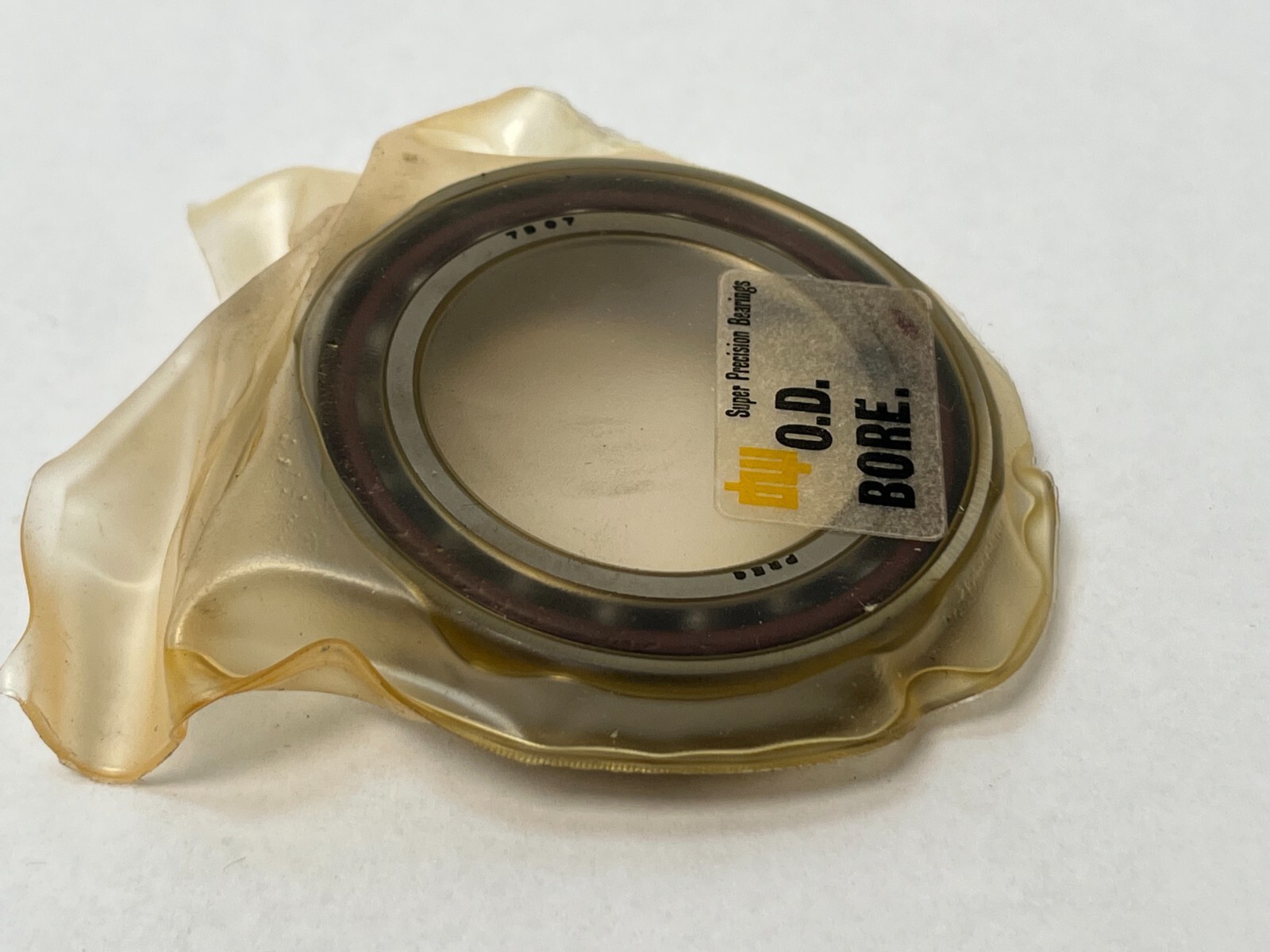

RHP7907ETSULP4Super Precision Angular Contact Ball Bearing – Straight Bore, 35 mm ID, 55 mm OD, 10 mm Width, Open, 25° Contact Angle, Light Preload, ABEC 7.

Product Description

What this part is:

RHP 7907ETSULP4 super precision angular contact ball bearing, ISO dimension series 19, single universal, light preload. 35 mm bore, 55 mm outside diameter, 10 mm width, 25° contact angle. Unit Quantity: 1 Pc.

Decoding the designation:

7907 — ISO dimension series 19, 35 x 55 x 10 mm. The ISO 719 family, so 7907 and 71907 designate the same bearing.

E — RHP 25° contact angle execution, catalogued as A5.

T — laminated phenolic resin cage, machined, outer-ring guided.

SU — single universal: the bearing pairs with another of the same execution back-to-back or face-to-face.

L — light preload.

P4 — tolerance class P4, equivalent to ABEC 7 and ISO Class 4.

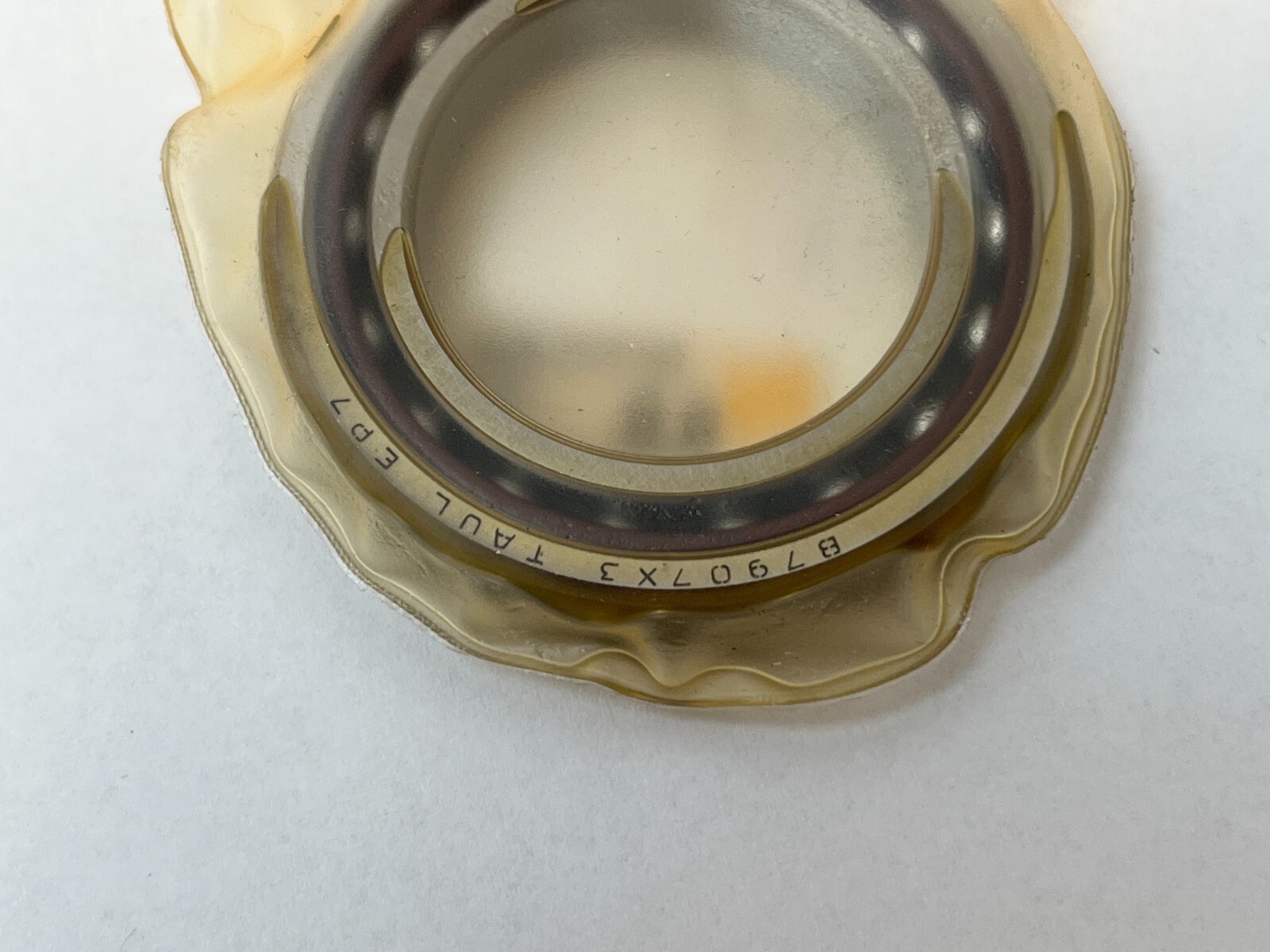

B7907X3 — RHP B-series form of the number; X3 is the 25° code.

3MM9307WICRSUL — Fafnir designation on the same bearing; 3MM is the 25° prefix and the 9300 series maps to ISO 719xx.

Specifications:

Bore Diameter: 35 mm. Outside Diameter: 55 mm. Overall Width: 10 mm. Contact Angle: 25°. Number Of Rows: 1. Rolling Elements: Steel balls. Bearing Material: Carbon chrome bearing steel to SAE 52100. Bore Type: Straight. Closure Type: Open. Series: 7900. Base Number: 7907. Cage Material: Laminated phenolic resin. Cage Type: Machined, outer-ring guided. Preload: Light. Precision Class: ABEC 7 / P4. Dynamic Load Rating: 11.4 kN. Static Load Rating: 8.7 kN. Limiting Speed, grease lubrication: 21,800 rpm. Limiting Speed, oil or oil-air lubrication: 35,200 rpm. Both speed figures are single-bearing values; a back-to-back pair at light preload runs at 0.80 of the tabulated speed. Axial Preload: 100 N paired. Axial Stiffness: 94 N per micrometre paired. Effective Load Centre: 15.5 mm. Maximum Operating Temperature: 120 °C. Lubricant: grease or oil. Item Weight: 0.074 kg (0.16 lb).

Dimensions and mounting:

Inner Ring Abutment Diameter: 40 mm minimum. Outer Ring Abutment Diameter: 50 mm maximum. Housing Abutment Diameter: 52.5 mm maximum. Fillet Radius r min: 0.6 mm. Fillet Radius r1 min: 0.3 mm. Internal Volume: 3.6 cm3. Mass: 0.074 kg.

Compatibility and replacement:

25° angular contact bearings on the 35 x 55 x 10 mm envelope: SKF 71907 ACDGA/P4A, FAG B71907-E-T-P4S-UL, NSK 7907A5TYNSULP4 (polyamide cage). The 7907C is a related 15° size on the same envelope. Also written 7907-E-T-SUL-P4, 7907 E T SUL P4, 7907-E-T-UL-P4, 71907, 71907E, B7907X3 and 3MM9307WICRSUL.

Frequently asked questions:

What are the dimensions of the RHP 7907ETSULP4?

Bore 35 mm, outside diameter 55 mm, width 10 mm.

What contact angle and preload does it have?

25° contact angle and light preload.

What are the load ratings and speed limits?

11.4 kN dynamic and 8.7 kN static; 21,800 rpm grease and 35,200 rpm oil or oil-air.
