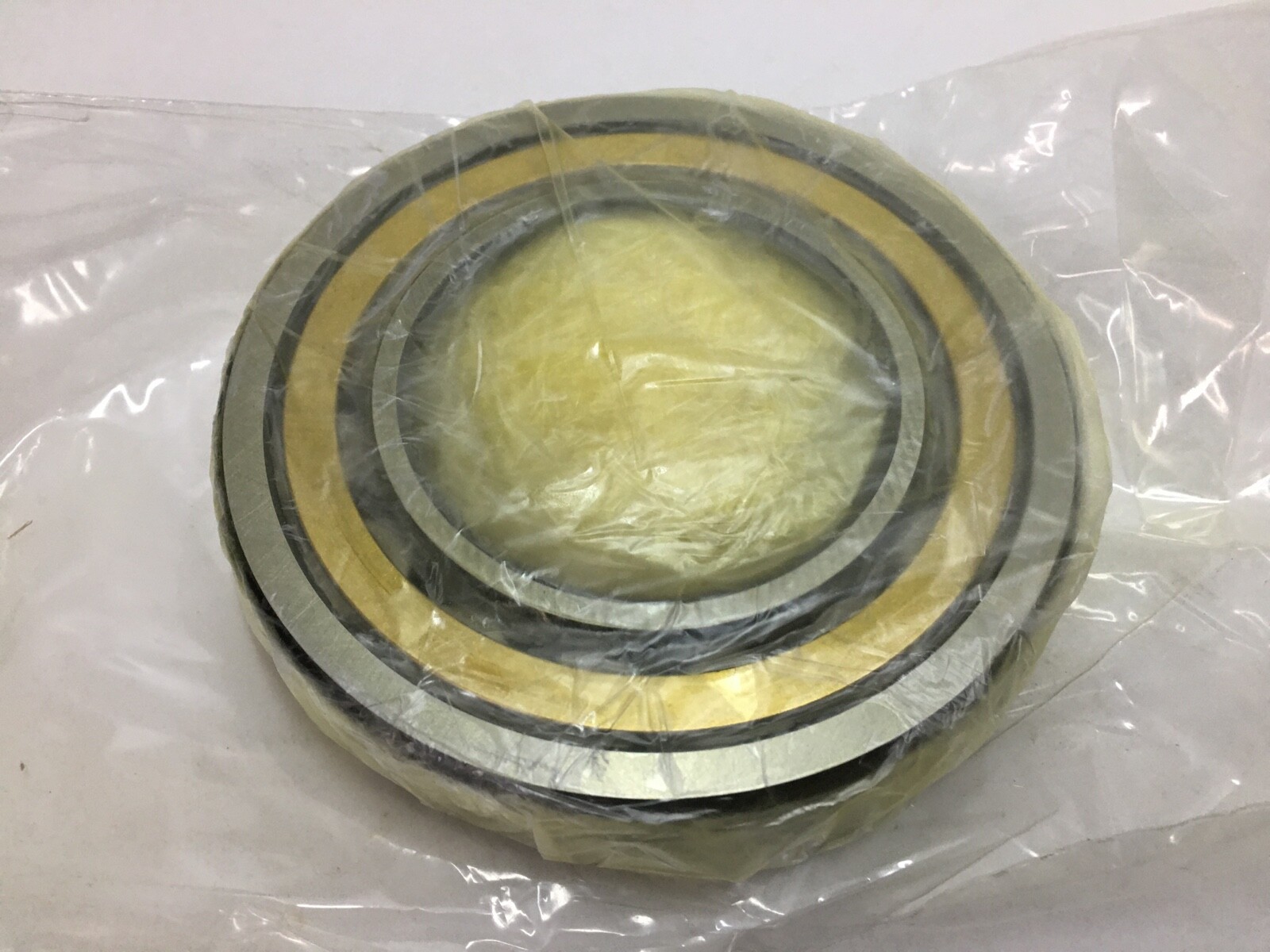

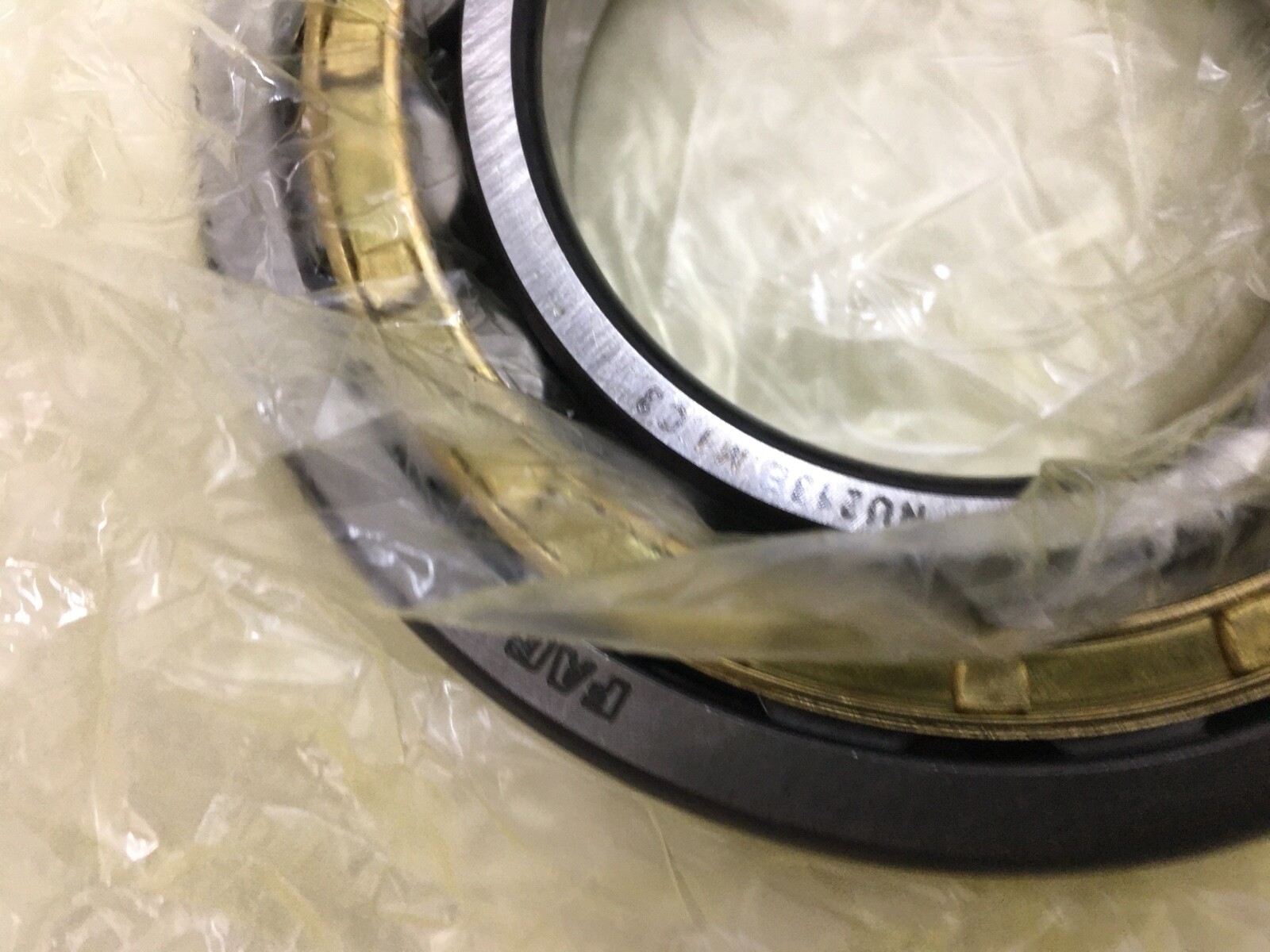

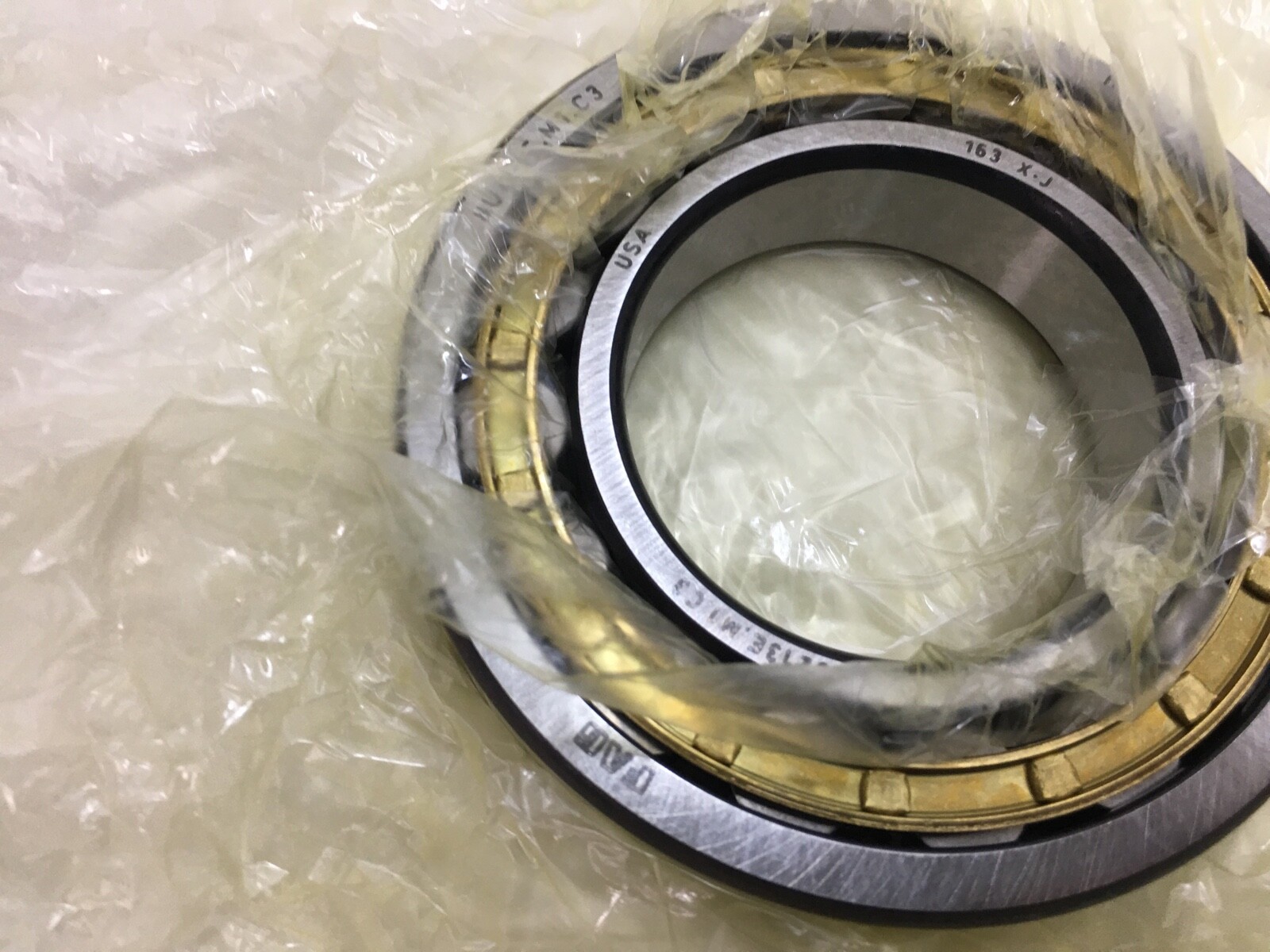

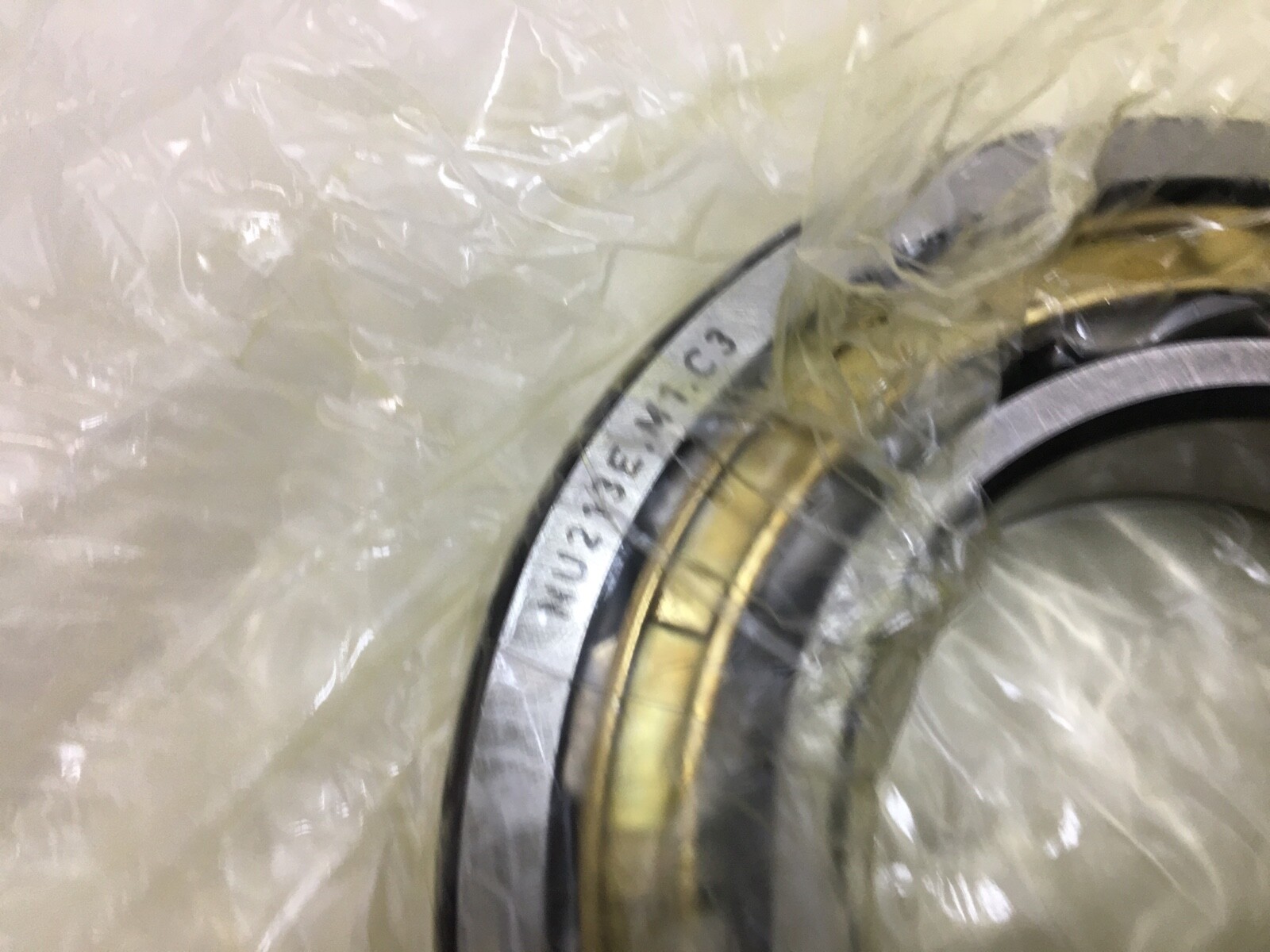

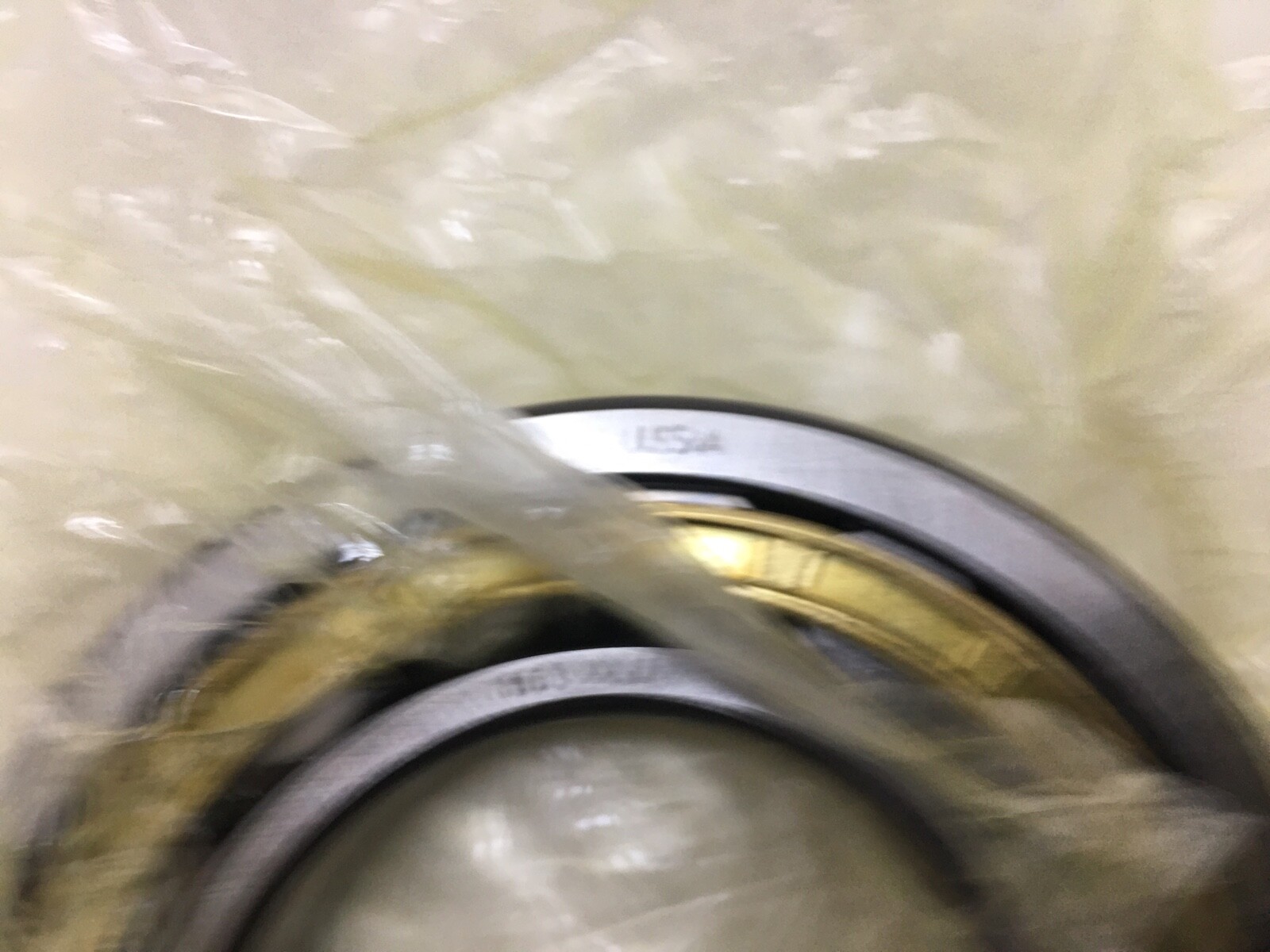

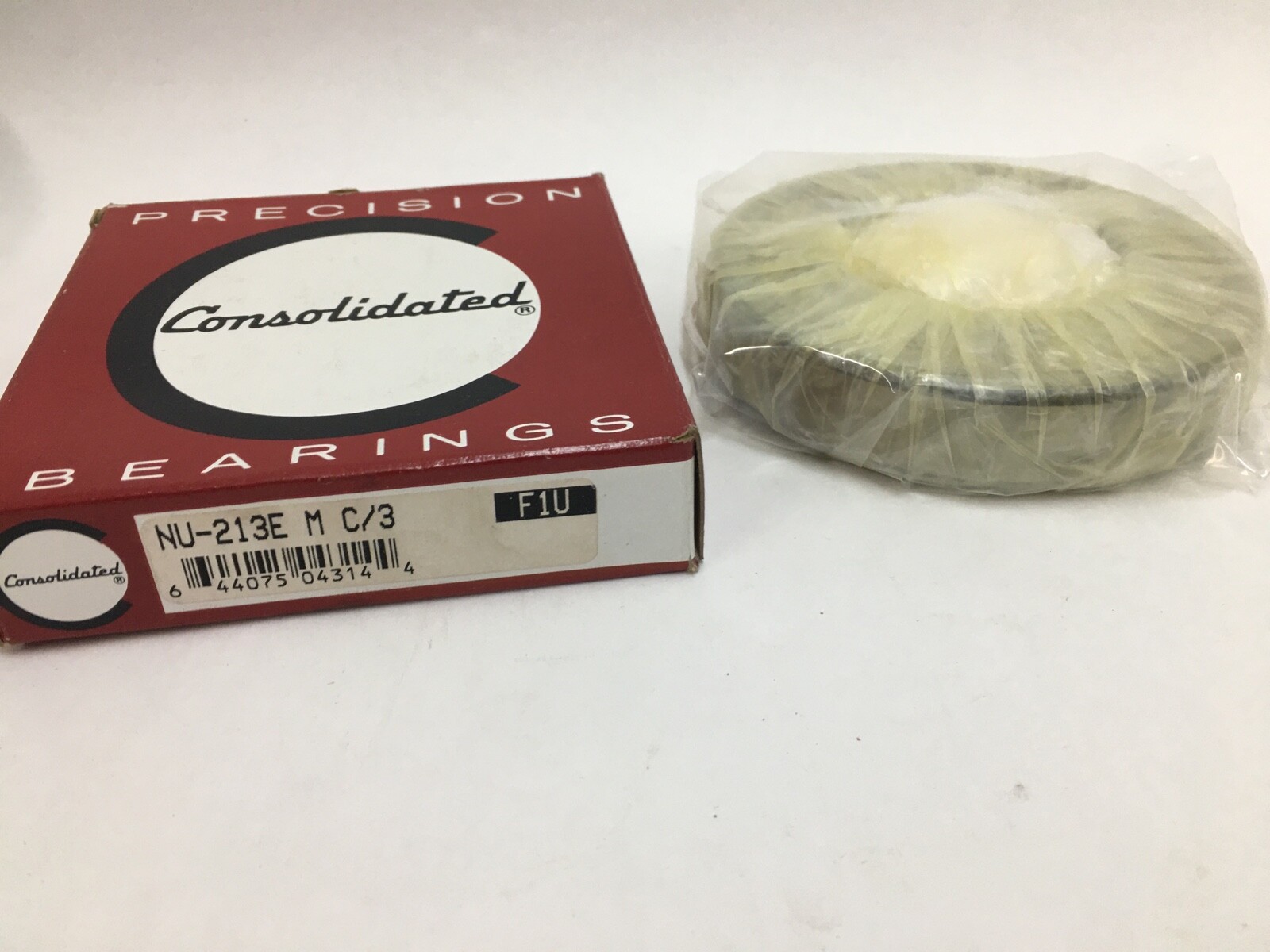

Consolidated NU-213 EM C3 cylindrical roller bearing, 65 mm bore, 120 mm OD, 23 mm wide, machined brass cage, C3. Interchanges with SKF NU 213 ECM/C3.
List Price
$65.89
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Consolidated |
|---|---|
| MPN | NU-213 EM C3 |
| GTIN | 644075043144 |
| Model | NU 213 E M C3 |
| Bearing Type | Cylindrical Roller Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 23 mm |
| Series | NU2 |
|---|---|
| Material | Bearing Steel |
| Rolling Elements | Cylindrical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Cylindrical |
| Snap Ring Included | No |
| Harmonization Code | 8482.50.00 |
| Internal Clearance | C3 |
| Overall Width | 23 mm |
| Mpn Variants | NU-213 EM C3, NU213EMC3, NU213EM1C3, NU 213 E M C3, NU213EM, NU213 |
| Cross Reference 1 | SKF NU 213 ECM/C3 |
|---|---|
| Cross Reference 2 | FAG NU213-E-M1-C3 |
| Cross Reference 3 | NSK NU213EMC3 |
| Cross Reference 4 | NTN NU213EMC3 |
| Cross Reference 5 | Timken NU213EMAC3 |
The Consolidated NU-213 EM C3 is a single-row cylindrical roller bearing in the ISO 02 series, NU design, with a machined brass cage and C3 clearance. Bore Diameter: 65 mm. Outside Diameter: 120 mm. Width: 23 mm.
NU — two integral ribs on the outer ring, no ribs on the inner ring. Non-locating: carries radial load and permits axial shaft movement in both directions.
2 — ISO 02 light series.
13 — bore code, 13 x 5 = 65 mm bore.
E — reinforced internal design with a larger roller complement.
M — machined brass cage.
C3 — radial internal clearance greater than normal.
Bearing Type: Cylindrical Roller Bearing. Design: NU. Number Of Rows: 1. Rolling Elements: Cylindrical Roller. Bore Diameter: 65 mm. Outside Diameter: 120 mm. Width: 23 mm. Cage Material: Machined brass. Internal Clearance: C3. Bore Type: Cylindrical. Brand: Consolidated. Unit Quantity: 1 Pc.
Envelope: 65 x 120 x 23 mm. The separable inner ring mounts on the shaft independently of the outer ring and roller set.
Same ISO envelope, NU design, brass cage and C3 clearance as SKF NU 213 ECM/C3, FAG NU213-E-M1-C3, NSK NU213EMC3, NTN NU213EMC3 and Timken NU213EMAC3. Load ratings differ between makers.
What are the dimensions of an NU213?
Bore Diameter: 65 mm. Outside Diameter: 120 mm. Width: 23 mm.
What cage does it have?
Cage Material: Machined brass.
What does it interchange with?
SKF NU 213 ECM/C3, FAG NU213-E-M1-C3, NSK NU213EMC3, NTN NU213EMC3 and Timken NU213EMAC3.
