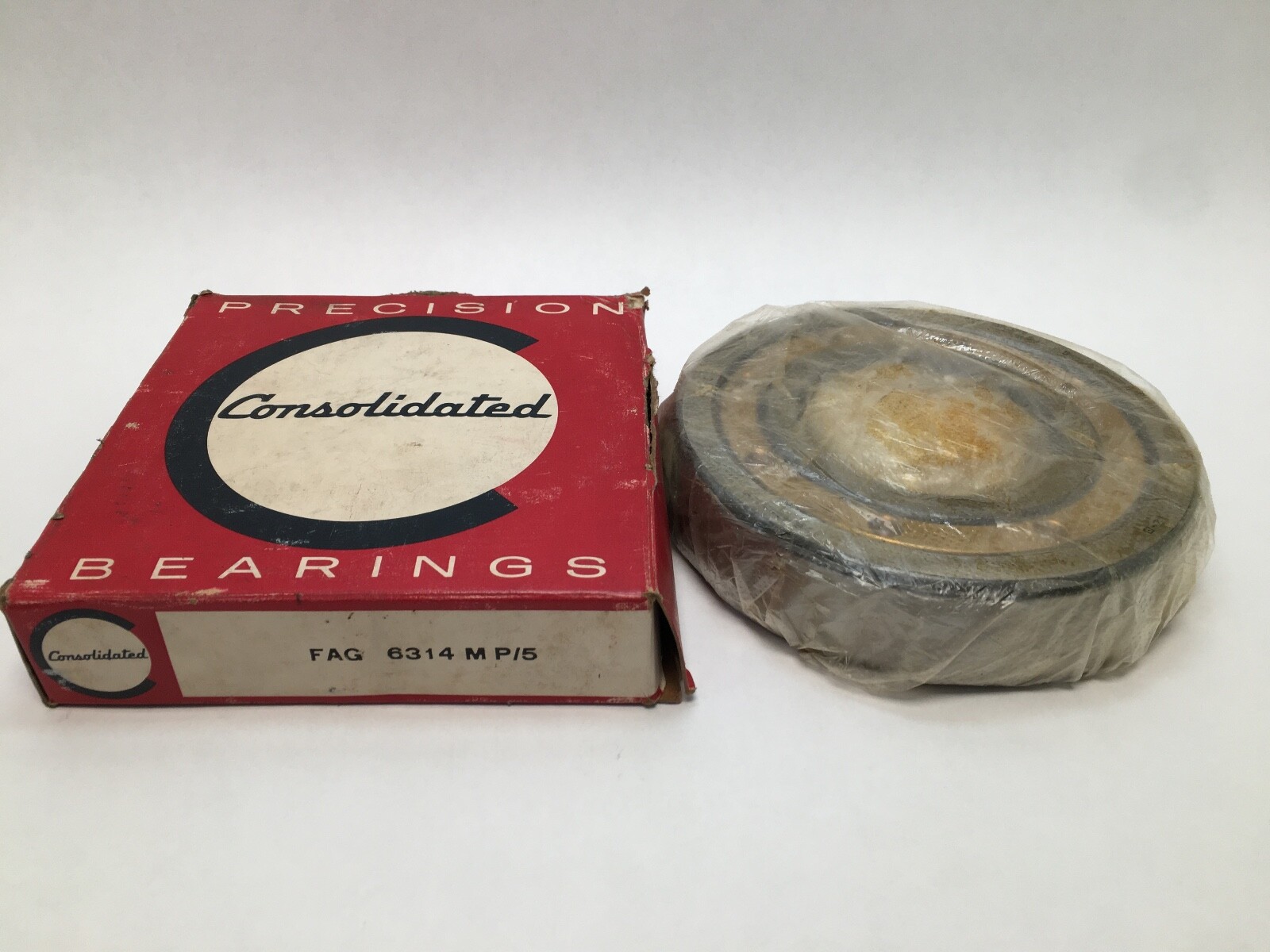

Deep groove ball bearing, 70 mm bore x 150 mm OD x 35 mm wide, open, ABEC 5 / P5, machined brass cage, CN clearance. FAG 6314M.P5, Consolidated designation.
List Price
$81.63
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 6314M.P5 |
| Model | 6314 M P5 |
| Bearing Type | Ball Bearing, Open |
| ID | 70 mm |
| OD | 150 mm |
| Width | 35 mm |
| Material | Chrome Steel |
|---|---|
| Series | 6300 |
| Mpn Variants | 6314M.P5, 6314-M-P5, 6314MP5, Consolidated 6314M.P5 |
| Precision Class | ABEC 5 / P5 |
| Cage Type | Machined |
| Precision Rating | ABEC 5 / P5 |
| Rolling Elements | Ball |
| Cage Material | Machined brass |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50.68 |
| Industry Terms | deep groove ball bearing P5; precision ball bearing 6314; 70x150x35 bearing; brass cage ball bearing |
| Common Misspellings | FAG6314MP5; FAG 6314 MP5; 6314M P5; Fag 6314-M.P5 |
| Application Types | Machine tools; pumps; industrial machinery |
| Closure Type | Open |
| Cross Reference 1 | SKF 6314 M/P5 |
|---|---|
| Cross Reference 2 | NSK 6314P5 |
| Cross Reference 3 | NTN 6314P5 |
| Cross Reference 4 | Koyo 6314P5 |

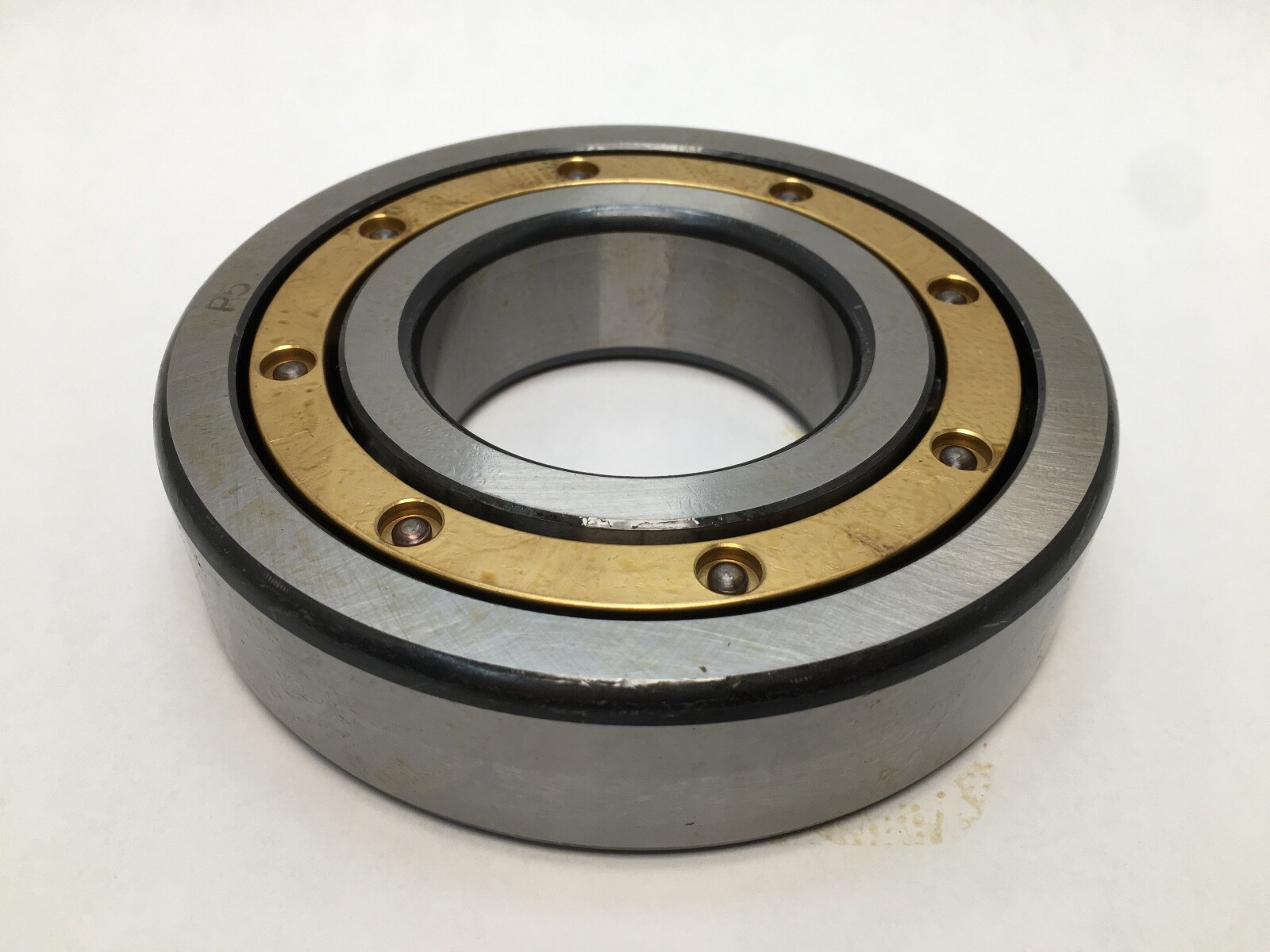

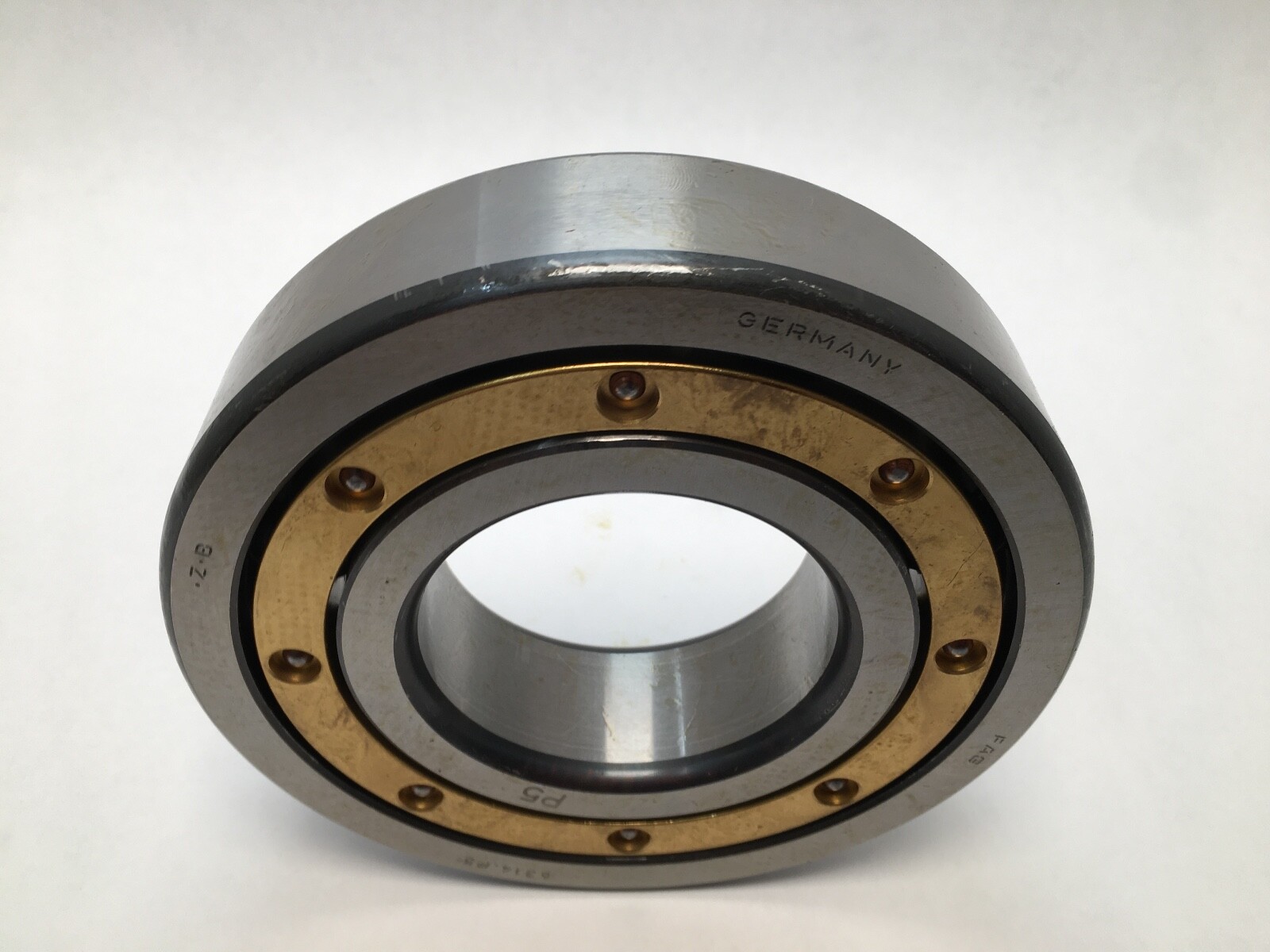

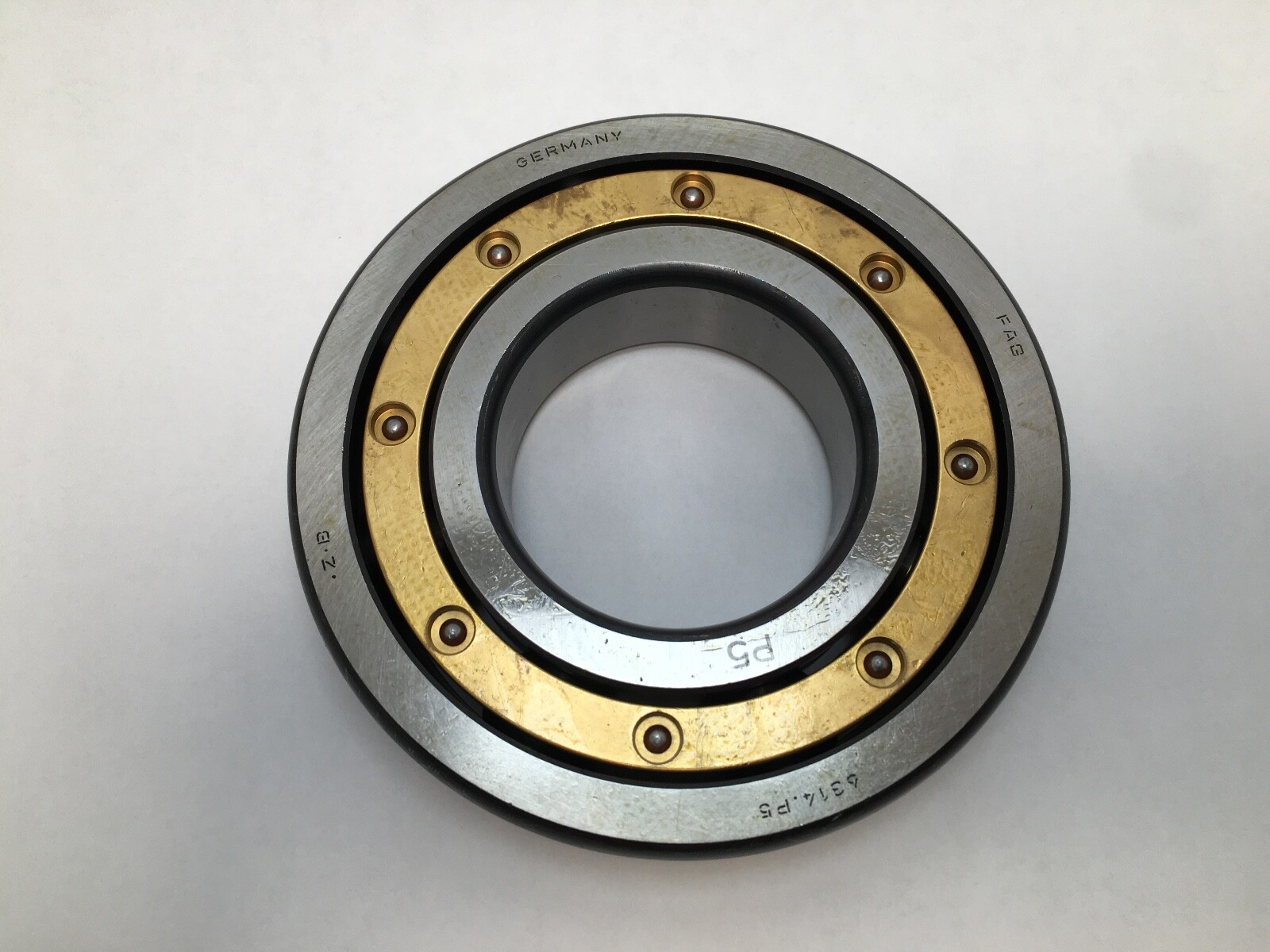

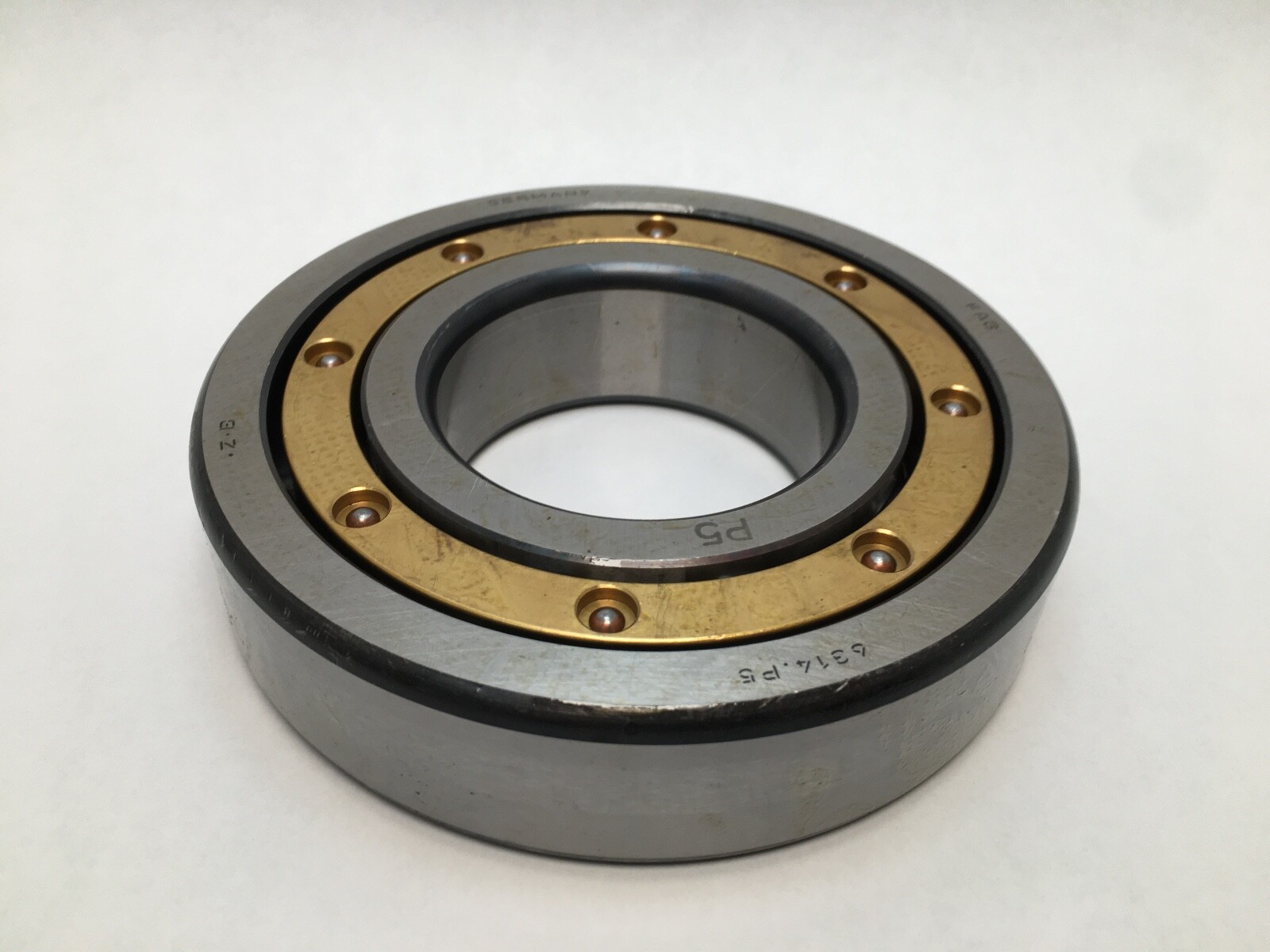

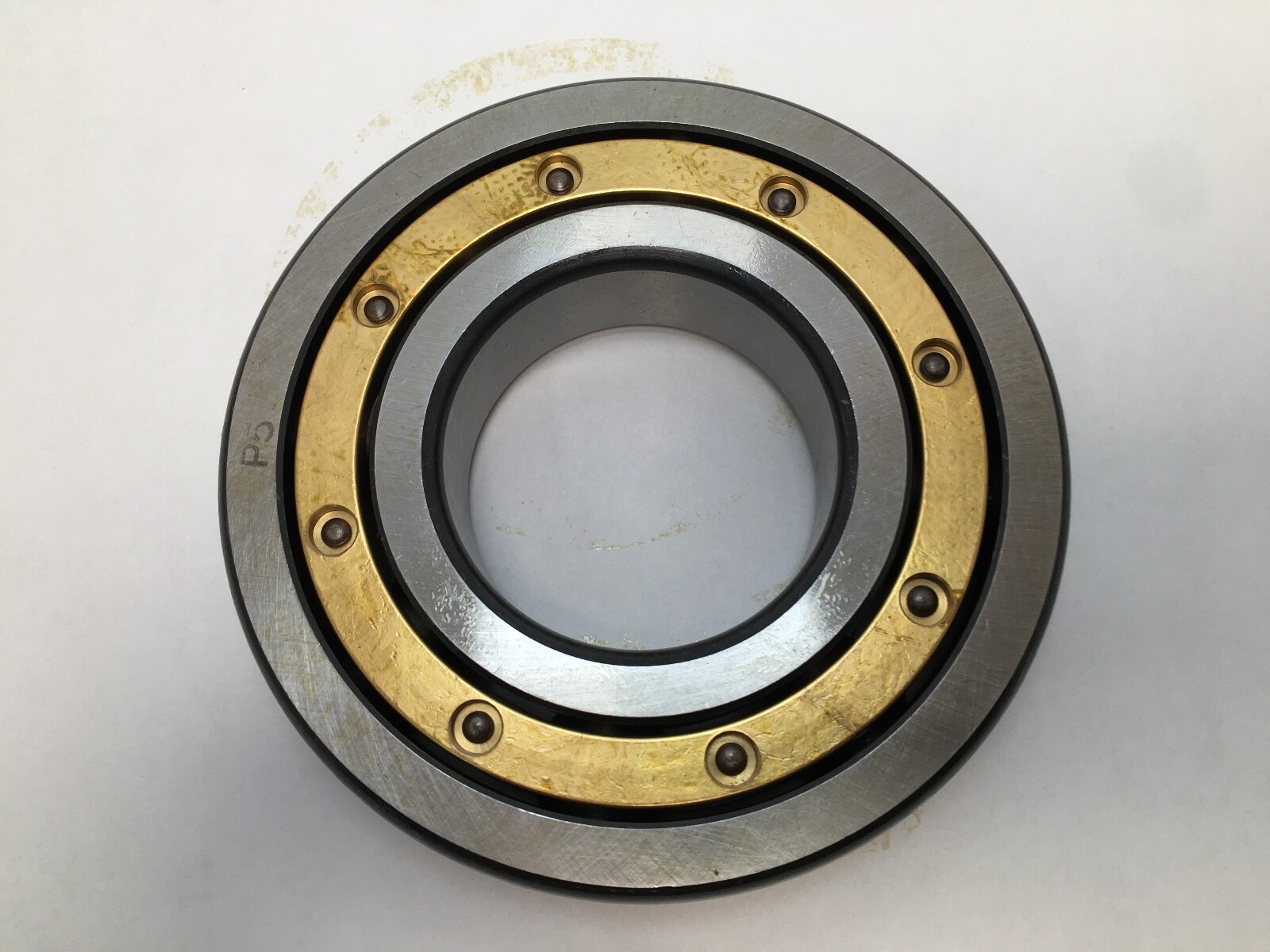

The FAG 6314M.P5 (Consolidated designation) is a single-row deep groove ball bearing, open, with a straight bore, a machined brass cage and P5 precision. It is supplied as 1 piece, without a snap ring.
6314 — 63 medium diameter series, bore code 14 = 70 mm bore.
M — machined brass cage.

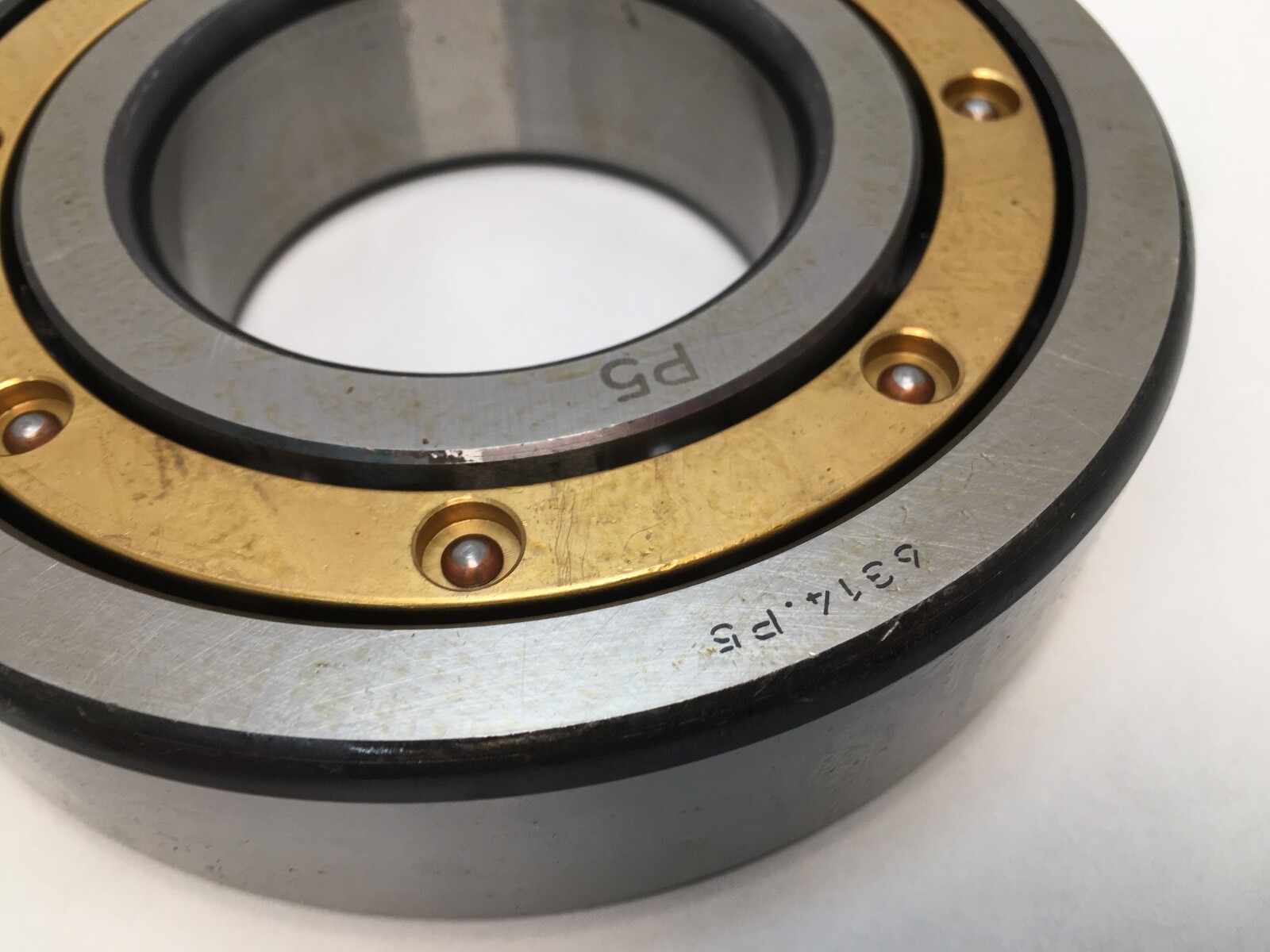

P5 — precision class P5, equivalent to ABEC 5.
Bearing Type: Deep Groove Ball Bearing. Rolling Elements: Ball. Number Of Rows: 1. Closure Type: Open. Bore Type: Straight. Cage Material: Machined brass. Precision Class: ABEC 5 / P5. Internal Clearance: CN. Unit Quantity: 1 Pc.
Bore Diameter: 70 mm. Outside Diameter: 150 mm. Width: 35 mm. Chamfer r min: 2.1 mm. Shaft abutment diameter da min: 82 mm. Housing abutment diameter Da max: 138 mm. Fillet radius ra max: 2.1 mm.
Cross-references, P5 class: SKF 6314 M/P5, NSK 6314P5, NTN 6314P5, Koyo 6314P5. Current FAG form: 6314-M-P5. Also written 6314M.P5, 6314MP5.
70 mm bore, 150 mm outside diameter, 35 mm width.
M is a machined brass cage and P5 is precision class P5, equivalent to ABEC 5.
SKF 6314 M/P5.
