Availability:
4 in stock
Deep groove ball bearing, 70 x 150 x 35 mm, contact seals both sides, snap-ring groove in the outer ring. Chrome steel, CN clearance, ABEC 1 / P0.
List Price
$51.33
4 in stock
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Fafnir |
|---|---|
| MPN | 314NPP |
| Model | 6314 2RS |
| Bearing Type | Ball Bearing, Contact seals both sides |
| ID | 70 mm |
| OD | 150 mm |
| Width | 35 mm |
| Material | Chrome Steel |
|---|---|
| Series | 300 |
| Condition | New – Open box |
| Lubricant | Grease |
| Base Number | 314 |
| Common Misspellings | Fafner 314NPP; Fafnir 314NNP; 314NPPP; 314 N PP; Faffnir 314NPP |
| Condition Note | Made In USA |
| Overall Width | 35 mm |
| Mpn Variants | 314NPP; 314 NPP; 314-NPP; 6314-2RS; 6314 2RS; 63142RS; 6314RS |
| Precision Class | ABEC 1 / P0 |
| Dynamic Load Rating C1 | 115,500 N |
| Additional Attributes | Maximum shaft fillet radius 2.11 mm; shaft backing shoulder diameter 81.99 mm; housing backing shoulder diameter 137.90 mm; outer ring to-clear radius 2.11 mm |
| Dynamic Load Rating | 115,500 N |
| Static Load Rating | 68,000 N |
| Precision Rating | ABEC 1 / P0 |
| Rolling Elements | Ball |
| Limiting Speed | 1,500 rpm grease; 3,182 rpm oil |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Internal Clearance | CN |
| Harmonization Code | 8482.10.50 |
| Bearing Material | Chrome steel |
| Cross Reference 1 | SKF 6314-2RS1 (related, plain outer ring) |
|---|---|
| Cross Reference 2 | FAG 6314-2RSR (related, plain outer ring) |
| Cross Reference 3 | NSK 6314DDU (related, plain outer ring) |
| Cross Reference 4 | NTN 6314LLU (related, plain outer ring) |
| Cross Reference 5 | Timken Fafnir 314PP (related, plain outer ring) |
| Cross Reference 6 | RHP 6314-2RS (related, plain outer ring) |
| Cross Reference 7 | Koyo 6314-2RSNR (related, snap-ring groove plus ring) |
| Cross Reference 8 | MRC 314SZZ (related, plain outer ring) |
| Cross Reference 9 | SNR 6314EE (related, plain outer ring) |

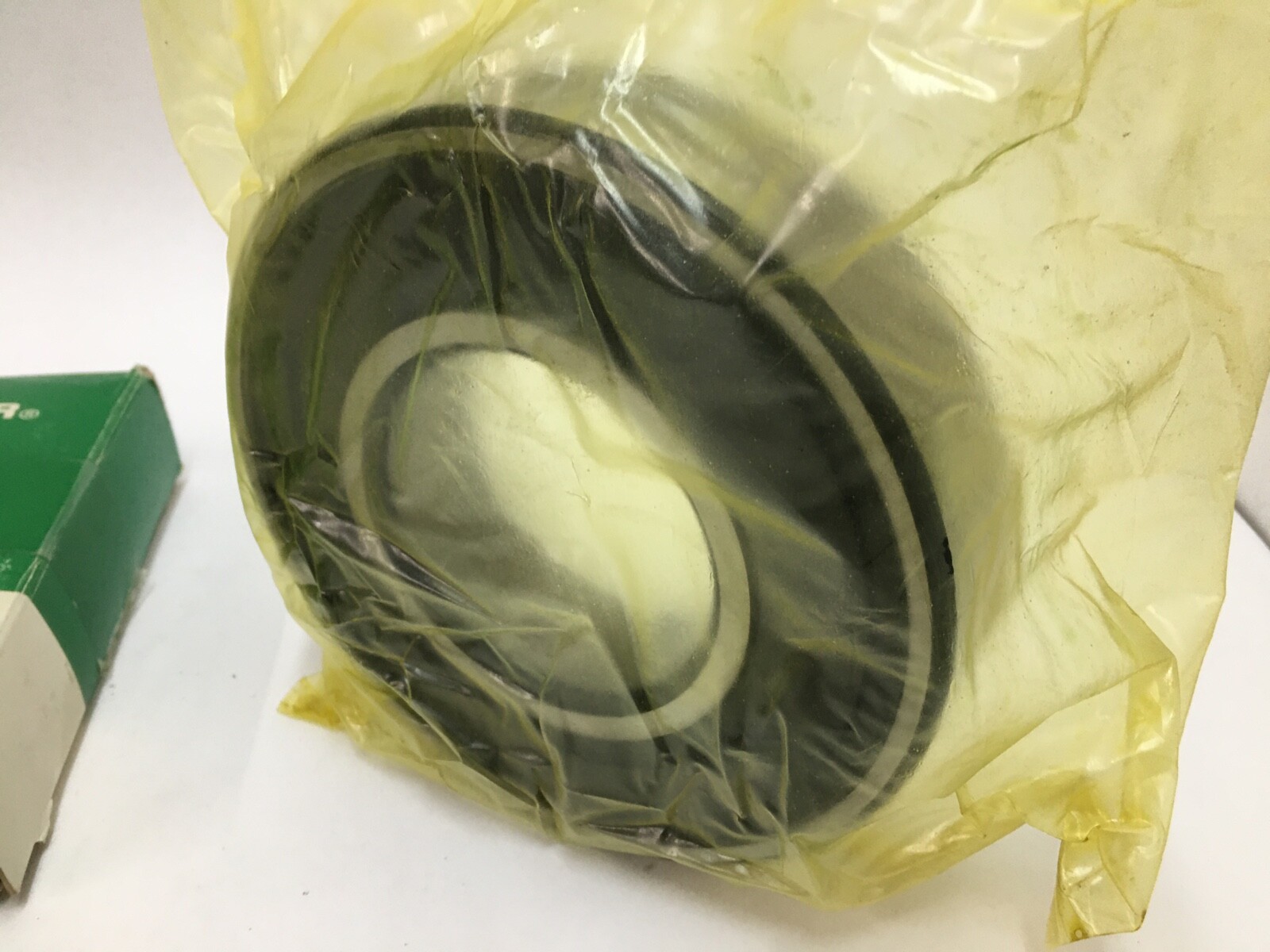

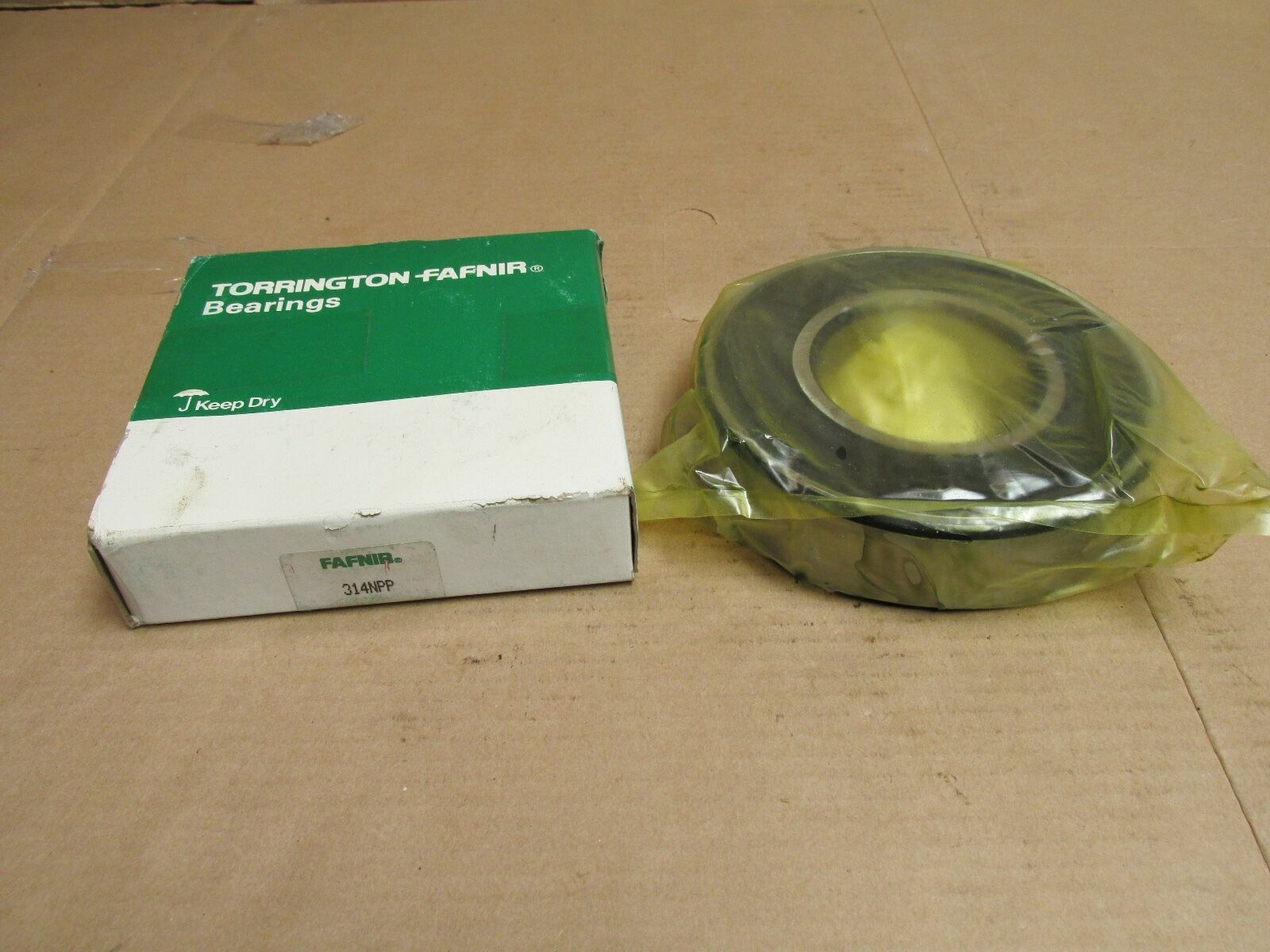

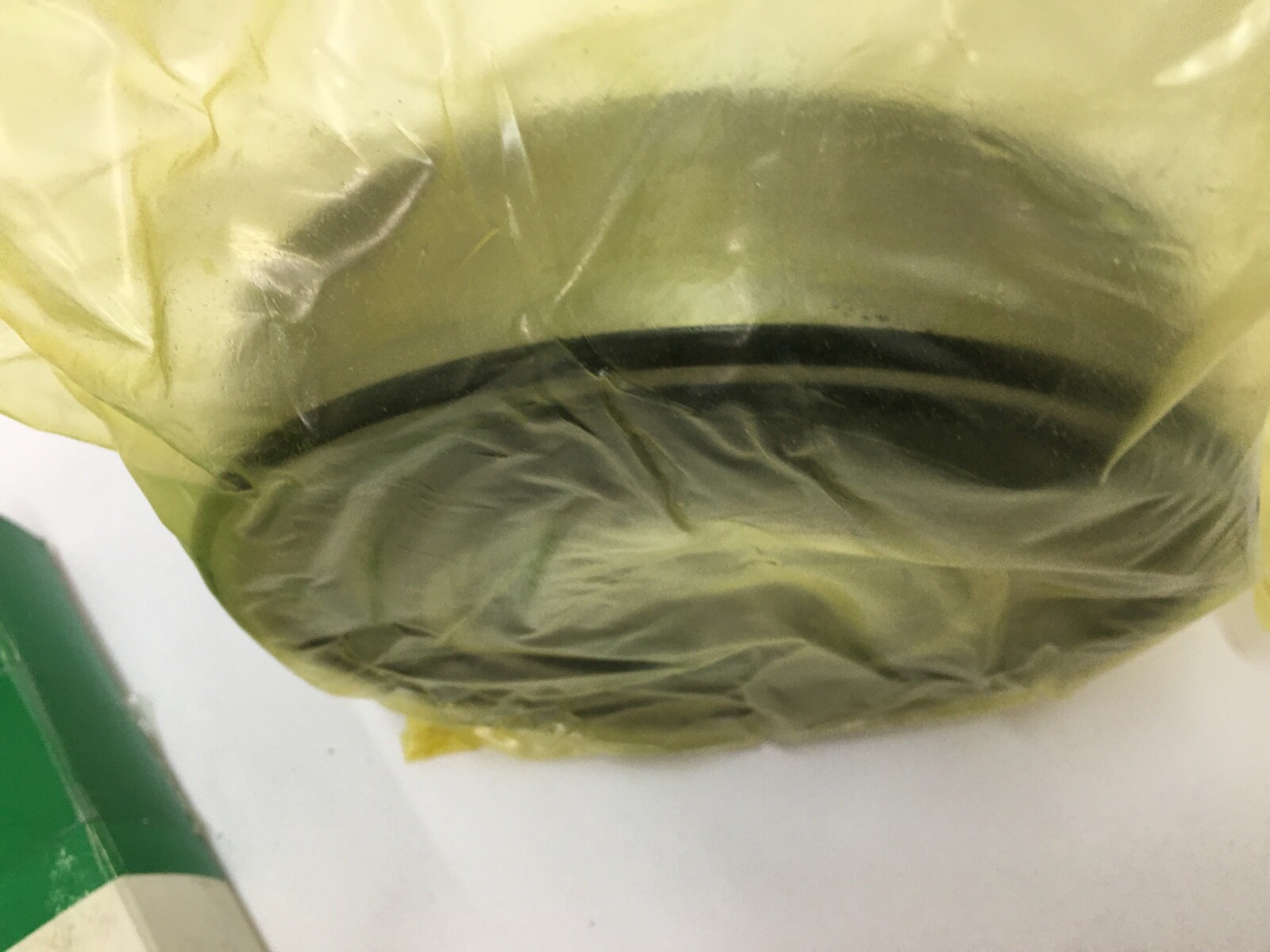

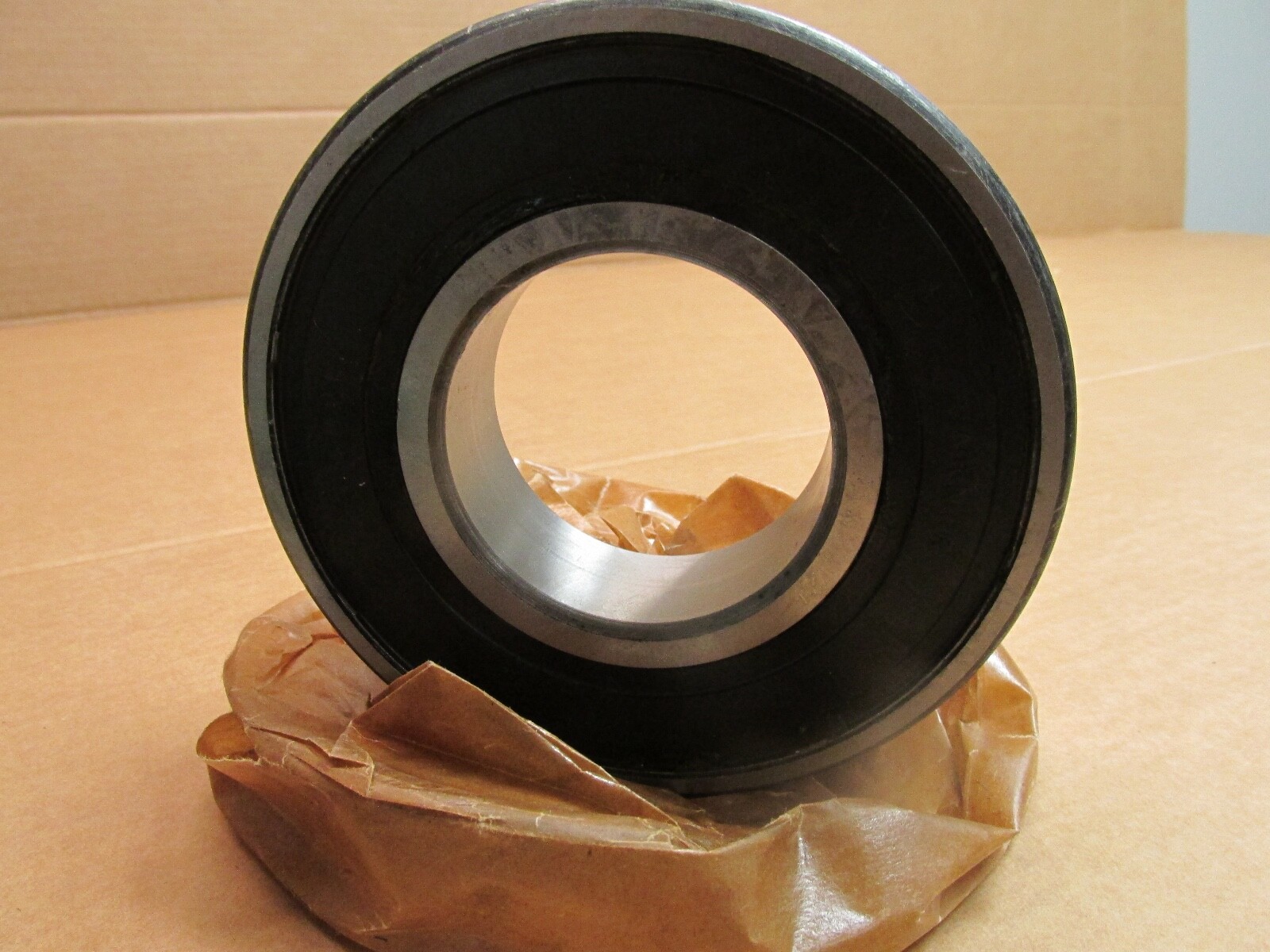

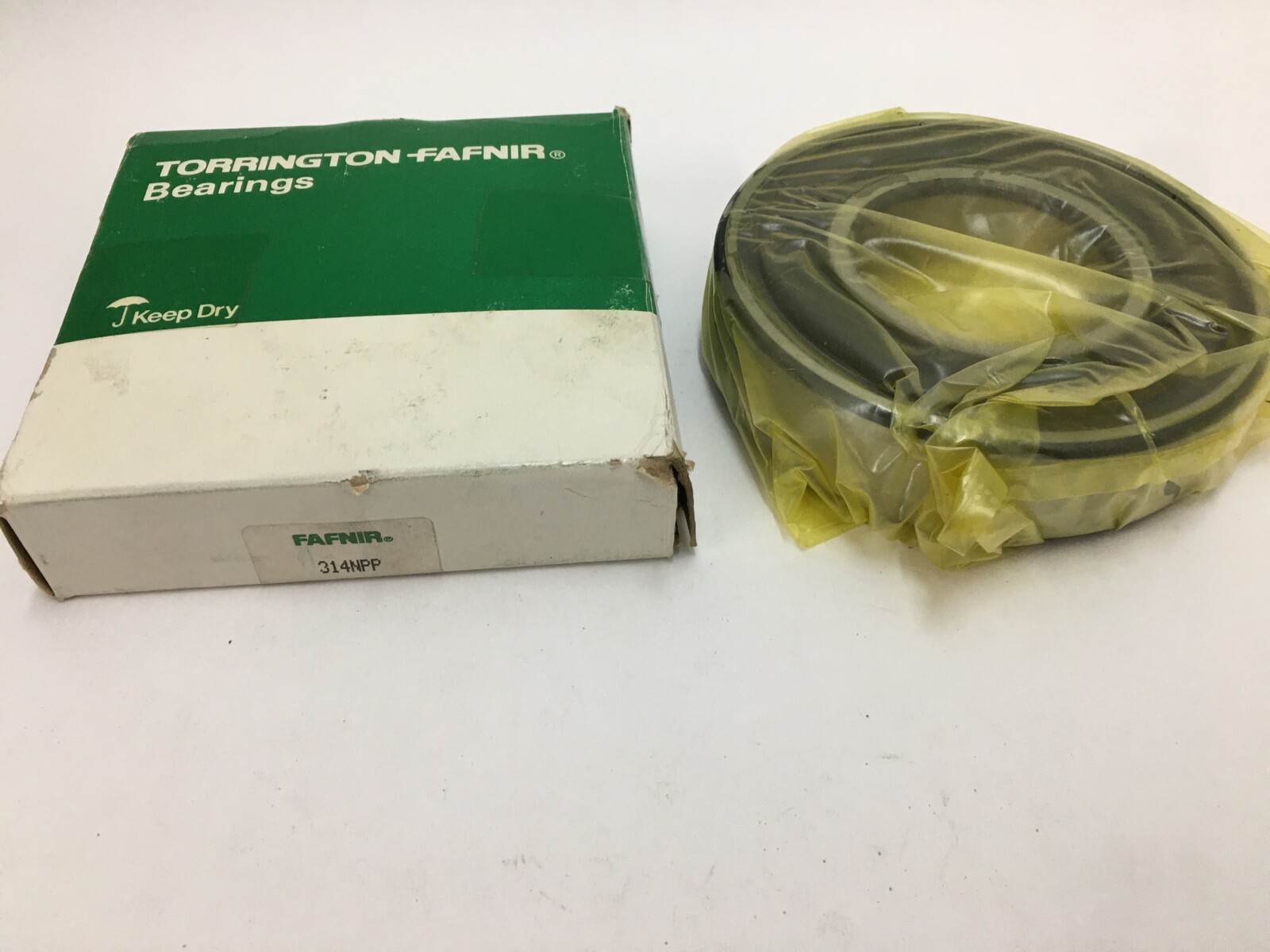

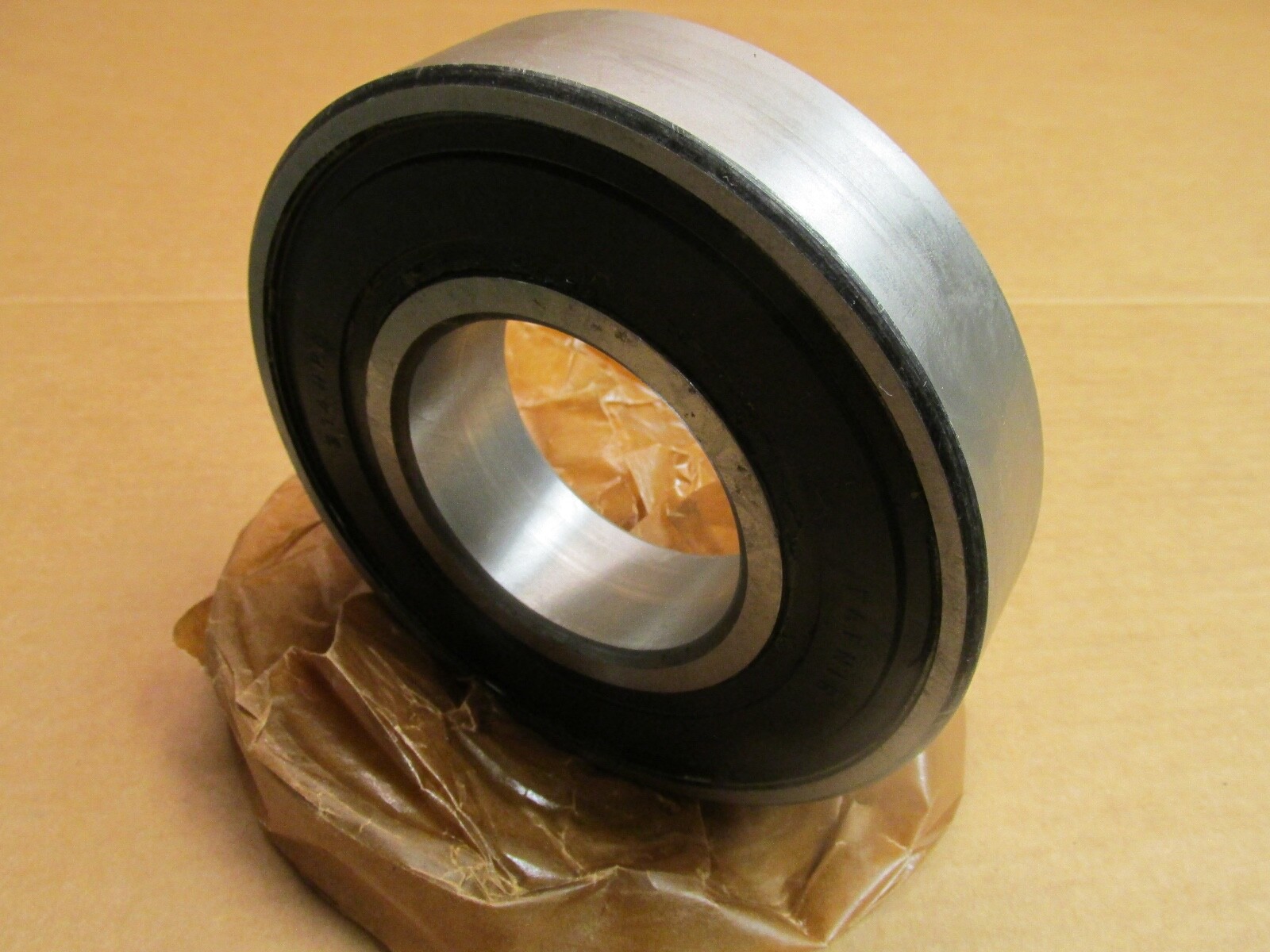

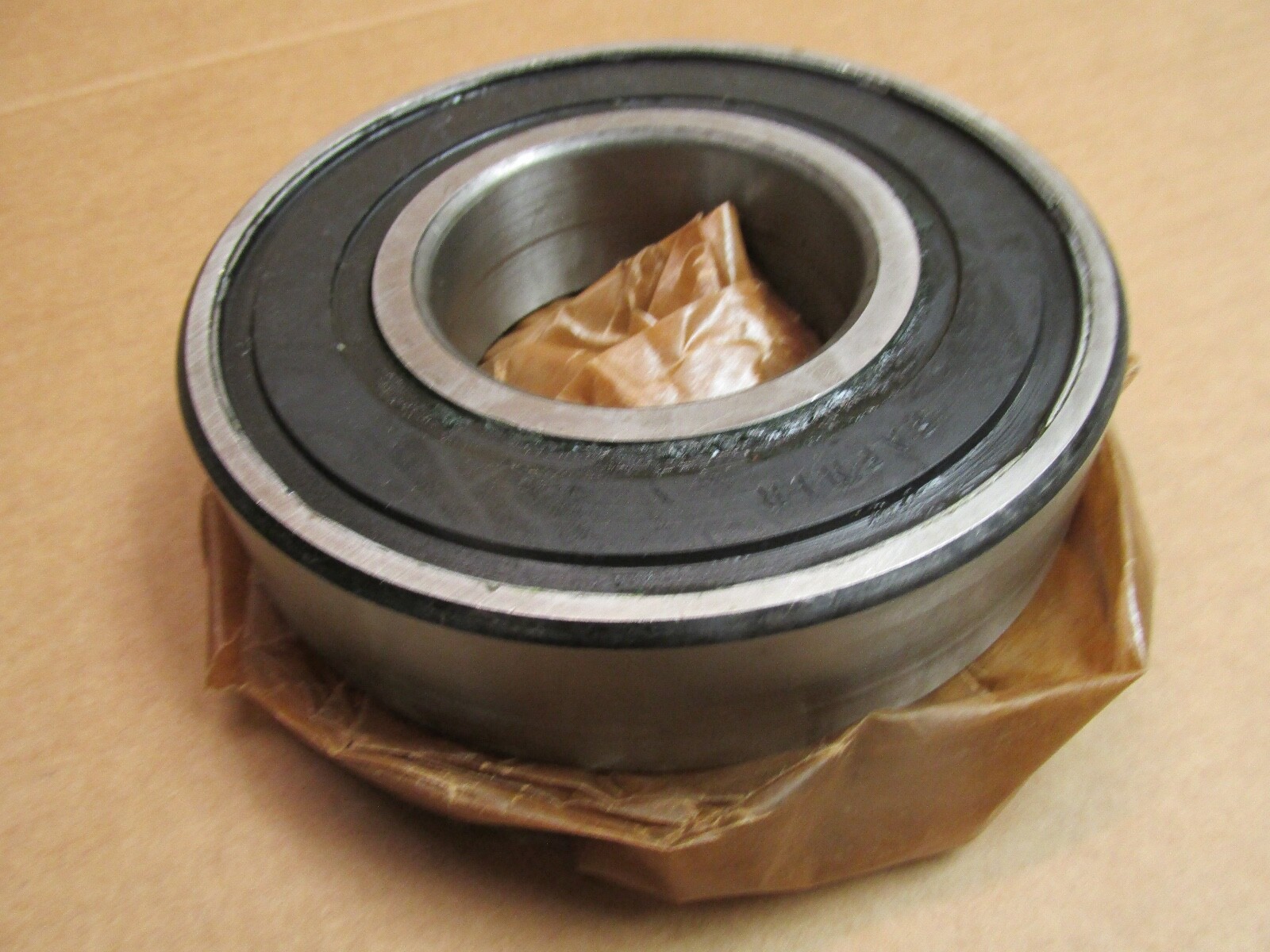

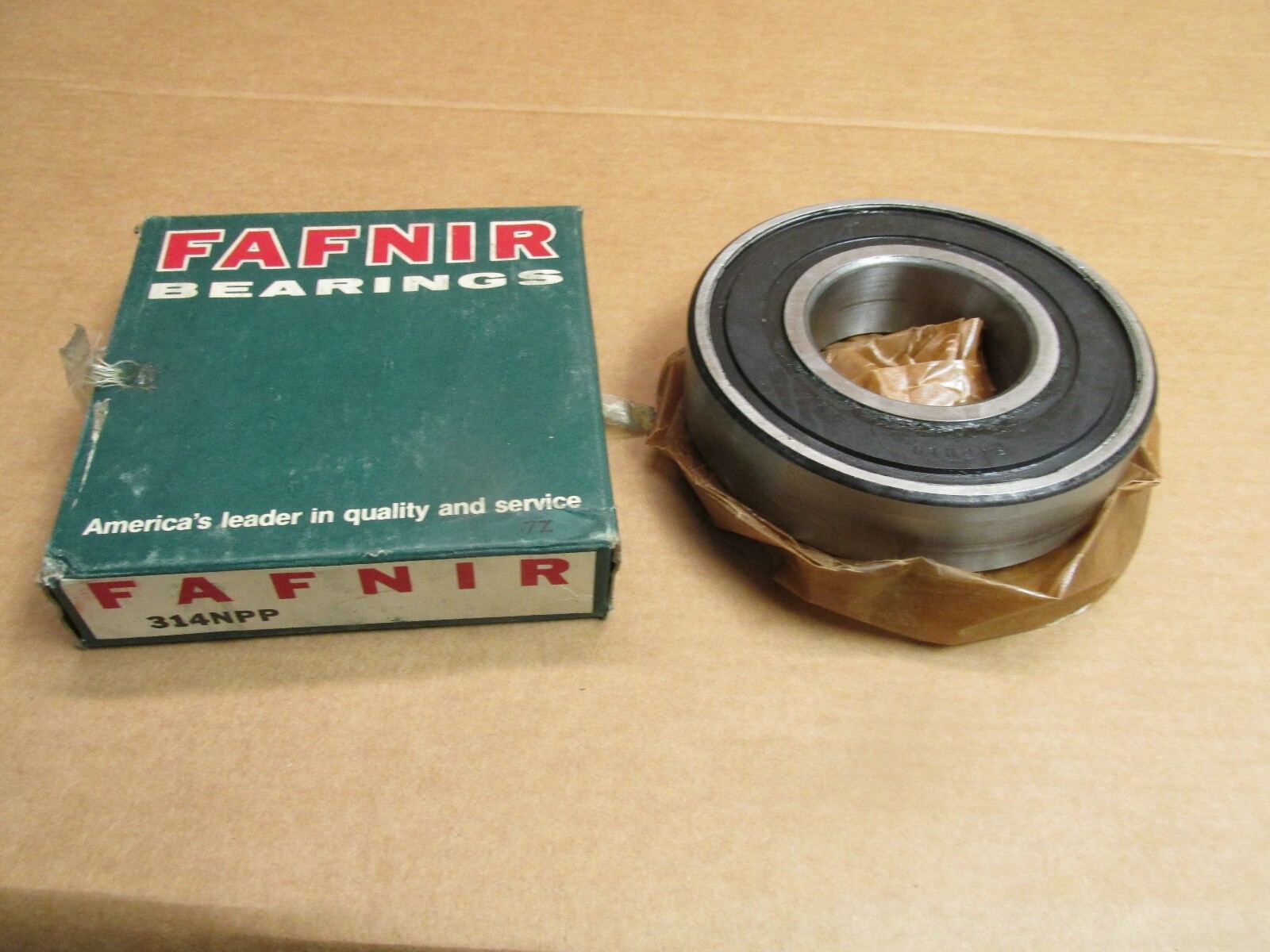

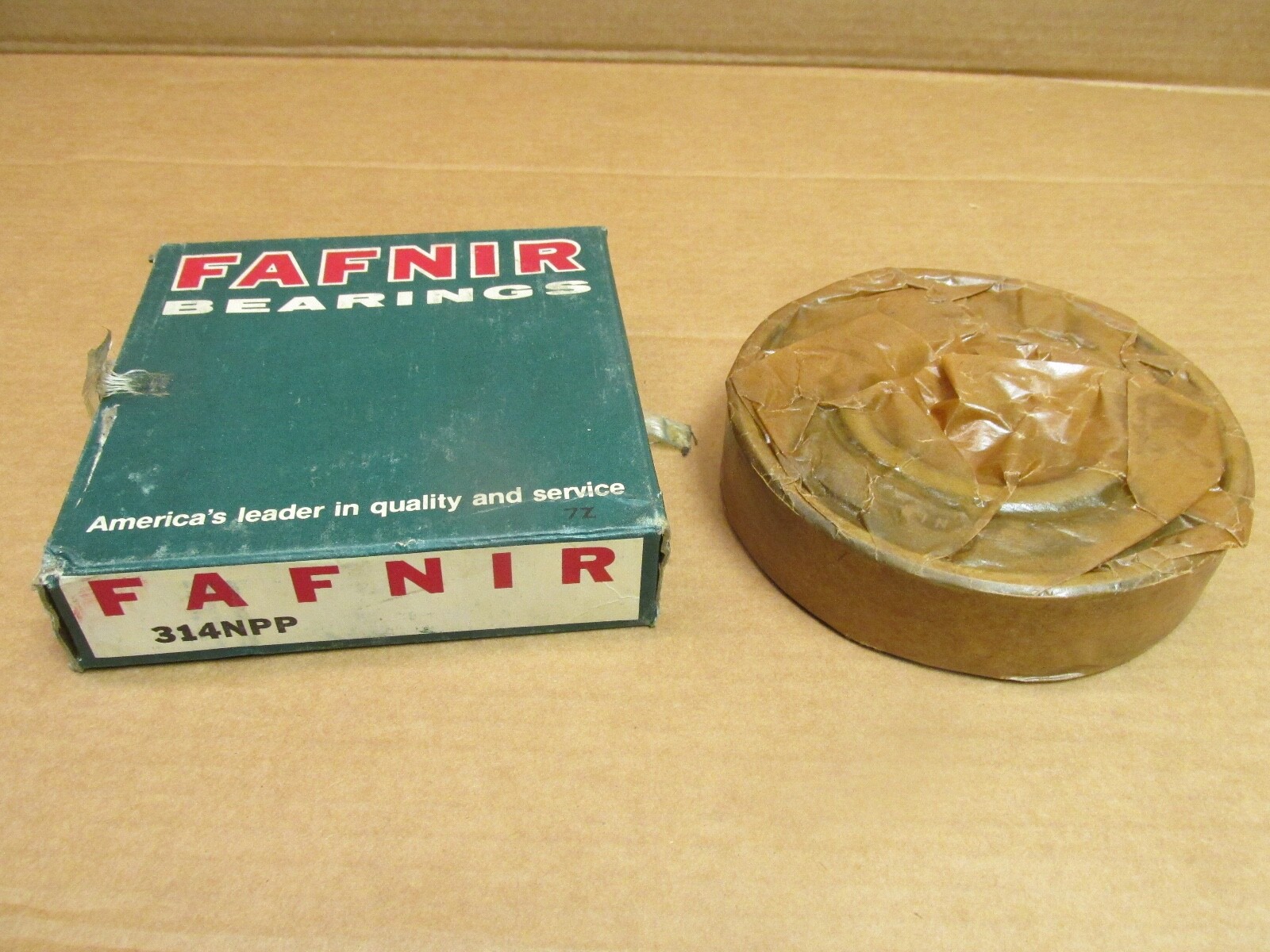

Fafnir 314NPP single-row deep groove ball bearing, built by The Timken Company. Bore Diameter: 70 mm. Outside Diameter: 150 mm. Overall Width: 35 mm. Series: 300. Base Number: 314. Closure Type: Contact seals both sides. Bore Type: Straight. Number Of Rows: 1. Rolling Elements: Ball. Bearing Material: Chrome steel. Lubricant: Grease.
314 — Fafnir 300 medium series, bore code 14, giving a 70 mm bore in a 150 mm outside diameter.
N — snap-ring groove machined into the outer ring, which accepts a housing retaining ring for axial location.
PP — contact seals both sides. Rubber land-riding lips run against the inner ring, holding grease in and contamination out.
Dynamic Load Rating: 115,500 N. Static Load Rating: 68,000 N. Limiting Speed: 1,500 rpm grease; 3,182 rpm oil. Precision Class: ABEC 1 / P0. Internal Clearance: CN.
The 115,500 N dynamic rating is the load at which the bearing reaches one million revolutions of calculated fatigue life. The 68,000 N static rating is the load that produces the permissible permanent deformation at the raceway contact, and it governs shock and standstill duty. Contact seals trade speed for sealing: the 1,500 rpm grease figure reflects lip drag, while the 3,182 rpm oil figure applies to the same ring set in a flooded or circulating oil feed. CN clearance is the standard radial internal clearance, suited to normal interference fits and moderate temperature rise across the rings.
Maximum shaft fillet radius: 2.11 mm. Shaft backing shoulder diameter: 81.99 mm. Housing backing shoulder diameter: 137.90 mm. Outer ring to-clear radius: 2.11 mm.
Unit Quantity: 1 Pc. One complete sealed bearing per unit.
The 314NPP occupies the 70 x 150 x 35 mm 6314-2RS envelope, so a standard-class sealed 6314 mounts on the same shaft seat and in the same housing bore. Those standard parts have a plain outer ring; the 314NPP adds the snap-ring groove, and the Cross-Reference attributes label each equivalent accordingly.
