Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Combined needle roller and axial cylindrical roller bearing with end cap, 45 mm roller set bore, 58 mm OD, 32 mm high, DIN 5429 pattern. NKXR45Z, NKXR 45 Z.
List Price
$60.60
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | INA |
|---|---|
| MPN | NKXR45-Z |
| GTIN | 644075083669 |
| Model | NKXR 45 Z |
| Bearing Type | Combination Bearing, Open |
| ID | 45 mm |
| OD | 58 mm |
| Width | 32 mm |
| Material | Chrome Steel |
|---|---|
| Series | NKXR |
| Dynamic Load Rating | 31,000 N |
| Static Load Rating | 53,000 N |
| Rolling Elements | Needle Roller |
| Item Weight | 0.26 kg (0.57 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Harmonization Code | 8482.40.00.00 |
| Limiting Speed | 5,000 rpm |
| Base Number | NKXR45 |
| Industry Terms | combined needle bearing, needle thrust bearing, needle roller axial bearing, combination bearing |
| Common Misspellings | NKX R45Z, NKRX45Z, NKXR45 Z |
| Overall Width | 32 mm |
| Mpn Variants | NKXR45Z, NKXR 45 Z, NKXR-45-Z, NKXR45-Z |
| Additional Attributes | Axial dynamic load rating Ca 59,000 N; axial static load rating C0a 163,000 N; reference speed 1,900 rpm; DIN 5429 |
| Application Types | Machine tool spindles; gearboxes; combined radial and one-direction axial shaft support; compact drive units |
| Cross Reference 1 | INA NKXR45-Z |
|---|---|
| Cross Reference 2 | INA NKXR45-Z-XL - current XL design |

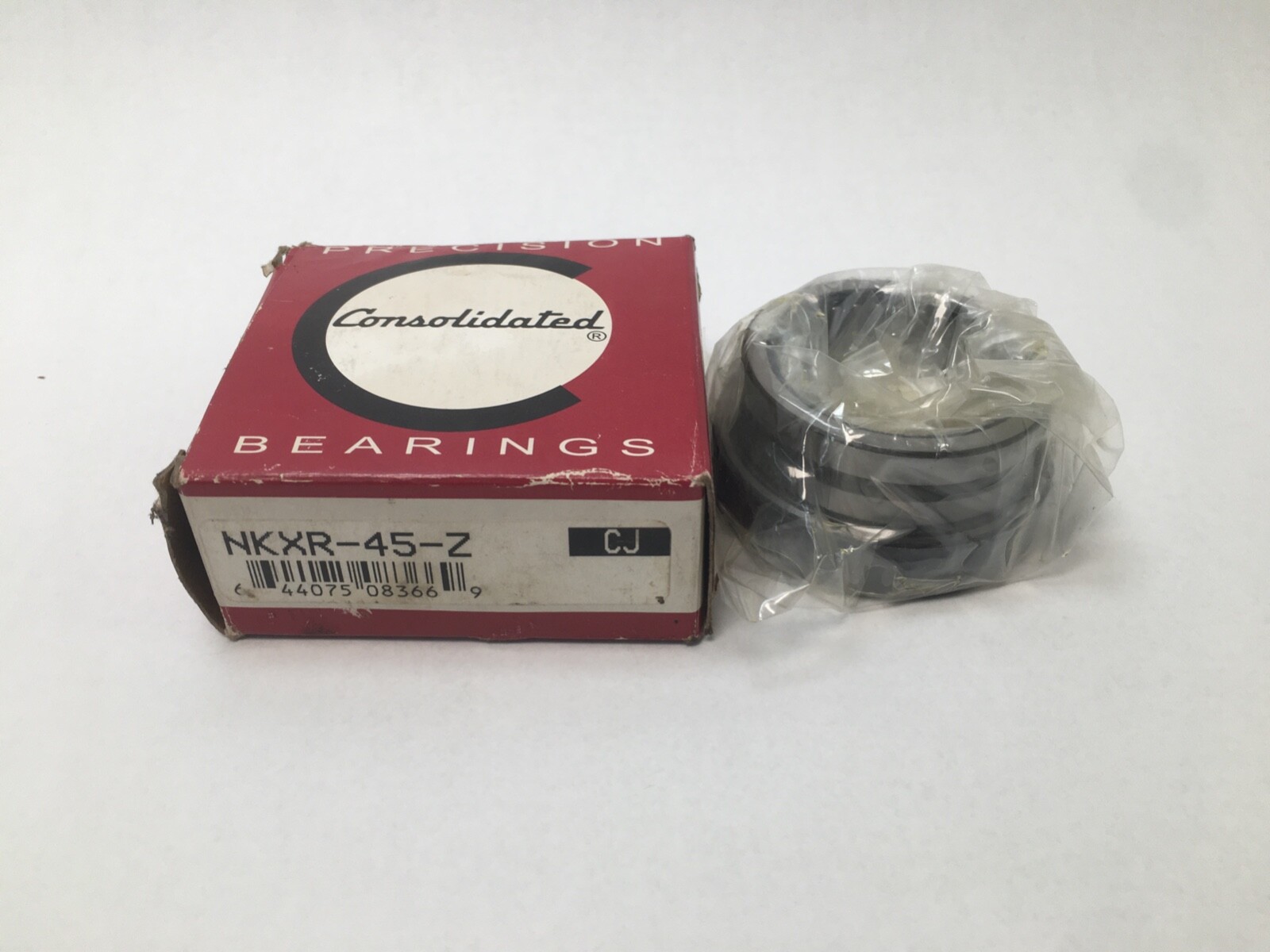

| Cross Reference 3 | Consolidated NKXR-45-Z |

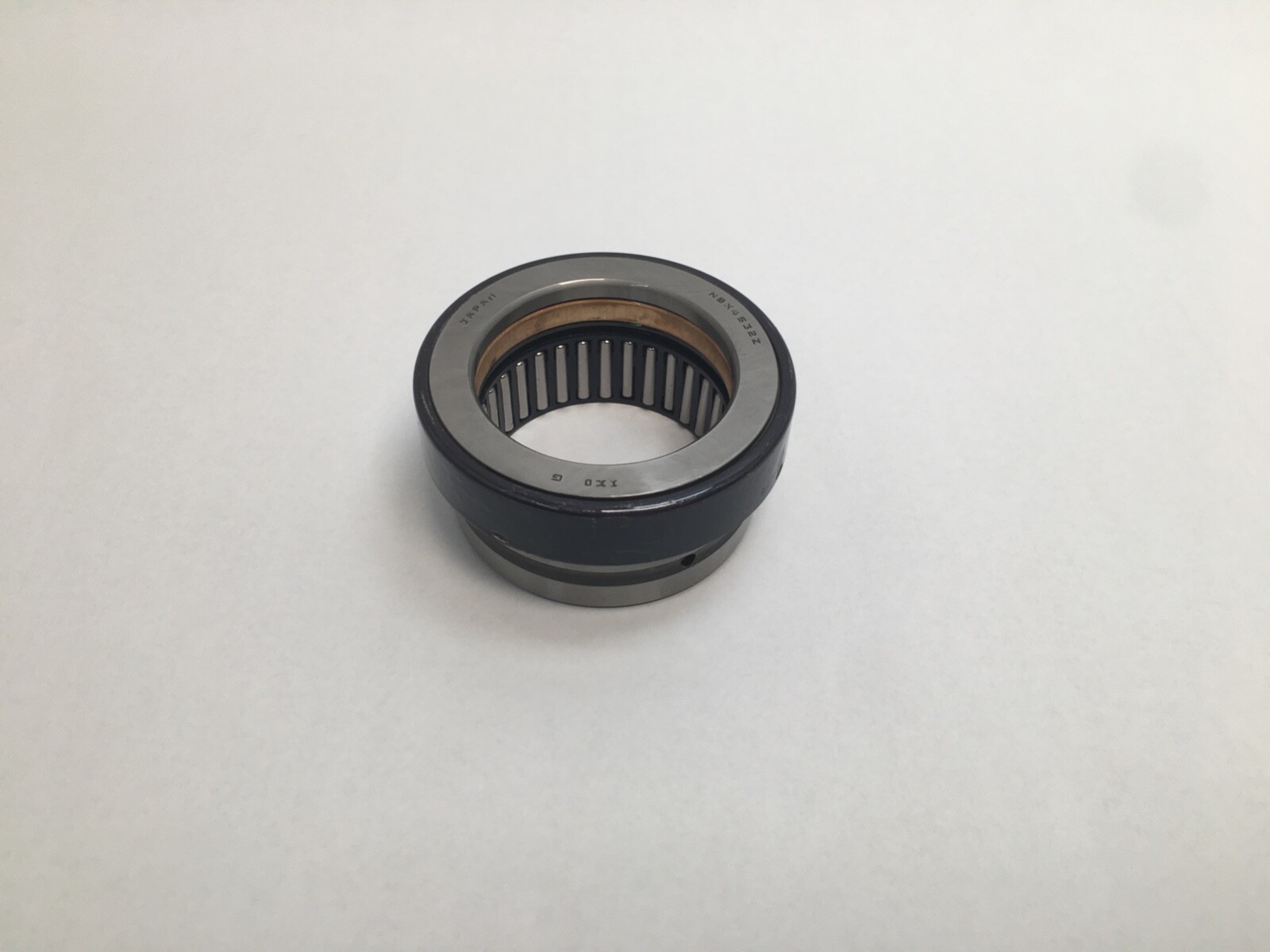

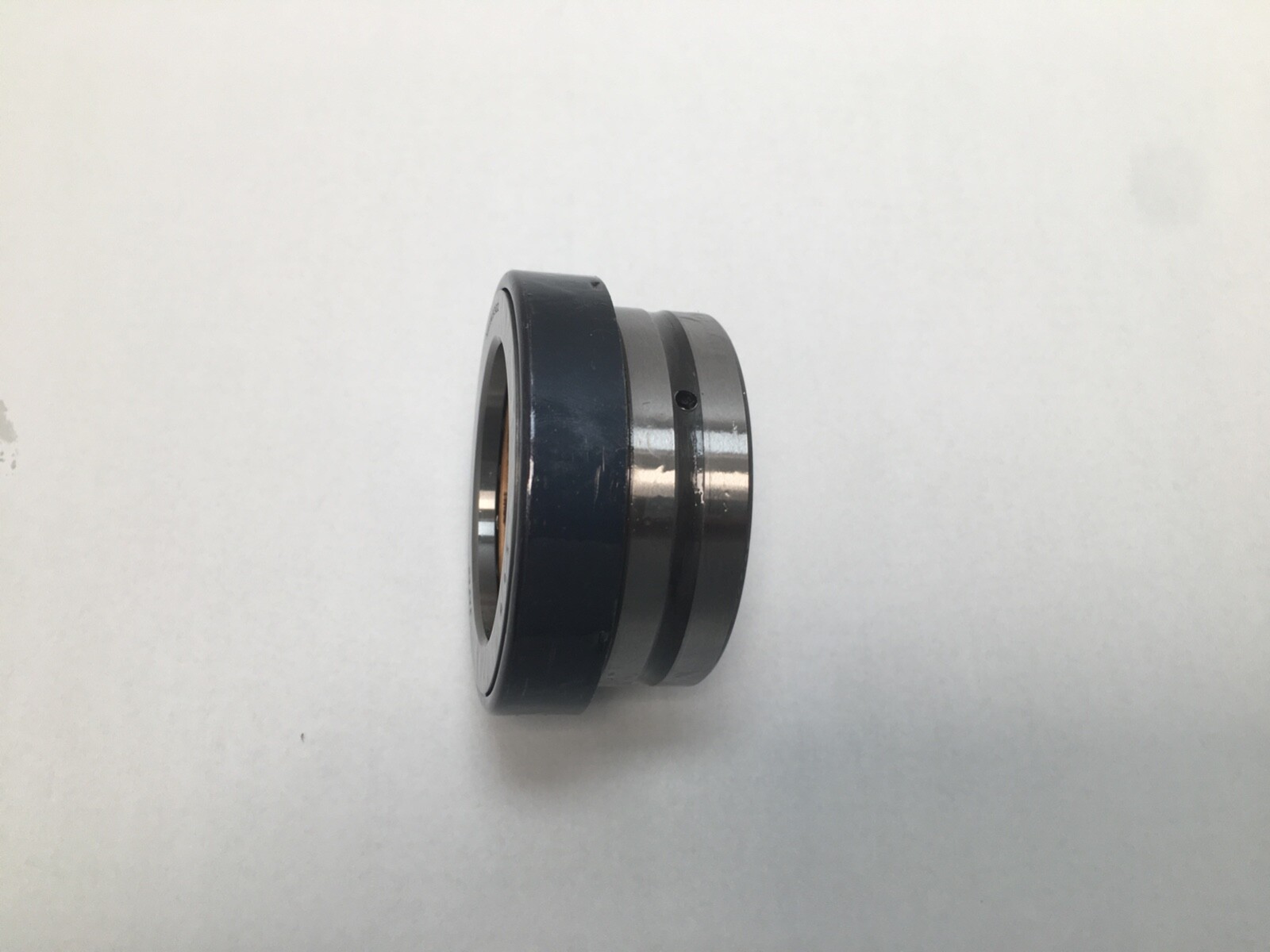

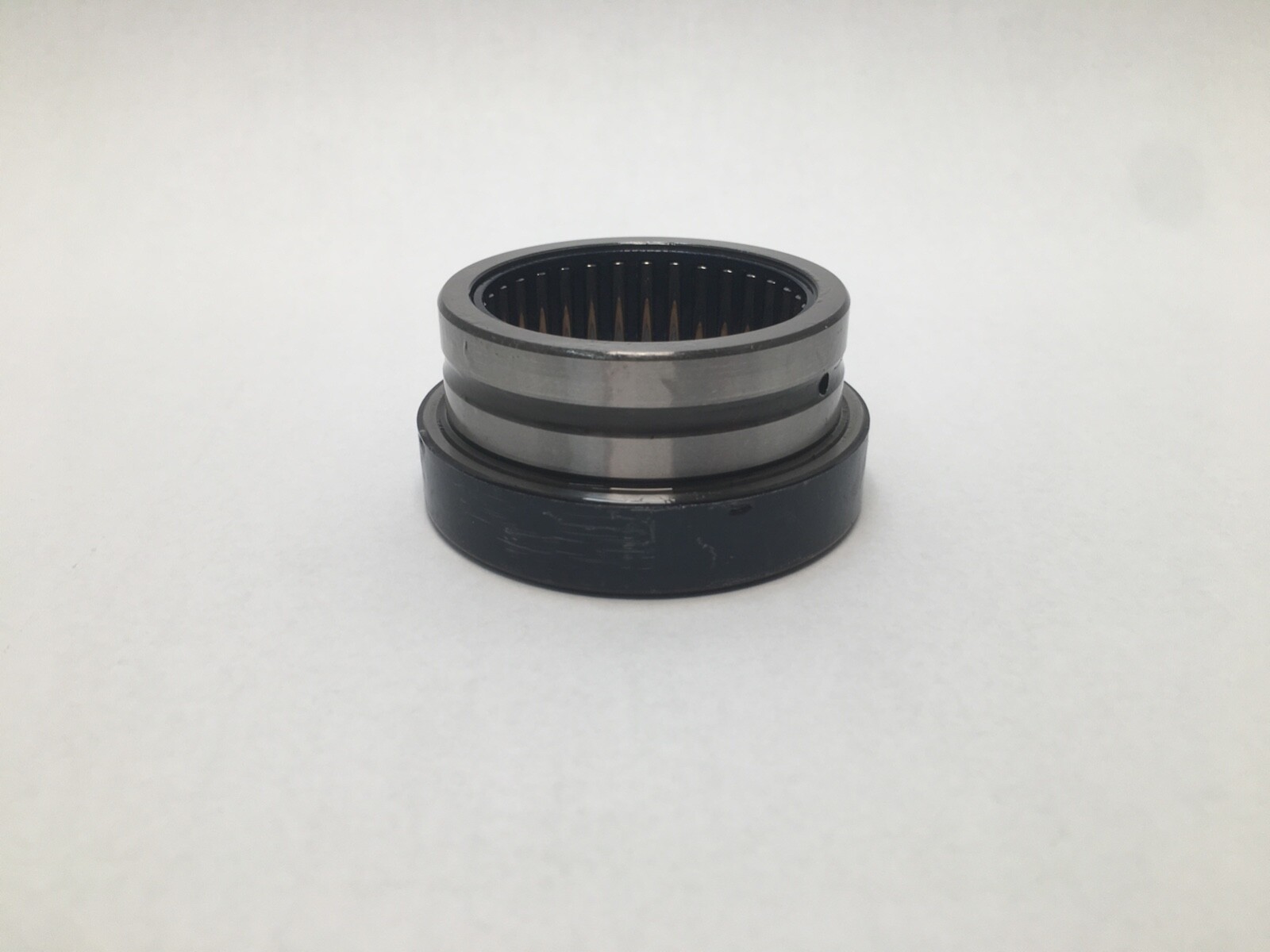

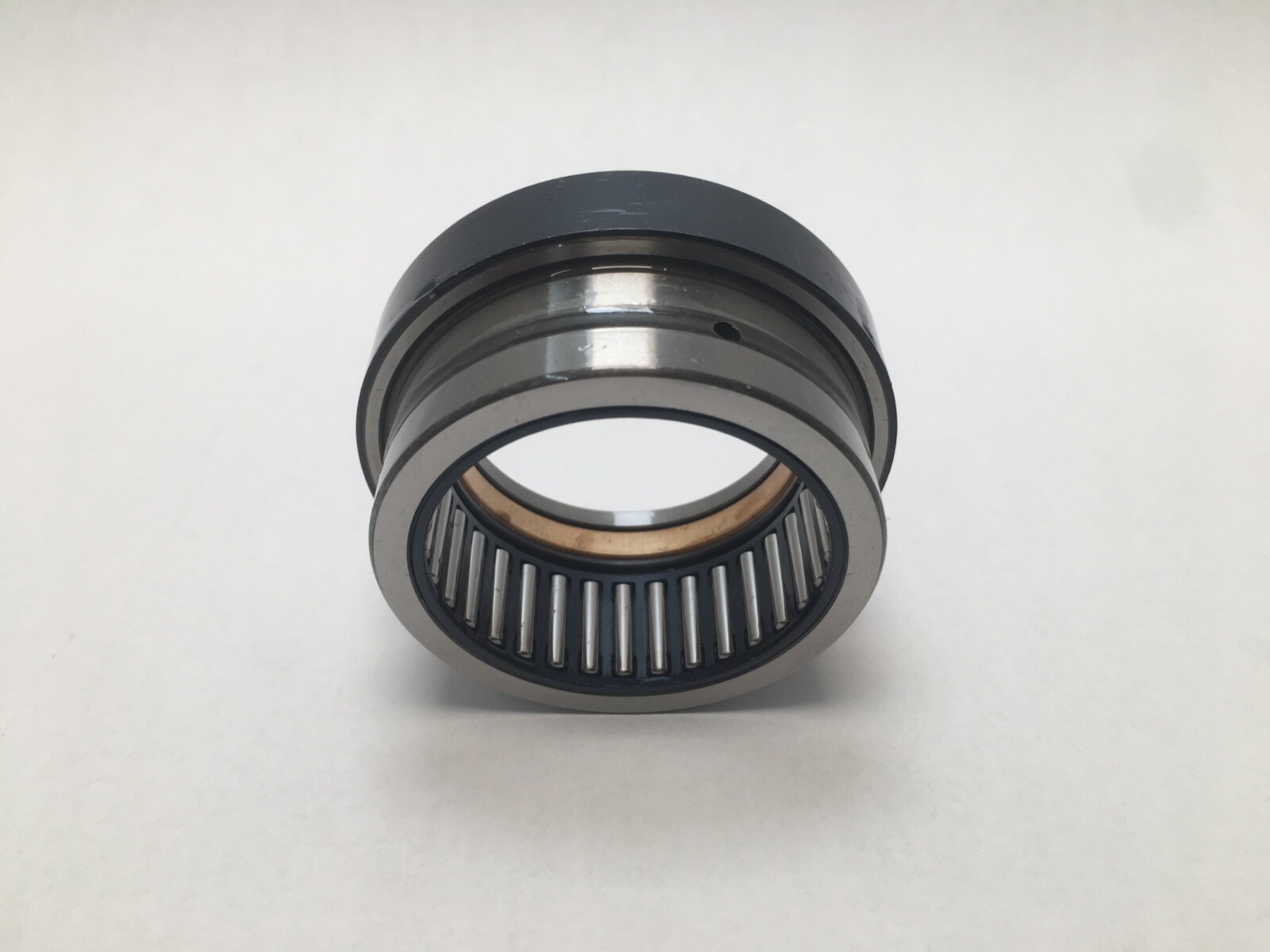

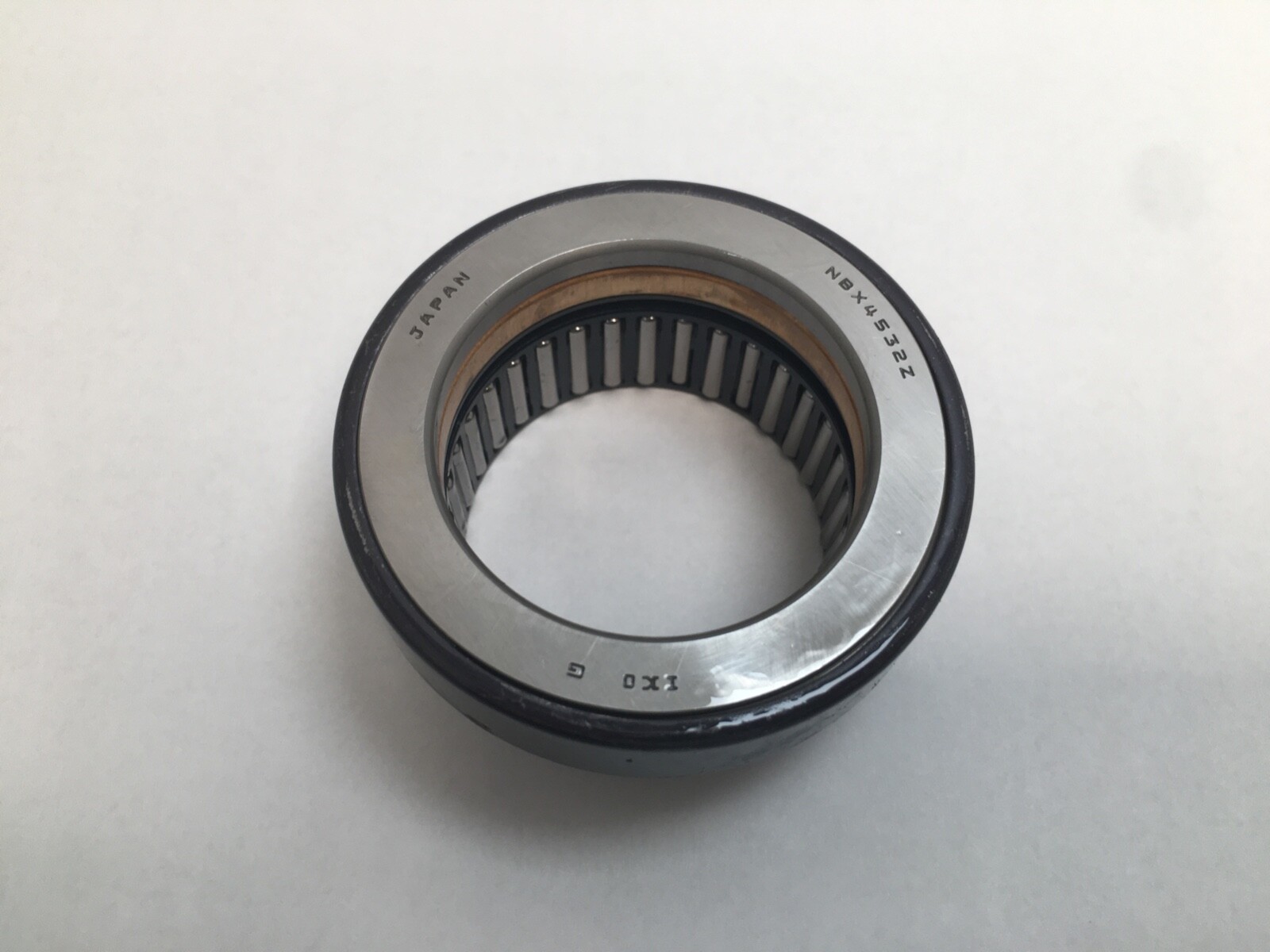

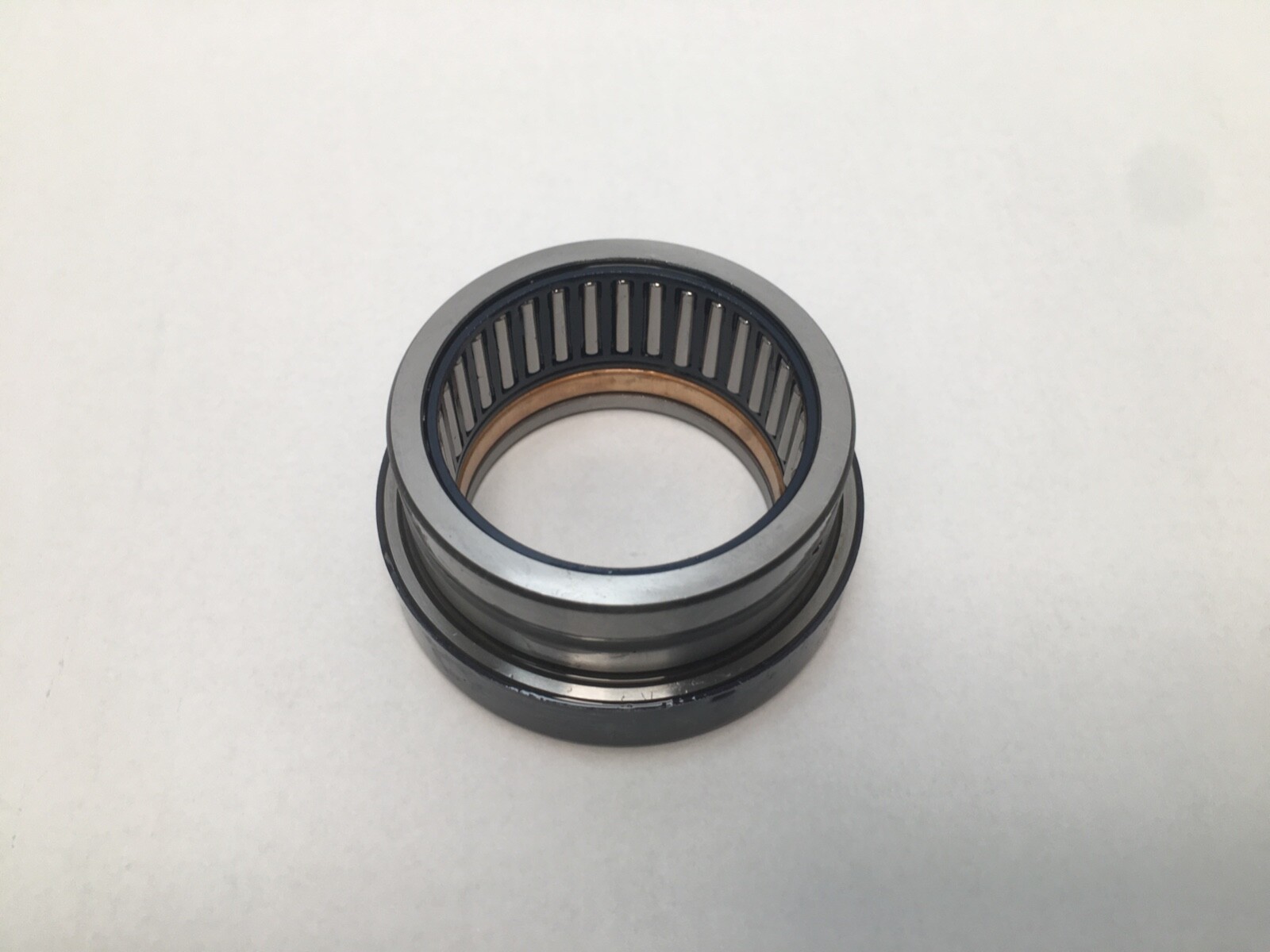

The NKXR45Z is a combined bearing: a radial needle roller bearing and a single-direction axial cylindrical roller thrust bearing in one drawn outer ring, closed on the axial side by an end cap. It carries radial load and axial load in one direction in a compact envelope, built to DIN 5429.
NKXR — needle roller bearing combined with a single-direction axial cylindrical roller bearing.
45 — roller set bore Fw, 45 mm.
Z — end cap over the axial bearing component.
Bearing Type: Needle roller / axial cylindrical roller bearing. Bore Diameter (roller set bore Fw): 45 mm. Outside Diameter: 58 mm. Overall Width (height C): 32 mm. Rolling Elements: Needle roller (radial), cylindrical roller (axial). Axial Load Direction: Single direction. Standard: DIN 5429. Dynamic Load Rating (radial): 31,000 N. Static Load Rating (radial): 53,000 N. Axial Dynamic Load Rating: 59,000 N. Axial Static Load Rating: 163,000 N. Limiting Speed: 5,000 rpm. Reference Speed: 1,900 rpm. Item Weight: 0.26 kg (0.57 lb). Unit Quantity: 1 Pc.
Envelope: 45 x 58 x 32 mm. The needles run directly on a hardened shaft; the axial component runs against a shaft washer.
Cross-Reference: INA NKXR45-Z, INA NKXR45-Z-XL (current Schaeffler designation that replaces NKXR45-Z), Consolidated NKXR-45-Z.
45 mm roller set bore, 58 mm outside diameter, 32 mm overall height.
A cylindrical roller thrust bearing. The ball thrust version is the NKX series.
NKXR45-Z-XL, which replaces NKXR45-Z.
