RHP1030-30GSelf-Lube Insert Bearing Set Screw 30x62x38.1 mm 1030 30G

Product Description

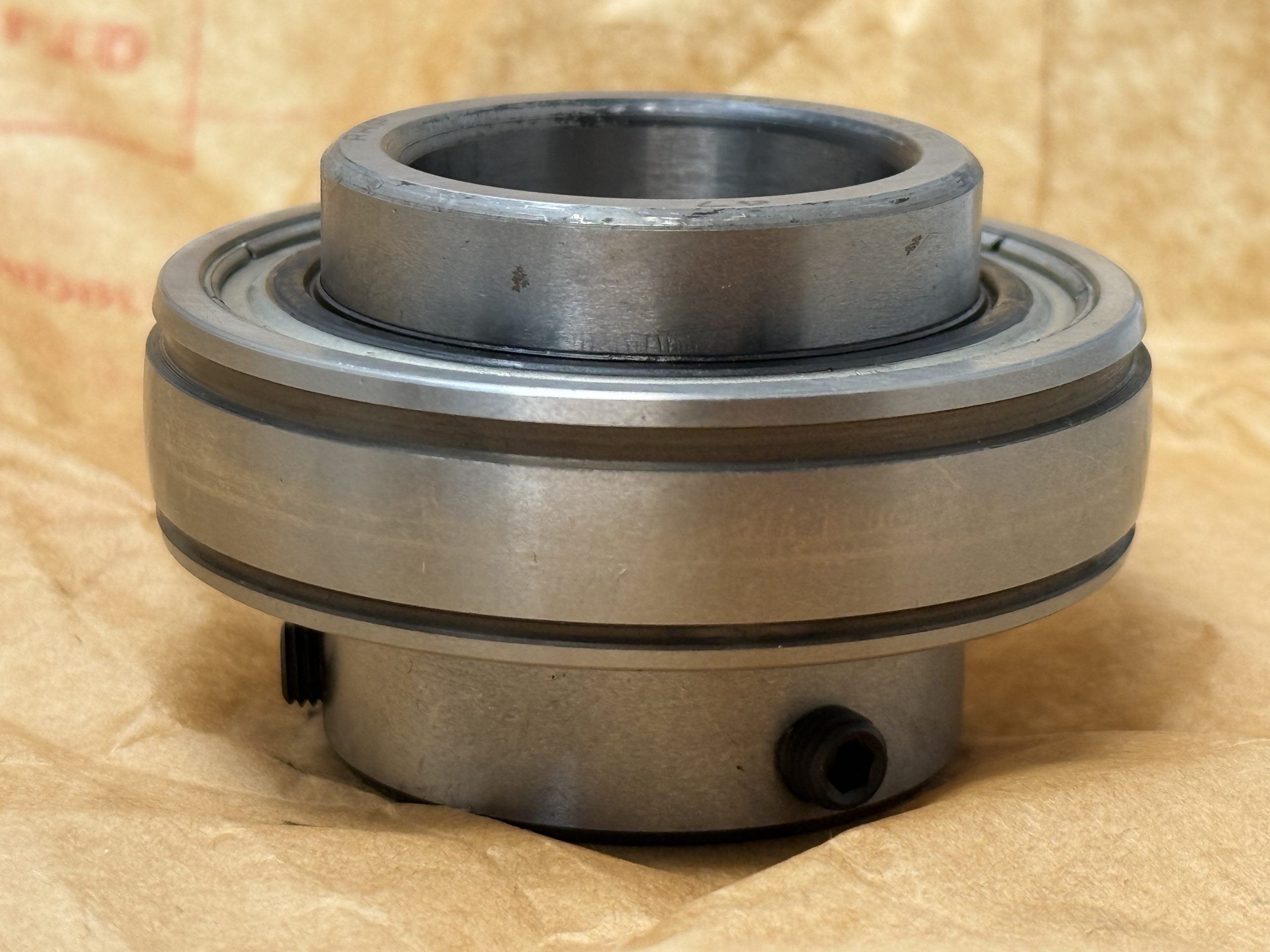

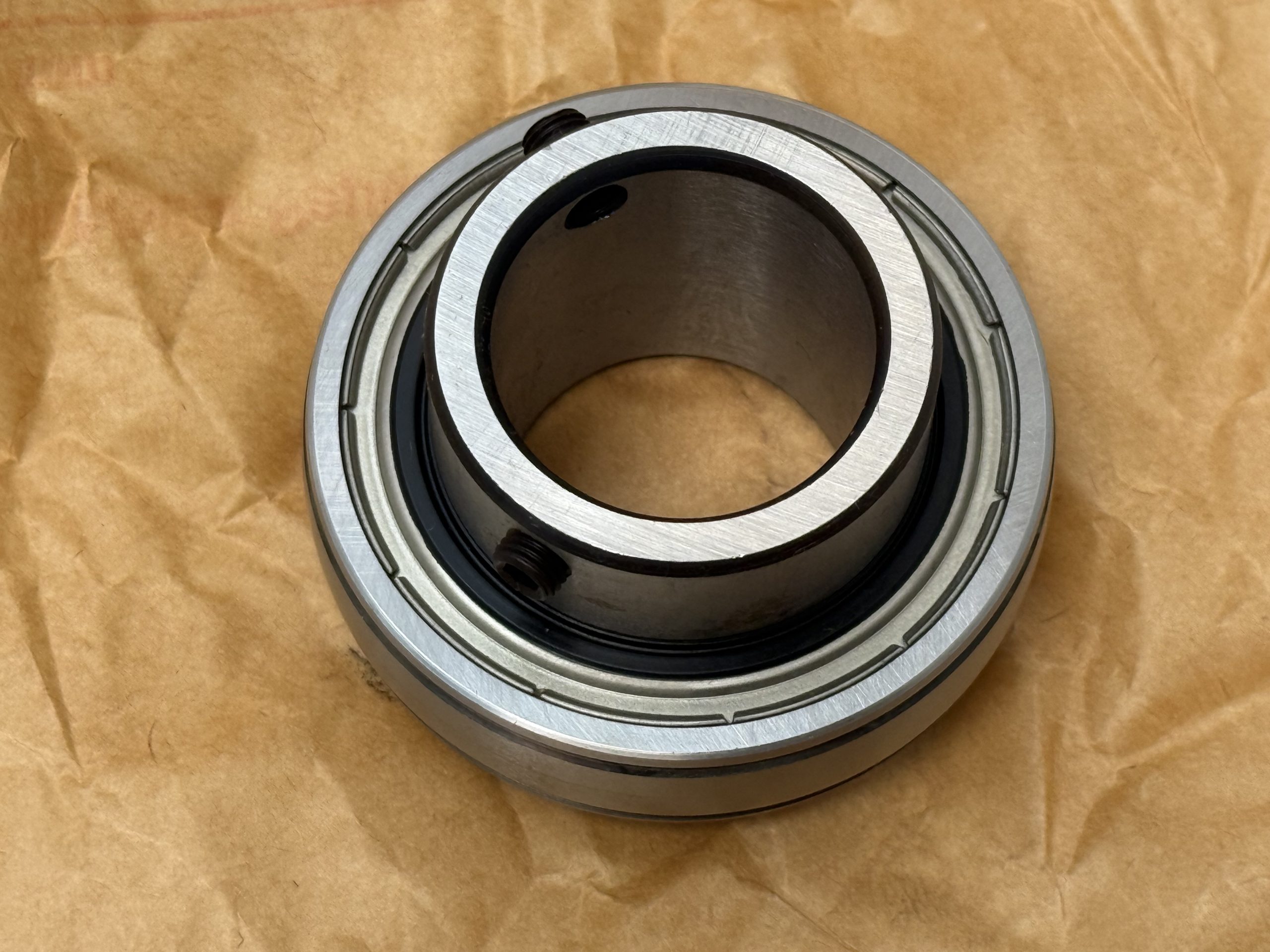

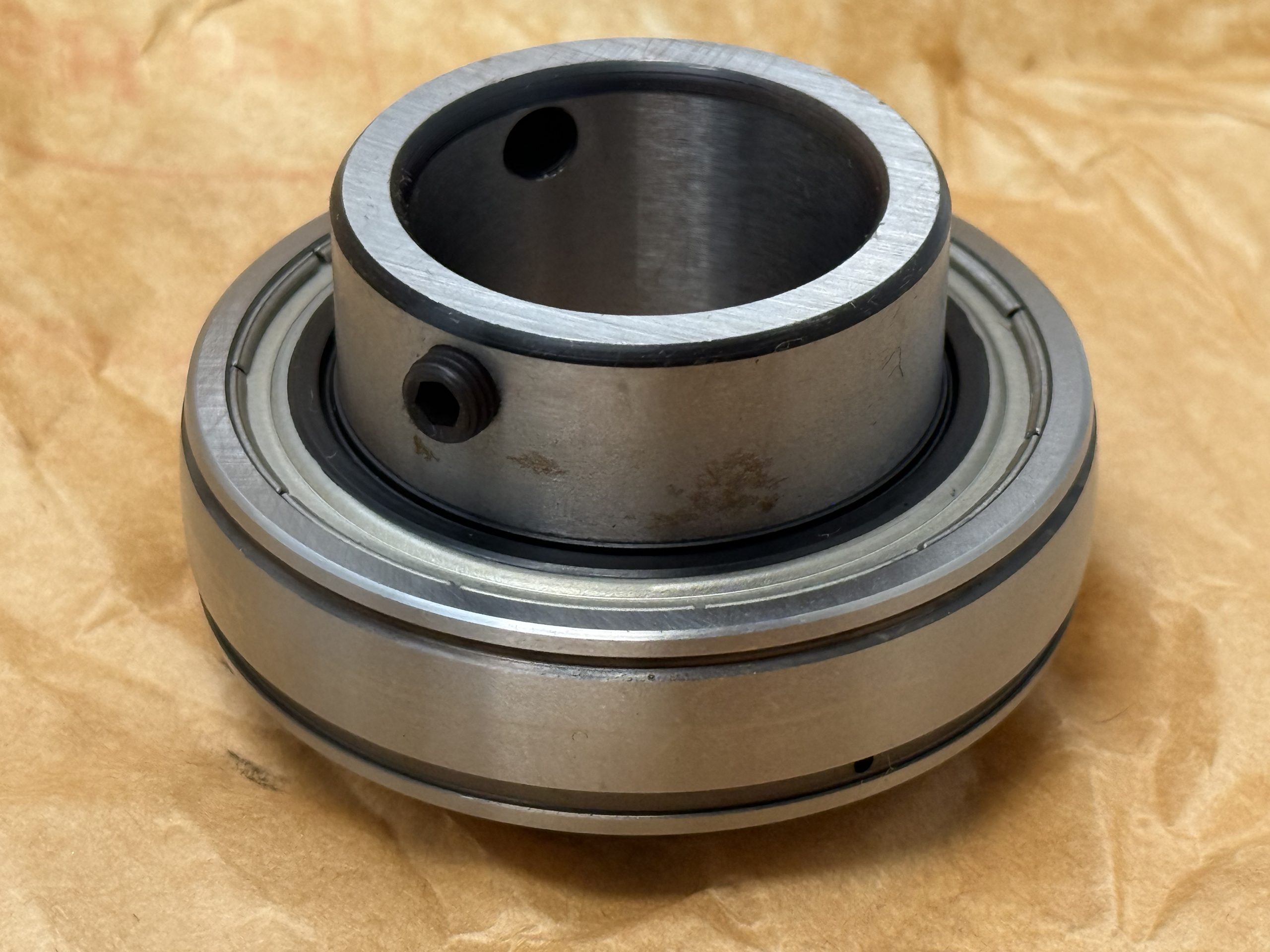

What this isOne (1) RHP 1030-30G Self-Lube bearing insert for a 30 mm shaft. A single row deep groove ball bearing in a spherical outer ring, so it self-aligns in its housing, with an extended inner ring locked to the shaft by two knurled cup-point set screws. It has a relubrication facility, so it can be regreased in service. Insert only, no housing.

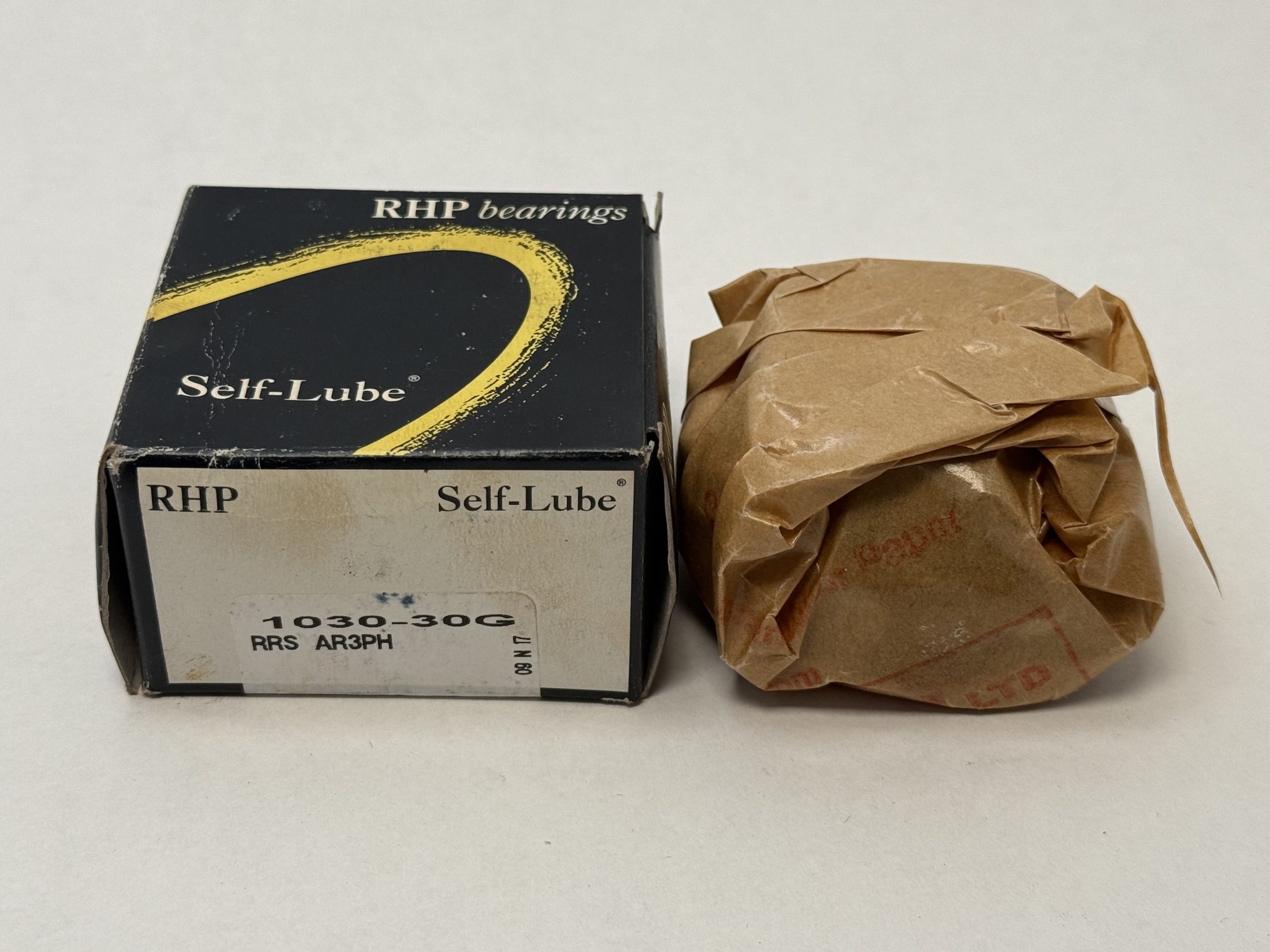

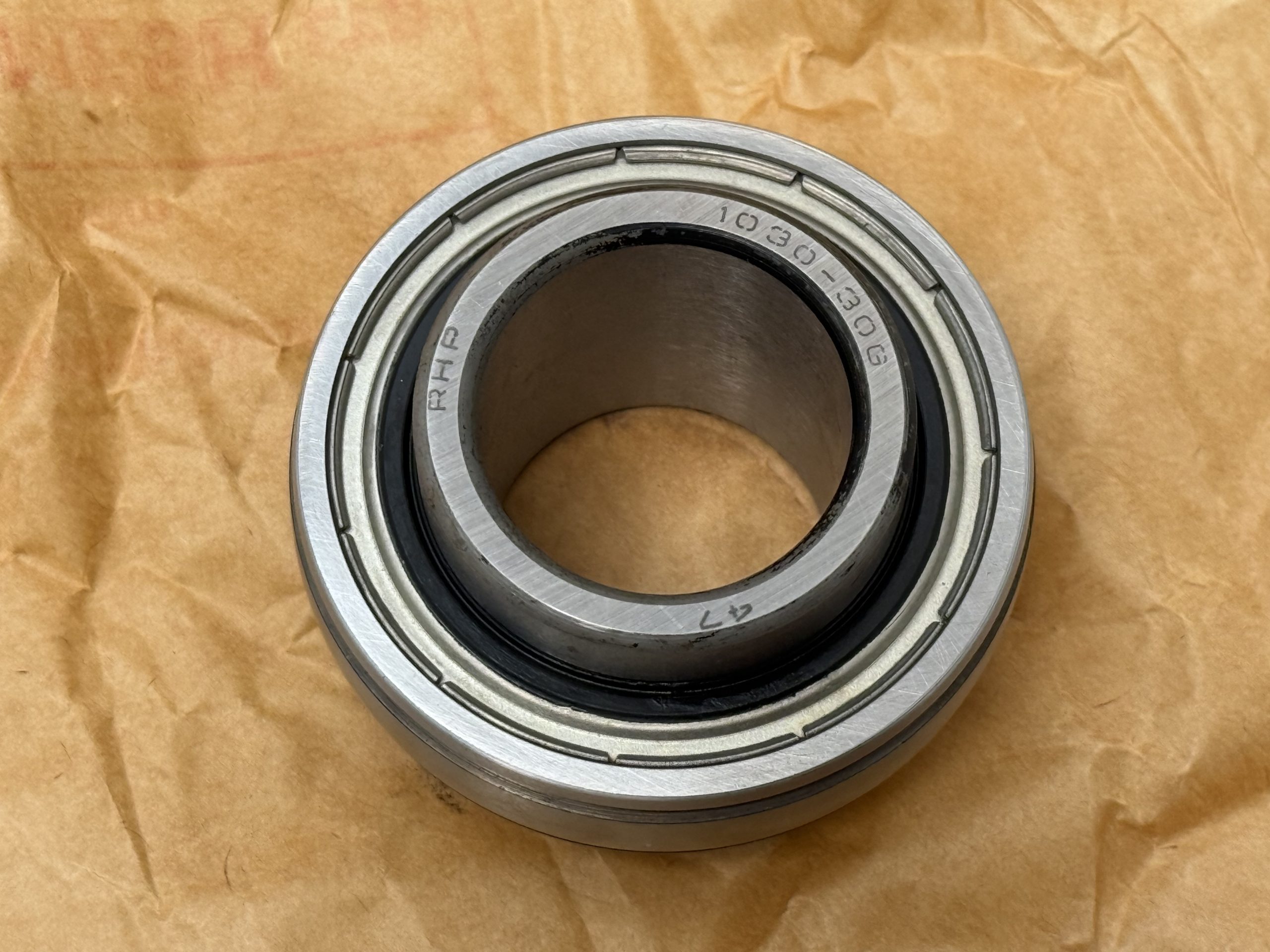

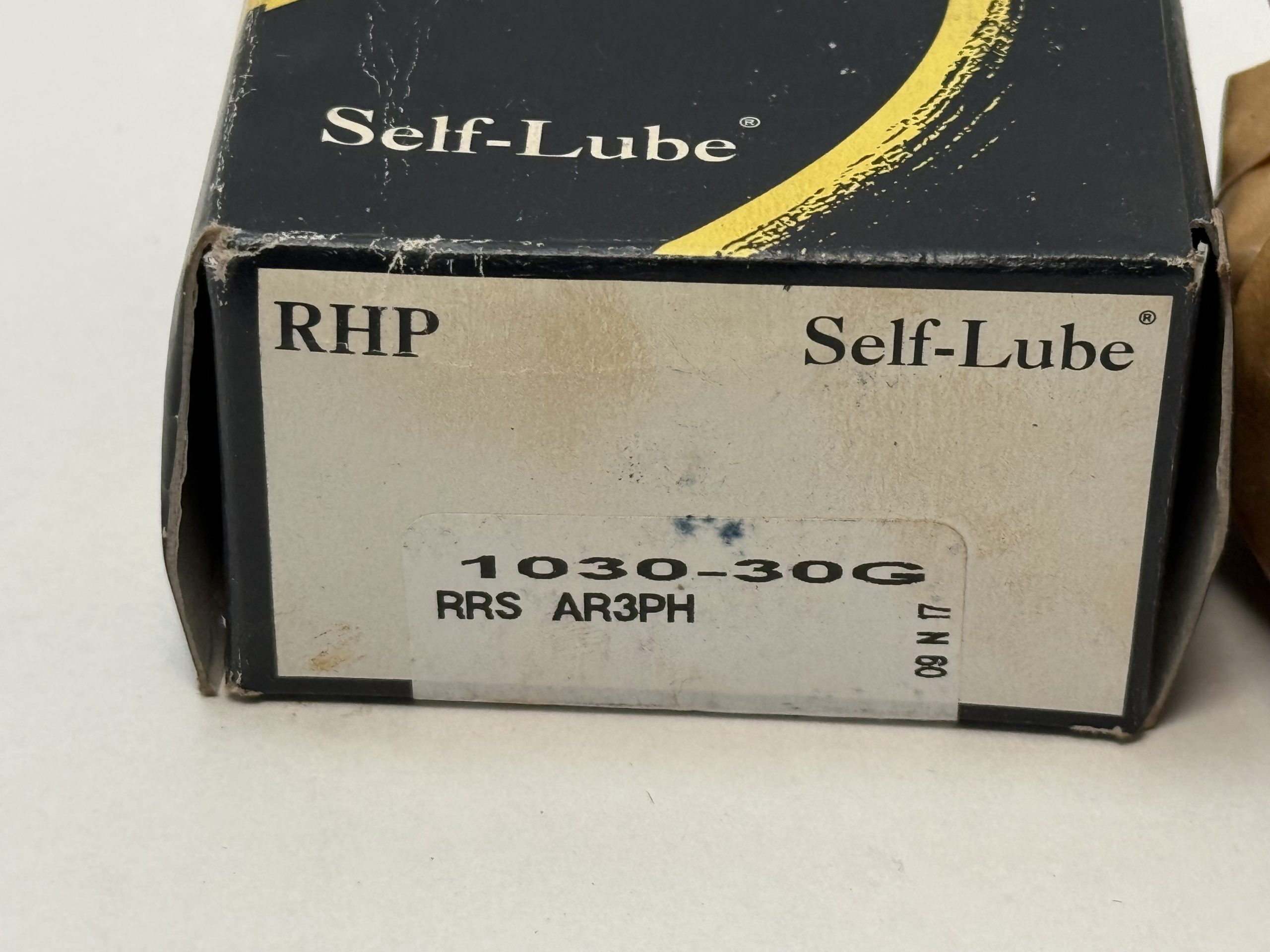

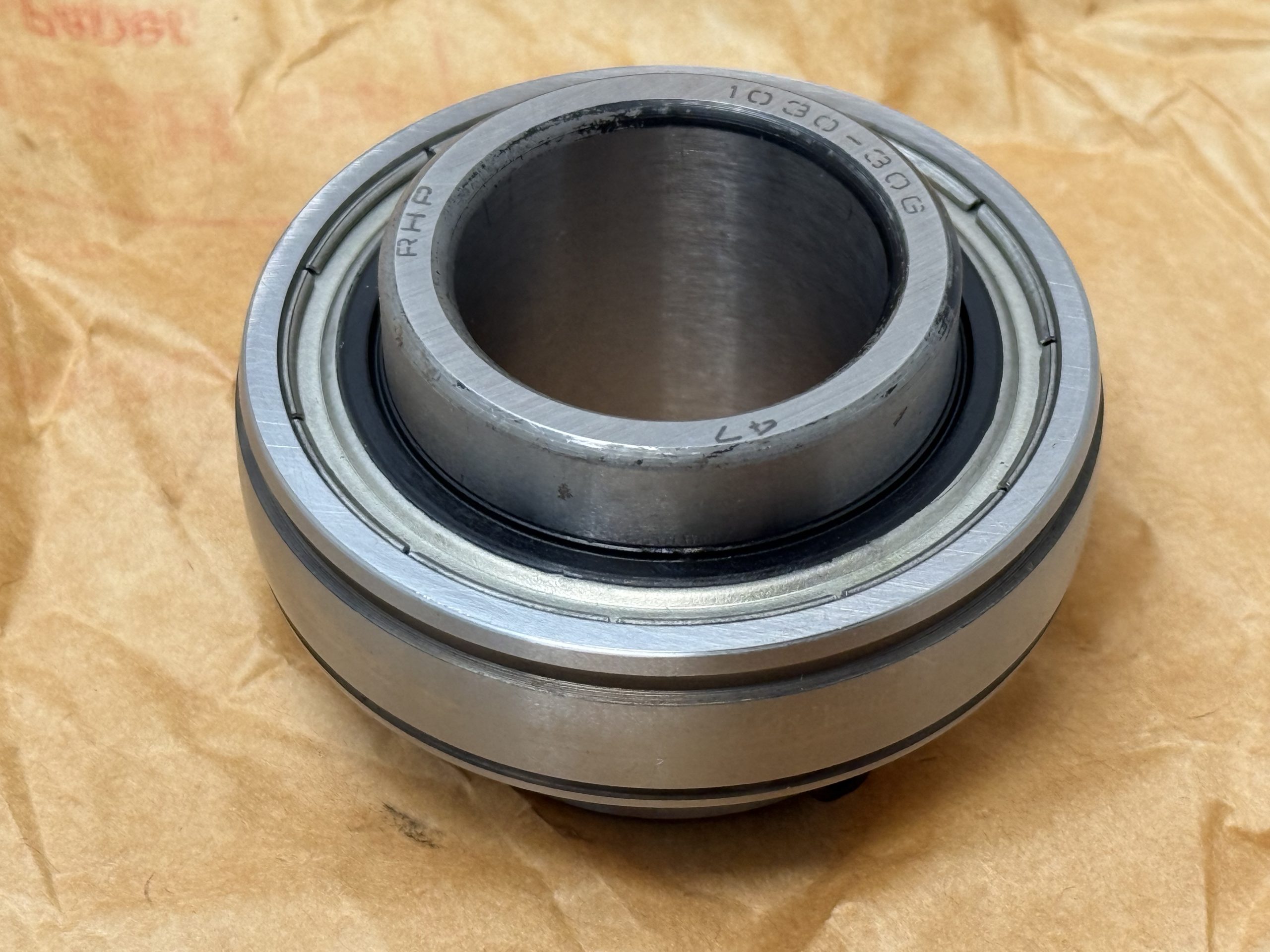

Made in England. Supplied in the original RHP Self-Lube box (the earlier black-label carton, marked 1030-30G), wrapped in its protective paper; the ring is etched 1030-30G. It fits RHP and NSK-RHP Self-Lube housings for a 30 mm shaft (NP30 pillow block, SF30 and SFT30 flanges, SL30, SLC30, ST30) and shares its principal dimensions with the UC206, 30 x 62 x 38.1 mm.

How the part number breaks down10 — spherical outside diameter. RHP uses 11 for a parallel OD, and 12 and 13 for the short inner ring versions.

30 — the basic size, which sets the 62 mm outside diameter and the housing it fits. On the standard part it matches the bore; the same size is also made with inch bores, such as the 1030-1G and 1030-1-1/8G.

-30 — the bore, 30 mm.

G — relubrication facility. Set screw locking is the standard; the eccentric collar version carries DEC, and a T prefix marks the triple-lip seal version, as in the T1030-30G.

Also sold and searched as 1030 30G and 103030G.

Item SpecificationsBrand: RHPPart number: 1030-30GType: Self-Lube ball bearing insert, spherical outer ringBore: 30 mmOutside diameter: 62 mmInner ring width: 38.1 mmLocking: Two set screwsLubrication: RelubricatableDynamic load rating: 19.5 kNStatic load rating: 11.3 kNMaximum speed: 5,300 rpmWeight: 0.37 kgCountry of origin: England
