Wide-inner-ring insert ball bearing for a 7/8 in shaft, spherical self-aligning outer surface, eccentric locking collar, single row.
List Price
$43.57
3 in stock
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
Also Available From:
| MFR / Brand | Fafnir |
|---|---|
| MPN | 1014KLL |
| Model | 1014-KLL |
| ID | 0.8750 in |
| OD | 2.0472 in |
| Width | 0.5906 in |
| Material | Chrome Steel |
|---|---|
| Series | 1000 |
| Condition | New |
| Type | Insert Bearing |
| Base Number | 1014 |
| Industry Terms | insert bearing; wide inner ring bearing; self-aligning insert bearing; eccentric collar insert; pillow block insert |
| Common Misspellings | Fafner 1014KLL; Faffnir 1014KLL; 1014 KL; 1014KIL |
| Bore Shaft Size | 0.8750 in |
| Housing Style | Insert, spherical outer surface |
| Locking Method | Eccentric locking collar |
| Mpn Variants | 1014KLL; 1014-KLL; 1014 KLL; 1014K; KLL |
| Rolling Elements | Ball |
| Bearing Type | Insert Ball Bearing |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Lubricant | Grease |
| Locking Device | Eccentric Locking Collar |
| Insert Outer Ring | Spherical |
| Harmonization Code | 8482.10.50.44 |
| Design Units | Imperial |
| Bearing Material | Chrome steel |
| Part Number | 1014KLL |
| Cross Reference 1 | Fafnir G1014KRRB (related, current insert, different seal execution) |
|---|

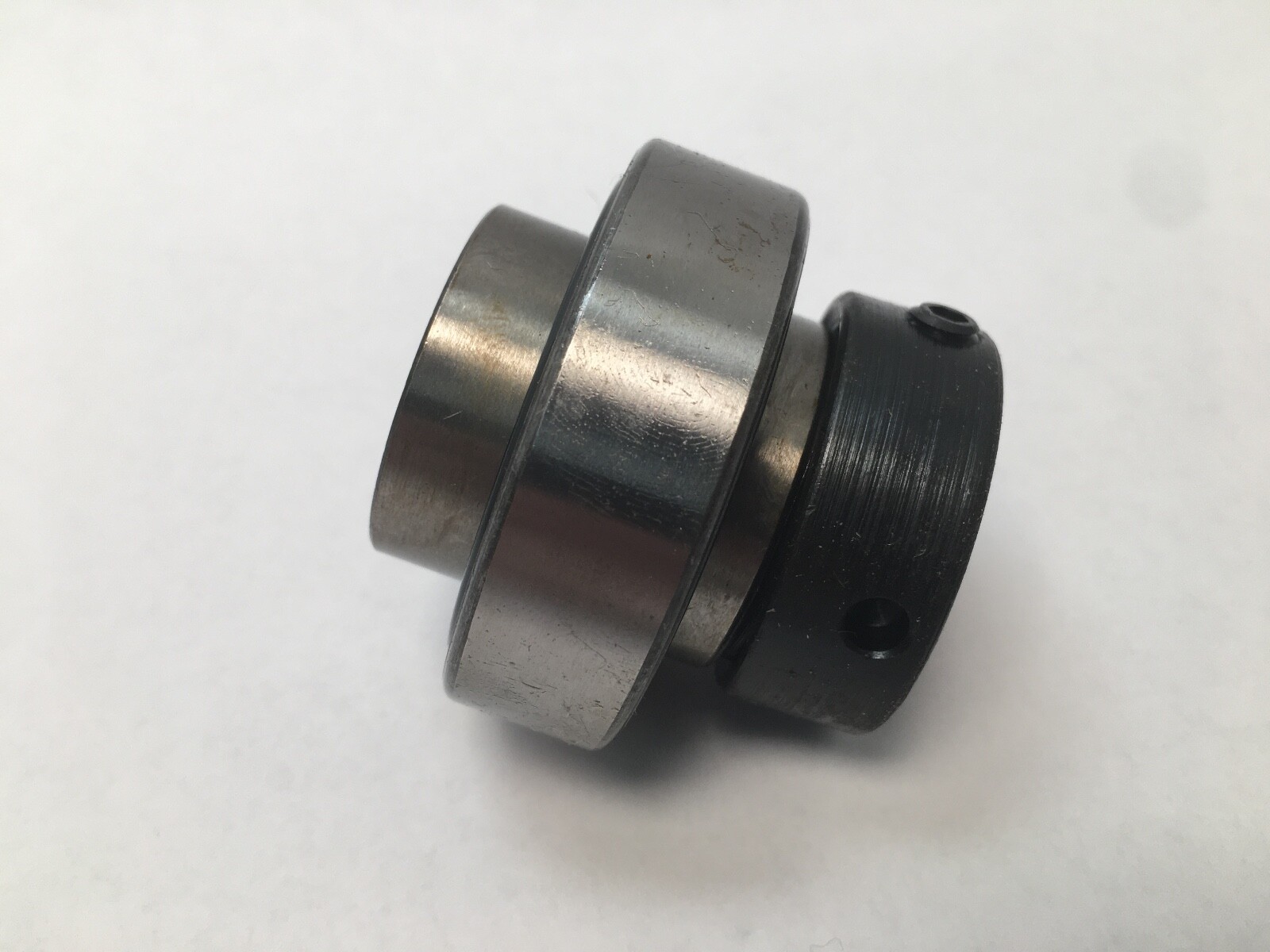

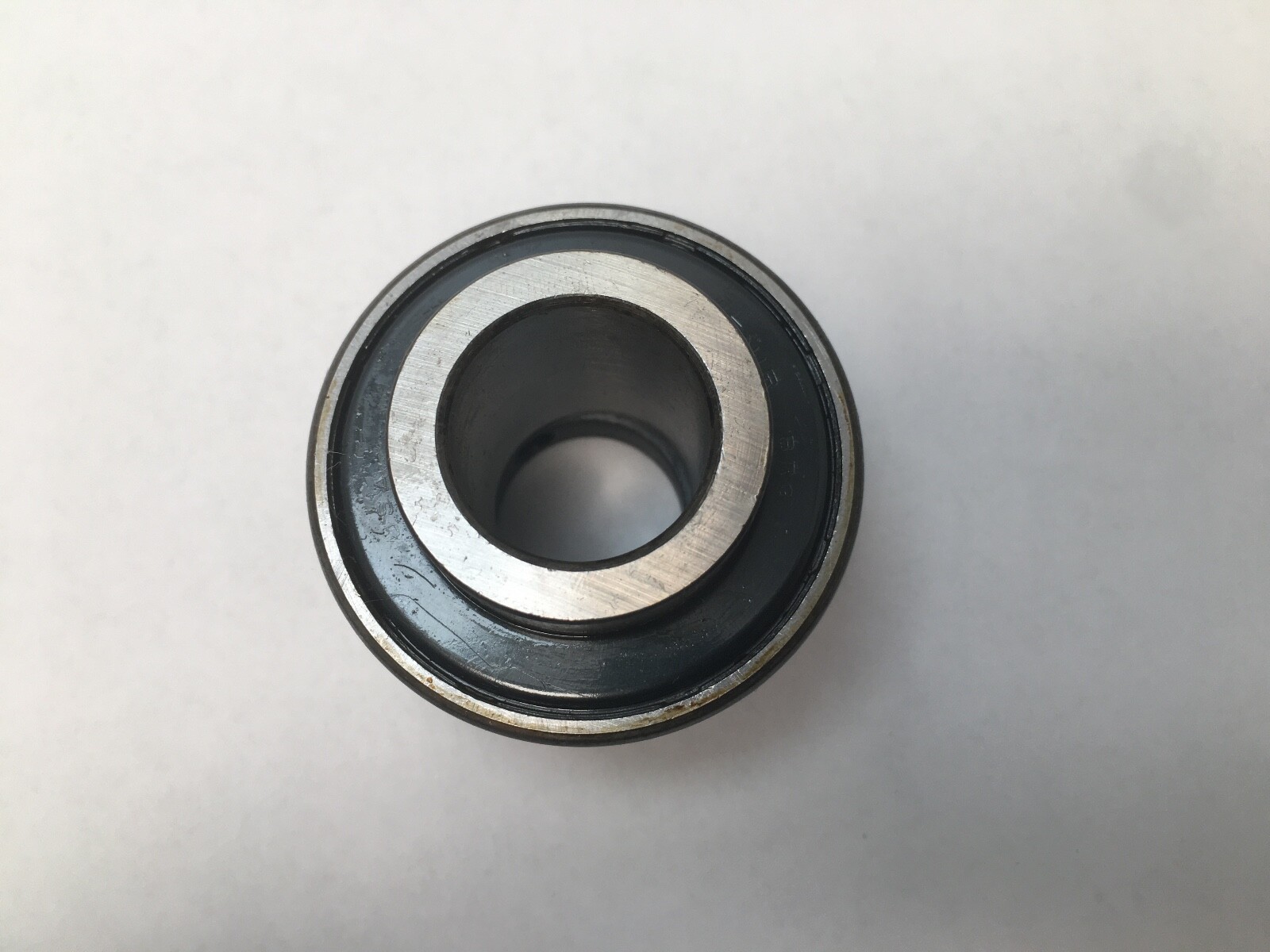

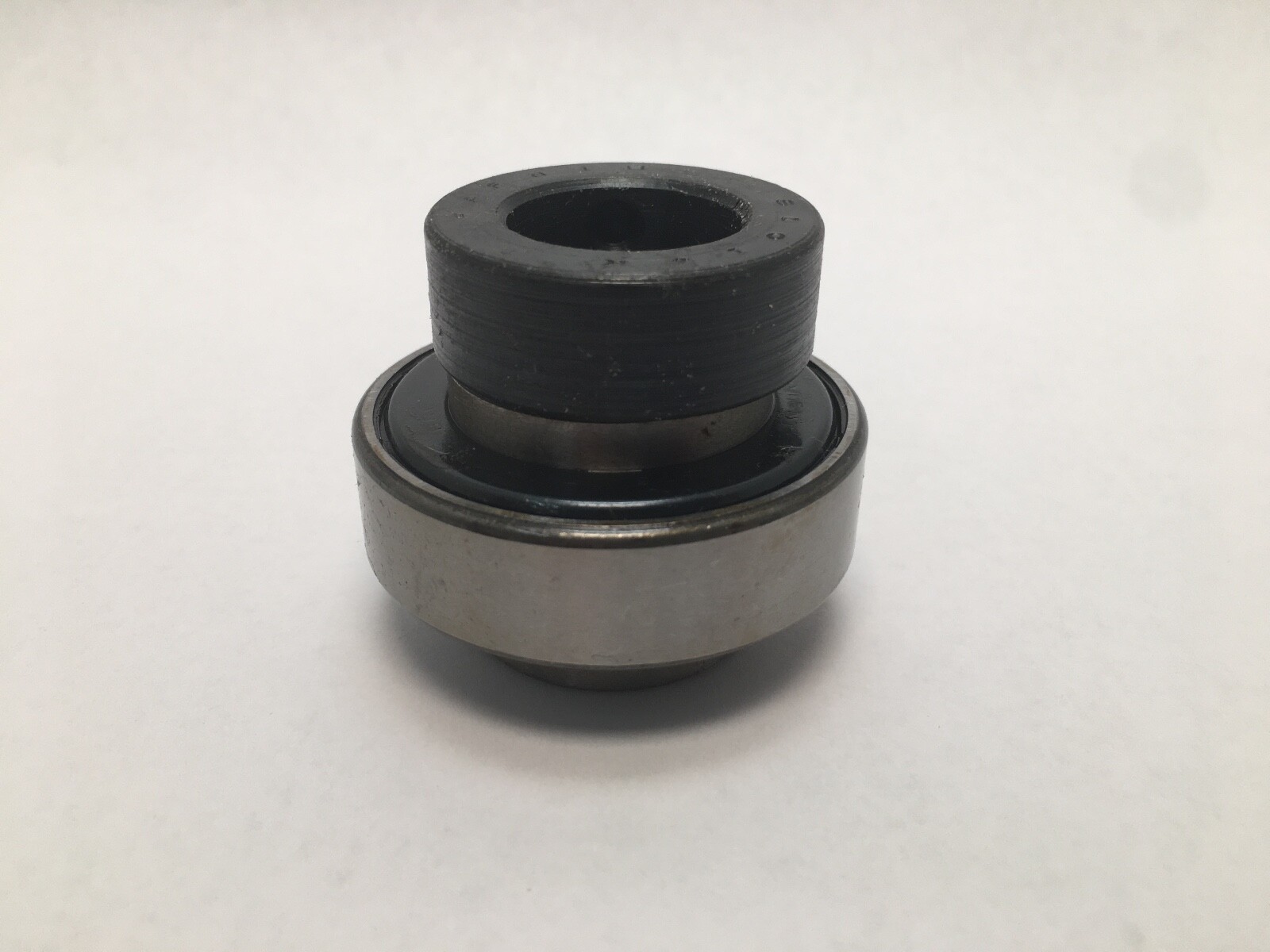

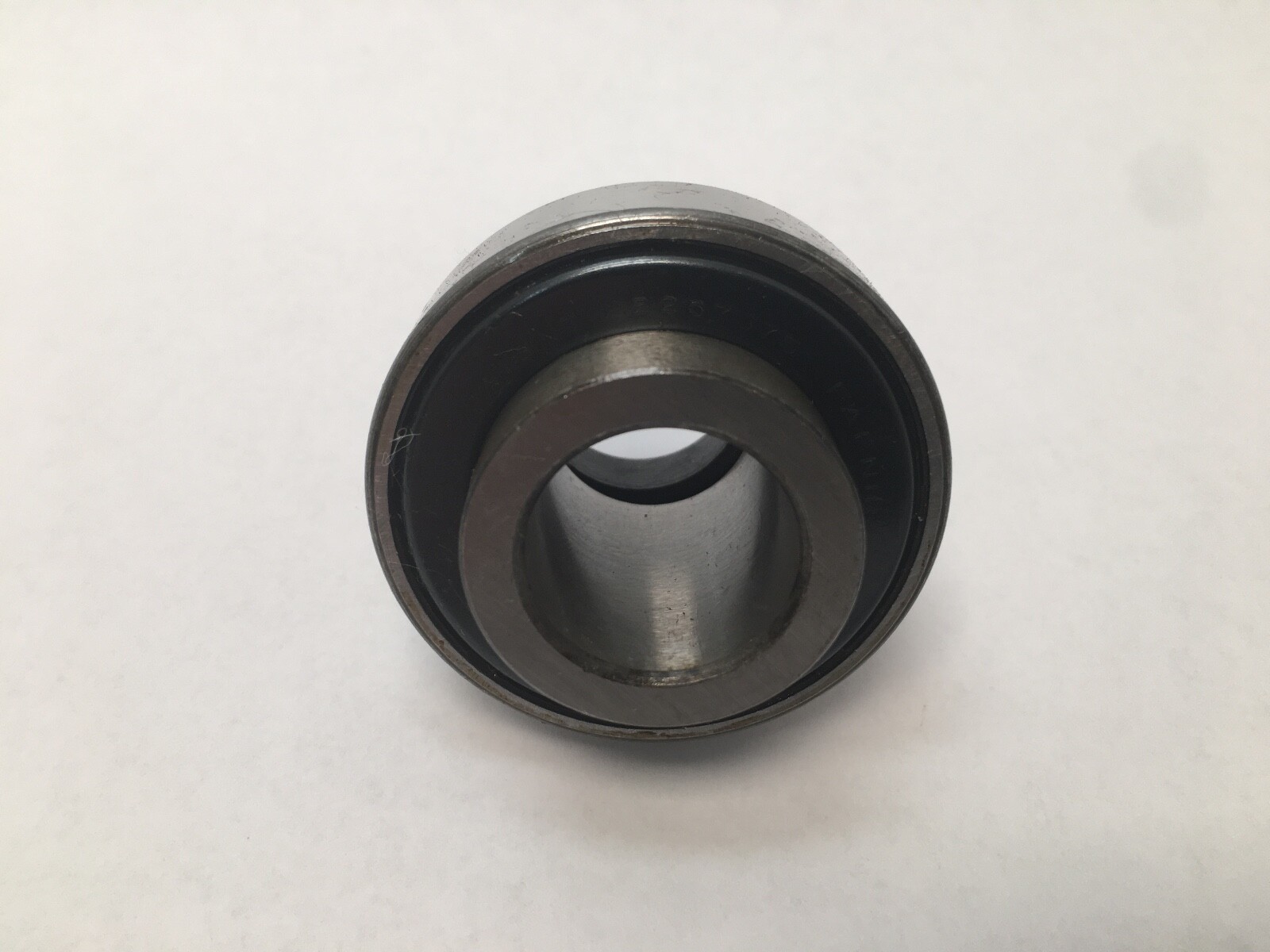

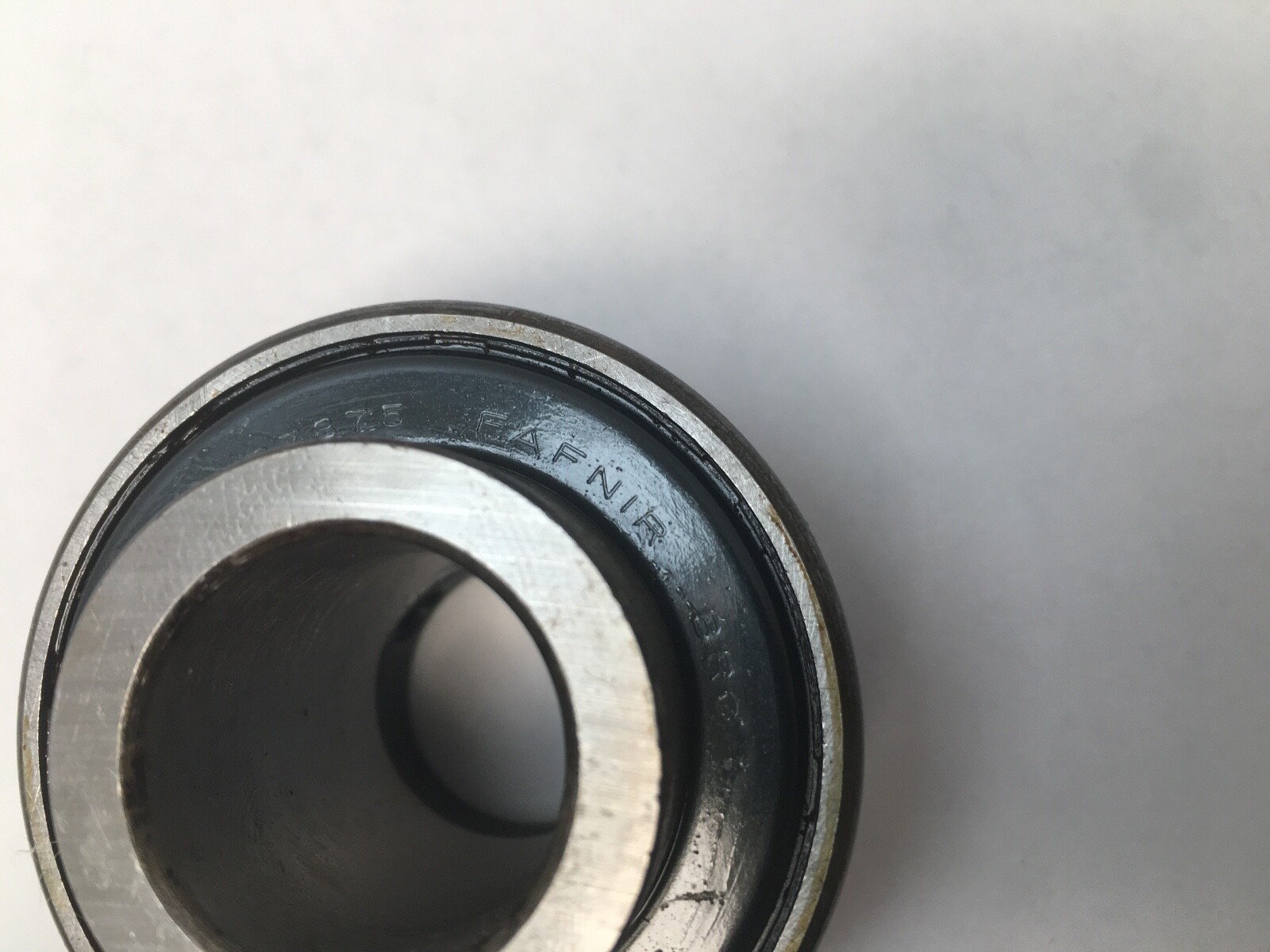

Fafnir 1014KLL wide-inner-ring insert ball bearing, supplied with its locking collar. Bore Diameter: 7/8 in (0.8750 in). Bore Type: Straight. Rolling Elements: Ball. Number Of Rows: 1. Bearing Material: Chrome steel. Design Units: Imperial. The outer surface is spherical, so the insert self-aligns in its housing seat.
1014 — the Fafnir 1000 insert series, inch bore code 14, which is 14 sixteenths or 7/8 in.
K — spherical outer surface, the self-aligning insert form.
Bore Diameter: 7/8 in. The extended inner ring clamps onto a plain 7/8 in shaft, so no shaft machining or shoulder is needed.

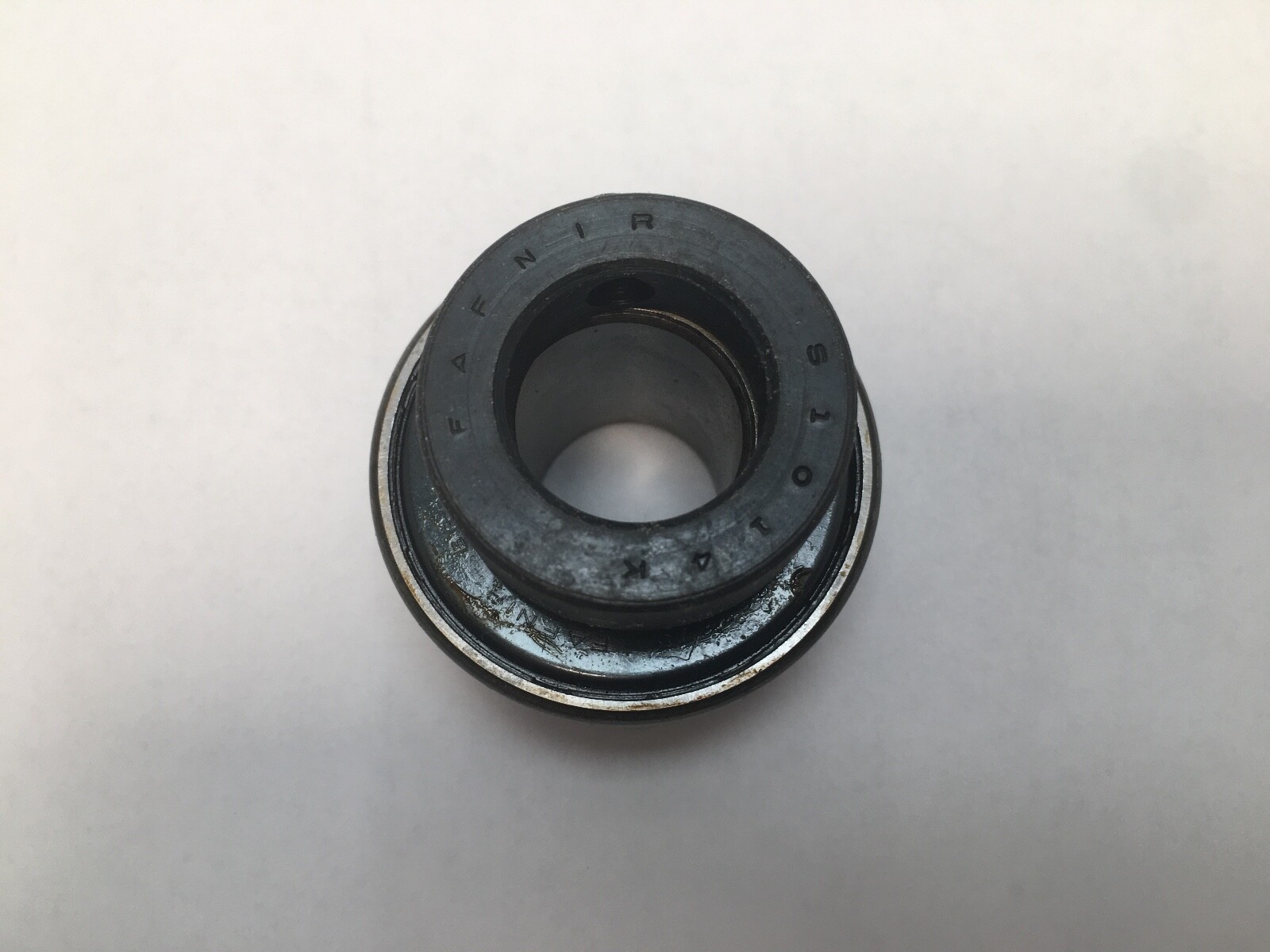

Locking Method: Eccentric locking collar. The collar is turned in the direction of shaft rotation and then set, so shaft rotation tightens rather than loosens the grip.
Housing Style: Spherical outer surface. The spherical seat takes several degrees of static shaft misalignment as the unit is bolted down, which is what makes this style forgiving on fabricated frames and conveyor structures.
Lubricant: Grease. The insert is grease packed for life on this size.

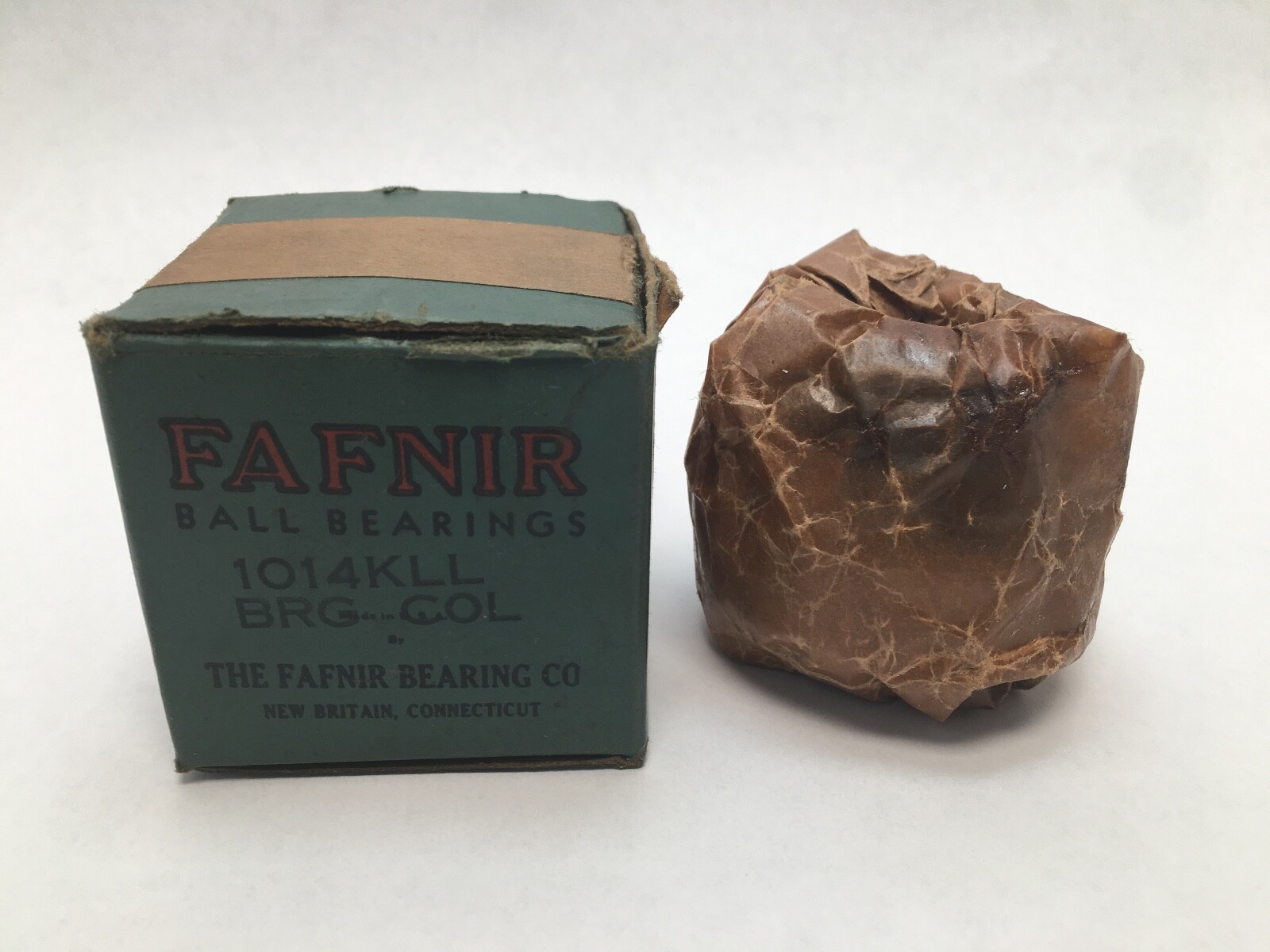

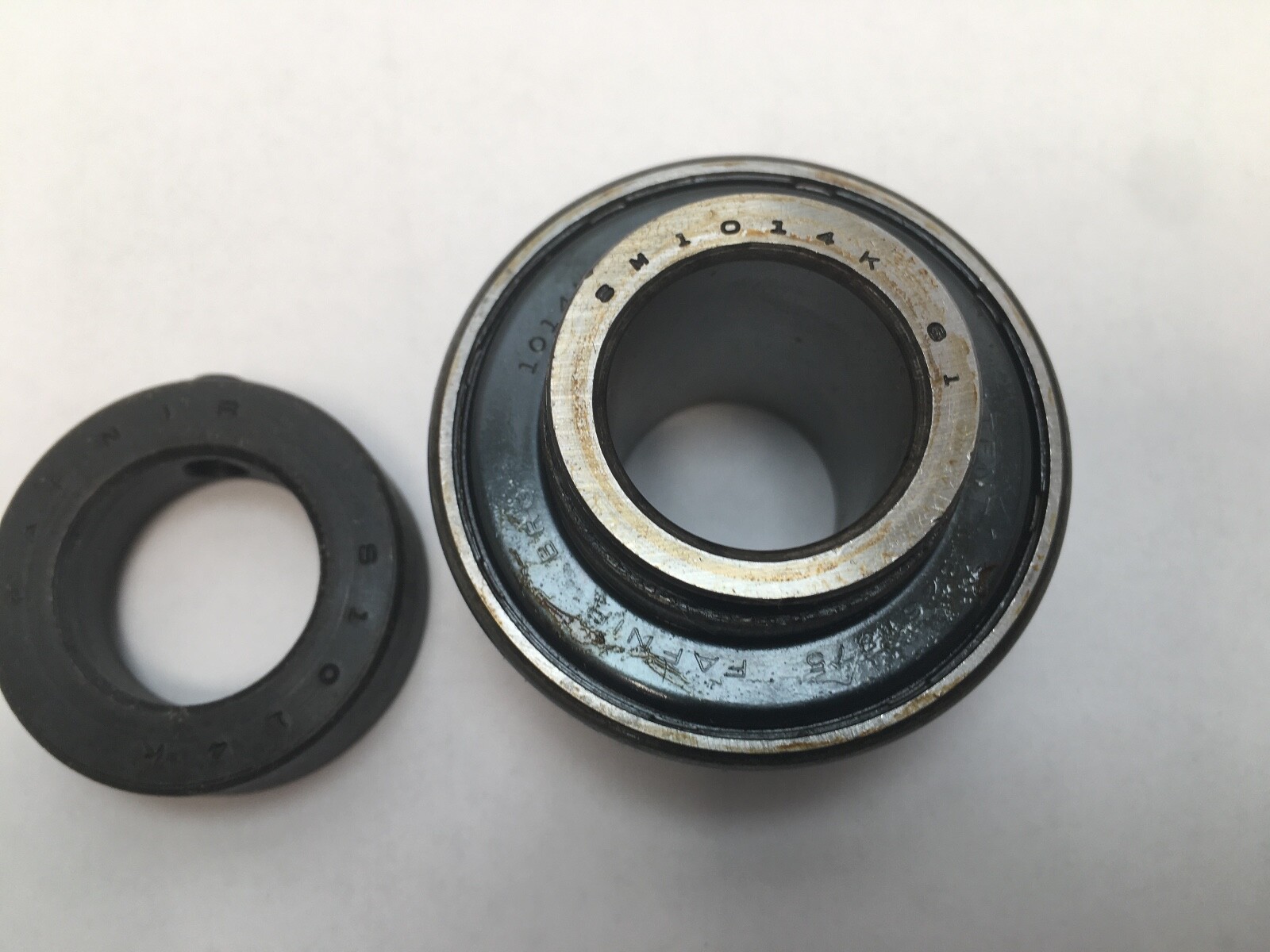

Unit Quantity: 1 Pc. Insert bearing with its locking collar. This is the rebuild part that drops into an existing pillow block, flange bracket or take-up frame.
The modern Fafnir and Timken number for a 7/8 in spherical-outer-surface insert with an eccentric collar is the G1014KRRB, listed here as a related part rather than a claimed interchange because the seal execution differs from the LL form. Search on the 1014KLL, 1014-KLL and 1014 KLL forms of the number.
