Central Surplus Bearing Finder
A faster way to search our bearing inventory Today we’re launching the Central Surplus Bearing
Availability:
1 in stock
Radial insert ball bearing, 100 mm bore, 215 mm OD, cylindrical outer ring, eccentric locking collar, sealed both sides. 155,000 N dynamic rating.
List Price
$755.01
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | INA |
|---|---|
| Model | GNE 100-KRR-B-FA 107 |
| ID | 100 mm |
| OD | 215 mm |
| Series | GNE |
|---|---|
| Type | Insert Bearing |
| Lubricant | Grease |
| Material | Bearing Steel |
| Base Number | GNE100 |
| Total Width | 86 mm |
| Overall Width | 49 mm |
| Bore Shaft Size | 100 mm |
| Housing Style | Bearing insert, cylindrical outer ring |
| Locking Method | Eccentric locking collar |
| Mpn Variants | GNE 100 KRRB FA107; GNE100KRRBFA107; GNE100-KRR-B-FA107; GNE100KRR |
| Additional Attributes | Fatigue load limit 5,800 N; locking collar total width 109.4 mm; outside diameter eccentric locking collar 145 mm; outside diameter over seal 182.8 mm; rib diameter inner ring 137.06 mm; distance raceway 39.5 mm; distance to lubrication hole 16.7 mm; width of flats 6 mm; calculation factor 12.3 |
| Min Temp | -20 °C |
| Dynamic Load Rating | 155,000 N |
| Static Load Rating | 131,000 N |
| Rolling Elements | Ball |
| Max Temp | 120 °C |
| Bearing Type | Radial Insert Ball Bearing |
| Item Weight | 11.41 kg (25.15 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Duty Type | Heavy Duty |
| Locking Device | Eccentric Collar |
| Harmonization Code | 8482.10.50 |
| Bearing Material | Chrome steel |

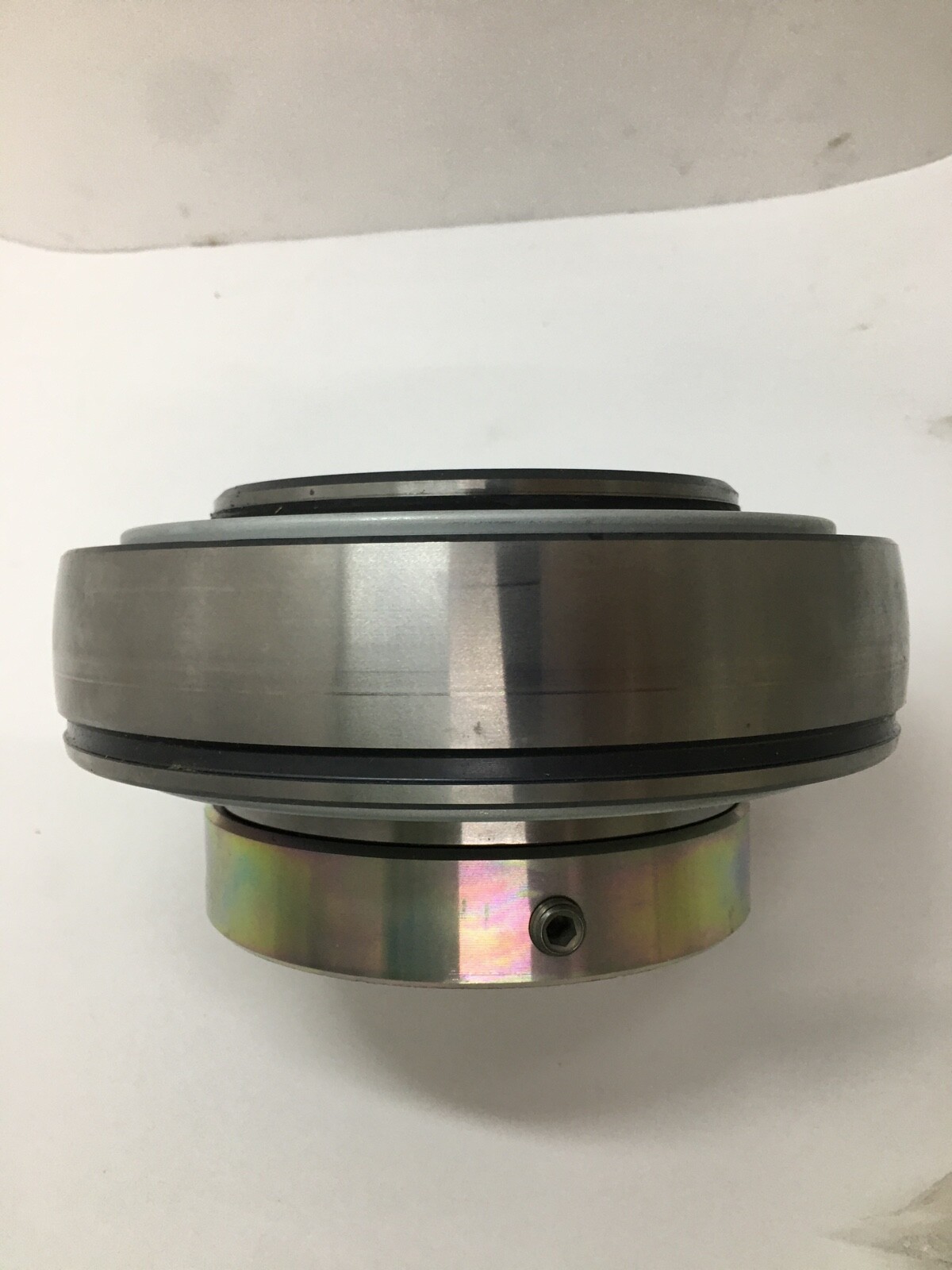

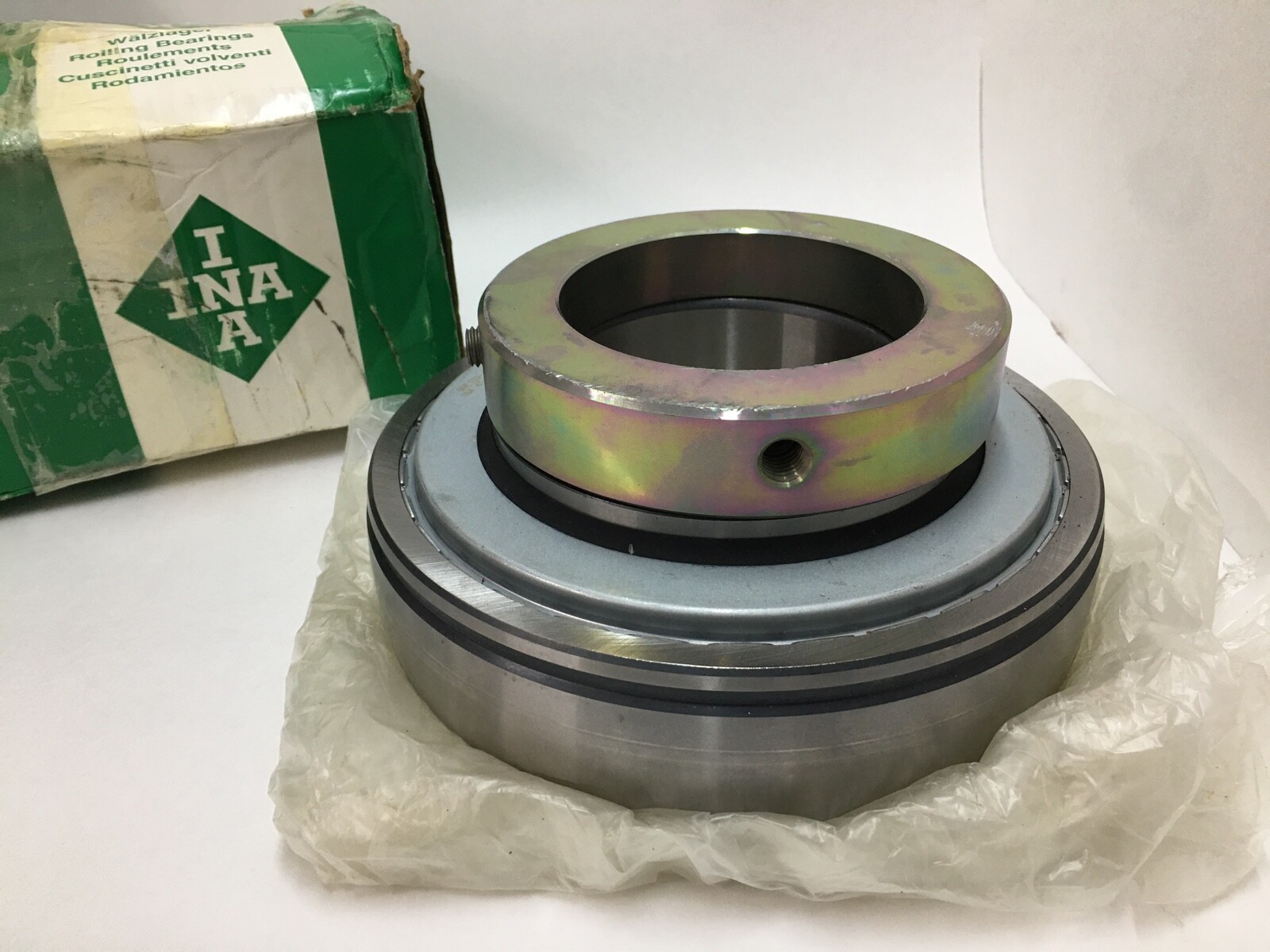

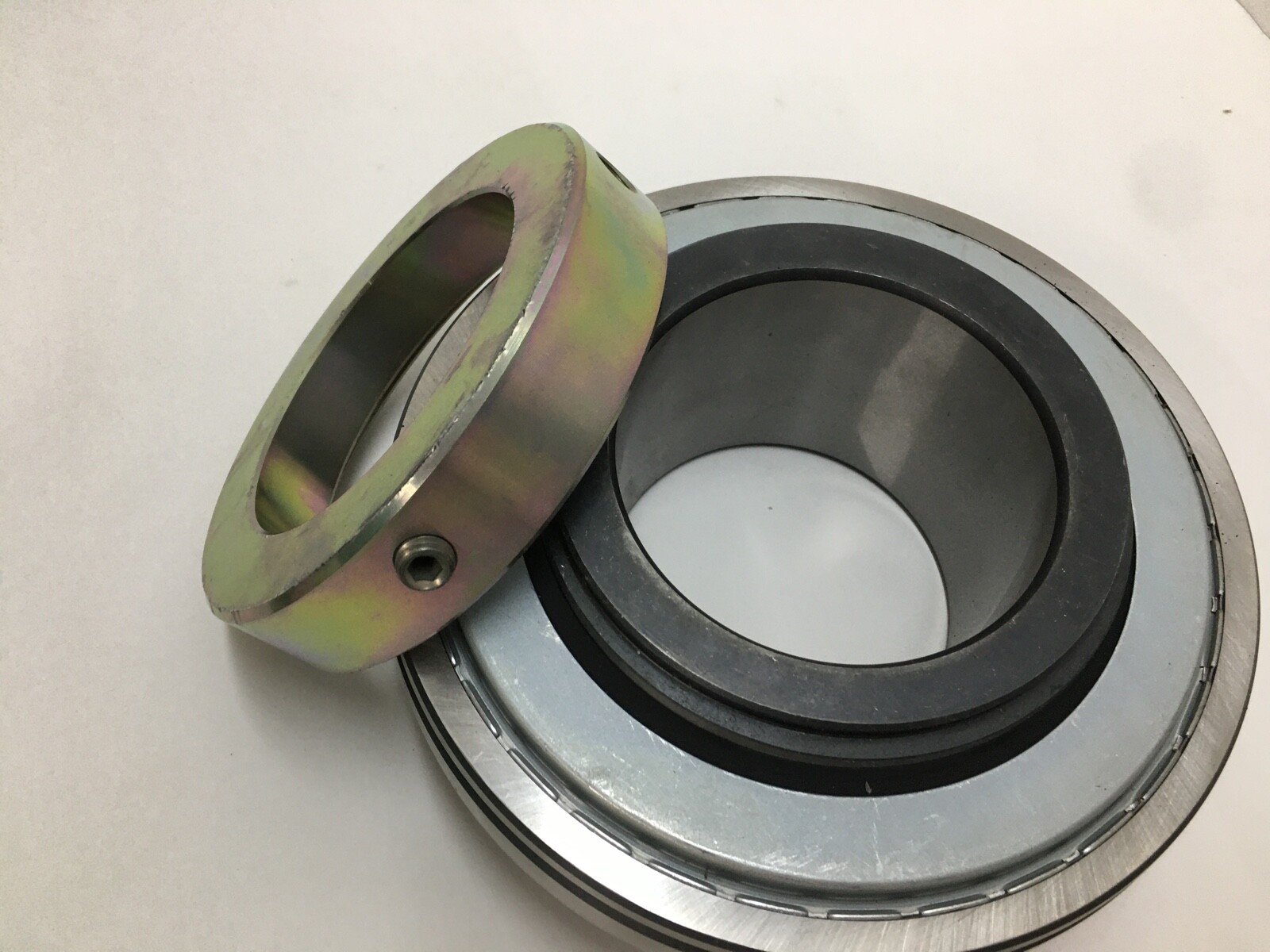

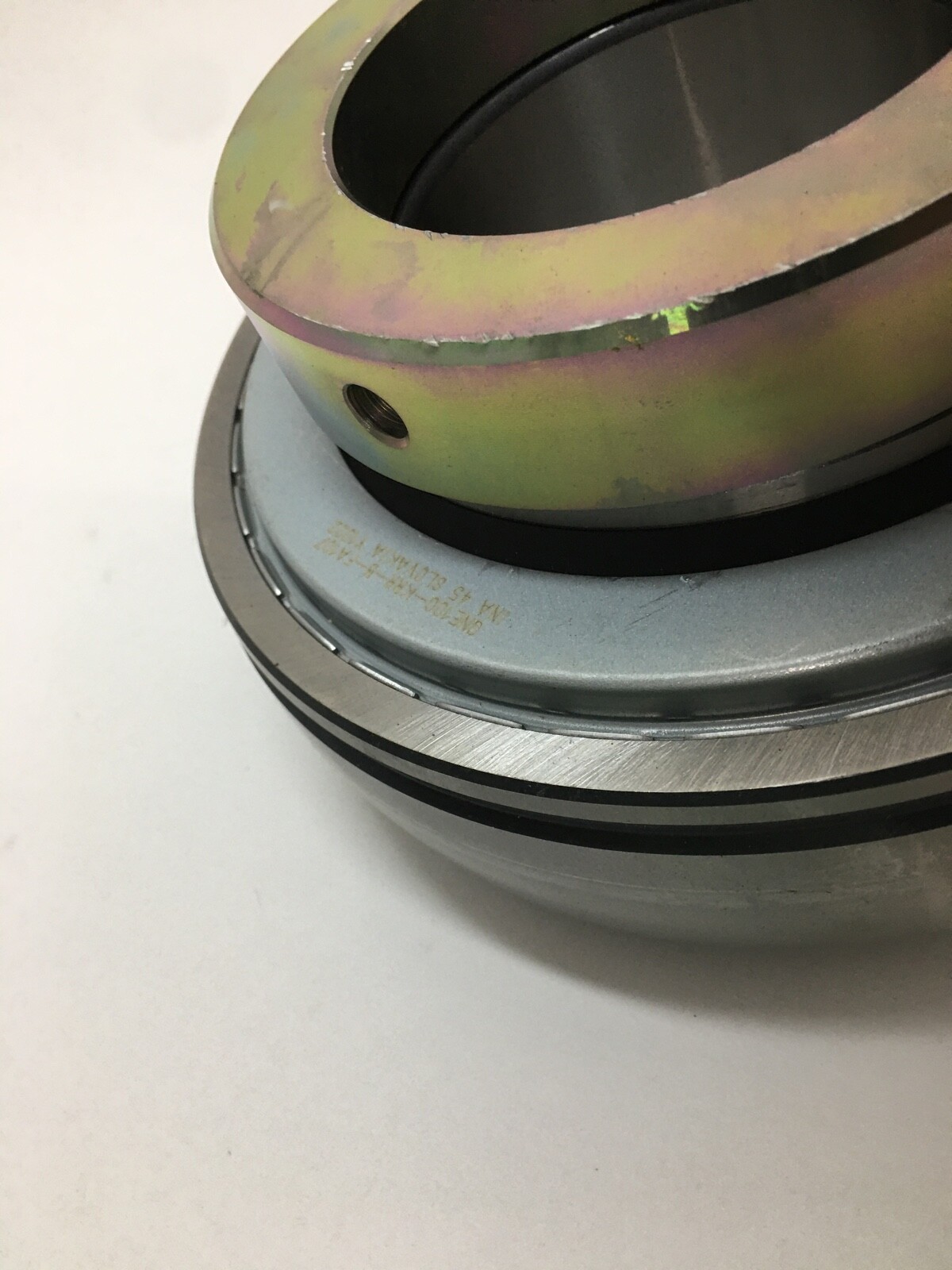

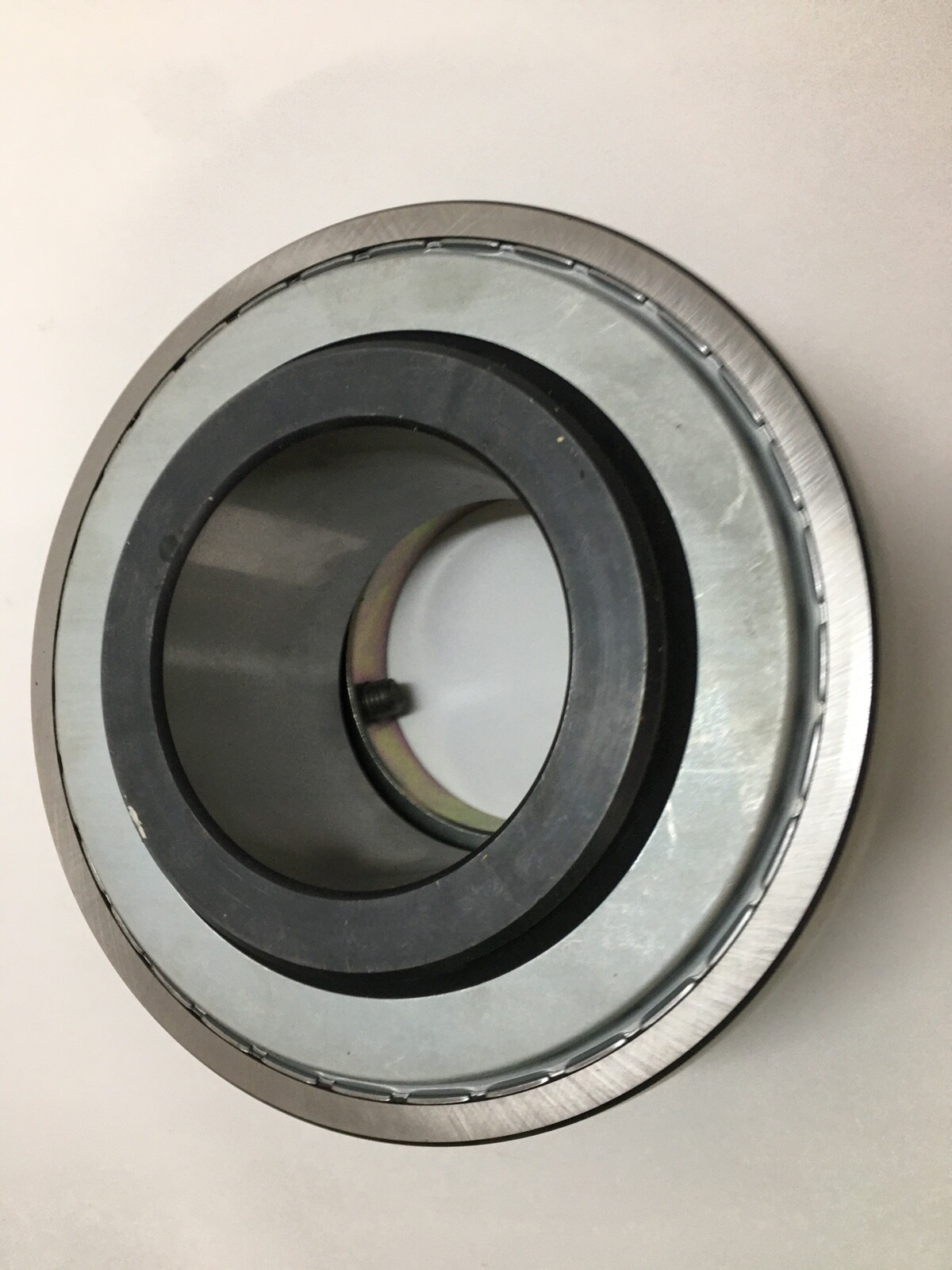

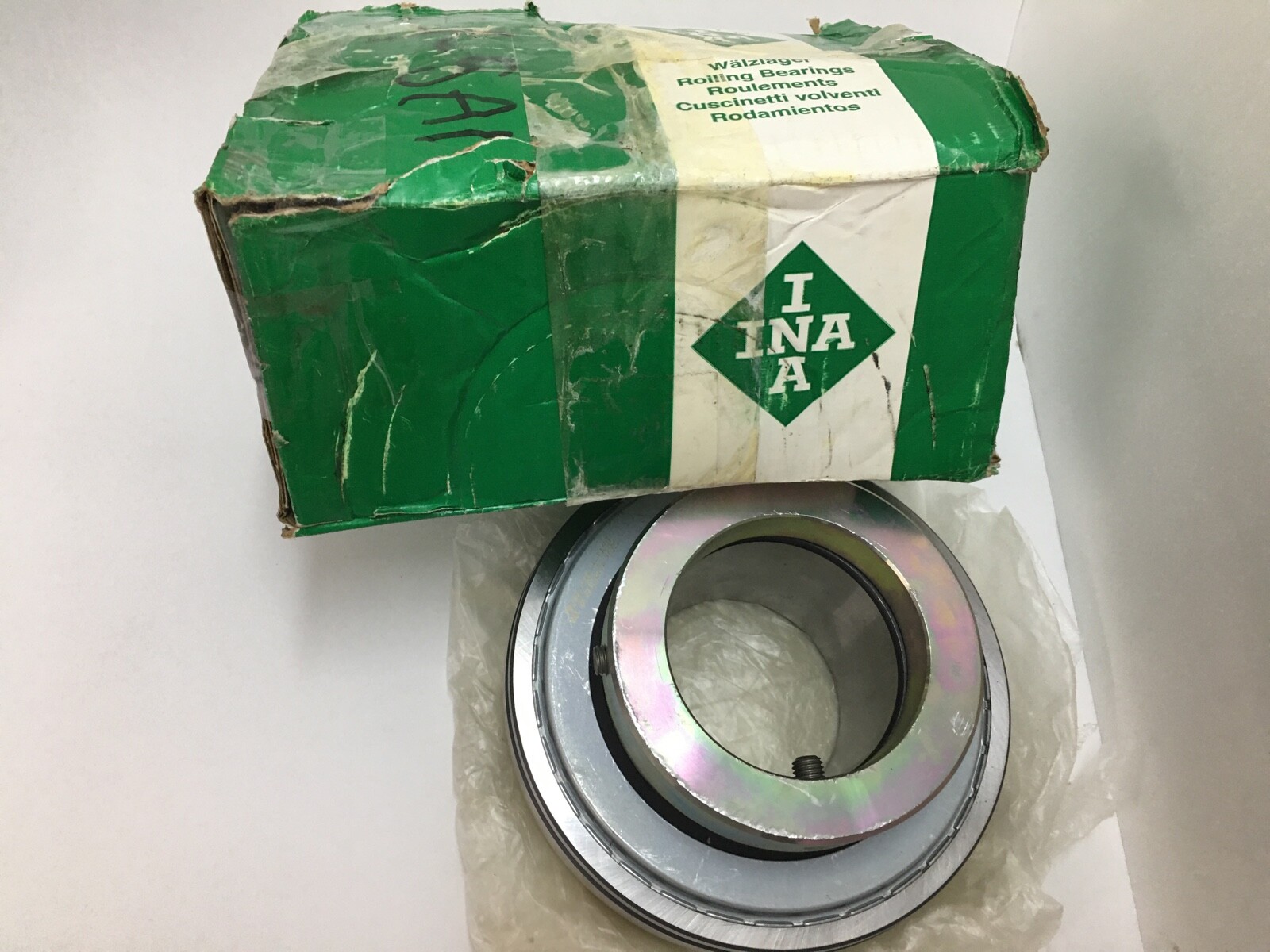

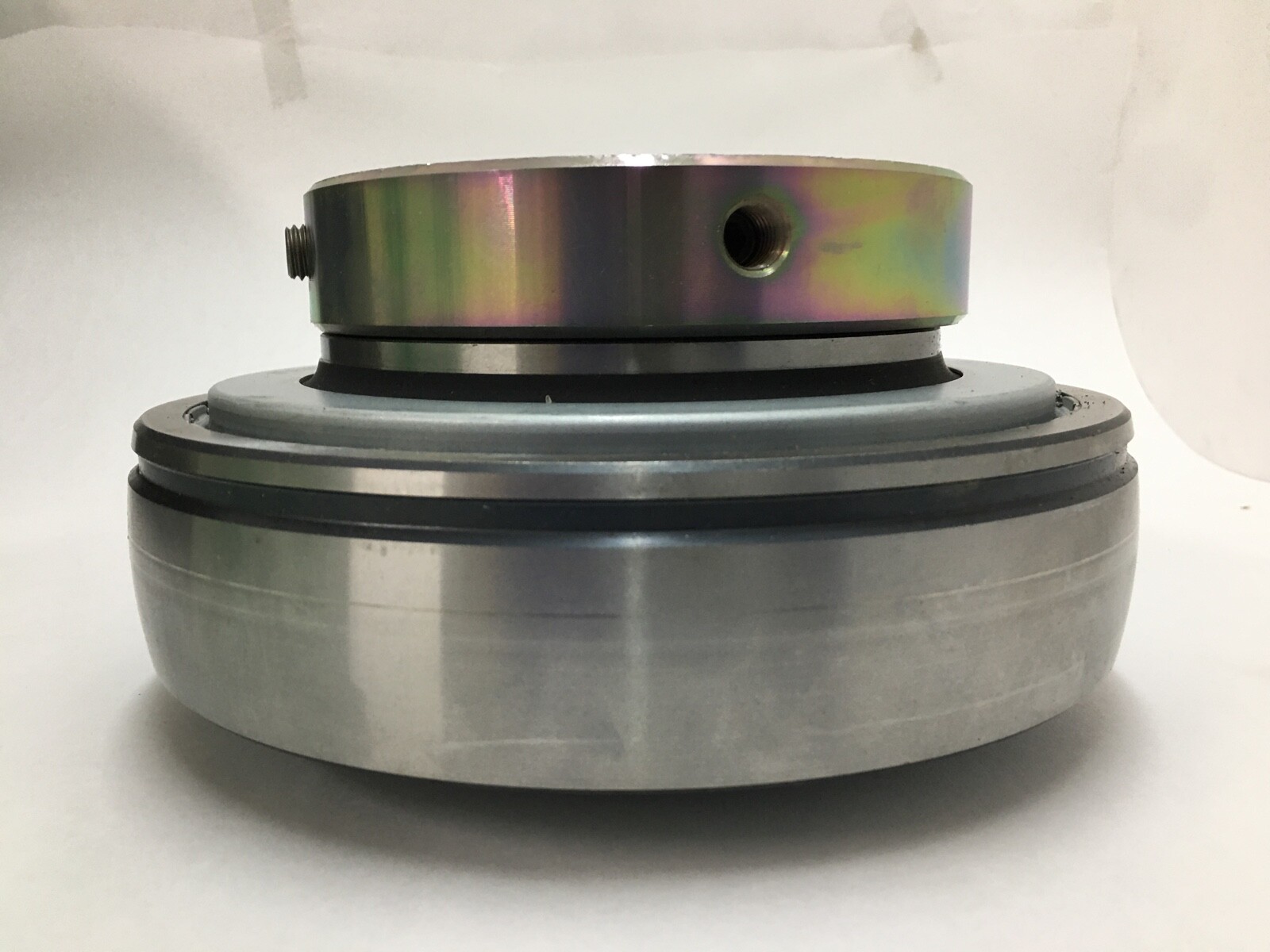

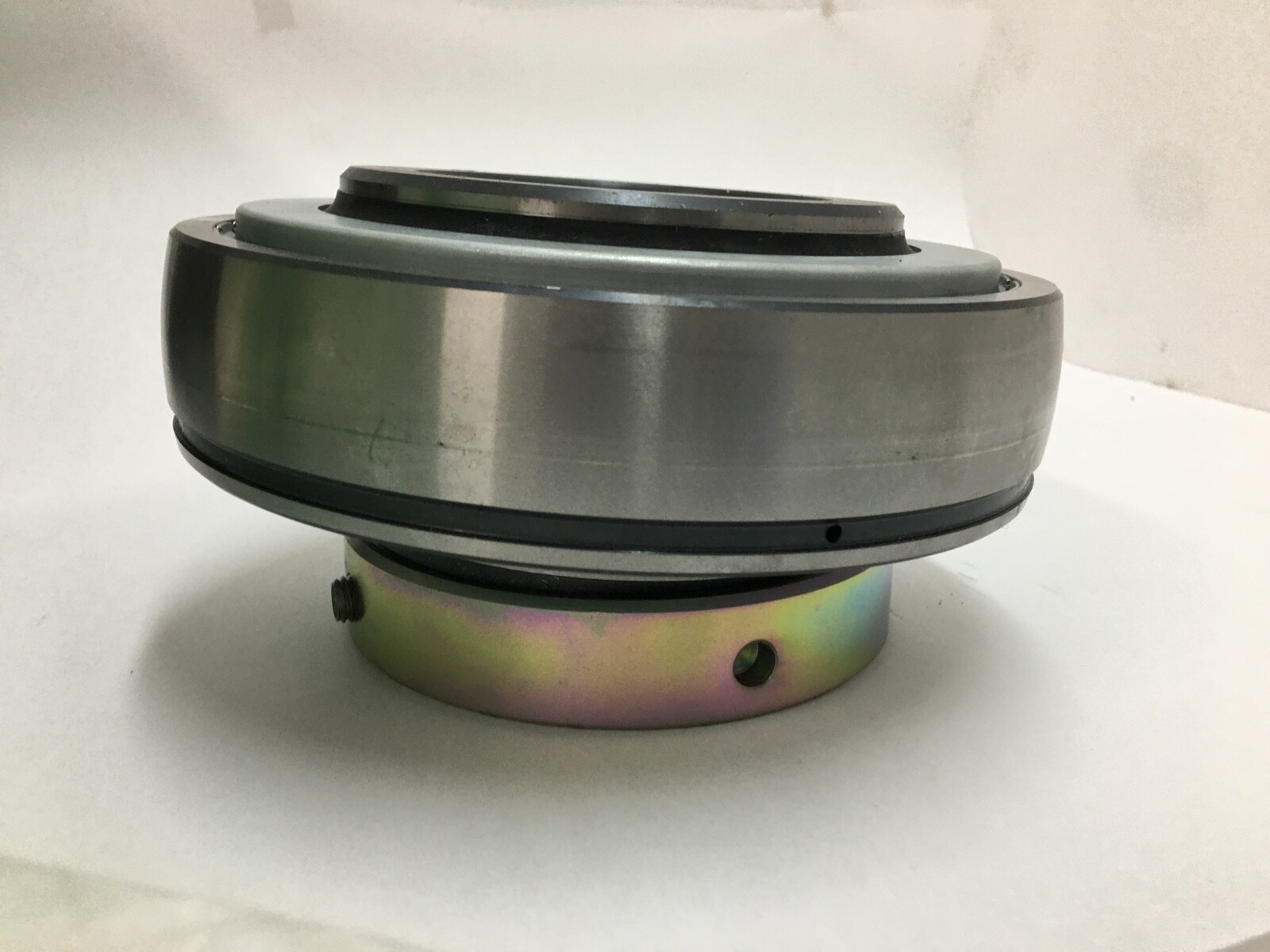

INA GNE100-KRR-B-FA107 radial insert ball bearing. A wide inner ring extends past the outer ring on one side and carries an eccentric locking collar, which clamps the assembly to a plain shaft without a keyway or a shoulder. Bore Diameter: 100 mm. Outside Diameter: 215 mm. Total Width: 86 mm. Outer ring width: 49 mm. Dynamic Load Rating: 155,000 N. Static Load Rating: 131,000 N. Rolling Elements: Ball. Number Of Rows: 1. Bore Type: Straight. Closure Type: R seals both sides. Locking Method: Eccentric locking collar. Item Weight: 11.41 kg (25.15 lb). Series: GNE. Base Number: GNE100.
GNE — radial insert ball bearing in the large-bore GNE family, supplied with an eccentric locking collar.
100 — bore diameter in millimetres.
KRR — R seals on both sides, retaining the grease charge in the bearing.
B — the current Schaeffler design generation for this insert family.
Dynamic Load Rating: 155,000 N. Static Load Rating: 131,000 N. That ordering is normal on radial insert ball bearings: the design is dimensioned for running load rather than shock. Fatigue load limit: 5,800 N.
A 100 mm bore in an insert bearing is at the top of the range. The eccentric collar is what makes it useful there — a shaft that size is rarely stepped or keyed for a bearing seat, and the collar clamps to plain round stock.
Operating temperature range: −20 °C to 120 °C.
Housing bore: 215 mm, cylindrical. Total width over the locking collar: 109.4 mm. Outside diameter of the eccentric locking collar: 145 mm. Outside diameter over the seal: 182.8 mm. Rib diameter, inner ring: 137.06 mm. Distance from the raceway: 39.5 mm. Distance to lubrication hole: 16.7 mm. Width of flats: 6 mm.
Unit Quantity: 1 Pc. Bearing insert with eccentric locking collar and both R seals fitted.

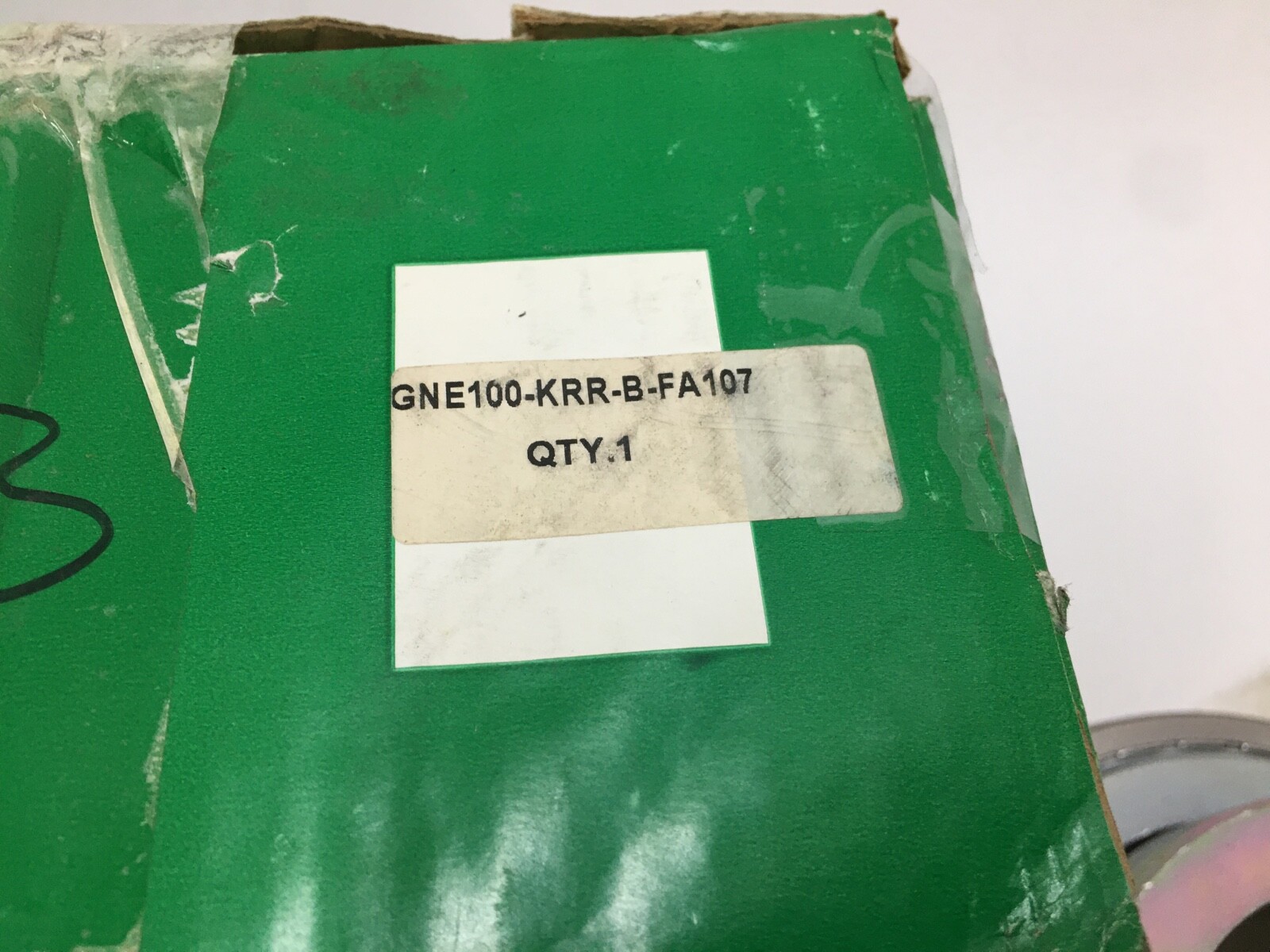

The GNE large-bore insert is a Schaeffler design and the 100 x 215 mm envelope is specific to it, so the cross-maker interchange that applies to the common UC and GE insert sizes does not carry across. Designation variants: GNE 100 KRRB FA107, GNE100KRRBFA107, GNE100-KRR-B-FA107, GNE100KRR.
