FAGHS7002-E-T-P4S-ULHigh-Speed Spindle Angular Contact Ball Bearing – 15 mm ID, 32 mm OD, 9 mm Width, Open, 25° Contact Angle, Light Preload, P4S (ABEC 7/9)

Condition: New

Availability:

6 in stock

FAG HS7002-E-T-P4S-UL high-speed spindle angular contact ball bearing, 15 x 32 x 9 mm, 25° contact angle, light preload, P4S, phenolic cage.

List Price

$70.99

6 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

6 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPNHS7002-E-T-P4S-UL
GTIN4012801748704
ModelHS 7002 E T P4S UL / 3MM9102WI CR SUL
Bearing TypeAngular Contact Ball Bearing, Open
ID15 mm
OD32 mm
Width9 mm

Technical Specifications

MaterialChrome Steel
SeriesHS70-E
PreloadLight
Base NumberHS7002E
Bore Shaft Size15 mm
Mpn VariantsHS7002ETP4SUL, HS7002E.T.P4S.UL, HS-7002-E-T-P4S-UL, HS 7002 E T P4S UL, NSK 7002CTYNSULP4, 3MM9102WI CR SUL
Precision ClassP4S (ABEC 7/9)
Precision RatingP4S (ABEC 7/9)
Rolling ElementsBall
Cage MaterialPhenolic
Number Of Rows1
Bore TypeStraight
Snap Ring IncludedPlain outer ring
Harmonization Code8482.10.50
Contact Angle25°
Mounting ArrangementUniversal
Part NumberHS7002ETP4SUL
Closure TypeOpen

Cross-References

Cross Reference 1SKF 7002 ACEGA/P4A
Seller Part Number: B-EF2B3#G7VGAC

Product Description

What this part is:

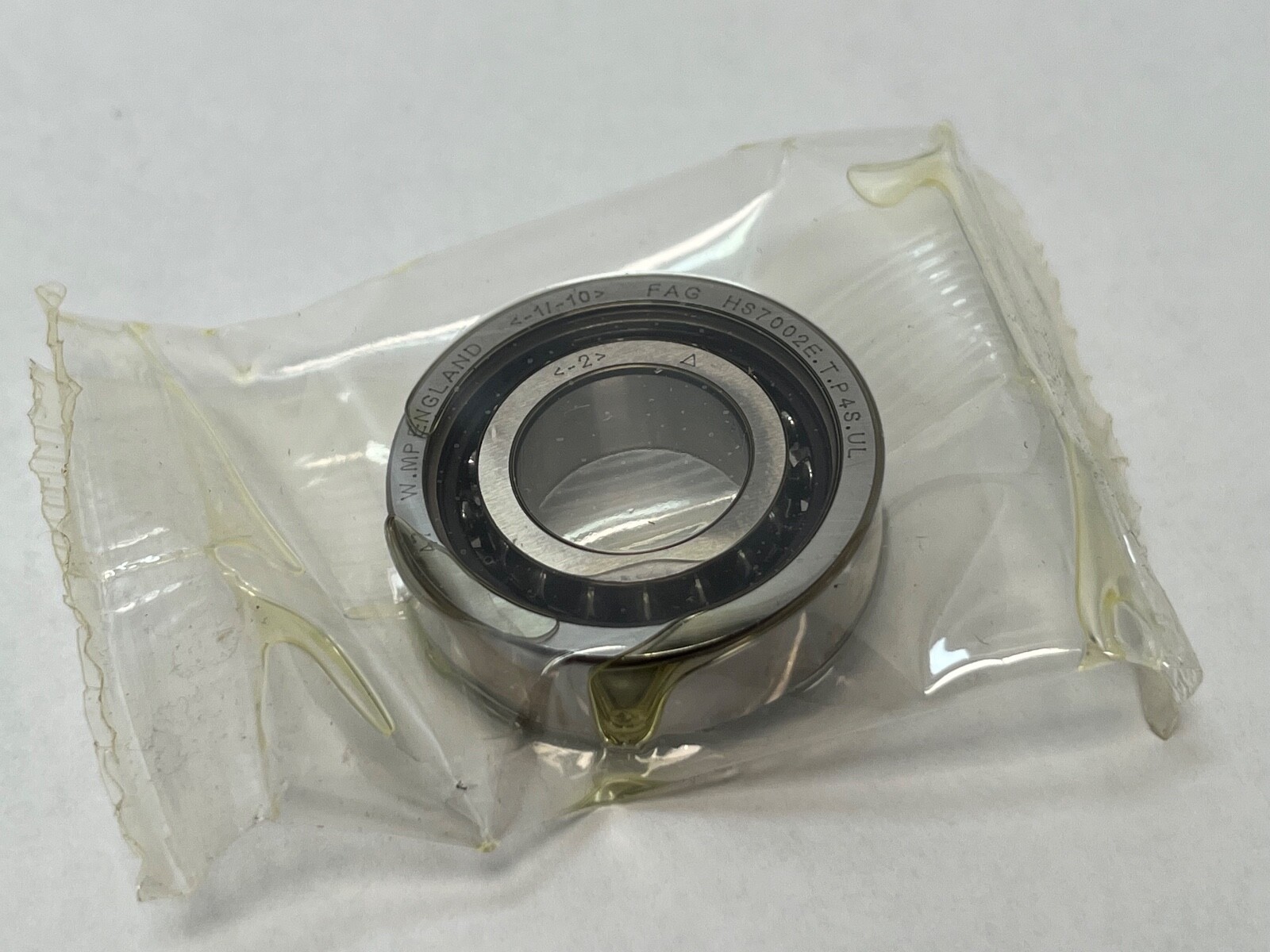

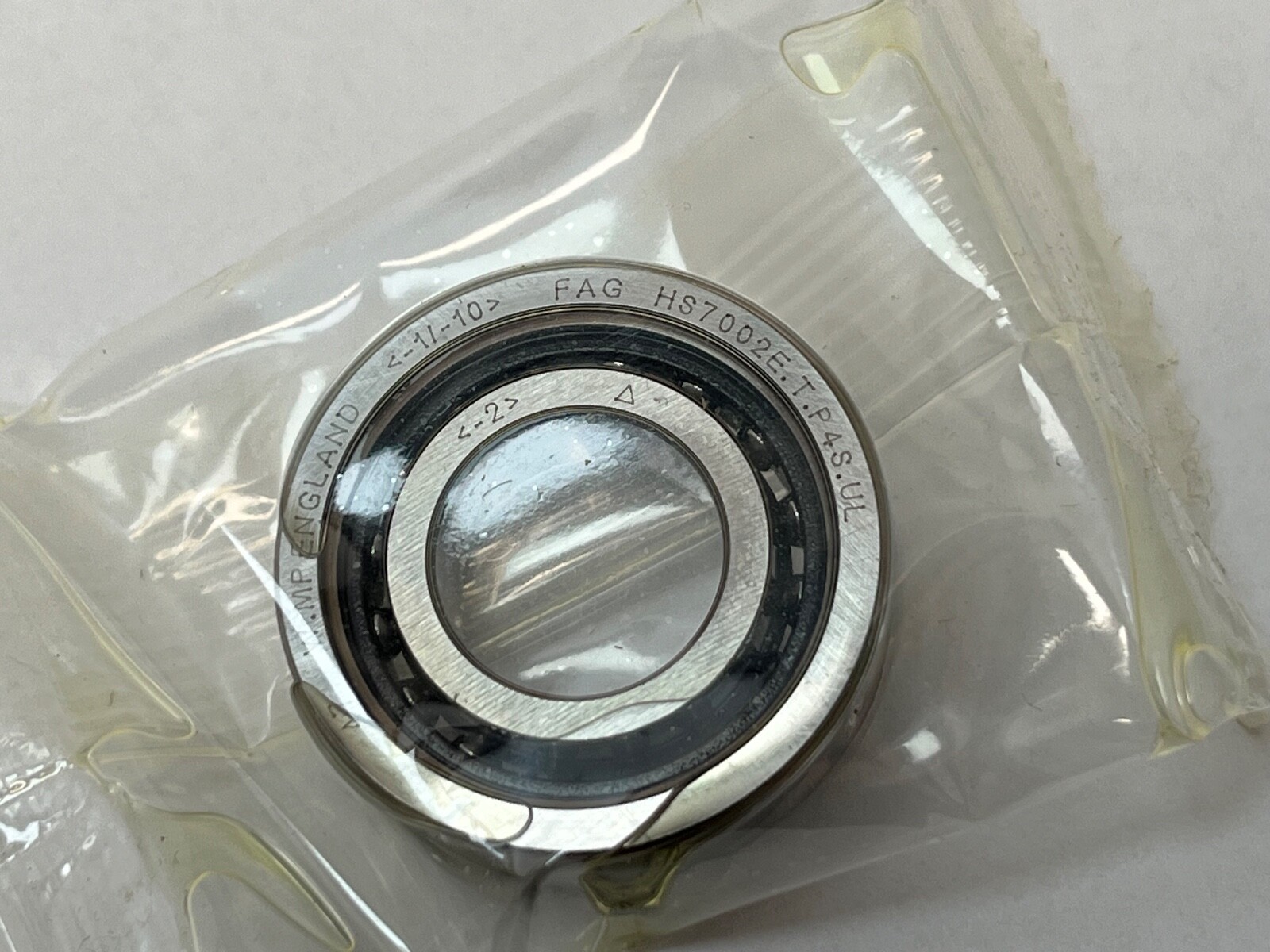

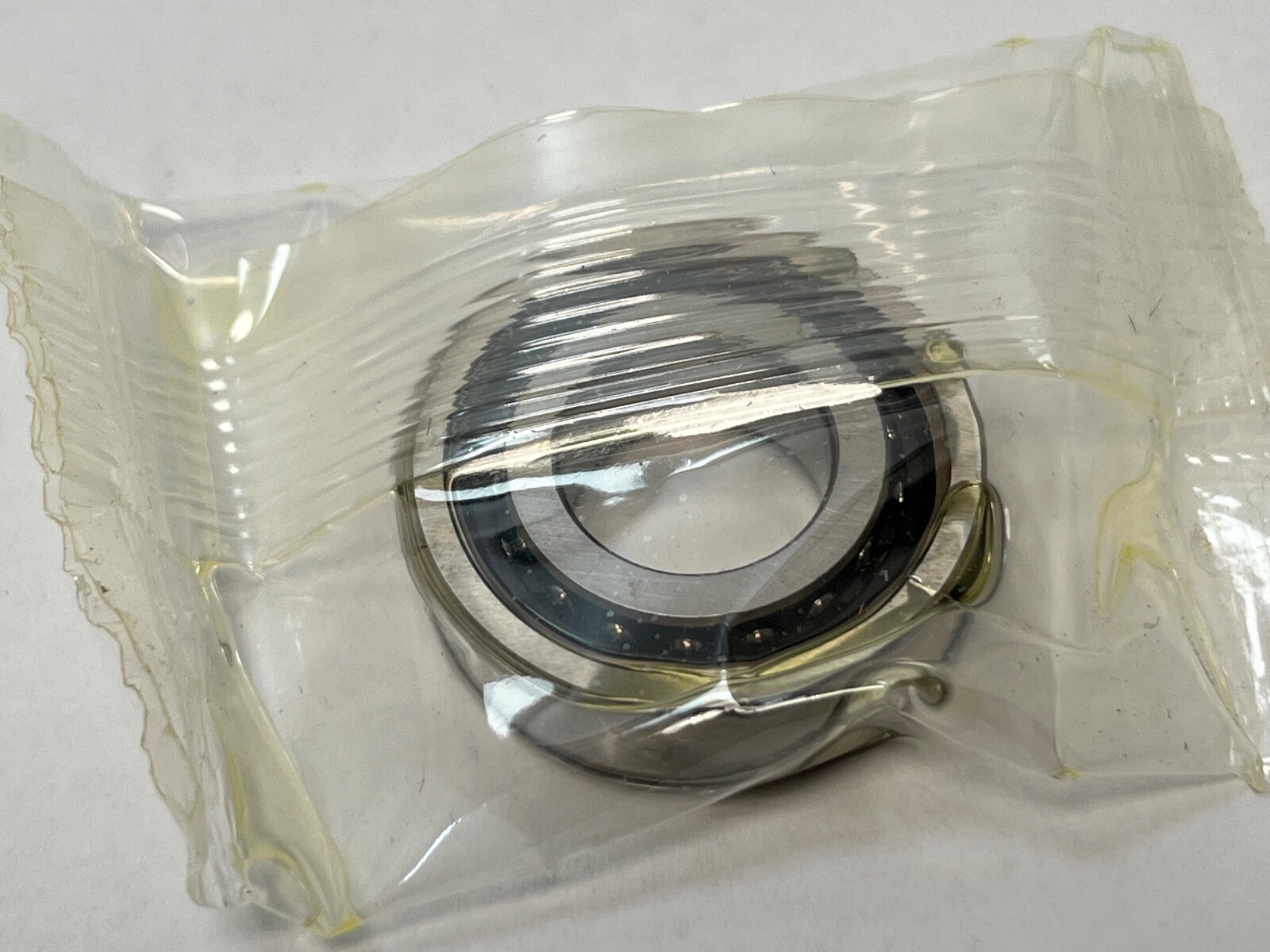

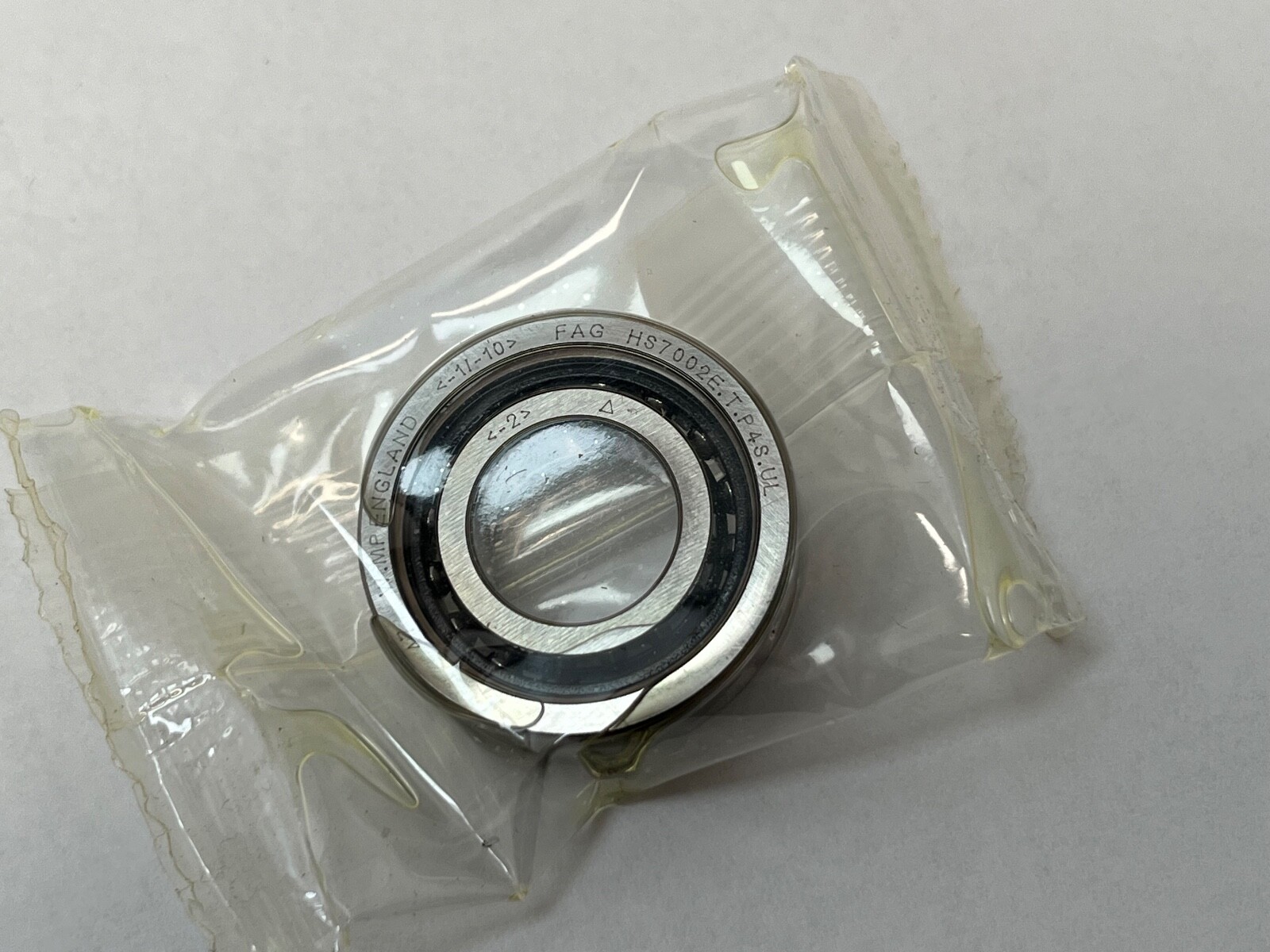

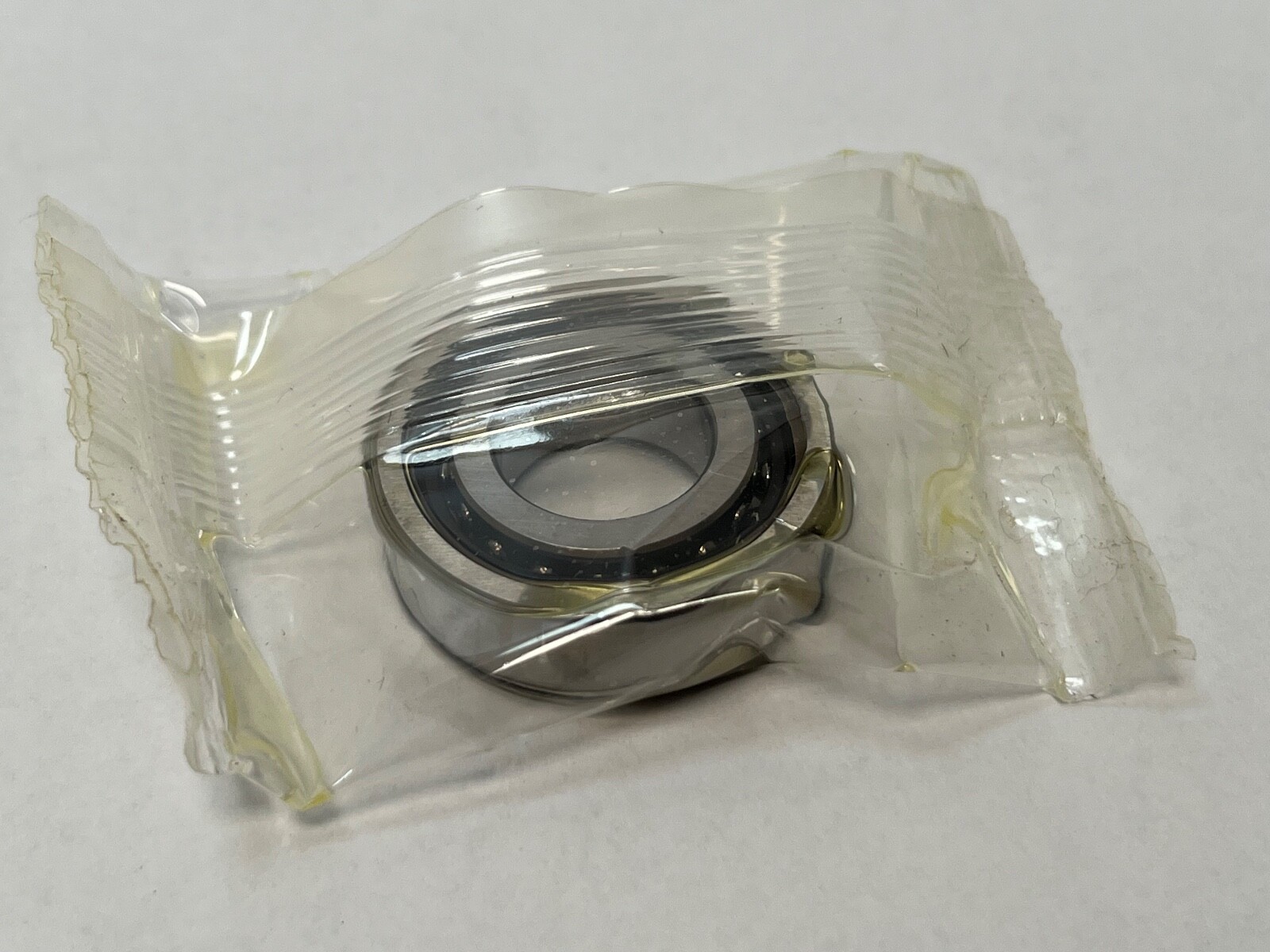

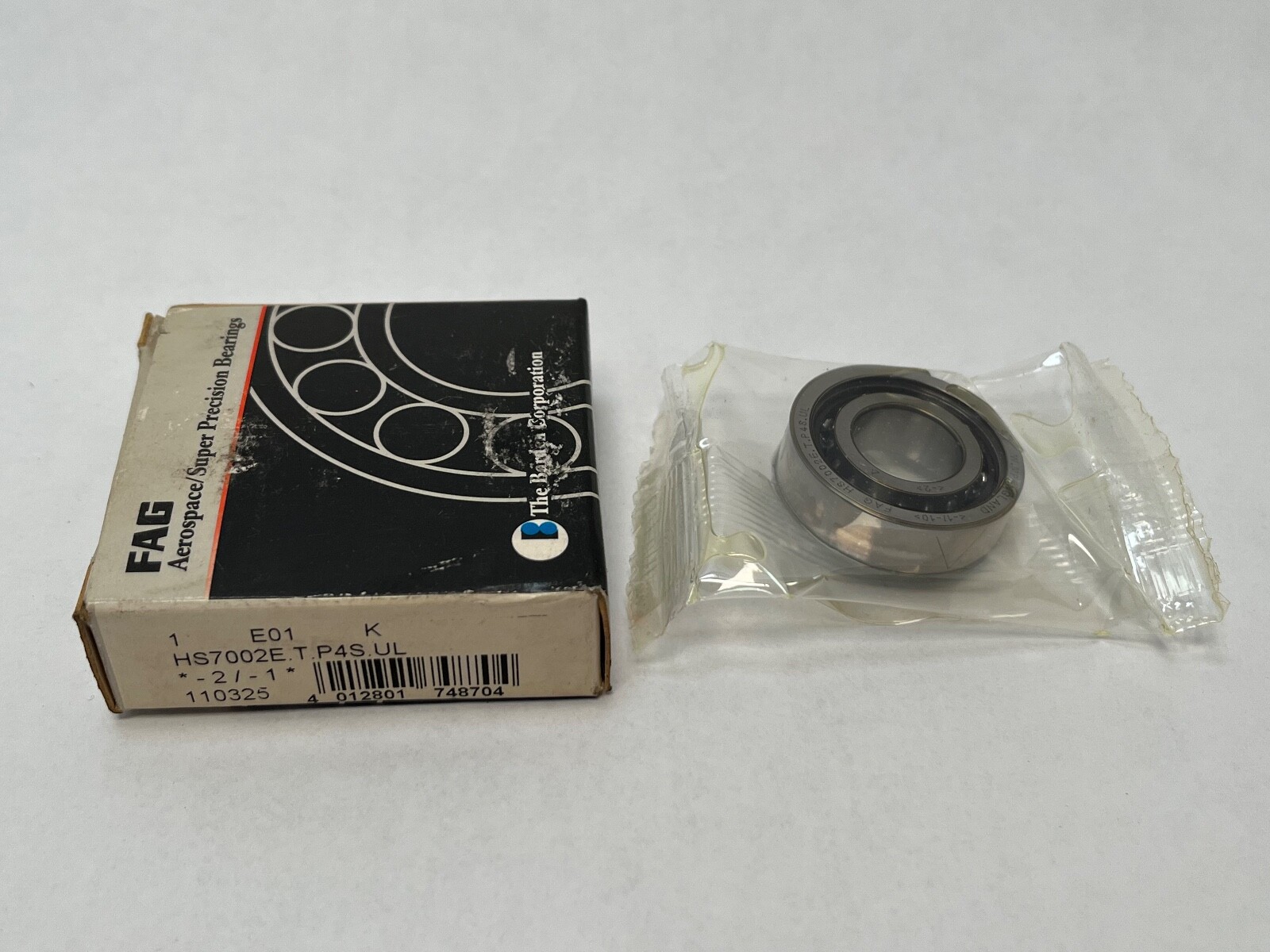

FAG HS7002-E-T-P4S-UL high-speed spindle angular contact ball bearing, one piece. Single row of balls, straight bore, open, phenolic cage, light preload, universally ground.

Decoding the designation:

HS — FAG high-speed spindle design with small steel balls; open execution (HSS is the sealed execution).

7002 — ISO 70 series, 15 mm bore, 32 mm outside diameter, 9 mm width.

E — 25° contact angle.

T — fabric-base laminate phenolic cage.

P4S — FAG precision class P4S, equivalent to ABEC 7/9.

UL — universal ground single bearing with light preload.

Specifications:

Bore Diameter: 15 mm. Outside Diameter: 32 mm. Overall Width: 9 mm. Contact Angle: 25°. Number of Rows: 1. Bore Type: Straight. Closure Type: Open. Rolling Elements: Ball. Cage Material: Phenolic. Preload: Light. Precision Class: P4S (ABEC 7/9). Mounting Arrangement: Universal. Series: HS70-E. Material: Chrome steel. GTIN: 4012801748704. Unit Quantity: 1 Pc. Harmonization Code: 8482.10.50.

Dimensions and mounting:

Bore 15 mm, outside diameter 32 mm, width 9 mm. Universal grinding allows any two units of this designation to be paired back-to-back, face-to-face or in tandem.

Compatibility and replacement:

Cross-reference: SKF 7002 ACEGA/P4A, a 25° light-preload universal bearing on the same 15 x 32 x 9 mm envelope. FAG HS7002-C is the 15° execution and HSS7002-E is the sealed execution. Searchable variants: HS7002ETP4SUL, HS7002E.T.P4S.UL, HS-7002-E-T-P4S-UL, HS 7002 E T P4S UL.

Frequently asked questions:

What are the dimensions of the FAG HS7002-E-T-P4S-UL?

Bore 15 mm, outside diameter 32 mm, width 9 mm.

What contact angle does the HS7002-E have?

25°. The E in the designation is the 25° execution; the C execution is 15°.

What are the GTIN and precision class of the FAG HS7002-E-T-P4S-UL?

GTIN 4012801748704. Precision class P4S (ABEC 7/9) with light universal preload (UL).
