SKF 7212 CDGC/P4A super-precision angular contact ball bearing, 60 x 110 x 22 mm, 15 degree contact angle, medium preload, open, phenolic cage, P4A class.
List Price
$187.42
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 7212 CDGC/P4A |
| Model | 7212 CDGC/P4A |
| Bearing Type | Super-Precision Angular Contact Ball Bearing, Open |
| ID | 60 mm |
| OD | 110 mm |
| Width | 22 mm |
| Material | Chrome steel |
|---|---|
| Series | 7200 (ISO 72) |
| Preload | Medium |
| Base Number | 7212 |
| Industry Terms | Spindle bearing; machine tool bearing; precision bearing |
| Common Misspellings | 7212CDGCP4A, 7212 CDGC P4A SKF, 7212CD/P4A |
| Bore Shaft Size | 60 mm |
| Mpn Variants | 7212CDGC/P4A, 7212 CD/P4A DGC, 7212CDP4ADGC, 7212-CDGC-P4A |
| Rolling Elements | Steel balls |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.10.50 |
| Contact Angle | 15° |
| Part Number | 7212 CDGC/P4A |
| Cross Reference 1 | SKF 7212 ACDGC/P4A - 25 deg angle, not 15 deg |
|---|

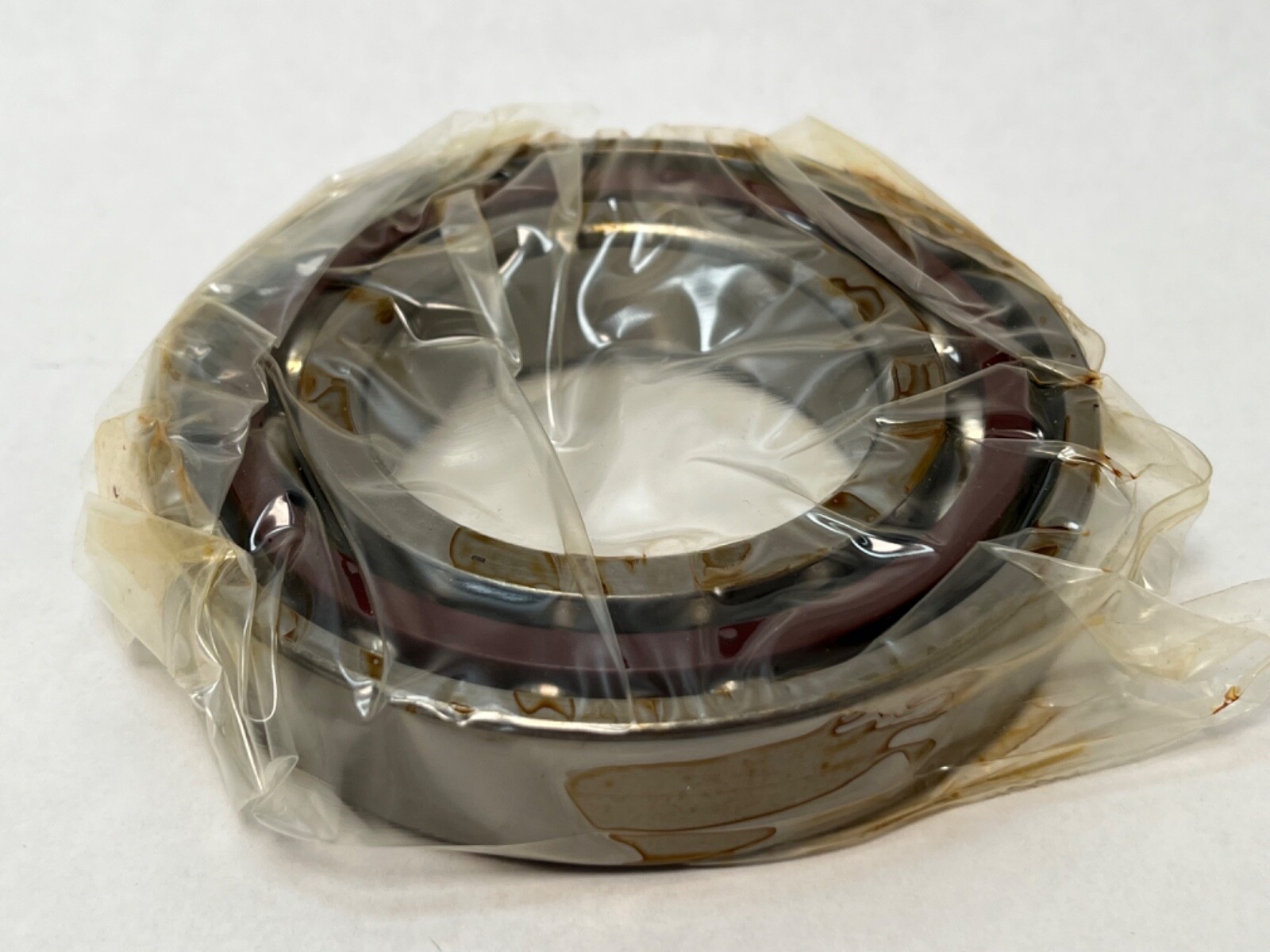

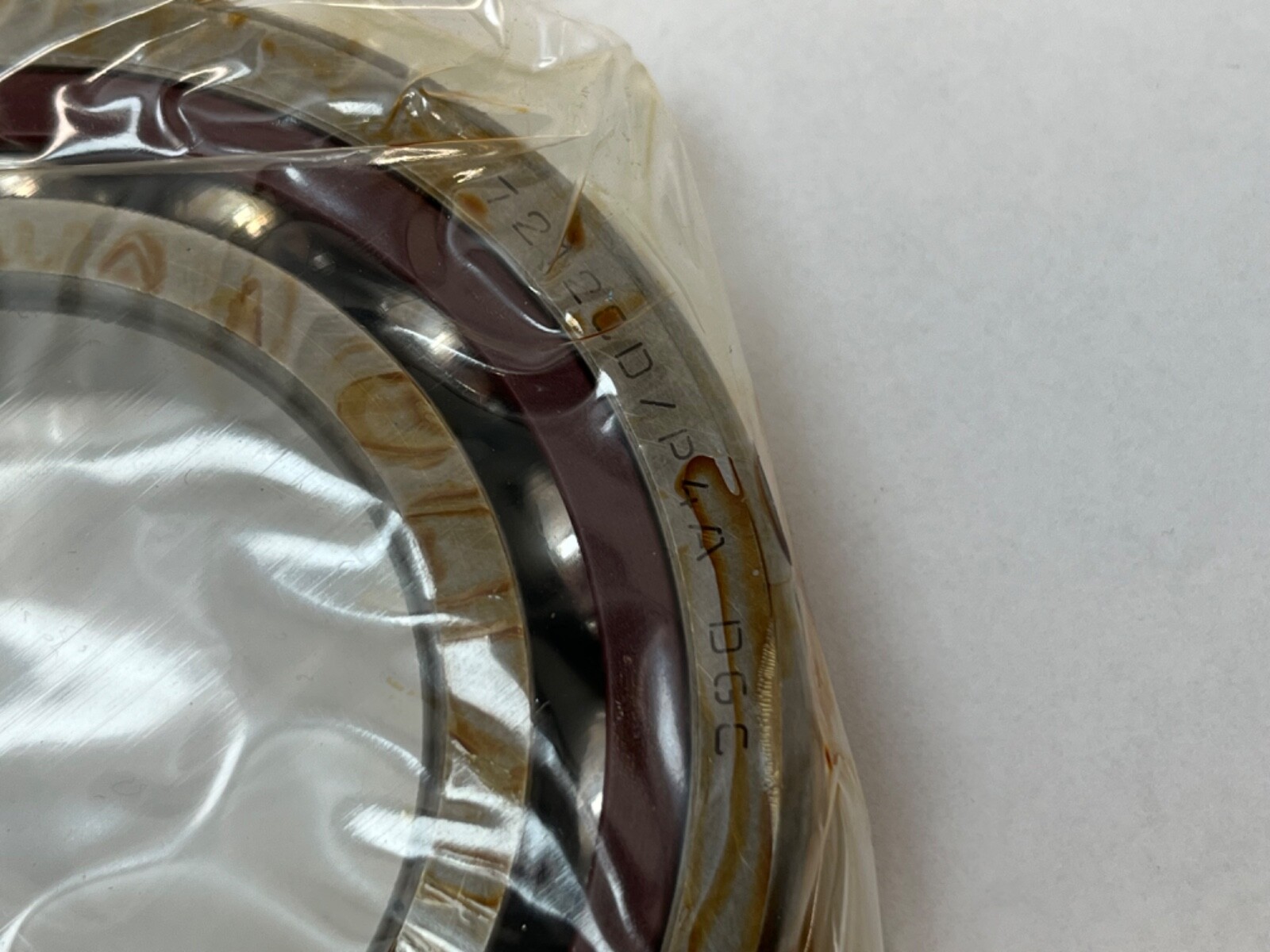

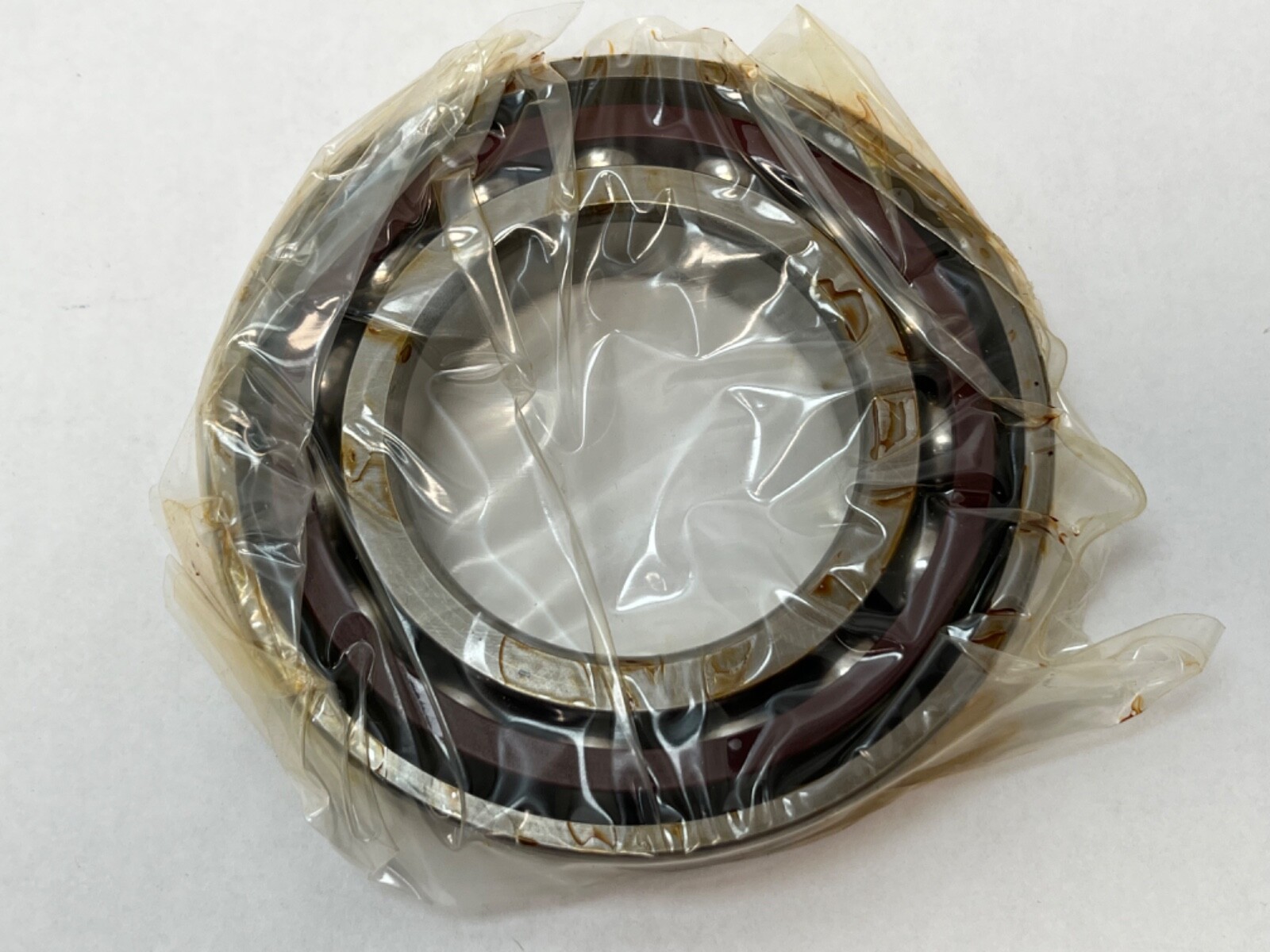

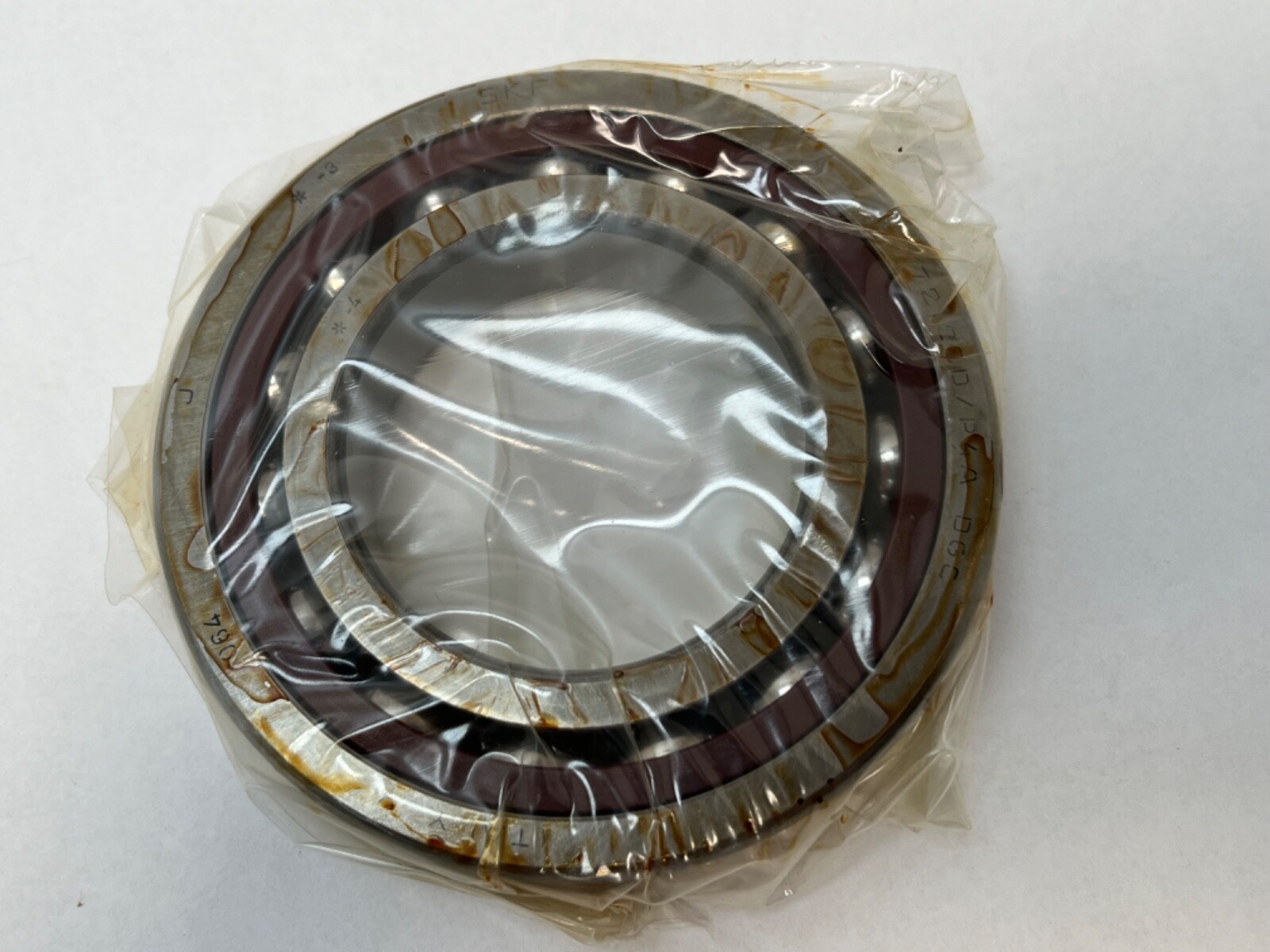

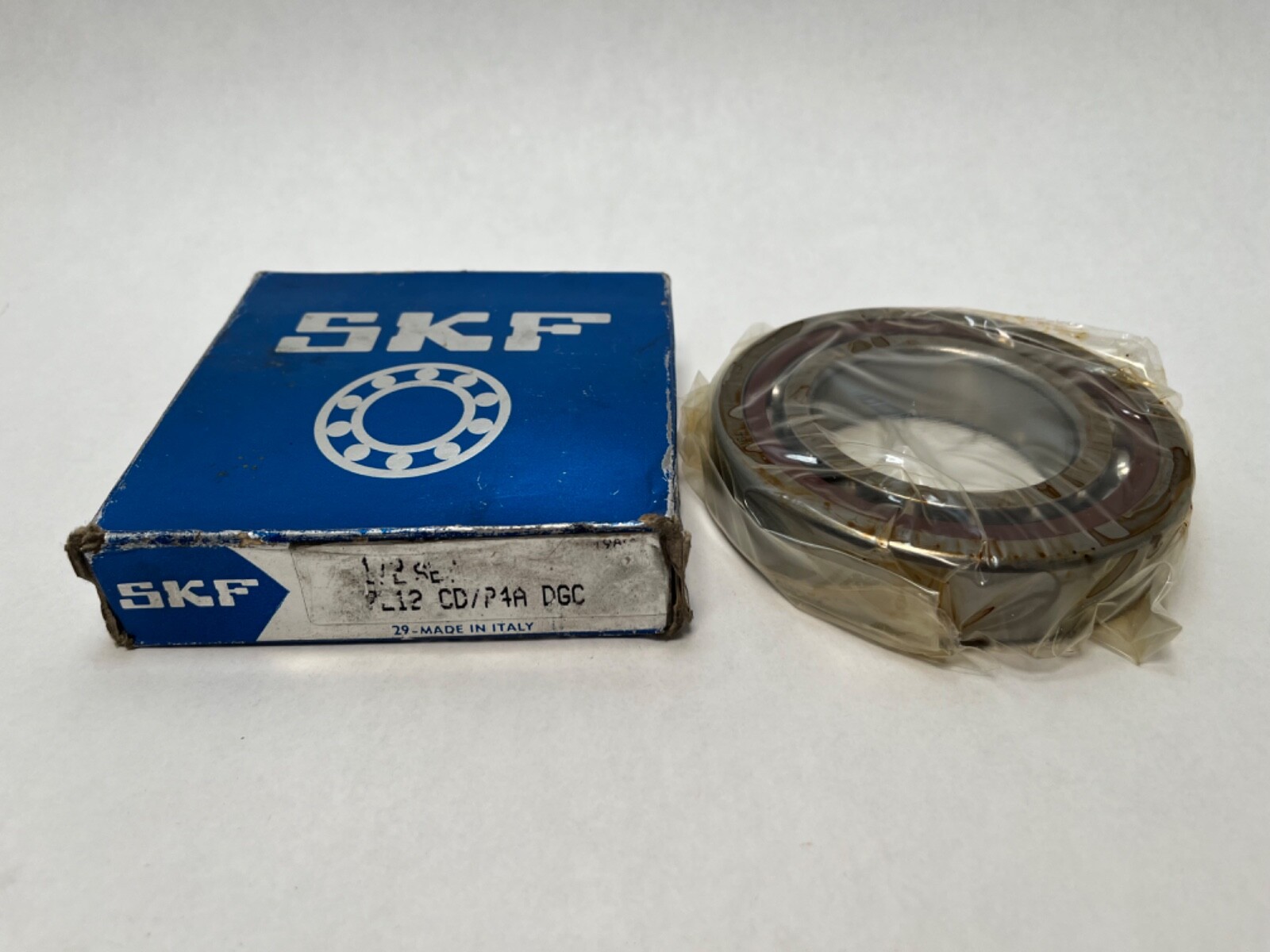

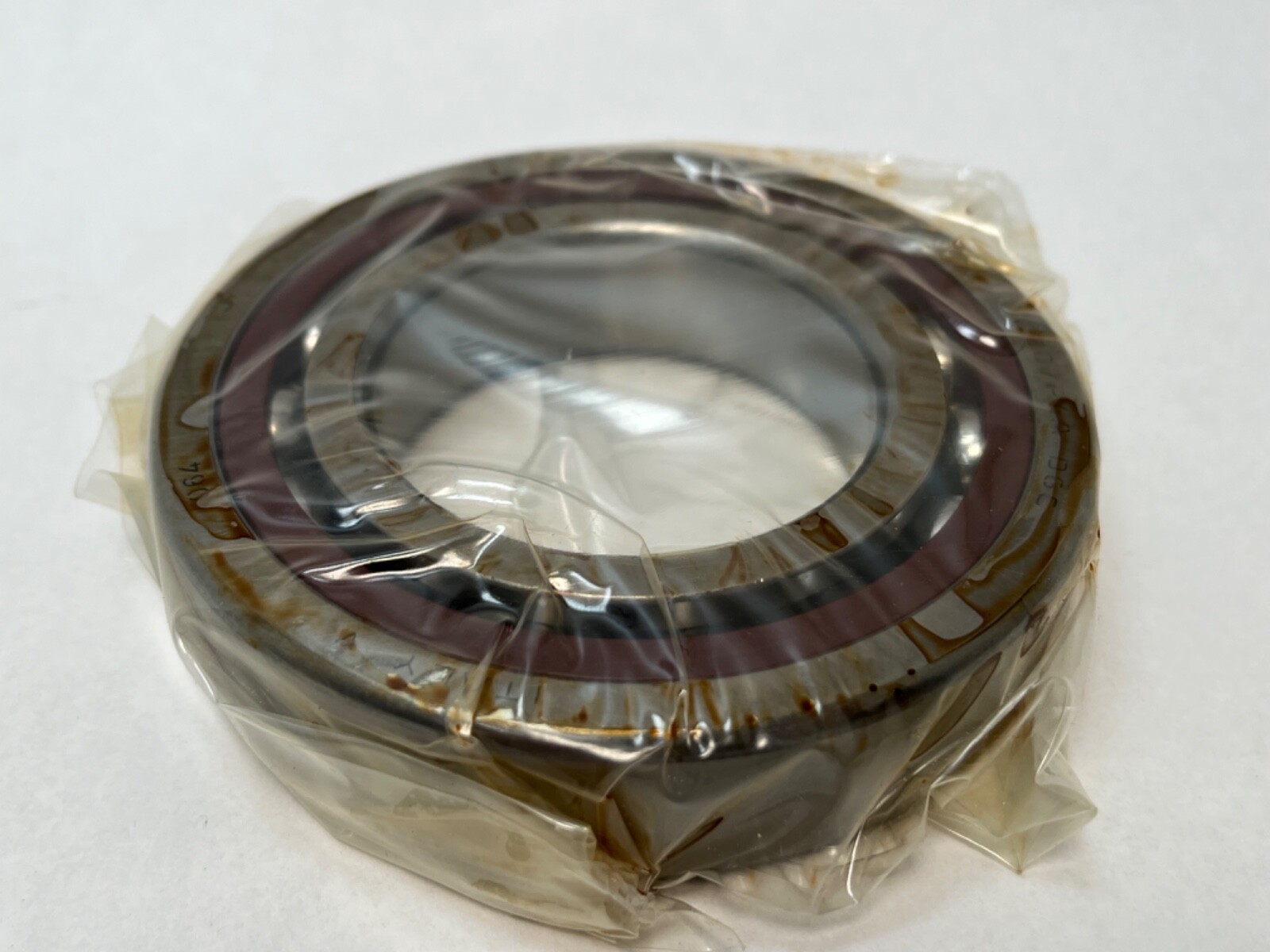

SKF 7212 CDGC/P4A super-precision angular contact ball bearing. Bore 60 mm, outside diameter 110 mm, width 22 mm. Single row, open on both faces, universally matchable, supplied to P4A precision.
7212 — ISO 72 series size code in SKF’s super-precision scheme.
CD — D-design 15° contact angle execution with a machined cage.
GC — universally matchable, medium preload.
P4A — SKF super-precision tolerance class.
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm. Series: 7200 (ISO 72). Seal Type: Open. Contact Angle: 15°. A 15° contact angle favours speed and radial stiffness over thrust capacity. Preload: Medium (GC). Medium preload raises system stiffness and running accuracy over the extra light and light classes and lowers the permissible speed accordingly. Preloaded bearings are supplied without radial internal clearance. Unit Quantity: 1 Pc.
Envelope: 60 x 110 x 22 mm. Universally matchable: bearings of the same GC class combine in one arrangement and produce the published preload without shims or grinding.
Cross-Reference 1: SKF 7212 ACDGC/P4A, 25° contact angle rather than 15°. Also written 7212CDGC/P4A, 7212 CD/P4A DGC, 7212CDP4ADGC, 7212-CDGC-P4A and 7212 CDGC P4A.
Bore Diameter: 60 mm. Outside Diameter: 110 mm. Overall Width: 22 mm.
GC is universally matchable, medium preload.
Contact Angle: 15°, from the CD code.
