RHP7012TDULP4Super-Precision Angular Contact Ball Bearing – Straight Bore, 60 mm ID, 95 mm OD, 18 mm Width, Open, Light Preload, Universally Matchable Duplex Pair, 2 Pcs.

Product Description

What this part is

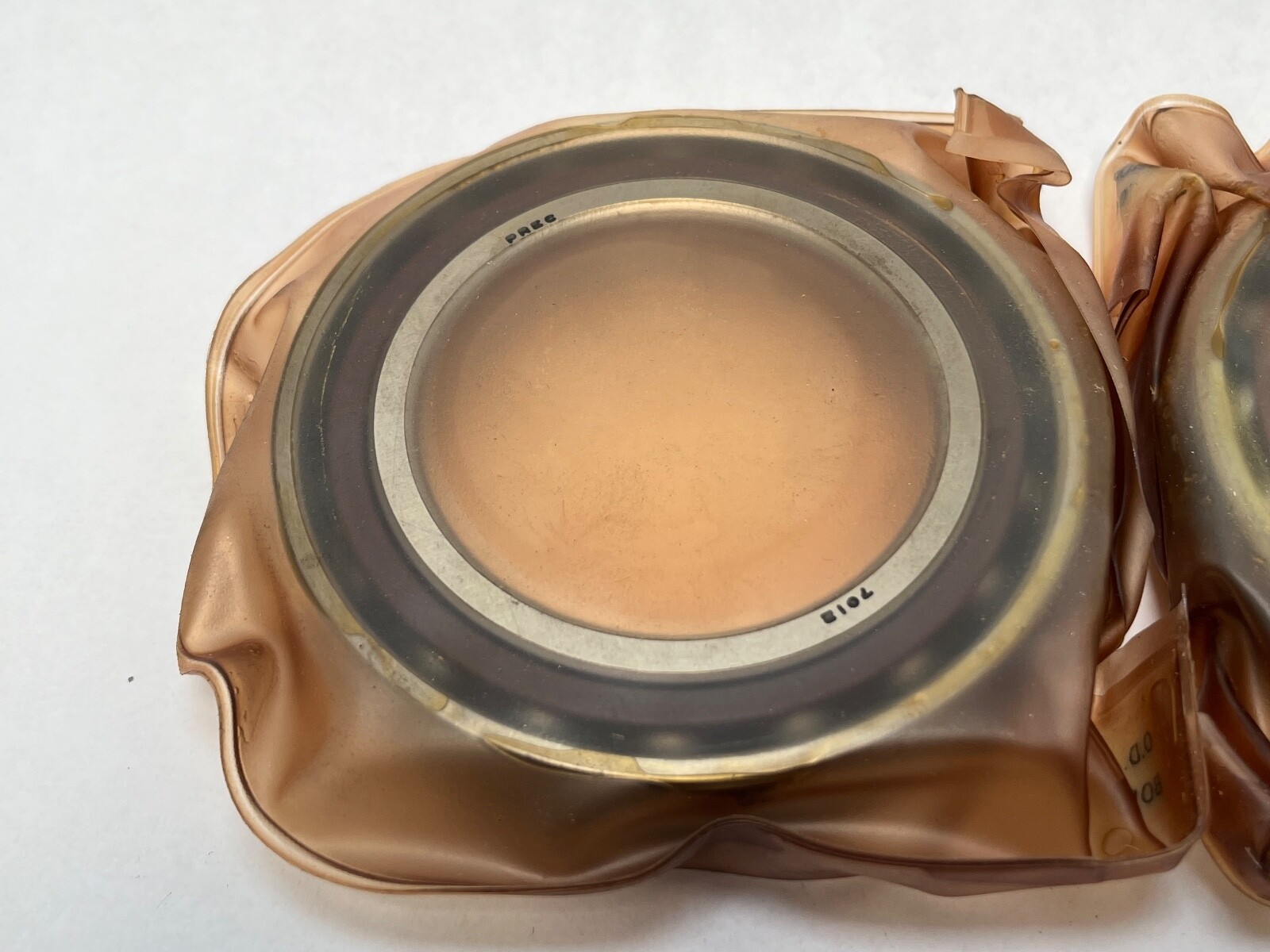

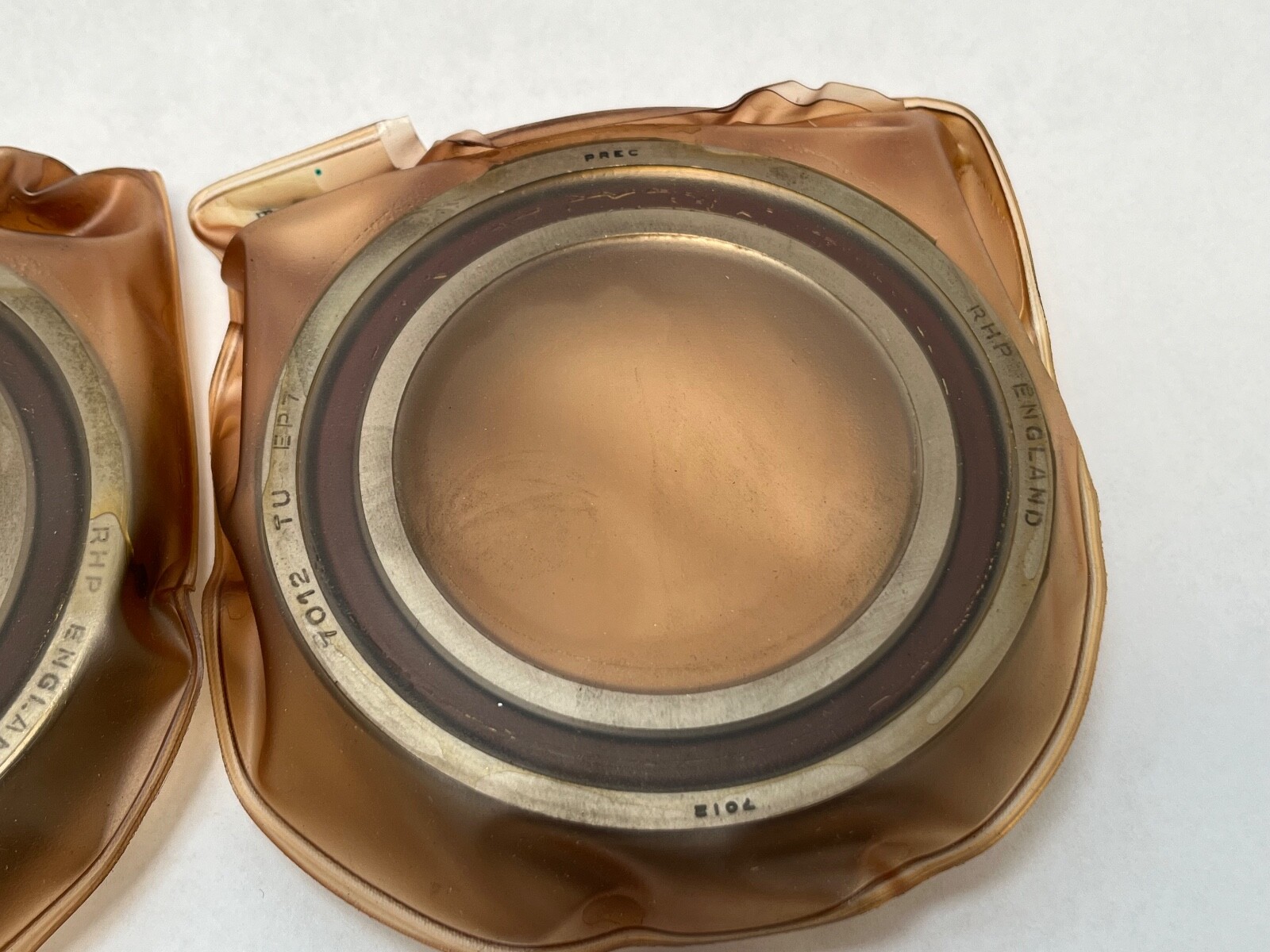

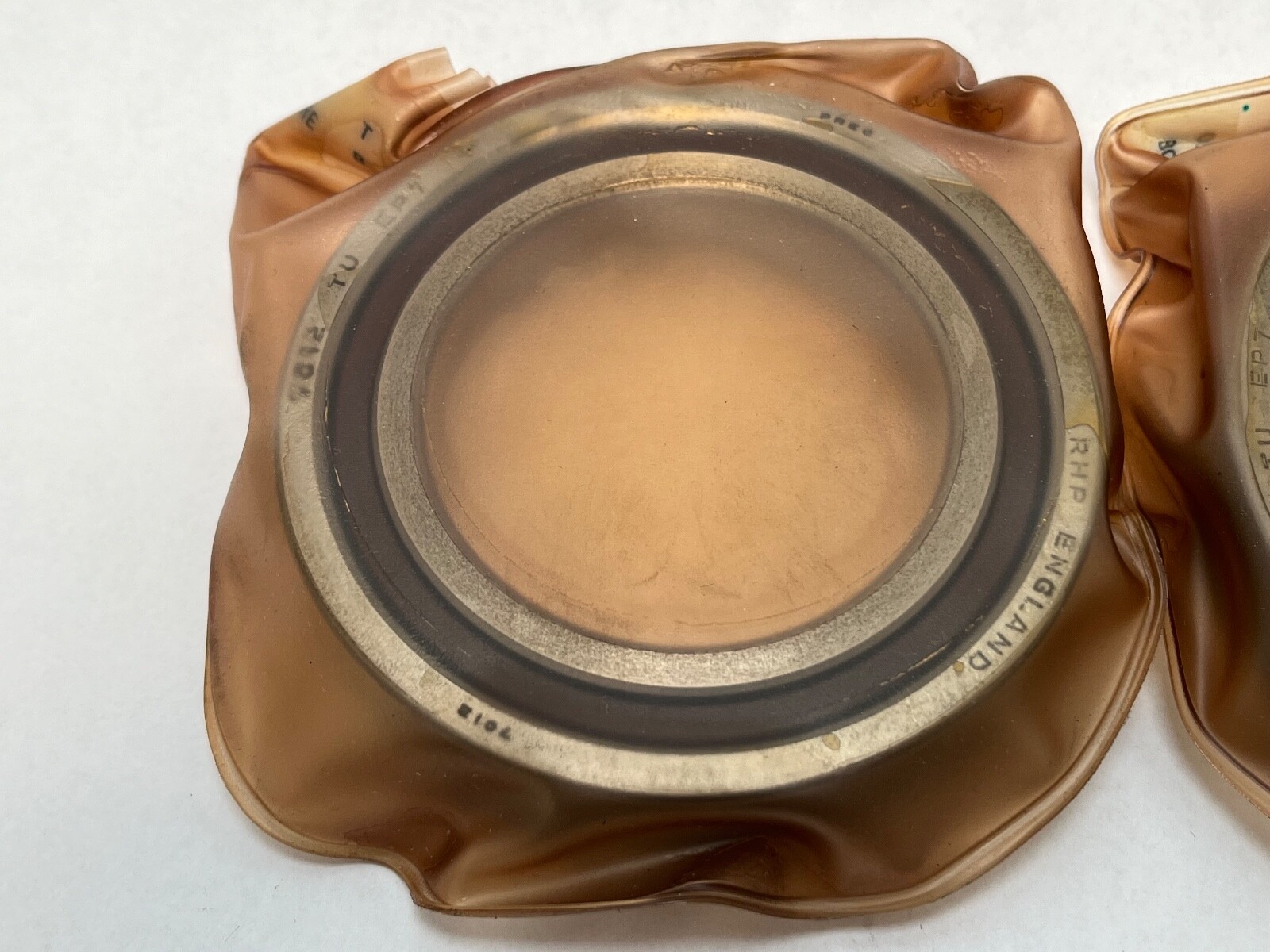

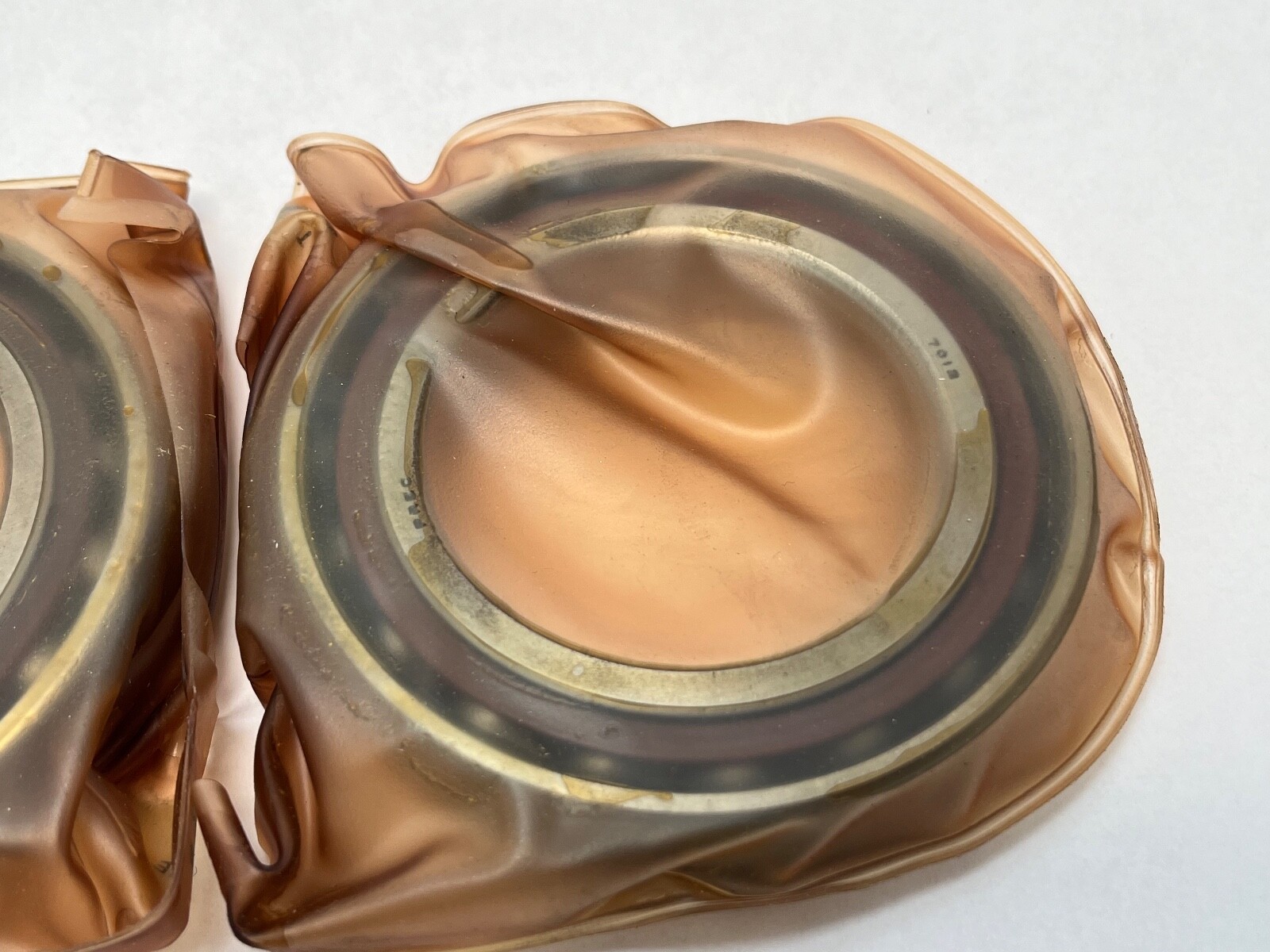

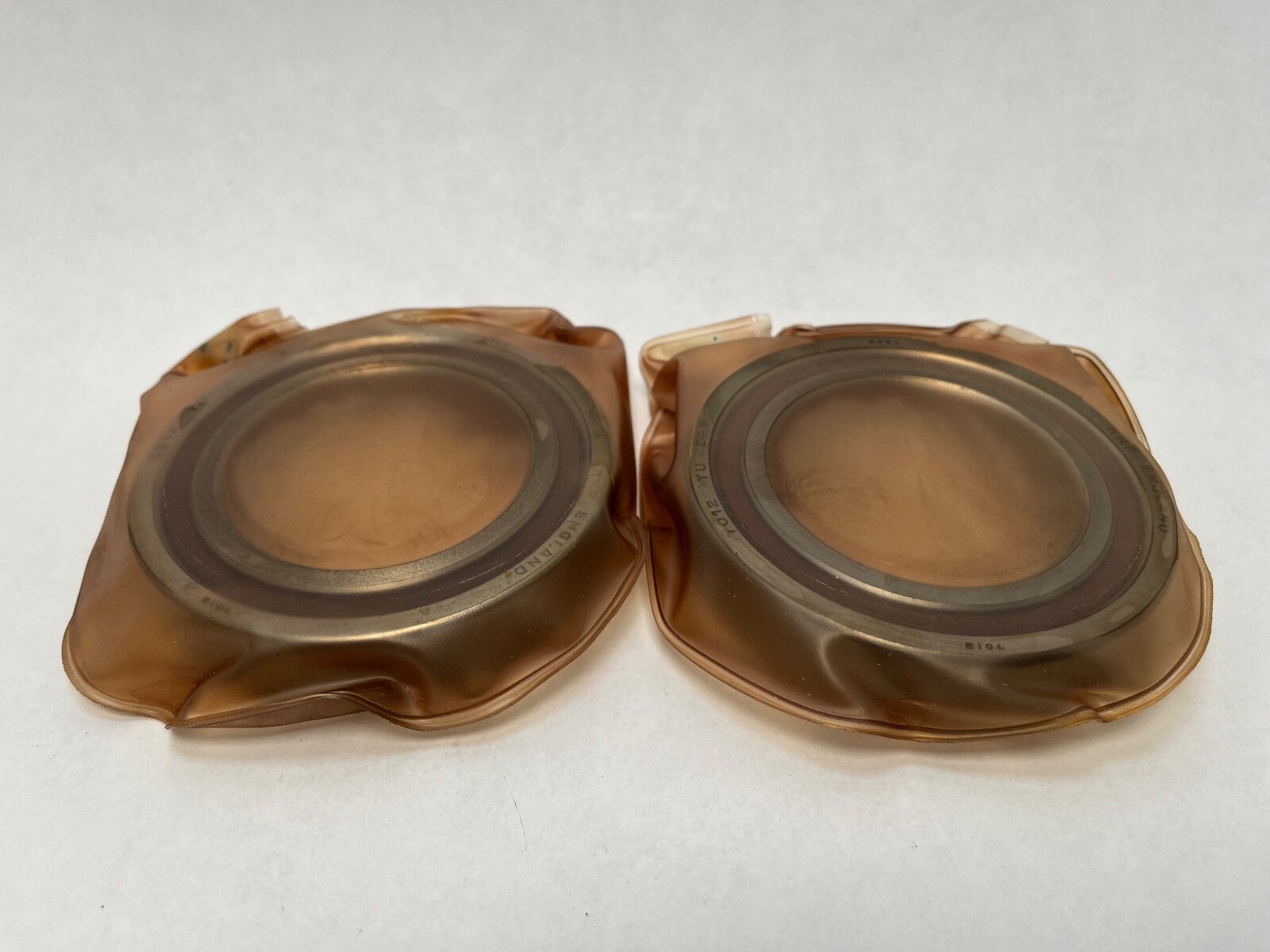

An RHP 7012TDULP4 super-precision angular contact ball bearing, supplied as a universally matchable duplex pair set to light preload. Bore 60 mm, outside diameter 95 mm, width 18 mm per bearing, giving 36 mm total width across the mounted pair. One row of balls per bearing, open on both faces, running in a fabric-base phenolic laminate cage guided on the outer ring land. RHP is the British super-precision line now part of NSK.

Decoding the designation

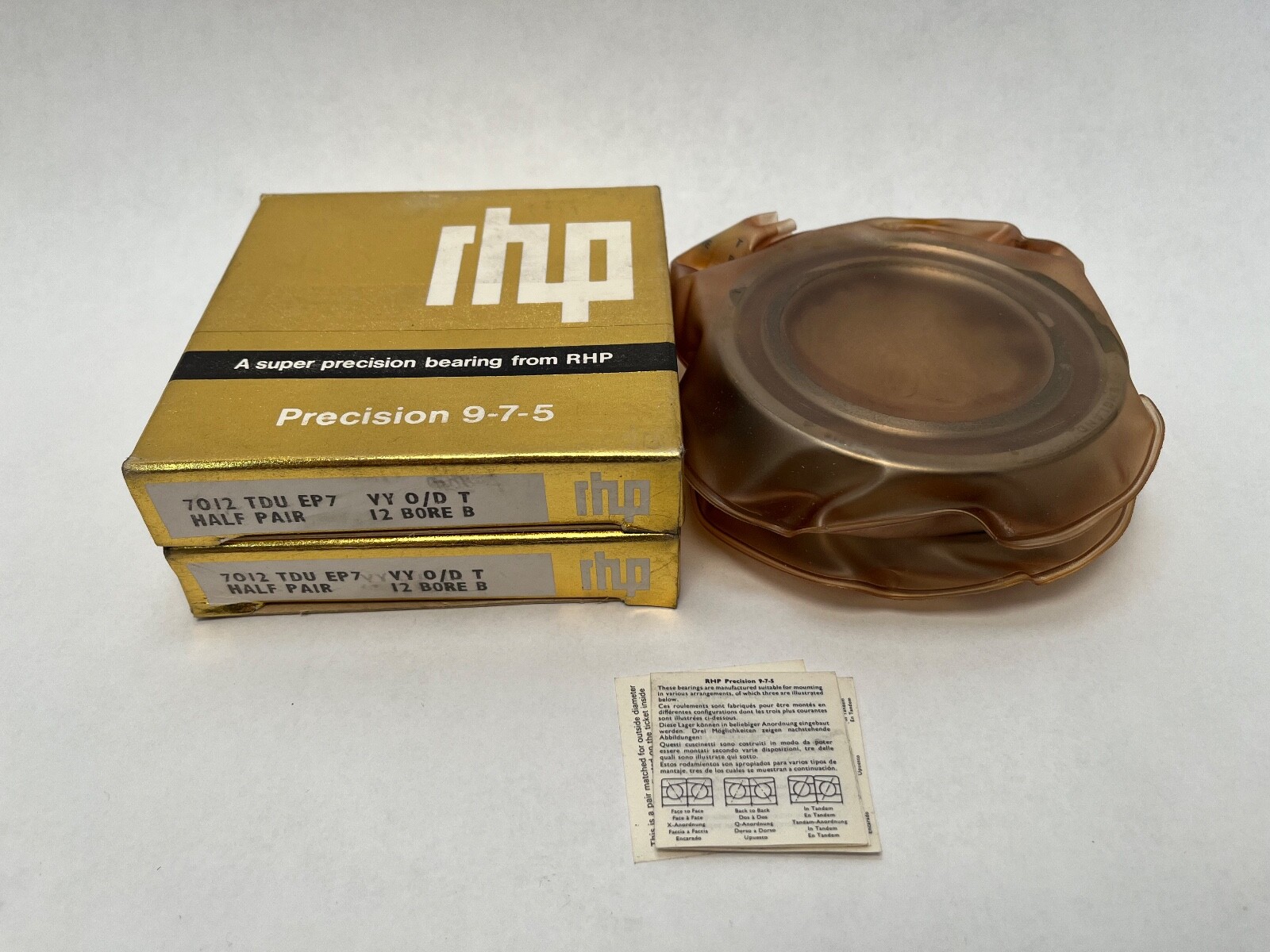

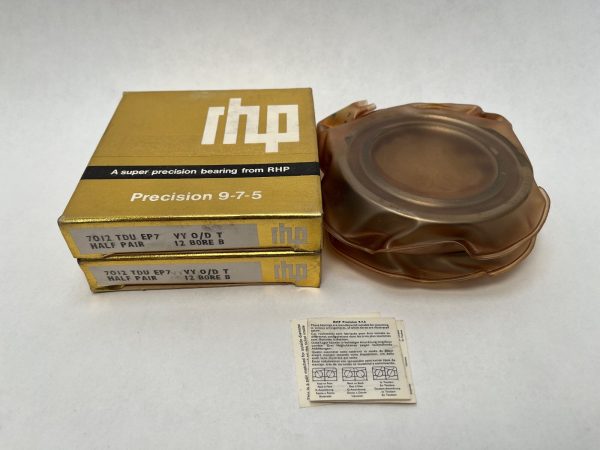

7012 is the ISO 70 dimension series at a 60 mm bore. T specifies the phenolic laminate cage, DU marks the rings as duplex and universally ground, L sets light preload, and P4 is precision class ABEC 7. The carton carries two further designations for the same bearing: 7012TDUEP7, the same part written in RHP’s EP class scheme where EP7 corresponds to ABEC 7, and the Timken/Fafnir number MM9112WI CR DUL, in which the 9100WI series maps to the ISO 70xx family, so 9112 is a 7012, and CR is the phenolic outer-land-riding cage.

What these specs mean in practice

Light preload is the setting chosen for high-speed spindle work: it gives enough axial stiffness to control ball skidding and hold running accuracy while keeping friction, heat generation and grease shear low. A medium or heavy preload in the same envelope trades speed capability for stiffness. The phenolic laminate cage is roughly a third the density of brass, self-lubricating, and quiet at speed, which is why it is standard on grease-lubricated machine tool spindle bearings.

Quantity and configuration

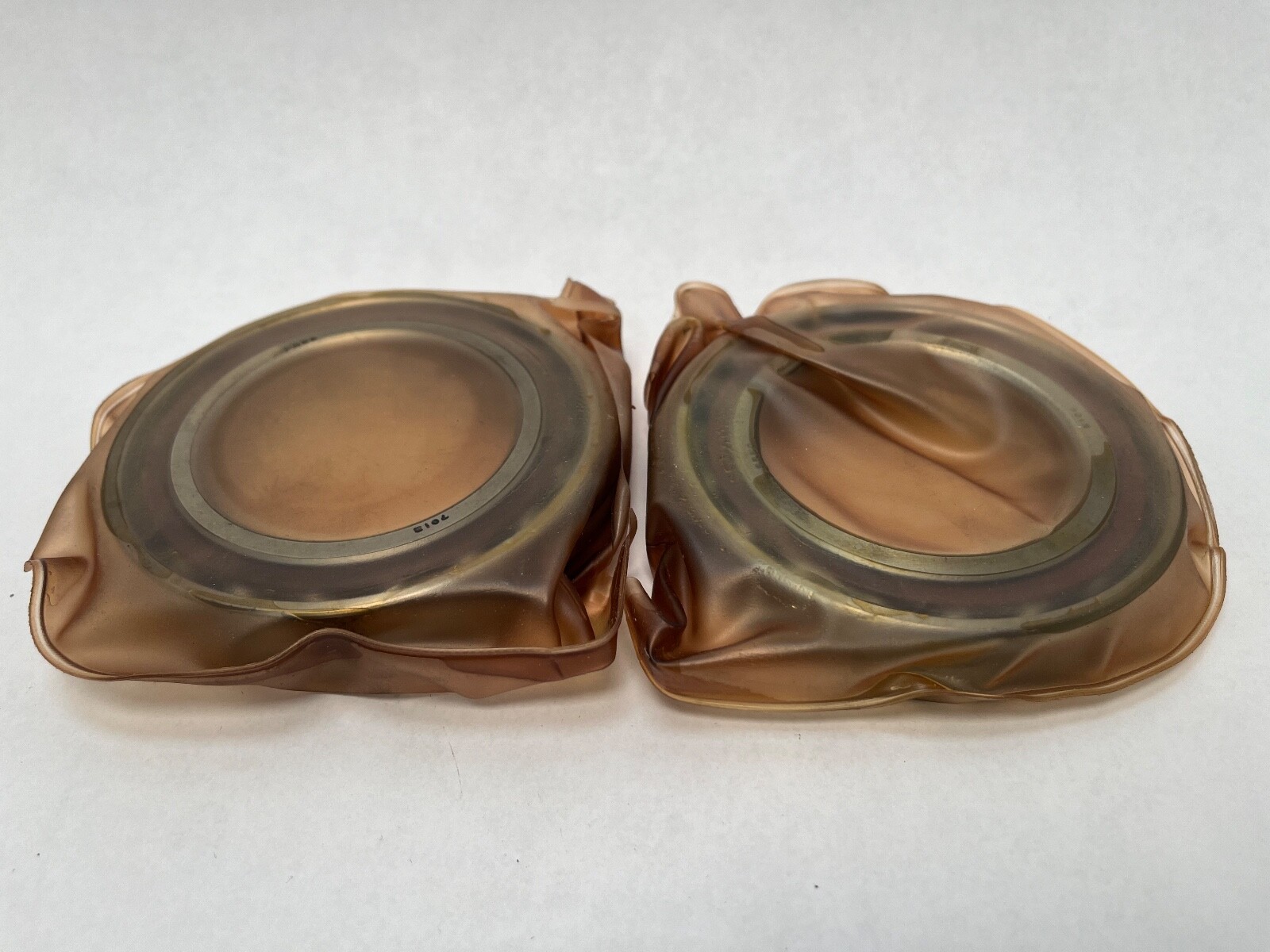

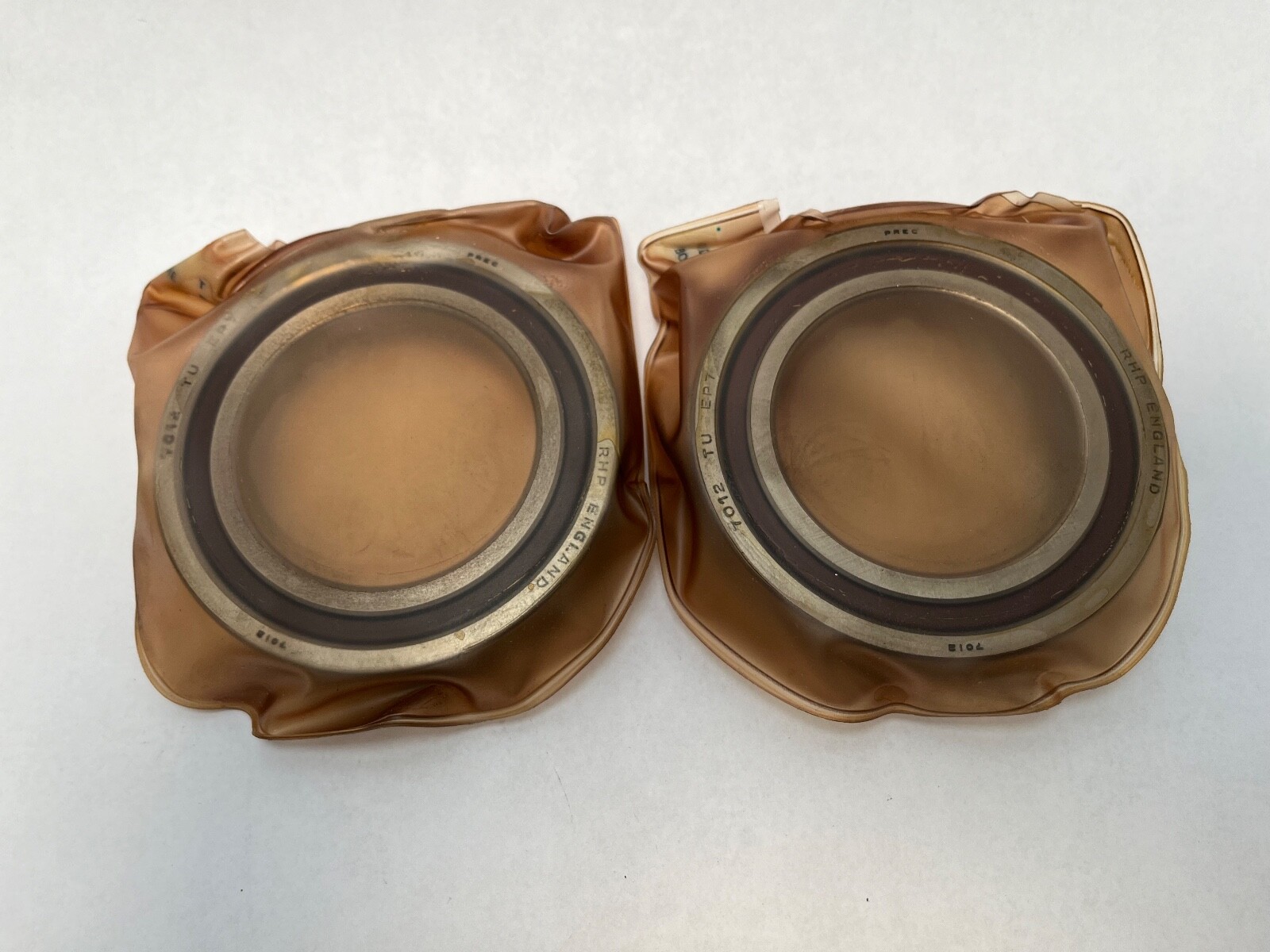

Two bearings, supplied as a matched duplex pair. Universal grinding of the ring faces allows back-to-back, face-to-face or tandem arrangement, with the ground offsets producing the specified light preload once the rings are clamped solid. Because the set is preloaded rather than clearance-set, radial internal clearance does not apply.

Fitting notes

Preload is established by clamping the ground ring faces together; universally matchable rings need no spacer or shim stack. Shaft and housing seats held to ISO 4 or better preserve the running accuracy the P4 class buys. Grease fill for a preloaded phenolic-caged spindle bearing is typically 15 to 20 percent of free space.

Interchange guidance

The 60 x 95 x 18 mm envelope, the phenolic cage, the light preload and the ABEC 7 class are the four specifications that define a substitution here. Same-envelope light-preload duplex sets include the SKF 7012 CD/P4ADGA and the FAG B7012C.T.P4S-DUL, both of which are 15° bearings, and the RHP 7012E T DUL P4, which is 25°. Contact angle changes the load split between radial and axial directions, so a set is a true interchange only where its angle matches the one being replaced.
