SNR7014HVDUJ84Super-Precision Angular Contact Ball Bearing, Universally Matchable Pair, 70 x 110 x 20 mm, 25 Degree Contact Angle, Medium Preload, Phenolic Cage

Product Description

What this part is

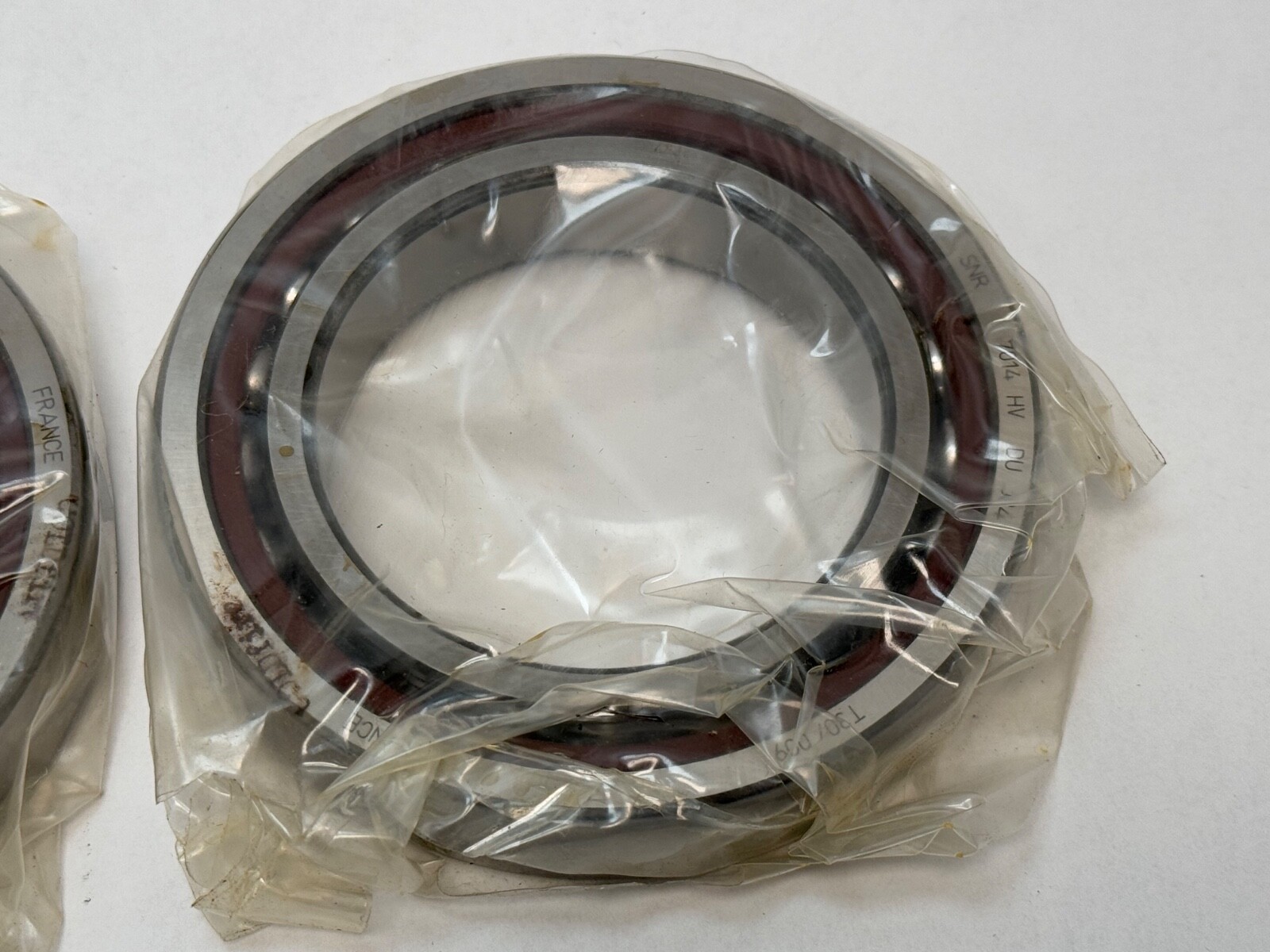

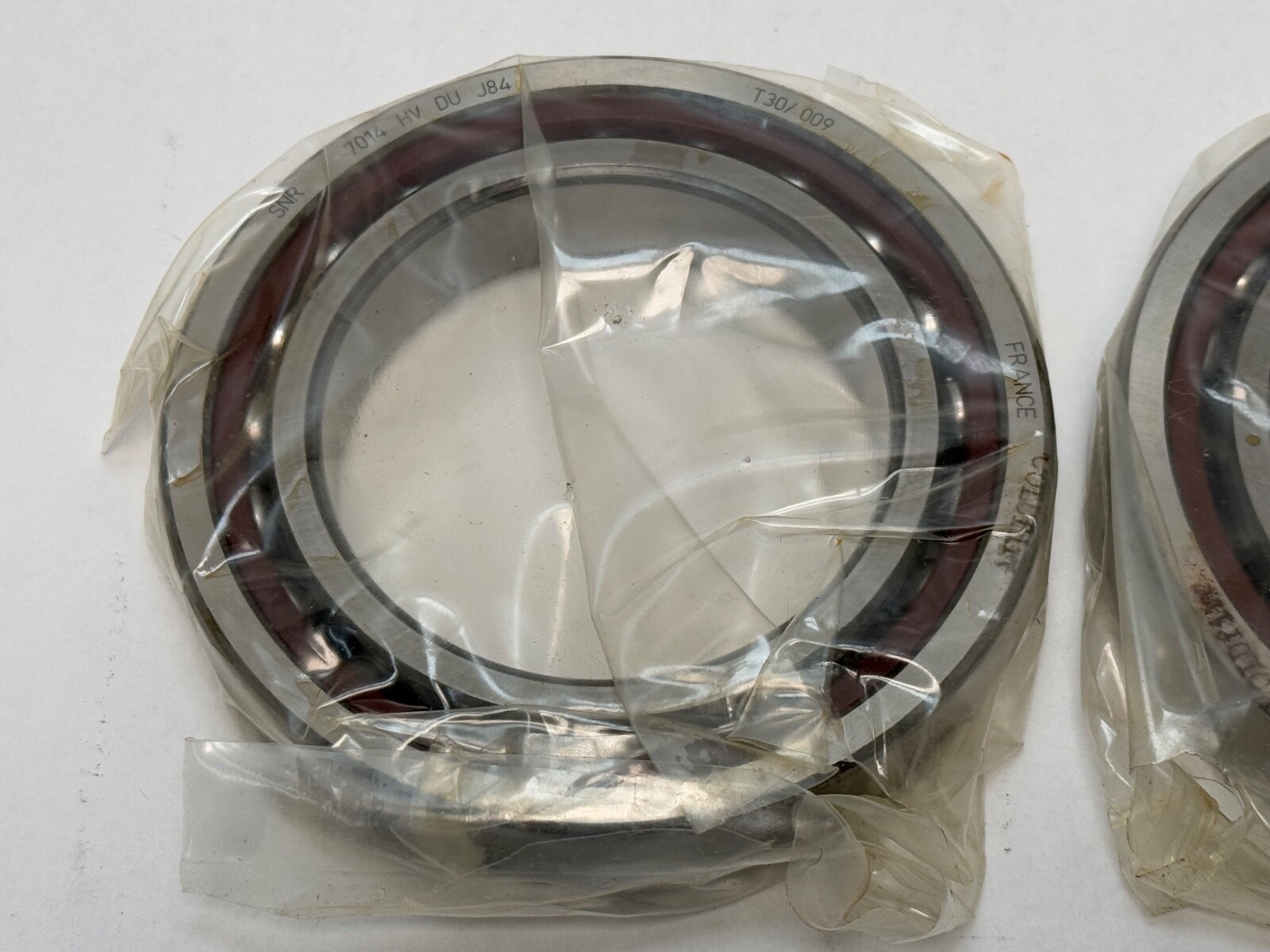

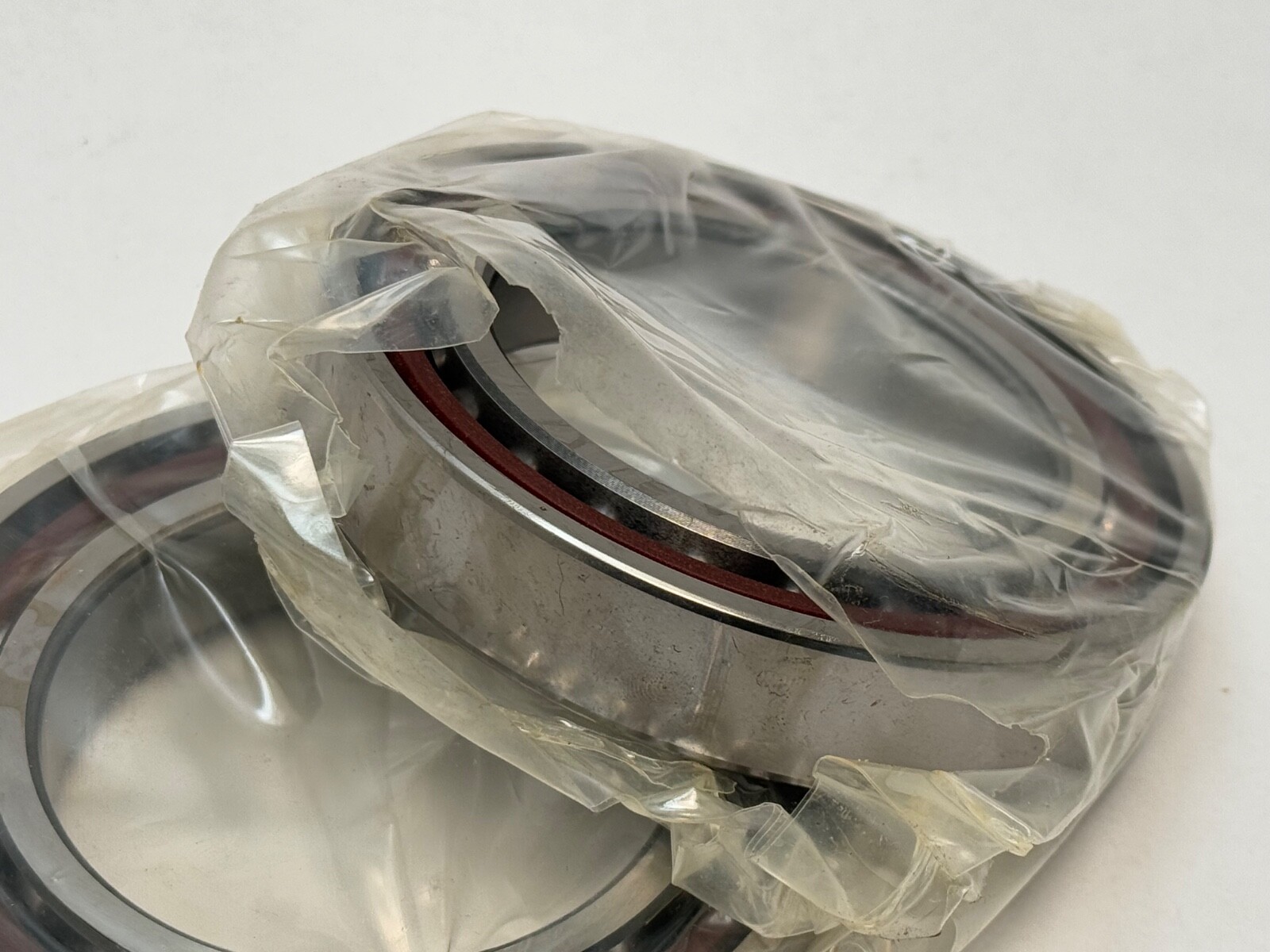

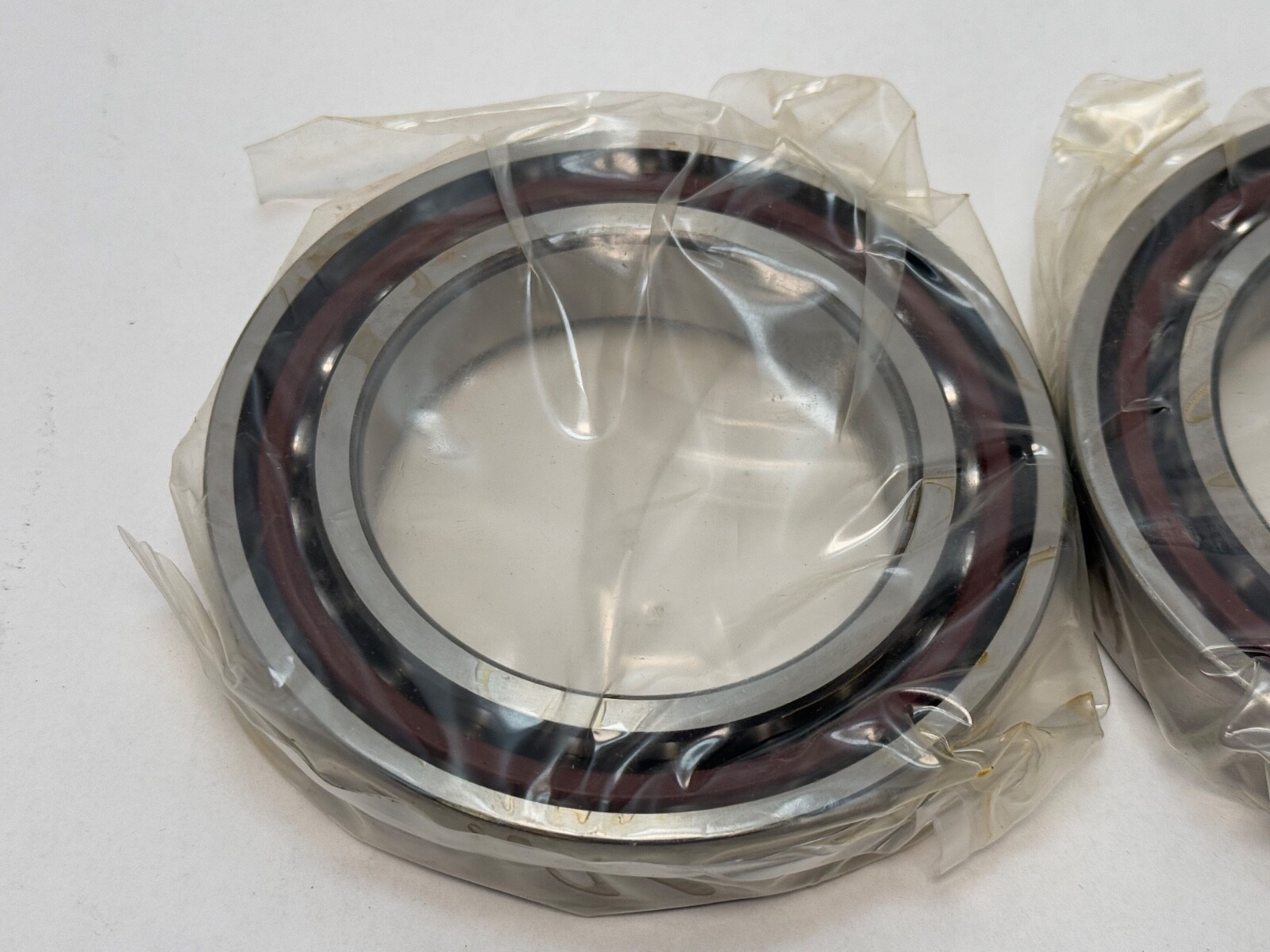

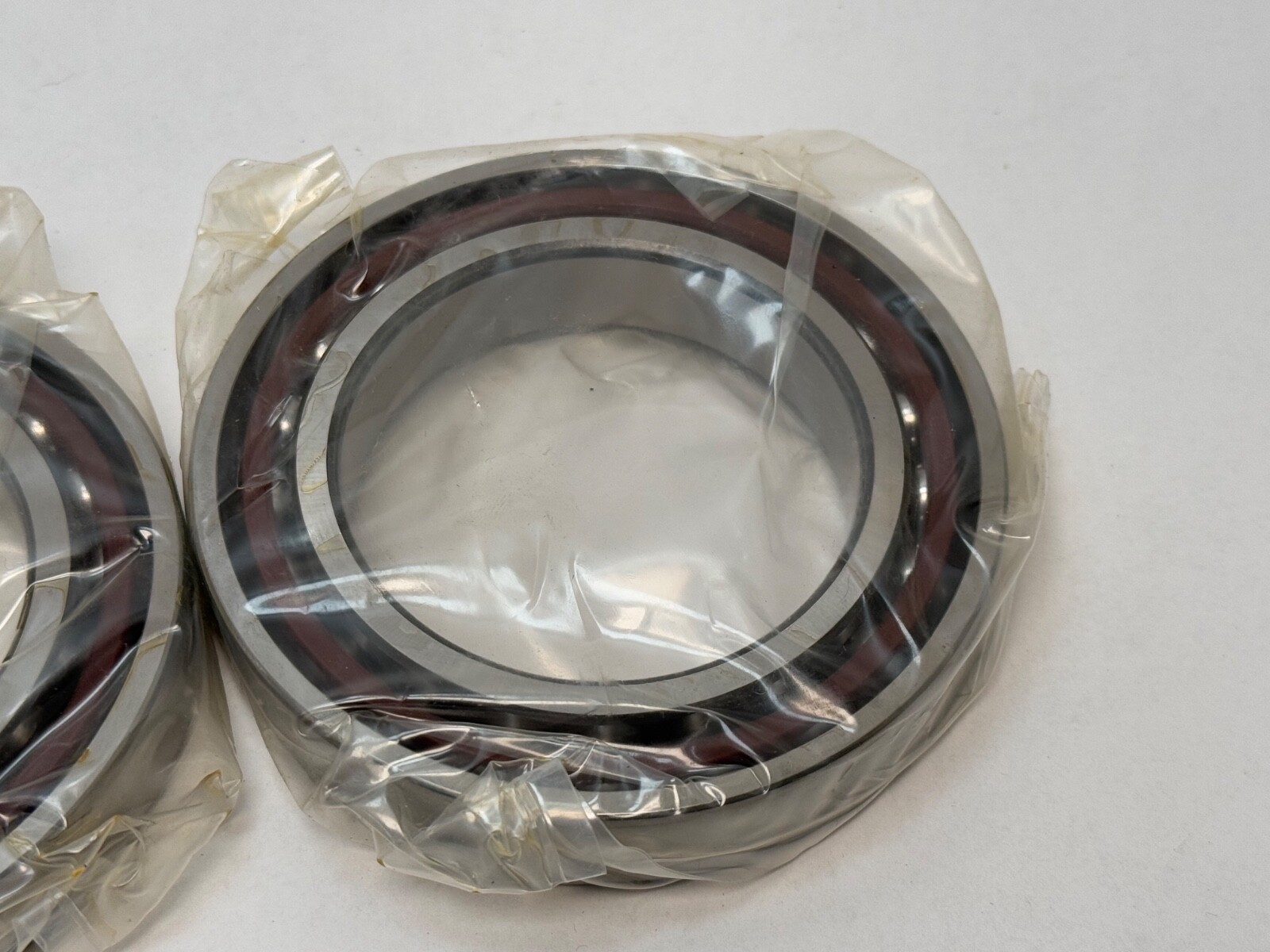

SNR 7014 H V DU J84 is a super-precision single-row angular contact ball bearing supplied as a universally matchable pair. Bore 70 mm, outside diameter 110 mm, width 20 mm per bearing, 40 mm across the pair. Contact angle 25°, machined phenolic cage centred on the outer ring, open on both faces.

Decoding the designation

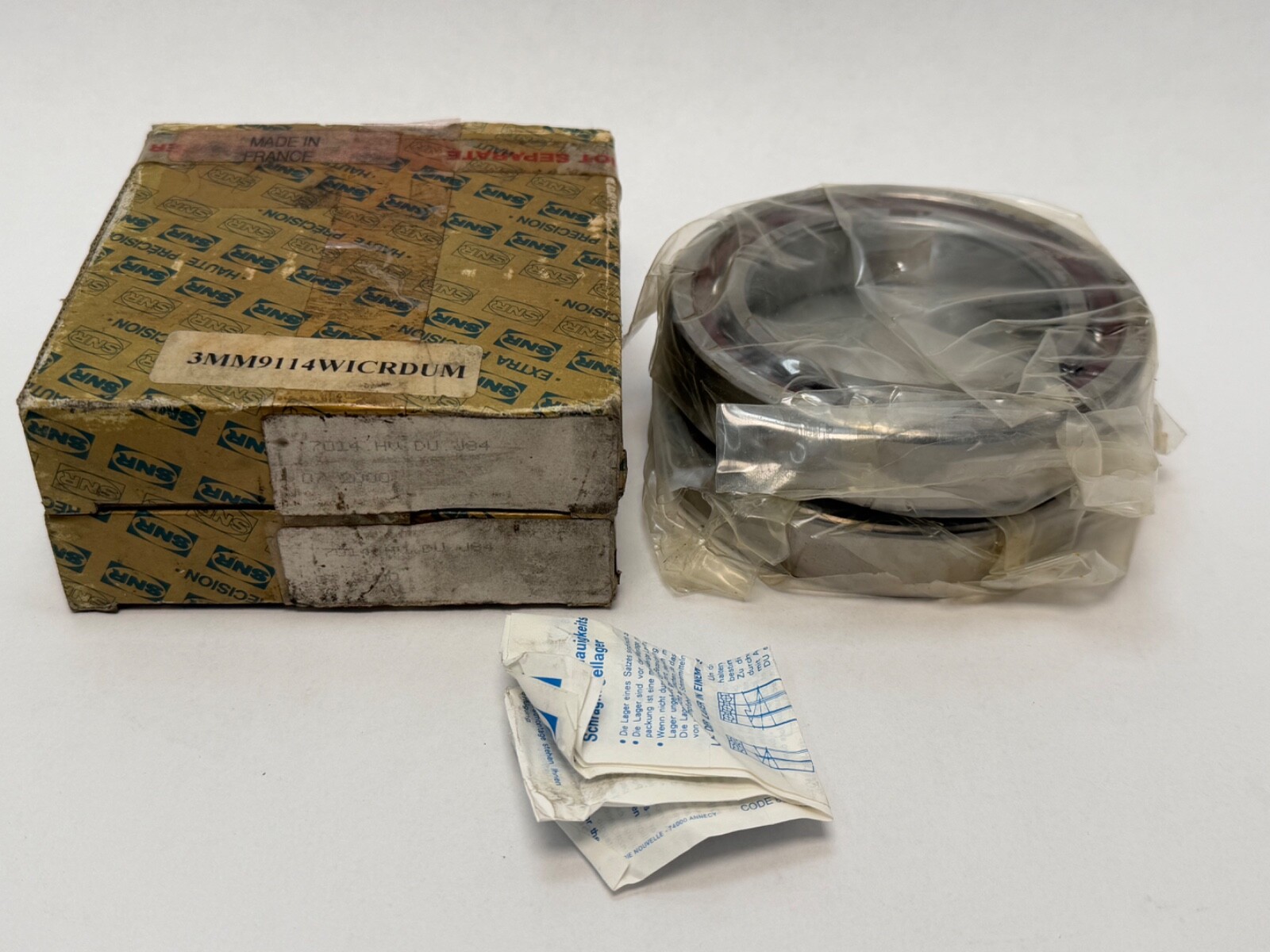

7014 is the ISO 70 dimension series at a 70 mm bore. H sets the 25° contact angle in the SNR scheme, where C is the 15° alternative. V is the machined phenolic cage. DU marks the bearing as one of a universally matchable duplex pair, and J84 is SNR’s medium preload grade, one step above the light J74. The carton also carries the FAG equivalent B7014-E-T-P4S-DUM and the SKF form 7014 ACD, both of which are 25° designations.

What these specs mean in practice

A 25° contact angle carries substantially more thrust than the 15° C variant of the same envelope, at the cost of top speed. Medium J84 preload raises axial and radial stiffness and holds the ball path steady under reversing thrust, which suits milling spindles, boring heads and screw drives where positioning accuracy under load matters more than maximum r/min. Running accuracy is ISO class 4, equivalent to ABEC 7. Basic dynamic load rating is 46.5 kN and static rating 41.0 kN per bearing. The laminated phenolic cage is light and quiet and works well with oil-air and oil-mist lubrication.

Quantity and configuration

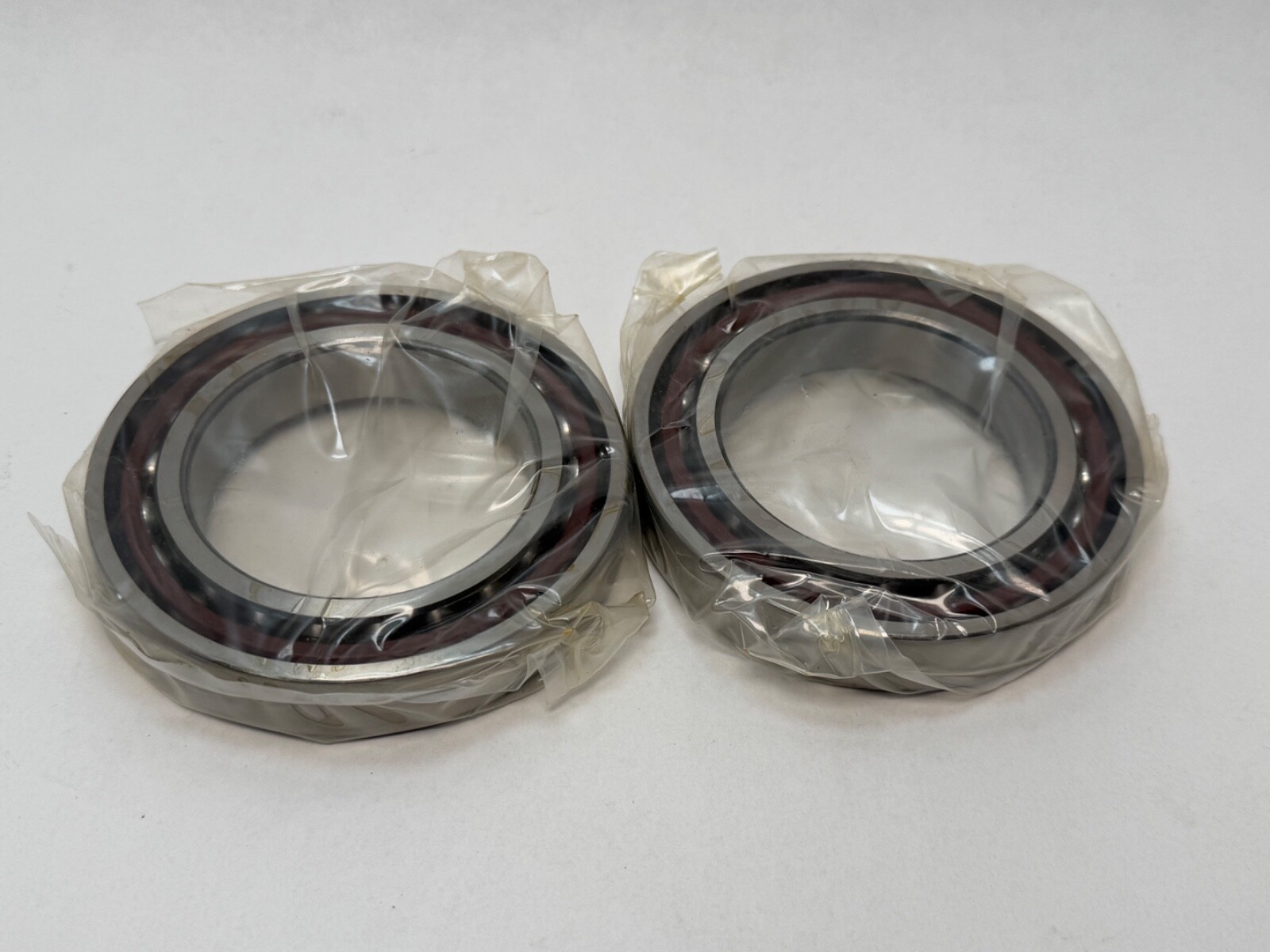

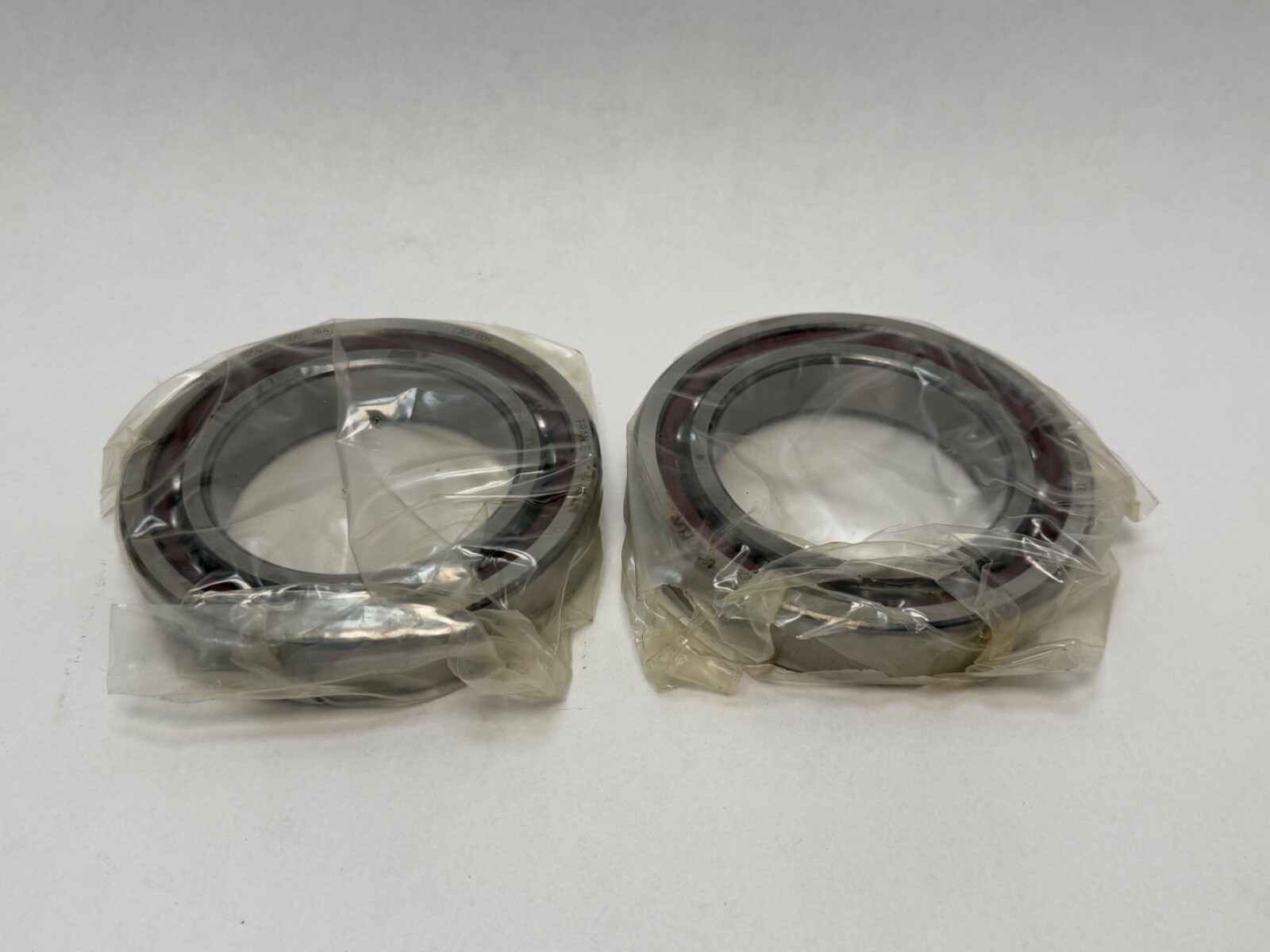

Two bearings, one matched pair, 40 mm total width. Flush ground faces allow back-to-back, face-to-face or tandem mounting, with J84 preload established once both rings are clamped.

Fitting notes

Preload comes from the ground ring faces, so both inner rings and both outer rings clamp solid against their seats and against each other. Mounting marks on the outer ring diameters align to keep the ground offsets in register. Preload takes the place of a radial internal clearance class on a set like this.

Interchange guidance

Direct 25° medium-preload duplex equivalents are SKF 7014 ACD/P4ADGB, FAG B7014-E-T-P4S-DUM, Fafnir 3MM9114WI CR DUM and NSK 7014A5TYNDUMP4. The 7014 C V DU J84 shares the envelope at a 15° contact angle and the 7014 H V DU J74 is the same bearing at light preload; both are related sizes rather than substitutions.
