Machined needle roller bearing, 105 x 125 x 26 mm, rollers running directly on a hardened shaft. 89,000 N dynamic, 155,000 N static, light series.
List Price
$39.78
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | INA |
|---|---|
| MPN | NK105/26 |
| Model | NK10526 |
| Bearing Type | Needle Roller Bearing, Open |
| ID | 105 mm |
| OD | 125 mm |
| Width | 26 mm |
| Series | NK |
|---|---|
| Base Number | NK105/26 |
| Overall Width | 26 mm |
| Mpn Variants | NK105/26; NK 105/26; NK105-26; NK105/26-XL; NK10526 |
| Precision Class | RBEC 1 / P0 |
| Additional Attributes | Machined outer ring with roller and cage set; no inner ring; light series |
| Material | Chrome steel |
| Min Temp | -30 °C |
| Cage Type | Caged roller set |
| Dynamic Load Rating | 89,000 N |
| Static Load Rating | 155,000 N |
| Precision Rating | RBEC 1 / P0 |
| Rolling Elements | Needle Roller |
| Max Temp | 120 °C |
| Item Weight | 0.502 kg (1.11 lb) |
| Number Of Rows | 1 |
| Bore Type | Straight |
| Snap Ring Included | No |
| Limiting Speed | 4,400 rpm |
| Bearing Material | Chrome steel |
| Common Misspellings | INA NK 105/26; INA NK10526; Ina NK105-26; INA NK105/26 needle |
| Application Types | Machine tool spindles; gearboxes; hydraulic pumps; general machinery shafts |
| Cross Reference 1 | INA NK105/26-XL (current Schaeffler designation) |
|---|---|
| Cross Reference 2 | IKO TAF 10512526 |
| Cross Reference 3 | NTN NK105/26 |
| Cross Reference 4 | Koyo NK105/26 |

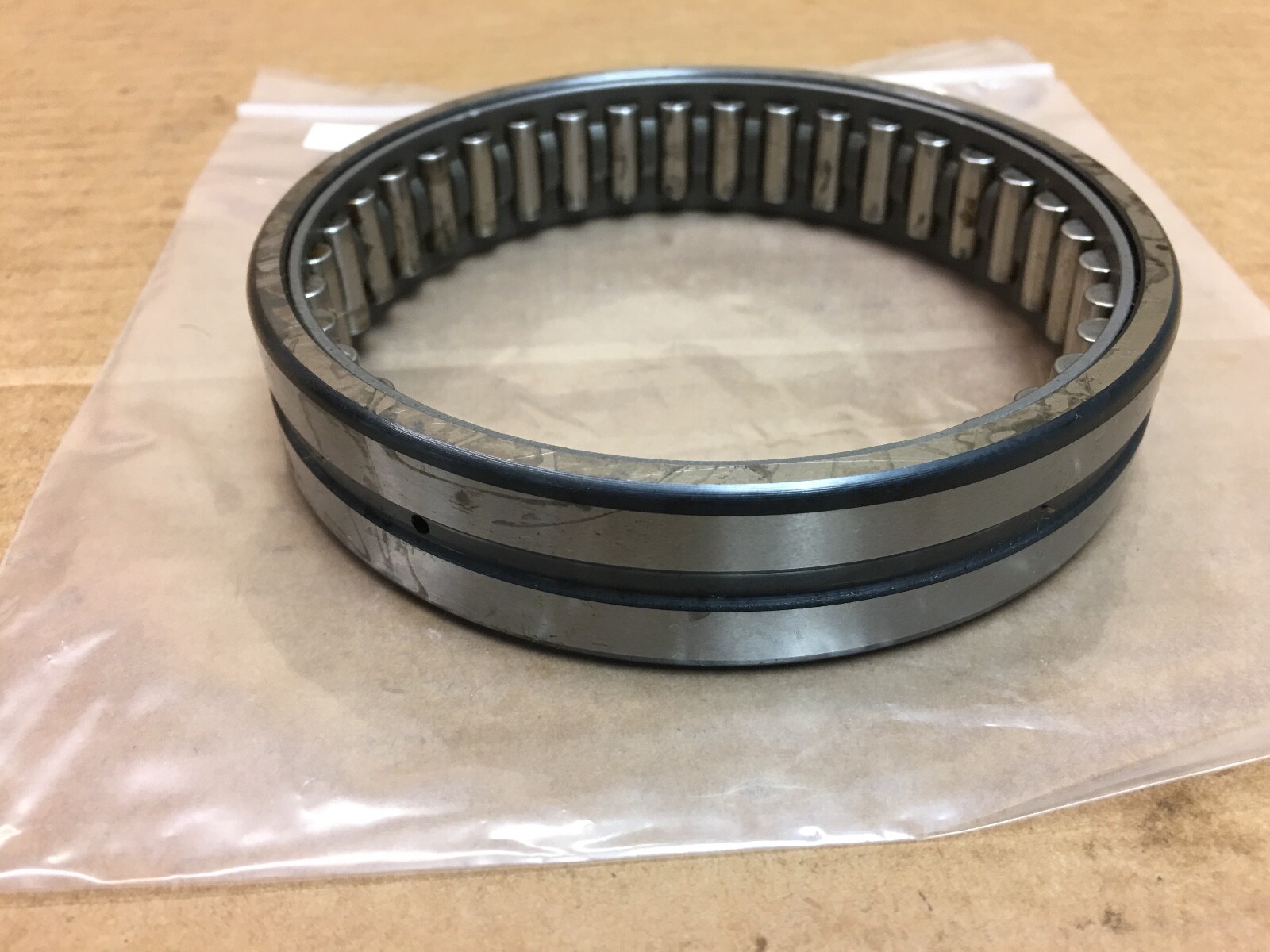

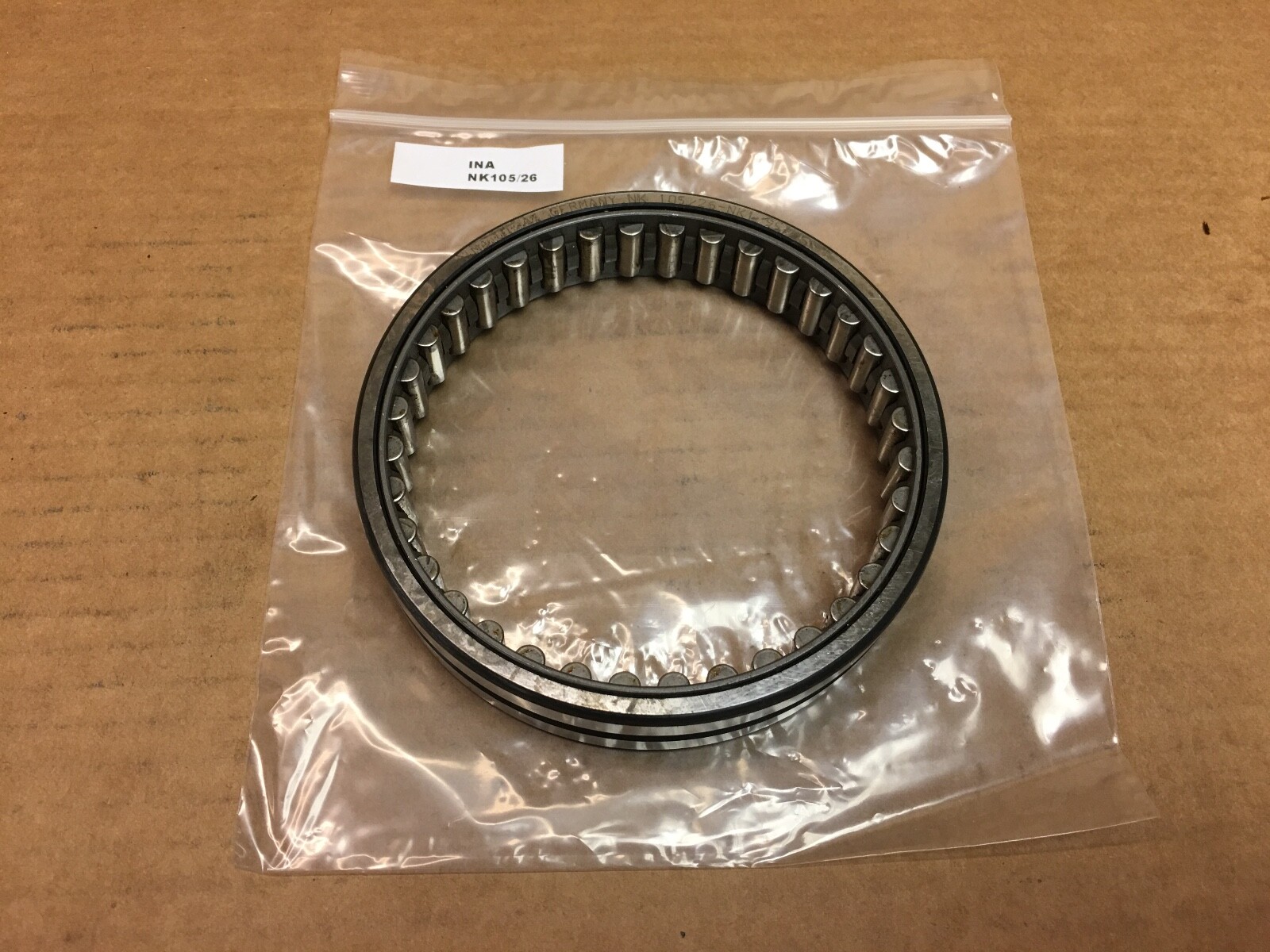

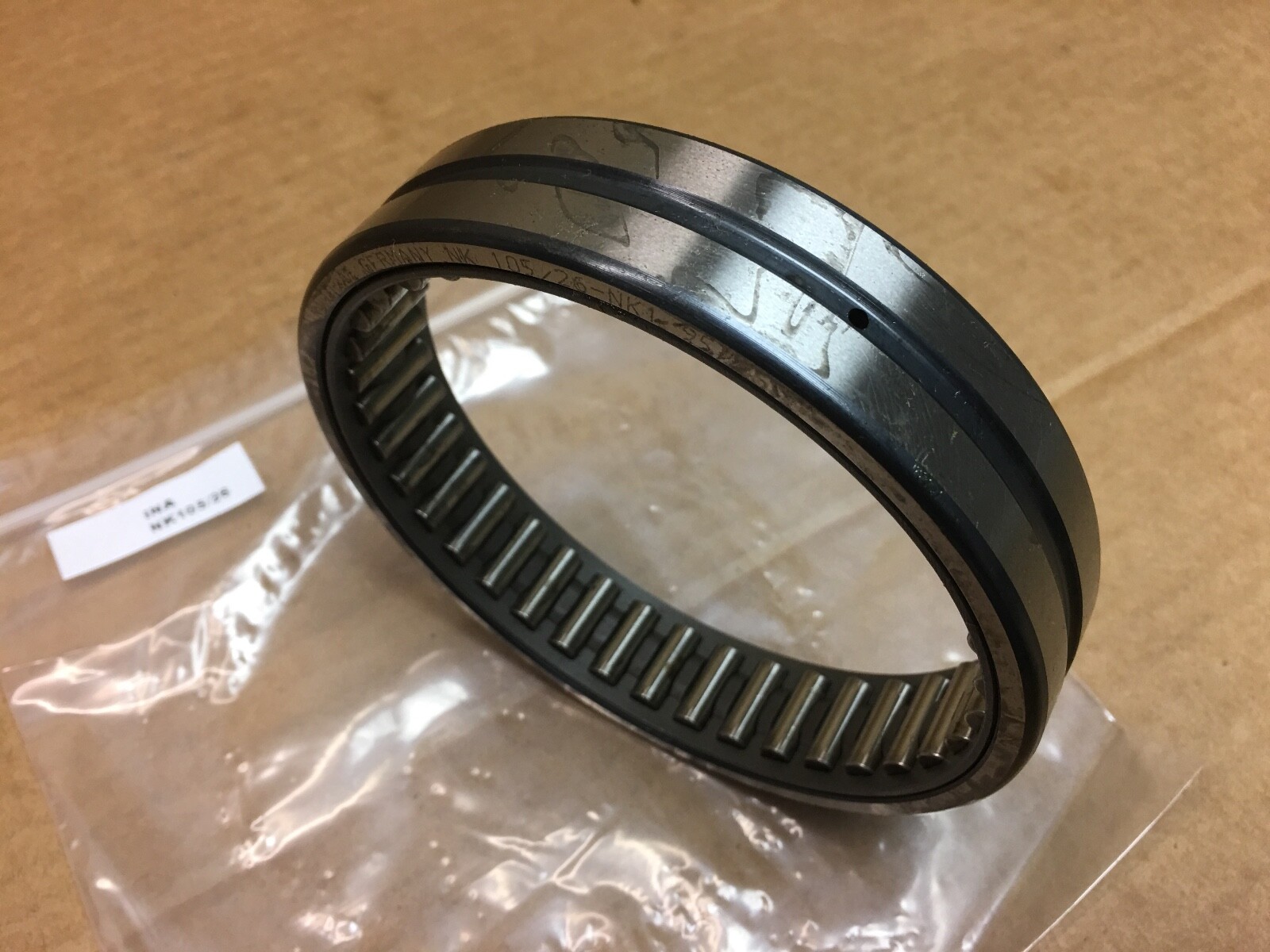

INA NK105/26 machined needle roller bearing, light series, supplied without an inner ring. Unit Quantity: 1 Pc. One machined outer ring carrying the complete needle roller and cage assembly; the rollers run directly on a hardened, ground shaft seat.
NK — machined needle roller bearing built as a ribbed outer ring carrying the roller and cage set, with the shaft forming the inner raceway.
105 — roller-track diameter Fw, 105 mm.
26 — outer ring width, 26 mm.
Bore Diameter: 105 mm. Outside Diameter: 125 mm. Overall Width: 26 mm. Rolling Elements: Needle Roller. Number Of Rows: 1. Bore Type: Straight. Closure Type: Open. Dynamic Load Rating: 89,000 N. Static Load Rating: 155,000 N. Fatigue Load Limit: 27,000 N. Limiting Speed: 4,400 rpm. Reference Speed: 3,050 rpm. Cage Type: Caged roller set. Bearing Material: Chrome steel. Series: NK. Base Number: NK105/26. Item Weight: 0.502 kg (1.11 lb). Operating temperature range published by Schaeffler: -30 °C to +120 °C.
Roller track diameter Fw: 105 mm. Outside Diameter: 125 mm to the housing bore. Outer ring width C: 26 mm. Minimum chamfer dimension r: 1 mm. The shaft seat serves as the inner raceway and is hardened and ground to bearing-raceway quality.
INA NK105/26-XL — current Schaeffler designation that replaces NK105/26.
IKO TAF 10512526 — machined needle roller bearing, same 105 x 125 x 26 mm size, no inner ring.
NTN NK105/26 and Koyo NK105/26 — same 105 x 125 x 26 mm size, machined NK form, no inner ring.
Searchable forms of the designation: NK105/26, NK 105/26, NK105-26, NK105/26-XL, NK10526.
No. The shaft forms the inner raceway; the bearing is the machined outer ring with its needle roller and cage set.
Dynamic Load Rating: 89,000 N. Static Load Rating: 155,000 N.
Roller track diameter 105 mm, outside diameter 125 mm, width 26 mm.
