INARNA4928Machined Needle Roller Bearing 160x190x50 mm Single Row Caged Without Inner Ring Dimension Series 49

Product Description

What this part is

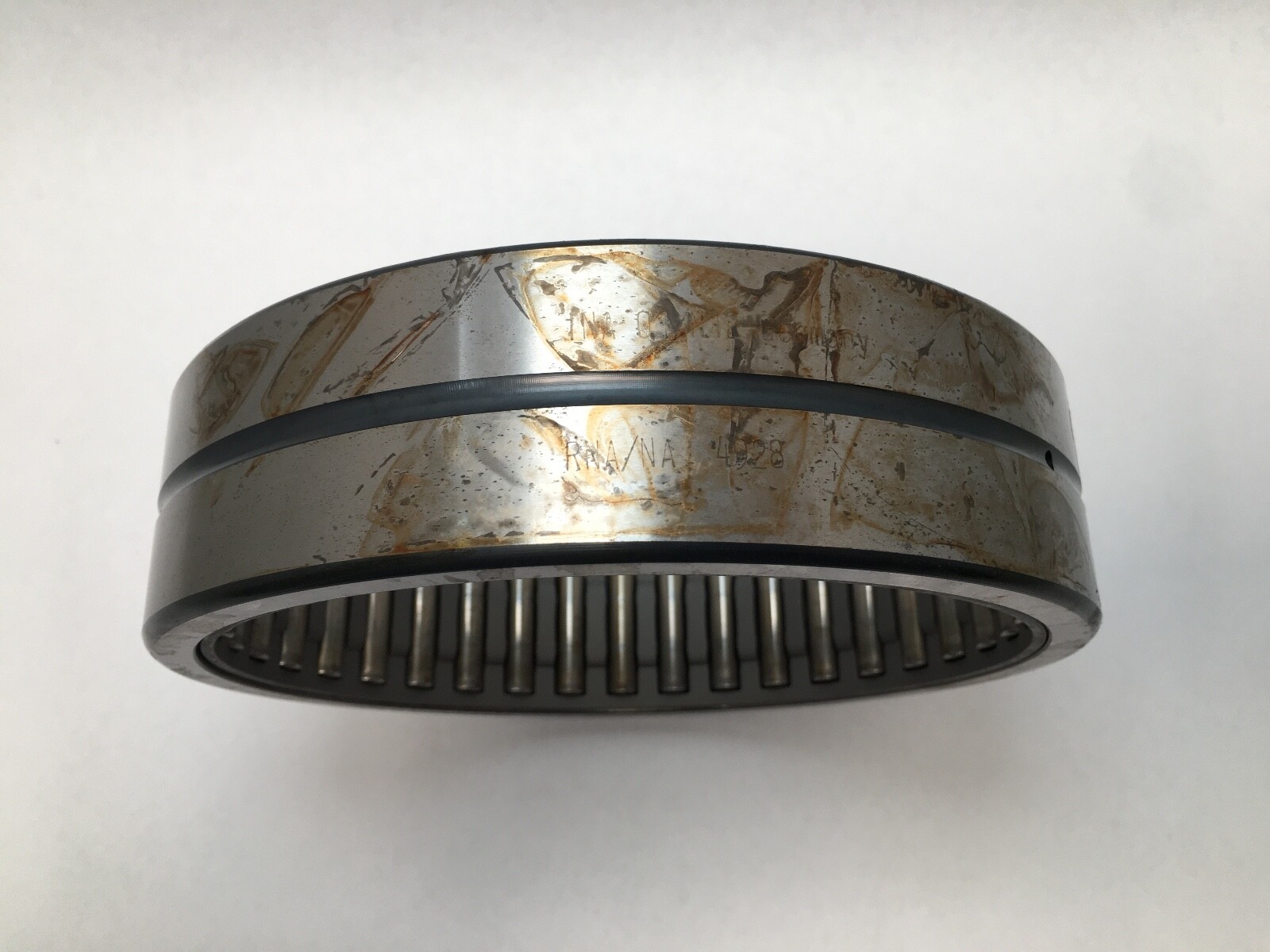

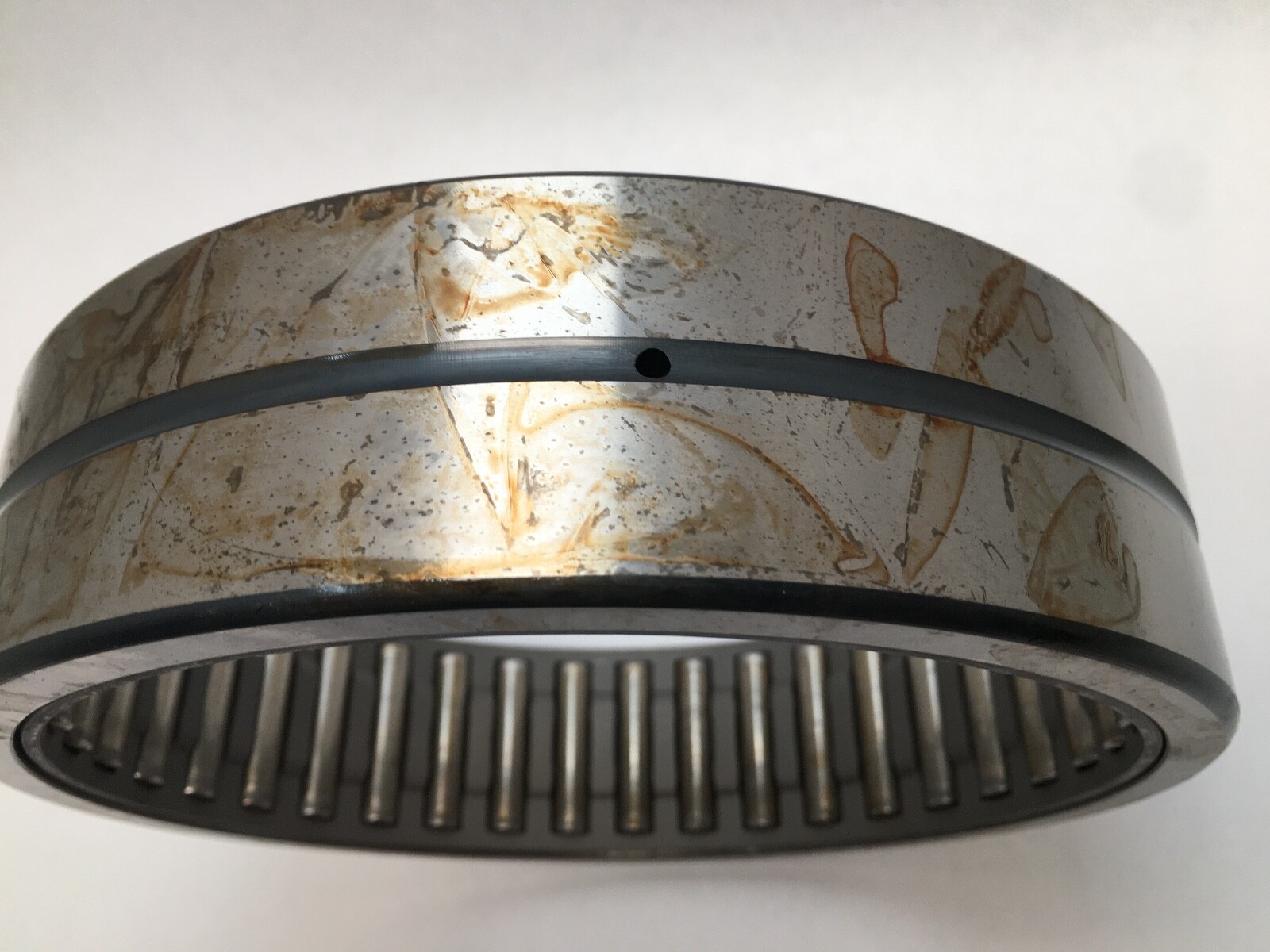

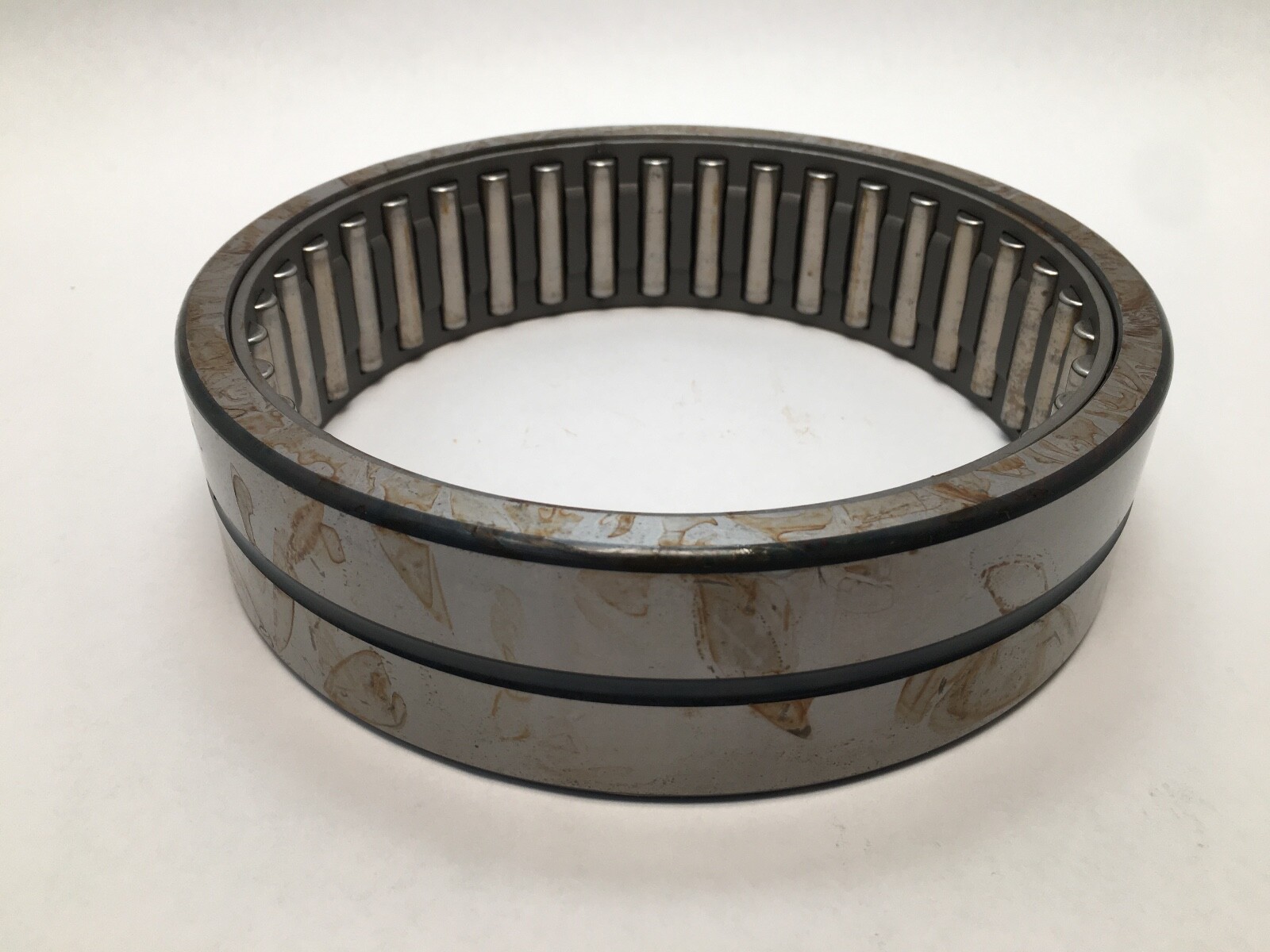

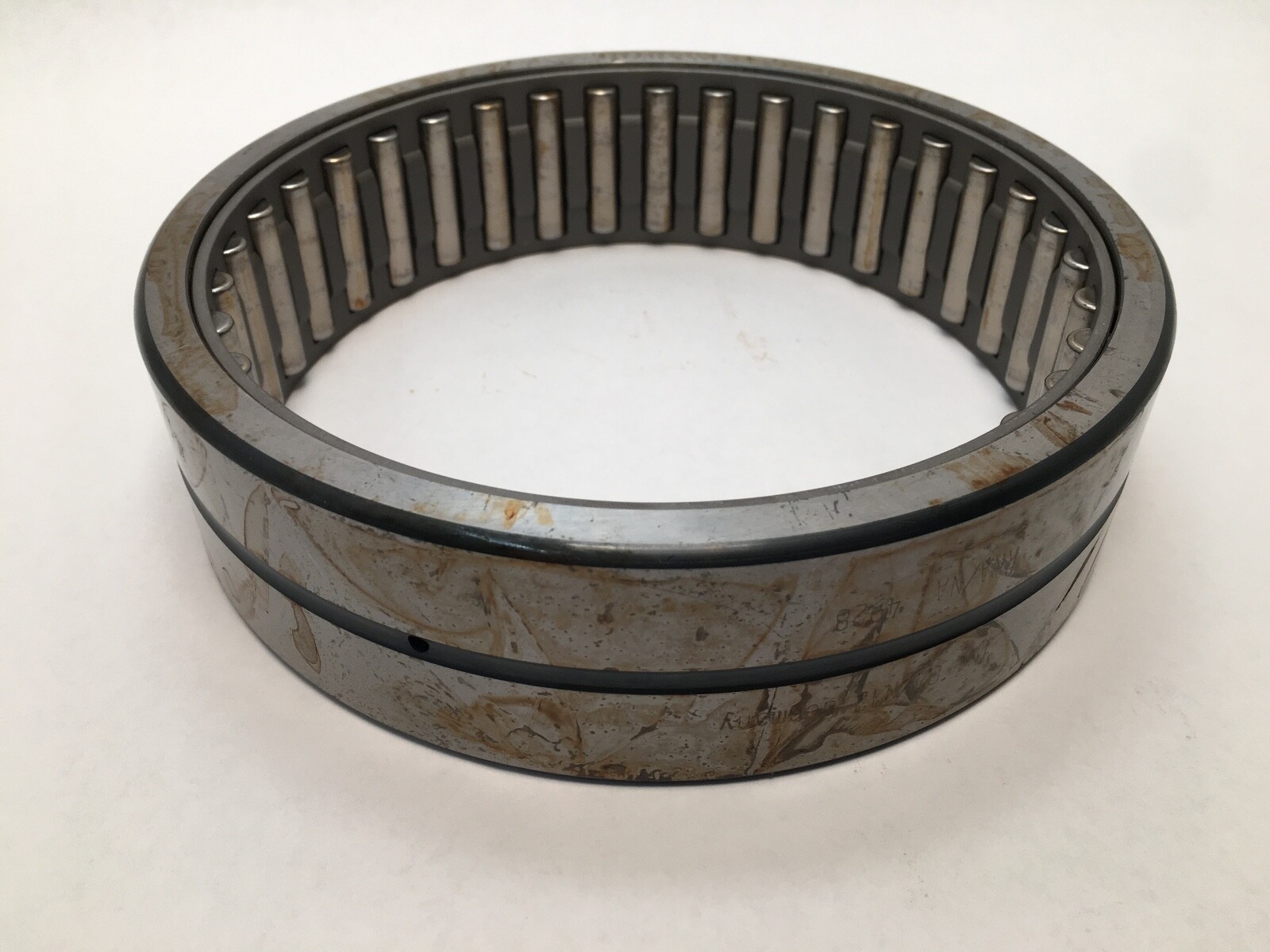

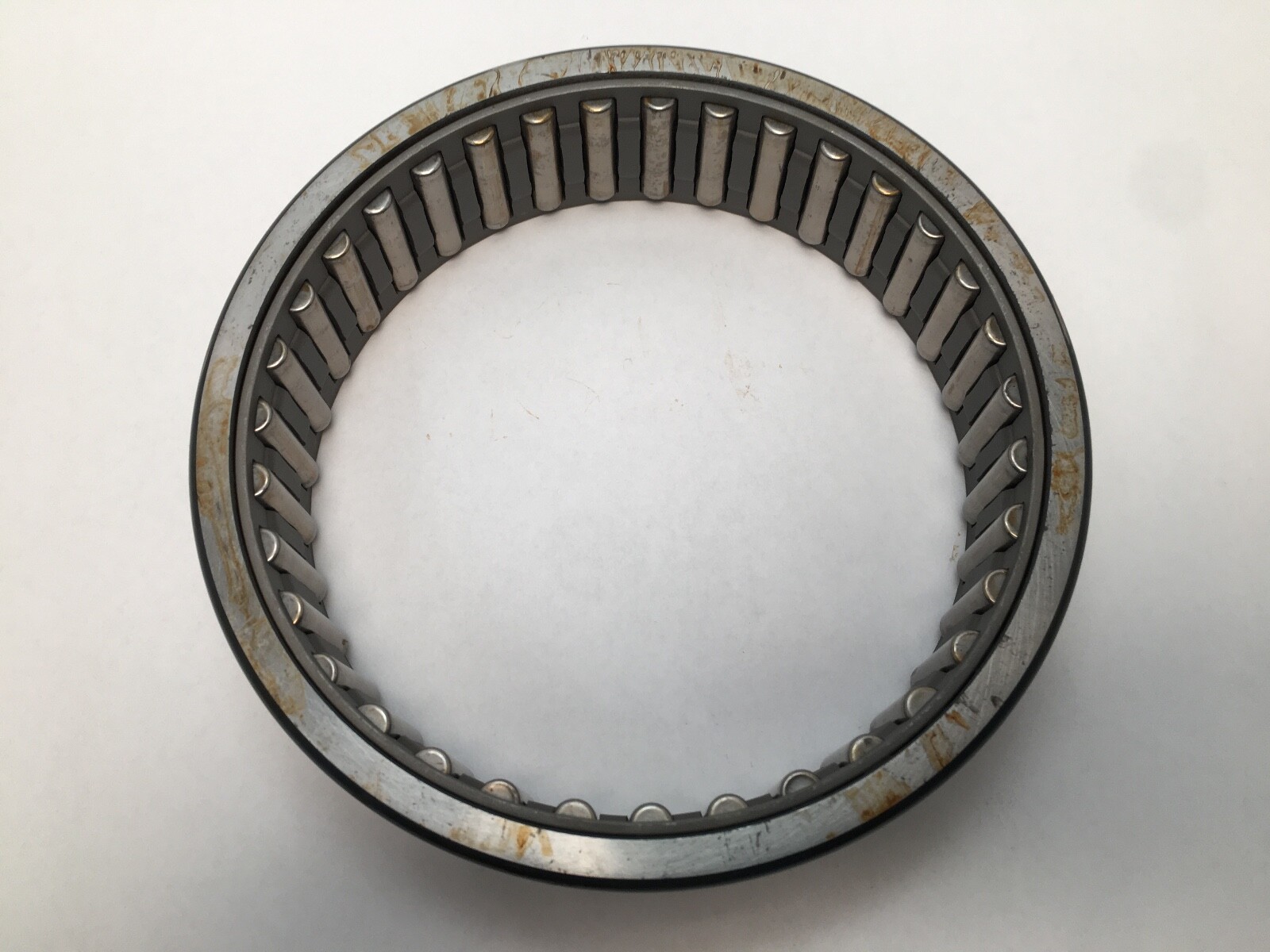

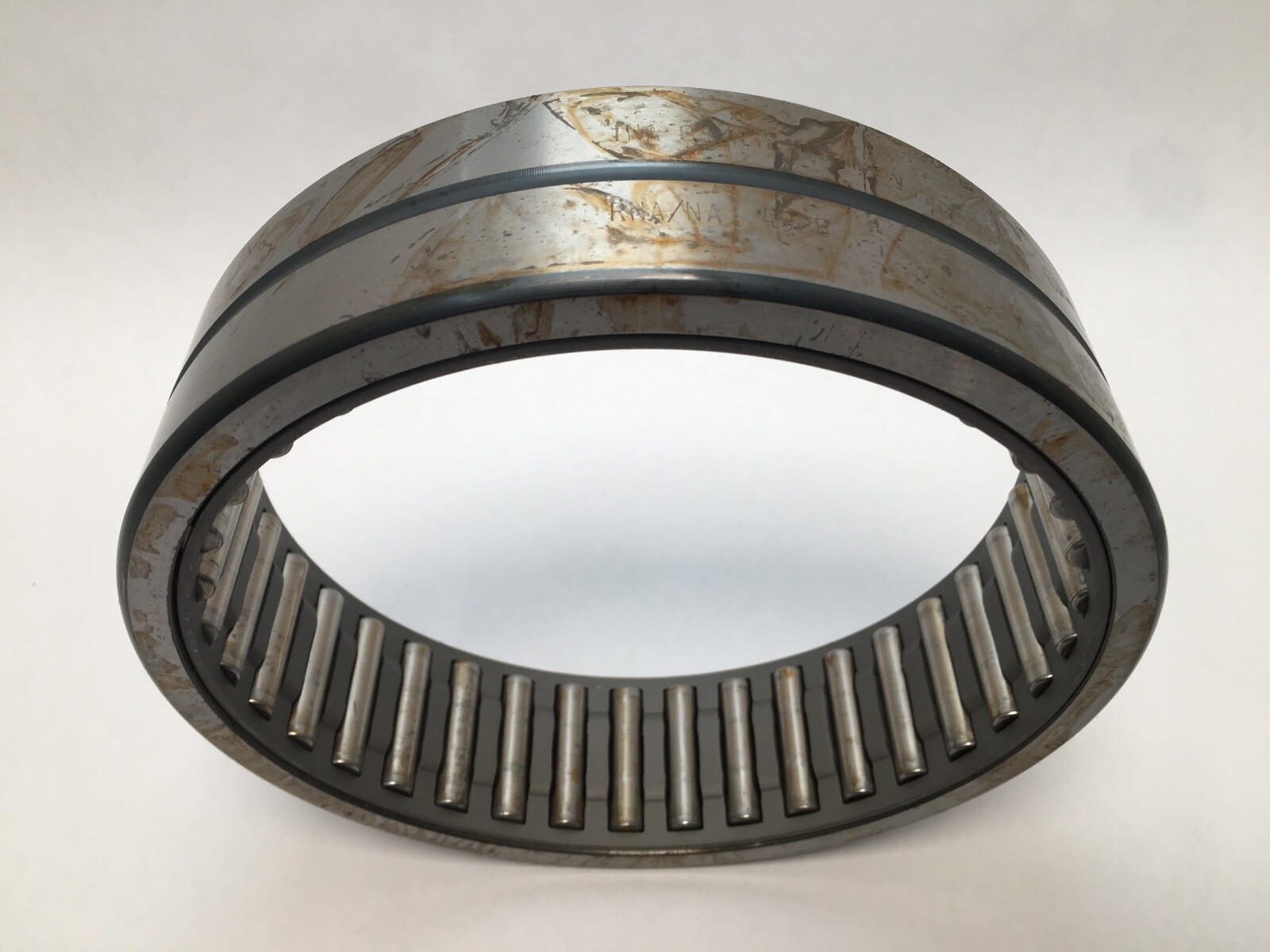

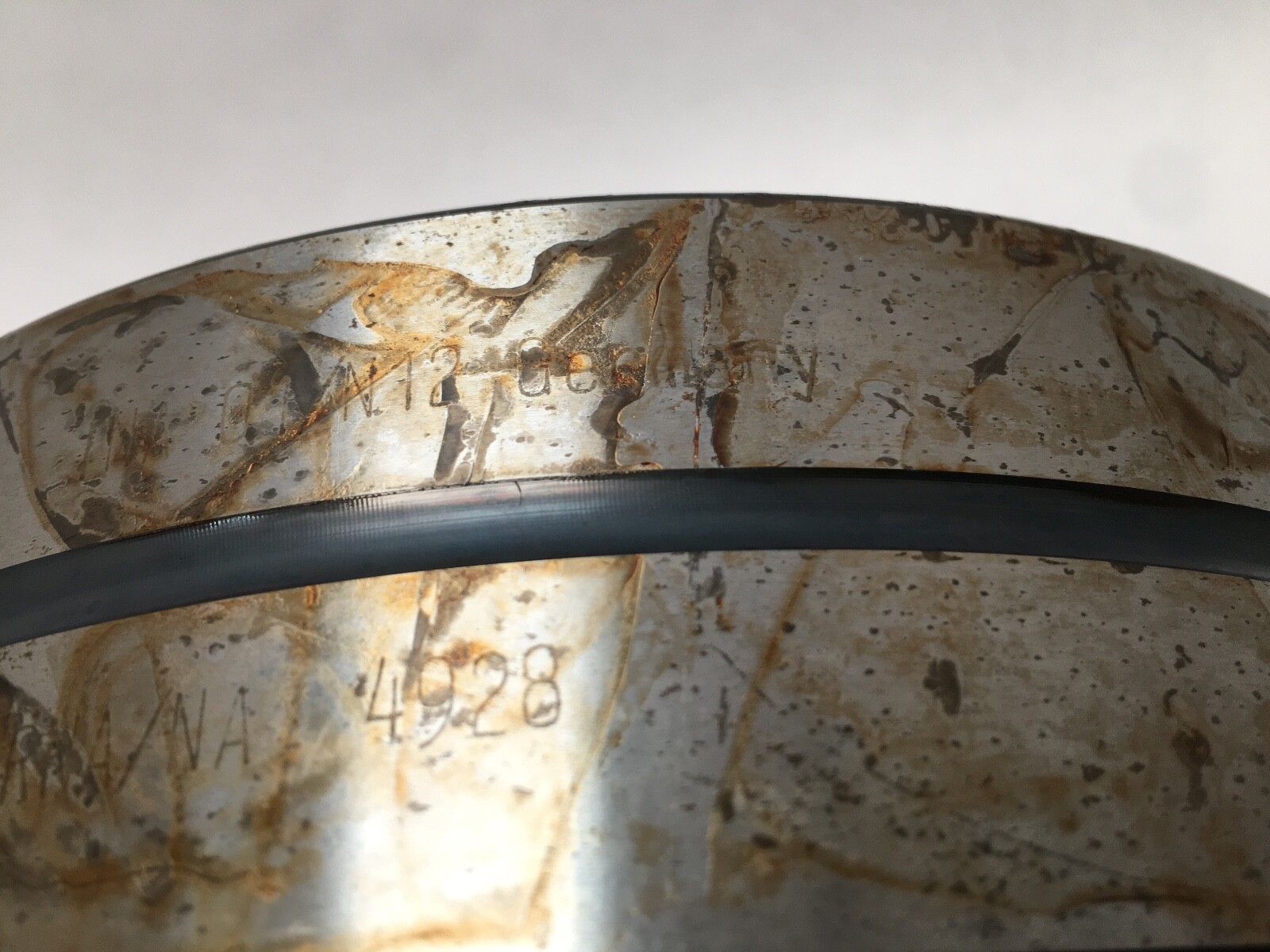

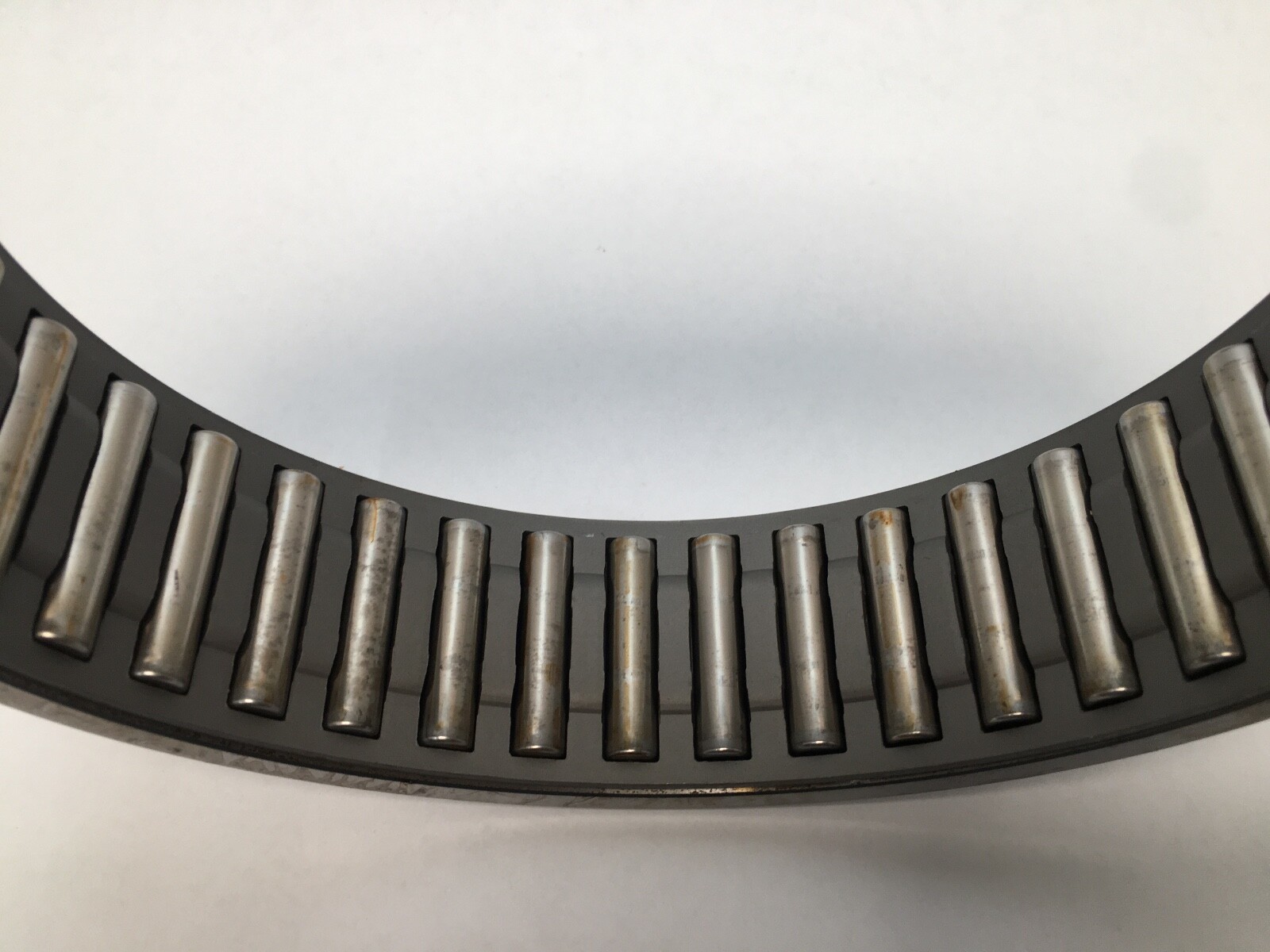

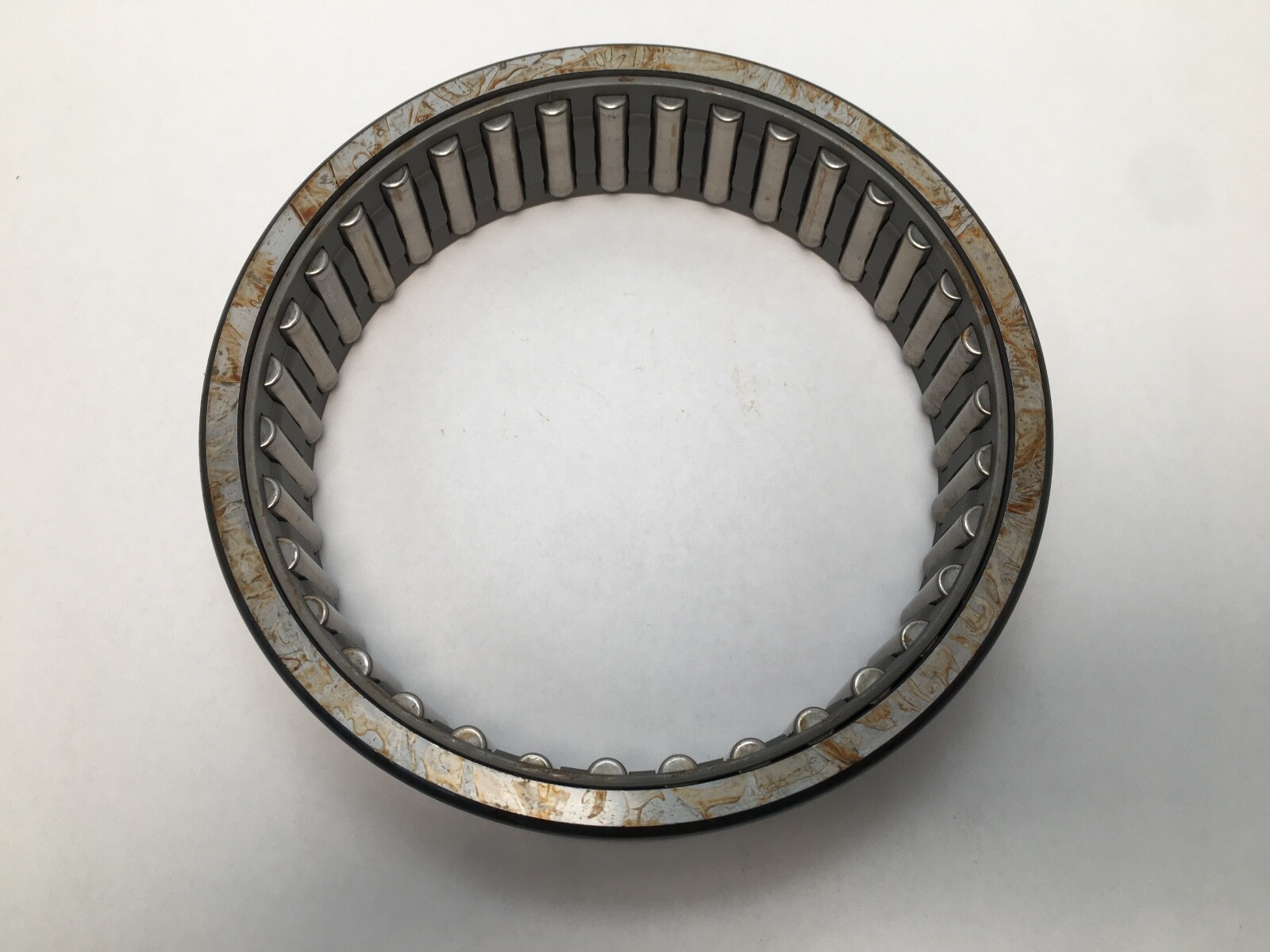

An INA RNA4928 single-row machined-ring needle roller bearing measuring 160 x 190 x 50 mm, in dimension series 49. The assembly is a machined outer ring with a caged needle roller complement running on the shaft surface itself.

Product scope

Outer ring and needle assembly only, without inner ring. The version with an inner ring is the INA NA4928.

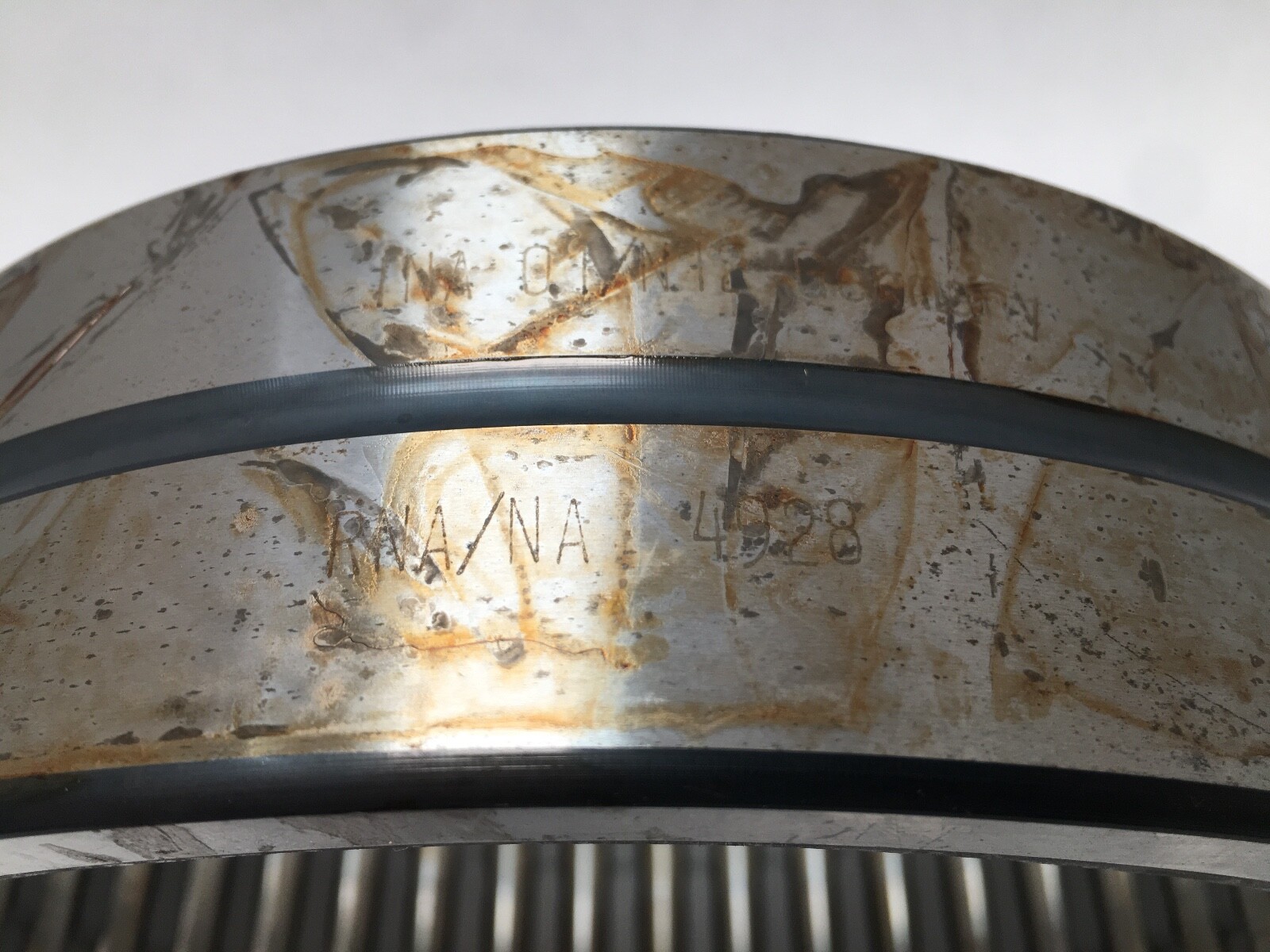

Decoding the designation

RNA — machined needle roller bearing without inner ring, in the INA scheme
49 — dimension series 49
28 — size code, 160 mm raceway diameter
-XL — current X-life production standard for this part

What these specs mean in practice

The needle roller complement gives a very high radial rating in a small radial section: 237 kN dynamic in a 15 mm wall thickness, which a ball bearing of the same outside diameter cannot approach. Line contact between needle and raceway is what buys that capacity, and it is also what caps the speed at 2900 rpm, well below a ball bearing in this envelope. Running the rollers on the shaft directly, rather than on an inner ring, saves radial space and puts the shaft surface itself into the load path, so the raceway on the shaft is ground and hardened to bearing raceway quality at 160 mm diameter.

Published ratings and mounting data

Under-roller (shaft raceway) diameter: 160 mm (6.2992 in)
Outside diameter: 190 mm (7.4803 in)
Width: 50 mm (1.9685 in)
Basic dynamic load rating C: 237 kN
Basic static load rating C0: 500 kN
Fatigue load limit Cu: 79 kN
Limiting speed: 2,900 rpm
Reference speed: 1,910 rpm
Mass: 2.325 kg
Rows: single
Dimension series: 49
Rolling elements: needle rollers, caged
Closure: open

Quantity and configuration

1 Pc, a single bearing.

Fitting notes

The outer ring seats in a machined housing bore at 190 mm, and the shaft raceway is ground and hardened at 160 mm. Fitting is by even axial pressure on the outer ring face, and lubrication is by grease or oil supplied to the needle set. Axial location comes from the housing, since a needle roller bearing of this type carries radial load only.

Interchange guidance

Direct equivalents in the same 160 x 190 x 50 mm envelope without an inner ring are IKO RNA4928, NTN RNA4928 and Koyo RNA4928, and the current INA production designation is RNA4928-XL. The sealed variant RNA4928UU and the with-inner-ring NA4928 occupy different envelopes or different scopes and are related sizes rather than interchanges.
