RBC 8NCC1416YP NCC series airframe needle bearing, 0.500 in bore, 1.000 in housing bore, 0.875 in inner ring width, 2,350 lbf limit load. Unitized SAE AS24462 type.
List Price
$136.71
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | RBC |
|---|---|
| MPN | 8NCC1416YP |
| GTIN | 637400594466 |
| Model | 8NCC1416YP |
| Bearing Type | Needle Roller Bearing |
| ID | 0.5000 in |
| OD | 1.0000 in |
| Condition | New – Open box |
|---|---|
| Condition Note | Made In USA, New Old Stock |
| Additional Attributes | Limit Load Rating: 2,350 lbf; Finish: cadmium plated |
| Item Weight | 0.05448 kg |
| Bearing Material | 52100 bearing quality steel |
| Industry Terms | Airframe control bearing, SAE AS24462 |
| Overall Width | 0.875 in |
| Mpn Variants | 8NCC1416YP, 8-NCC-1416-YP, 8NCC1416 YP |

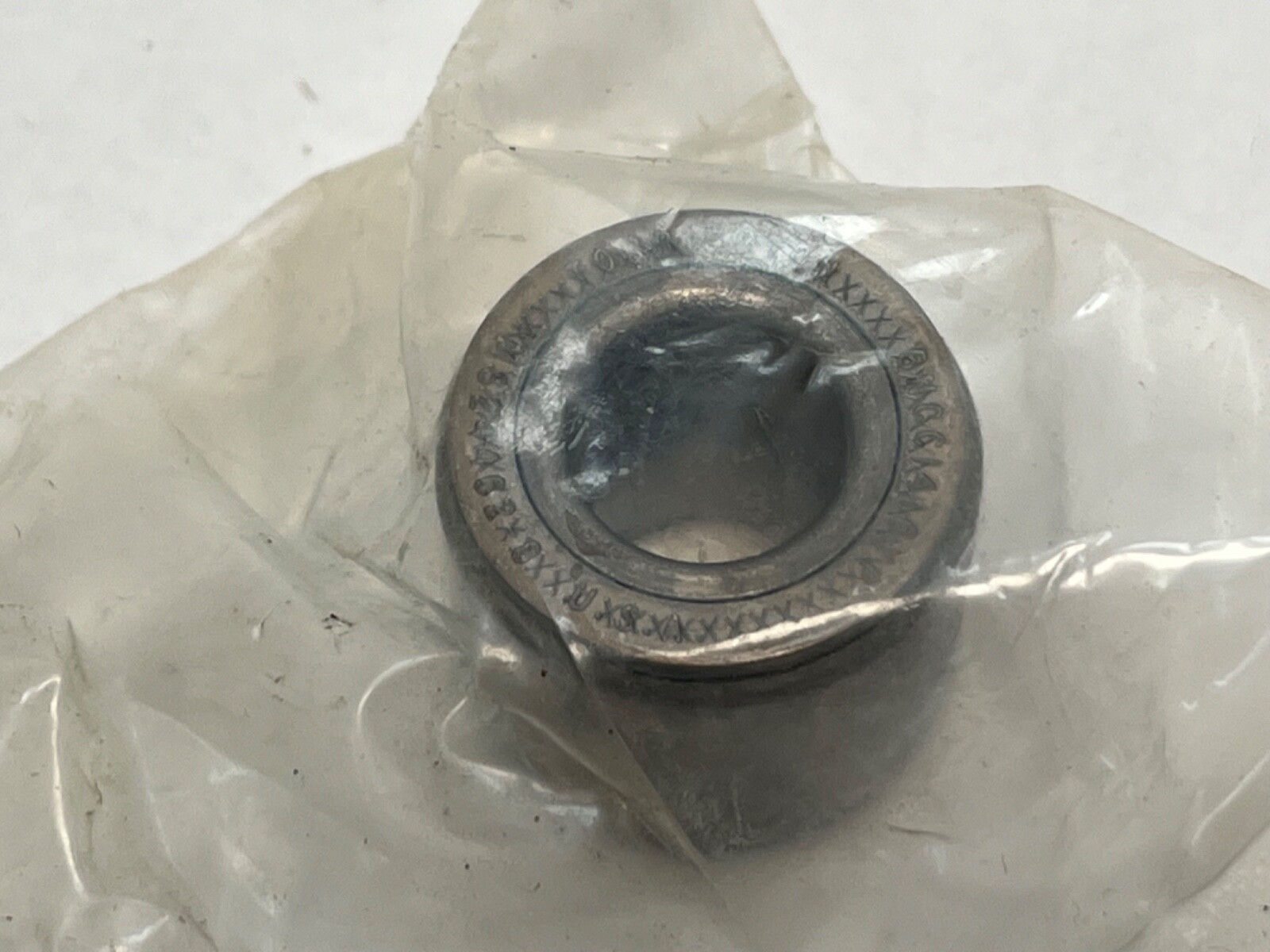

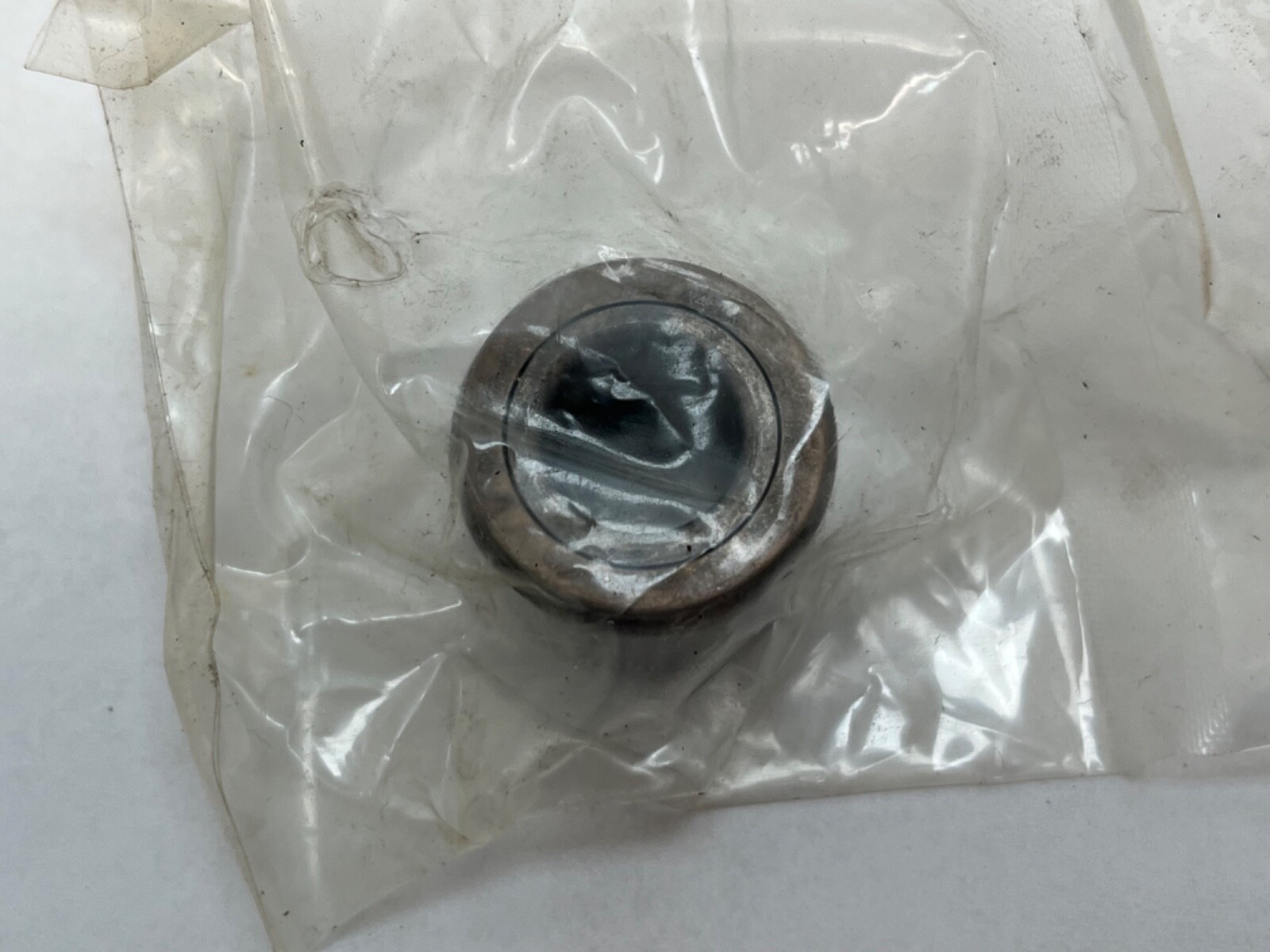

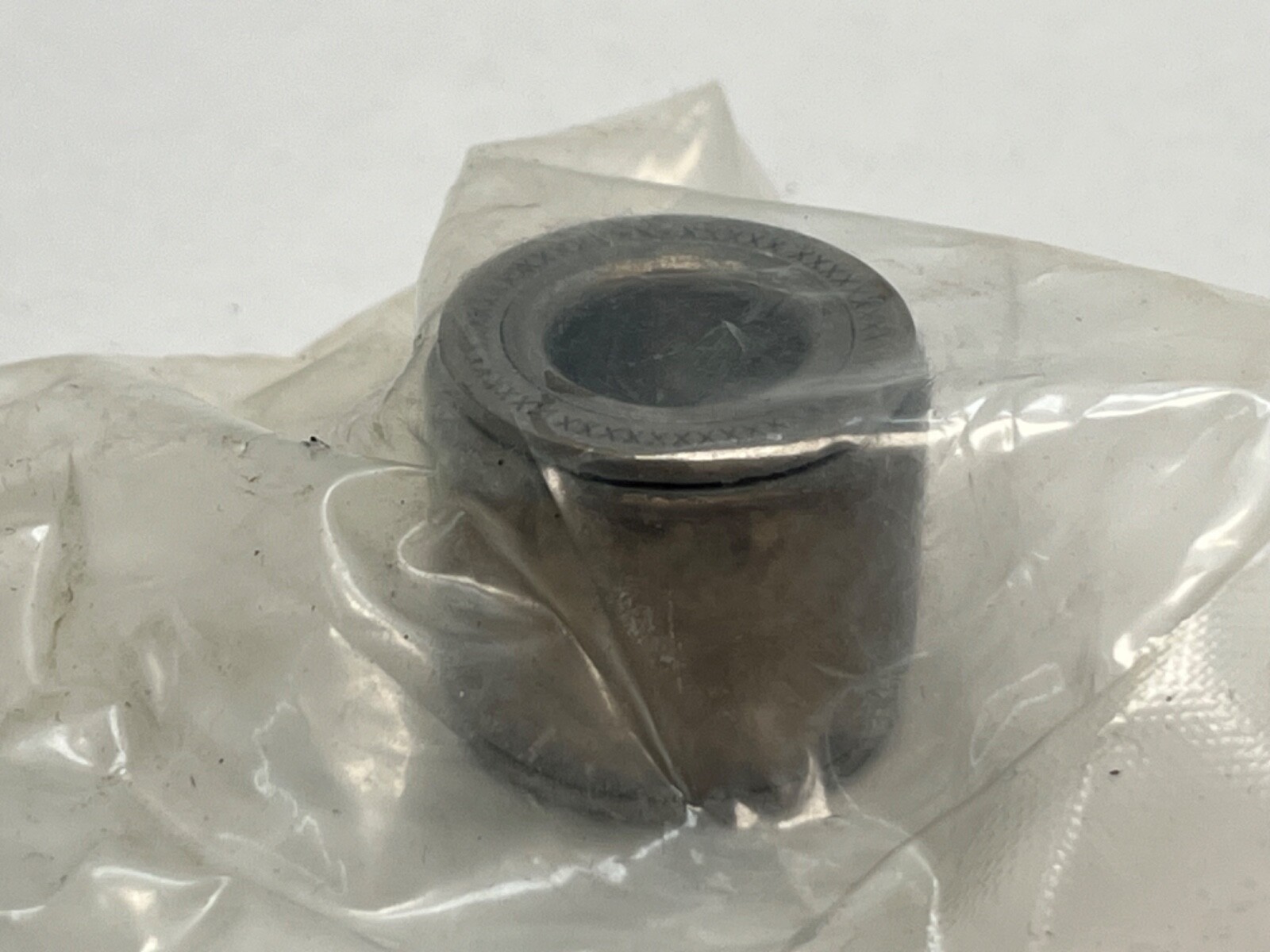

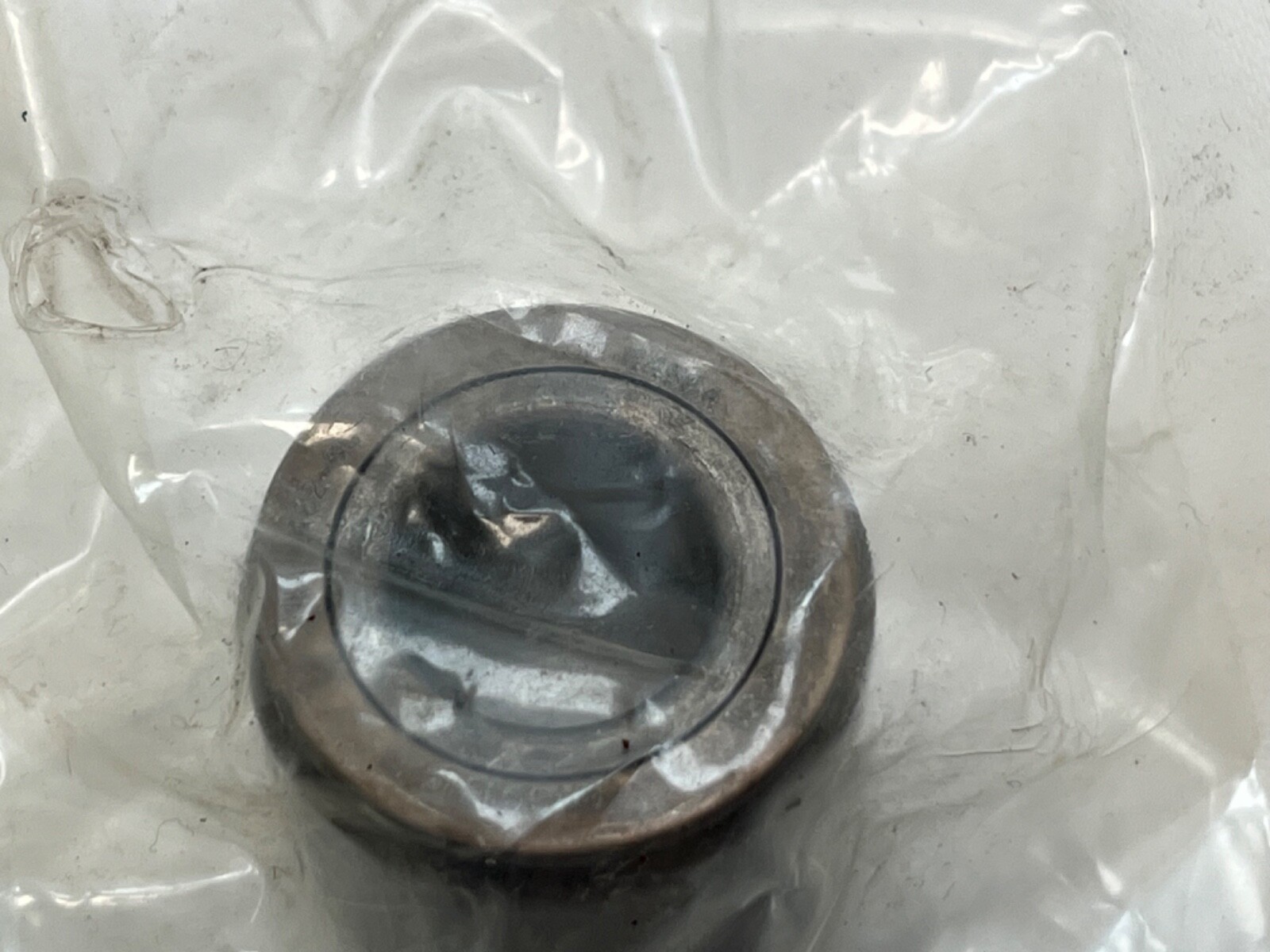

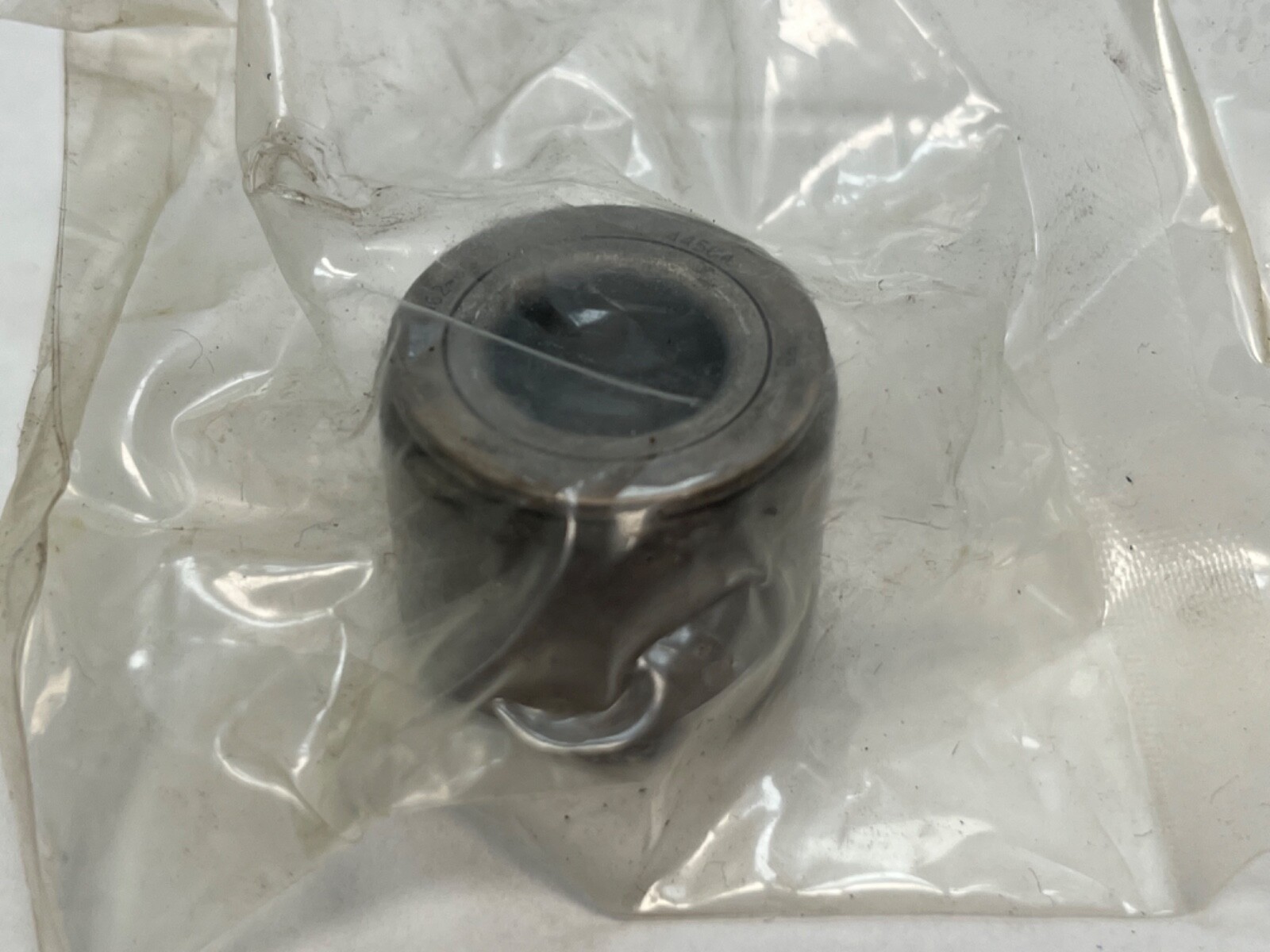

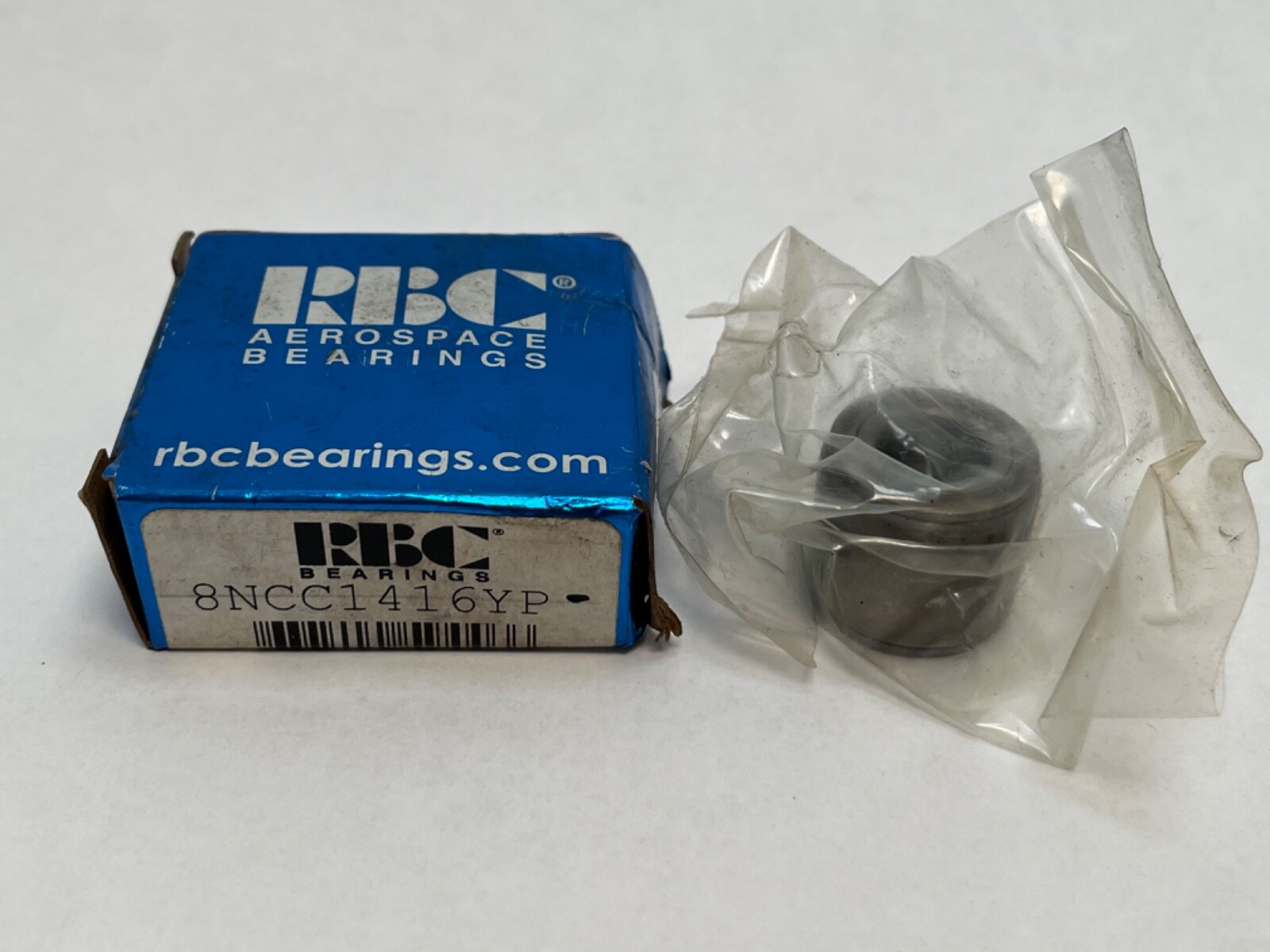

The RBC 8NCC1416YP is an NCC series airframe needle roller bearing to SAE AS24462. It is a non-separable unit made up of a drawn cup needle bearing, an inner race and retaining washers fastened to the inner race. NCC bearings are used in pivots and linkages.
Bore Diameter: 0.5000 in. Outside Diameter (housing bore): 1.0000 in. Inner Ring Width: 0.875 in. Radius or 45° Bevel: 0.032 in. Limit Load Rating: 2,350 lbf. Bearing Material: 52100 bearing quality steel. Finish: cadmium plated exposed surfaces. Rolling Elements: Needle Roller. GTIN: 637400594466.
Lubrication grooves and holes in the inner race allow relubrication. The thin cross section and unitized construction suit airframe control linkages. RBC states NCC bearings are not intended for use as track rollers or cam followers.
Frequently asked questions
What is the RBC 8NCC1416YP?The RBC 8NCC1416YP is an NCC series airframe needle roller bearing with a 0.500 in bore and 1.000 in housing bore.
What standard does the NCC series meet?RBC lists the NCC series under SAE AS24462.
What is its load rating?RBC publishes a limit load rating of 2,350 lbf for the 8NCC1416YP.
