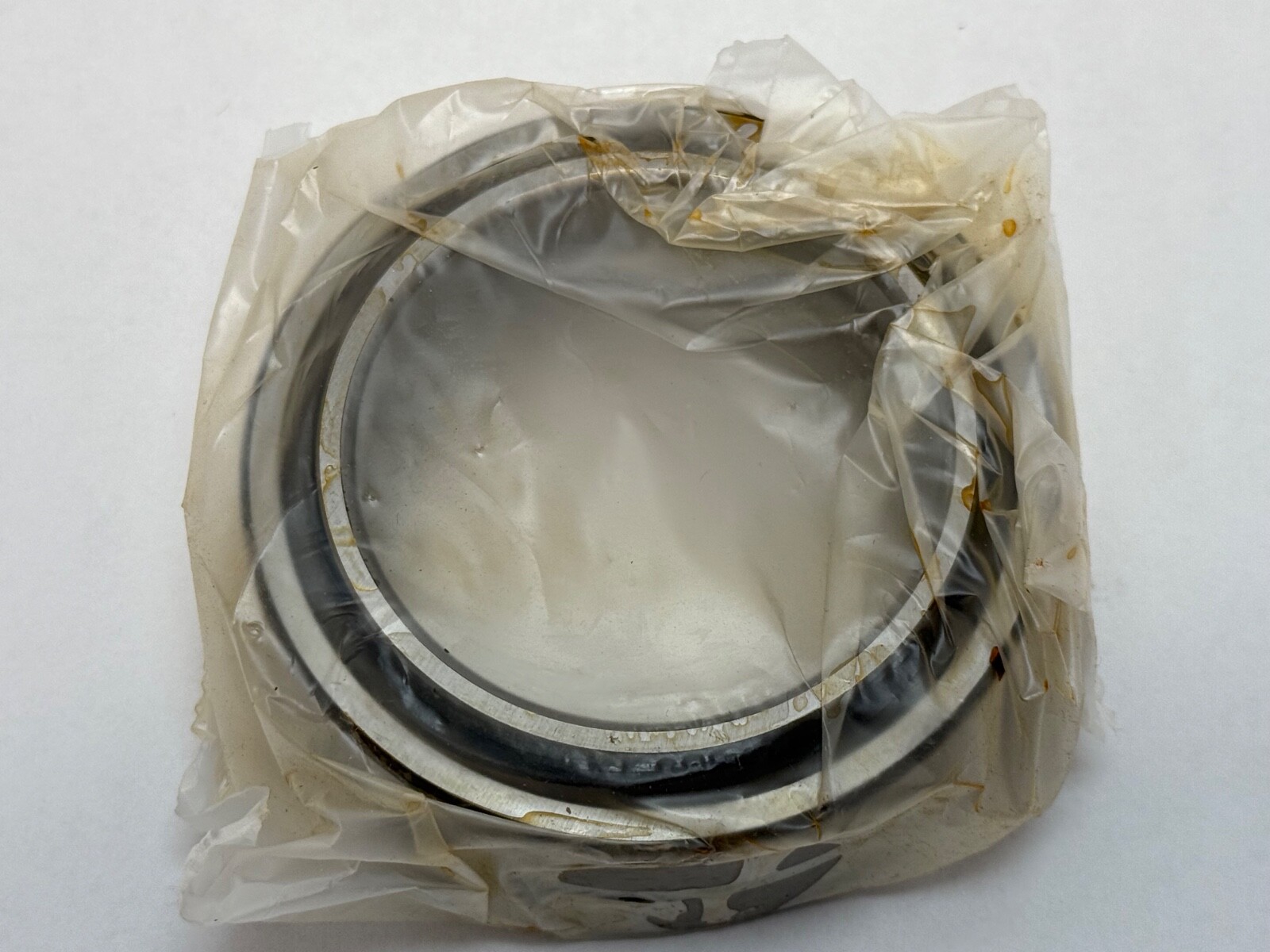

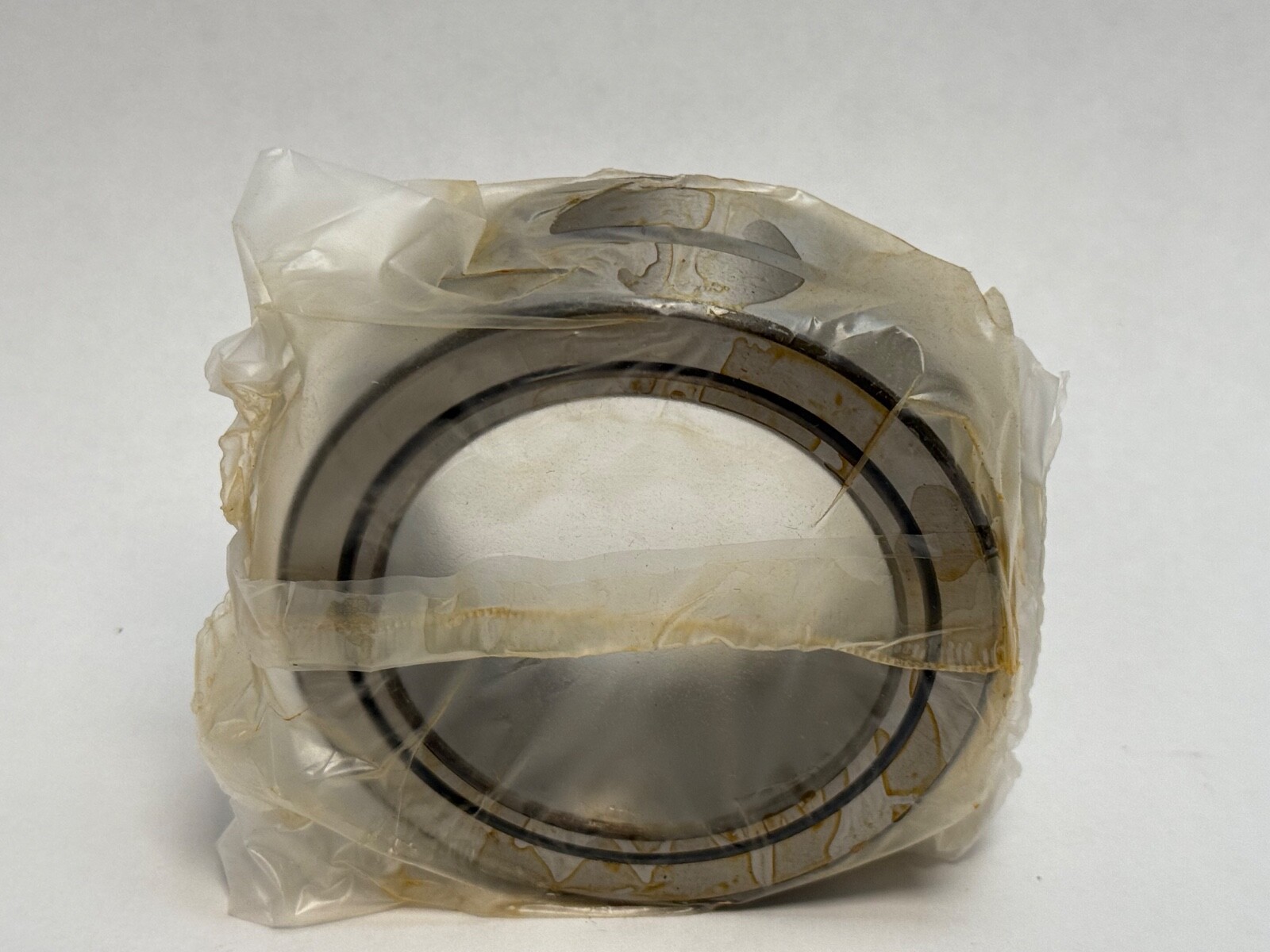

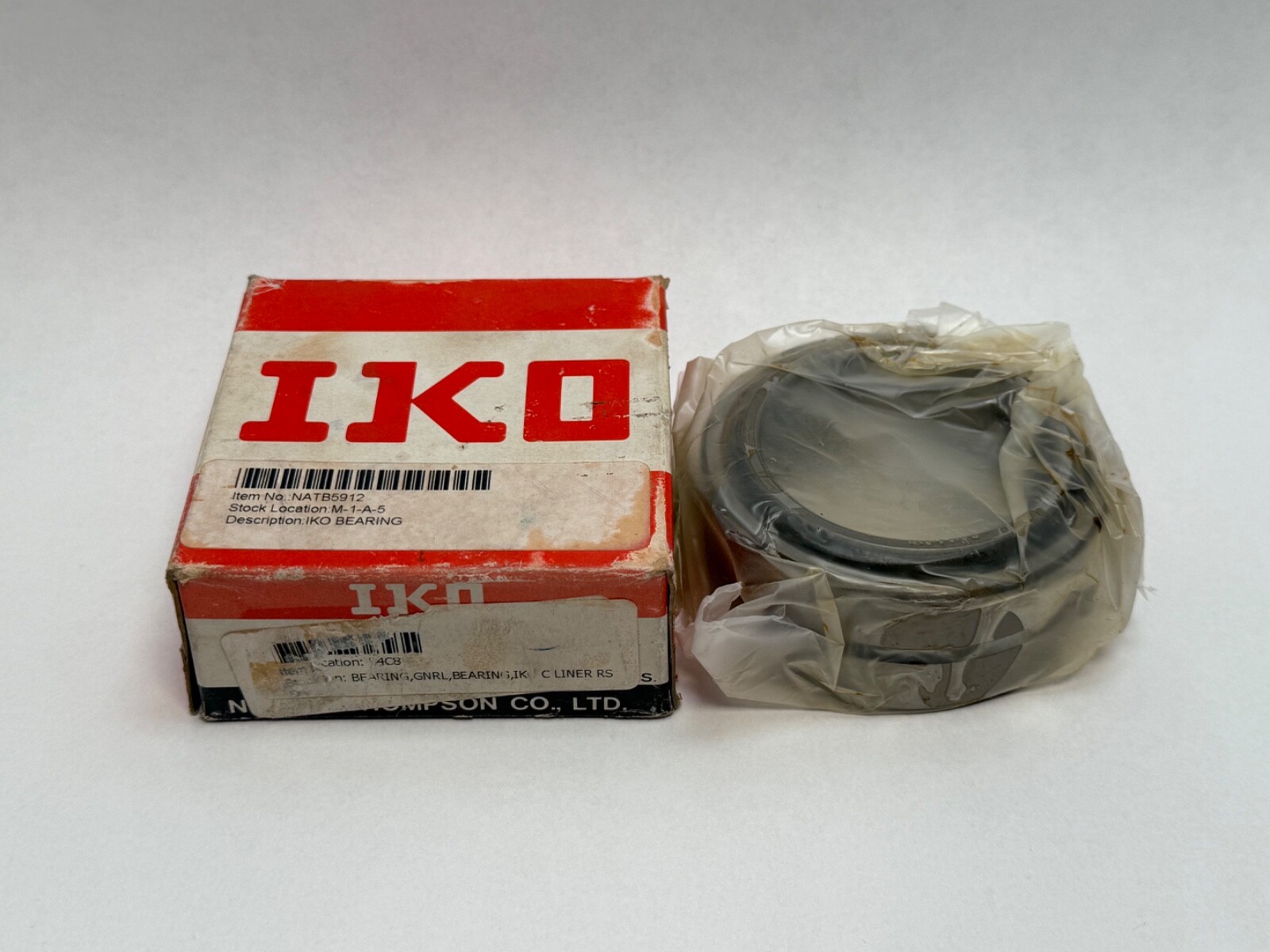

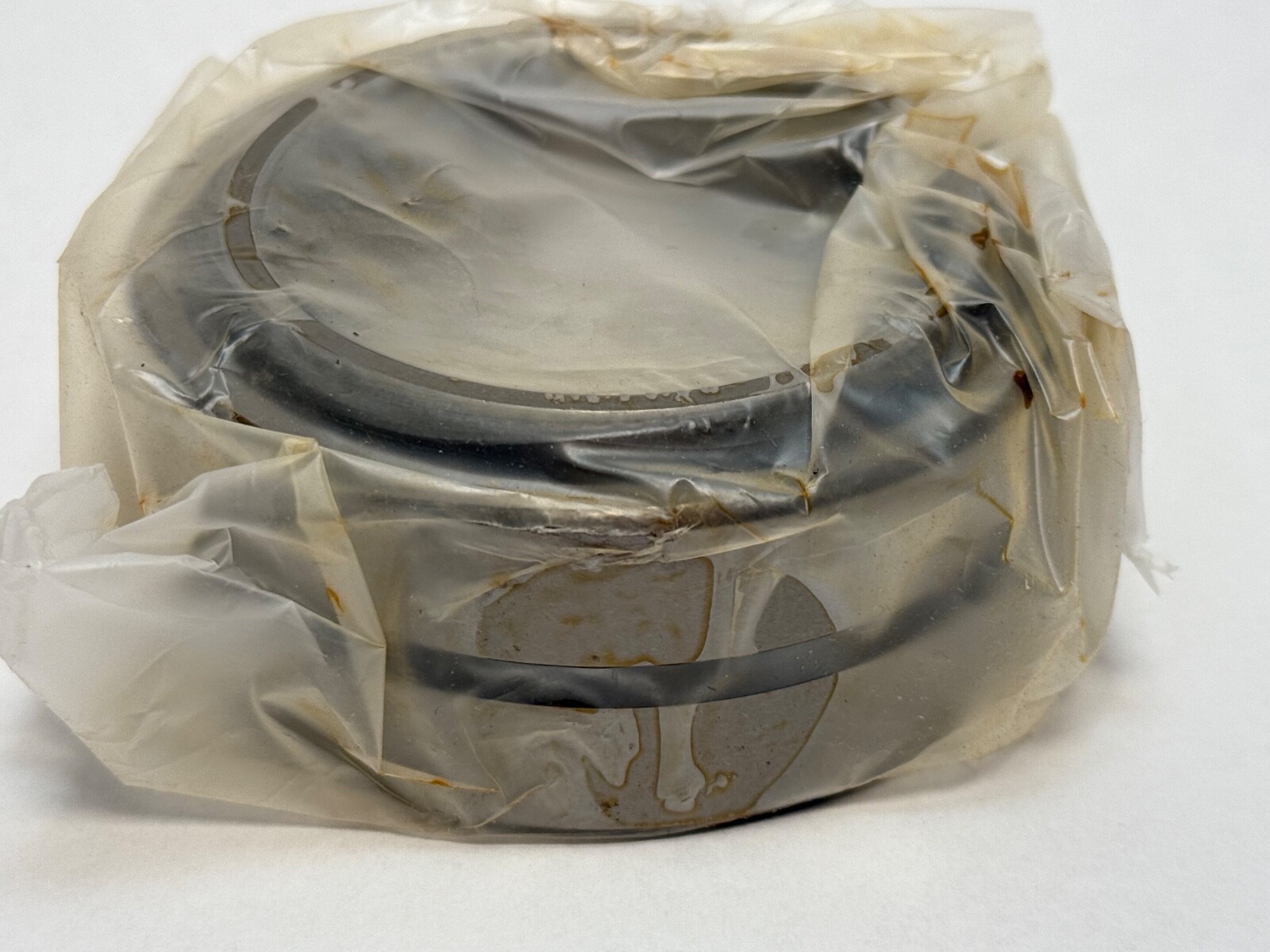

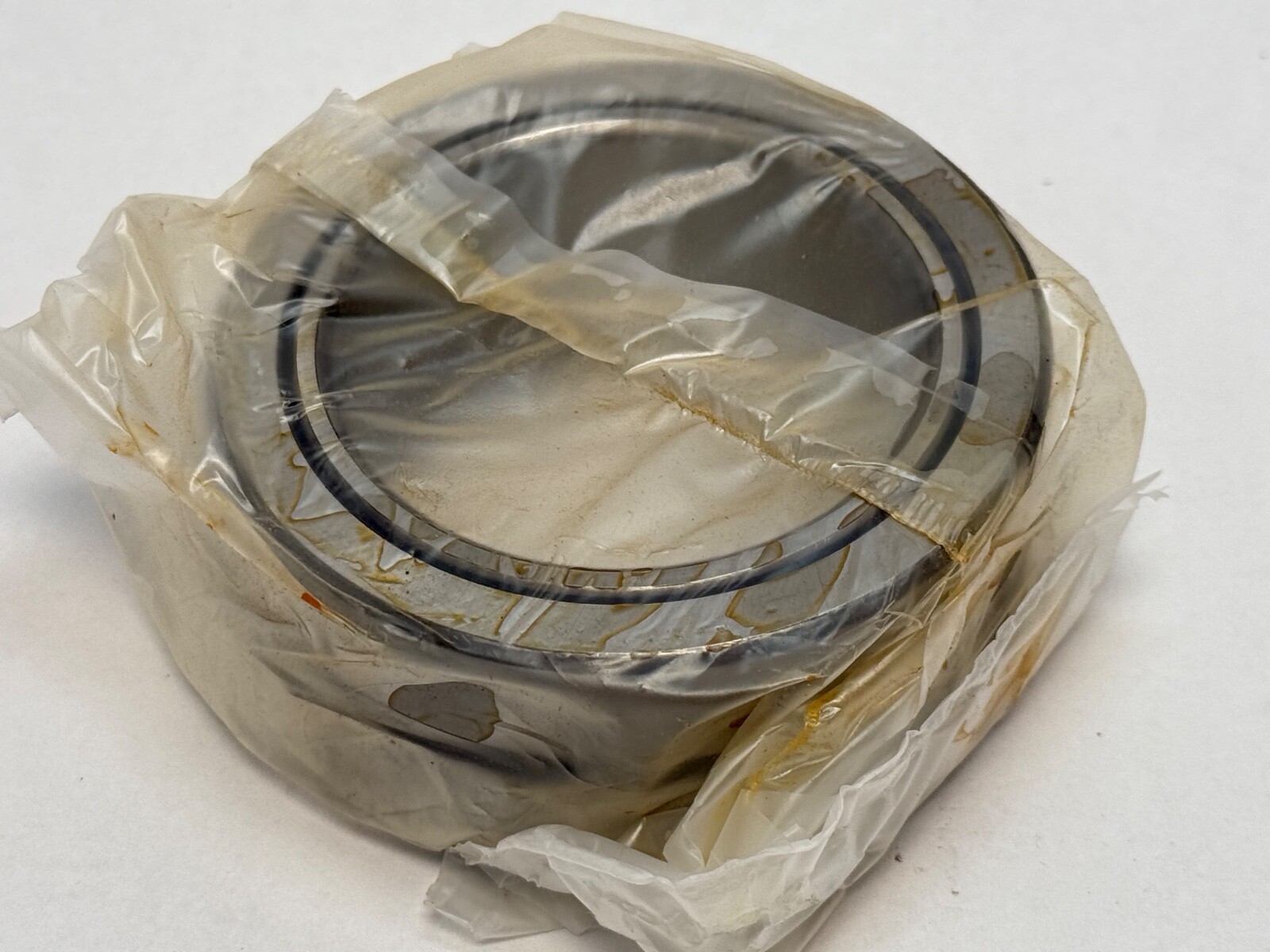

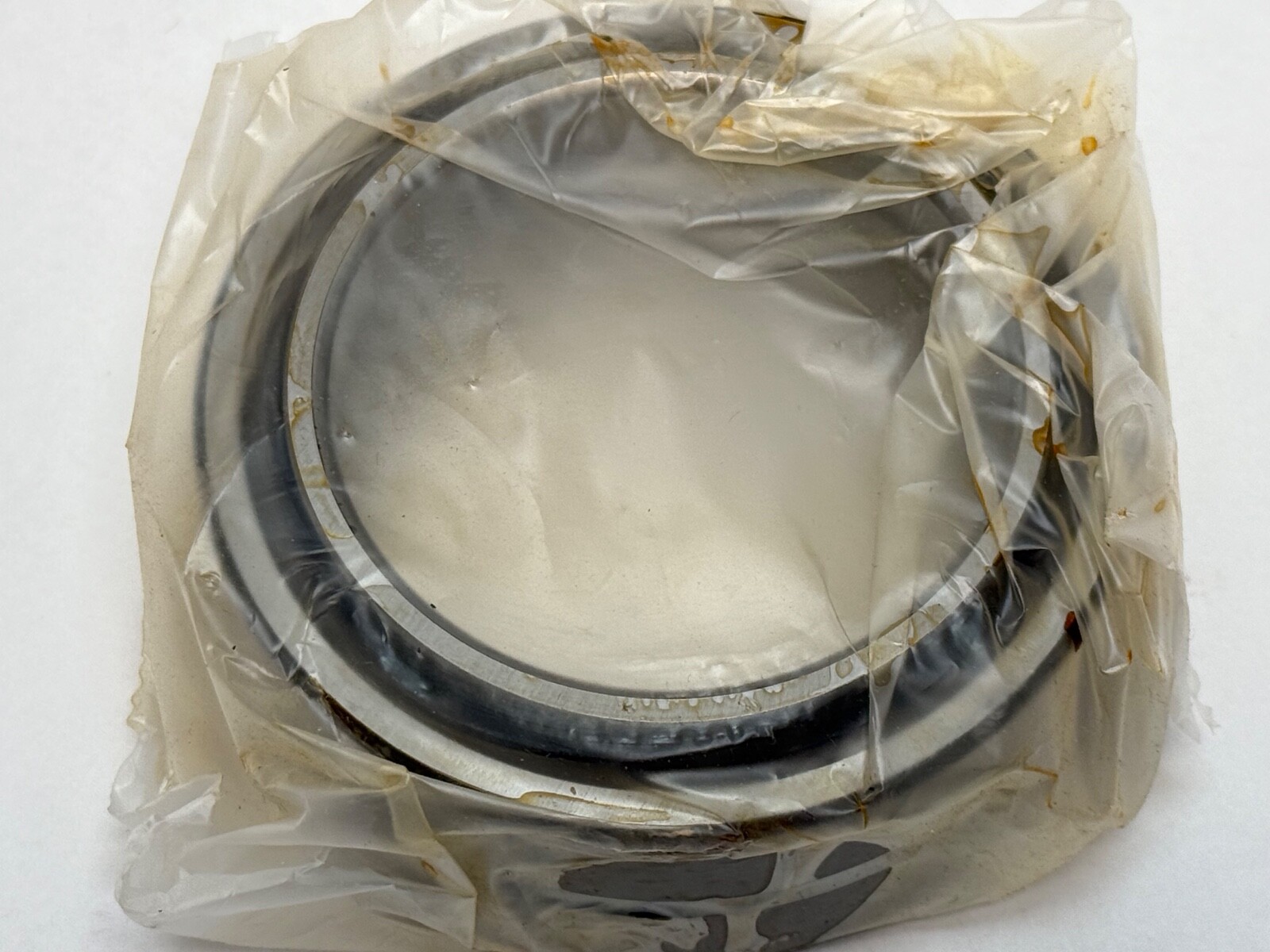

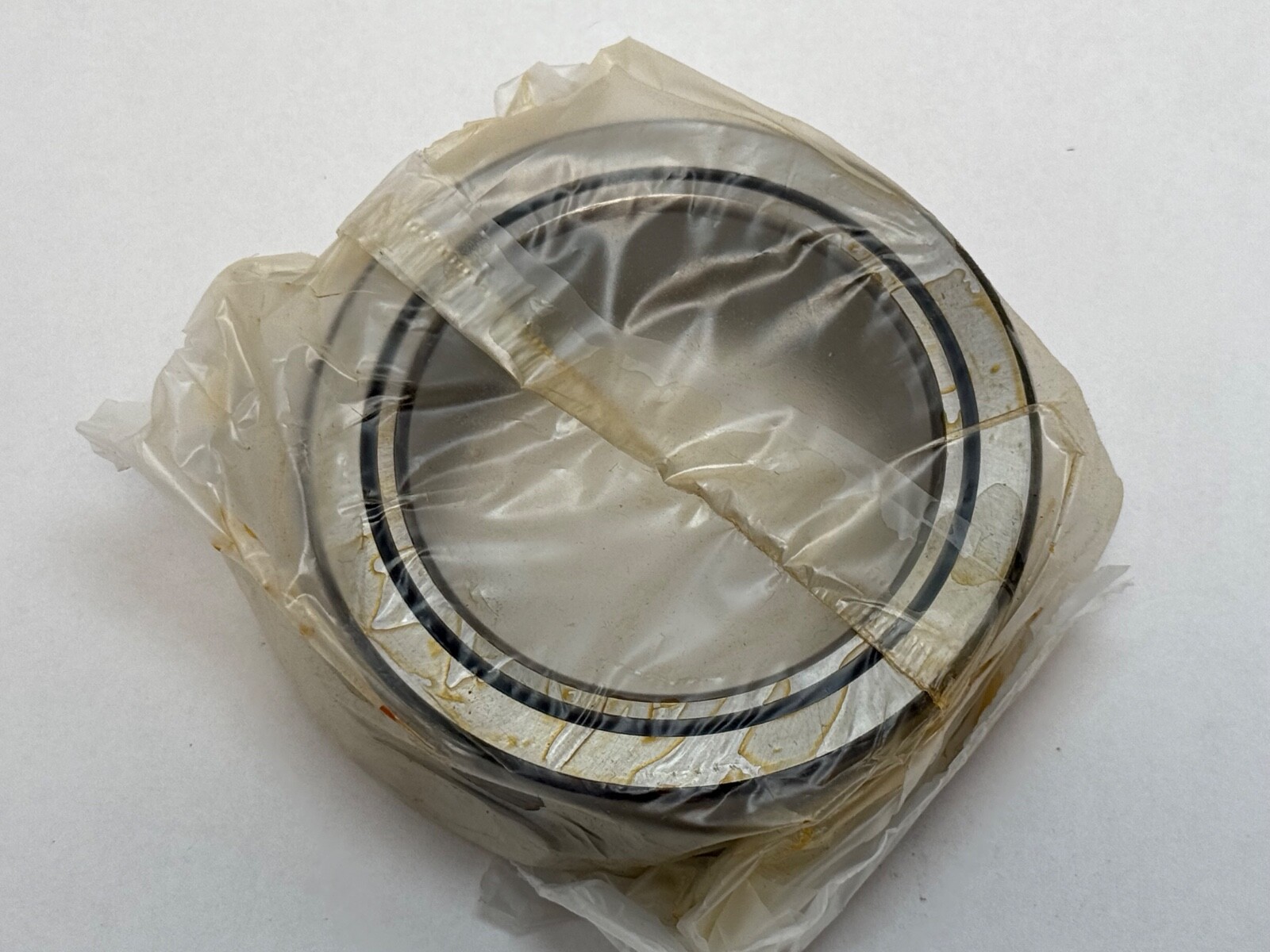

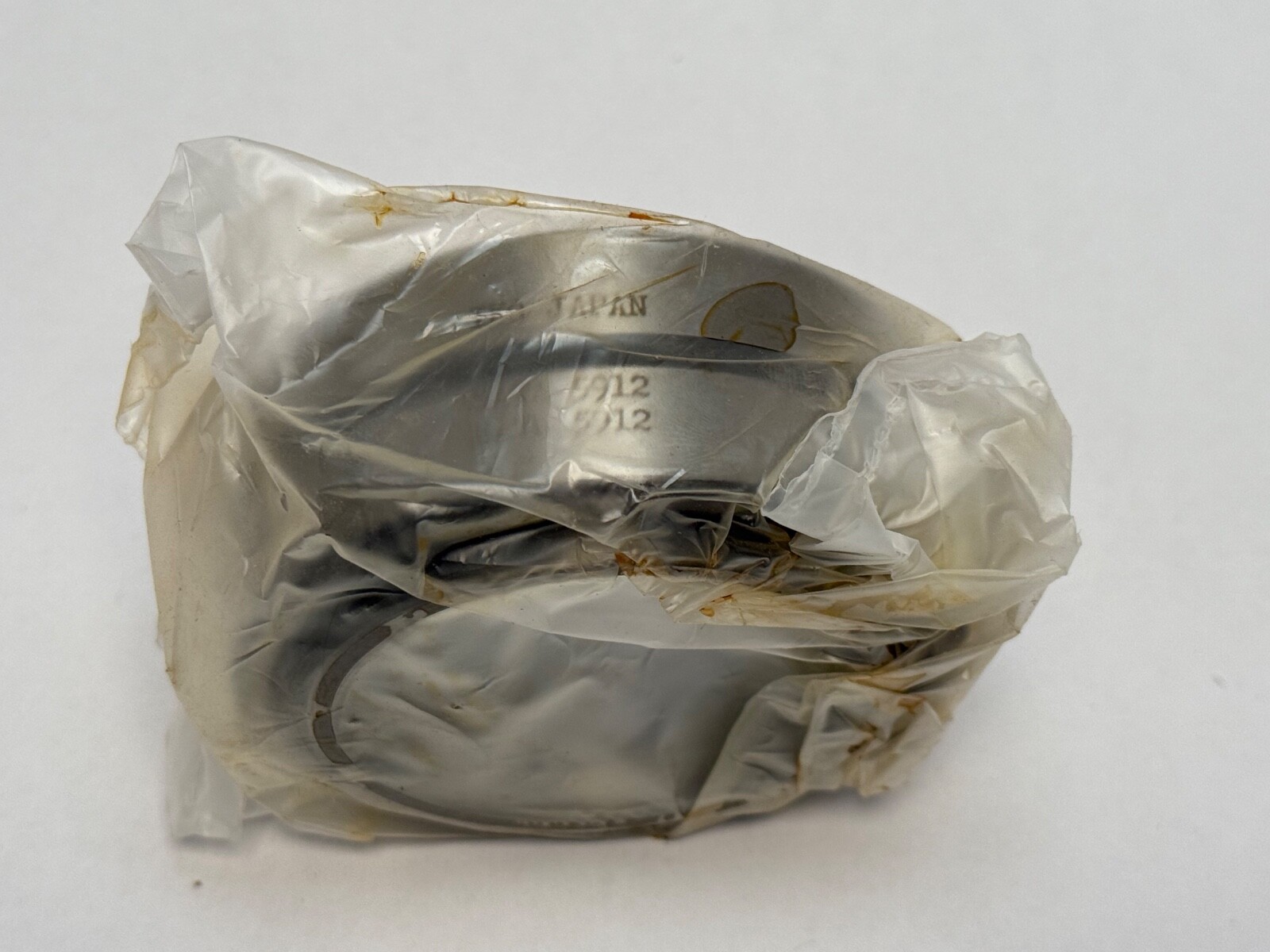

IKO NATB5912 combined needle roller and angular contact ball bearing, 60 mm bore, 85 mm OD, 38 mm wide. Radial and axial load in one compact unit with inner ring.
List Price
$74.68
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | IKO |
|---|---|
| MPN | NATB5912 |
| Model | NATB5912 |
| Bearing Type | Needle Roller Bearing |
| ID | 60 mm |
| OD | 85 mm |
| Width | 38 mm |
| Condition | New |
|---|---|
| Industry Terms | combined needle roller bearing, needle thrust combination bearing, combo needle bearing |
| Common Misspellings | NATA5912, NTAB5912, NATB5912 combo |
| Application Types | machine tool shafts, gearbox shafts, compact radial and axial support |
| Total Width | 38 mm |
| Mpn Variants | NATB5912, NATB 5912, NATB-5912 |
| Compatible With Replaces | Related: INA NKIB5912 (needle roller and angular contact ball combination) |
| Series | NATB |
The IKO NATB5912 is a combined needle roller bearing: a needle roller bearing for radial load integrated with an angular contact ball bearing for axial load, in one compact unit with an inner ring. It supports shafts that carry radial load together with thrust in a limited radial section.
Bore Diameter: 60 mm. Outside Diameter: 85 mm. Total Width: 38 mm. Rolling Elements: Needle Roller and Ball.
NATB — IKO combined needle roller bearing with angular contact ball bearing.
59 — dimension series.
12 — 60 mm bore.
The needle row carries the radial load with high capacity in a thin section, and the ball row takes axial load in one direction. The combined design replaces a separate radial bearing and thrust bearing on the same shaft seat.
Unit Quantity: 1 Pc.

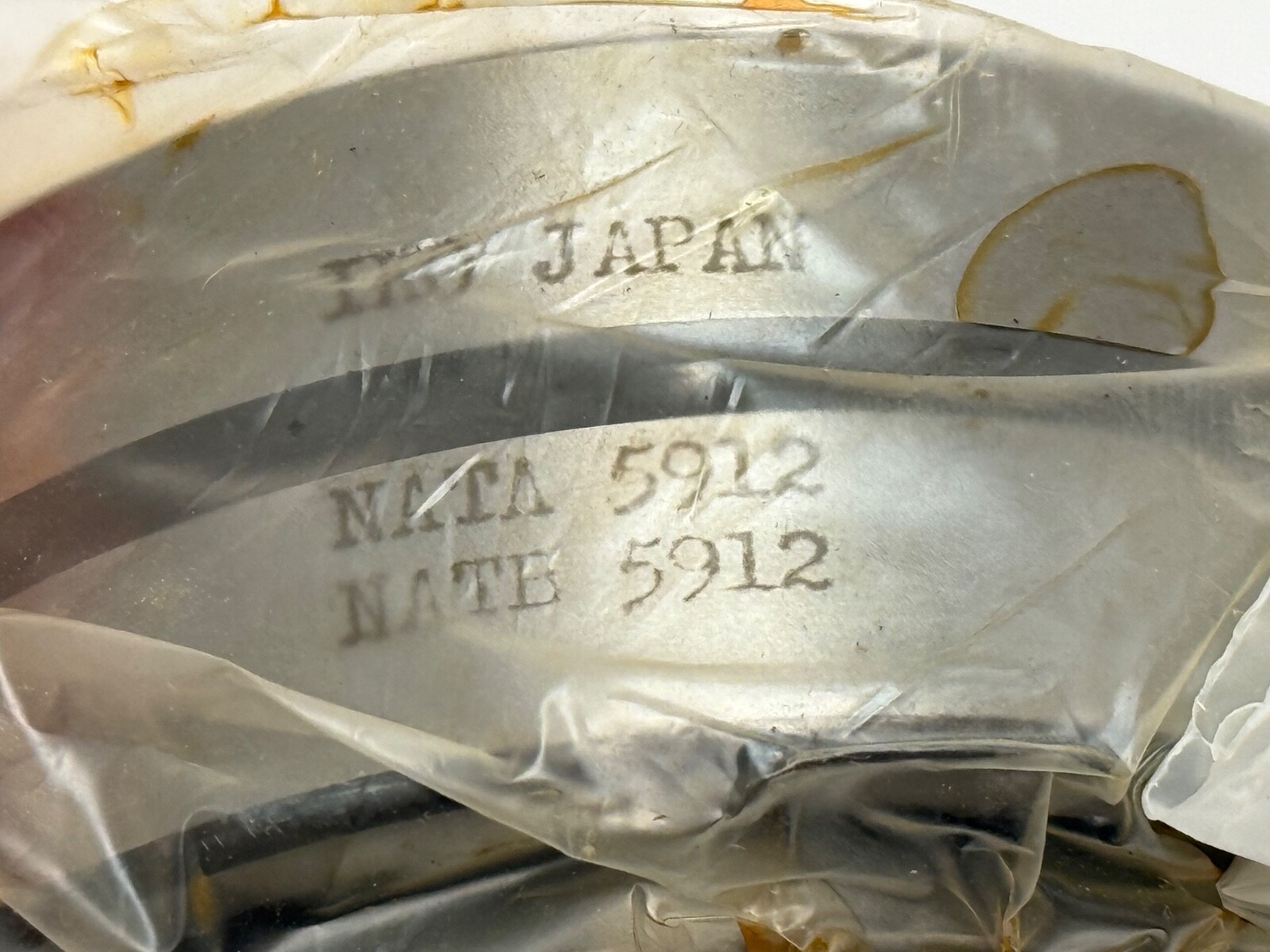

Related part family: INA NKIB5912, a needle roller and angular contact ball combination on a 60 x 85 mm envelope. The IKO NATA5912 is the sister execution in the same IKO series.
