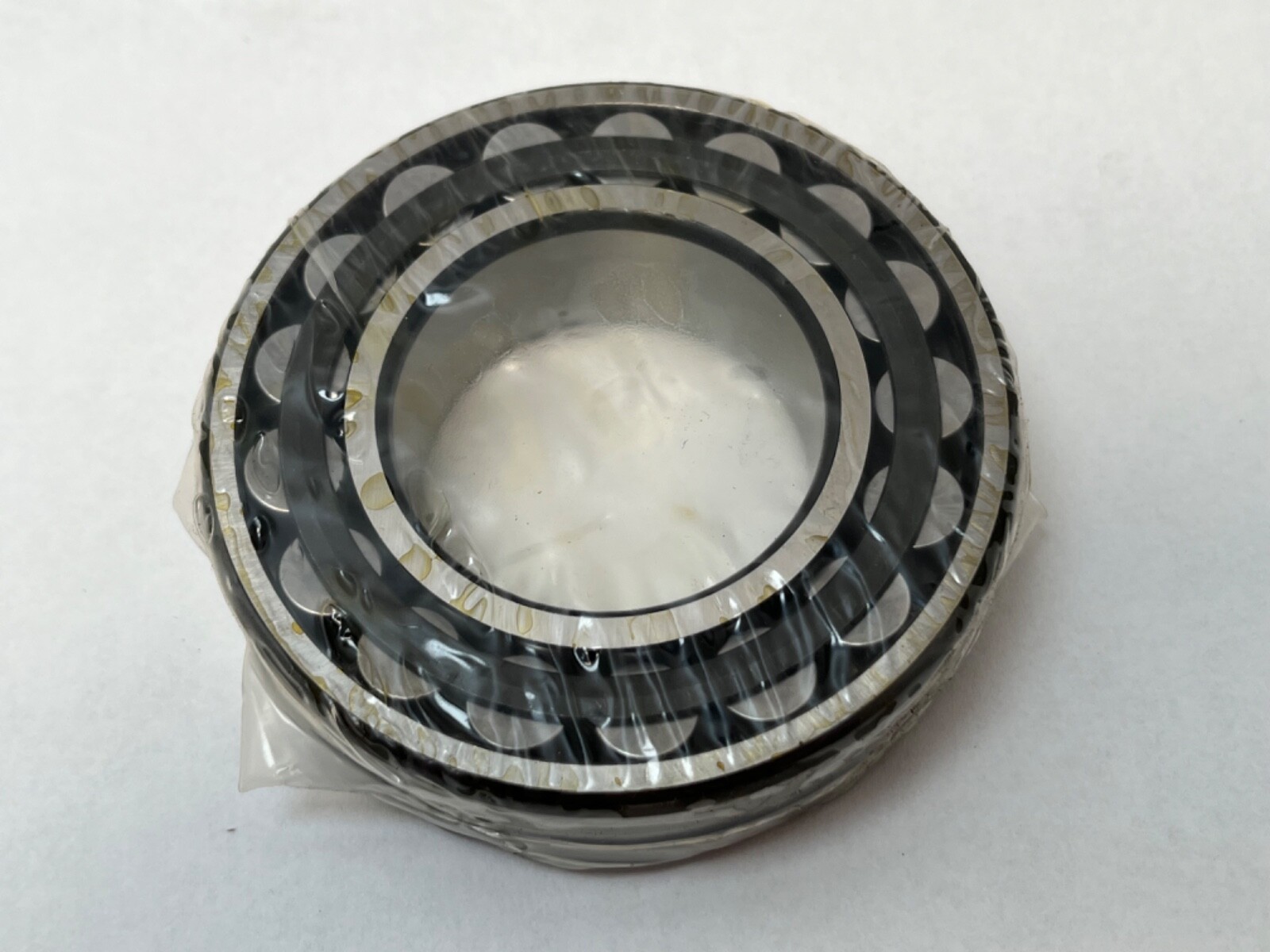

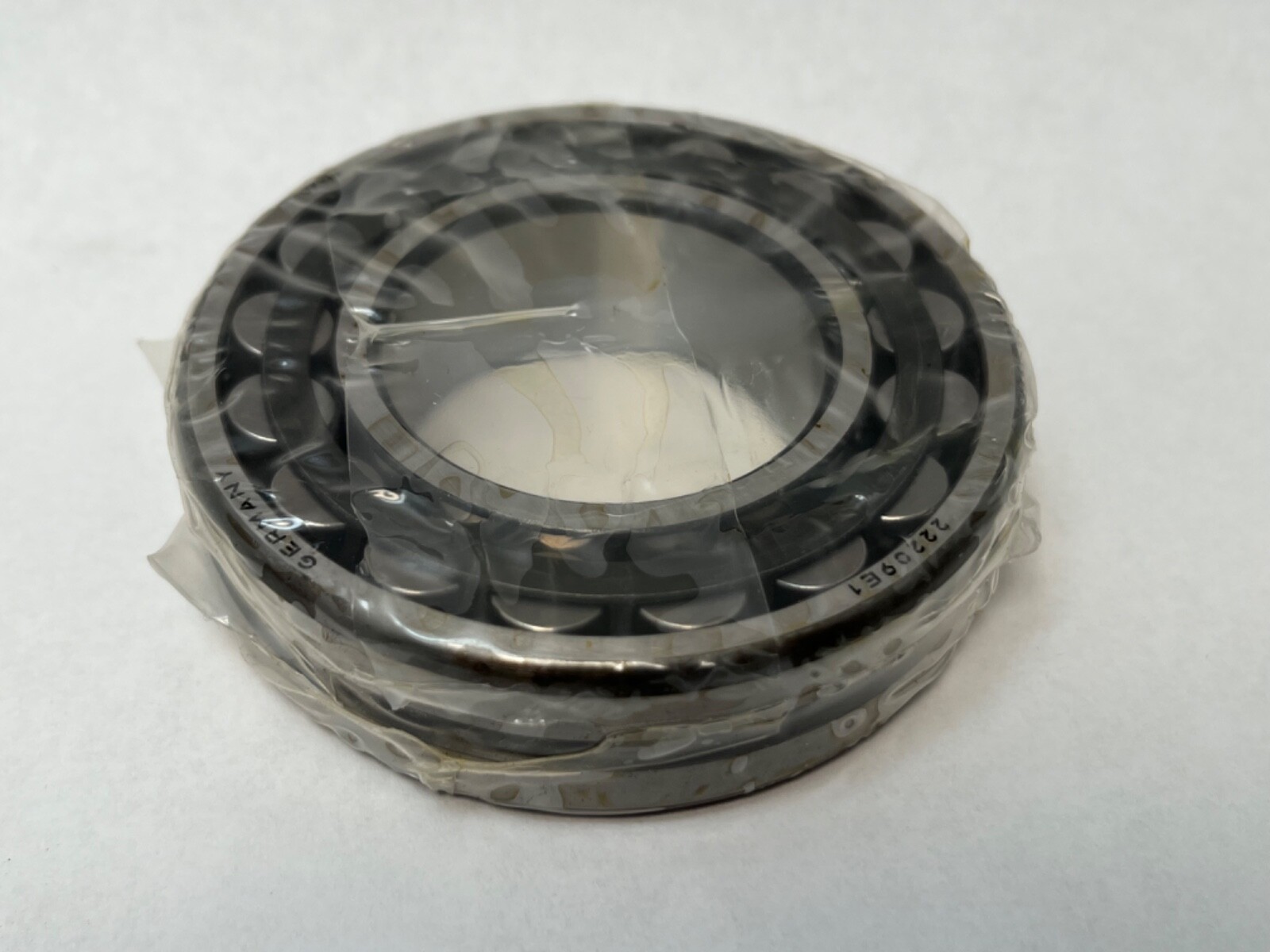

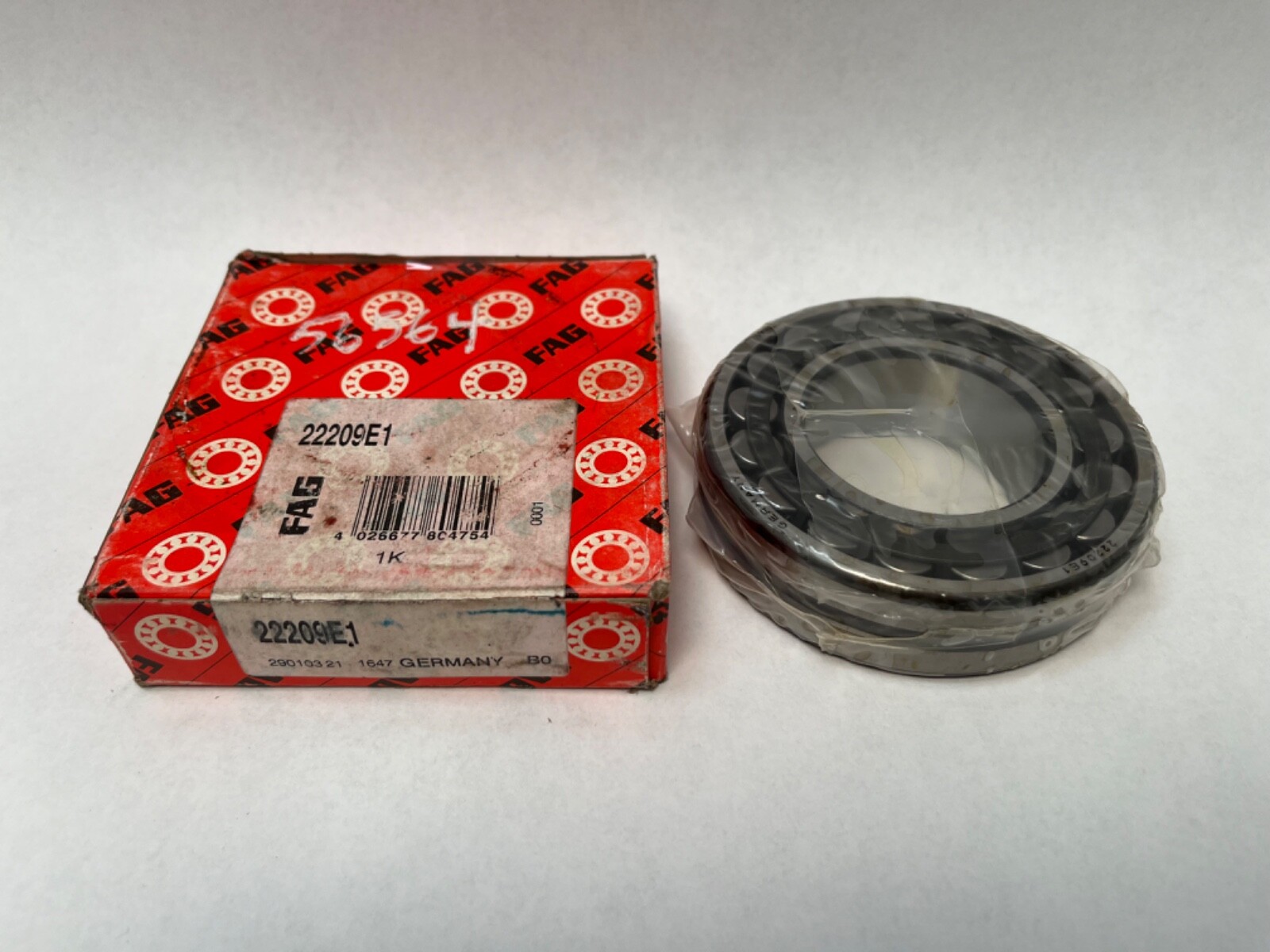

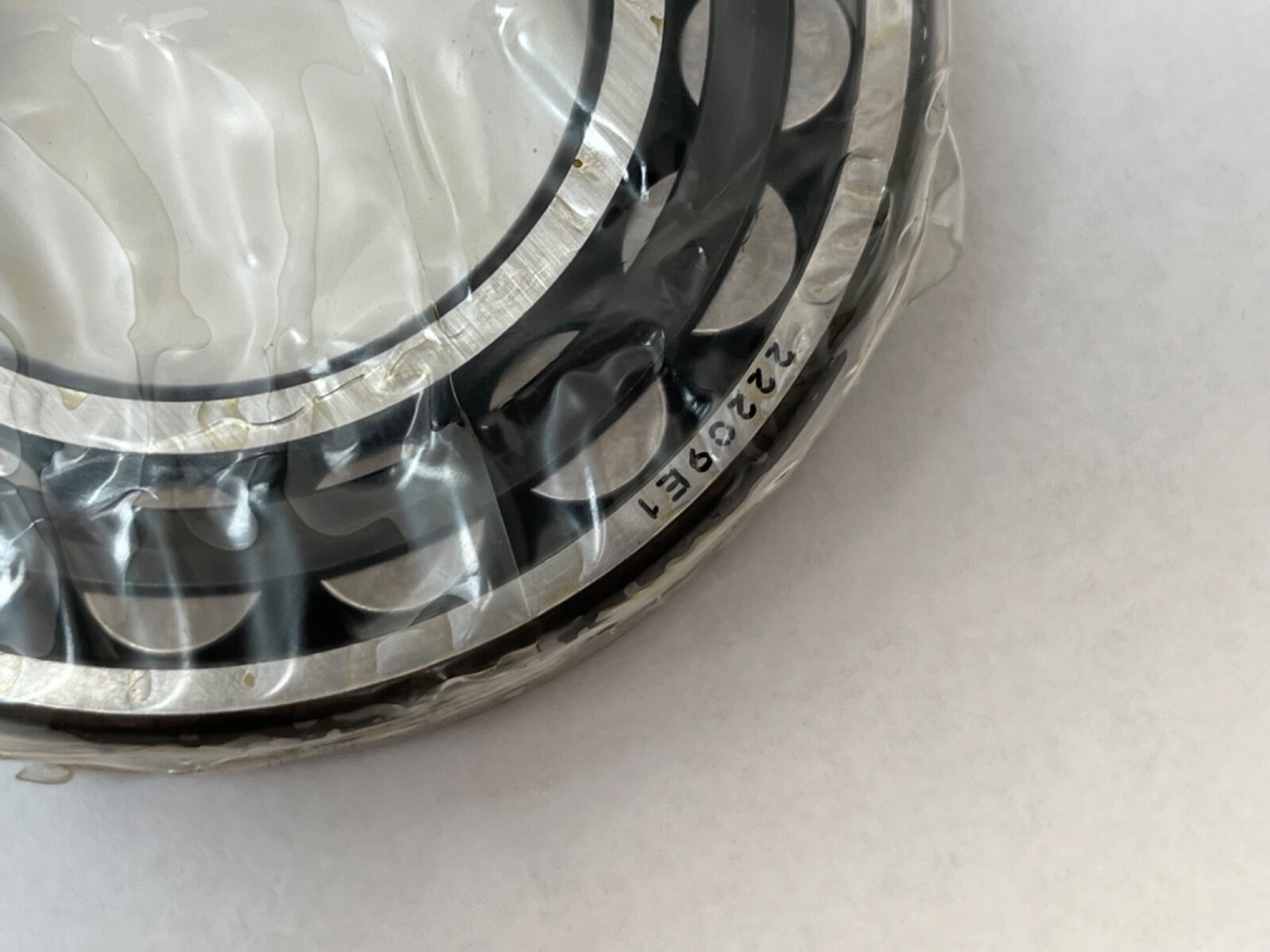

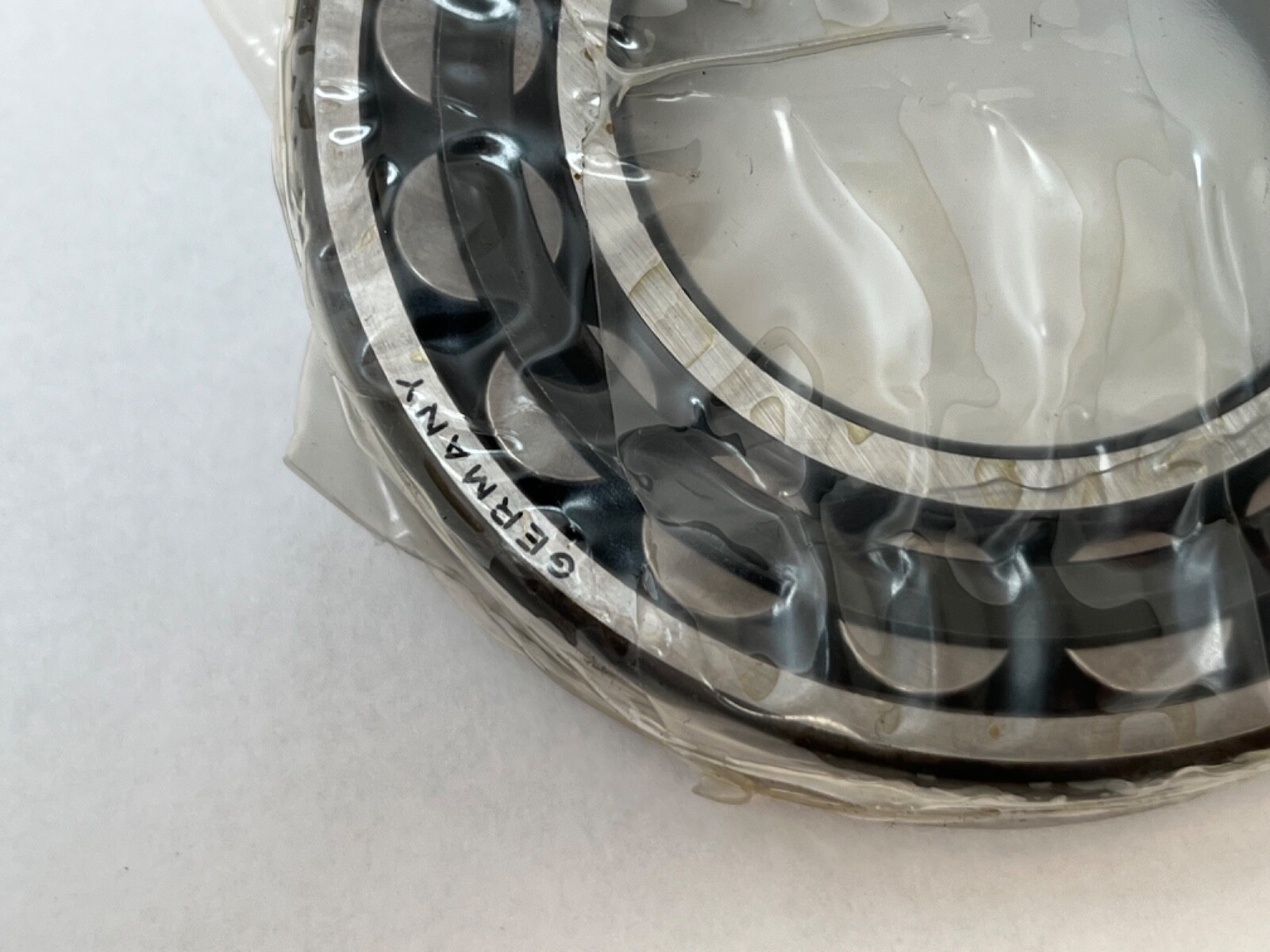

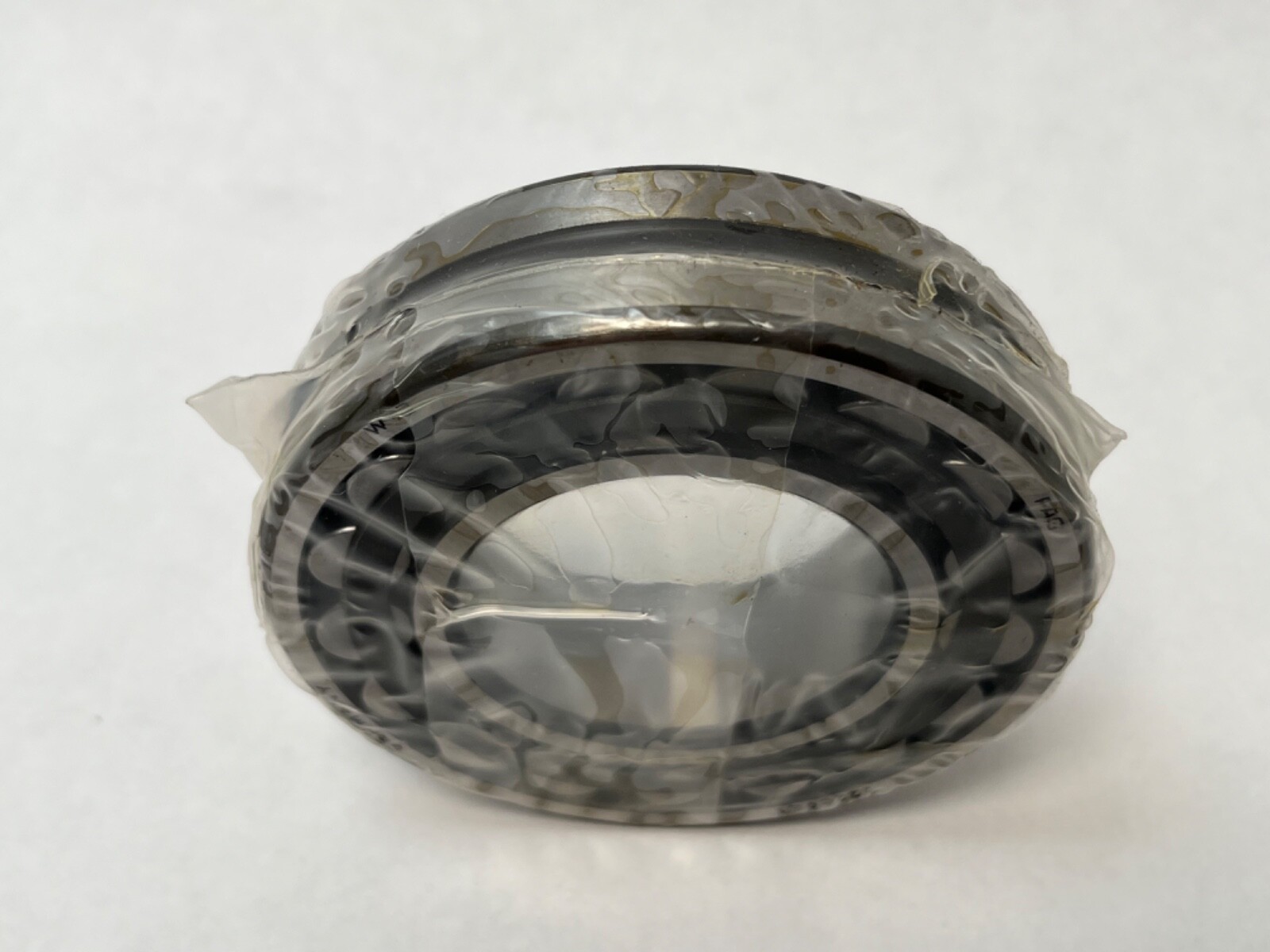

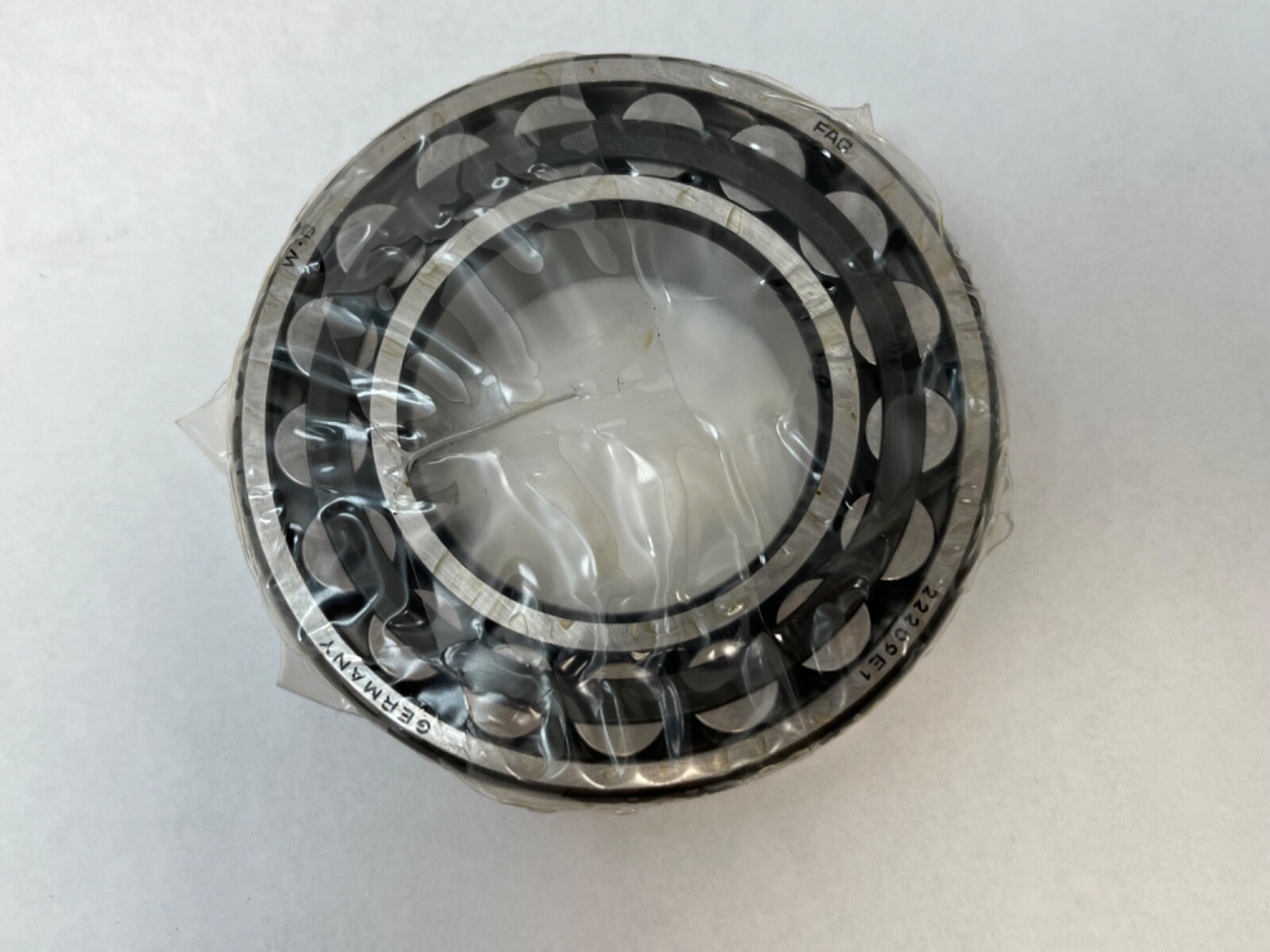

FAG22209-E1Spherical Roller Bearing – 45 mm ID, 85 mm OD, 23 mm Width, Cylindrical Bore, Steel Cage, Lubrication Groove, CN Clearance

Condition: New

Availability:

1 in stock

FAG 22209-E1 spherical roller bearing, 45 x 85 x 23 mm, cylindrical bore, steel cage, lubrication groove, normal clearance. Cr 104,000 N, C0r 99,000 N.

List Price

$43.99

1 in stock

Prefer eBay? Buy this item on our store (opens in a new tab)

Small green outline icon of a shipping box with a clock, indicating delivery time
Availability

1 in stock

On the Shelf & Ready to Ship

Green shield badge reading "Same-Day Shipping" with box and delivery truck icons
Free US Shipping

Ships same day by 6pm ET

Green shield icon with box and arrow graphic labeled "Free Returns"
Free Returns

No Risk, No Hassle

Specifications

Key Specifications

MFR / BrandFAG
MPN22209-E1
GTIN4026677804754
Model22209-E1
Bearing TypeSpherical Roller Bearing, Open
ID45 mm
OD85 mm
Width23 mm

Technical Specifications

Industry Termsspherical roller bearing, self-aligning roller bearing, double row roller bearing, W33 groove
Overall Width23 mm
Mpn Variants22209-E1, 22209E1, 22209-E1-W33, 22209E1W33, 22209 E1 W33, 22209-E1-XL
Compatible With ReplacesCurrent FAG designation: 22209-E1-XL
Additional AttributesFatigue limit load Cu: 13,000 N; Reference speed: 5,600 rpm; Lubrication hole ds: 3.2 mm; Groove width ns: 4.8 mm; da: 52 mm; Da: 78 mm; r min: 1.1 mm
Min Temp-30 °C
Dynamic Load Rating104,000 N
Static Load Rating99,000 N
Series222
Rolling ElementsSpherical Roller
Max Temp200 °C
Item Weight0.562 kg (1.24 lb)
Cage MaterialPressed steel
Number Of Rows2
Bore TypeStraight
Snap Ring IncludedNo
Limiting Speed10,100 rpm
Internal ClearanceCN
LubricantGrease or oil
Relubrication FeatureLubrication groove and holes in outer ring
Harmonization Code8482.30
Closure TypeOpen

Cross-References

Cross Reference 1SKF 22209 E
Cross Reference 2NSK 22209EAE4
Cross Reference 3Timken 22209EJW33
Cross Reference 4NTN 22209EAW33
Cross Reference 5Koyo 22209RHRW33
Seller Part Number: B-AP2B4#XY85HD

Product Description

What this part is:

FAG 22209-E1 double-row spherical roller bearing with cylindrical bore, sheet steel cage, lubrication groove and holes in the outer ring, and normal clearance. Current FAG designation: 22209-E1-XL. Bore Diameter: 45 mm. Outside Diameter: 85 mm. Overall Width: 23 mm. GTIN: 4026677804754. Unit Quantity: 1 Pc.

Decoding the designation:

222 — spherical roller bearing, ISO dimension series 22.

09 — bore code, 45 mm.

E1 — FAG increased-capacity internal design, lubrication groove and holes in the outer ring.

Specifications:

Dynamic Load Rating: 104,000 N. Static Load Rating: 99,000 N. Fatigue Limit Load: 13,000 N. Limiting Speed: 10,100 rpm. Reference Speed: 5,600 rpm. Item Weight: 0.562 kg (1.24 lb). Operating Temperature: -30 °C to 200 °C. Rolling Elements: Spherical Roller. Number Of Rows: 2. Internal Clearance: CN. Cage Material: Pressed steel. Lubricant: grease or oil, fed through the outer-ring groove and holes.

Dimensions and mounting:

Chamfer r min: 1.1 mm. Fillet ra max: 1 mm. Shaft Abutment da: 52 mm. Housing Abutment Da: 78 mm. Lubrication Hole Diameter ds: 3.2 mm. Lubrication Groove Width ns: 4.8 mm.

Compatibility and replacement:

Cross-references, normal clearance: SKF 22209 E, NSK 22209EAE4, Timken 22209EJW33, NTN 22209EAW33, Koyo 22209RHRW33. Current FAG designation: 22209-E1-XL. MPN Variants: 22209-E1, 22209E1, 22209-E1-W33, 22209E1W33, 22209 E1 W33, 22209-E1-XL.

Frequently asked questions:

What are the load ratings of the FAG 22209-E1?

Dynamic load rating 104,000 N and static load rating 99,000 N (Schaeffler, 22209-E1-XL).

What is the GTIN of the FAG 22209-E1?

4026677804754.

What is the current FAG designation for the 22209-E1?

22209-E1-XL.
