RHPSpherical Roller Bearing – Tapered 1:12 Bore, 90 mm ID, 160 mm OD, 40 mm Width, Open, W33 Lubrication Groove, C3 Internal Clearance.

Product Description

What this part is

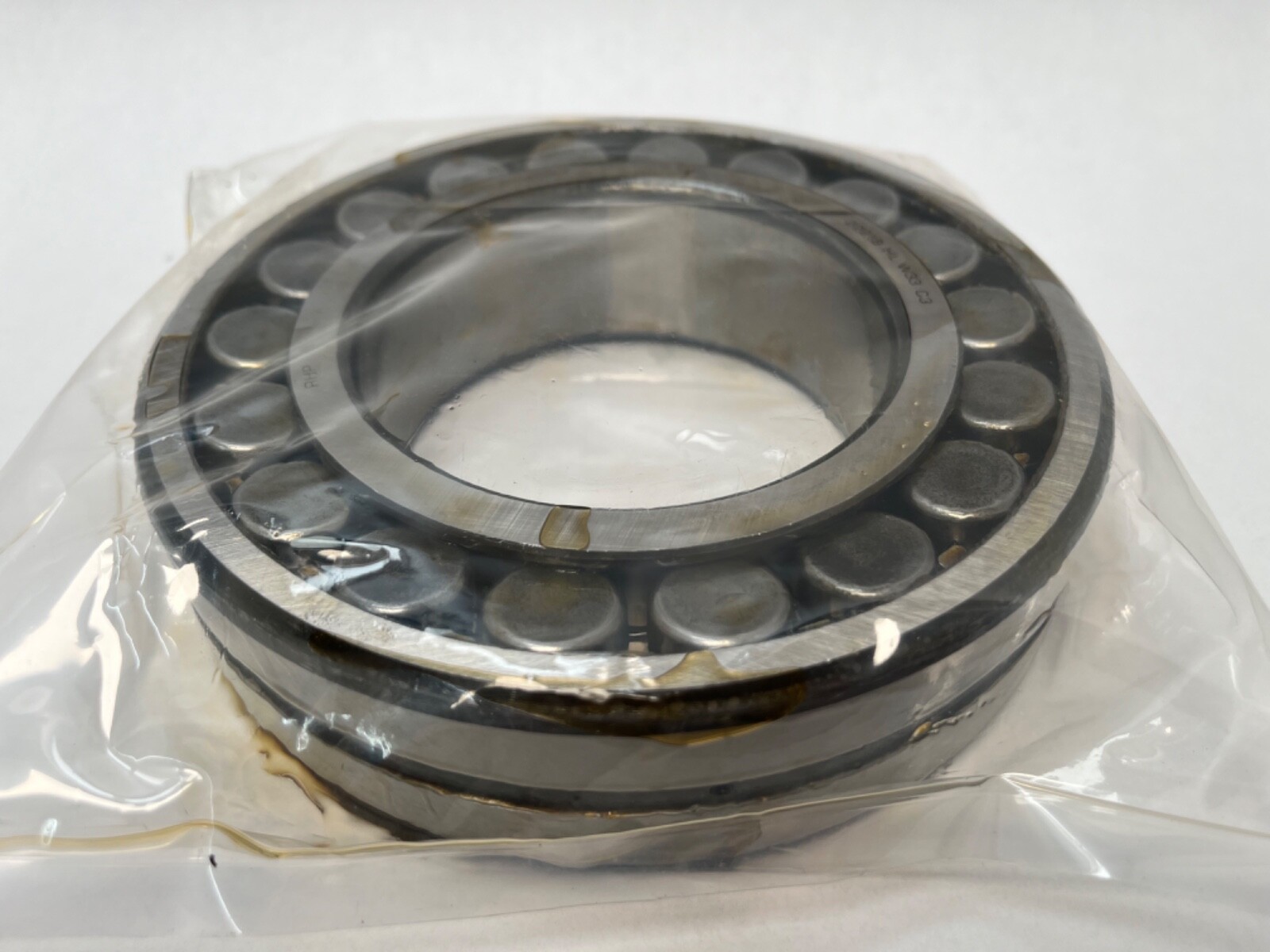

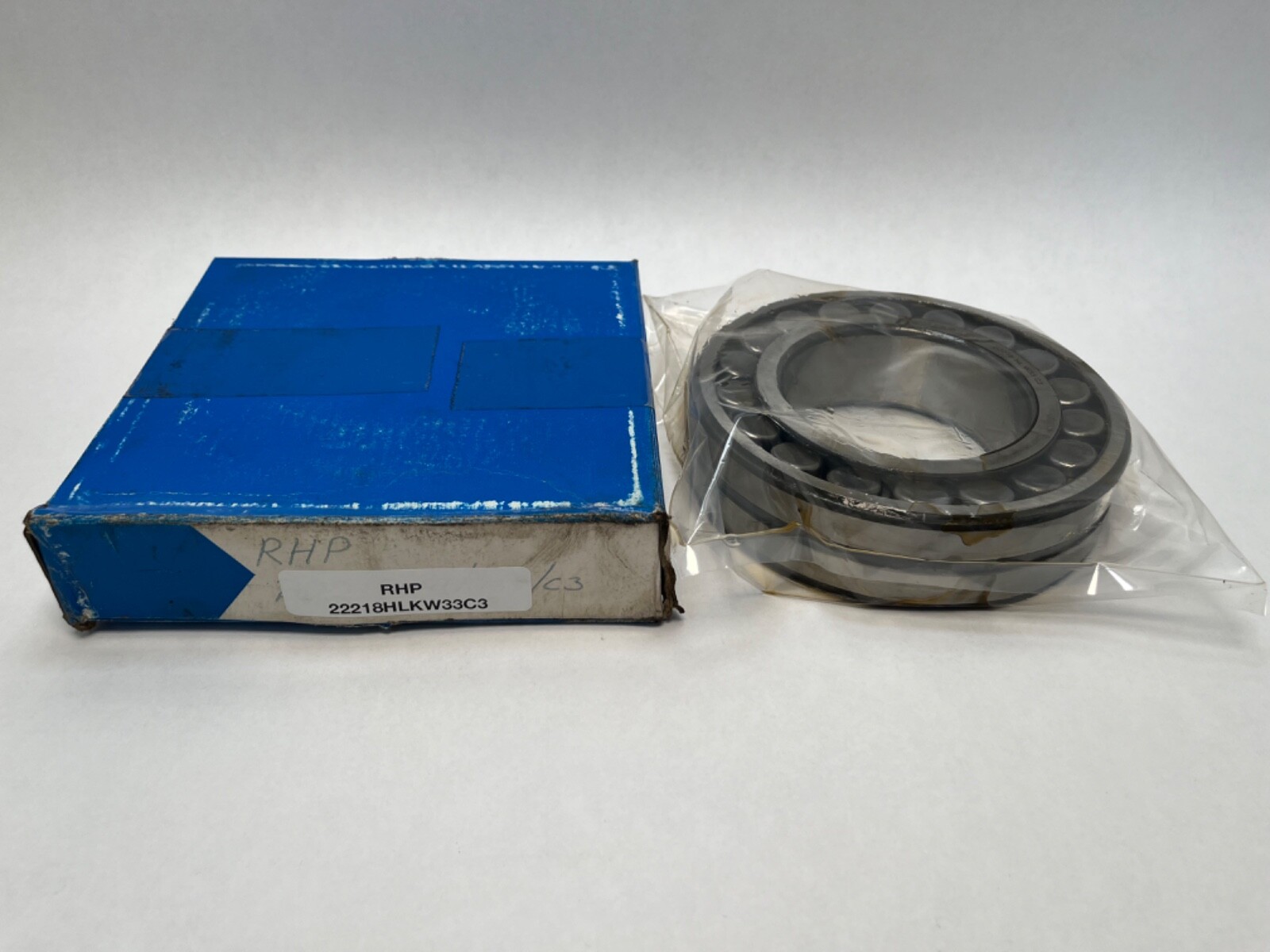

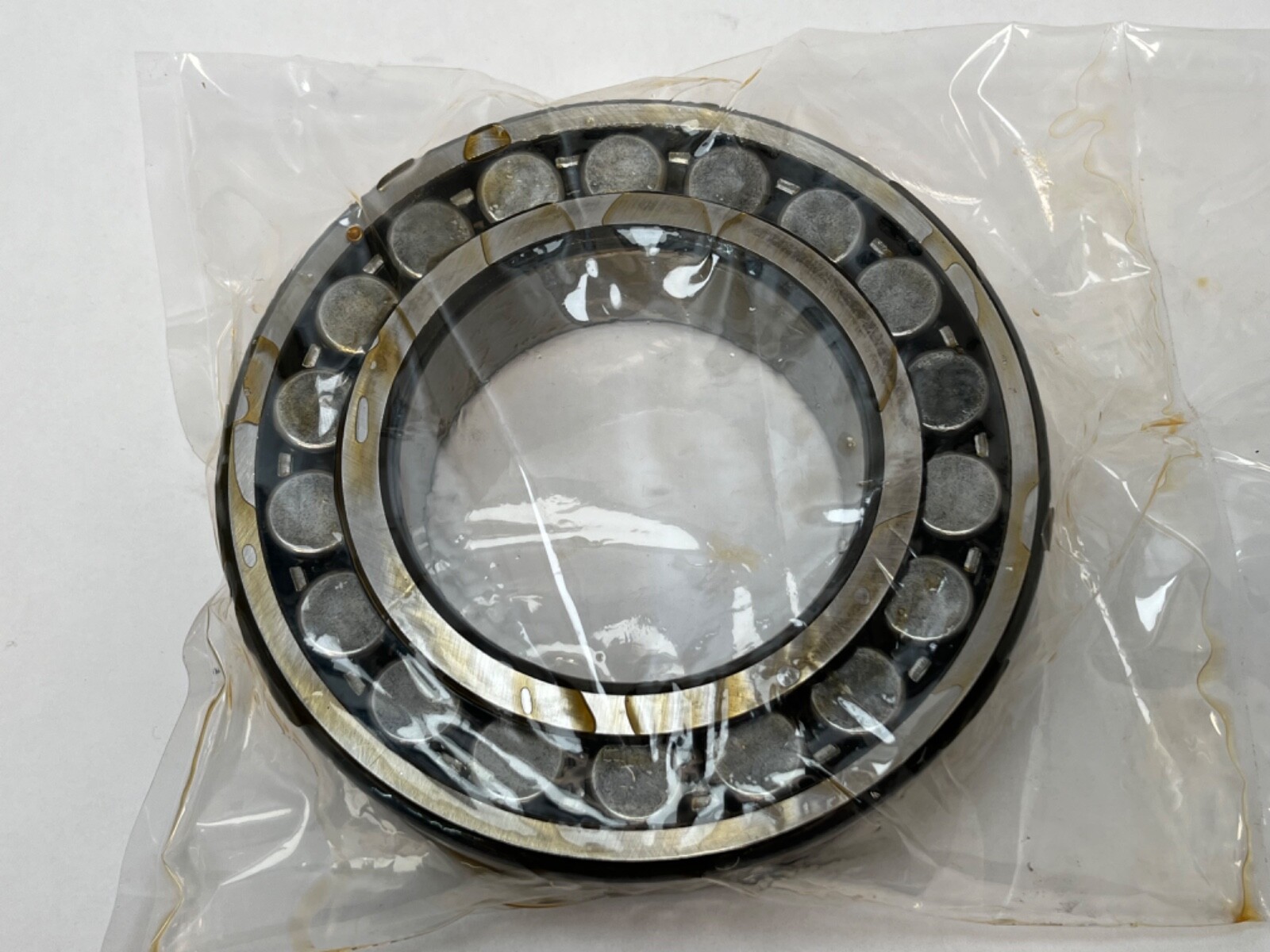

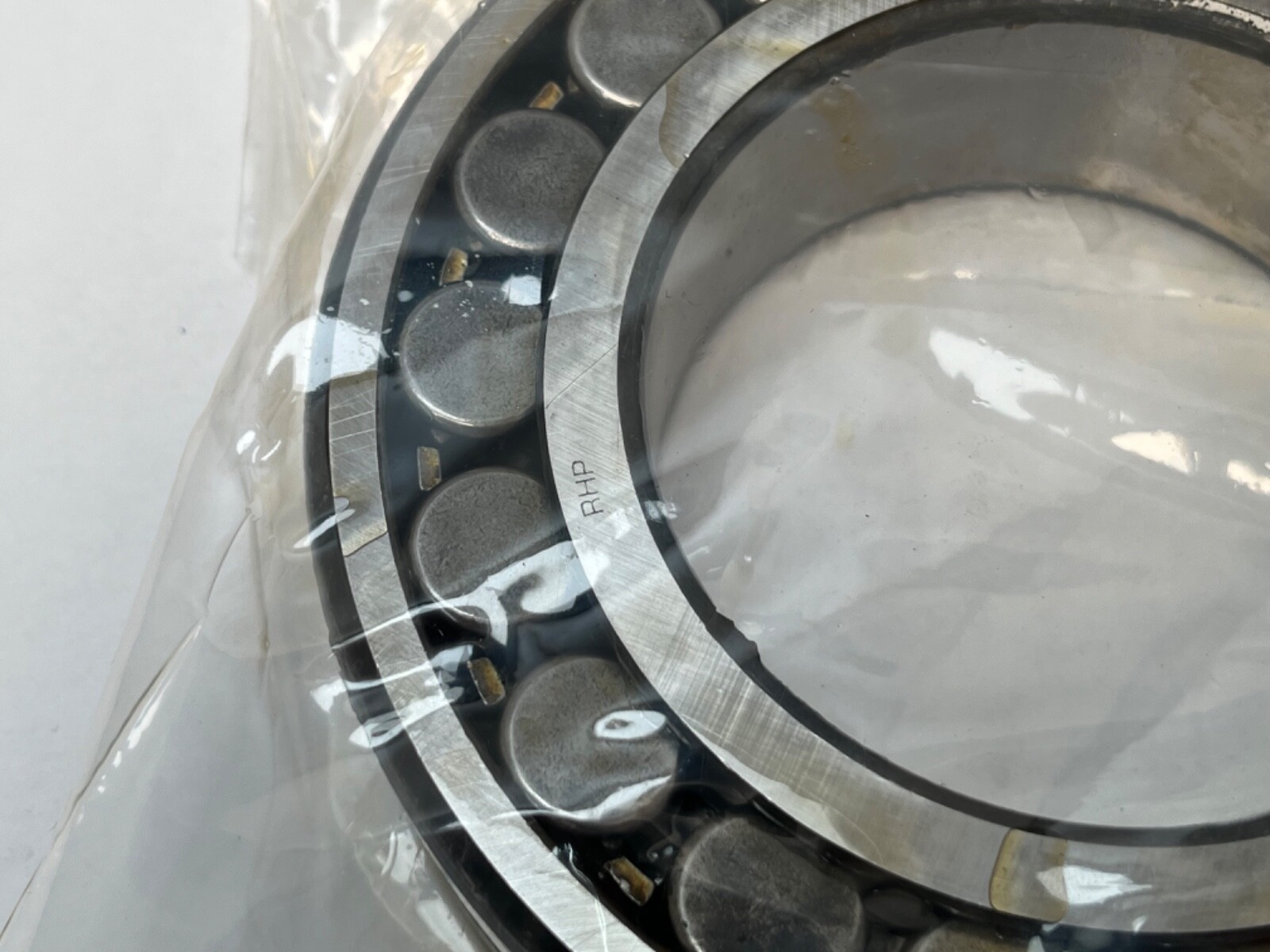

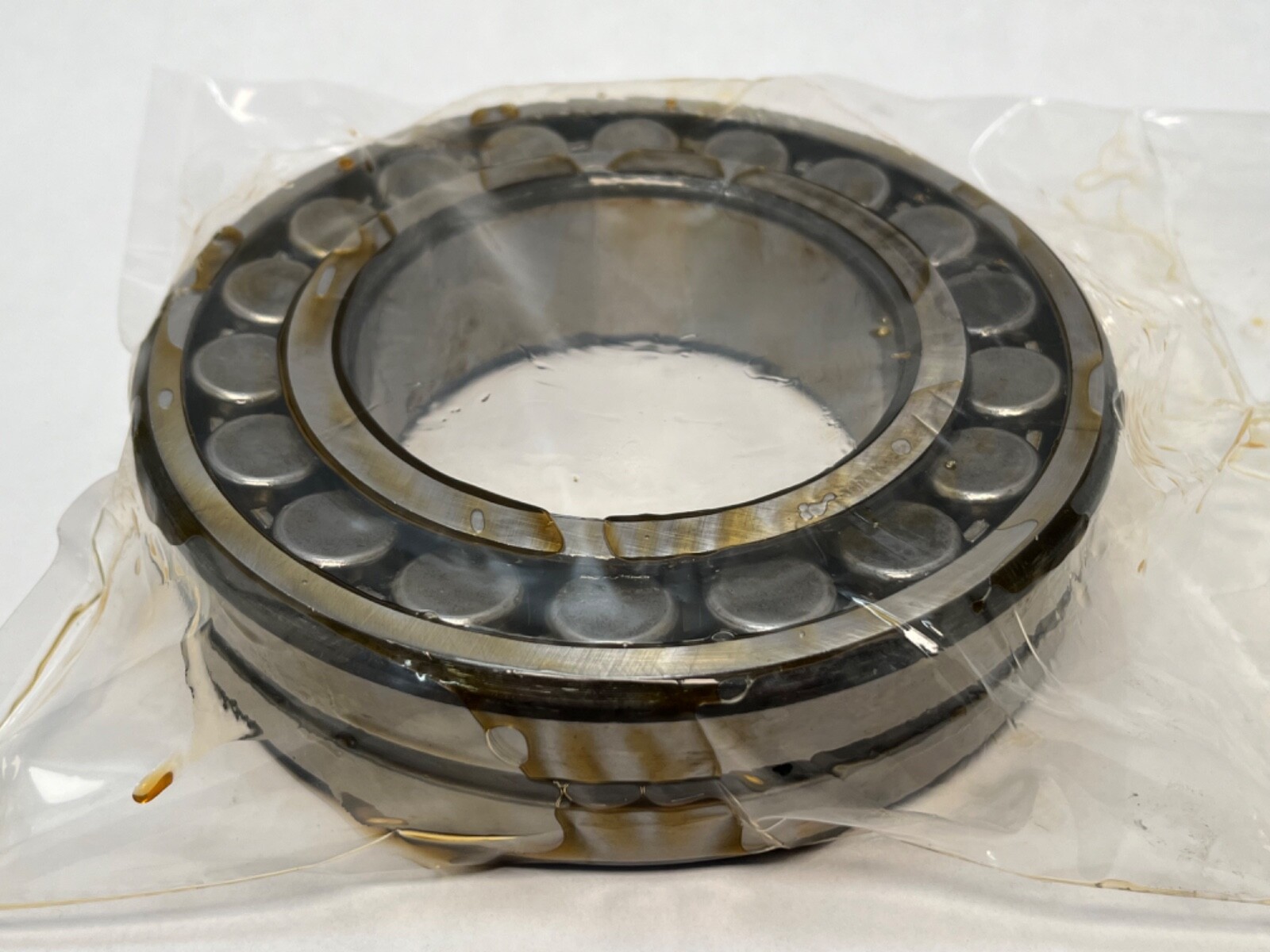

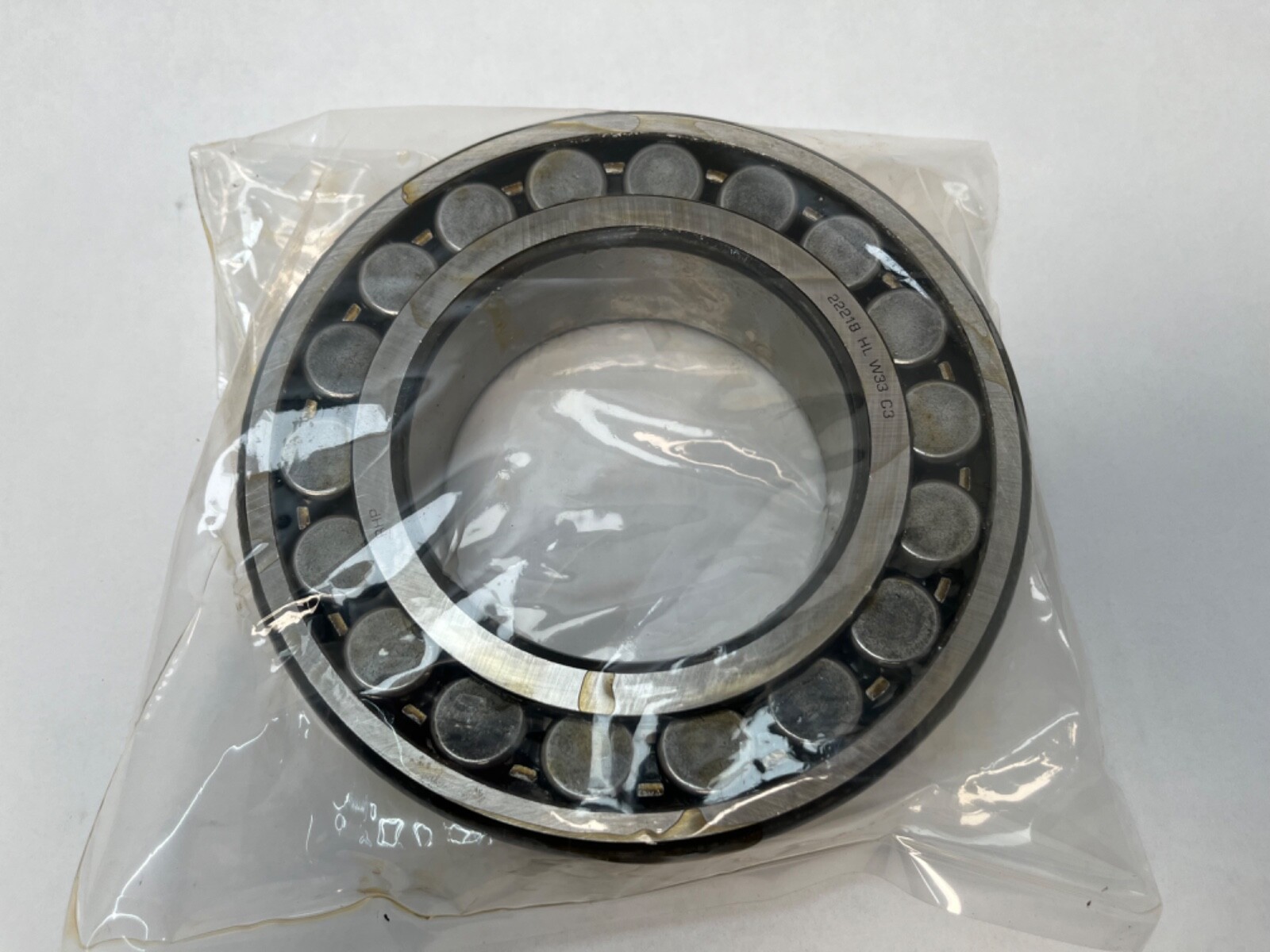

RHP 22218HLKW33C3 double-row spherical roller bearing. Series: 22200. Bore: 90 mm. Outside Diameter: 160 mm. Overall Width: 40 mm. Bore Type: Tapered, 1:12. Number Of Rows: 2. Rolling Elements: Spherical Rollers. Bearing Material: Chrome bearing steel. Closure Type: Open. Internal Clearance: C3. Precision Class: P0. Precision Rating: ABEC 1.

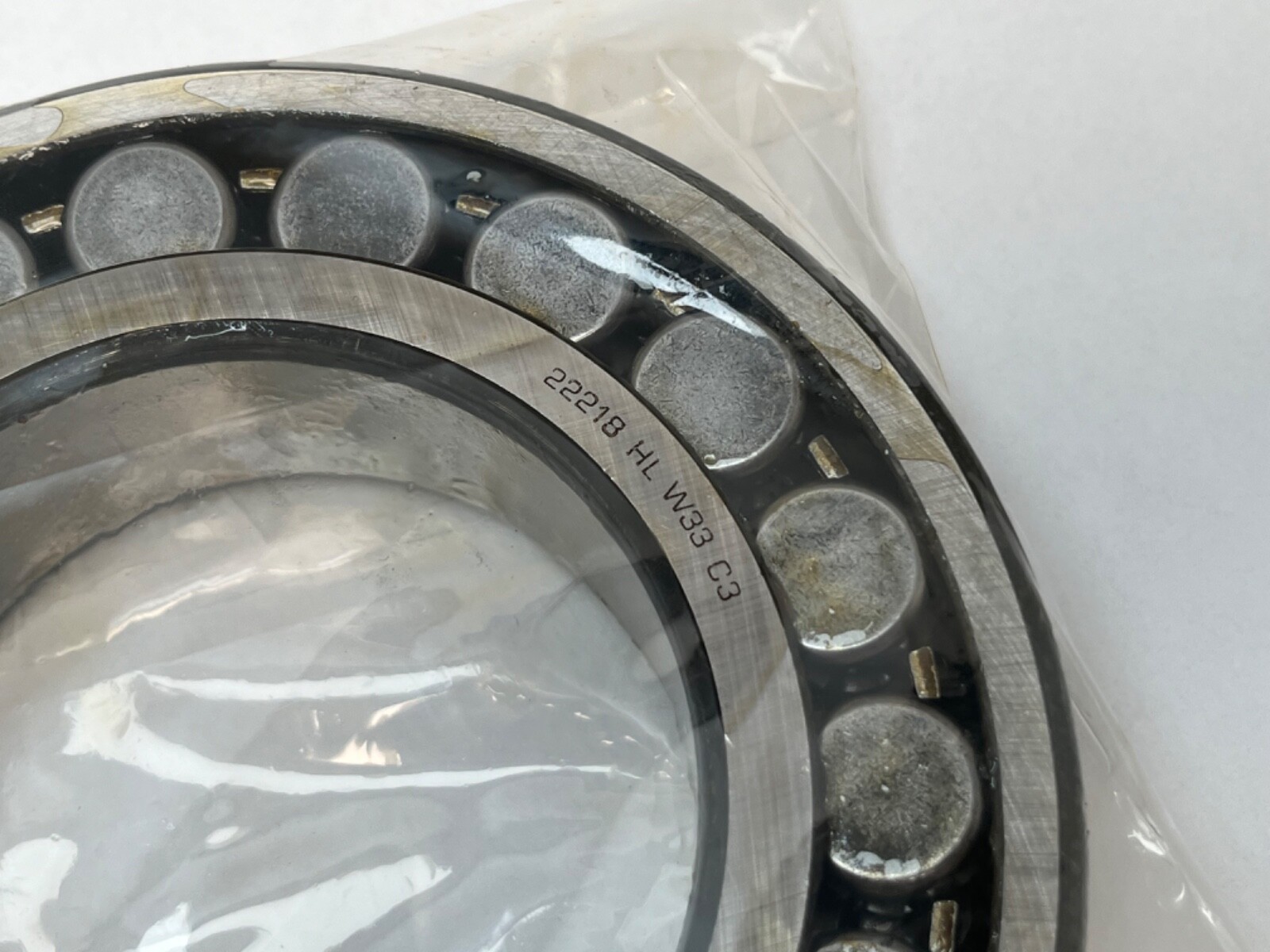

Decoding the designation

K: a 1:12 tapered bore. W33: an annular lubrication groove machined into the outer ring outside diameter with three radial feed holes running inward to the rolling elements. C3: internal radial clearance greater than normal. Cage Type: Pressed, window type. Cage Material: Pressed steel.

What these specs mean in practice

Dynamic Load Rating: 339 kN / 76,209 lbf. Static Load Rating: 406 kN / 91,271 lbf. Limiting Speed: 3,400 rpm on oil and 2,600 rpm on grease. Two rows of barrel rollers run on a common spherical raceway in the outer ring, so the bearing carries very high radial load, takes thrust in both directions, and accommodates shaft misalignment and housing deflection without concentrating stress at the roller ends. The C3 clearance leaves room for the interference generated when the inner ring is driven up the sleeve taper, and for thermal growth of the shaft in service. Max Temp: 200°C.

Lubrication

Lubricant: grease or oil. The W33 groove distributes lubricant circumferentially around the outer ring and its three radial holes carry it inward to both roller rows. The same passages serve a grease gun, an automatic single-point lubricator, a centralised grease system, or circulating-oil and oil-mist feed.

Bore form and mounting

The 1:12 tapered bore mounts on an H318 adapter sleeve, whose tapered outside diameter is 90 mm and whose shaft seat is 80 mm. The sleeve is secured with a KM18 locknut and an MB18 lockwasher. Driving the inner ring up the taper sets the operating clearance, which is why the bearing is supplied at C3 rather than normal clearance. The tapered bore also allows the bearing to be positioned anywhere along a plain shaft rather than against a machined seat.

Quantity and configuration

Unit Quantity: 1 Pc. Item Weight: 7.50 lbs.

Interchange guidance

Cross-Reference 1: SKF 22218 EK/C3. Cross-Reference 2: Timken 22218KEJW33C3. Cross-Reference 3: FAG 22218-E1-XL-K-C3. Each is a 90 x 160 x 40 mm, 1:12 tapered-bore, W33-grooved double-row spherical roller at C3 clearance. A plain 22218 without the K carries a straight bore, mounts directly on the shaft and is a related size rather than a direct substitution.

Searchable variants

22218HLKW33C3, 22218-HL-K-W33-C3, 22218 HL K W33 C3, 22218J, 22218KW33C3, 22218C, 22218CC, 22218CJ, 22218CCJ. Harmonization Code: 8482.30.00.
