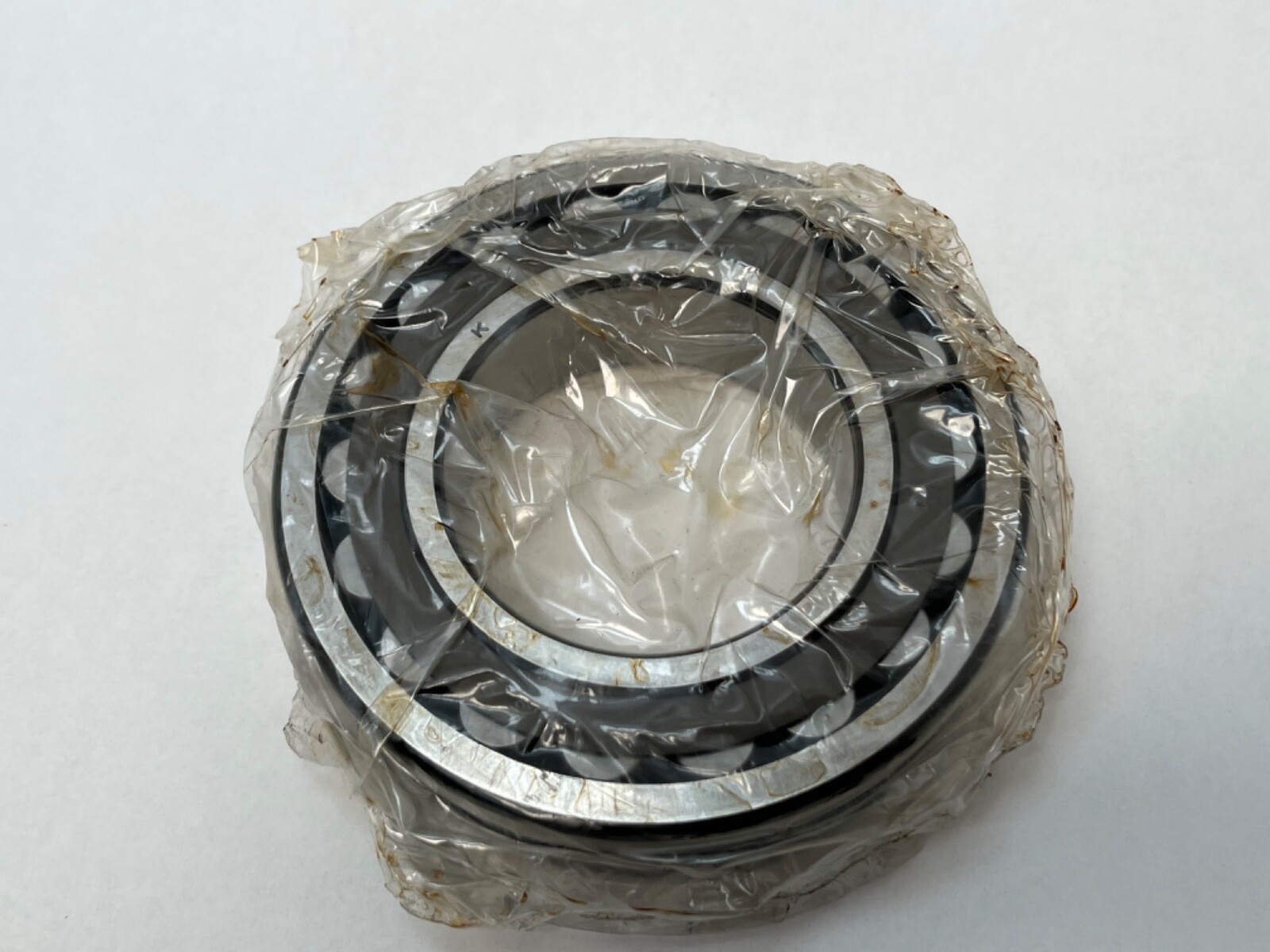

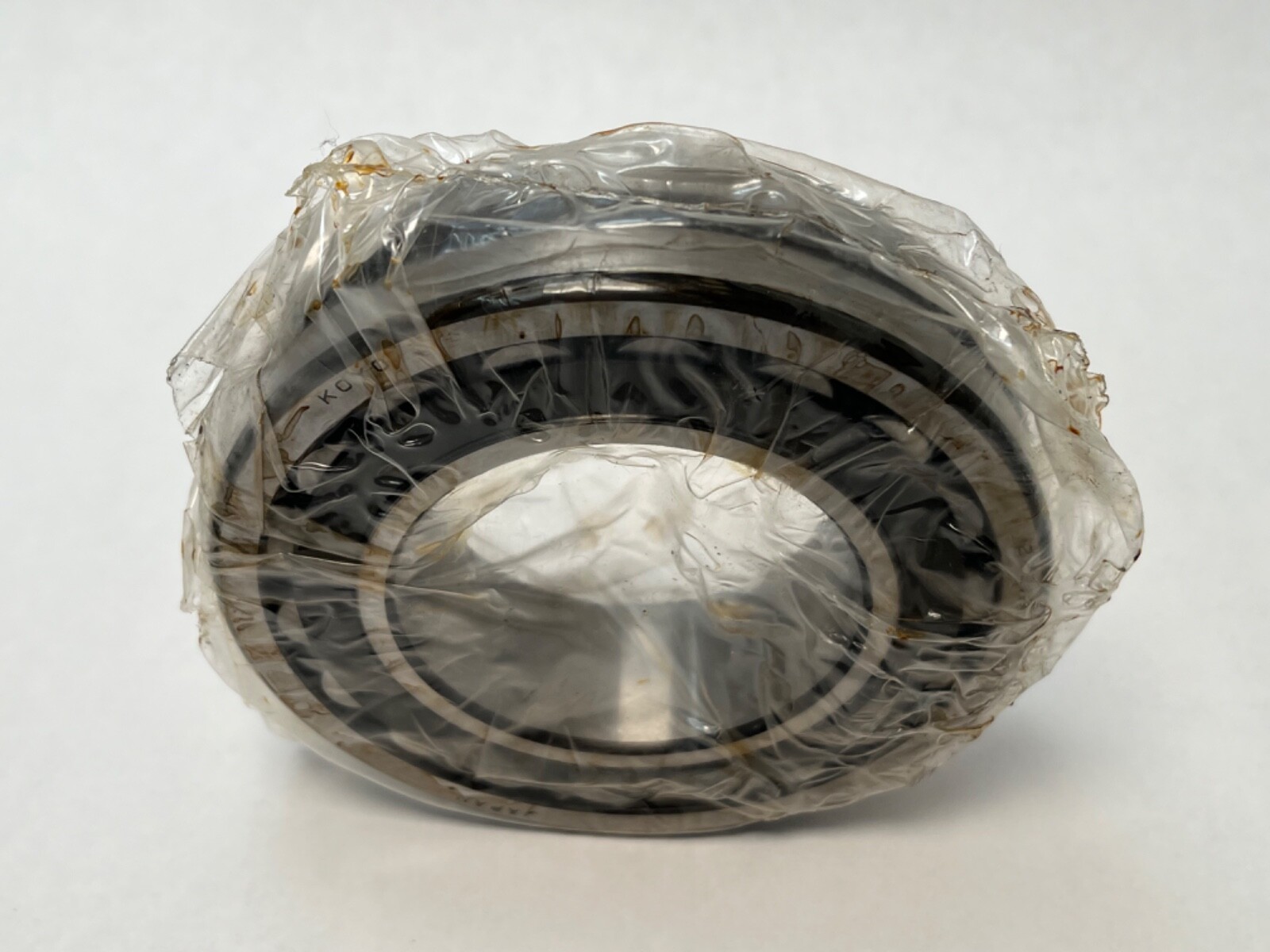

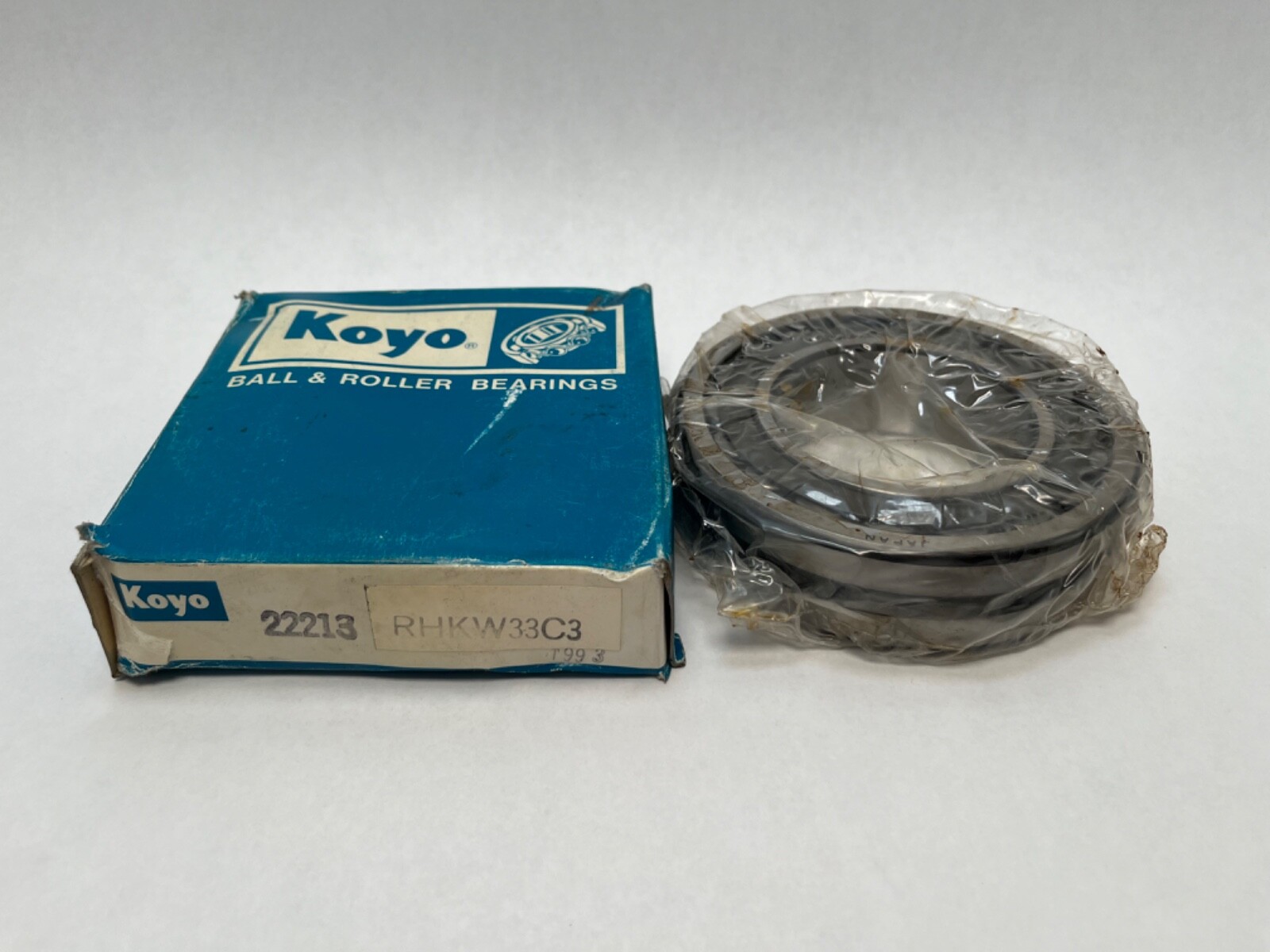

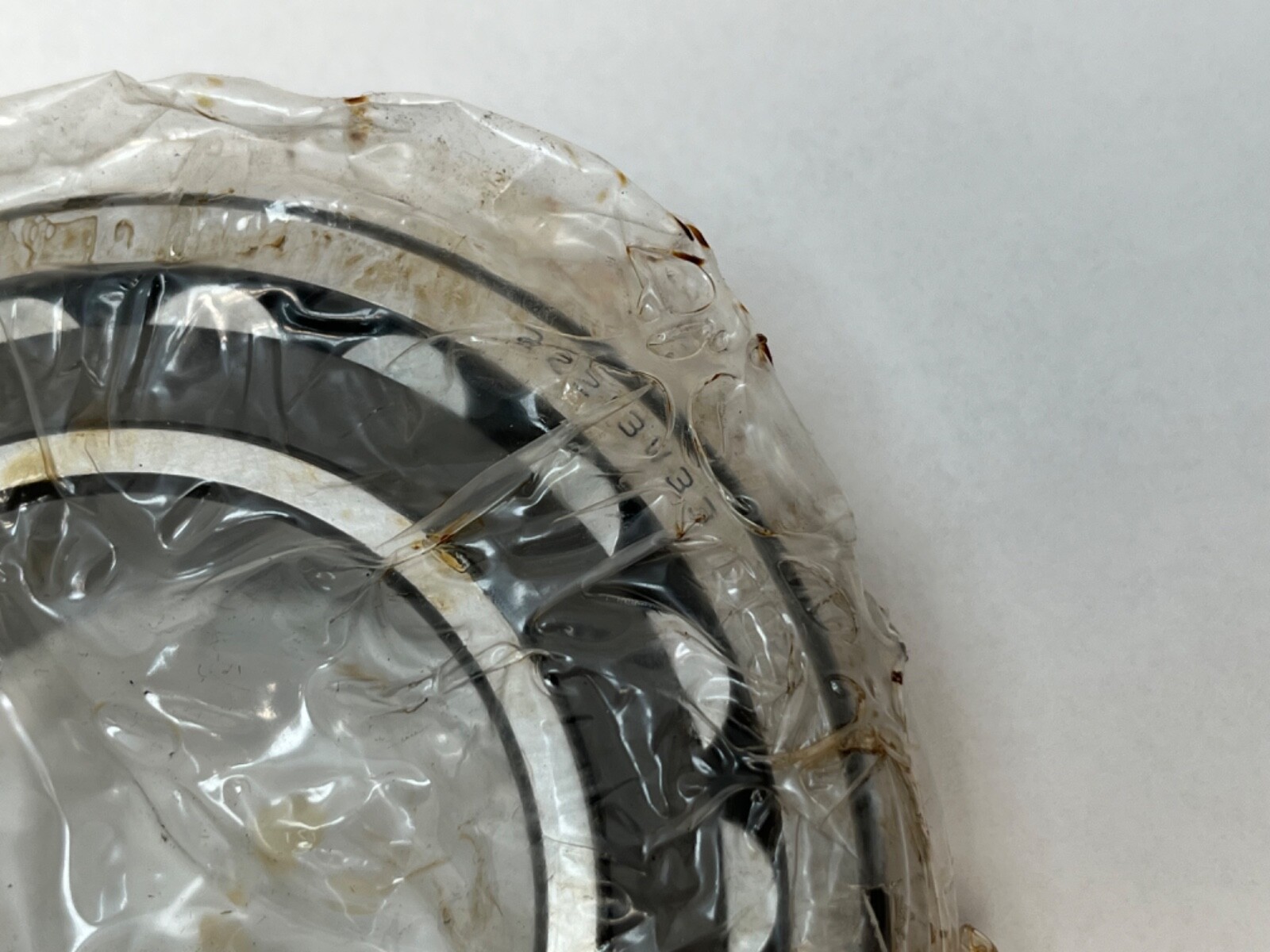

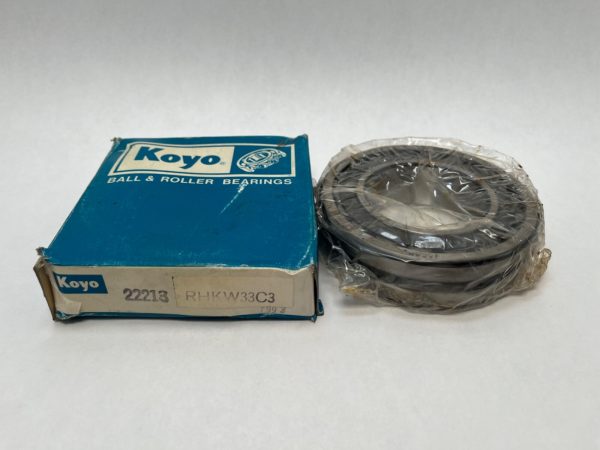

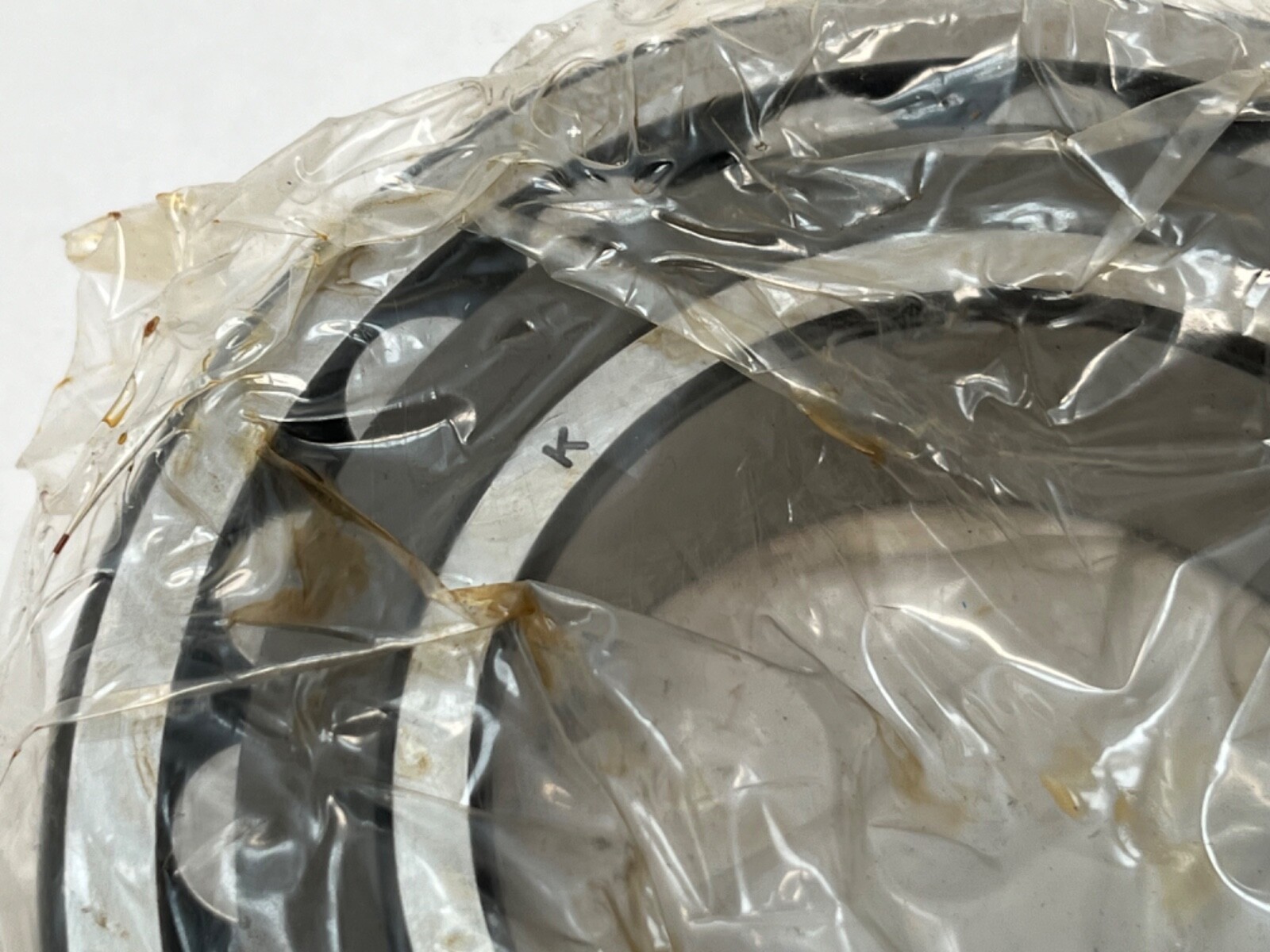

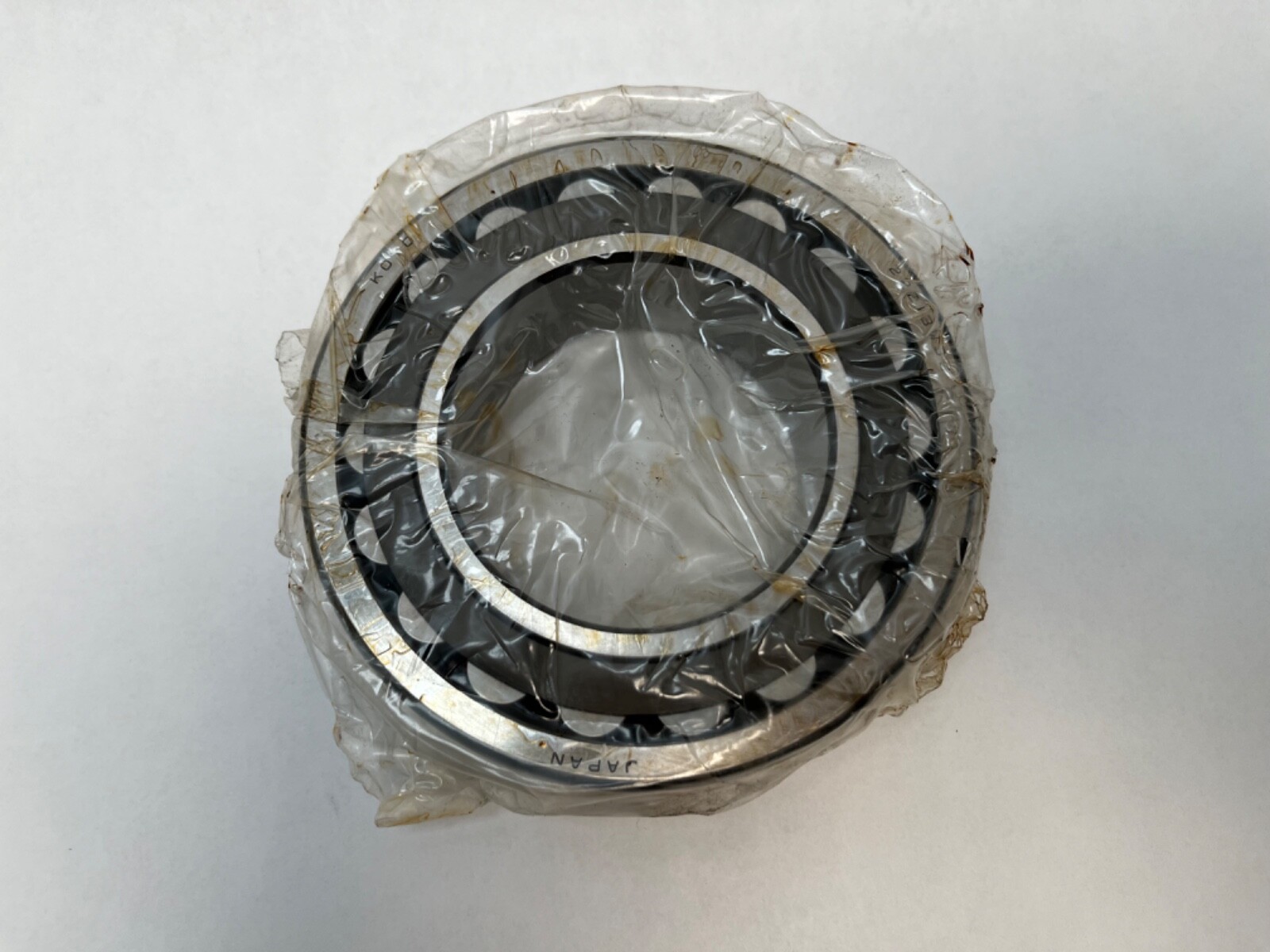

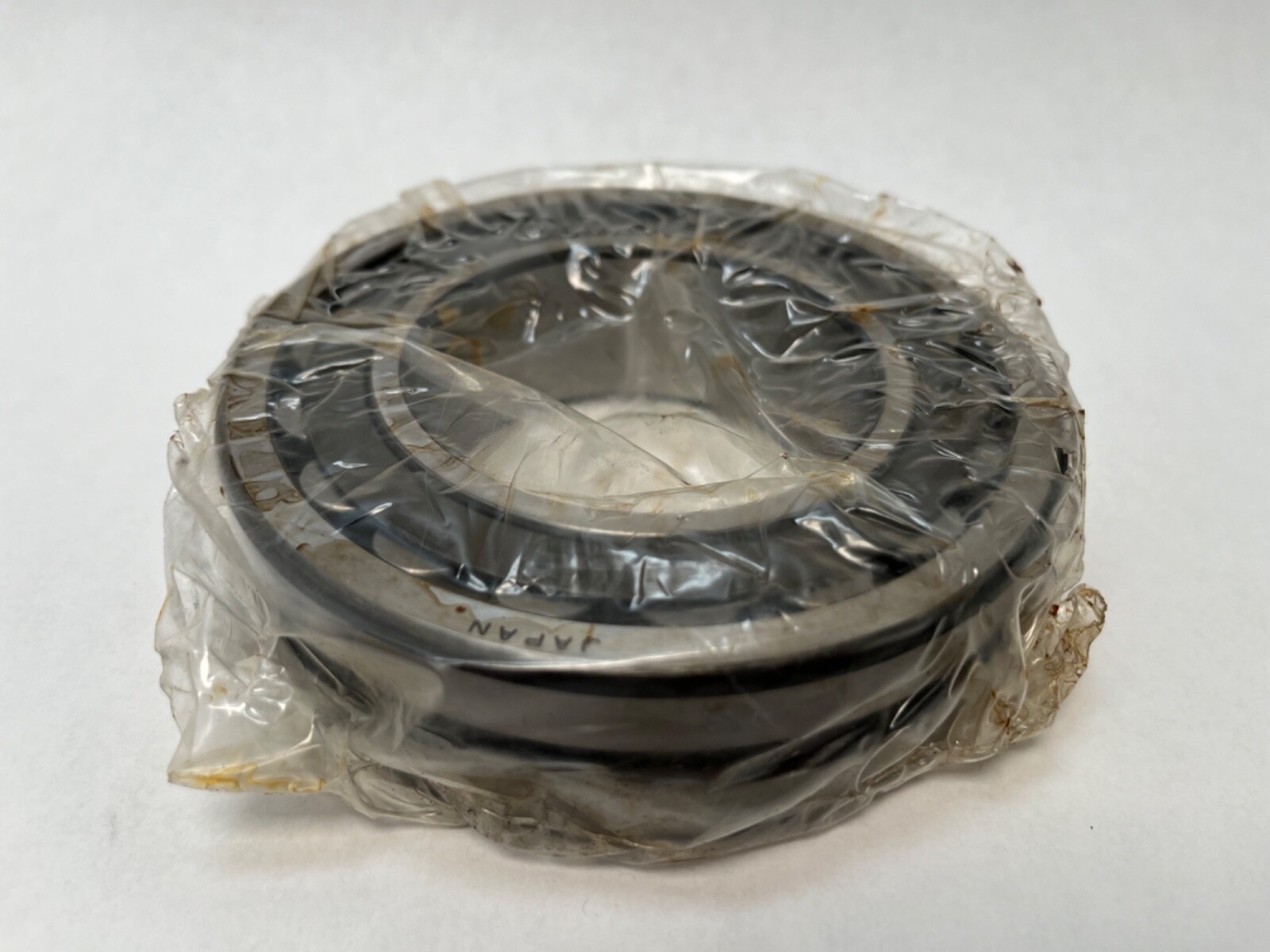

Koyo 22213RHKW33C3 spherical roller bearing, 65 mm tapered bore (1:12), 120 mm OD, 31 mm width, W33 groove, C3 clearance, pressed steel cage. Fits H313 sleeve.
List Price
$59.02
4 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | Koyo |
|---|---|
| MPN | 22213RHKW33C3 |
| Model | 22213-RH-K-W33-C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 65 mm |
| OD | 120 mm |
| Width | 31 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Lubricant | grease or oil |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered 1:12 |
| Snap Ring Included | No |
| Harmonization Code | 8482.30.00 |
| Internal Clearance | C3 |
| Relubrication | W33 groove and three holes in outer ring |
| Mpn Variants | 22213RHKW33C3, 22213 RH K W33 C3, 22213-RH-K-W33-C3, 22213CK, 22213CCK, 22213CKJ, 22213CCKJ |
| Compatible With Replaces | Mounts on H313 adapter sleeve (KM13 locknut, MB13 washer) |
| Industry Terms | spherical roller bearing 65x120x31; 22213 tapered bore spherical bearing; self-aligning roller bearing; W33 spherical roller bearing; 65 mm bore spherical roller |
| Common Misspellings | Koyo 22213 RHK W33 C3; Koyo 22213RHKW33 C3; Koyo 22213RKW33C3; KOYO 22213-RHK-W33C3; Koy 22213RHKW33C3 |
| Application Types | Gearboxes; industrial fans and blowers; pumps; conveyors; vibrating screens; general heavy machinery |
| Closure Type | Open |
| Cross Reference 1 | SKF 22213 EK |
|---|---|
| Cross Reference 2 | FAG 22213-E1-K |
| Cross Reference 3 | NSK 22213EAKE4 |
Koyo 22213RHKW33C3 double-row spherical roller bearing in the 22200 series with a 1:12 tapered bore and a lubrication groove in the outer ring. The spherical outer raceway lets the bearing self-align. Unit Quantity: 1 Pc.
22213 — 222 series spherical roller bearing, bore code 13 = 65 mm bore, 120 mm OD, 31 mm width.
RH — Koyo RH-type internal design: symmetrical rollers with pressed steel cages.
K — tapered bore, taper 1:12.
W33 — lubrication groove and three lubrication holes in the outer ring.
C3 — radial internal clearance greater than normal.
Series: 22200. Number Of Rows: 2. Rolling Elements: Spherical Roller. Cage Material: Pressed steel. Internal Clearance: C3. Bore Type: Tapered 1:12. Closure Type: Open. Lubricant: grease or oil. The W33 groove distributes lubricant around the outer ring; three radial holes carry it to the rollers.
Bore Diameter: 65 mm (large end of taper). Outside Diameter: 120 mm. Overall Width: 31 mm. The tapered bore mounts on an H313 adapter sleeve (55 mm shaft seat) with KM13 locknut and MB13 lock washer.
SKF 22213 EK, FAG 22213-E1-K and NSK 22213EAKE4 share the 65 x 120 x 31 mm envelope and 1:12 tapered bore. NSK 22213EAKE4 carries the E4 groove-and-holes execution.
Bore Diameter: 65 mm at the large end of the 1:12 taper. Outside Diameter: 120 mm. Overall Width: 31 mm.
W33: lubrication groove and three lubrication holes in the outer ring.
H313 adapter sleeve (55 mm shaft seat), with KM13 locknut and MB13 lock washer.
