FAG 22216ASK.MB.C3 double-row spherical roller bearing, 80x140x33 mm, 1:12 tapered bore, machined brass cage, C3 clearance, lubrication groove. Sold as 1 Pc.
List Price
$70.33
2 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22216ASK.MB.C3 |
| Model | 22216A S K MB C3 22216C3 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 80 mm |
| OD | 140 mm |
| Width | 33 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Lubricant | Grease or oil |
| Base Number | 22216 |
| Industry Terms | Spherical roller bearing; self-aligning roller bearing; tapered bore spherical roller; adapter sleeve mount bearing; brass cage spherical roller; W33 relubricatable; SRB |
| Common Misspellings | 22216ASK MB C3; 22216 ASKMBC3; 2216ASKMBC3; 22216ASK-MB-C3; FAG 22216 AS KMB C3; 22216ASMBC3 |
| Application Types | Conveyor pulleys and idlers, gearboxes and speed reducers, fans and blowers, crushers and vibrating equipment, paper machine rolls, pumps |
| Bore Shaft Size | 80 mm, tapered 1:12 |
| Mpn Variants | 22216ASK.MB.C3; 22216ASKMBC3; 22216-AS-K-MB-C3; 22216 AS K MB C3; 22216AS.K.MB.C3; 22216ASKMB |
| Compatible With Replaces | H316 adapter sleeve; AH316 withdrawal sleeve |
| Cage Type | Two-piece, inner ring guided |
| Rolling Elements | Spherical Roller |
| Cage Material | Machined brass |
| Number Of Rows | 2 |
| Bore Type | Tapered Bore |
| Harmonization Code | 8482.30 |
| Internal Clearance | C3 |
| Part Number | 22216ASK.MB.C3 |
| Maximum Permissible Misalignment | 1.5° |
| Closure Type | Open |
| Cross Reference 1 | SKF 22216 CAK/C3W33 |
|---|---|
| Cross Reference 2 | NSK 22216 CAMKE4C3 |
| Cross Reference 3 | NTN 22216 EMKW33C3 |
| Cross Reference 4 | Timken 22216 KEMW33C3 |

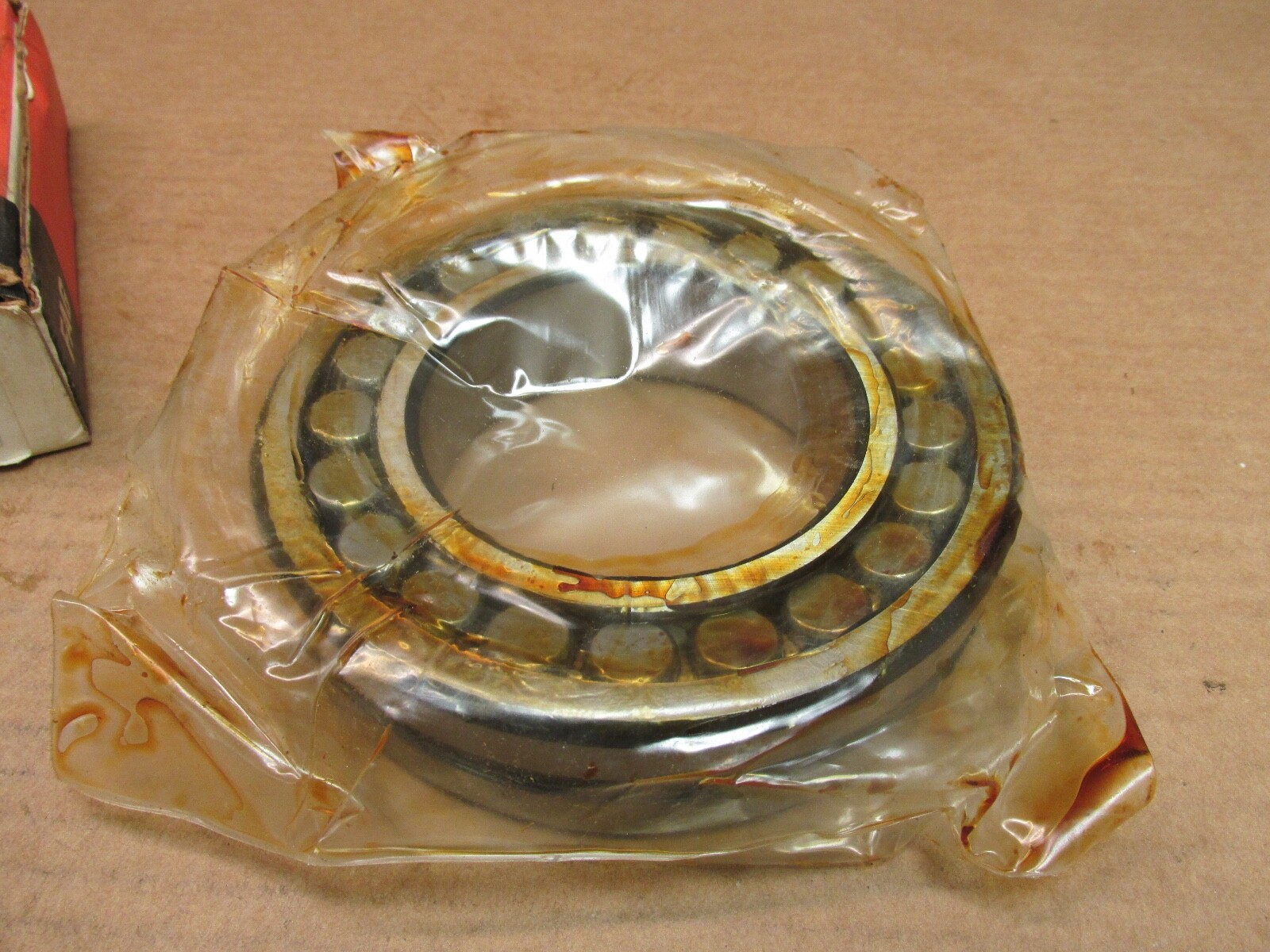

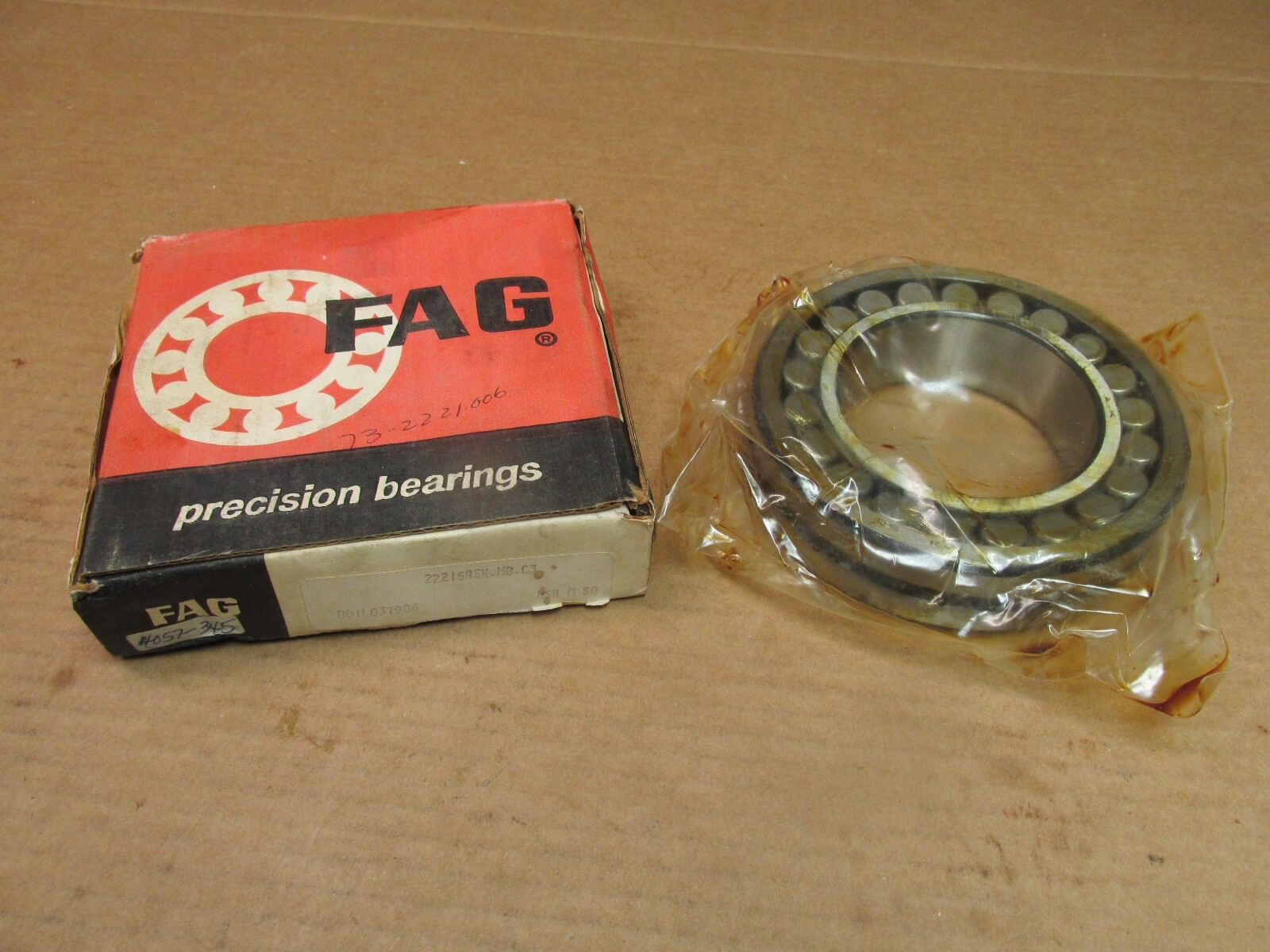

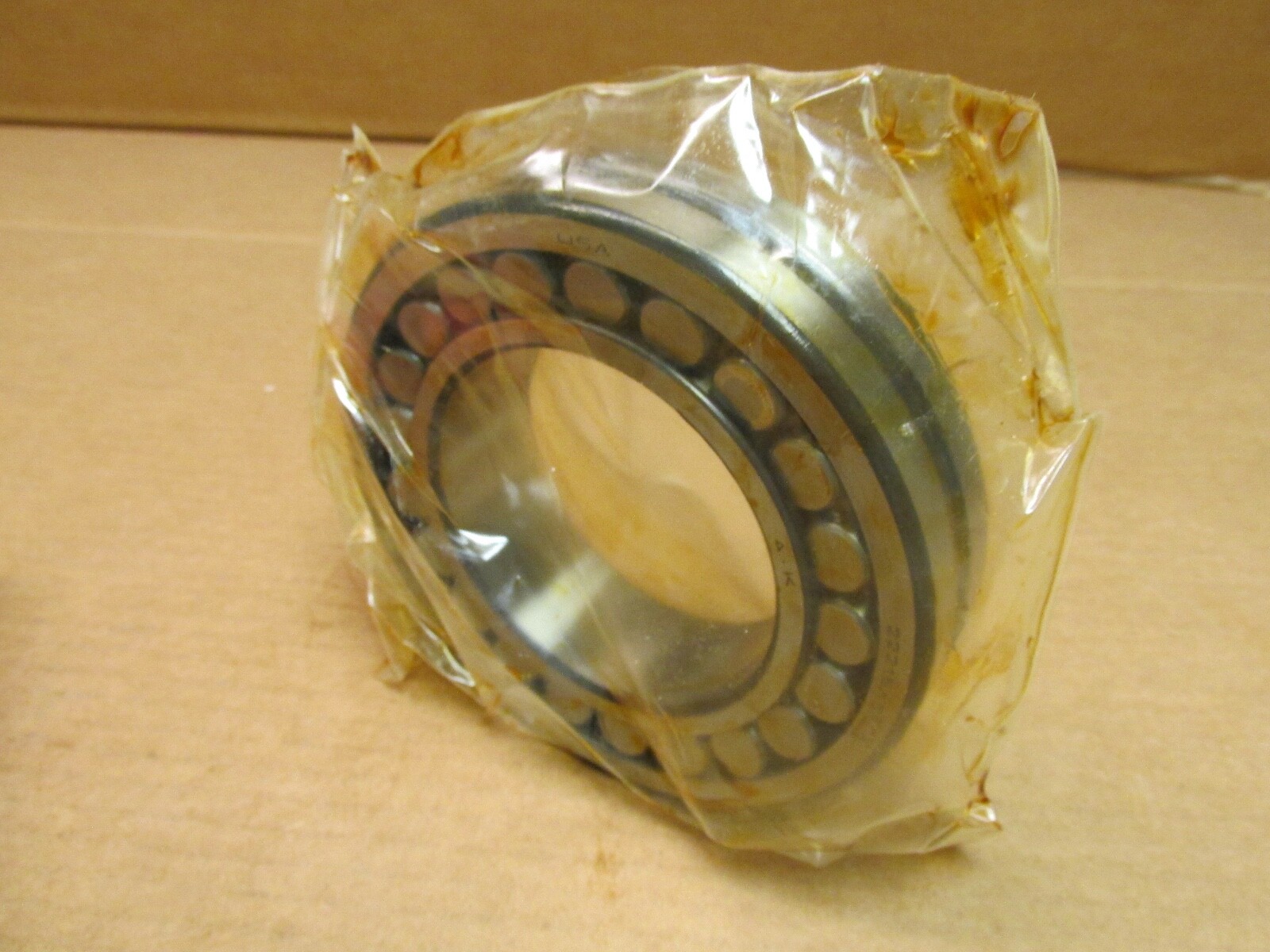

FAG 22216ASK.MB.C3 double-row spherical roller bearing with a 1:12 tapered bore, two-piece machined brass cage, outer-ring lubrication groove with three holes, and C3 radial internal clearance. Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 33 mm. Sold as 1 Pc: one complete non-separable bearing in an opened box, new old stock.
222 — double-row spherical roller bearing, ISO dimension series 22.
16 — bore code; 16 x 5 = 80 mm bore.
AS — FAG design index: lubrication groove in the outer ring outside diameter with lubrication holes through the outer ring.
K — tapered bore, taper 1:12.
MB — two-piece solid machined brass cage, guided on the inner ring.
C3 — radial internal clearance greater than normal.
Bearing Type: Spherical roller bearing, double row. Bore Diameter: 80 mm. Outside Diameter: 140 mm. Overall Width: 33 mm. Bore Type: Tapered, 1:12. Internal Clearance: C3. Cage Material: Machined brass. Cage Type: Two-piece, inner ring guided. Lubricant: Grease or oil. Number Of Rows: 2. Rolling Elements: Spherical roller. Closure Type: Open. Series: 222. Base Number: 22216. Unit Quantity: 1 Pc.
The 1:12 tapered bore mounts on an H316 adapter sleeve (70 mm shaft seat) with a KM16 locknut and MB16 lockwasher, or on a machined 1:12 tapered shaft seat. AH316 is the matching withdrawal sleeve.
Cross-references: SKF 22216 CAK/C3W33; NSK 22216 CAMKE4C3; NTN 22216 EMKW33C3; Timken 22216 KEMW33C3. Other ways the number is written: 22216ASKMBC3, 22216-AS-K-MB-C3, 22216 AS K MB C3, 22216AS.K.MB.C3.
80 mm bore, 140 mm outside diameter, 33 mm width, with a 1:12 tapered bore.
AS is the outer-ring lubrication groove with holes, K is the 1:12 tapered bore, MB is the two-piece machined brass cage and C3 is radial internal clearance greater than normal.
H316, which has a 70 mm shaft seat.
