SKF 22210 CK/W33 double-row spherical roller bearing, 50 x 90 x 23 mm, 1:12 tapered bore, CN clearance, W33 groove and three holes. Bearing only, 1 Pc.
List Price
$67.31
3 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | SKF |
|---|---|
| MPN | 22210 CK/W33 |
| Model | 22210 CK/W33 |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 50 mm |
| OD | 90 mm |
| Width | 23 mm |
| Material | Chrome Steel |
|---|---|
| Series | 22200 |
| Base Number | 22210 |
| Industry Terms | spherical roller bearing; taper bore spherical roller; adapter sleeve bearing; W33 relubricatable bearing; self-aligning roller bearing |
| Common Misspellings | SFK 22210CK/W33; 22210 CKW-33; 22210CK W3 |
| Application Types | Vibrating screens; conveyor pulleys and idlers; fans and blowers; gearboxes; plummer block shaft support |
| Bore Shaft Size | 50 mm (1.9685 in), 1:12 tapered bore |
| Mpn Variants | 22210-CKJ-W33; 22210CKW33; 22210 CK W33; 22210CK/W33; 22210-C-K-J-W33; 22210CCKW33 |
| Compatible With Replaces | Adapter sleeve SKF H310 (45 mm shaft seat), KM10 locknut, MB10 lockwasher |
| Cage Type | Window |
| Rolling Elements | Spherical Roller |
| Cage Material | Pressed steel |
| Number Of Rows | 2 |
| Bore Type | Tapered |
| Snap Ring Included | Without Snap Ring |
| Harmonization Code | 8482.30.00.40 |
| Internal Clearance | CN |
| Part Number | 22210 CK/W33 |
| Cross Reference 1 | NTN 22210BKD1 |
|---|---|
| Cross Reference 2 | FAG 22210-E1-XL-K - E1 XL uprated design |
| Cross Reference 3 | NSK 22210EAKE4 - EA high-capacity design |
| Cross Reference 4 | Timken 22210KEJW33 - E design |

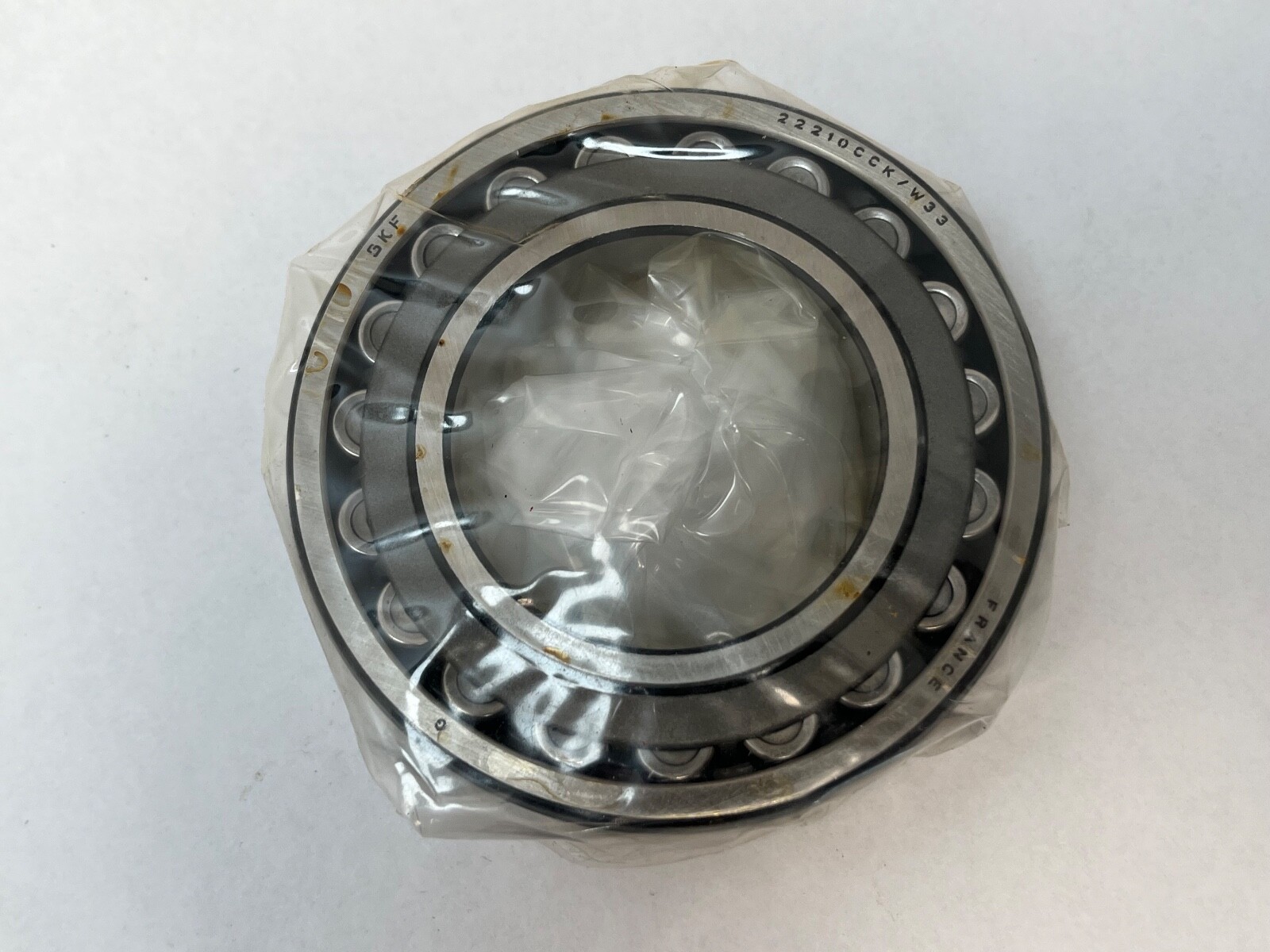

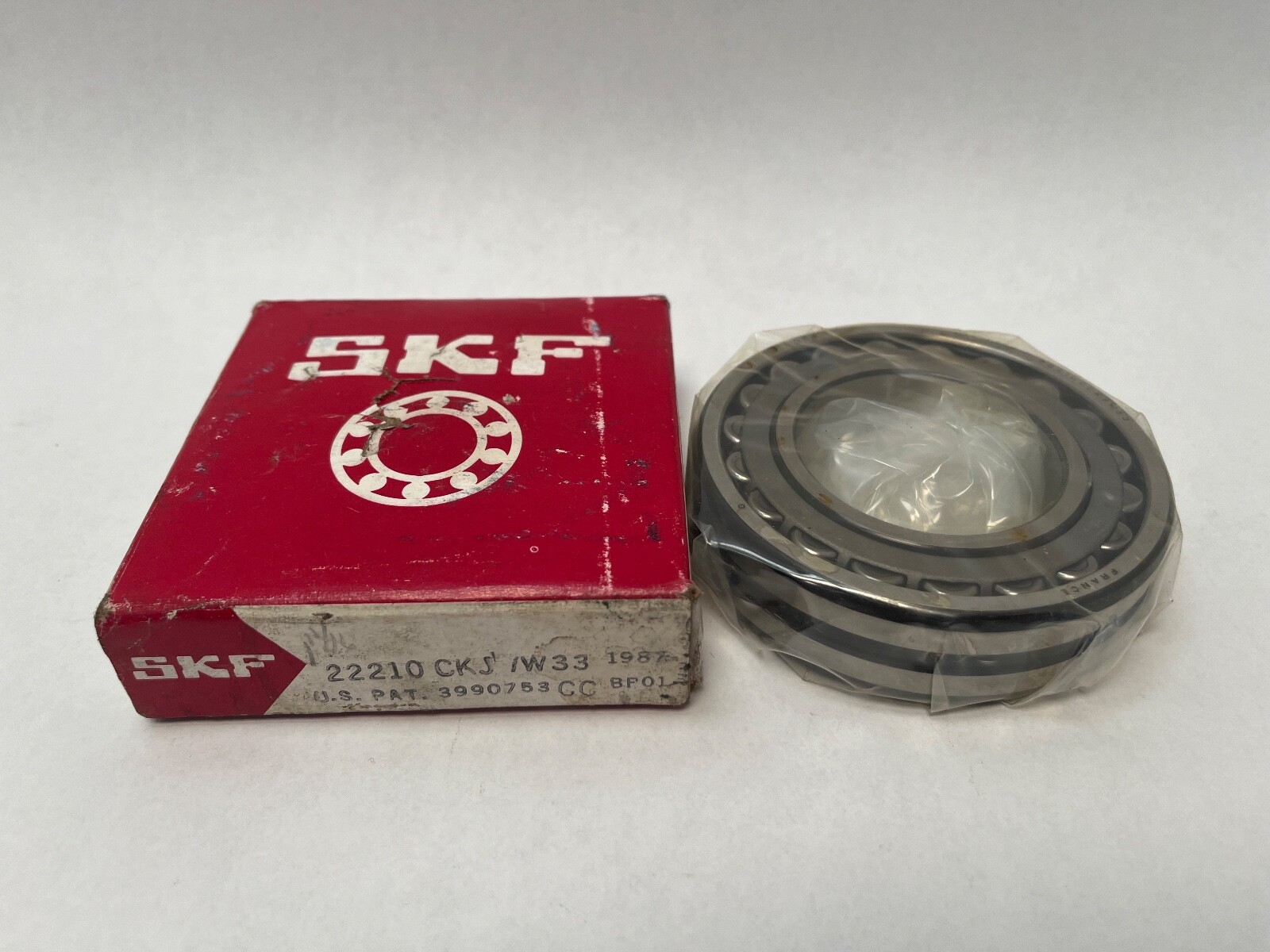

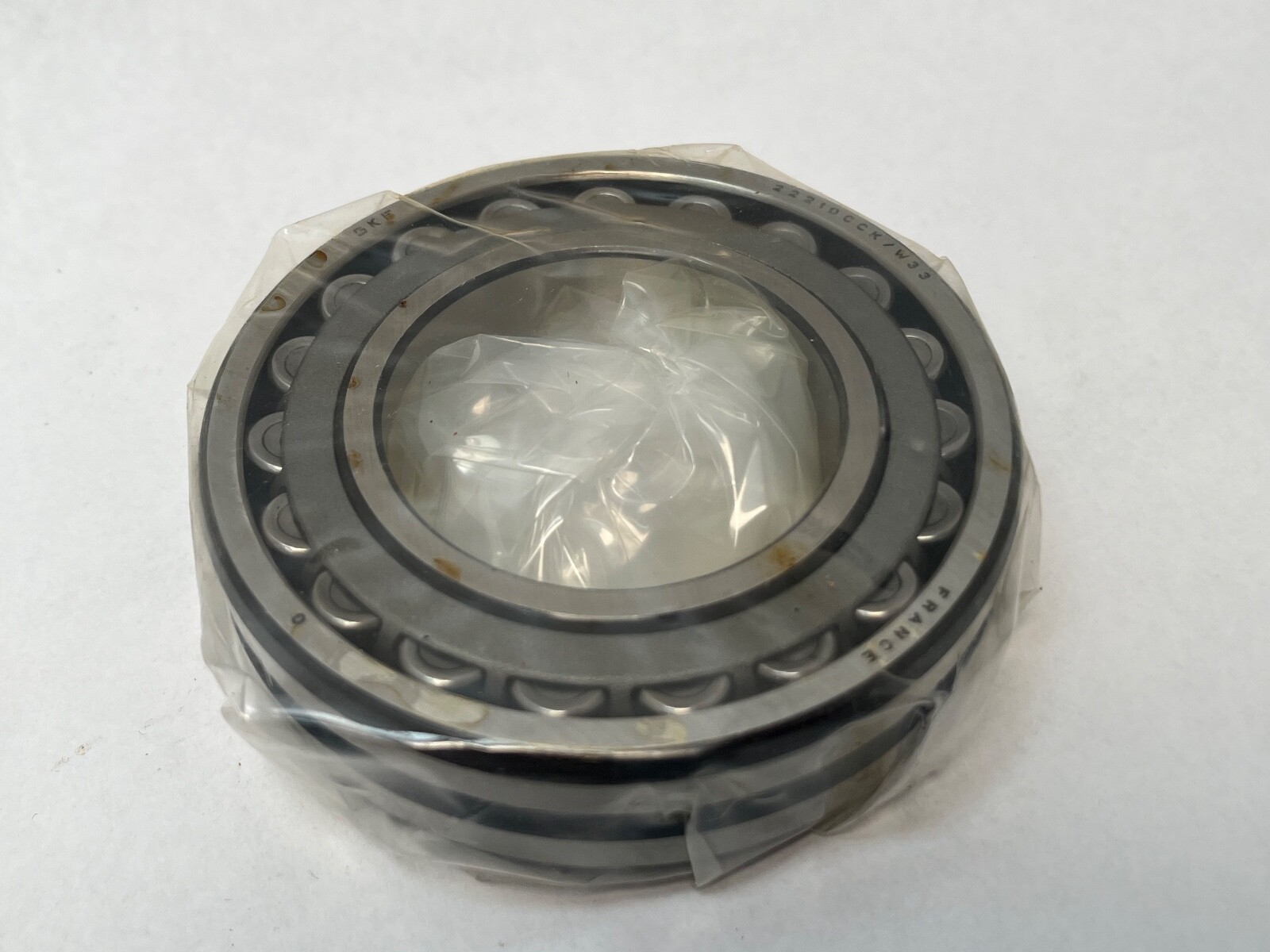

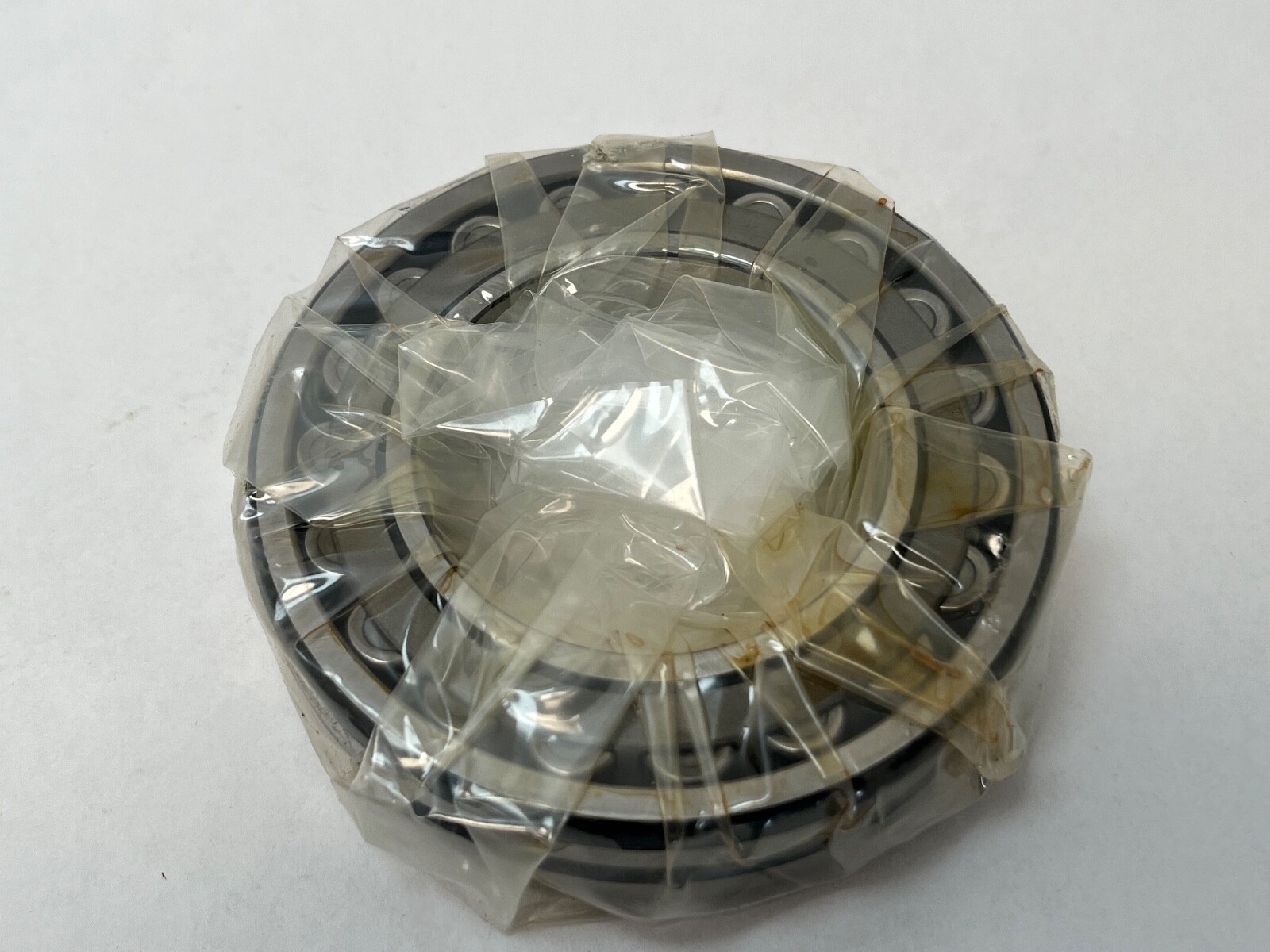

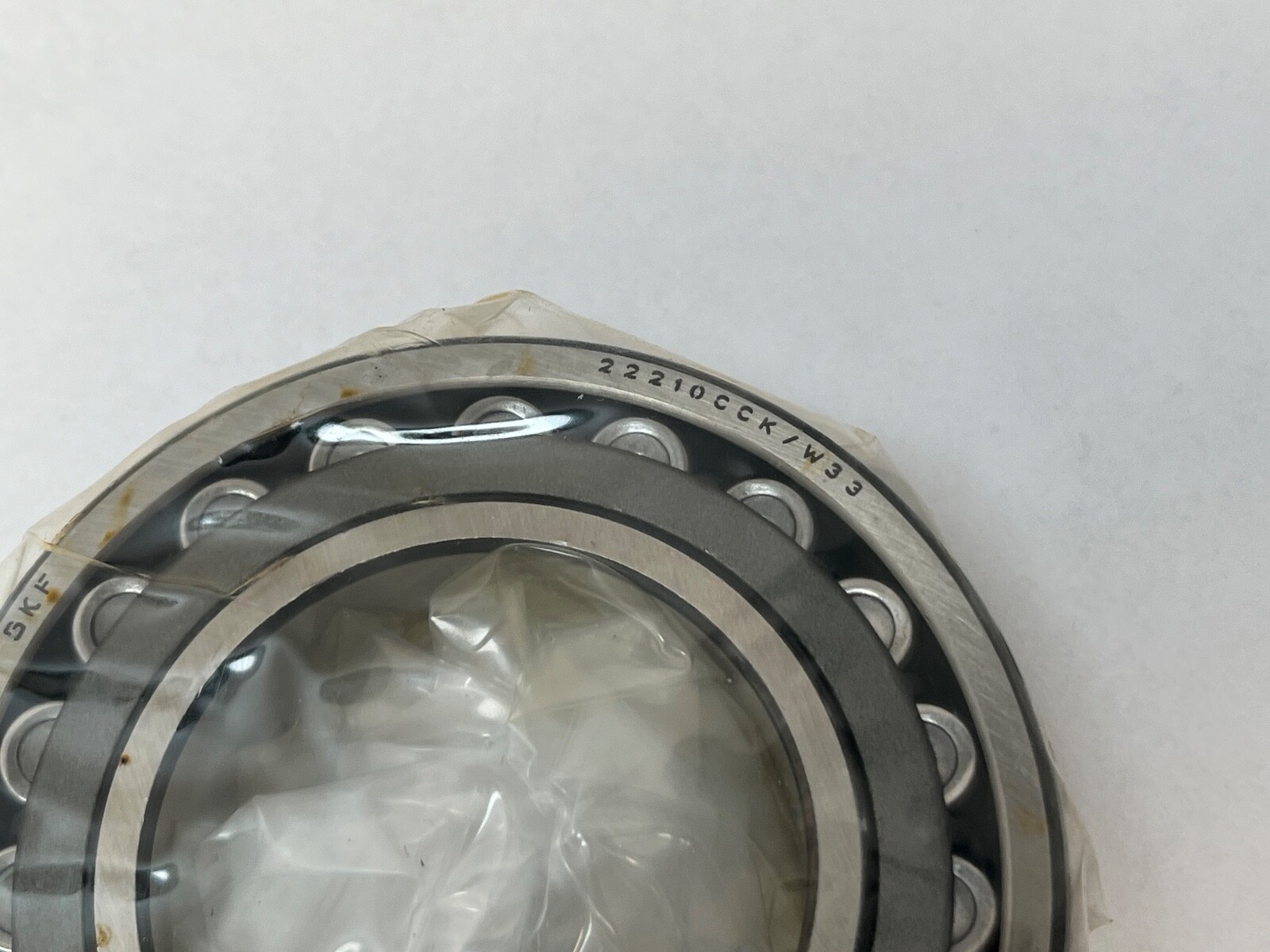

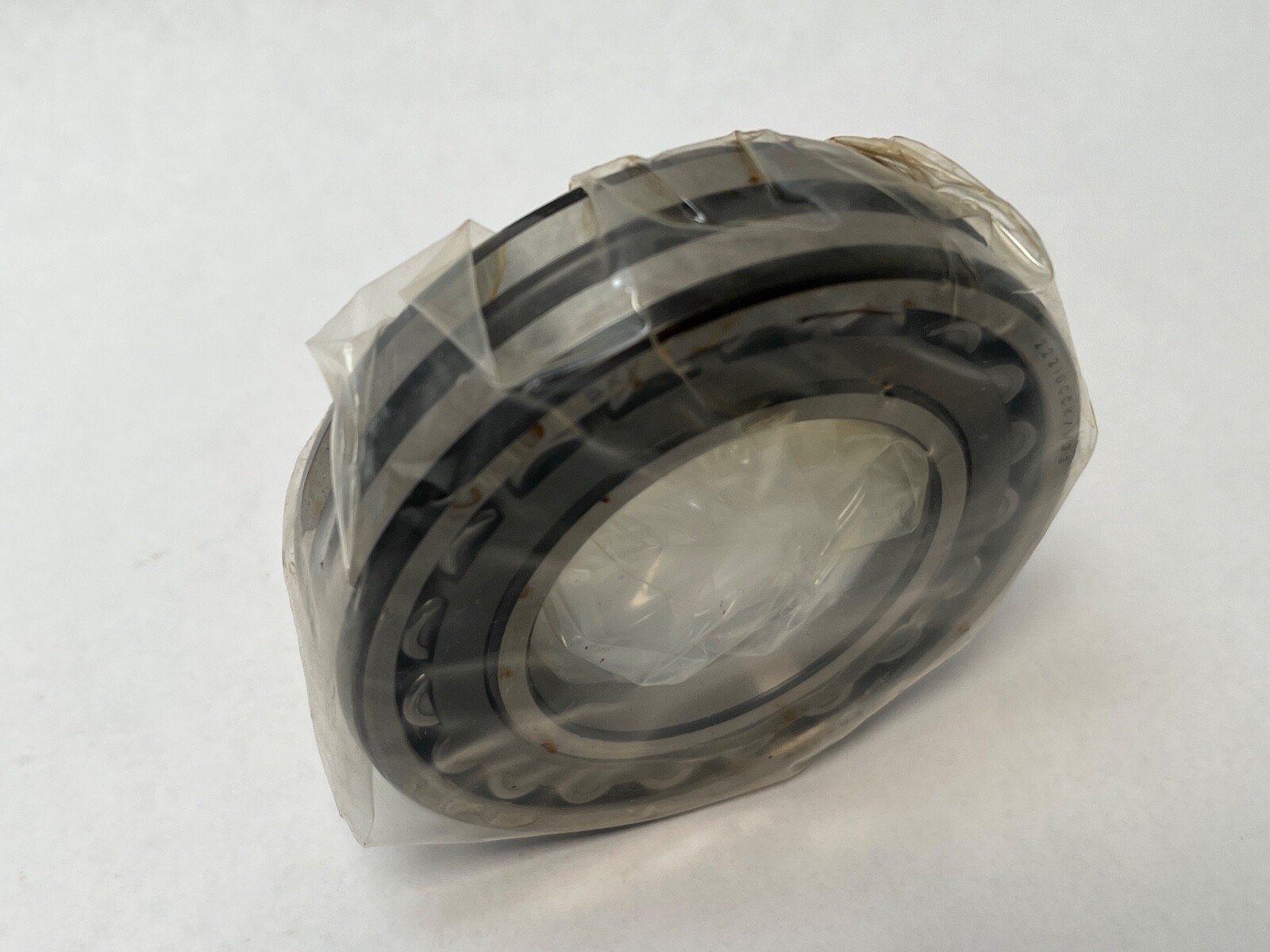

SKF 22210 CK/W33 double-row spherical roller bearing with a 50 mm tapered bore, 90 mm outside diameter and 23 mm width. Two rows of barrel-shaped rollers run on a common spherical raceway in the outer ring. Bearing only, Unit Quantity: 1 Pc.
222 — double-row spherical roller family.
10 — bore code, giving 50 mm.
C and J — pressed steel window cage.
K — 1:12 tapered bore.
W33 — circumferential lubrication groove in the outer ring with three radial lubrication holes.
No clearance suffix — normal radial internal clearance, CN.
Number Of Rows: 2. Rolling Elements: Spherical Roller. Bore Type: Tapered, 1:12. Internal Clearance: CN. Cage Material: Pressed steel. Cage Type: Window. Lubricant: grease or oil. Series: 222. Closure Type: Open.
Bore Diameter: 50 mm (1.9685 in). Outside Diameter: 90 mm. Width: 23 mm. Matching adapter sleeve: SKF H310, 45 mm shaft seat, with KM10 locknut and MB10 lockwasher.
Cross-references: NTN 22210BKD1; FAG 22210-E1-XL-K (E1 XL uprated design); NSK 22210EAKE4 (EA high-capacity design); Timken 22210KEJW33 (E design). All 50 mm tapered bore, 90 x 23 mm, with lubrication groove and holes. MPN variants: 22210-CKJ-W33, 22210CKW33, 22210 CK W33, 22210CK/W33, 22210-C-K-J-W33, 22210CCKW33.
Bore Diameter: 50 mm. Outside Diameter: 90 mm. Width: 23 mm.
A circumferential lubrication groove in the outer ring with three radial lubrication holes.
SKF H310, 45 mm shaft seat, with KM10 locknut and MB10 lockwasher.
