Double-row spherical roller bearing, 95 mm straight bore x 170 mm OD x 43 mm width, self-aligning, outer-ring lubrication groove and feed holes, open. 1 Pc.
List Price
$108.56
1 in stock
On the Shelf & Ready to Ship
On all orders
No Risk, No Hassle
| MFR / Brand | FAG |
|---|---|
| MPN | 22219-ES-TVPB |
| Model | 22219-ES-TVPB |
| Bearing Type | Spherical Roller Bearing, Open |
| ID | 95 mm |
| OD | 170 mm |
| Width | 43 mm |
| Material | Bearing Steel |
|---|---|
| Series | 22200 |
| Base Number | 22219 |
| Industry Terms | spherical roller bearing, self-aligning roller bearing, double row roller bearing, straight bore spherical bearing, plummer block bearing, W33 equivalent bearing |
| Common Misspellings | FAG 22219 ES TVBP, 22219ESTVBP, 22219-E-STVPB, 22219 EStvpb, FAG 2219ESTVPB |
| Application Types | Plummer block and split housing positions, conveyors, crushers, vibrating screens, fans, gearboxes, paper and steel mill machinery, long shafts with misalignment |
| Bore Shaft Size | 95 mm (3.740 in) |
| Mpn Variants | 22219ESTVPB, 22219-ES-TVPB, 22219ES.TVPB, 22219 ES TVPB, 22219ES-TVPB, 22219E, 22219 |
| Rolling Elements | Spherical roller |
| Number Of Rows | 2 |
| Bore Type | Straight cylindrical |
| Snap Ring Included | No |
| Internal Clearance | CN (normal) |
| Harmonization Code | 8482.30.00.80 |
| Part Number | 22219-ES-TVPB |
| Cross Reference 1 | NSK 22219EAE4 - pressed steel cage |
|---|---|
| Cross Reference 2 | Timken 22219EJW33 - pressed steel cage |

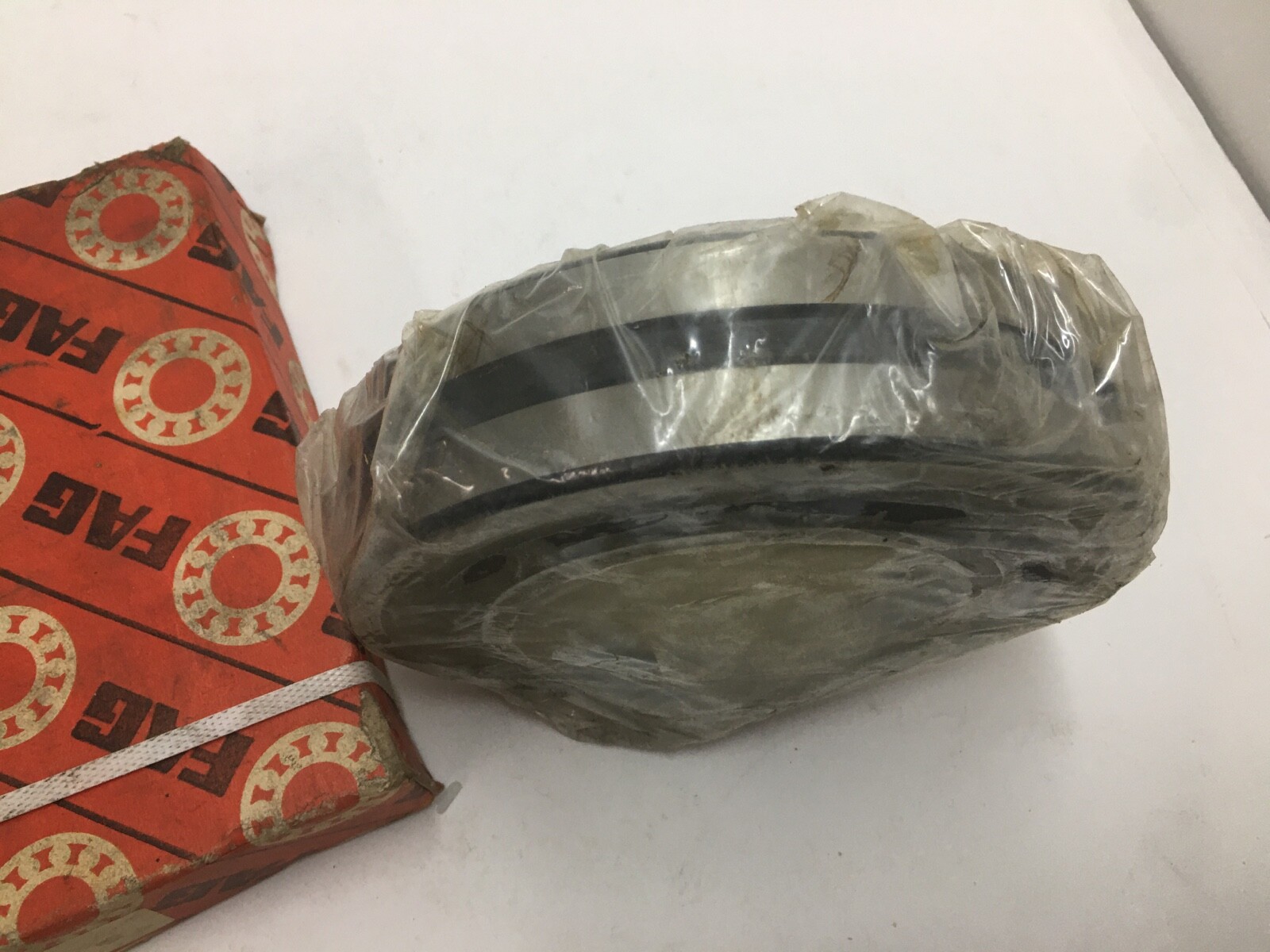

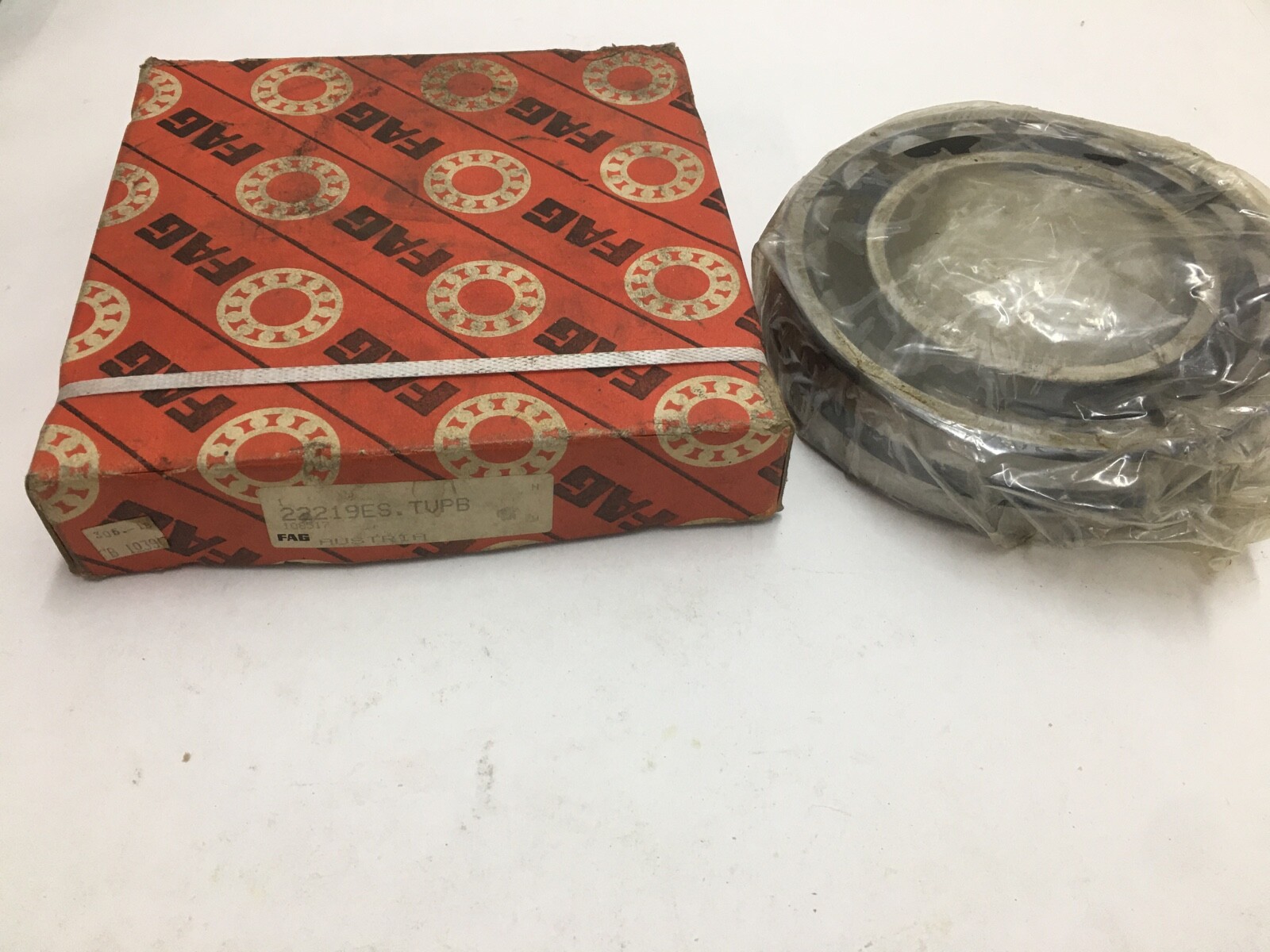

FAG 22219-ES-TVPB is a double-row spherical roller bearing, 95 mm bore, 170 mm outside diameter, 43 mm width. Straight cylindrical bore, open on both faces, glass-fibre reinforced polyamide cage, outer-ring lubrication groove with radial feed holes. Bearing only. Unit Quantity: 1 Pc.
222 — ISO dimension series 22, spherical roller bearing.
19 — bore code: 19 x 5 = 95 mm bore.
E — reinforced execution with a larger roller complement and higher load ratings than the original design of the same envelope.
S — FAG lubrication feature: a circumferential groove in the outer ring with radial feed holes into the raceway, the same arrangement other makers code as W33.

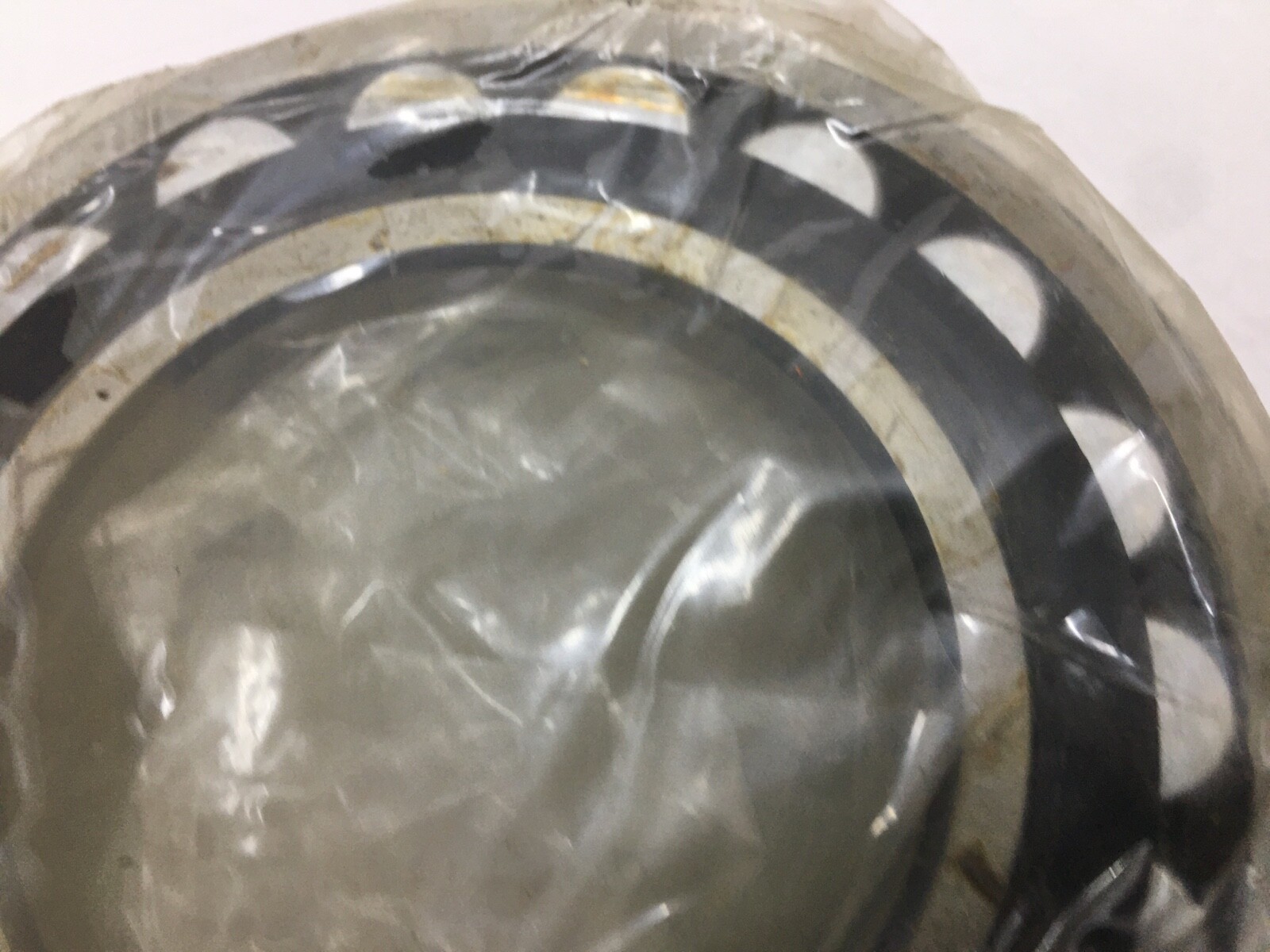

TVPB — glass-fibre reinforced polyamide cage.
No clearance suffix — normal clearance, CN.
Bore Diameter: 95 mm (3.740 in). Outside Diameter: 170 mm. Overall Width: 43 mm. Bore Type: Straight cylindrical. Number Of Rows: 2. Rolling Elements: Spherical Roller (barrel profile). Internal Clearance: CN (normal). Cage Material: Glass-fibre reinforced polyamide. Closure Type: Open. Lubricant: grease or oil. Dynamic Load Rating: 405,000 N (405 kN). Static Load Rating: 455,000 N (455 kN). Limiting Speed: 4,300 rpm. Item Weight: 3.87 kg (8.53 lb). Series: 22200.
Envelope: 95 x 170 x 43 mm. The straight bore seats directly on the shaft; no adapter sleeve, locknut or lockwasher applies. Load Direction: high radial load, axial load in both directions.
Same 95 x 170 x 43 mm reinforced envelope with an outer-ring lubrication feature: NSK 22219EAE4 and Timken 22219EJW33, both with a pressed steel cage. The K version of the 22219 has a 1:12 tapered bore and the 22300 series is a wider cross-section. MPN Variants: 22219ESTVPB, 22219-ES-TVPB, 22219ES.TVPB, 22219 ES TVPB, 22219ES-TVPB, 22219E, 22219.
No. It has a straight cylindrical bore of 95 mm and seats directly on the shaft.
A lubrication groove in the outer ring with radial feed holes, equivalent to the W33 feature.
A glass-fibre reinforced polyamide cage (TVPB).
